Page 4193 of 5621

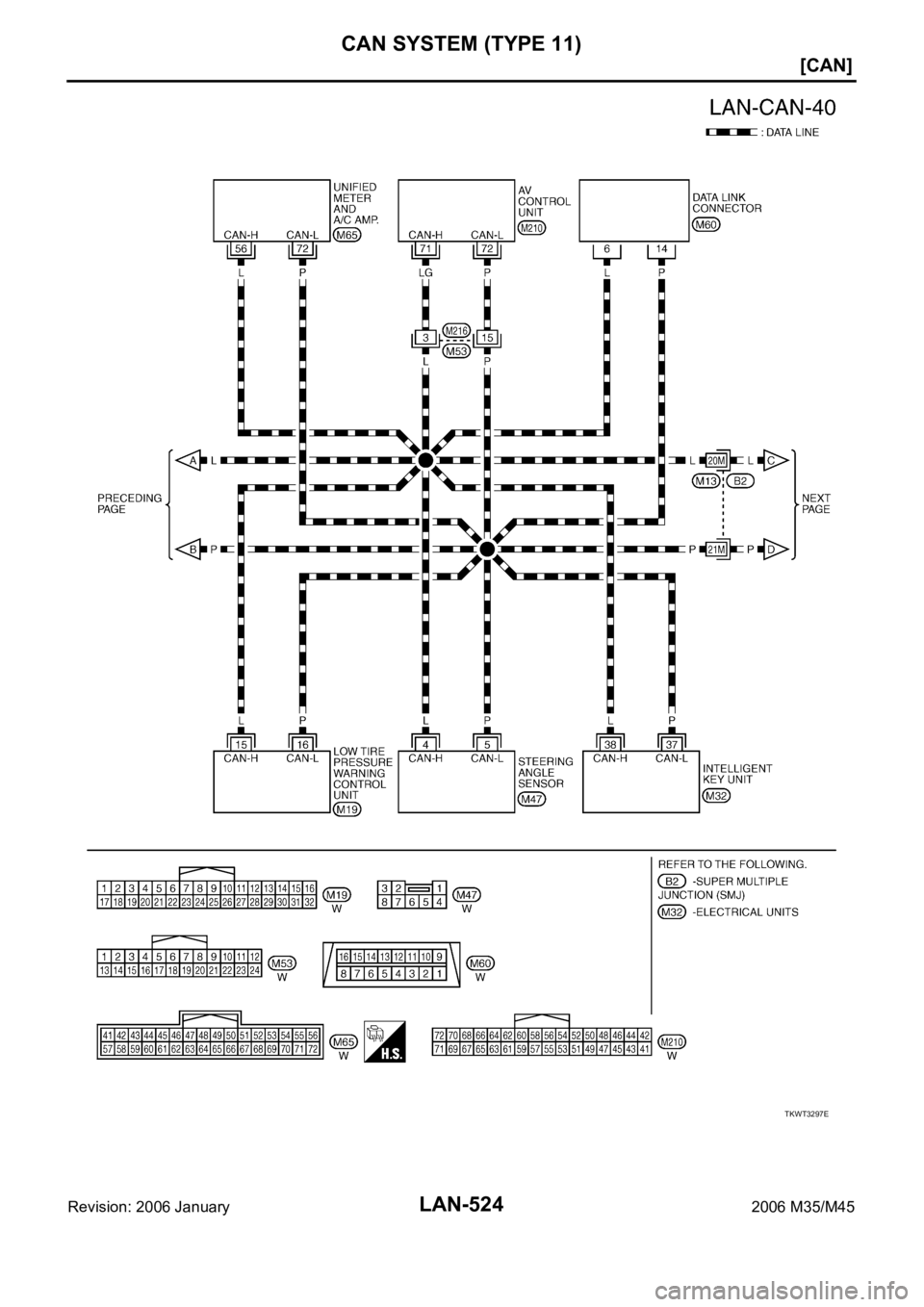

INFINITI M35 2006 Factory Service Manual LAN-524 [CAN] CAN SYSTEM (TYPE 11) Revision: 2006 January2006 M35/M45 TKWT3297E

Page 4194 of 5621

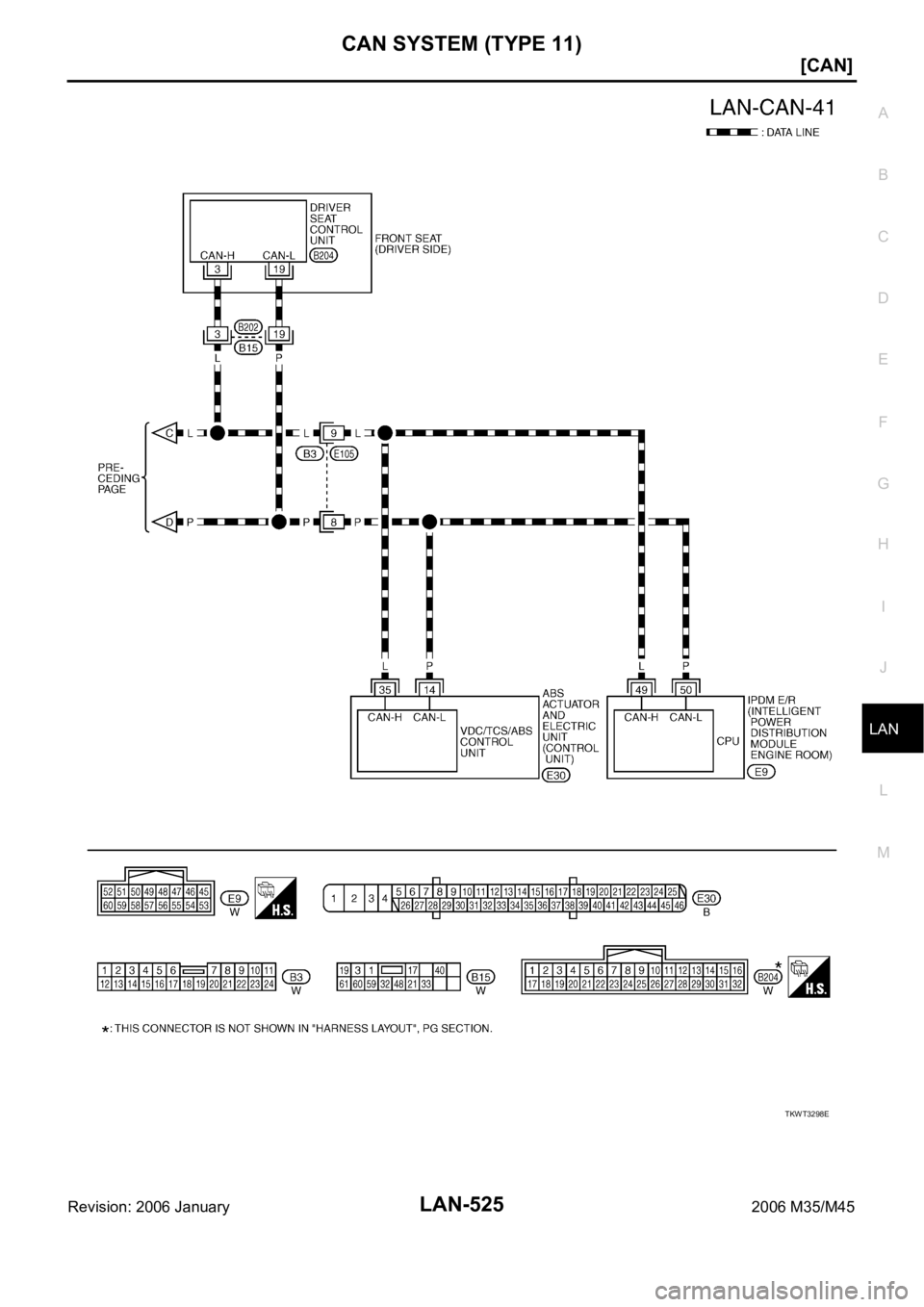

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 11) LAN-525 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 TKWT3298E

Page 4195 of 5621

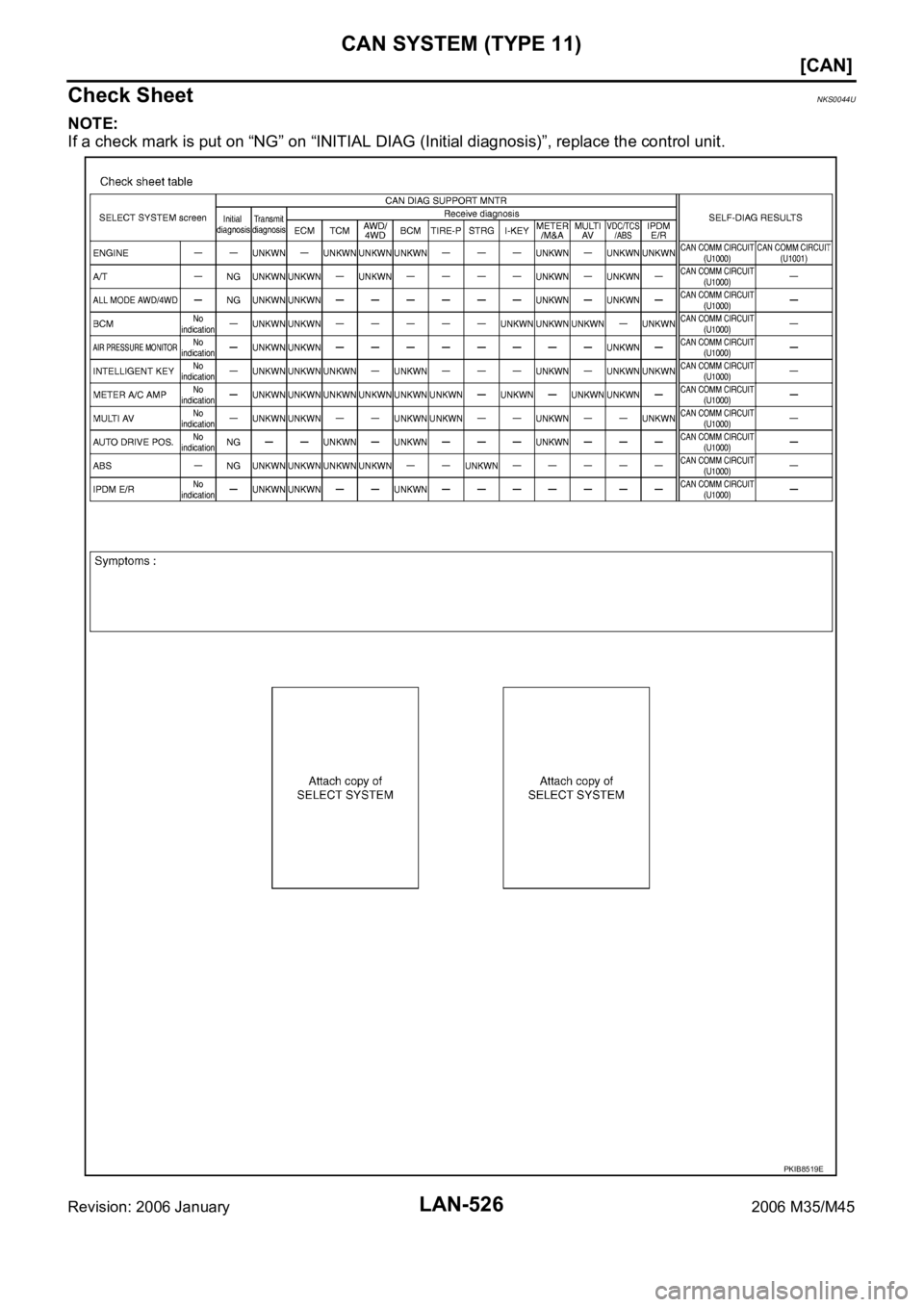

INFINITI M35 2006 Factory Service Manual LAN-526 [CAN] CAN SYSTEM (TYPE 11) Revision: 2006 January2006 M35/M45 Check SheetNKS0044U NOTE: If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.

Page 4196 of 5621

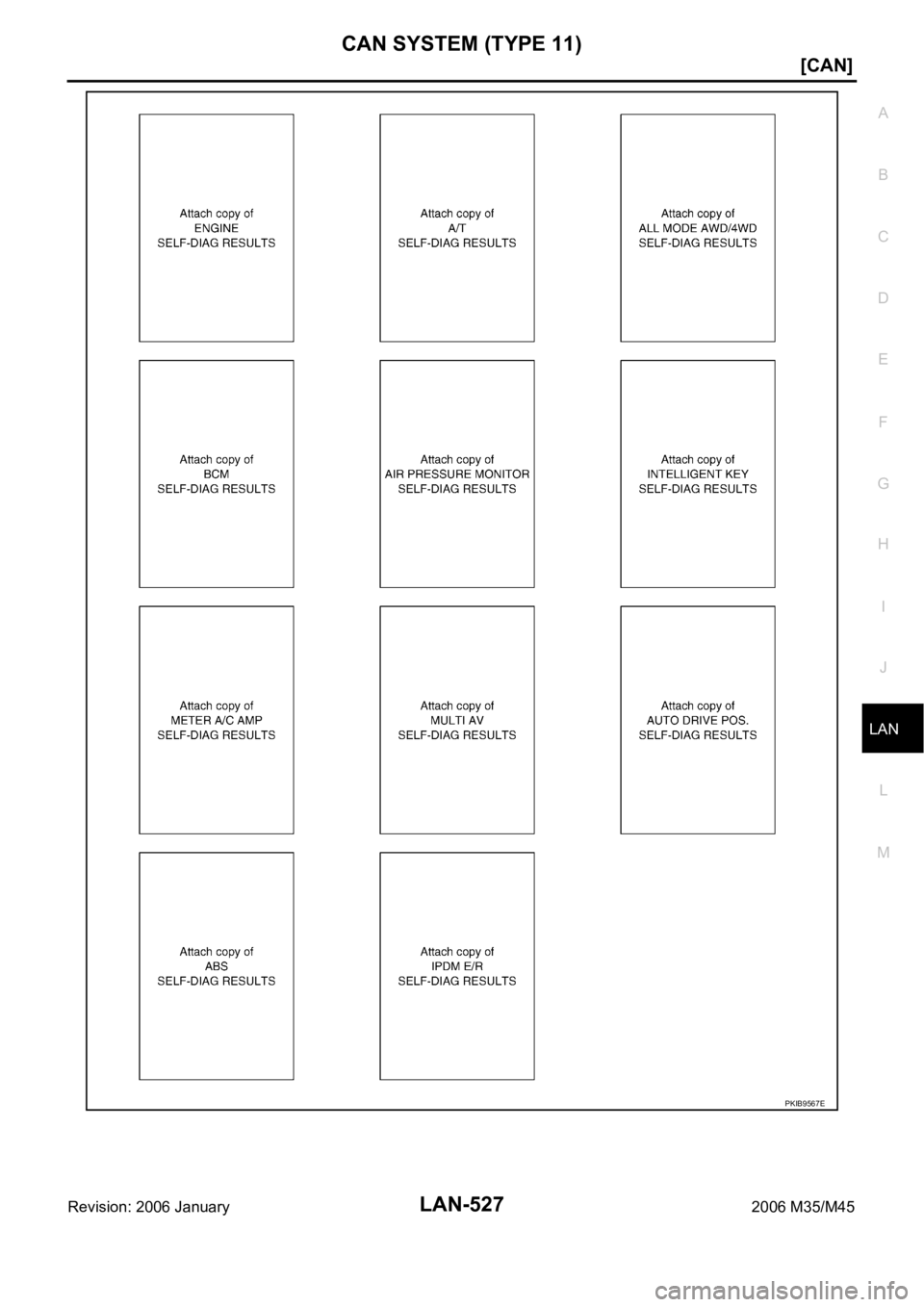

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 11) LAN-527 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 PKIB9567E

Page 4197 of 5621

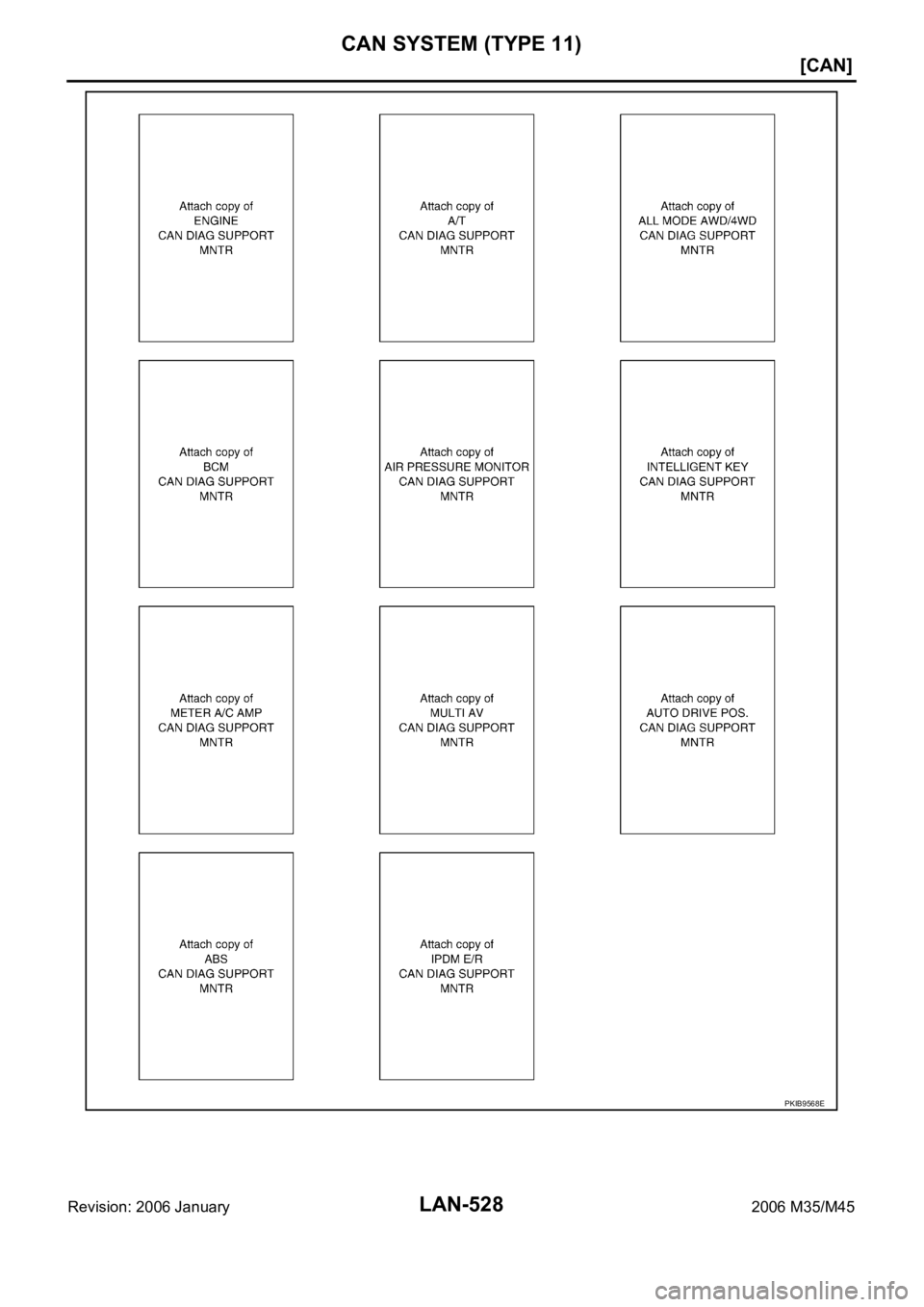

INFINITI M35 2006 Factory Service Manual LAN-528 [CAN] CAN SYSTEM (TYPE 11) Revision: 2006 January2006 M35/M45 PKIB9568E

Page 4198 of 5621

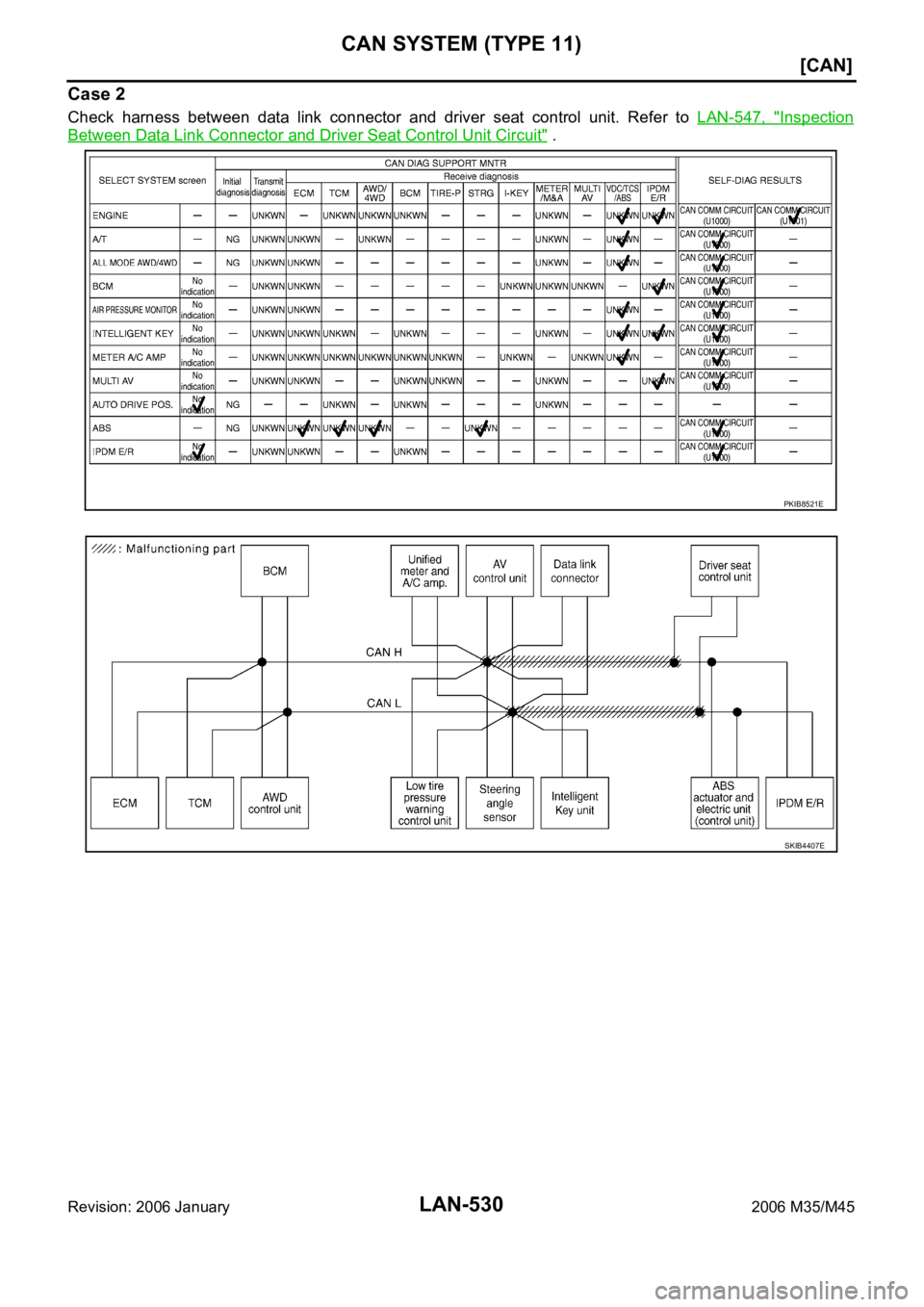

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 11) LAN-529 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 CHECK SHEET RESULTS (EXAMPLE) NOTE: If a check mark is put on “NG” on “INITIAL DIAG (Initial diag

Page 4199 of 5621

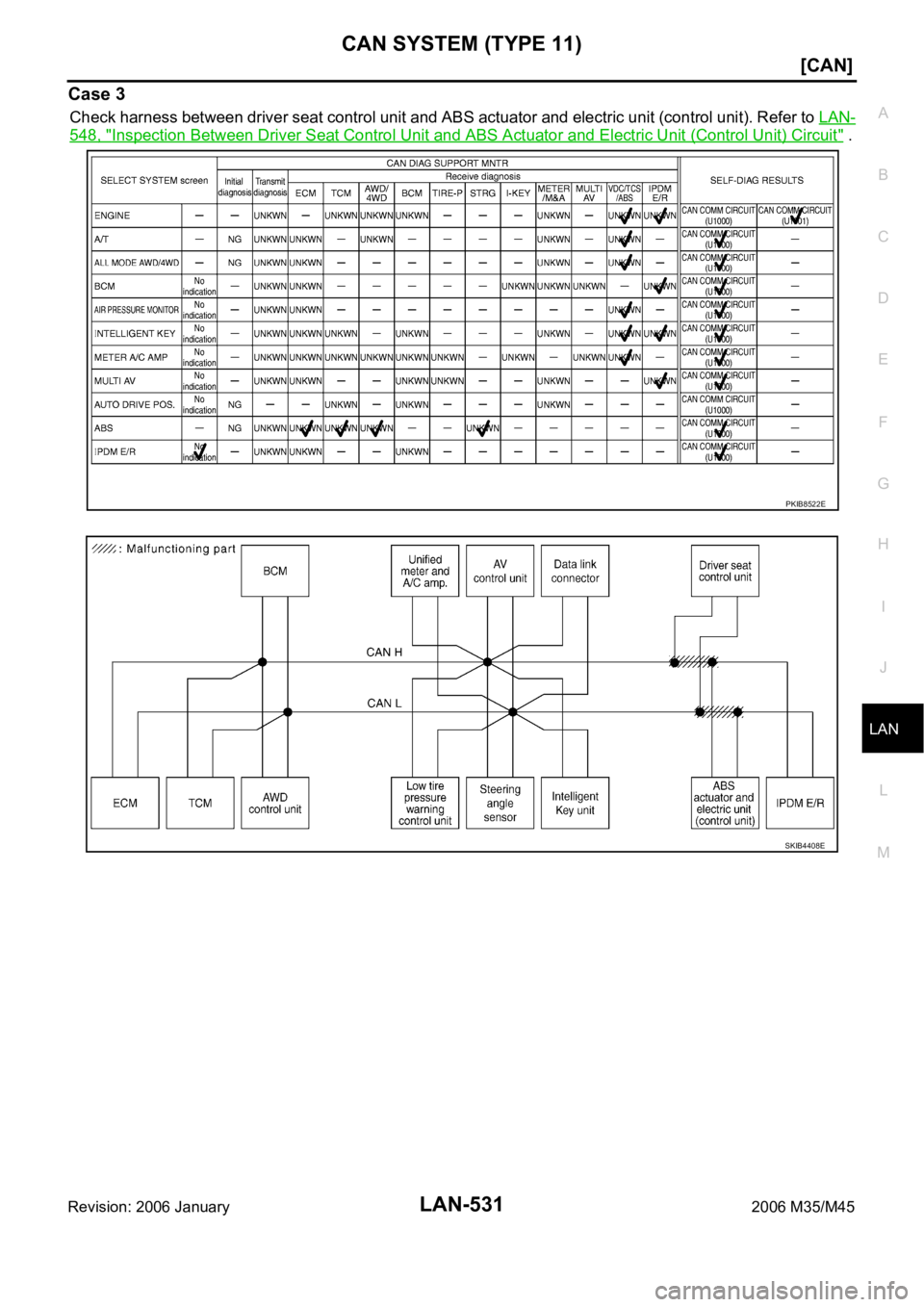

INFINITI M35 2006 Factory Service Manual LAN-530 [CAN] CAN SYSTEM (TYPE 11) Revision: 2006 January2006 M35/M45 Case 2 Check harness between data link connector and driver seat control unit. Refer to LAN-547, "Inspection Betw

Page 4200 of 5621

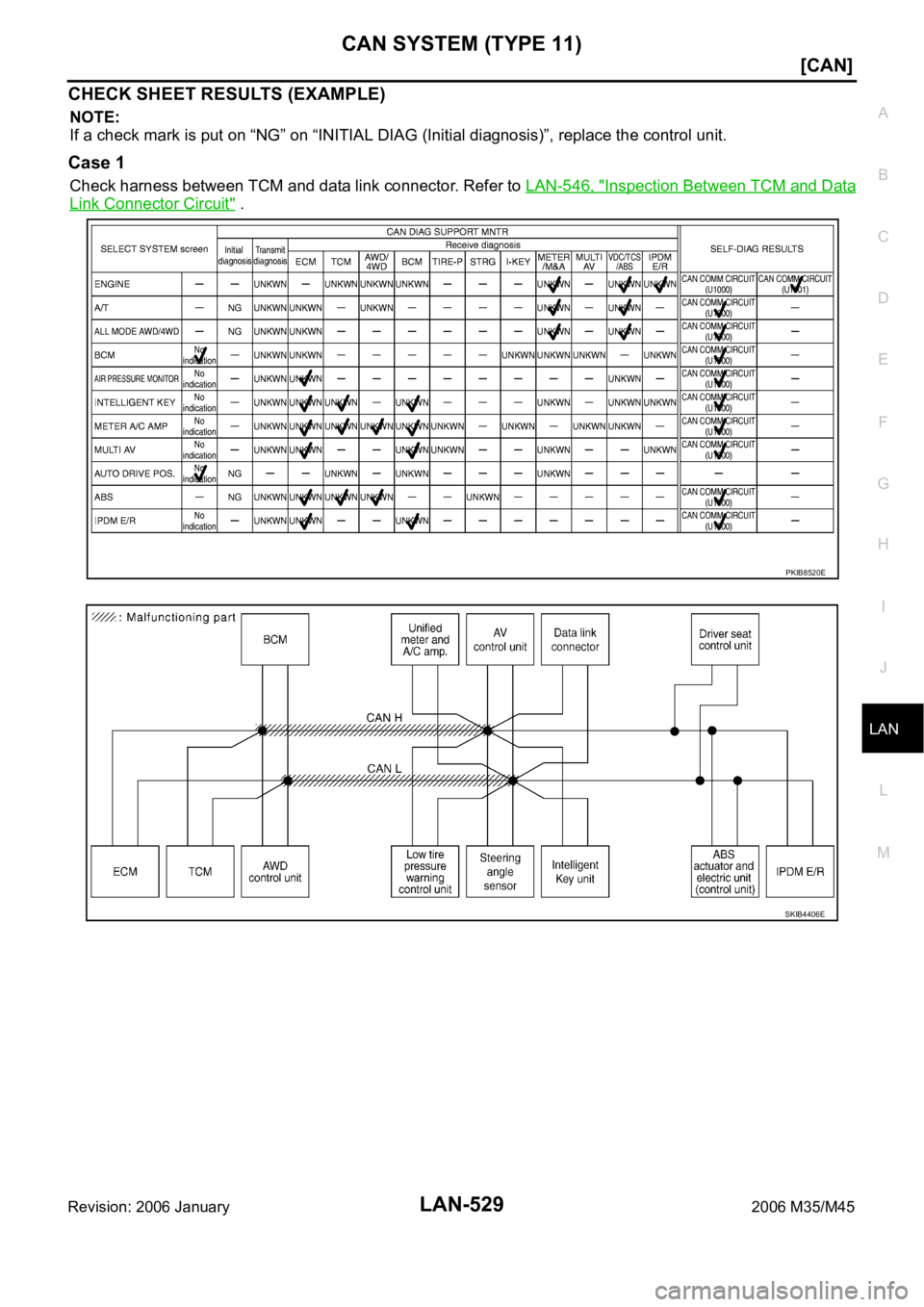

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 11) LAN-531 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 Case 3 Check harness between driver seat control unit and ABS actuator and electric unit (control unit)
