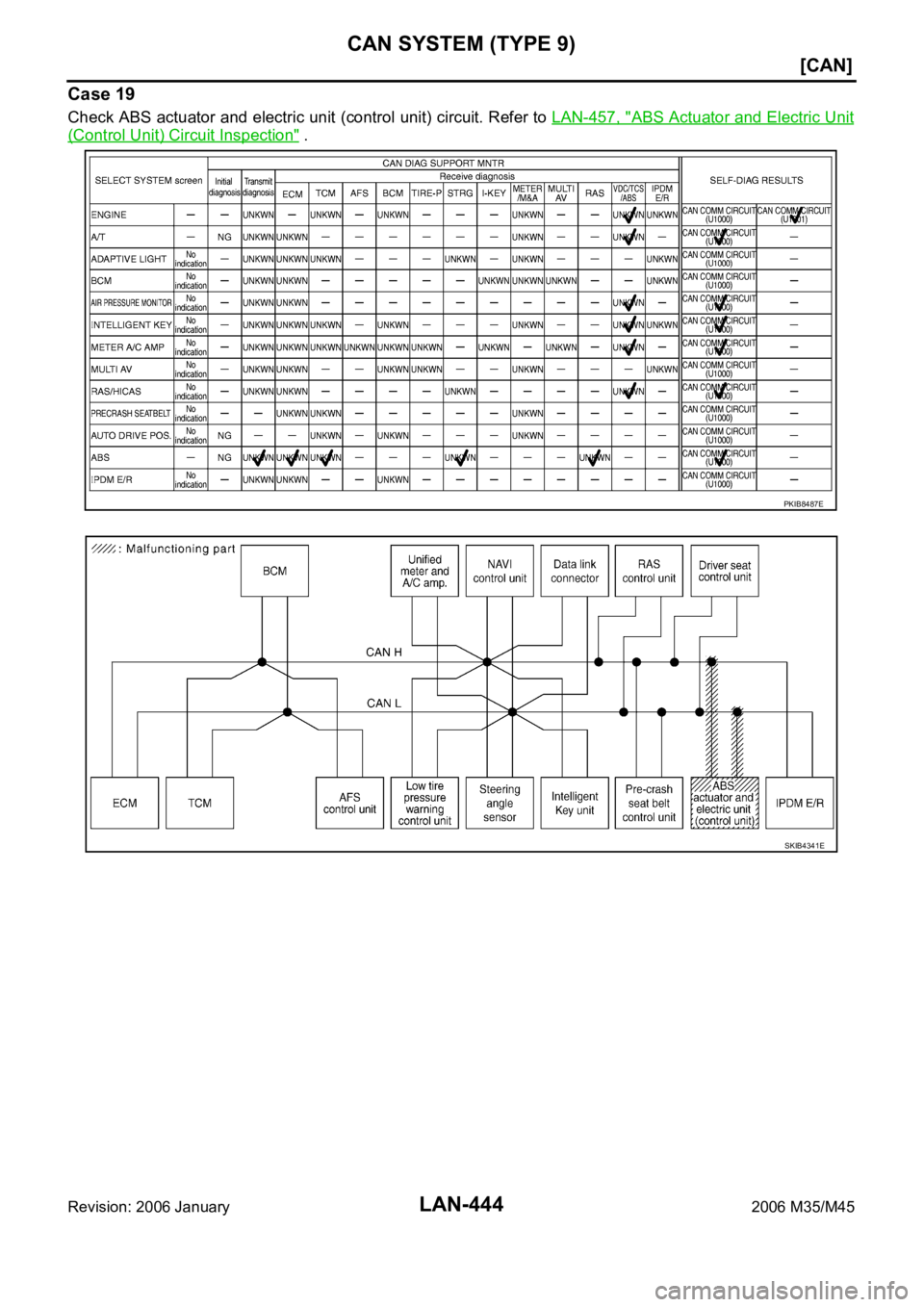

Page 4113 of 5621

INFINITI M35 2006 Factory Service Manual LAN-444 [CAN] CAN SYSTEM (TYPE 9) Revision: 2006 January2006 M35/M45 Case 19 Check ABS actuator and electric unit (control unit) circuit. Refer to LAN-457, "ABS Actuator and Electric Unit (Contro

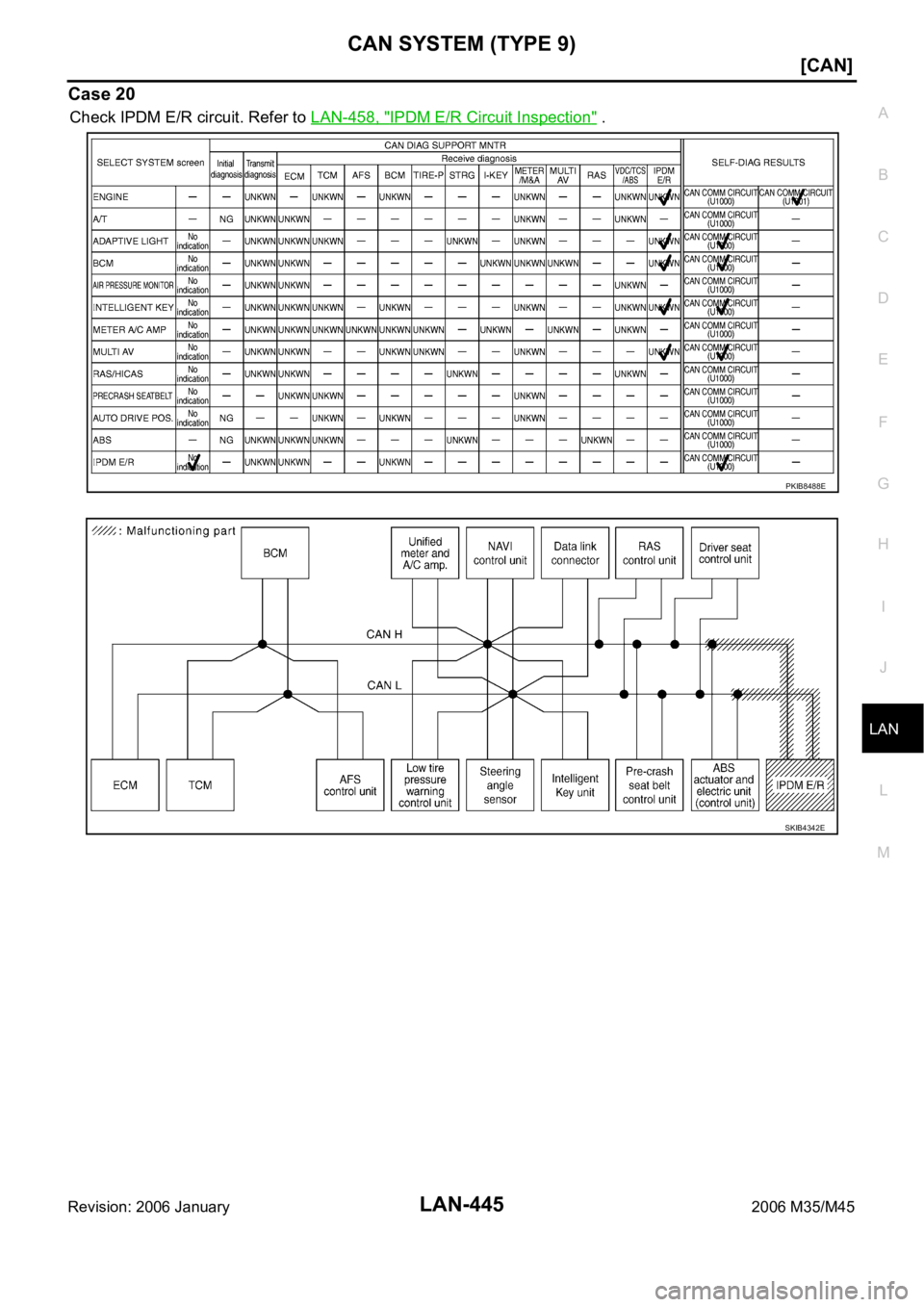

Page 4114 of 5621

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 9) LAN-445 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 Case 20 Check IPDM E/R circuit. Refer to LAN-458, "IPDM E/R Circuit Inspection" . PKIB8488E SKIB

Page 4115 of 5621

INFINITI M35 2006 Factory Service Manual LAN-446 [CAN] CAN SYSTEM (TYPE 9) Revision: 2006 January2006 M35/M45 Case 21 Check CAN communication circuit. Refer to LAN-459, "CAN Communication Circuit Inspection" . Case 22 Check IPDM E/R

Page 4116 of 5621

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 9) LAN-447 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 Case 23 Check IPDM E/R ignition relay circuit continuously sticks “ON”. Refer to LAN-466,

Page 4117 of 5621

INFINITI M35 2006 Factory Service Manual LAN-448 [CAN] CAN SYSTEM (TYPE 9) Revision: 2006 January2006 M35/M45 3. CHECK HARNESS FOR OPEN CIRCUIT Check continuity between harness connector (A) and data link con- nector (B). OK or NG O

Page 4118 of 5621

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 9) LAN-449 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 Inspection Between RAS Control Unit and Pre-Crash Seat Belt Control Unit Cir- cuit NKS0043E 1. CHECK CON

Page 4119 of 5621

INFINITI M35 2006 Factory Service Manual LAN-450 [CAN] CAN SYSTEM (TYPE 9) Revision: 2006 January2006 M35/M45 Inspection Between Driver seat control unit and ABS Actuator and Electric Unit (Control Unit) Circuit NKS0043G 1. CHECK CONNECTOR

Page 4120 of 5621

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 9) LAN-451 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 2. CHECK HARNESS FOR OPEN CIRCUIT 1. Disconnect ECM connector. 2. Check resistance between ECM harness c
