Page 3841 of 5621

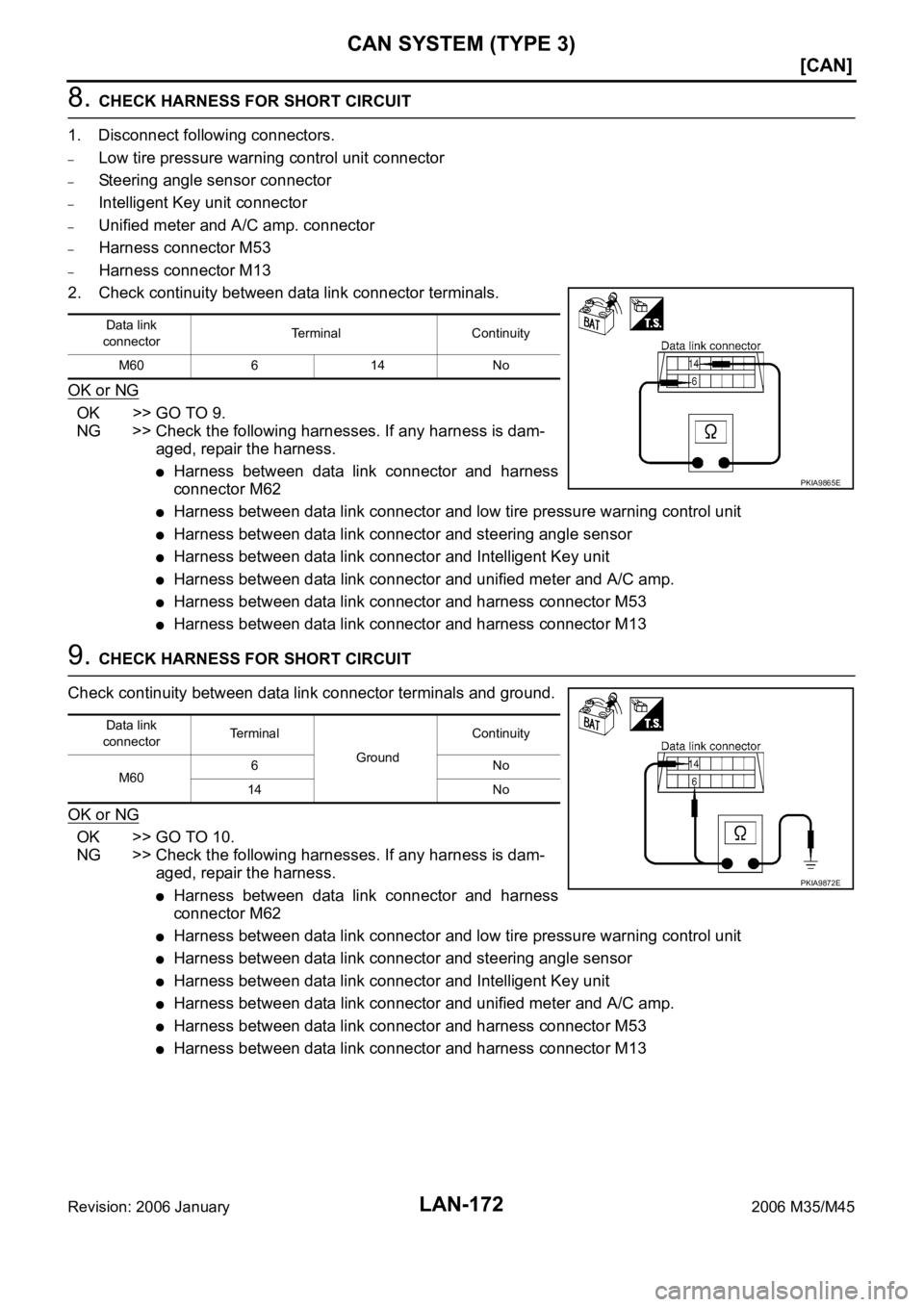

INFINITI M35 2006 Factory Service Manual LAN-172 [CAN] CAN SYSTEM (TYPE 3) Revision: 2006 January2006 M35/M45 8. CHECK HARNESS FOR SHORT CIRCUIT 1. Disconnect following connectors. –Low tire pressure warning control unit connector –Steer

Page 3842 of 5621

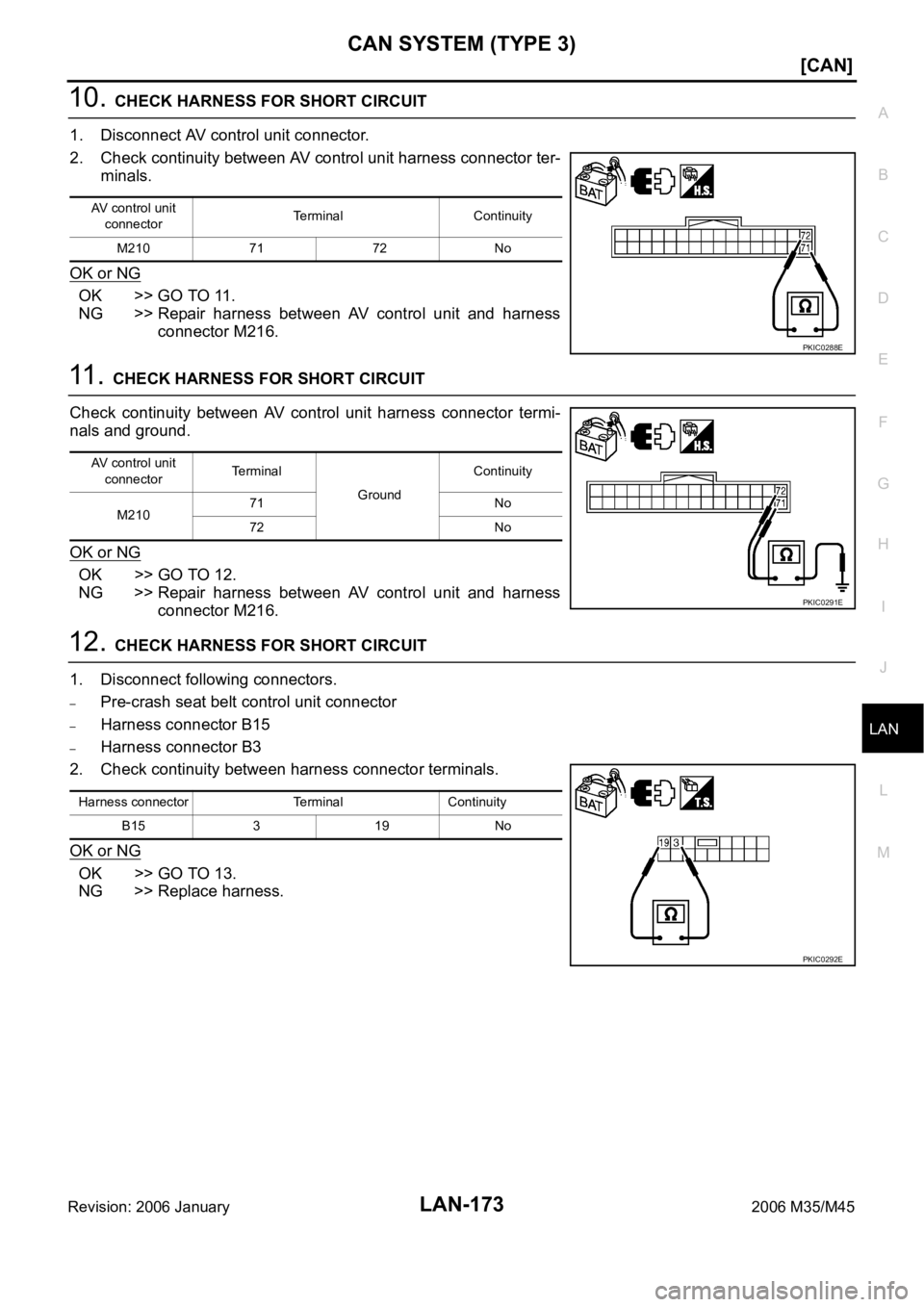

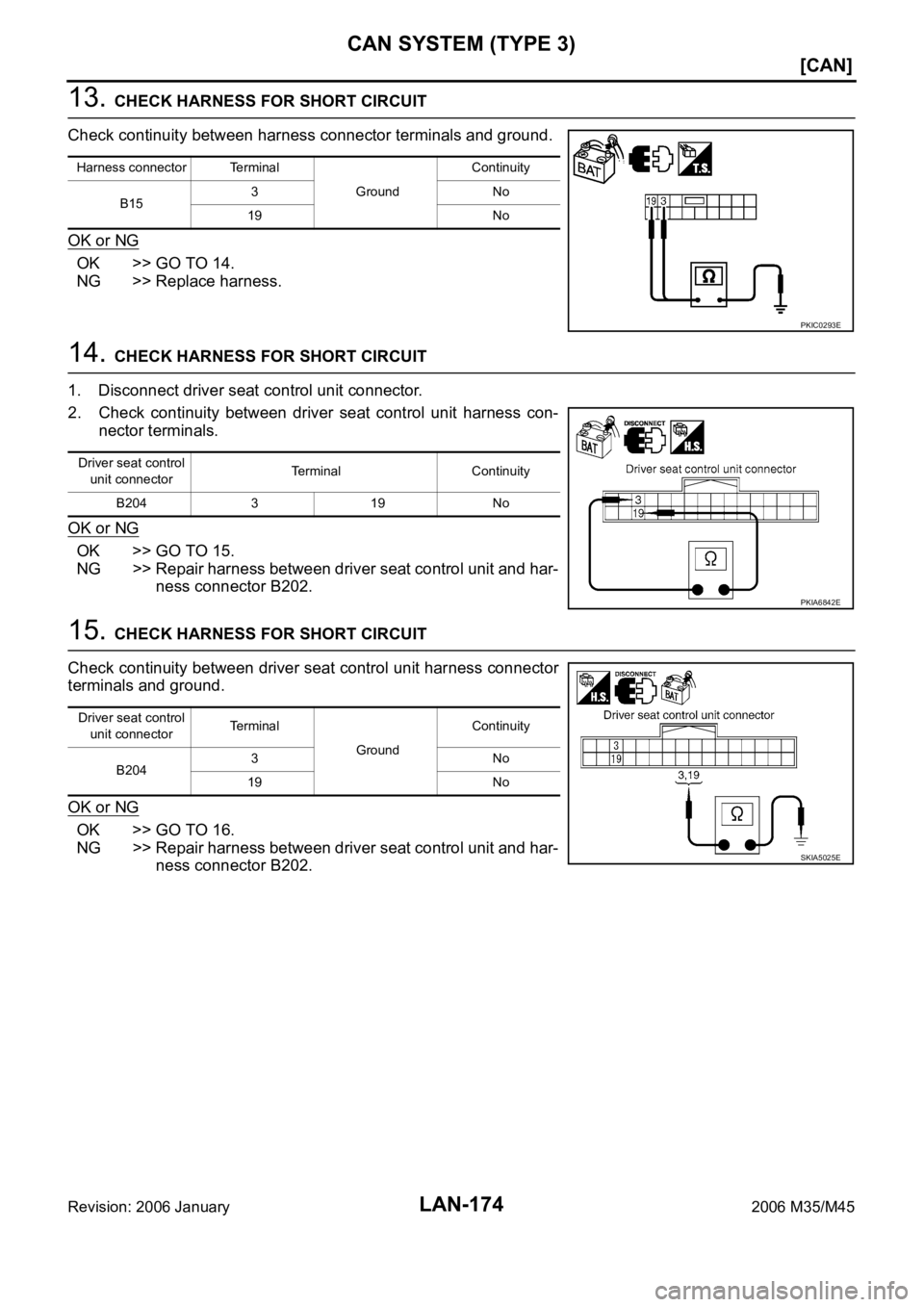

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 3) LAN-173 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 10. CHECK HARNESS FOR SHORT CIRCUIT 1. Disconnect AV control unit connector. 2. Check continuity between

Page 3843 of 5621

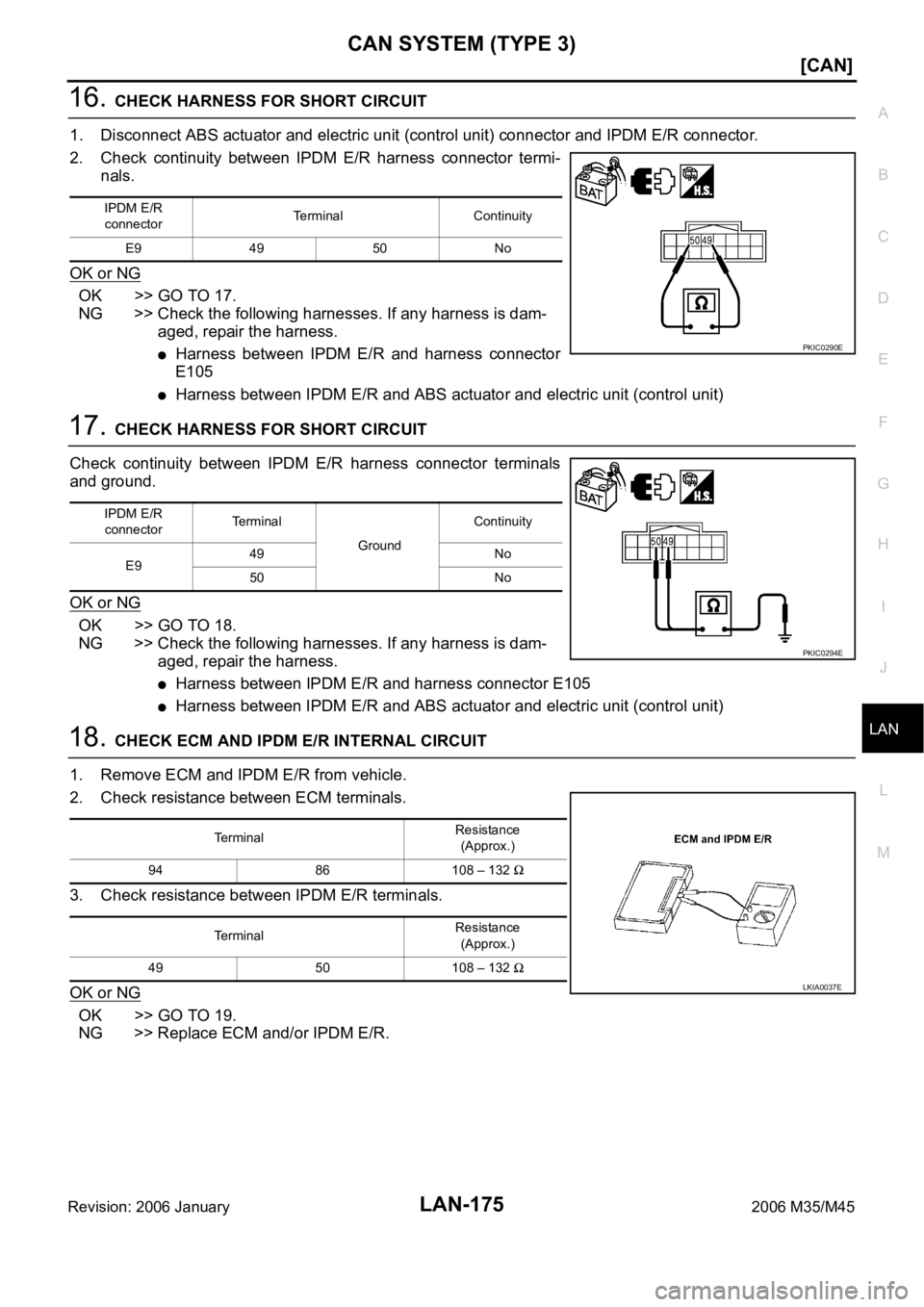

INFINITI M35 2006 Factory Service Manual LAN-174 [CAN] CAN SYSTEM (TYPE 3) Revision: 2006 January2006 M35/M45 13. CHECK HARNESS FOR SHORT CIRCUIT Check continuity between harness connector terminals and ground. OK or NG OK >> GO TO 14. NG >>

Page 3844 of 5621

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 3) LAN-175 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 16. CHECK HARNESS FOR SHORT CIRCUIT 1. Disconnect ABS actuator and electric unit (control unit) connecto

Page 3845 of 5621

INFINITI M35 2006 Factory Service Manual LAN-176 [CAN] CAN SYSTEM (TYPE 3) Revision: 2006 January2006 M35/M45 19. CHECK SYMPTOM 1. Fill in described symptoms on the column “Symptom” in the check sheet. 2. Connect all connectors, and then

Page 3846 of 5621

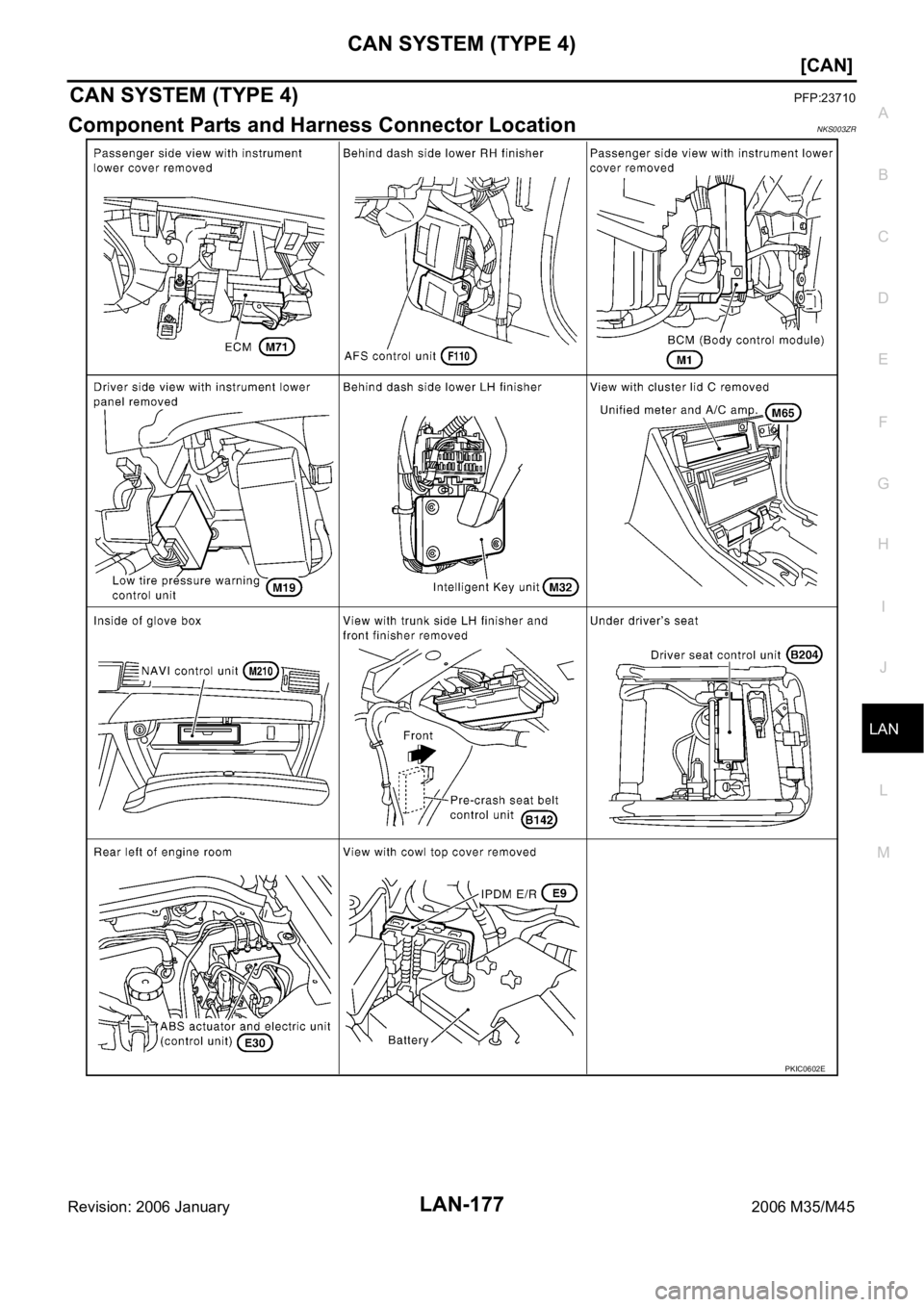

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 4) LAN-177 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 CAN SYSTEM (TYPE 4)PFP:23710 Component Parts and Harness Connector LocationNKS003ZR PKIC0602E

Page 3847 of 5621

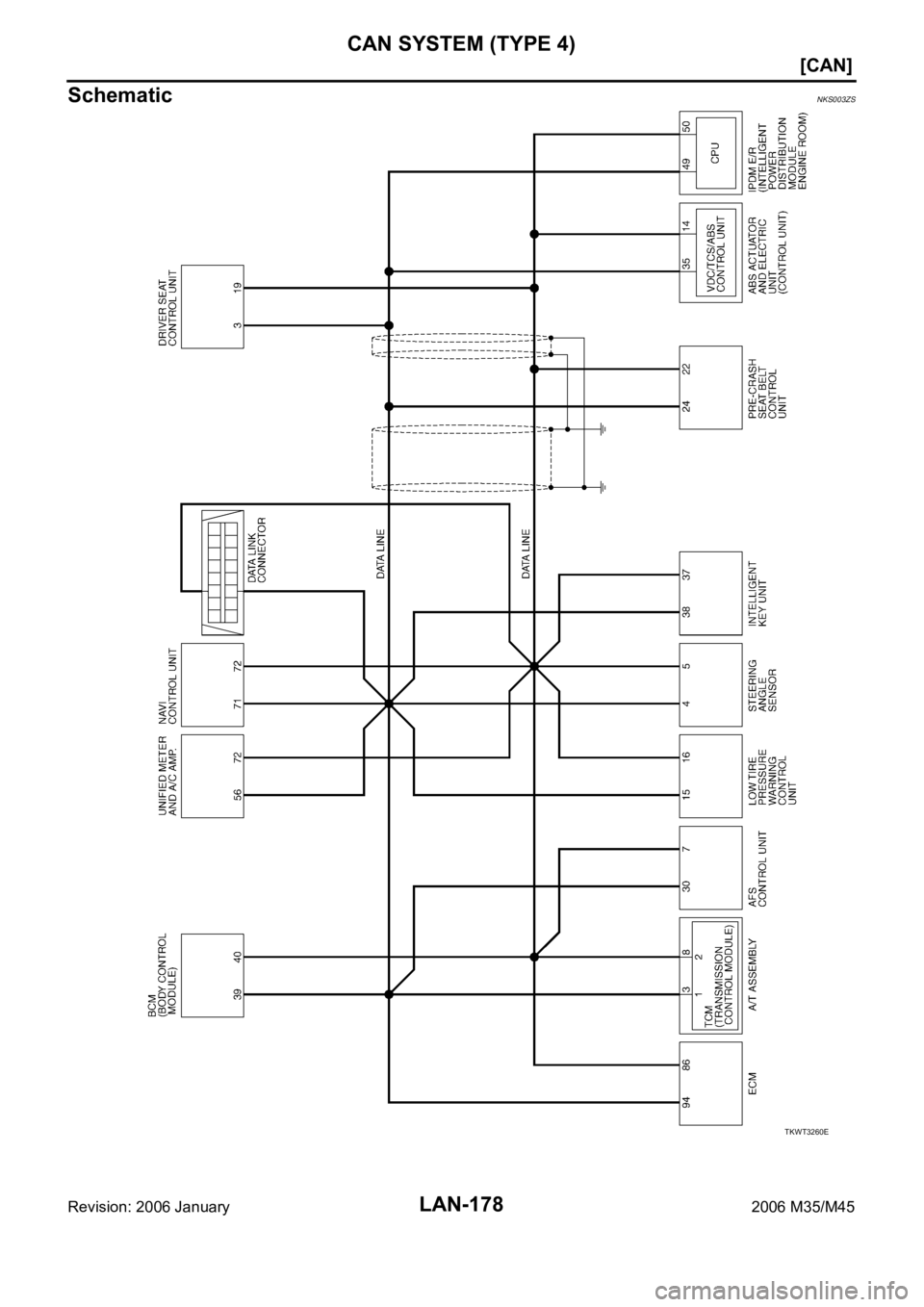

INFINITI M35 2006 Factory Service Manual LAN-178 [CAN] CAN SYSTEM (TYPE 4) Revision: 2006 January2006 M35/M45 SchematicNKS003ZS TKWT3260E

Page 3848 of 5621

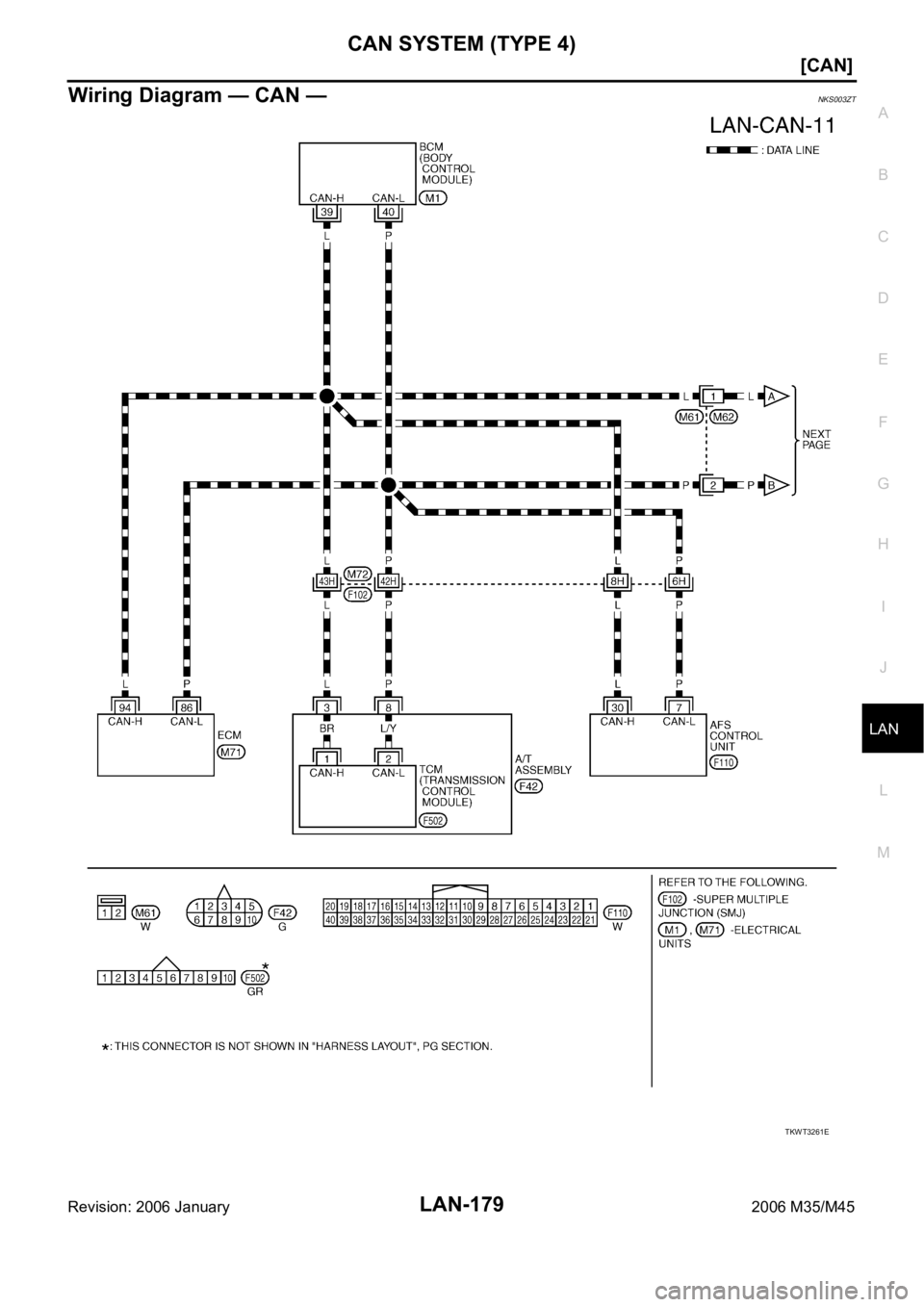

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 4) LAN-179 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 Wiring Diagram — CAN —NKS003ZT TKWT3261E
