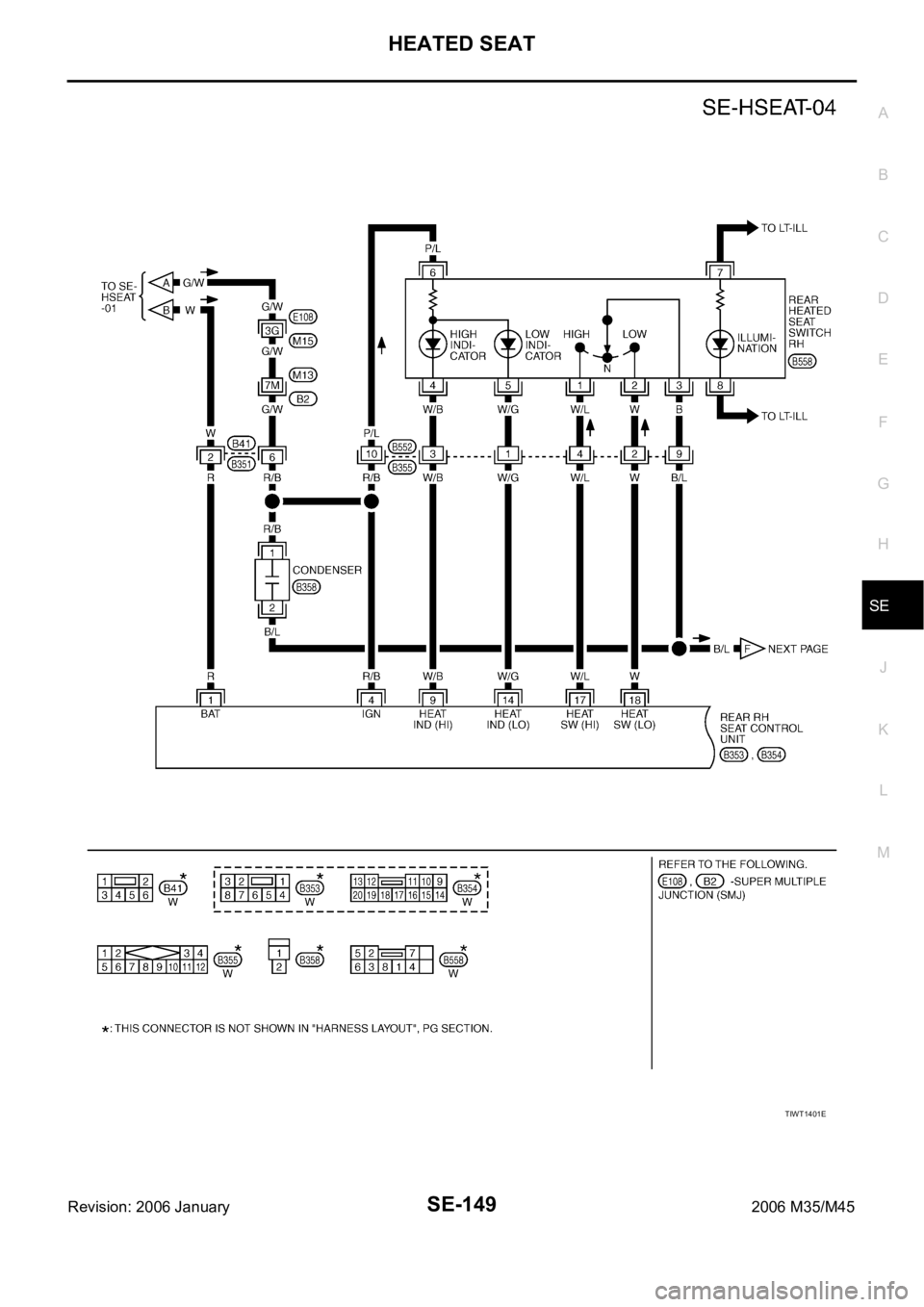

Page 5329 of 5621
SE-148
HEATED SEAT
Revision: 2006 January2006 M35/M45
TIWT1400E

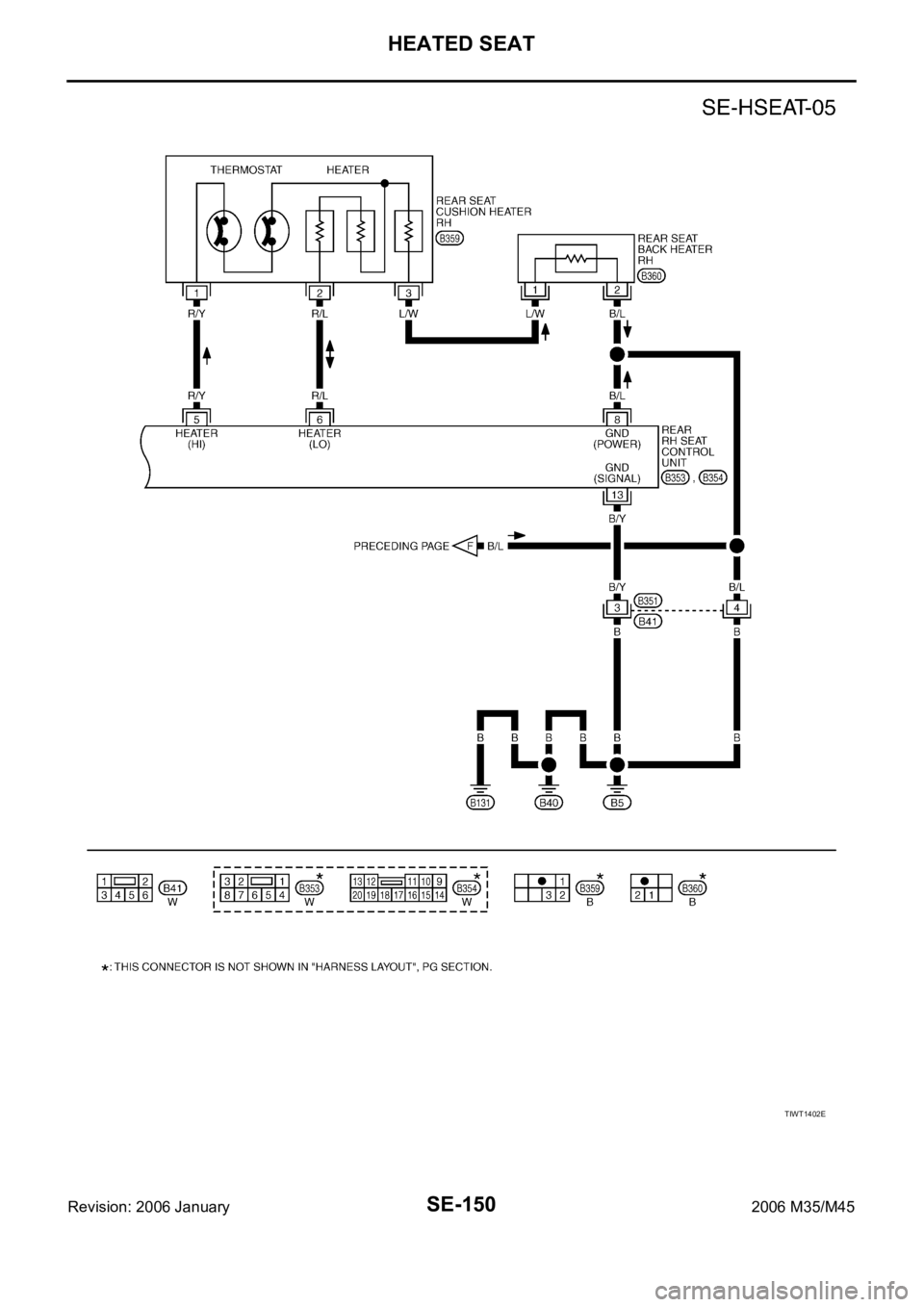

Page 5330 of 5621
HEATED SEAT
SE-149
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2006 January2006 M35/M45
TIWT1401E
Page 5331 of 5621
SE-150
HEATED SEAT
Revision: 2006 January2006 M35/M45
TIWT1402E
Page 5332 of 5621

HEATED SEAT
SE-151
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2006 January2006 M35/M45
Terminals and Reference Values for Rear Seat Control UnitNIS00284
Work FlowNIS00285
1. Check the symptom and customer's requests.
2. Understand the outline of system. Refer to SE-143, "
System Description" .
3. According to the trouble diagnosis chart, repair or replace the cause of the malfunction. Refer to SE-151,
"Trouble Diagnoses Symptom Chart" .
4. Does heated seat operate normally? YES: GO TO 5, NO: GO TO 3.
5. INSPECTION END.
Trouble Diagnoses Symptom ChartNIS00286
Check that other systems using the signal of the following systems operate normally.
Te r m i n a lWire
colorItem ConditionVoltage (V)
(Approx.)
1 R Power source (BAT) — Battery voltage
4 R/B Power source (IGN) — Battery voltage
5 R/Y Seat heater HI signalSeat heater HI operation Battery voltage
Other than above 0
6 R/L Seat heater LO signalSeat heater LO operation Battery voltage
Other than above 0
8 B/L Ground (power) — 0
9 W/B Heated seat indicator HI signalHeater HI operation (lit) 0
Other than above Battery voltage
13 B/Y Ground (signal) — 0
14 W/G Heated seat indicator LO signalHeater LO operation (lit) 0
Other than above Battery voltage
17 W/L Heated seat switch HI signalHeated seat switch (HI) – ON (pressed) 0
Heated seat switch (HI) – OFF Battery voltage
18 W Heated seat switch LO signalHeated seat switch (LO) – ON (pressed) 0
Heated seat switch (LO) – OFF Battery voltage
Symptom Diagnoses / service procedure Refer to page
Rear heated seat LH and RH does not operate.Rear heated seat power supply and ground
circuit inspectionSE-152
Rear heated seat LH or RH do not operate.1. Rear seat control unit power supply and
ground circuit inspectionSE-1532. Rear heated seat switch circuit inspectionSE-155
3.Rear seatback heater circuit inspectionSE-161
4.Replace rear LH or RH seat control unitSE-143
Rear heated seat do not operate with LO or HI position.1. Rear heated seat switch circuit inspectionSE-1552. Rear heated seat circuit inspectionSE-160
Rear heated seat LH or RH indicator do not operate.Rear heated seat indicator power supply cir-
cuit inspectionSE-157
Rear heated seat indicator do not operate with LO or HI posi-
tionRear heated seat indicator circuit inspectionSE-158
Page 5333 of 5621

SE-152
HEATED SEAT
Revision: 2006 January2006 M35/M45
Rear Heated Seat Power Supply and Ground Circuit InspectionNIS00287
1. CHECK FUSIBLE LINK AND FUSE
Check 50A fusible link (letter F located in the fuse and fusible link box).
Check 15A fuse (No.38, located in fuse block).
Check circuit breaker.
NOTE:
Refer to SE-143, "
Component Parts and Harness Connector Location" .
OK or NG
OK >> GO TO 2.
NG >> If fuse or circuit breaker is blown, be sure to eliminate cause of malfunction before installing new
fuse or new circuit breaker, refer to PG-3, "
POWER SUPPLY ROUTING CIRCUIT" .
2. CHECK HEATED SEAT RELAY POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Check voltage between IPDM E/R (heated seat relay) connector
and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness between fuse block (J/B) and IPDM E/R (heated seat relay).
3. CHECK HEATED SEAT RELAY GROUND CIRCUIT
1. Disconnect IPDM E/R (heated seat relay) connector.
2. Check continuity between IPDM E/R (heated seat relay) con-
nector and ground.
OK or NG
OK >> Check the condition of the harness and connector.
NG >> Repair or replace harness between IPDM E/R (heated
seat relay) and ground.
Terminal
Voltage (V)
(Approx.) (+)
(–) IPDM E/R
(heated seat relay)
connectorTerminal
E6 14 Ground Battery voltage
PIIB5995E
Te r m i n a l
Continuity IPDM E/R
(heated seat relay)
connectorTerminal
Ground
E9 54 Yes
PIIB5996E
Page 5334 of 5621
HEATED SEAT
SE-153
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2006 January2006 M35/M45

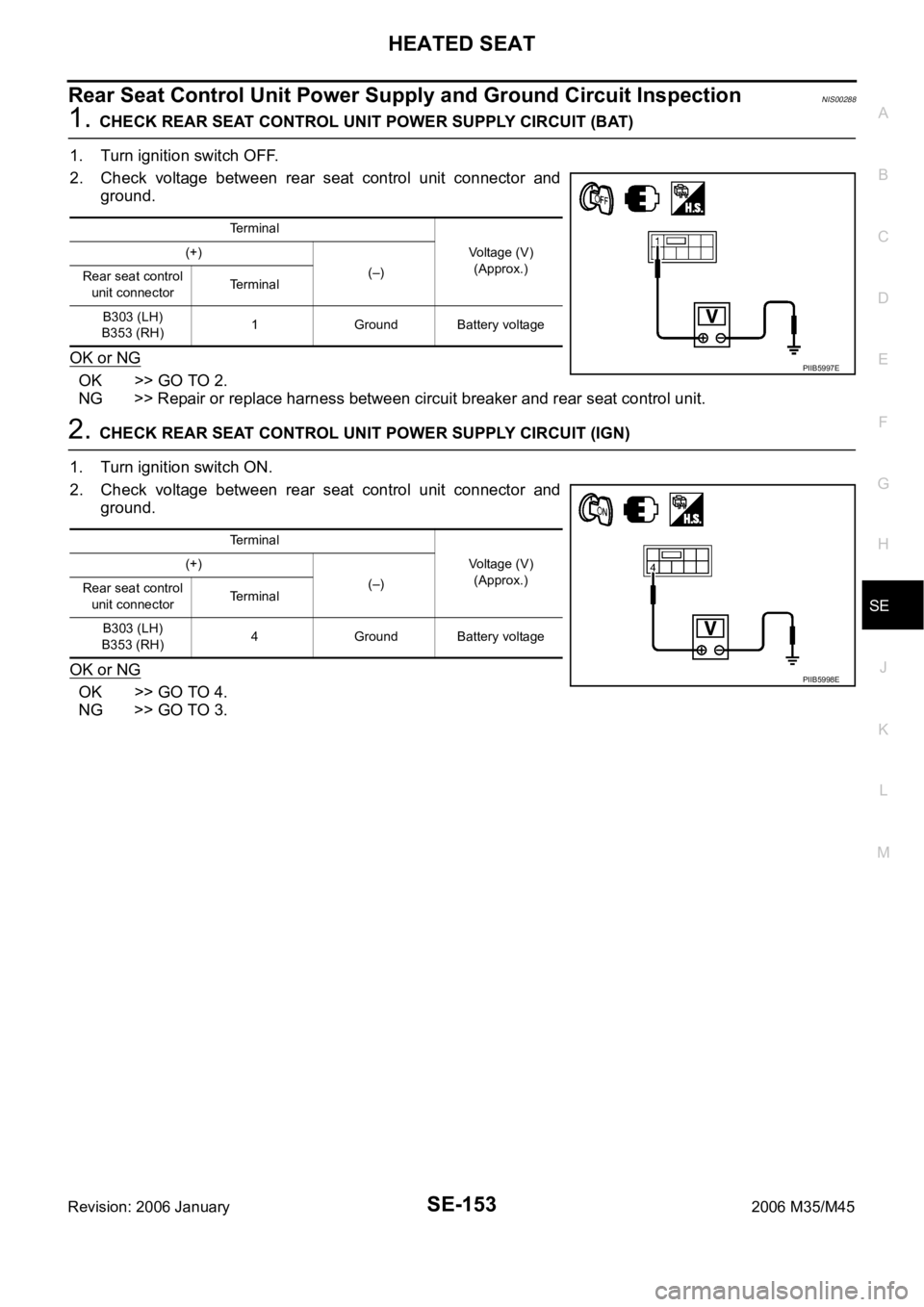

Rear Seat Control Unit Power Supply and Ground Circuit InspectionNIS00288
1. CHECK REAR SEAT CONTROL UNIT POWER SUPPLY CIRCUIT (BAT)
1. Turn ignition switch OFF.
2. Check voltage between rear seat control unit connector and
ground.
OK or NG
OK >> GO TO 2.
NG >> Repair or replace harness between circuit breaker and rear seat control unit.
2. CHECK REAR SEAT CONTROL UNIT POWER SUPPLY CIRCUIT (IGN)
1. Turn ignition switch ON.
2. Check voltage between rear seat control unit connector and
ground.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
Terminal
Voltage (V)
(Approx.) (+)
(–)
Rear seat control
unit connectorTerminal
B303 (LH)
B353 (RH)1 Ground Battery voltage
PIIB5997E
Terminal
Voltage (V)
(Approx.) (+)
(–)
Rear seat control
unit connectorTerminal
B303 (LH)
B353 (RH)4 Ground Battery voltage
PIIB5998E
Page 5335 of 5621

SE-154
HEATED SEAT
Revision: 2006 January2006 M35/M45
3. CHECK REAR SEAT CONTROL UNIT HARNESS
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R (heated seat relay) and rear seat control unit connector.
3. Check continuity between IPDM E/R (heated seat relay) con-
nector and rear seat control unit connector.
4. Check continuity between rear seat control unit connector and
ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness between rear seat control unit and IPDM E/R (heated seat relay).
4. CHECK REAR SEAT CONTROL UNIT GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect rear seat control unit connector.
3. Check continuity between rear seat control unit connector and
ground.
OK or NG
OK >> Rear seat control unit power supply and ground circuit is OK.
NG >> Repair or replace harness between rear seat control unit and ground.
AB
Continuity
Rear seat control
unit connectorTe r m i n a lIPDM E/R
(heated seat relay)
connectorTerminal
B303 (LH)
4E6 12
Ye s
B353 (RH) E5 9
A
GroundContinuity
Rear seat control unit connector Terminal
B303 (LH)
B353 (RH)4No
PIIB5999E
Te r m i n a l
Continuity
Rear seat control
unit connectorTerminal
Ground B303 (LH)
B353 (RH)8
Ye s
B304 (LH)
B354 (RH)13
PIIB6000E
Page 5336 of 5621

HEATED SEAT
SE-155
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2006 January2006 M35/M45

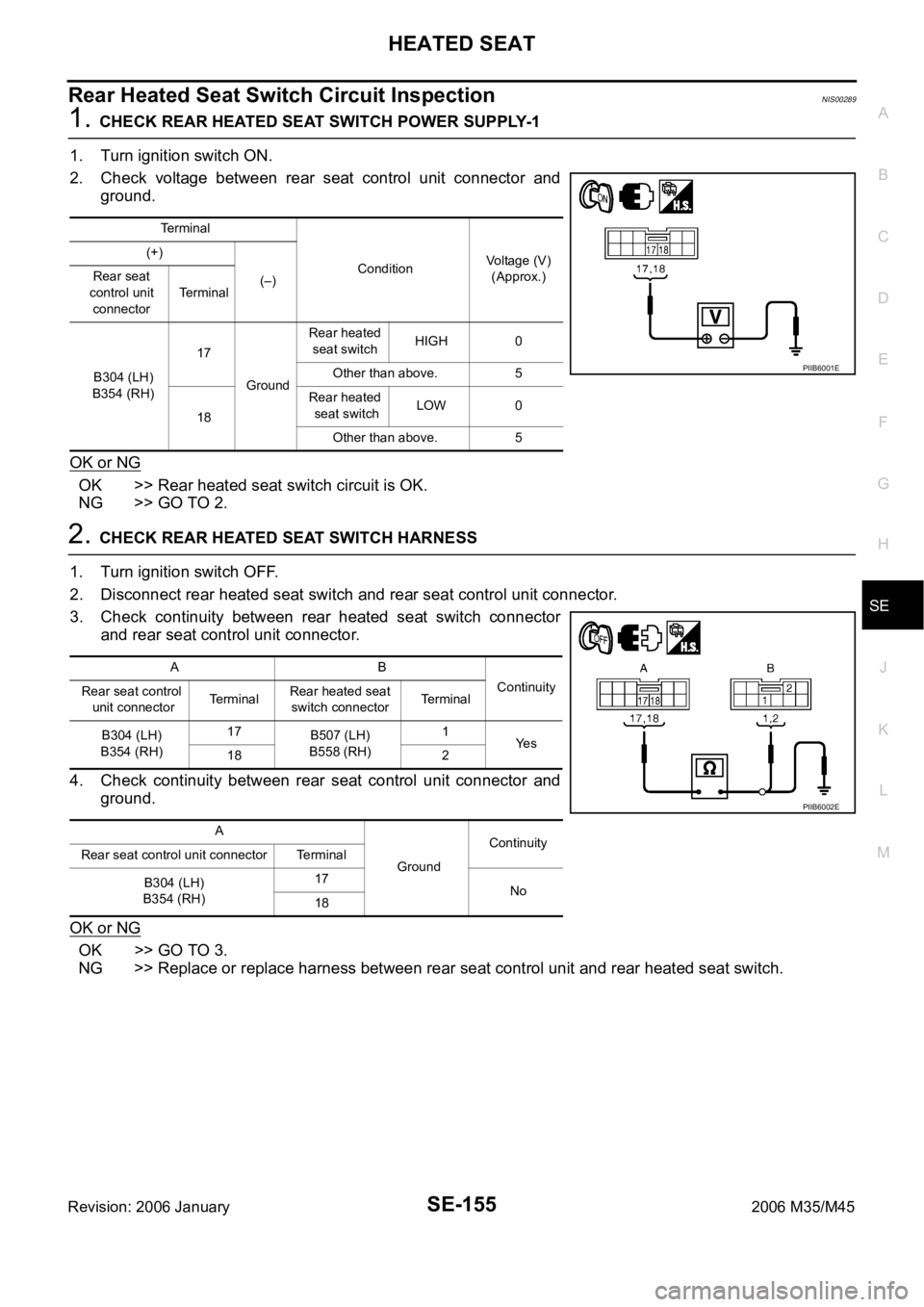

Rear Heated Seat Switch Circuit InspectionNIS00289
1. CHECK REAR HEATED SEAT SWITCH POWER SUPPLY-1
1. Turn ignition switch ON.
2. Check voltage between rear seat control unit connector and
ground.
OK or NG
OK >> Rear heated seat switch circuit is OK.
NG >> GO TO 2.
2. CHECK REAR HEATED SEAT SWITCH HARNESS
1. Turn ignition switch OFF.
2. Disconnect rear heated seat switch and rear seat control unit connector.
3. Check continuity between rear heated seat switch connector
and rear seat control unit connector.
4. Check continuity between rear seat control unit connector and
ground.
OK or NG
OK >> GO TO 3.
NG >> Replace or replace harness between rear seat control unit and rear heated seat switch.
Terminal
ConditionVoltage (V)
(Approx.) (+)
(–) Rear seat
control unit
connectorTerminal
B304 (LH)
B354 (RH)17
GroundRear heated
seat switch HIGH 0
Other than above. 5
18Rear heated
seat switchLOW 0
Other than above. 5
PIIB6001E
AB
Continuity
Rear seat control
unit connectorTerminalRear heated seat
switch connectorTerminal
B304 (LH)
B354 (RH)17
B507 (LH)
B558 (RH)1
Ye s
18 2
A
GroundContinuity
Rear seat control unit connector Terminal
B304 (LH)
B354 (RH)17
No
18
PIIB6002E
