Symptom Matrix ChartNBS004T1
SYSTEM — BASIC ENGINE CONTROL SYSTEM
SYMPTOM
Reference
page
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/DETONATION
LACK OF POWER/POOR ACCELERATION
HIGH IDLE/LOW IDLE
ROUGH IDLE/HUNTING
IDLING VIBRATION
SLOW/NO RETURN TO IDLE
OVERHEATS/WATER TEMPERATURE HIGH
EXCESSIVE FUEL CONSUMPTION
EXCESSIVE OIL CONSUMPTION
BATTERY DEAD (UNDER CHARGE)
Warranty symptom code AA AB AC AD AE AF AG AH AJ AK AL AM HA
Fuel Fuel pump circuit 1 1 2 3 2 2 2 3 2EC-685
Fuel pressure regulator system334444444 4EC-98
Fuel injector circuit 1 1 2 3 2 2 2 2EC-679
Evaporative emission system 334444444 4EC-39
Air Positive crankcase ventilation sys-
tem
334444444 41EC-51
Incorrect idle speed adjustment 1 1 1 1 1EC-77
Electric throttle control actuator 1 1 2 3 3 2 2 2 2 2 2EC-613,
EC-624
Ignition Incorrect ignition timing adjustment 3 3 1 1 1 1 1 1EC-77
Ignition circuit 11222 22 2EC-666
Main power supply and ground circuit22333 33 23EC-166
Mass air flow sensor circuit
1
122
222 2EC-205,
EC-214
Engine coolant temperature sensor circuit
333EC-226,
EC-238
Air fuel ratio (A/F) sensor 1 circuitEC-246
,
EC-256
,
EC-265
,
EC-274
,
EC-655
Throttle position sensor circuit
22EC-231
,
EC-354
,
EC-533
,
EC-535
,
EC-640
Accelerator pedal position sensor circuit 3 2 1EC-626
,
EC-633
,
EC-647
Knock sensor circuit 2 3EC-371
Crankshaft position sensor (POS) circuit 2 2EC-376
Camshaft position sensor (PHASE) circuit 3 2EC-383
Vehicle speed signal circuit 2 3 3 3EC-481
Power steering pressure sensor circuit 2 3 3EC-487

EC-110
[VQ35DE]
TROUBLE DIAGNOSIS
Revision: 2006 January2006 M35/M45
1 - 6: The numbers refer to the order of inspection.
(continued on next page)
SYSTEM — ENGINE MECHANICAL & OTHER
ECM 22333333333EC-492,
EC-496
Intake valve timing control solenoid valve cir-
cuit32 13223 3EC-197
PNP switch circuit 3 3 3 3 3EC-504
Refrigerant pressure sensor circuit 2 3 3 4EC-692
Electrical load signal circuit 3EC-697
Air conditioner circuit 223333333 3 2AT C - 4 0
ABS actuator and electric unit (control unit) 4BRC-11
SYMPTOM
Reference
page
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/DETONATION
LACK OF POWER/POOR ACCELERATION
HIGH IDLE/LOW IDLE
ROUGH IDLE/HUNTING
IDLING VIBRATION
SLOW/NO RETURN TO IDLE
OVERHEATS/WATER TEMPERATURE HIGH
EXCESSIVE FUEL CONSUMPTION
EXCESSIVE OIL CONSUMPTION
BATTERY DEAD (UNDER CHARGE)
Warranty symptom code AA AB AC AD AE AF AG AH AJ AK AL AM HA
SYMPTOM
Reference
page
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/DETONATION
LACK OF POWER/POOR ACCELERATION
HIGH IDLE/LOW IDLE
ROUGH IDLE/HUNTING
IDLING VIBRATION
SLOW/NO RETURN TO IDLE
OVERHEATS/WATER TEMPERATURE HIGH
EXCESSIVE FUEL CONSUMPTION
EXCESSIVE OIL CONSUMPTION
BATTERY DEAD (UNDER CHARGE)
Warranty symptom code AA AB AC AD AE AF AG AH AJ AK AL AM HA
Fuel Fuel tank
5
5FL-10
Fuel piping 555 55 5EM-45
Vapor lock—
Valve deposit
5 555 55 5—
Poor fuel (Heavy weight gaso-
line, Low octane)—

TROUBLE DIAGNOSIS
EC-111
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
Air Air duct
55 5 55 5EM-17
Air cleanerEM-17
Air leakage from air duct
(Mass air flow sensor — electric
throttle control actuator)
5555EM-17
Electric throttle control actuatorEM-19
Air leakage from intake manifold/
Collector/GasketEM-24
Cranking Battery
111111
11SC-4
Generator circuitSC-23
Starter circuit 3SC-10
Signal plate 6EM-123
PNP switch 4AT- 11 3
Engine Cylinder head
55555 55 5EM-101
Cylinder head gasket 4 3
Cylinder block
66666 66 64
EM-123
Piston
Piston ring
Connecting rod
Bearing
Crankshaft
Va l v e
mecha-
nismTiming chain
55555 55 5EM-64
CamshaftEM-84
Intake valve timing controlEM-64
Intake valve
3EM-84
Exhaust valve
Exhaust Exhaust manifold/Tube/Muffler/
Gasket
55555 55 5EM-26
, EX-
3Three way catalyst
Lubrica-
tionOil pan/Oil strainer/Oil pump/Oil
filter/Oil gallery/Oil cooler
55555 55 5EM-29
, LU-
18 , LU-10 ,
LU-14
Oil level (Low)/Filthy oilLU-7
SYMPTOM
Reference
page
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/DETONATION
LACK OF POWER/POOR ACCELERATION
HIGH IDLE/LOW IDLE
ROUGH IDLE/HUNTING
IDLING VIBRATION
SLOW/NO RETURN TO IDLE
OVERHEATS/WATER TEMPERATURE HIGH
EXCESSIVE FUEL CONSUMPTION
EXCESSIVE OIL CONSUMPTION
BATTERY DEAD (UNDER CHARGE)
Warranty symptom code AA AB AC AD AE AF AG AH AJ AK AL AM HA

EC-112
[VQ35DE]
TROUBLE DIAGNOSIS
Revision: 2006 January2006 M35/M45
1 - 6: The numbers refer to the order of inspection.Cooling
Radiator/Hose/Radiator filler cap
55555 55 45CO-14
,
CO-18
Thermostat 5CO-29
Water pumpCO-24
Water galleryCO-31
Cooling fan
5CO-22
Coolant level (Low)/Contami-
nated coolantCO-11
IVIS (INFINITI Vehicle Immobilizer System —
NATS)11EC-53 or
BL-248
SYMPTOM
Reference
page
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/DETONATION
LACK OF POWER/POOR ACCELERATION
HIGH IDLE/LOW IDLE
ROUGH IDLE/HUNTING
IDLING VIBRATION
SLOW/NO RETURN TO IDLE
OVERHEATS/WATER TEMPERATURE HIGH
EXCESSIVE FUEL CONSUMPTION
EXCESSIVE OIL CONSUMPTION
BATTERY DEAD (UNDER CHARGE)
Warranty symptom code AA AB AC AD AE AF AG AH AJ AK AL AM HA

DTC P0340, P0345 CMP SENSOR (PHASE)
EC-383
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
DTC P0340, P0345 CMP SENSOR (PHASE)PFP:23731
Component DescriptionNBS004Z4
The camshaft position sensor (PHASE) senses the retraction of
camshaft (INT) to identify a particular cylinder. The camshaft position
sensor (PHASE) senses the piston position.
When the crankshaft position sensor (POS) system becomes inoper-
ative, the camshaft position sensor (PHASE) provides various con-
trols of engine parts instead, utilizing timing of cylinder identification
signals.

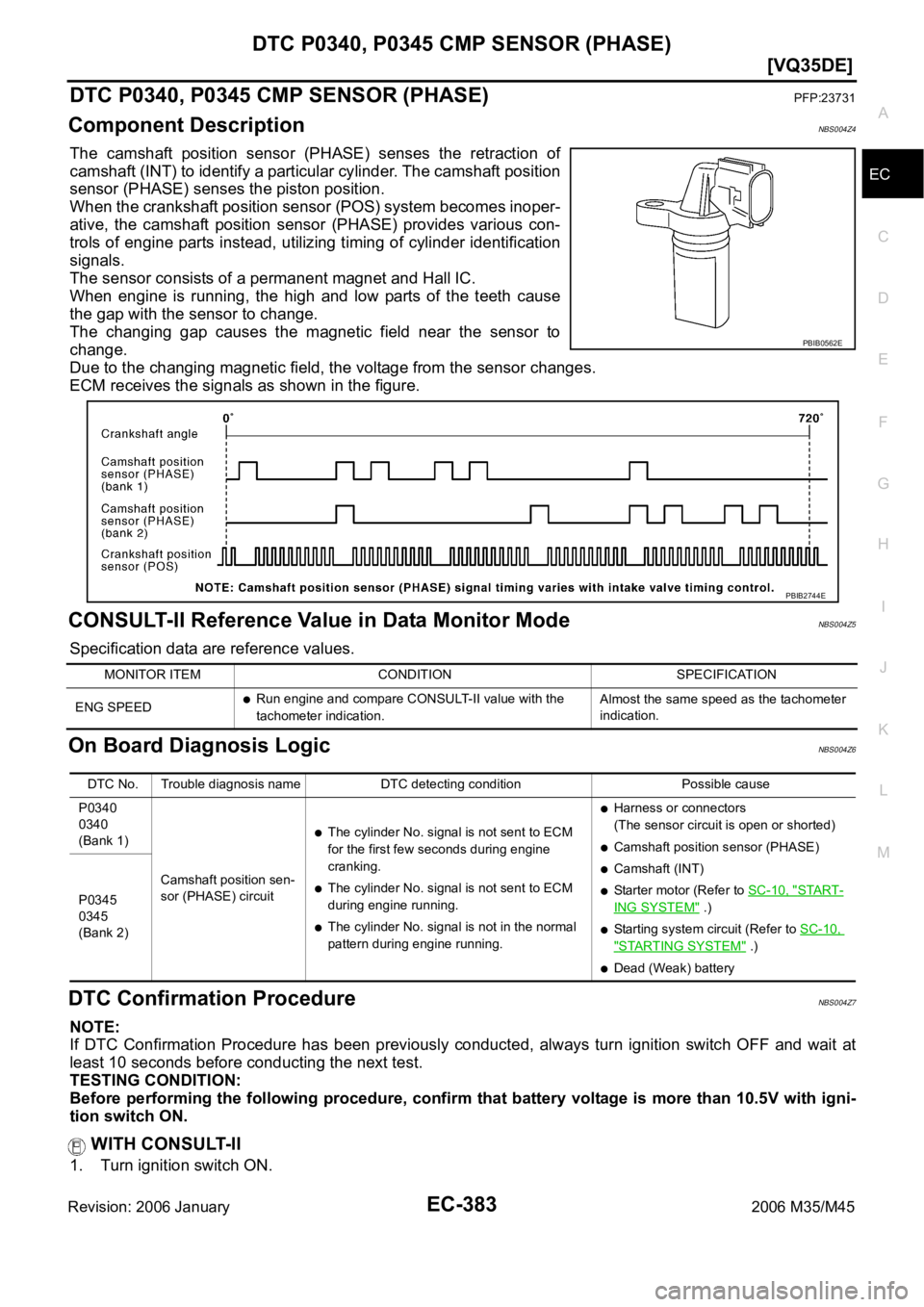

The sensor consists of a permanent magnet and Hall IC.
When engine is running, the high and low parts of the teeth cause
the gap with the sensor to change.
The changing gap causes the magnetic field near the sensor to
change.
Due to the changing magnetic field, the voltage from the sensor changes.
ECM receives the signals as shown in the figure.
CONSULT-II Reference Value in Data Monitor ModeNBS004Z5
Specification data are reference values.
On Board Diagnosis LogicNBS004Z6
DTC Confirmation ProcedureNBS004Z7
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10.5V with igni-
tion switch ON.
WITH CONSULT-II
1. Turn ignition switch ON.
PBIB0562E
PBIB2744E
MONITOR ITEM CONDITION SPECIFICATION
ENG SPEED
Run engine and compare CONSULT-II value with the
tachometer indication.Almost the same speed as the tachometer
indication.
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0340
0340
(Bank 1)
Camshaft position sen-
sor (PHASE) circuit
The cylinder No. signal is not sent to ECM
for the first few seconds during engine
cranking.
The cylinder No. signal is not sent to ECM
during engine running.
The cylinder No. signal is not in the normal
pattern during engine running.
Harness or connectors
(The sensor circuit is open or shorted)
Camshaft position sensor (PHASE)
Camshaft (INT)
Starter motor (Refer to SC-10, "START-
ING SYSTEM" .)
Starting system circuit (Refer to SC-10,
"STARTING SYSTEM" .)
Dead (Weak) battery P0345
0345
(Bank 2)

DTC P1212 TCS COMMUNICATION LINE
EC-511
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
DTC P1212 TCS COMMUNICATION LINEPFP:47850
DescriptionNBS0052Y
NOTE:
If DTC P1212 is displayed with DTC U1000 or U1001, first perform the trouble diagnosis for DTC
U1000, U1001. Refer to EC-173, "
DTC U1000, U1001 CAN COMMUNICATION LINE" .
If DTC P1212 is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010.
Refer to EC-176, "
DTC U1010 CAN COMMUNICATION" .
This CAN communication line is used to control the smooth engine operation during the TCS operation. Pulse
signals are exchanged between ECM and “ABS actuator and electric unit (control unit)”.
Be sure to erase the malfunction information such as DTC not only for “ABS actuator and electric unit
(control unit)” but also for ECM after TCS related repair.
On Board Diagnosis LogicNBS0052Z
Freeze frame data is not stored in the ECM for this self-diagnosis.
The MIL will not light up for this self-diagnosis.
DTC Confirmation ProcedureNBS00530
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10.5V at idle.
WITH CONSULT-II
1. Turn ignition switch ON.

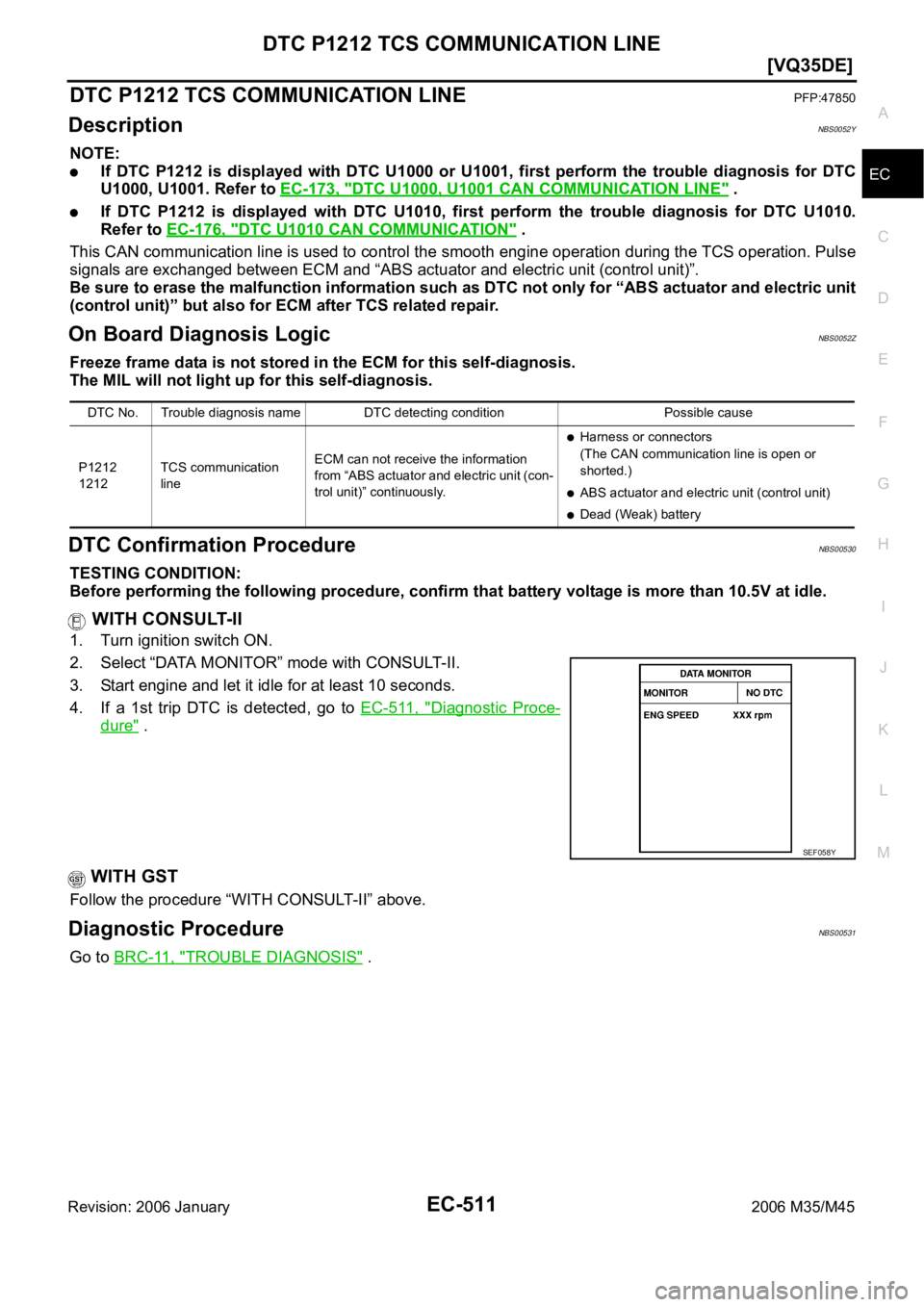

2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for at least 10 seconds.
4. If a 1st trip DTC is detected, go to EC-511, "
Diagnostic Proce-
dure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
Diagnostic ProcedureNBS00531
Go to BRC-11, "TROUBLE DIAGNOSIS" .
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1212
1212TCS communication
lineECM can not receive the information
from “ABS actuator and electric unit (con-
trol unit)” continuously.
Harness or connectors
(The CAN communication line is open or
shorted.)
ABS actuator and electric unit (control unit)
Dead (Weak) battery
SEF058Y

EC-820
[VK45DE]
TROUBLE DIAGNOSIS
Revision: 2006 January2006 M35/M45
Symptom Matrix ChartNBS005AH
SYSTEM — BASIC ENGINE CONTROL SYSTEM
SYMPTOM
Reference
page
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/DETONATION
LACK OF POWER/POOR ACCELERATION
HIGH IDLE/LOW IDLE
ROUGH IDLE/HUNTING
IDLING VIBRATION
SLOW/NO RETURN TO IDLE
OVERHEATS/WATER TEMPERATURE HIGH
EXCESSIVE FUEL CONSUMPTION
EXCESSIVE OIL CONSUMPTION
BATTERY DEAD (UNDER CHARGE)
Warranty symptom code AA AB AC AD AE AF AG AH AJ AK AL AM HA
Fuel Fuel pump circuit 11232 22 3 2EC-1427
Fuel pressure regulator system 3 3 4 4 4 4 4 4 4 4EC-809
Fuel injector circuit 11232 22 2EC-1420
Evaporative emission system 334444444 4EC-749
Air Positive crankcase ventilation sys-
tem
334444444 41EC-761
Incorrect idle speed adjustment 1 1 1 1 1EC-788
Electric throttle control actuator 112332222 2 2EC-1344,
EC-1356
IgnitionIncorrect ignition timing adjustment33111 11 1EC-788
Ignition circuit 11222 22 2EC-1407
Main power supply and ground circuit 22333 33 23EC-879
Mass air flow sensor circuit
1
122
222 2EC-927,
EC-936
Engine coolant temperature sensor circuit
333EC-948,
EC-961
Air fuel ratio (A/F) sensor 1 circuitEC-969
,
EC-979
,
EC-988
,
EC-997
,
EC-1387
Throttle position sensor circuit
22EC-954
,
EC-1077
,
EC-1259
,
EC-1261
,
EC-1372
Accelerator pedal position sensor circuit 3 2 1EC-1218
,
EC-1358
,
EC-1365
,
EC-1379
Knock sensor circuit 2 3EC-1094
Crankshaft position sensor (POS) circuit 2 2EC-1099
Camshaft position sensor (PHASE) circuit 3 2EC-1106
Vehicle speed signal circuit 2 3 3 3EC-1200
Power steering pressure sensor circuit 2 3 3EC-1206

TROUBLE DIAGNOSIS
EC-821
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
1 - 6: The numbers refer to the order of inspection.
(continued on next page)
SYSTEM — ENGINE MECHANICAL & OTHER
ECM 22333333333EC-1211,
EC-1215
Intake valve timing control solenoid valve cir-
cuit32 13223 3EC-920
PNP switch circuit 3 3 3 3 3EC-1223
Refrigerant pressure sensor circuit 2 3 3 4EC-1434
Electrical load signal circuit 3EC-1439
Air conditioner circuit 223333333 3 2AT C - 4 0
VIAS control solenoid valve circuit 1EC-1324
ABS actuator and electric unit (control unit) 4BRC-11
SYMPTOM
Reference
page
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/DETONATION
LACK OF POWER/POOR ACCELERATION
HIGH IDLE/LOW IDLE
ROUGH IDLE/HUNTING
IDLING VIBRATION
SLOW/NO RETURN TO IDLE
OVERHEATS/WATER TEMPERATURE HIGH
EXCESSIVE FUEL CONSUMPTION
EXCESSIVE OIL CONSUMPTION
BATTERY DEAD (UNDER CHARGE)
Warranty symptom code AA AB AC AD AE AF AG AH AJ AK AL AM HA
SYMPTOM
Reference
page
HARD/NO START/RESTART (EXCP. HA)
ENGINE STALL
HESITATION/SURGING/FLAT SPOT
SPARK KNOCK/DETONATION
LACK OF POWER/POOR ACCELERATION
HIGH IDLE/LOW IDLE
ROUGH IDLE/HUNTING
IDLING VIBRATION
SLOW/NO RETURN TO IDLE
OVERHEATS/WATER TEMPERATURE HIGH
EXCESSIVE FUEL CONSUMPTION
EXCESSIVE OIL CONSUMPTION
BATTERY DEAD (UNDER CHARGE)
Warranty symptom code AA AB AC AD AE AF AG AH AJ AK AL AM HA
Fuel Fuel tank
5
5FL-10
Fuel piping 555 55 5EM-193
Vapor lock—
Valve deposit
5 555 55 5—
Poor fuel (Heavy weight gaso-
line, Low octane)—
