EC-370
[VQ35DE]
DTC P0300 - P0306 MULTIPLE CYLINDER MISFIRE, NO. 1 - 6 CYLINDER MIS-
FIRE
Revision: 2006 January2006 M35/M45
16. CHECK MASS AIR FLOW SENSOR
Check mass air flow sensor signal in “DATA MONITOR” mode with CONSULT-II.
With GST
Check mass air flow sensor signal in Service $01 with GST.
OK or NG
OK >> GO TO 17.
NG >> Check connectors for rusted terminals or loose connections in the mass air flow sensor circuit or
ground. Refer to EC-205, "
DTC P0101 MAF SENSOR" .
17. CHECK SYMPTOM MATRIX CHART
Check items on the rough idle symptom in EC-109, "
Symptom Matrix Chart" .
OK or NG
OK >> GO TO 18.
NG >> Repair or replace.
18. ERASE THE 1ST TRIP DTC
Some tests may cause a 1st trip DTC to be set.
Erase the 1st trip DTC from the ECM memory after performing the tests. Refer to EC-67, "
HOW TO ERASE
EMISSION-RELATED DIAGNOSTIC INFORMATION" .
>> GO TO 19.
19. CHECK INTERMITTENT INCIDENT
Refer to EC-165, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END 2.0 - 6.0 gꞏm/sec: at idling
7.0 - 20.0 gꞏm/sec: at 2,500 rpm
2.0 - 6.0 gꞏm/sec: at idling
7.0 - 20.0 gꞏm/sec: at 2,500 rpm
Page 1914 of 5621
![INFINITI M35 2006 Factory Service Manual DTC P0327, P0328 KS
EC-371
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
DTC P0327, P0328 KSPFP:22060
Component DescriptionNBS004YP
The knock sensor is attached to the cylinder INFINITI M35 2006 Factory Service Manual DTC P0327, P0328 KS
EC-371
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
DTC P0327, P0328 KSPFP:22060
Component DescriptionNBS004YP
The knock sensor is attached to the cylinder](/manual-img/42/57023/w960_57023-1913.png)
DTC P0327, P0328 KS
EC-371
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
DTC P0327, P0328 KSPFP:22060
Component DescriptionNBS004YP
The knock sensor is attached to the cylinder block. It senses engine
knocking using a piezoelectric element. A knocking vibration from
the cylinder block is sensed as vibrational pressure. This pressure is
converted into a voltage signal and sent to the ECM.
On Board Diagnosis LogicNBS004YQ
The MIL will not light up for these diagnoses.
DTC Confirmation ProcedureNBS004YR
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10V at idle.
WITH CONSULT-II
1. Turn ignition switch ON and select “DATA MONITOR” mode with
CONSULT-II.
2. Start engine and run it for at least 5 seconds at idle speed.
3. If 1st trip DTC is detected, go to EC-373, "
Diagnostic Procedure"
.
WITH GST
Follow the procedure “WITH CONSULT-II” above.
PBIB1564E
DTC No.Trouble diagnosis
nameDTC detected condition Possible cause
P0327
0327Knock sensor circuit
low inputAn excessively low voltage from the sensor is
sent to ECM.
Harness or connectors
(The sensor circuit is open or shorted.)
Knock sensor P0328
0328Knock sensor circuit
high inputAn excessively high voltage from the sensor is
sent to ECM.
SEF058Y
Page 1915 of 5621
EC-372
[VQ35DE]
DTC P0327, P0328 KS
Revision: 2006 January2006 M35/M45

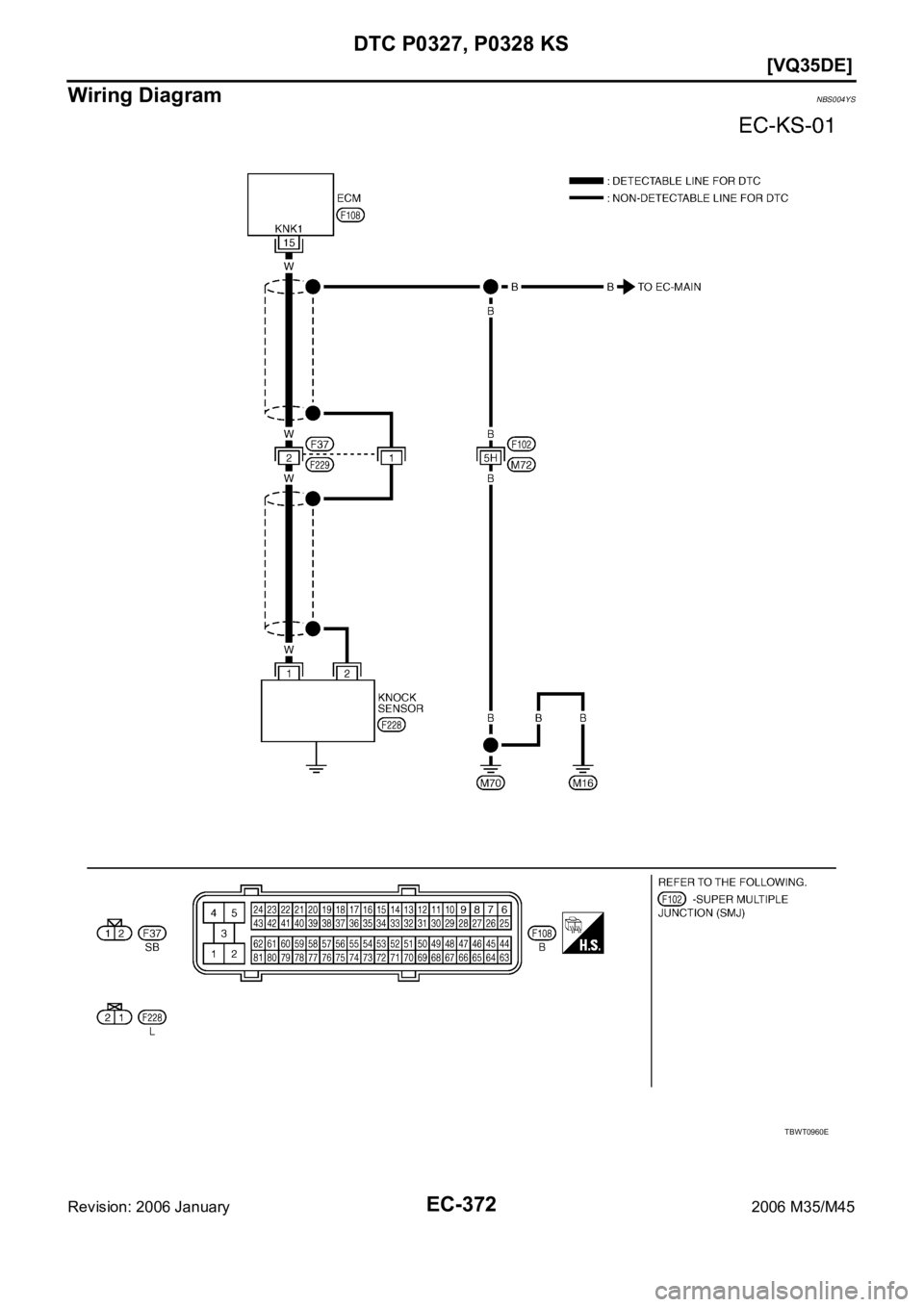

Wiring DiagramNBS004YS
