Page 5345 of 5621

INFINITI M35 2006 Factory Service Manual SE-164 FRONT SEAT Revision: 2006 January2006 M35/M45 1. Front leg cover 2. Rear leg cover 3. Headrest 4. Seatback board 5. Seat speaker grill 6. Headrest holder (free) 7. Headrest holder (locked) 8. S

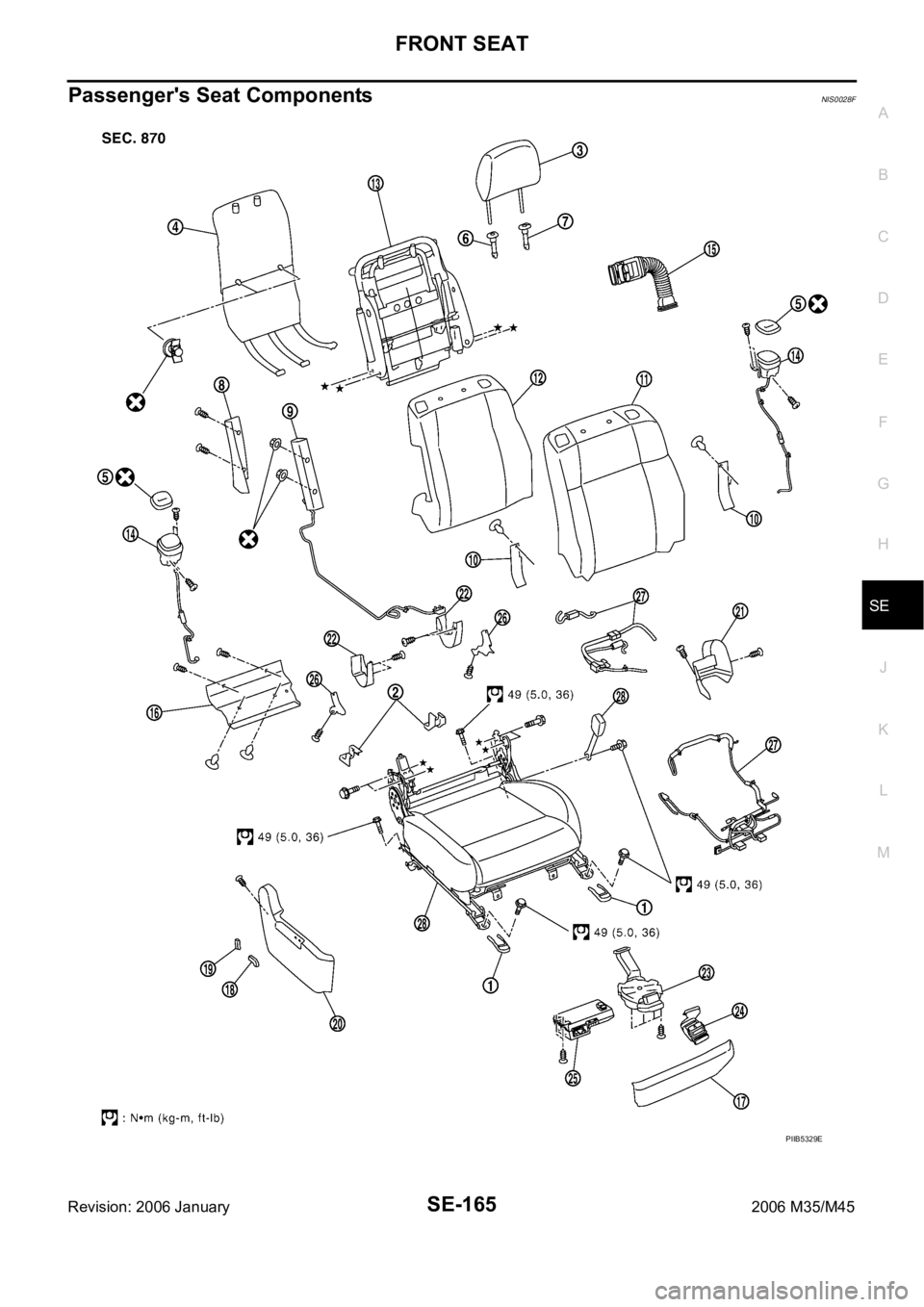

Page 5346 of 5621

INFINITI M35 2006 Factory Service Manual FRONT SEAT SE-165 C D E F G H J K L MA B SE Revision: 2006 January2006 M35/M45 Passenger's Seat ComponentsNIS0028F PIIB5329E

Page 5347 of 5621

INFINITI M35 2006 Factory Service Manual SE-166 FRONT SEAT Revision: 2006 January2006 M35/M45 1. Front leg cover 2. Rear leg cover 3. Headrest 4. Seatback board 5. Seat speaker grill 6. Headrest holder (free) 7. Headrest holder (locked) 8. S

Page 5348 of 5621

INFINITI M35 2006 Factory Service Manual FRONT SEAT SE-167 C D E F G H J K L MA B SE Revision: 2006 January2006 M35/M45 Removal and InstallationNIS0028G CAUTION: When removing and installing, use shop cloths to protect parts from damage. REM

Page 5349 of 5621

INFINITI M35 2006 Factory Service Manual SE-168 FRONT SEAT Revision: 2006 January2006 M35/M45 Disassembly and AssemblyNIS0028H SEATBACK Disassembly 1. Remove seatback trim and seatback pad. NOTE: Seatback trim and seatback pad can be removed

Page 5350 of 5621

INFINITI M35 2006 Factory Service Manual FRONT SEAT SE-169 C D E F G H J K L MA B SE Revision: 2006 January2006 M35/M45 Remove the bracket mounting nuts. Remove seatback trim and pad from seatback frame. Remove the hog rings to separate the

Page 5351 of 5621

INFINITI M35 2006 Factory Service Manual SE-170 FRONT SEAT Revision: 2006 January2006 M35/M45 Remove the seat cushion front finisher. : Pawl : Clip Remove the seat reclining switch knob and seat slide switch knob. Pull seat cush

Page 5352 of 5621

INFINITI M35 2006 Factory Service Manual FRONT SEAT SE-171 C D E F G H J K L MA B SE Revision: 2006 January2006 M35/M45 Remove driver's seat control unit. (Driver's seat only) Remove the driver seat control switch. Remove seat cushio
