EC-514
[VQ35DE]
DTC P1217 ENGINE OVER TEMPERATURE
Revision: 2006 January2006 M35/M45
WITH CONSULT-II
1. Check the coolant level in the reservoir tank and radiator.
Allow engine to cool before checking coolant level.
If the coolant level in the reservoir tank and/or radiator is below
the proper range, skip the following steps and go to EC-517,
"Diagnostic Procedure" .
2. Confirm whether customer filled the coolant or not. If customer
filled the coolant, skip the following steps and go to EC-517,
"Diagnostic Procedure" .
3. Turn ignition switch ON.
4. Perform “FAN DUTY CONTROL” in “ACTIVE TEST” mode with
CONSULT-II.
5. Make sure that cooling fan speed varies according to the per-
cent.
6. If the results are NG, go to EC-517, "
Diagnostic Procedure" .
WITH GST
1. Check the coolant level in the reservoir tank and radiator.
Allow engine to cool before checking coolant level.
If the coolant level in the reservoir tank and/or radiator is below
the proper range, skip the following steps and go to EC-517,
"Diagnostic Procedure" .
2. Confirm whether customer filled the coolant or not. If customer
filled the coolant, skip the following steps and go to EC-517,
"Diagnostic Procedure" .
3. Perform IPDM E/R auto active test and check cooling fan motors
operation, refer to PG-24, "
Auto Active Test" .
4. If NG, go to EC-517, "
Diagnostic Procedure" .
SEF621W
PBIB2737E
SEF621W
Page 2058 of 5621
DTC P1217 ENGINE OVER TEMPERATURE
EC-515
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45

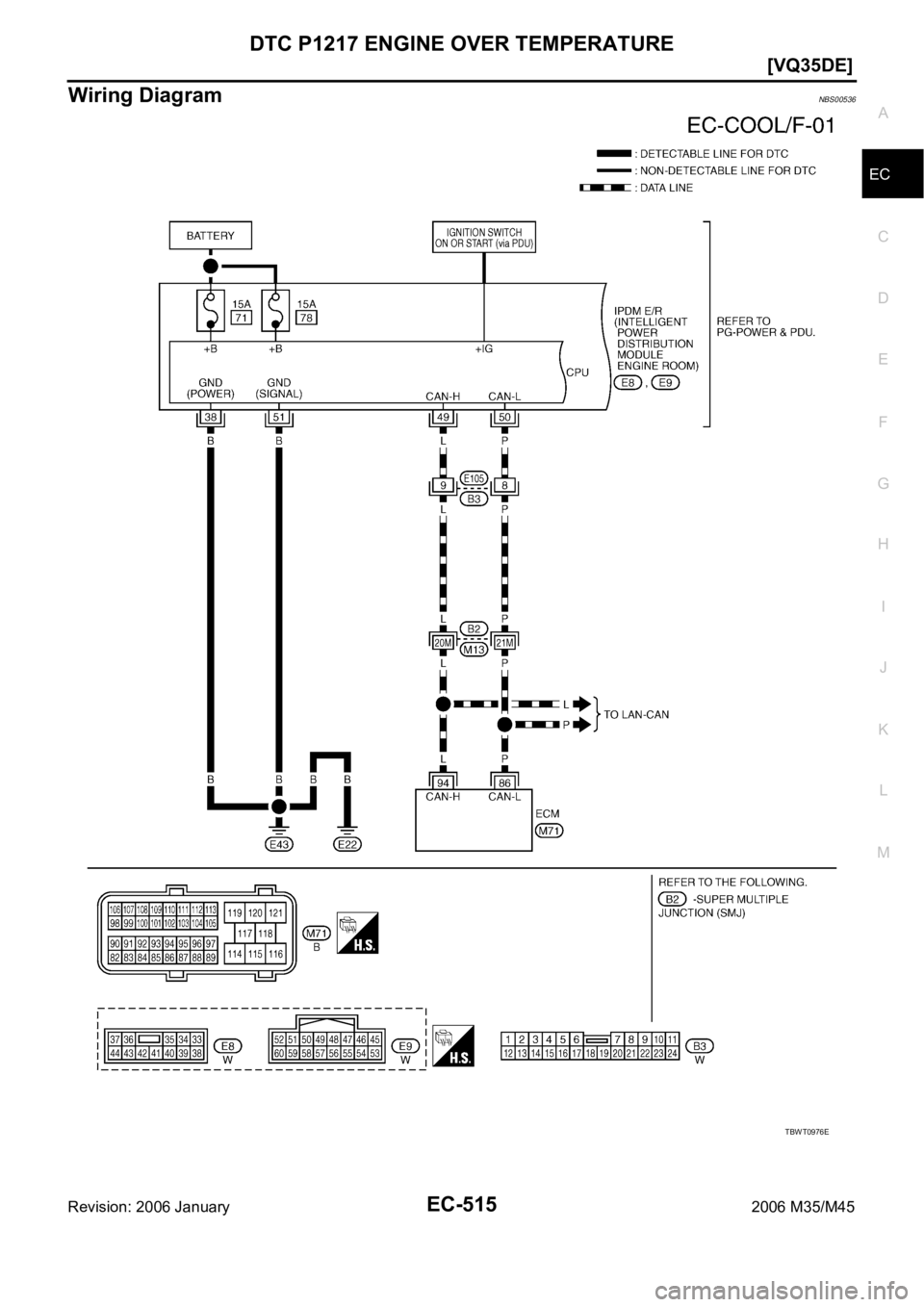

Wiring DiagramNBS00536
TBWT0976E
Page 2059 of 5621
EC-516
[VQ35DE]
DTC P1217 ENGINE OVER TEMPERATURE
Revision: 2006 January2006 M35/M45
TBWB1181E
Page 2060 of 5621
![INFINITI M35 2006 Factory Service Manual DTC P1217 ENGINE OVER TEMPERATURE
EC-517
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
Diagnostic ProcedureNBS00537
1. CHECK COOLING FAN OPERATION
With CONSULT-II
1. Turn igni INFINITI M35 2006 Factory Service Manual DTC P1217 ENGINE OVER TEMPERATURE
EC-517
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
Diagnostic ProcedureNBS00537
1. CHECK COOLING FAN OPERATION
With CONSULT-II
1. Turn igni](/manual-img/42/57023/w960_57023-2059.png)
DTC P1217 ENGINE OVER TEMPERATURE
EC-517
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
Diagnostic ProcedureNBS00537
1. CHECK COOLING FAN OPERATION
With CONSULT-II
1. Turn ignition switch ON.
2. Perform “FAN DUTY CONTROL” in “ACTIVE TEST” mode with
CONSULT-II.
3. Make sure that cooling fan speed varies according to the per-
cent.
Without CONSULT-II
1. Perform IPDM E/R auto active test and check cooling fan motors
operation, refer to PG-24, "
Auto Active Test" .
2. Make sure that cooling fan operates.
OK or NG
OK >> GO TO 2.
NG >> GO TO 7.
2. CHECK COOLING SYSTEM FOR LEAK
Apply pressure to the cooling system with a tester, and check if the
pressure drops.
CAUTION:
Higher than the specified pressure may cause radiator damage.
Pressure should not drop.
OK or NG
OK >> GO TO 3.
NG >> Check the following for leak. Refer to CO-11, "
LEAK
CHECK" .
Hose
Radiator
Water pump
3. CHECK RADIATOR CAP
Apply pressure to cap with a tester.
OK or NG
OK >> GO TO 4.
NG >> Replace radiator cap.
PBIB2737E
Testing pressure: 157 kPa (1.6 kg/cm2 , 23 psi)
SLC754A
Radiator cap
relief pressure:59 - 98 kPa (0.6 - 1.0 kg/cm2 , 9 - 14 psi)
SLC755A
Page 2061 of 5621
![INFINITI M35 2006 Factory Service Manual EC-518
[VQ35DE]
DTC P1217 ENGINE OVER TEMPERATURE
Revision: 2006 January2006 M35/M45
4. CHECK THERMOSTAT
1. Check valve seating condition at normal room temperatures.
It should seat tightly.
2. Check INFINITI M35 2006 Factory Service Manual EC-518
[VQ35DE]
DTC P1217 ENGINE OVER TEMPERATURE
Revision: 2006 January2006 M35/M45
4. CHECK THERMOSTAT
1. Check valve seating condition at normal room temperatures.
It should seat tightly.
2. Check](/manual-img/42/57023/w960_57023-2060.png)
EC-518
[VQ35DE]
DTC P1217 ENGINE OVER TEMPERATURE
Revision: 2006 January2006 M35/M45
4. CHECK THERMOSTAT
1. Check valve seating condition at normal room temperatures.
It should seat tightly.
2. Check valve opening temperature and valve lift.
3. Check if valve is closed at 5
C (9F) below valve opening tem-
perature.
For details, refer to CO-29, "
WATER INLET AND THERMO-
STAT ASSEMBLY" .
OK or NG
OK >> GO TO 5.
NG >> Replace thermostat
5. CHECK ENGINE COOLANT TEMPERATURE SENSOR
Refer to EC-230, "
Component Inspection" .
OK or NG
OK >> GO TO 6.
NG >> Replace engine coolant temperature sensor.
6. CHECK MAIN 12 CAUSES
If the cause cannot be isolated, go to EC-522, "
Main 12 Causes of Overheating" .
>>INSPECTION END
7. CHECK COOLING FAN CONTROL MODULE POWER SUPPLY CIRCUIT-I
1. Turn ignition switch OFF.
2. Disconnect cooling fan control module (1) harness connector
E42.
–: Vehicle front
–Cooling fan motor-1 harness connector (2)
–Cooling fan motor-2 harness connector (3)
3. Turn ignition switch ON.
4. Check voltage between cooling fan control module terminal 3
and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 8.
NG >> GO TO 16.Valve opening temperature: 76.5
C (170F) [standard]
Valve lift: More than 8.6 mm/90
C
(0.339 in/194
F)
SLC949A
PBIB2691E
Voltage: Battery voltage
PBIA9509J
Page 2062 of 5621
![INFINITI M35 2006 Factory Service Manual DTC P1217 ENGINE OVER TEMPERATURE
EC-519
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
8. CHECK COOLING FAN CONTROL MODULE GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Check INFINITI M35 2006 Factory Service Manual DTC P1217 ENGINE OVER TEMPERATURE
EC-519
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
8. CHECK COOLING FAN CONTROL MODULE GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Check](/manual-img/42/57023/w960_57023-2061.png)
DTC P1217 ENGINE OVER TEMPERATURE
EC-519
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
8. CHECK COOLING FAN CONTROL MODULE GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Check harness continuity between cooling fan control module terminal 1 and ground.
Refer to wiring diagram.
3. Also check harness for short to power.
OK or NG
OK >> GO TO 9.
NG >> Repair open circuit or short to power in harness or connectors.
9. CHECK IPDM E/R GROUND CIRCUIT
1. Disconnect IPDM E/R harness connector E8, E9.
2. Check harness continuity between IPDM E/R terminal 38, 51 and ground.
Refer to wiring diagram.
3. Also check harness for short to power.
OK or NG
OK >> GO TO 10.
NG >> Repair open circuit or short to power in harness or connectors.
10. CHECK COOLING FAN CONTROL SIGNAL CIRCUIT
1. Check harness continuity between IPDM E/R terminal 59 and cooling fan control module terminal 2.
Refer to wiring diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK (Models with sub harness)>>GO TO 11.
OK (Models without sub harness)>>GO TO 14.
NG >> Repair open circuit or short to ground or short to power in harness or connectors. Continuity should exist.
Continuity should exist.
Continuity should exist.
Page 2063 of 5621
![INFINITI M35 2006 Factory Service Manual EC-520
[VQ35DE]
DTC P1217 ENGINE OVER TEMPERATURE
Revision: 2006 January2006 M35/M45
11 . CHECK COOLING FAN CONTROL MODULE OUTPUT SIGNAL CIRCUIT
1. Reconnect all harness connectors disconnected.
2. D INFINITI M35 2006 Factory Service Manual EC-520
[VQ35DE]
DTC P1217 ENGINE OVER TEMPERATURE
Revision: 2006 January2006 M35/M45
11 . CHECK COOLING FAN CONTROL MODULE OUTPUT SIGNAL CIRCUIT
1. Reconnect all harness connectors disconnected.
2. D](/manual-img/42/57023/w960_57023-2062.png)
EC-520
[VQ35DE]
DTC P1217 ENGINE OVER TEMPERATURE
Revision: 2006 January2006 M35/M45
11 . CHECK COOLING FAN CONTROL MODULE OUTPUT SIGNAL CIRCUIT
1. Reconnect all harness connectors disconnected.
2. Disconnect cooling fan motor-1 harness connector (2) and cool-
ing fan motor-2 harness connector (3).
–: Vehicle front
–Cooling fan control module (1)
3. Turn ignition switch ON.
4. Check voltage between cooling fan motor-1, -2 terminals 1, 2
and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 13.
NG >> GO TO 12.
12. CHECK COOLING FAN MOTOR CIRCUIT-I
1. Turn ignition switch OFF.
2. Disconnect cooling fan control module harness connectors E301, E303.
3. Check harness continuity between the following;
Cooling fan motor-1 terminal 1, 2 and cooling fan control module terminal 4,
Cooling fan motor-1 terminal 3, 4 and cooling fan control module terminal 5,
Cooling fan motor-2 terminal 1, 2 and cooling fan control module terminal 6,
Cooling fan motor-2 terminal 3, 4 and cooling fan control module terminal 7.
Refer to wiring diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> Replace cooling fan control module.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
PBIB2691E
Voltage: Battery voltage
PBIB2908E
Continuity should exist.
Page 2064 of 5621
![INFINITI M35 2006 Factory Service Manual DTC P1217 ENGINE OVER TEMPERATURE
EC-521
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
13. CHECK COOLING FAN MOTOR CIRCUIT-II
1. Turn ignition switch OFF.
2. Disconnect cooling INFINITI M35 2006 Factory Service Manual DTC P1217 ENGINE OVER TEMPERATURE
EC-521
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
13. CHECK COOLING FAN MOTOR CIRCUIT-II
1. Turn ignition switch OFF.
2. Disconnect cooling](/manual-img/42/57023/w960_57023-2063.png)
DTC P1217 ENGINE OVER TEMPERATURE
EC-521
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
13. CHECK COOLING FAN MOTOR CIRCUIT-II
1. Turn ignition switch OFF.
2. Disconnect cooling fan control module harness connectors E301, E303.
3. Check harness continuity between the following;
Cooling fan motor-1 terminal 1, 2 and cooling fan control module terminal 4,
Cooling fan motor-1 terminal 3, 4 and cooling fan control module terminal 5,
Cooling fan motor-2 terminal 1, 2 and cooling fan control module terminal 6,
Cooling fan motor-2 terminal 3, 4 and cooling fan control module terminal 7.
Refer to wiring diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 15.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
14. CHECK COOLING FAN CONTROL MODULE OUTPUT SIGNAL CIRCUIT
1. Reconnect all harness connectors disconnected.
2. Disconnect cooling fan control module harness connectors E301, E303.
3. Turn ignition switch ON.
4. Check voltage between cooling fan control module terminals 4,
6 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 15.
NG >> Replace cooling fan control module.
15. CHECK COOLING FAN MOTORS -1 AND -2
Refer to EC-524, "
Component Inspection" .
OK or NG
OK >> GO TO 20.
NG >> Replace cooling fan motor.
16. CHECK COOLING FAN CONTROL MODULE POWER SUPPLY CIRCUIT-II
1. Turn ignition switch OFF.
2. Disconnect cooling fan relay harness connector.
3. Turn ignition switch ON.
4. Check voltage between cooling fan relay terminals 1, 3 and
ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 18.
NG >> GO TO 17.Continuity should exist.
Voltage: Battery voltage

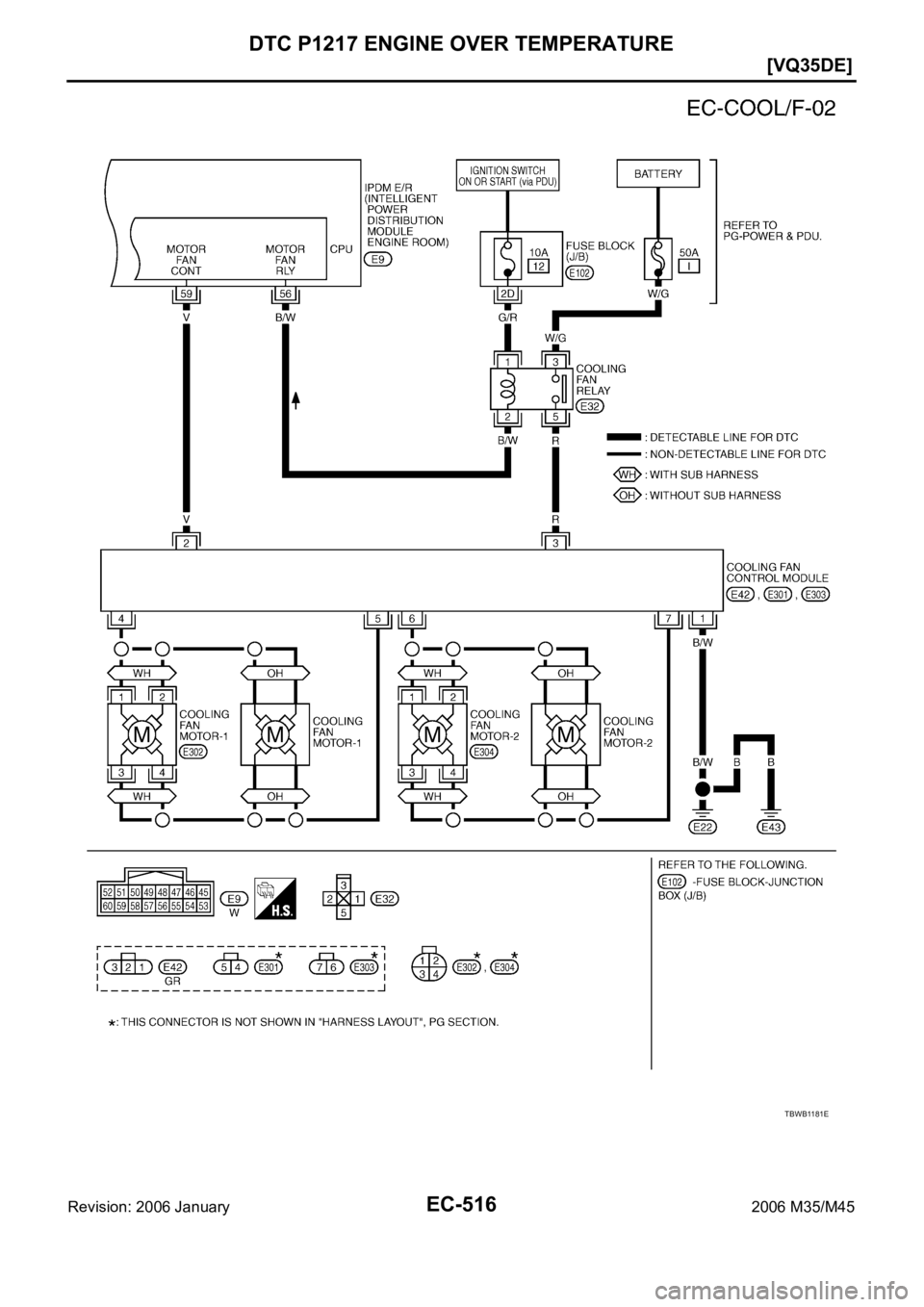

PBID0261J
Voltage: Battery voltage
PBIA9511J
