INFINITI M35 2006 Factory Service Manual AV-12
[WITHOUT MOBILE ENTERTAINMENT SYSTEM]
SYSTEM DESCRIPTION
Revision: 2006 January2006 M35/M45
BOSE Surround 5.1ch System
It amplifies the sound signal from the audio unit and the DVD

AV-12
[WITHOUT MOBILE ENTERTAINMENT SYSTEM]
SYSTEM DESCRIPTION
Revision: 2006 January2006 M35/M45
BOSE Surround 5.1ch System
It amplifies the sound signal from the audio unit and the DVD
sound signal from DVD player, and then output them to each
speaker.
It receives the voice guidance signal from AV (NAVI) control unit
and output it to the front speaker.
It controls sound volume of each speaker when outputting TEL
voice and voice guidance.
It subjects to AudioPilot® processing when receiving sound sig-
nal from microphone for AudioPilot
® .
It subjects to Centerpoint® processing.
SATELLITE TUNER
The satellite tuner is connected with the audio unit via communi-
cation line.
It sends the received sound signal from the satellite radio
antenna to the audio unit.
AV CONTROL UNIT (WITHOUT NAVI)
It controls each unit of the system by the operation signal from
the multifunction switch and sends the image signal of operating
condition or vehicle information, etc. to the front display unit.
It receives the TEL input voice or the input voice at voice control
from the microphone. It receives the received TEL voice, and
then sends it to the audio unit.
It sends the voice guidance signal to BOSE amp (BOSE system)
and audio unit (BASE system).
NAVI CONTROL UNIT (WITH NAVI)
It controls each unit of the system by the operation signal from
the multifunction switch and sends the image signal of operating
condition or vehicle information, etc. to the front display unit.
It receives the TEL input voice or the input voice at voice control
from the microphone. It receives the received TEL voice, and
then sends it to the audio unit.
It sends the voice guidance signal to BOSE amp (BOSE system)
and audio unit (BASE system).
Signals are received from the gyro, the vehicle speed sensor,
and the GPS antenna. Vehicle location is determined by com-
bining this data with the data contained in the DVD-ROM map.
Location information is shown on liquid crystal display panel.
SKIB3887E
SKIB3894E
SKIB3891E
SKIB3892E

Page 634 of 5621

INFINITI M35 2006 Factory Service Manual SYSTEM DESCRIPTION
AV-13
[WITHOUT MOBILE ENTERTAINMENT SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2006 January2006 M35/M45
FRONT DISPLAY UNIT
It receives the RGB signal and the image signal of DVD pl

Page 635 of 5621

INFINITI M35 2006 Factory Service Manual AV-14
[WITHOUT MOBILE ENTERTAINMENT SYSTEM]
SYSTEM DESCRIPTION
Revision: 2006 January2006 M35/M45
Schematic — Base Audio System —NKS0048D
TKWT3490E

Page 636 of 5621

INFINITI M35 2006 Factory Service Manual SYSTEM DESCRIPTION
AV-15
[WITHOUT MOBILE ENTERTAINMENT SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2006 January2006 M35/M45

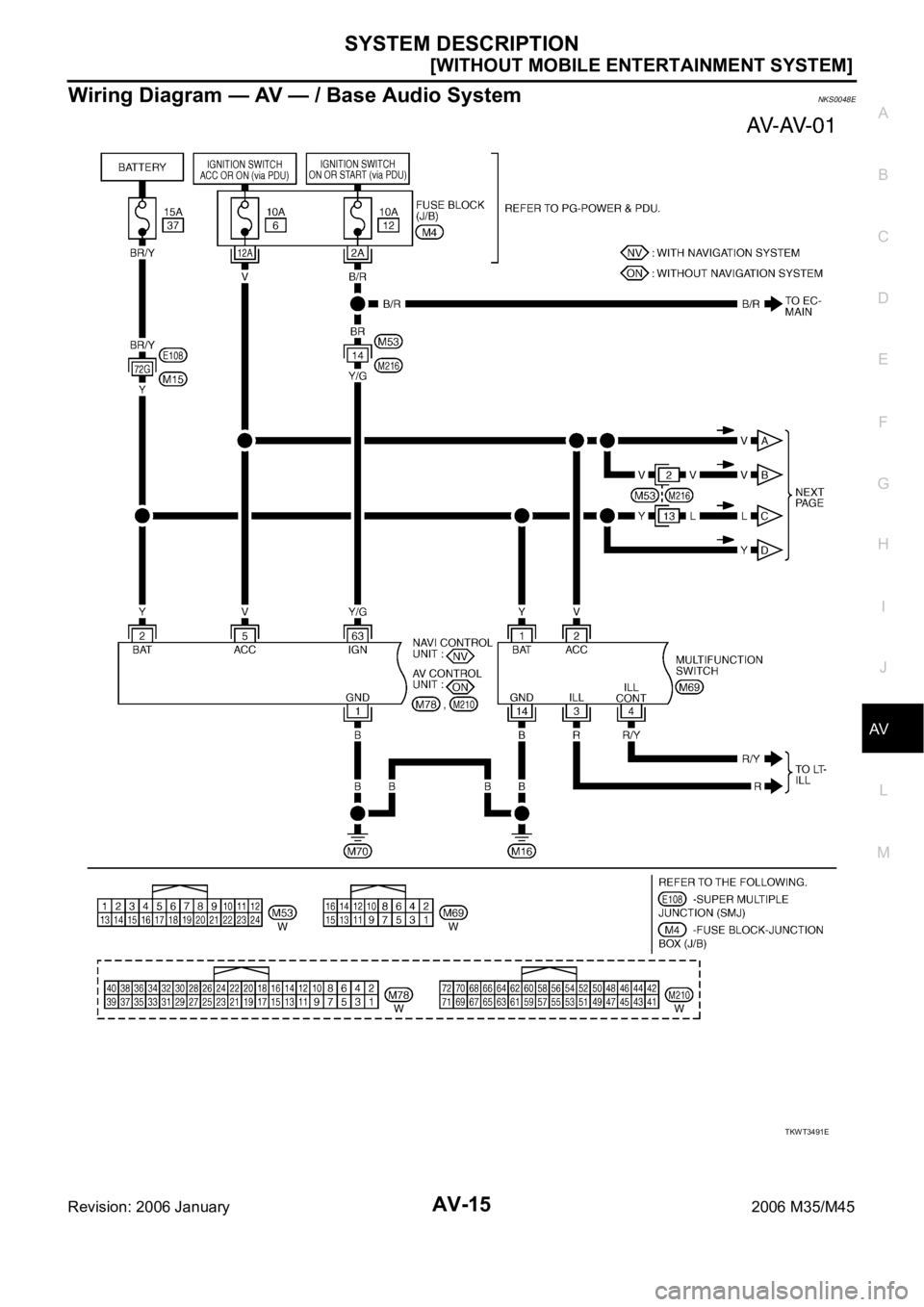

Wiring Diagram — AV — / Base Audio SystemNKS0048E
TKWT3491E

Page 637 of 5621

INFINITI M35 2006 Factory Service Manual AV-16
[WITHOUT MOBILE ENTERTAINMENT SYSTEM]
SYSTEM DESCRIPTION
Revision: 2006 January2006 M35/M45
TKWT3492E

Page 638 of 5621

INFINITI M35 2006 Factory Service Manual SYSTEM DESCRIPTION
AV-17
[WITHOUT MOBILE ENTERTAINMENT SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2006 January2006 M35/M45
TKWT3493E

Page 639 of 5621

INFINITI M35 2006 Factory Service Manual AV-18
[WITHOUT MOBILE ENTERTAINMENT SYSTEM]
SYSTEM DESCRIPTION
Revision: 2006 January2006 M35/M45
TKWT3494E

Page 640 of 5621

INFINITI M35 2006 Factory Service Manual SYSTEM DESCRIPTION
AV-19
[WITHOUT MOBILE ENTERTAINMENT SYSTEM]
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2006 January2006 M35/M45
TKWT3495E
