Page 4753 of 5621

INFINITI M35 2006 Factory Service Manual LU-10 [VQ35DE] OIL FILTER Revision: 2006 January2006 M35/M45 OIL FILTERPFP:15208 Removal and InstallationNBS004PY REMOVAL 1. Remove front engine undercover with power tool. 2. Using oil filter wrench

Page 4754 of 5621

INFINITI M35 2006 Factory Service Manual OIL FILTER LU-11 [VQ35DE] C D E F G H I J K L MA LU Revision: 2006 January2006 M35/M45 3. Stop the engine and wait for 10 minutes. 4. Check the engine oil level, and adjust the level. Refer to LU-7, &

Page 4755 of 5621

INFINITI M35 2006 Factory Service Manual LU-12 [VQ35DE] OIL FILTER BRACKET (AWD) Revision: 2006 January2006 M35/M45 OIL FILTER BRACKET (AWD)PFP:15238 ComponentsNBS004PZ Refer to GI-11, "Components" for symbol marks in the figure. Re

Page 4756 of 5621

INFINITI M35 2006 Factory Service Manual OIL FILTER BRACKET (AWD) LU-13 [VQ35DE] C D E F G H I J K L MA LU Revision: 2006 January2006 M35/M45 Use Genuine RTV Silicone Sealant or equivalent. Refer to GI-48, "RECOMMENDED CHEMICAL

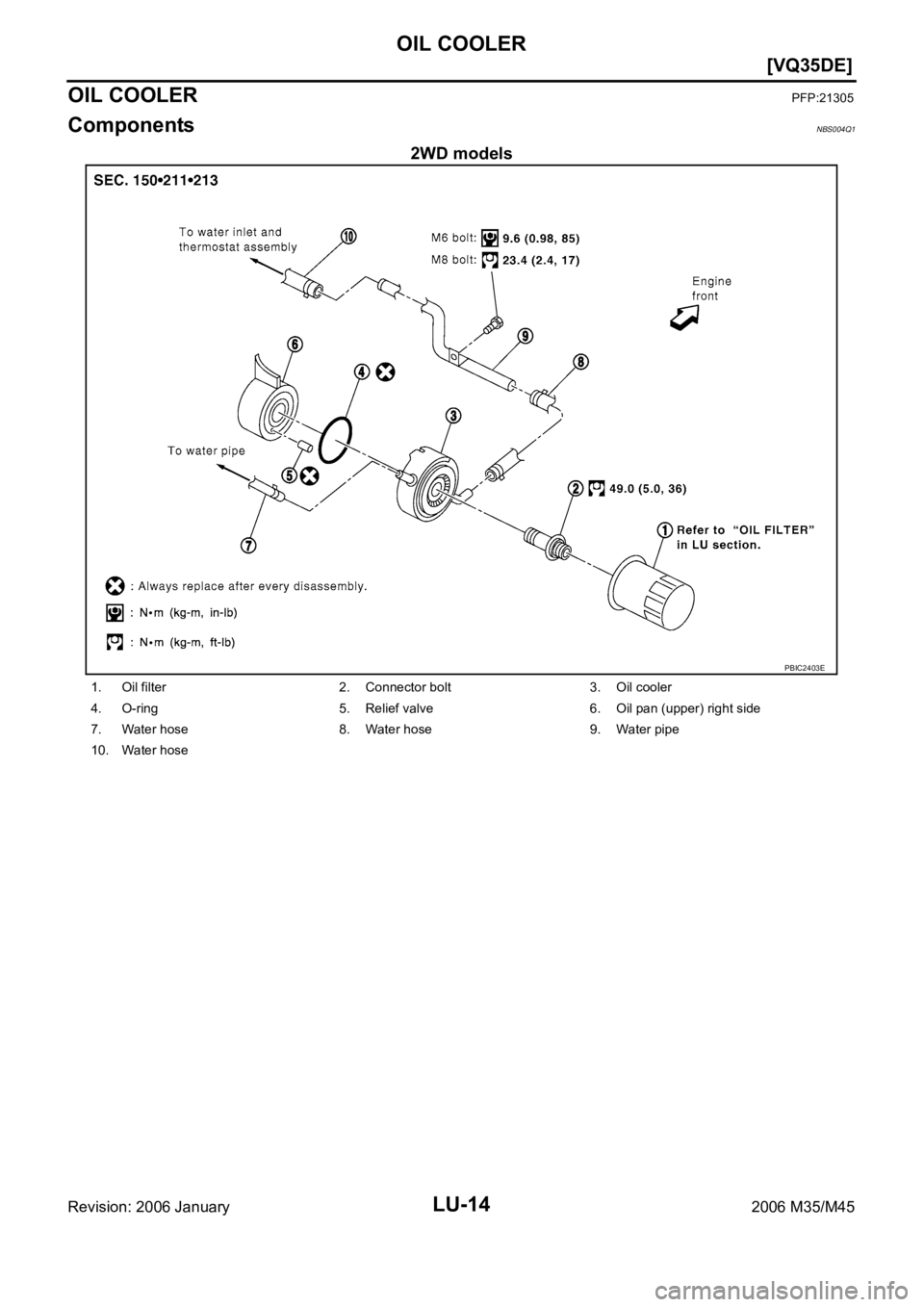

Page 4757 of 5621

INFINITI M35 2006 Factory Service Manual LU-14 [VQ35DE] OIL COOLER Revision: 2006 January2006 M35/M45 OIL COOLERPFP:21305 ComponentsNBS004Q1 2WD models PBIC2403E 1. Oil filter 2. Connector bolt 3. Oil cooler 4. O-ring 5. Relief valve 6. Oil

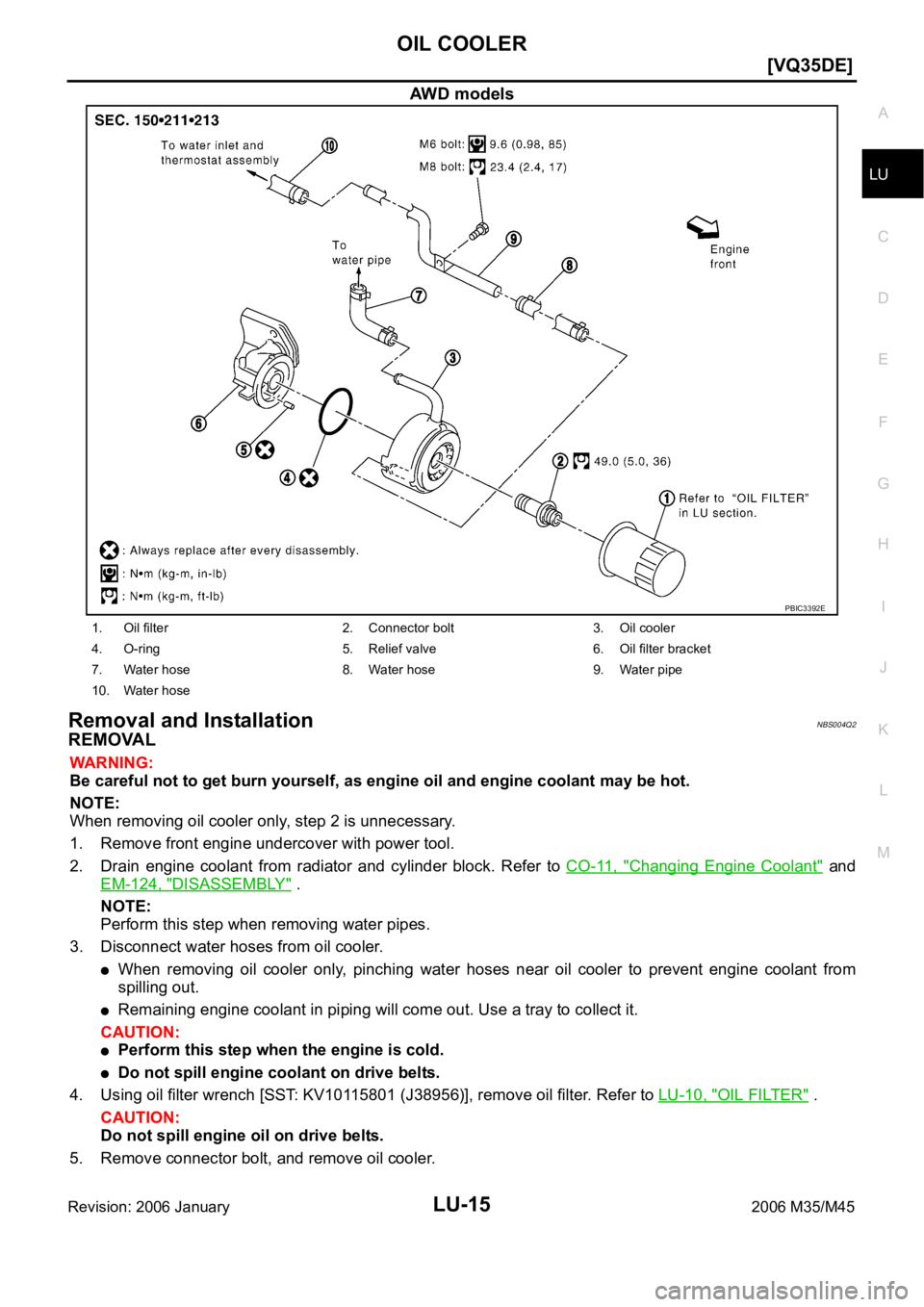

Page 4758 of 5621

INFINITI M35 2006 Factory Service Manual OIL COOLER LU-15 [VQ35DE] C D E F G H I J K L MA LU Revision: 2006 January2006 M35/M45 AWD models Removal and InstallationNBS004Q2 REMOVAL WAR NING : Be careful not to get burn yourself, as engine oil

Page 4759 of 5621

INFINITI M35 2006 Factory Service Manual LU-16 [VQ35DE] OIL COOLER Revision: 2006 January2006 M35/M45 CAUTION: Do not spill engine oil to rubber parts such as drive belts and engine mounting insulator. 6. Remove water pipes, as necessary. IN

Page 4760 of 5621

INFINITI M35 2006 Factory Service Manual OIL COOLER LU-17 [VQ35DE] C D E F G H I J K L MA LU Revision: 2006 January2006 M35/M45 3. Stop the engine and wait for 10 minutes. 4. Check the engine oil level and the engine coolant level again. Ref
