EM-82
[VQ35DE]
TIMING CHAIN
Revision: 2006 January2006 M35/M45

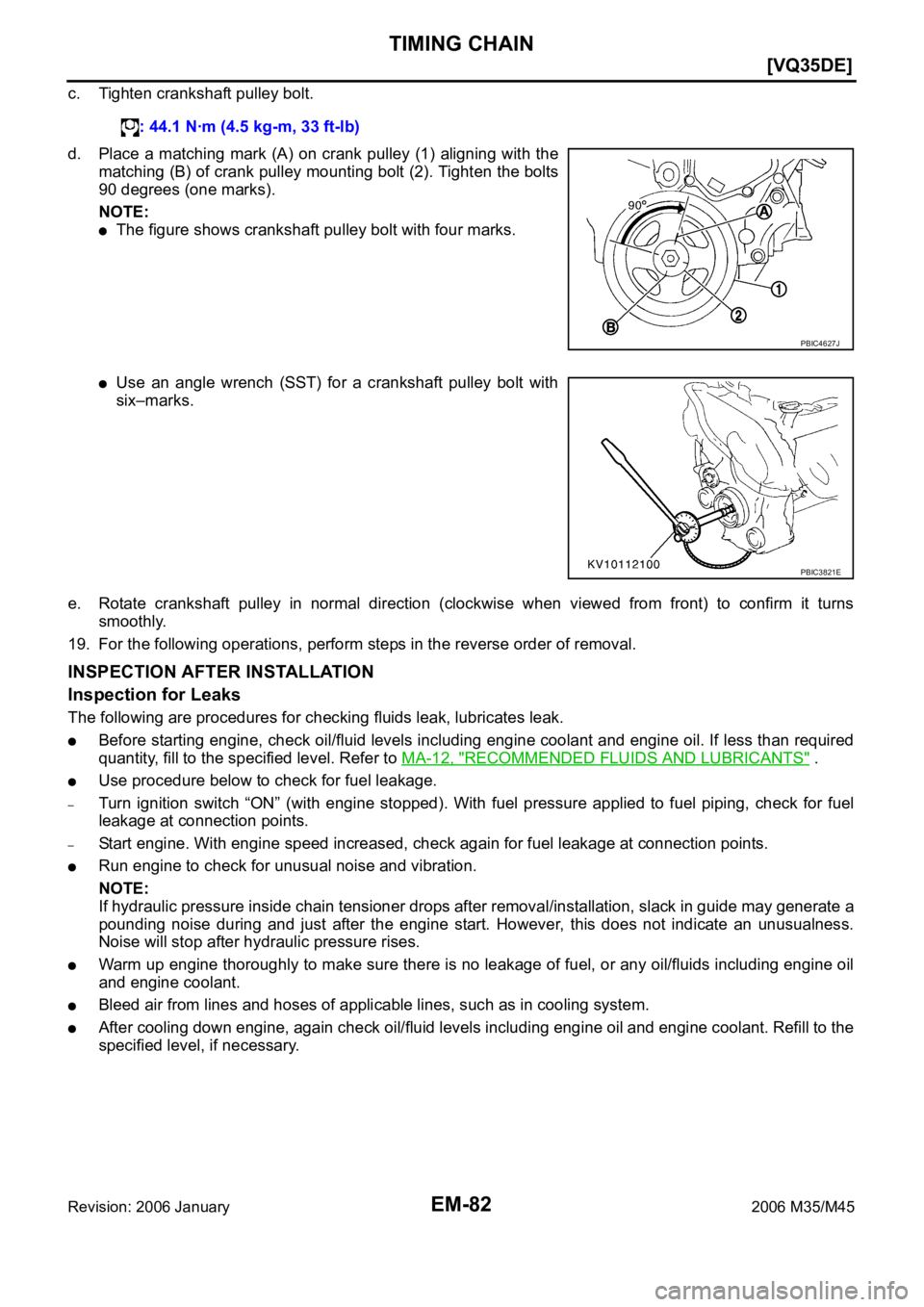

c. Tighten crankshaft pulley bolt.
d. Place a matching mark (A) on crank pulley (1) aligning with the
matching (B) of crank pulley mounting bolt (2). Tighten the bolts
90 degrees (one marks).
NOTE:
The figure shows crankshaft pulley bolt with four marks.
Use an angle wrench (SST) for a crankshaft pulley bolt with
six–marks.
e. Rotate crankshaft pulley in normal direction (clockwise when viewed from front) to confirm it turns
smoothly.
19. For the following operations, perform steps in the reverse order of removal.
INSPECTION AFTER INSTALLATION
Inspection for Leaks
The following are procedures for checking fluids leak, lubricates leak.
Before starting engine, check oil/fluid levels including engine coolant and engine oil. If less than required
quantity, fill to the specified level. Refer to MA-12, "
RECOMMENDED FLUIDS AND LUBRICANTS" .
Use procedure below to check for fuel leakage.
–Turn ignition switch “ON” (with engine stopped). With fuel pressure applied to fuel piping, check for fuel
leakage at connection points.
–Start engine. With engine speed increased, check again for fuel leakage at connection points.
Run engine to check for unusual noise and vibration.
NOTE:
If hydraulic pressure inside chain tensioner drops after removal/installation, slack in guide may generate a
pounding noise during and just after the engine start. However, this does not indicate an unusualness.
Noise will stop after hydraulic pressure rises.
Warm up engine thoroughly to make sure there is no leakage of fuel, or any oil/fluids including engine oil
and engine coolant.
Bleed air from lines and hoses of applicable lines, such as in cooling system.
After cooling down engine, again check oil/fluid levels including engine oil and engine coolant. Refill to the
specified level, if necessary.: 44.1 Nꞏm (4.5 kg-m, 33 ft-lb)
PBIC4627J
PBIC3821E
Page 3146 of 5621
TIMING CHAIN
EM-83
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
Summary of the inspection items:
* Transmission/transaxle/CVT fluid, power steering fluid, brake fluid, etc. Item Before starting engine Engine running After engine stopped
Engine coolant Level Leakage Level
Engine oil Level Leakage Level
Other oils and fluid* Level Leakage Level
Fuel Leakage Leakage Leakage
Page 3147 of 5621
EM-84
[VQ35DE]
CAMSHAFT
Revision: 2006 January2006 M35/M45
CAMSHAFTPFP:13001
ComponentsNBS004NL
1.Intake valve timing control solenoid
valve 2. Gasket 3. Camshaft bracket (No. 2 to 4)
4. Seal washer 5. Camshaft (EXH) 6. Camshaft (INT)
7. Camshaft bracket (No. 1) 8. Dowel pin 9. Valve lifter
10. O-ring 11. Timing chain tensioner (secondary) 12. Spring
13. Plunger 14. Cylinder head (right bank) 15. Cylinder head (left bank)
16. O-ring 17.Camshaft position sensor (PHASE)
(bank 1)18.Camshaft position sensor (PHASE)
(bank 2)
PBIC2306E
Page 3148 of 5621
![INFINITI M35 2006 Factory Service Manual CAMSHAFT
EM-85
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
Removal and InstallationNBS004NM
REMOVAL
1. Remove front timing chain case, camshaft sprocket, timing chain and rea INFINITI M35 2006 Factory Service Manual CAMSHAFT
EM-85
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
Removal and InstallationNBS004NM
REMOVAL
1. Remove front timing chain case, camshaft sprocket, timing chain and rea](/manual-img/42/57023/w960_57023-3147.png)
CAMSHAFT
EM-85
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
Removal and InstallationNBS004NM
REMOVAL
1. Remove front timing chain case, camshaft sprocket, timing chain and rear timing chain case. Refer to EM-
64, "TIMING CHAIN" .
2. Remove camshaft position sensor (PHASE) (bank 1 and bank
2) from cylinder head back side.
CAUTION:
Handle carefully to avoid dropping and shocks.
Do not disassemble.
Do not allow metal powder to adhere to magnetic part at
sensor tip.
Do not place sensors in a location where they are
exposed to magnetism.
3. Remove intake valve timing control solenoid valves.
Discard intake valve timing control solenoid valve gaskets and
use new gaskets for installation.
4. Remove camshaft brackets.
Mark camshafts, camshaft brackets and bolts so they are placed in the same position and direction for
installation.
Equally loosen camshaft bracket bolts in several steps in
reverse order as shown in the figure.
5. Remove camshaft.
6. Remove valve lifter.
Identify installation positions, and store them without mixing them up.
KBIA1046E
SEM443GA
PBIC2050E
Page 3149 of 5621
![INFINITI M35 2006 Factory Service Manual EM-86
[VQ35DE]
CAMSHAFT
Revision: 2006 January2006 M35/M45
7. Remove timing chain tensioner (secondary) from cylinder head.
Remove timing chain tensioner (secondary) with its stopper
pin attach INFINITI M35 2006 Factory Service Manual EM-86
[VQ35DE]
CAMSHAFT
Revision: 2006 January2006 M35/M45
7. Remove timing chain tensioner (secondary) from cylinder head.
Remove timing chain tensioner (secondary) with its stopper
pin attach](/manual-img/42/57023/w960_57023-3148.png)
EM-86
[VQ35DE]
CAMSHAFT
Revision: 2006 January2006 M35/M45
7. Remove timing chain tensioner (secondary) from cylinder head.
Remove timing chain tensioner (secondary) with its stopper
pin attached.
NOTE:
Stopper pin should be attached when timing chain (secondary)
is removed.
INSPECTION AFTER REMOVAL

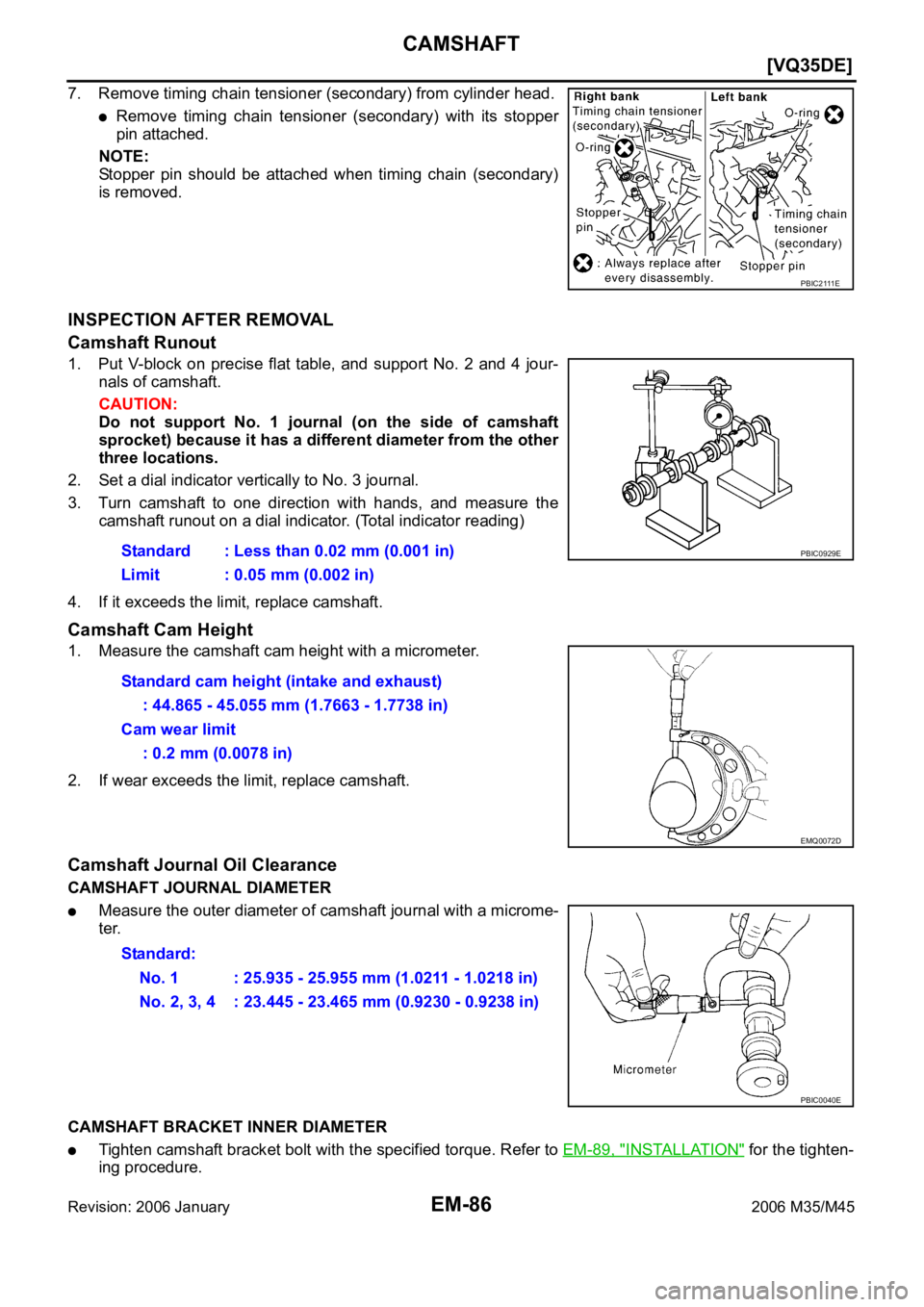

Camshaft Runout
1. Put V-block on precise flat table, and support No. 2 and 4 jour-
nals of camshaft.
CAUTION:
Do not support No. 1 journal (on the side of camshaft
sprocket) because it has a different diameter from the other
three locations.
2. Set a dial indicator vertically to No. 3 journal.
3. Turn camshaft to one direction with hands, and measure the
camshaft runout on a dial indicator. (Total indicator reading)
4. If it exceeds the limit, replace camshaft.
Camshaft Cam Height
1. Measure the camshaft cam height with a micrometer.
2. If wear exceeds the limit, replace camshaft.
Camshaft Journal Oil Clearance
CAMSHAFT JOURNAL DIAMETER
Measure the outer diameter of camshaft journal with a microme-
ter.
CAMSHAFT BRACKET INNER DIAMETER
Tighten camshaft bracket bolt with the specified torque. Refer to EM-89, "INSTALLATION" for the tighten-
ing procedure.
PBIC2111E
Standard : Less than 0.02 mm (0.001 in)
Limit : 0.05 mm (0.002 in)PBIC0929E
Standard cam height (intake and exhaust)
: 44.865 - 45.055 mm (1.7663 - 1.7738 in)
Cam wear limit
: 0.2 mm (0.0078 in)
EMQ0072D
Standard:
No. 1 : 25.935 - 25.955 mm (1.0211 - 1.0218 in)
No. 2, 3, 4 : 23.445 - 23.465 mm (0.9230 - 0.9238 in)
PBIC0040E
Page 3150 of 5621
![INFINITI M35 2006 Factory Service Manual CAMSHAFT
EM-87
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
Measure inner diameter “A” of camshaft bracket with a bore
gauge.
CAMSHAFT JOURNAL OIL CLEARANCE
(Oil INFINITI M35 2006 Factory Service Manual CAMSHAFT
EM-87
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
Measure inner diameter “A” of camshaft bracket with a bore
gauge.
CAMSHAFT JOURNAL OIL CLEARANCE
(Oil](/manual-img/42/57023/w960_57023-3149.png)
CAMSHAFT
EM-87
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
Measure inner diameter “A” of camshaft bracket with a bore
gauge.
CAMSHAFT JOURNAL OIL CLEARANCE
(Oil clearance) = (Camshaft bracket inner diameter) – (Camshaft journal diameter).
If the calculated value exceeds the limit, replace either or both camshaft and cylinder head.
NOTE:
Camshaft brackets cannot be replaced as single parts, because there are machined together with cylinder
head. Replace whole cylinder head assembly.
Camshaft End Play

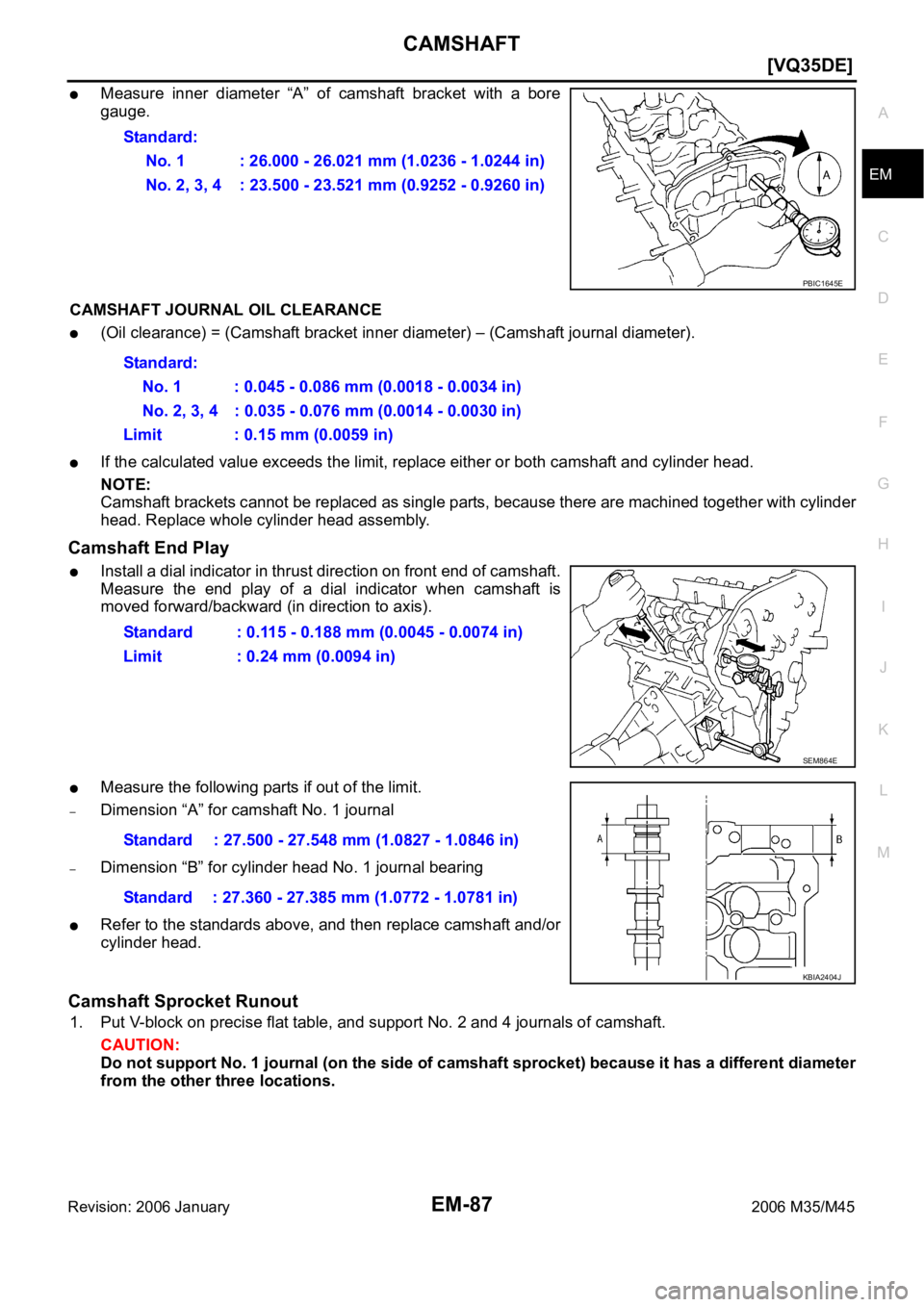

Install a dial indicator in thrust direction on front end of camshaft.
