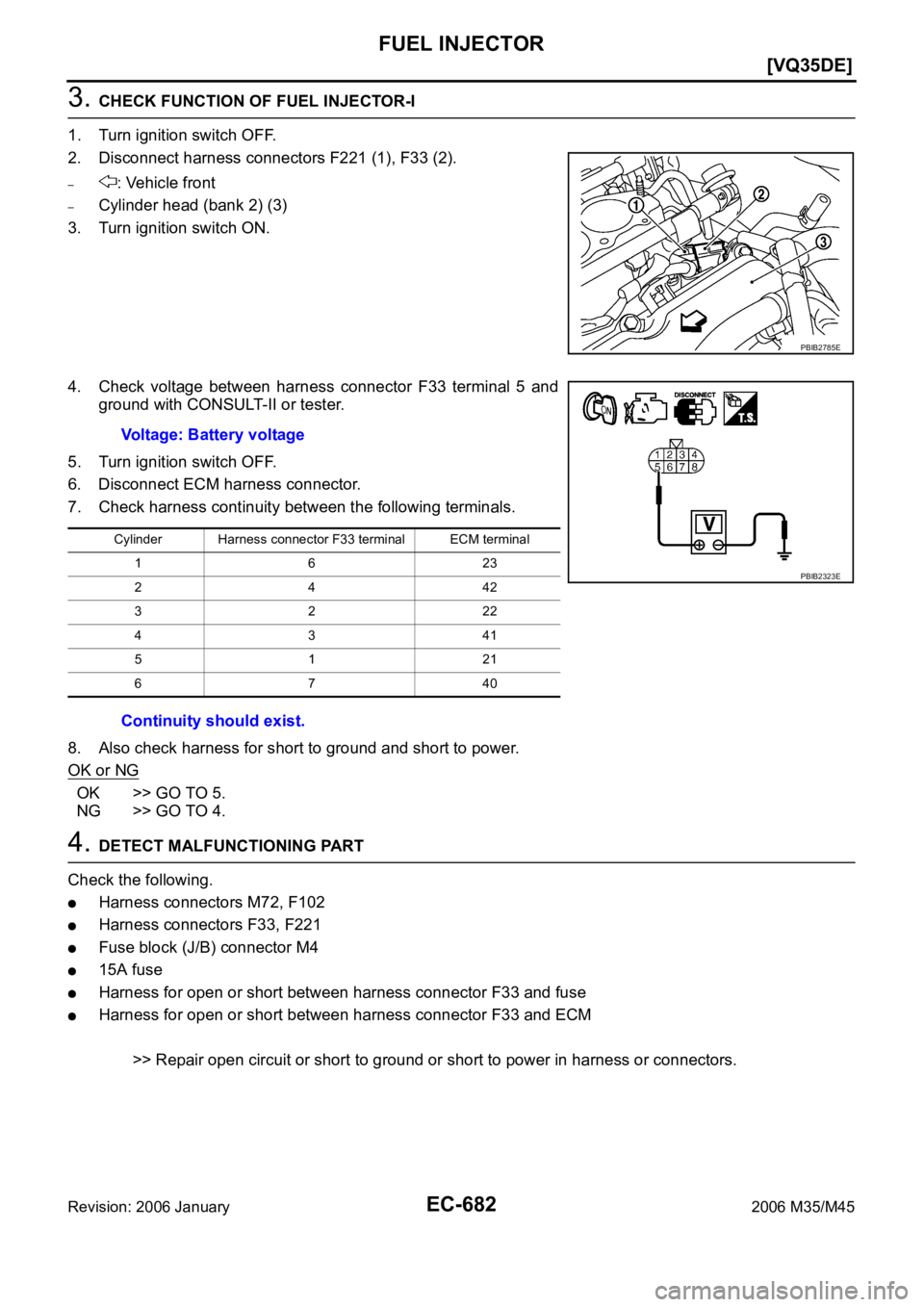

EC-682
[VQ35DE]
FUEL INJECTOR
Revision: 2006 January2006 M35/M45
3. CHECK FUNCTION OF FUEL INJECTOR-I
1. Turn ignition switch OFF.
2. Disconnect harness connectors F221 (1), F33 (2).
–: Vehicle front
–Cylinder head (bank 2) (3)
3. Turn ignition switch ON.
4. Check voltage between harness connector F33 terminal 5 and
ground with CONSULT-II or tester.
5. Turn ignition switch OFF.
6. Disconnect ECM harness connector.
7. Check harness continuity between the following terminals.
8. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors M72, F102
Harness connectors F33, F221
Fuse block (J/B) connector M4
15A fuse
Harness for open or short between harness connector F33 and fuse
Harness for open or short between harness connector F33 and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
PBIB2785E
Voltage: Battery voltage
Cylinder Harness connector F33 terminal ECM terminal
16 23
24 42
32 22
43 41
51 21
67 40
Continuity should exist.
PBIB2323E
Page 2226 of 5621
FUEL INJECTOR
EC-683
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
5. CHECK FUNCTION OF FUEL INJECTOR-II
Provide battery voltage between the following terminals, and then
interrupt it. Listen to each fuel injector operating sound.
OK or NG
OK >>INSPECTION END
NG >> GO TO 6.
6. CHECK SUB-HARNESS CIRCUIT FOR OPEN AND SHORT
1. Disconnect fuel injector harness connector (1).
2. Check harness continuity between the following terminals. Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 7.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
CylinderHarness connector F221 terminal
(+) (–)
1
56
24
32
43
51
67
Operating sound should exist.
PBIB2497E
PBIB2792E
Harness connector F221 terminal Fuel injector terminal
1
2 2
3
4
6
7
51
Continuity should exist.
Page 2227 of 5621

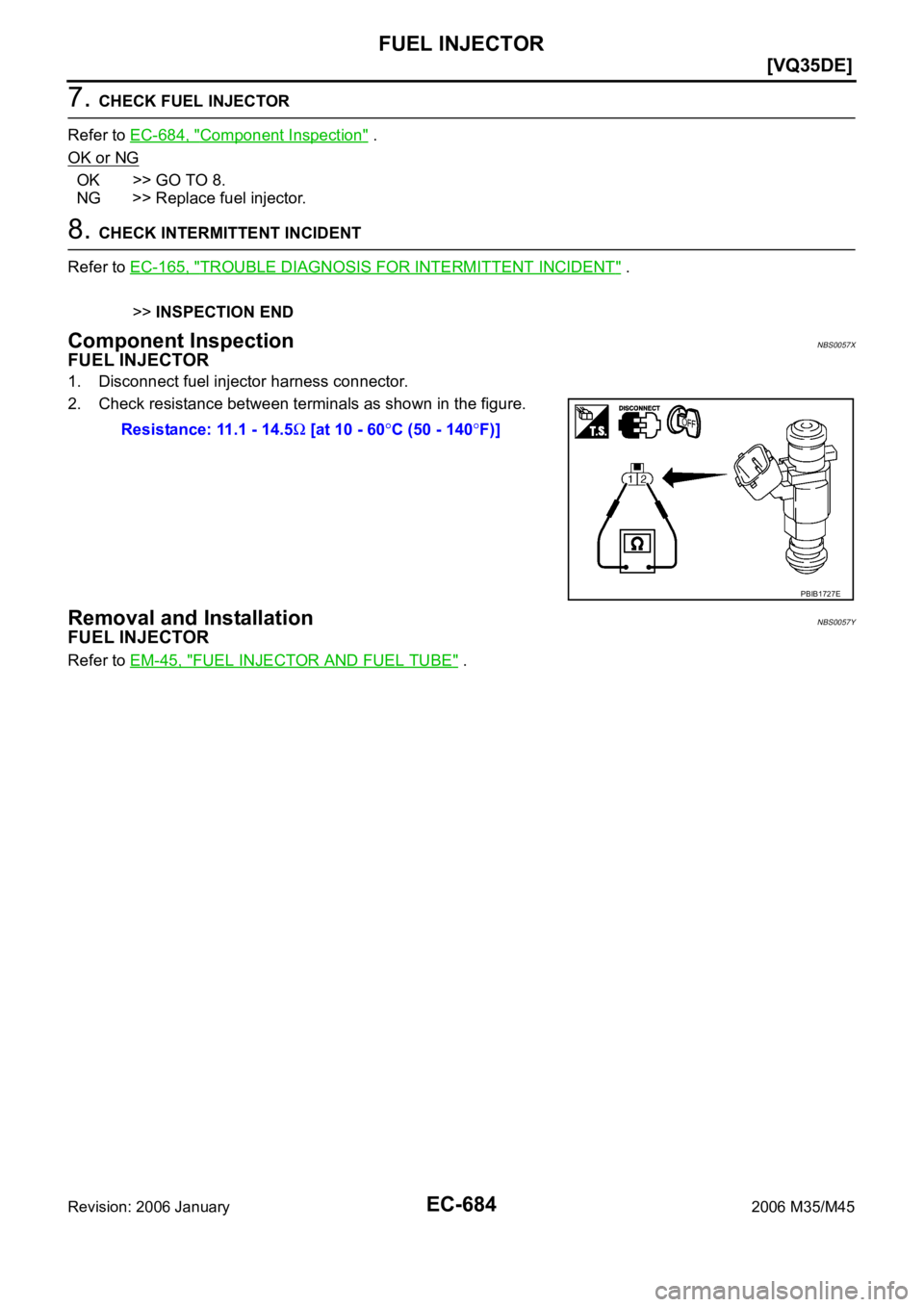

EC-684
[VQ35DE]
FUEL INJECTOR
Revision: 2006 January2006 M35/M45
7. CHECK FUEL INJECTOR
Refer to EC-684, "
Component Inspection" .
OK or NG
OK >> GO TO 8.
NG >> Replace fuel injector.
8. CHECK INTERMITTENT INCIDENT
Refer to EC-165, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionNBS0057X
FUEL INJECTOR
1. Disconnect fuel injector harness connector.
2. Check resistance between terminals as shown in the figure.
Removal and InstallationNBS0057Y
FUEL INJECTOR
Refer to EM-45, "FUEL INJECTOR AND FUEL TUBE" . Resistance: 11.1 - 14.5
[at 10 - 60C (50 - 140F)]
PBIB1727E
Page 2228 of 5621
![INFINITI M35 2006 Factory Service Manual FUEL PUMP
EC-685
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
FUEL PUMPPFP:17042
DescriptionNBS0057Z
SYSTEM DESCRIPTION
*: ECM determines the start signal status by the signal INFINITI M35 2006 Factory Service Manual FUEL PUMP
EC-685
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
FUEL PUMPPFP:17042
DescriptionNBS0057Z
SYSTEM DESCRIPTION
*: ECM determines the start signal status by the signal](/manual-img/42/57023/w960_57023-2227.png)
FUEL PUMP
EC-685
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
FUEL PUMPPFP:17042
DescriptionNBS0057Z
SYSTEM DESCRIPTION
*: ECM determines the start signal status by the signals of engine speed and battery voltage.
The ECM activates the fuel pump for several seconds after the ignition switch is turned ON to improve engine
startability. If the ECM receives a engine speed signal from the camshaft position sensor (PHASE), it knows
that the engine is rotating, and causes the pump to operate. If the engine speed signal is not received when
the ignition switch is ON, the engine stalls. The ECM stops pump operation and prevents battery discharging,
thereby improving safety. The ECM does not directly drive the fuel pump. It controls the ON/OFF fuel pump
relay, which in turn controls the fuel pump.
COMPONENT DESCRIPTION
A turbine type design fuel pump is used in the fuel tank.
Fuel level sensor unit and fuel pump (1)
Fuel pressure regulator (2)
Fuel tank temperature sensor (3)
CONSULT-II Reference Value in Data Monitor ModeNBS00580
Specification data are reference values.
Sensor Input signal to ECM ECM Function Actuator
Crankshaft position sensor (POS)
Camshaft position sensor (PHASE)Engine speed*
Fuel pump control Fuel pump relay
Battery Battery voltage*
Condition Fuel pump operation
Ignition switch is turned to ON. Operates for 1 second.
Engine running and crankingOperates.
When engine is stoppedStops in 1.5 seconds.
Except as shown aboveStops.
PBIB2707E
MONITOR ITEM CONDITION SPECIFICATION
FUEL PUMP RLY
For 1 seconds after turning ignition switch: ON
Engine running or crankingON
Except above OFF
Page 2229 of 5621
EC-686
[VQ35DE]
FUEL PUMP
Revision: 2006 January2006 M35/M45

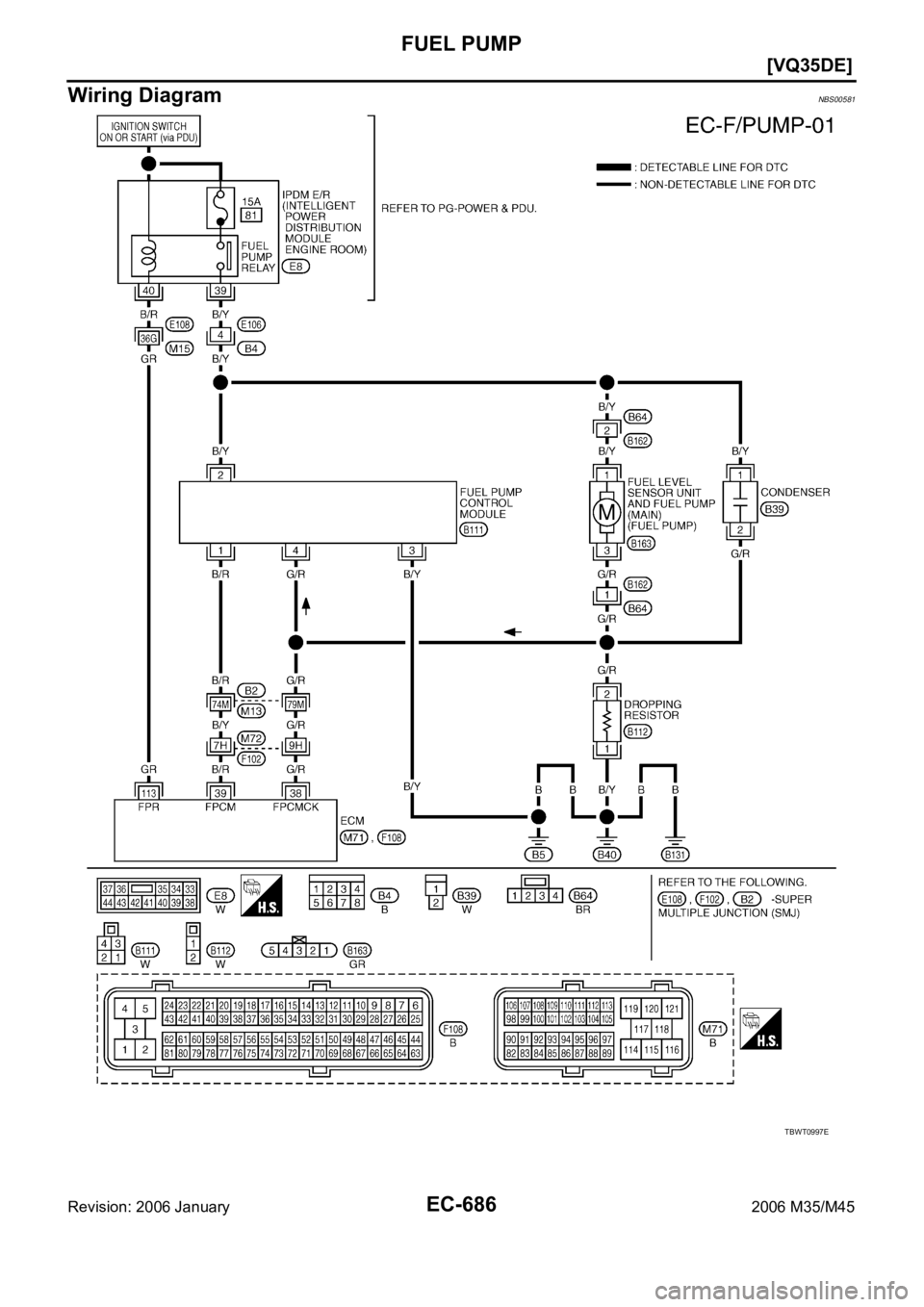

Wiring DiagramNBS00581
TBWT0997E
Page 2230 of 5621
![INFINITI M35 2006 Factory Service Manual FUEL PUMP
EC-687
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use EC INFINITI M35 2006 Factory Service Manual FUEL PUMP
EC-687
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use EC](/manual-img/42/57023/w960_57023-2229.png)
FUEL PUMP
EC-687
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureNBS00582
1. CHECK OVERALL FUNCTION
1. Turn ignition switch ON.
2. Pinch fuel feed hose with two fingers.
OK or NG
OK >>INSPECTION END
NG >> GO TO 2.
2. CHECK FUEL PUMP POWER SUPPLY CIRCUIT-I
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Turn ignition switch ON.
4. Check voltage between ECM terminal 113 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 5.
NG >> GO TO 3.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
38 G/RFuel pump control module
(FPCM) check[When cranking engine]Approximately 0V
[Engine is running]
Warm-up condition
Idle speed4 - 6V
39 B/RFuel pump control module
(FPCM)[When cranking engine]0 - 0.5V
[Engine is running]
Warm-up condition
Idle speed8 - 12V
113 GR Fuel pump relay[Ignition switch: ON]
For 1 second after turning ignition switch ON
[Engine is running]0 - 1.5V
[Ignition switch: ON]
More than 1 second after turning ignition
switch ONBATTERY VOLTAGE
(11 - 14V)
Fuel pressure pulsation should be felt on the fuel feed
hose for 1 second after ignition switch is turned ON.
PBIB1612E
Voltage: Battery voltage
PBIB1187E
Page 2231 of 5621
![INFINITI M35 2006 Factory Service Manual EC-688
[VQ35DE]
FUEL PUMP
Revision: 2006 January2006 M35/M45
3. CHECK FUEL PUMP POWER SUPPLY CIRCUIT-II
Check voltage between IPDM E/R terminal 40 and ground with
CONSULT-II or tester.
OK or INFINITI M35 2006 Factory Service Manual EC-688
[VQ35DE]
FUEL PUMP
Revision: 2006 January2006 M35/M45
3. CHECK FUEL PUMP POWER SUPPLY CIRCUIT-II
Check voltage between IPDM E/R terminal 40 and ground with
CONSULT-II or tester.
OK or](/manual-img/42/57023/w960_57023-2230.png)

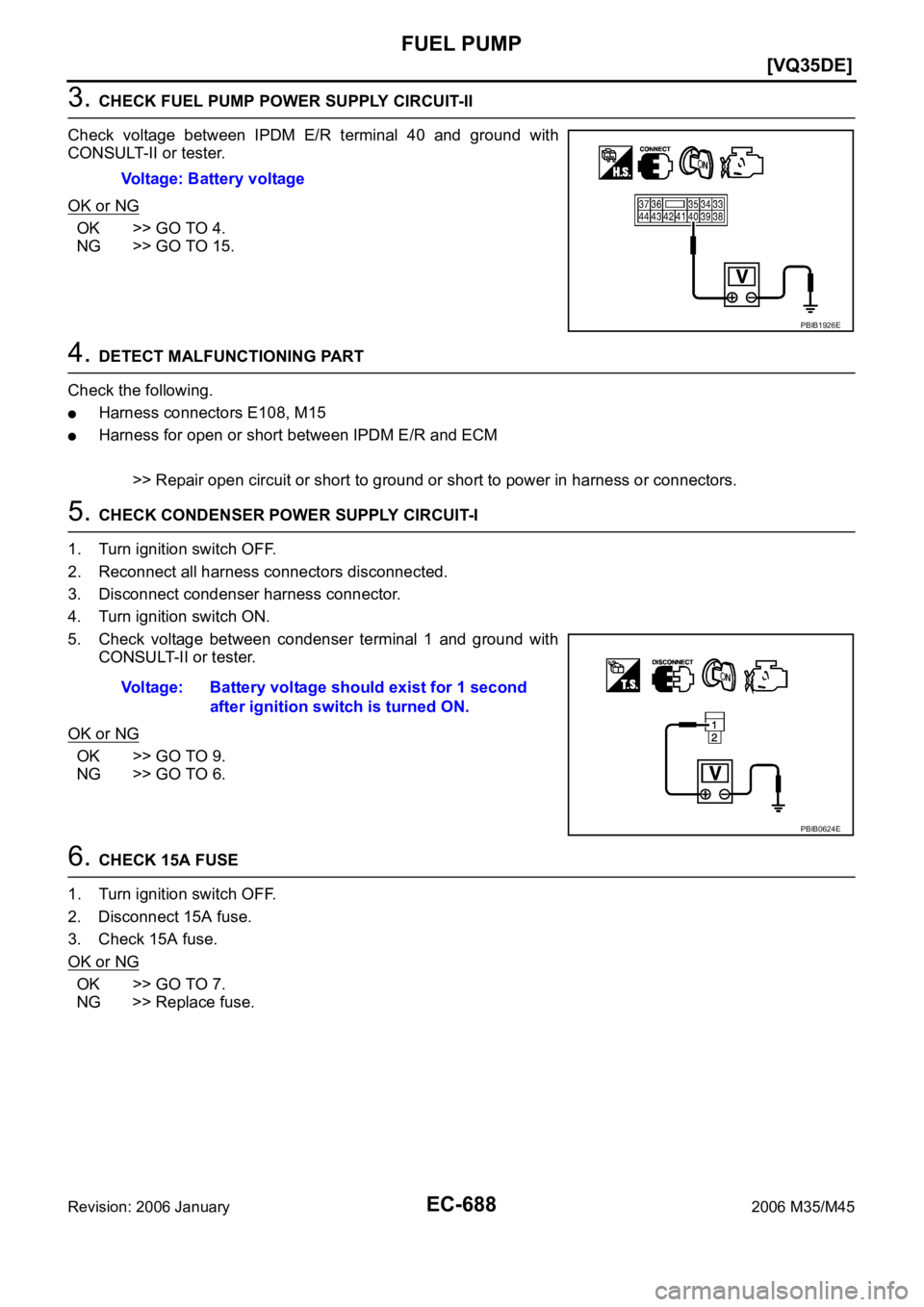

EC-688
[VQ35DE]
FUEL PUMP
Revision: 2006 January2006 M35/M45
3. CHECK FUEL PUMP POWER SUPPLY CIRCUIT-II
Check voltage between IPDM E/R terminal 40 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 15.
4. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E108, M15
Harness for open or short between IPDM E/R and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK CONDENSER POWER SUPPLY CIRCUIT-I
1. Turn ignition switch OFF.
2. Reconnect all harness connectors disconnected.
3. Disconnect condenser harness connector.
4. Turn ignition switch ON.
5. Check voltage between condenser terminal 1 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 9.
NG >> GO TO 6.
6. CHECK 15A FUSE
1. Turn ignition switch OFF.
2. Disconnect 15A fuse.
3. Check 15A fuse.
OK or NG
OK >> GO TO 7.
NG >> Replace fuse.Voltage: Battery voltage
PBIB1926E
Voltage: Battery voltage should exist for 1 second
after ignition switch is turned ON.
PBIB0624E
Page 2232 of 5621
![INFINITI M35 2006 Factory Service Manual FUEL PUMP
EC-689
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
7. CHECK CONDENSER POWER SUPPLY CIRCUIT-II
1. Disconnect IPDM E/R harness connector E8.
2. Check harness continui INFINITI M35 2006 Factory Service Manual FUEL PUMP
EC-689
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
7. CHECK CONDENSER POWER SUPPLY CIRCUIT-II
1. Disconnect IPDM E/R harness connector E8.
2. Check harness continui](/manual-img/42/57023/w960_57023-2231.png)

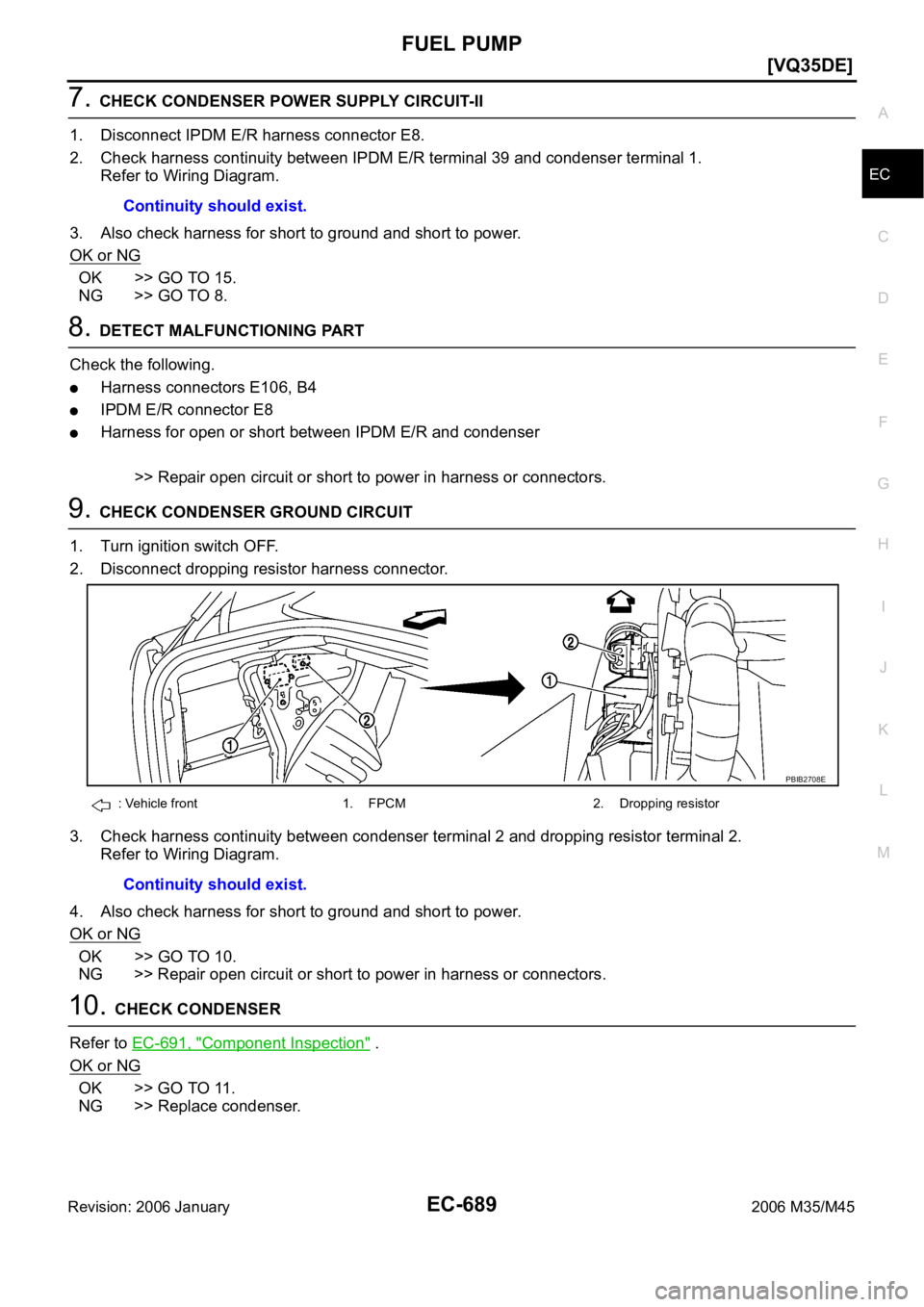

FUEL PUMP
EC-689
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
7. CHECK CONDENSER POWER SUPPLY CIRCUIT-II
1. Disconnect IPDM E/R harness connector E8.
2. Check harness continuity between IPDM E/R terminal 39 and condenser terminal 1.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 15.
NG >> GO TO 8.
8. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E106, B4
IPDM E/R connector E8
Harness for open or short between IPDM E/R and condenser
>> Repair open circuit or short to power in harness or connectors.
9. CHECK CONDENSER GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect dropping resistor harness connector.
3. Check harness continuity between condenser terminal 2 and dropping resistor terminal 2.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 10.
NG >> Repair open circuit or short to power in harness or connectors.
10. CHECK CONDENSER
Refer to EC-691, "
Component Inspection" .
OK or NG
OK >> GO TO 11.
NG >> Replace condenser.Continuity should exist.
: Vehicle front 1. FPCM 2. Dropping resistor
Continuity should exist.
PBIB2708E
