Page 1881 of 5621
EC-338
[VQ35DE]
DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTION
Revision: 2006 January2006 M35/M45
Diagnostic ProcedureNBS004XZ
1. CHECK EXHAUST GAS LEAK
1. Start engine and run it at idle.
2. Listen for an exhaust gas leak before three way catalyst 1.
OK or NG
OK >> GO TO 2.
NG >> Repair or replace.
2. CHECK FOR INTAKE AIR LEAK
Listen for an intake air leak after the mass air flow sensor.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace.
PBIB1922E
Page 1882 of 5621
DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTION
EC-339
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
3. CHECK A/F SENSOR 1 INPUT SIGNAL CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect corresponding A/F sensor 1 harness connector.
3. Disconnect ECM harness connector.
4. Check harness continuity between the following terminals.
Refer to Wiring Diagram.
5. Check harness continuity between the following terminals and ground.
Refer to Wiring Diagram.
6. Also check harness for short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
A/F sensor 1 terminal ECM terminal
Bank 1116
275
535
656
Bank 2176
277
557
658
Continuity should exist.
Bank 1 Bank 2
A/F sensor 1 terminal ECM terminal A/F sensor 1 terminal ECM terminal
116176
275277
535557
656658
Continuity should not exist.
PBIB2794E
Page 1883 of 5621
![INFINITI M35 2006 Factory Service Manual EC-340
[VQ35DE]
DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTION
Revision: 2006 January2006 M35/M45
4. CHECK FUEL PRESSURE
1. Release fuel pressure to zero. Refer to EC-98, "
FUEL PRESSURE RELEASE& INFINITI M35 2006 Factory Service Manual EC-340
[VQ35DE]
DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTION
Revision: 2006 January2006 M35/M45
4. CHECK FUEL PRESSURE
1. Release fuel pressure to zero. Refer to EC-98, "
FUEL PRESSURE RELEASE&](/manual-img/42/57023/w960_57023-1882.png)

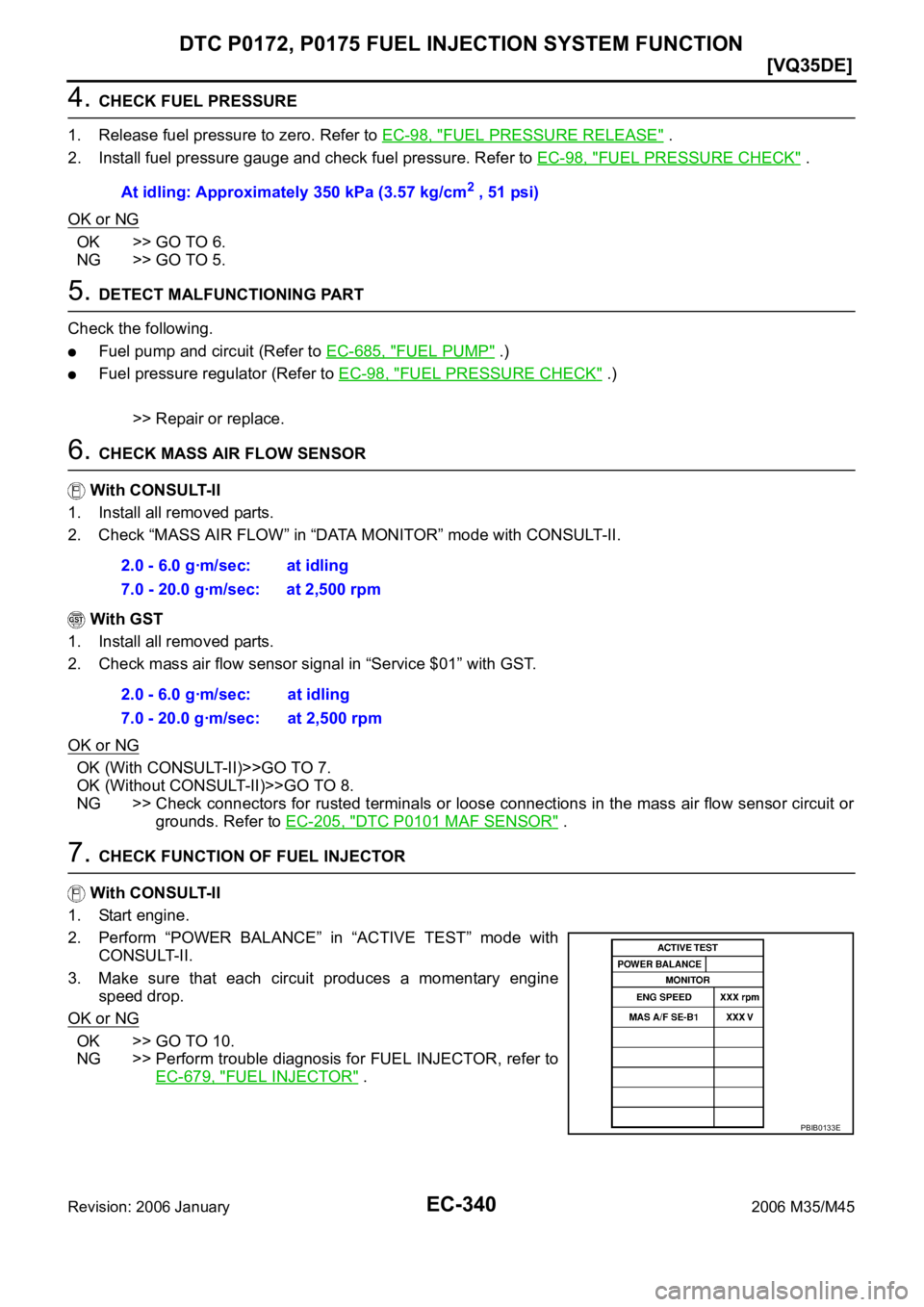

EC-340
[VQ35DE]
DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTION
Revision: 2006 January2006 M35/M45
4. CHECK FUEL PRESSURE
1. Release fuel pressure to zero. Refer to EC-98, "
FUEL PRESSURE RELEASE" .
2. Install fuel pressure gauge and check fuel pressure. Refer to EC-98, "
FUEL PRESSURE CHECK" .
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
5. DETECT MALFUNCTIONING PART
Check the following.
Fuel pump and circuit (Refer to EC-685, "FUEL PUMP" .)
Fuel pressure regulator (Refer to EC-98, "FUEL PRESSURE CHECK" .)
>> Repair or replace.
6. CHECK MASS AIR FLOW SENSOR
With CONSULT-II
1. Install all removed parts.
2. Check “MASS AIR FLOW” in “DATA MONITOR” mode with CONSULT-II.
With GST
1. Install all removed parts.
2. Check mass air flow sensor signal in “Service $01” with GST.
OK or NG
OK (With CONSULT-II)>>GO TO 7.
OK (Without CONSULT-II)>>GO TO 8.
NG >> Check connectors for rusted terminals or loose connections in the mass air flow sensor circuit or
grounds. Refer to EC-205, "
DTC P0101 MAF SENSOR" .
7. CHECK FUNCTION OF FUEL INJECTOR
With CONSULT-II
1. Start engine.
2. Perform “POWER BALANCE” in “ACTIVE TEST” mode with
CONSULT-II.
3. Make sure that each circuit produces a momentary engine
speed drop.
OK or NG
OK >> GO TO 10.
NG >> Perform trouble diagnosis for FUEL INJECTOR, refer to
EC-679, "
FUEL INJECTOR" . At idling: Approximately 350 kPa (3.57 kg/cm
2 , 51 psi)
2.0 - 6.0 gꞏm/sec: at idling
7.0 - 20.0 gꞏm/sec: at 2,500 rpm
2.0 - 6.0 gꞏm/sec: at idling
7.0 - 20.0 gꞏm/sec: at 2,500 rpm
PBIB0133E
Page 1884 of 5621
DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTION
EC-341
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45

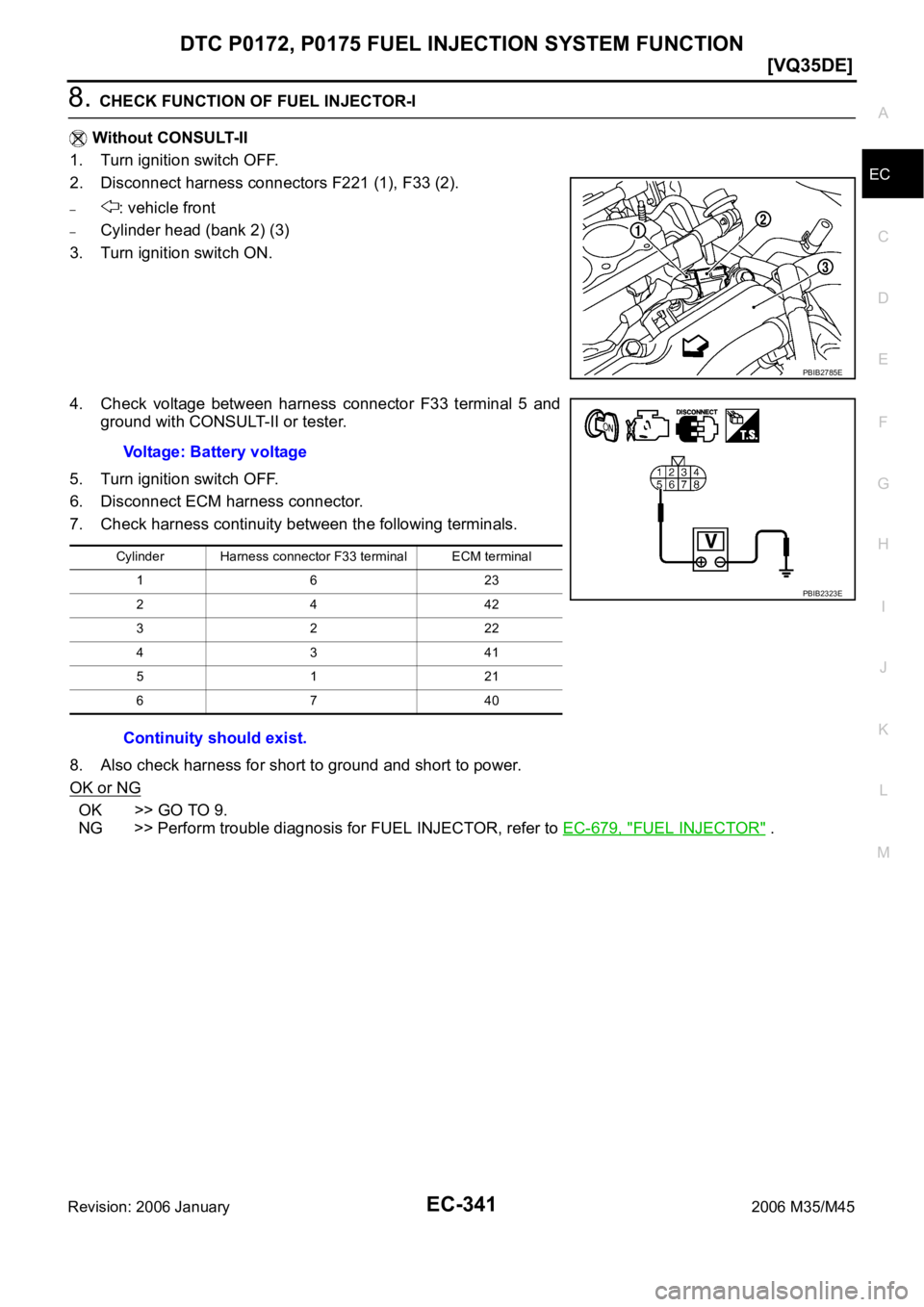

8. CHECK FUNCTION OF FUEL INJECTOR-I
Without CONSULT-II
1. Turn ignition switch OFF.
2. Disconnect harness connectors F221 (1), F33 (2).
–: vehicle front
–Cylinder head (bank 2) (3)
3. Turn ignition switch ON.
4. Check voltage between harness connector F33 terminal 5 and
ground with CONSULT-II or tester.
5. Turn ignition switch OFF.
6. Disconnect ECM harness connector.
7. Check harness continuity between the following terminals.
8. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 9.
NG >> Perform trouble diagnosis for FUEL INJECTOR, refer to EC-679, "
FUEL INJECTOR" .
PBIB2785E
Voltage: Battery voltage
Cylinder Harness connector F33 terminal ECM terminal
16 23
24 42
32 22
43 41
51 21
67 40
Continuity should exist.
PBIB2323E
Page 1885 of 5621
![INFINITI M35 2006 Factory Service Manual EC-342
[VQ35DE]
DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTION
Revision: 2006 January2006 M35/M45
9. CHECK FUNCTION OF FULE INJECTOR-II
Provide battery voltage between the following terminals, INFINITI M35 2006 Factory Service Manual EC-342
[VQ35DE]
DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTION
Revision: 2006 January2006 M35/M45
9. CHECK FUNCTION OF FULE INJECTOR-II
Provide battery voltage between the following terminals,](/manual-img/42/57023/w960_57023-1884.png)
EC-342
[VQ35DE]
DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTION
Revision: 2006 January2006 M35/M45
9. CHECK FUNCTION OF FULE INJECTOR-II
Provide battery voltage between the following terminals, and then
interrupt it. Listen to each fuel injector operating sound.
OK or NG
OK >> GO TO 10.
NG >> Perform trouble diagnosis for FUEL INJECTOR, refer to EC-679, "
FUEL INJECTOR" .
10. CHECK FUELINJECTOR
1. Remove fuel injector assembly. Refer to EM-45, "
FUEL INJECTOR AND FUEL TUBE" .
Keep fuel hose and all fuel injectors connected to fuel tube.
2. Confirm that the engine is cooled down and there are no fire hazards near the vehicle.
3. Disconnect all fuel injector harness connectors.
4. Disconnect all ignition coil harness connectors.
5. Prepare pans or saucers under each fuel injectors.
6. Crank engine for about 3 seconds.
Make sure fuel does not drip from fuel injector.
OK or NG
OK (Does not drip.)>>GO TO 11.
NG (Drips.)>>Replace the fuel injectors from which fuel is dripping. Always replace O-ring with new one.
11 . CHECK INTERMITTENT INCIDENT
Refer to EC-165, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
CylinderHarness connector F221 terminal
(+) (–)
1
56
24
32
43
51
67
Operating sound should exist.
PBIB2497E
Page 1886 of 5621
![INFINITI M35 2006 Factory Service Manual DTC P0181 FTT SENSOR
EC-343
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45

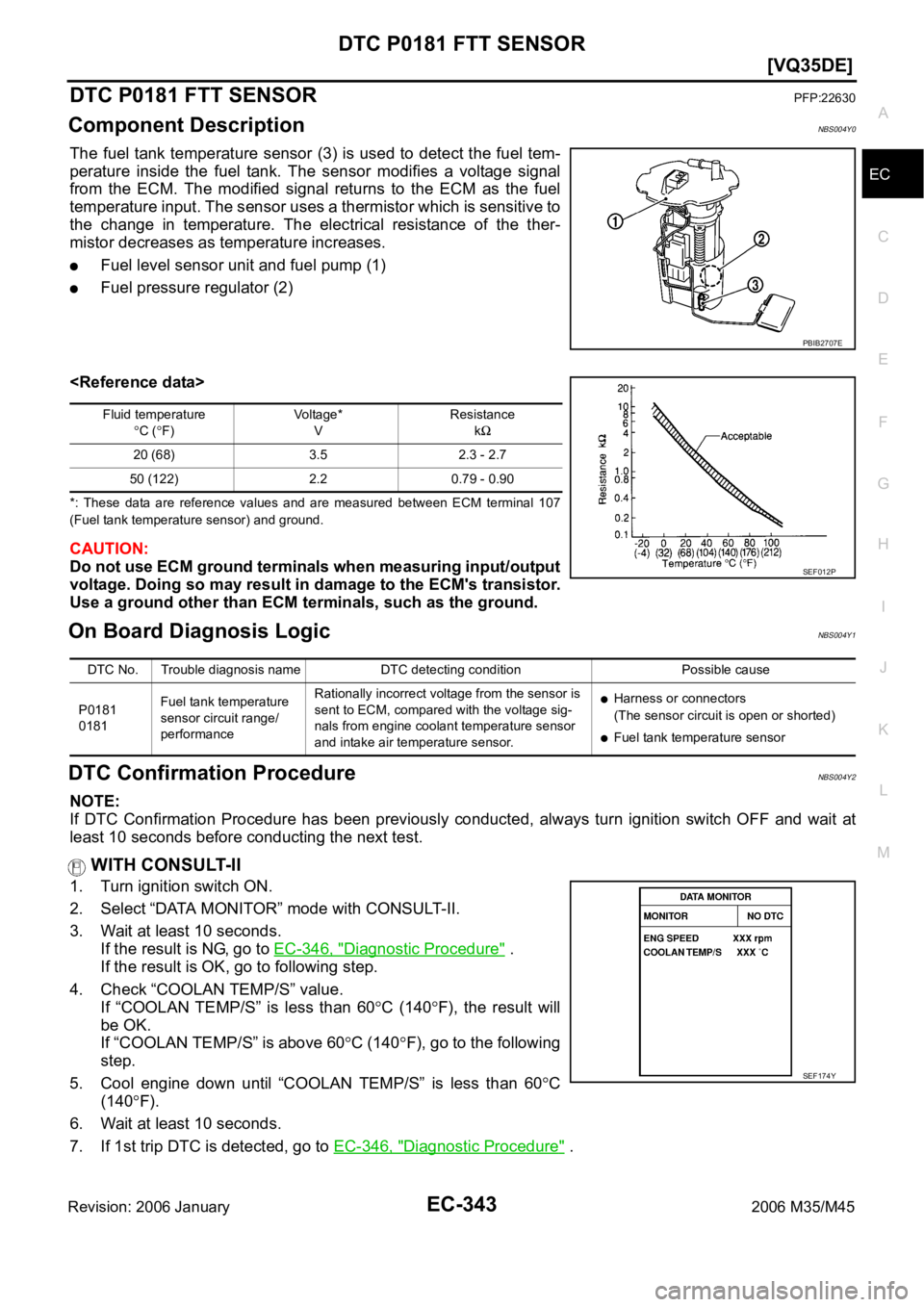

DTC P0181 FTT SENSORPFP:22630
Component DescriptionNBS004Y0
The fuel tank temperature sensor (3) i INFINITI M35 2006 Factory Service Manual DTC P0181 FTT SENSOR
EC-343
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
DTC P0181 FTT SENSORPFP:22630
Component DescriptionNBS004Y0
The fuel tank temperature sensor (3) i](/manual-img/42/57023/w960_57023-1885.png)
DTC P0181 FTT SENSOR
EC-343
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
DTC P0181 FTT SENSORPFP:22630
Component DescriptionNBS004Y0
The fuel tank temperature sensor (3) is used to detect the fuel tem-
perature inside the fuel tank. The sensor modifies a voltage signal
from the ECM. The modified signal returns to the ECM as the fuel
temperature input. The sensor uses a thermistor which is sensitive to
the change in temperature. The electrical resistance of the ther-
mistor decreases as temperature increases.
Fuel level sensor unit and fuel pump (1)
Fuel pressure regulator (2)
*: These data are reference values and are measured between ECM terminal 107
(Fuel tank temperature sensor) and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output
voltage. Doing so may result in damage to the ECM's transistor.
Use a ground other than ECM terminals, such as the ground.
On Board Diagnosis LogicNBS004Y1
DTC Confirmation ProcedureNBS004Y2
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Wait at least 10 seconds.
If the result is NG, go to EC-346, "
Diagnostic Procedure" .
If the result is OK, go to following step.
4. Check “COOLAN TEMP/S” value.
If “COOLAN TEMP/S” is less than 60
C (140F), the result will
be OK.
If “COOLAN TEMP/S” is above 60
C (140F), go to the following
step.
5. Cool engine down until “COOLAN TEMP/S” is less than 60
C
(140
F).
6. Wait at least 10 seconds.
7. If 1st trip DTC is detected, go to EC-346, "
Diagnostic Procedure" .
PBIB2707E
Fluid temperature
C (F)Voltage*
VResistance
k
20 (68) 3.5 2.3 - 2.7
50 (122) 2.2 0.79 - 0.90
SEF012P
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0181
0181Fuel tank temperature
sensor circuit range/
performanceRationally incorrect voltage from the sensor is
sent to ECM, compared with the voltage sig-
nals from engine coolant temperature sensor
and intake air temperature sensor.
Harness or connectors
(The sensor circuit is open or shorted)
Fuel tank temperature sensor
SEF174Y
Page 1887 of 5621
EC-344
[VQ35DE]
DTC P0181 FTT SENSOR
Revision: 2006 January2006 M35/M45
WITH GST
Follow the procedure “WITH CONSULT-II” above.
Page 1888 of 5621
DTC P0181 FTT SENSOR
EC-345
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45

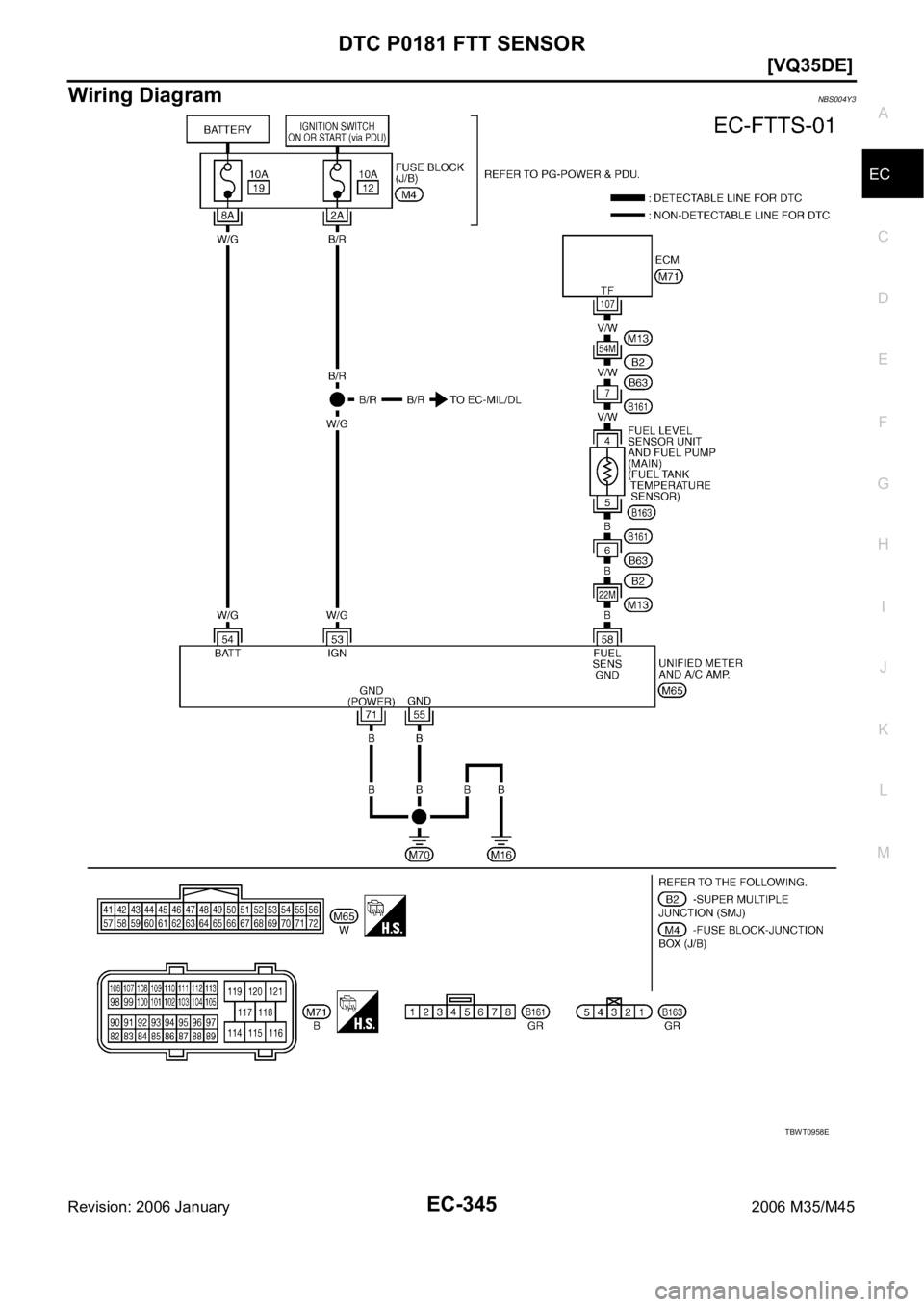

Wiring DiagramNBS004Y3
TBWT0958E
