Page 3057 of 5621

INFINITI M35 2006 Factory Service Manual EI-52
HEADLINING
Revision: 2006 January2006 M35/M45

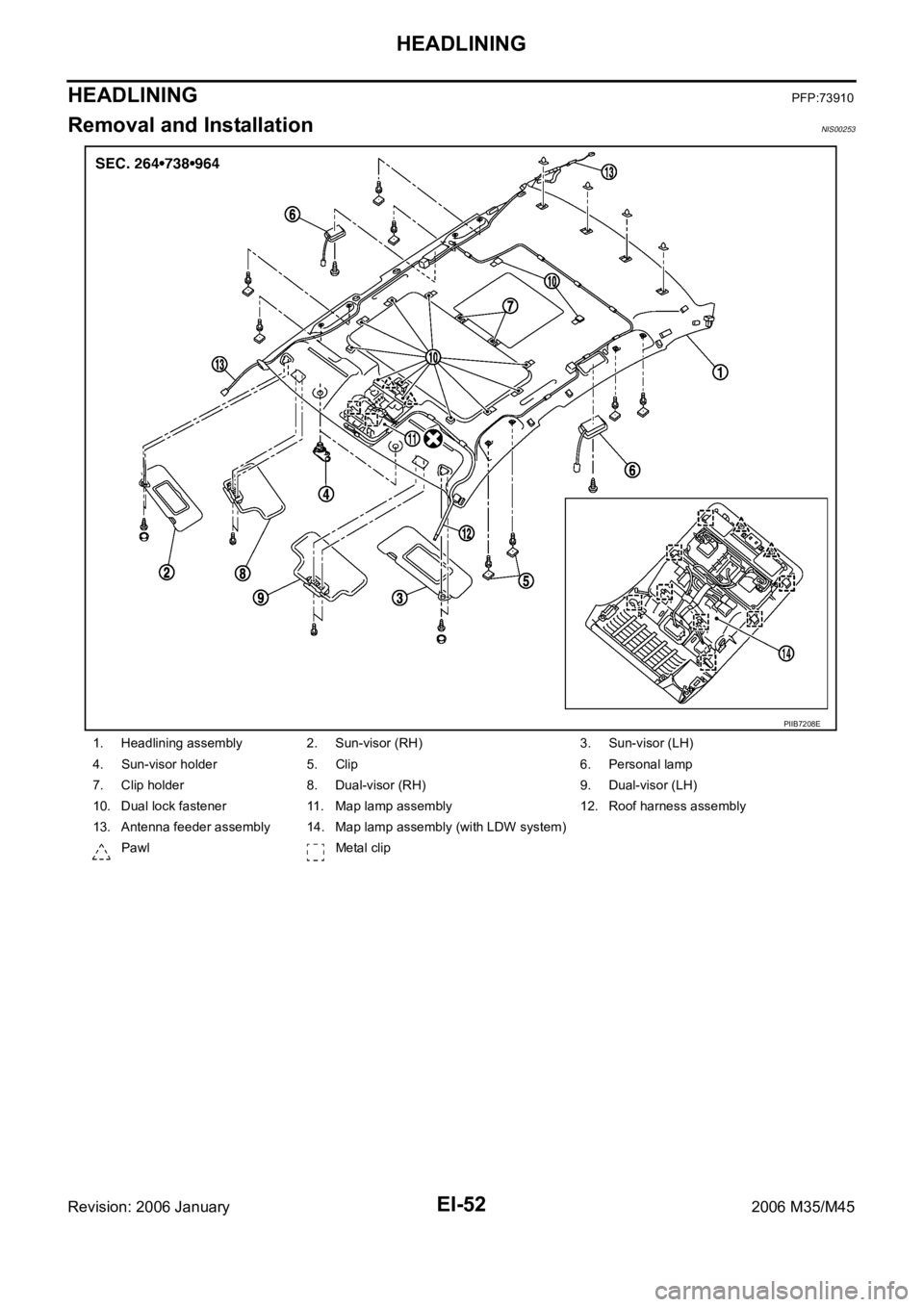

HEADLININGPFP:73910
Removal and InstallationNIS00253
1. Headlining assembly 2. Sun-visor (RH) 3. Sun-visor (LH)
4. Sun-visor holder 5. Clip 6. Perso

Page 3058 of 5621

INFINITI M35 2006 Factory Service Manual HEADLINING
EI-53
C
D
E
F
G
H
J
K
L
MA
B
EI
Revision: 2006 January2006 M35/M45
REMOVAL
1. Remove front pillar garnish (LH/RH). Refer to EI-37, "BODY SIDE TRIM" .
2. Remove roof harness and

HEADLINING
EI-53
C
D
E
F
G
H
J
K
L
MA
B
EI
Revision: 2006 January2006 M35/M45
REMOVAL
1. Remove front pillar garnish (LH/RH). Refer to EI-37, "BODY SIDE TRIM" .
2. Remove roof harness and antenna feeder securing clip using a clip clamp remover after removing front
pillar garnish (LH/RH), and then disconnect roof harness and antenna feeder connectors.
3. Remove rear seat cushion and seatback. Refer to SE-172, "
REAR SEAT" .
4. Remove front kicking plate inner, center pillar lower garnish, center pillar upper garnish, front body side
welt, rear kicking plate inner, rear wheelhouse garnish, rear pillar finisher, rear body side welt. Refer to EI-
37, "BODY SIDE TRIM" .
5. Disconnect antenna feeder connectors of antenna amplifier and
sub-antenna feeder after removing rear pillar finisher (LH), and
then remove antenna feeder securing clip using a remover.
6. Models with sunroof: Remove mounting plastic clips of front
assistance grip (LH/RH) and rear assistance grip (LH/RH), and
then remove bolts.
Models with standard roof: Remove mounting plastic clips of
front assistance grip (LH) and rear assistance grip (LH/RH).
CAUTION:
Always use SST, and attach a cloth to protect from dam-
age.
Assistance grip is crimped from back of headlining.
Remove it by disengaging the crimping area of back of
lamp after removing headlining from the vehicle.
7. Remove screws on personal lamp (in coat hanger hook).
8. Remove rear display unit. (models with mobile entertainment system) Refer to AV- 2 9 2 , "
Rear Display
Unit" .
9. Remove sun visor bracket cover and mounting screws, and then remove sun visors (LH/RH).
NOTE:
Disconnect vanity mirror illumination harness connector when removing sun visor.
10. Remove screws of dual-visor, and then remove dual-visor (LH/RH).
11. Insert a screwdriver into the sun visor holder cutout and rotate
90 degrees to remove sun visor holder (LH/RH).
12. Remove map lamp assembly. (models with LDW system)
13. Remove passenger seat assembly. Refer to SE-163, "
FRONT SEAT" .
14. Using a removal tool, remove body side mounting plastic clip from rear side of headlining.
PIIB4939E
PIIB3585J
SIIA0224J

Page 3059 of 5621

INFINITI M35 2006 Factory Service Manual EI-54
HEADLINING
Revision: 2006 January2006 M35/M45
15. Pull map lamp assembly toward vehicle lower, and disengage
dual-lock fastener (1) and metal clips (2). (models without LDW
system)
CA

Page 3060 of 5621

INFINITI M35 2006 Factory Service Manual HEADLINING
EI-55
C
D
E
F
G
H
J
K
L
MA
B
EI
Revision: 2006 January2006 M35/M45
INSTALLATION
Install in the reverse order of removal.
CAUTION:
Install headlining assembly after inserting clips to clip h

Page 3061 of 5621

INFINITI M35 2006 Factory Service Manual EI-56
TRUNK ROOM TRIM & TRUNK LID FINISHER
Revision: 2006 January2006 M35/M45

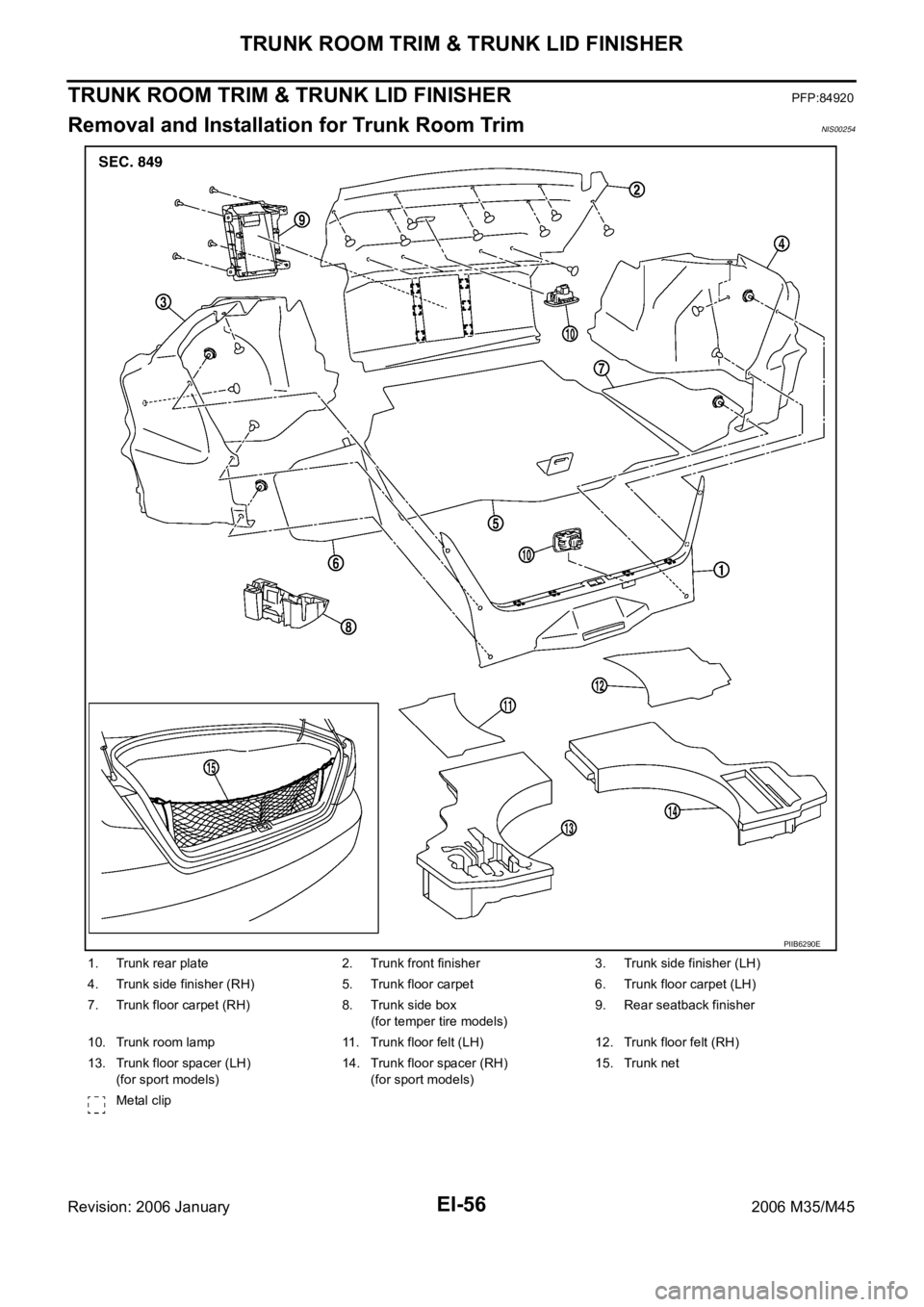

TRUNK ROOM TRIM & TRUNK LID FINISHERPFP:84920
Removal and Installation for Trunk Room TrimNIS00254
1. Trunk rear plate 2.

Page 3062 of 5621

INFINITI M35 2006 Factory Service Manual TRUNK ROOM TRIM & TRUNK LID FINISHER
EI-57
C
D
E
F
G
H
J
K
L
MA
B
EI
Revision: 2006 January2006 M35/M45

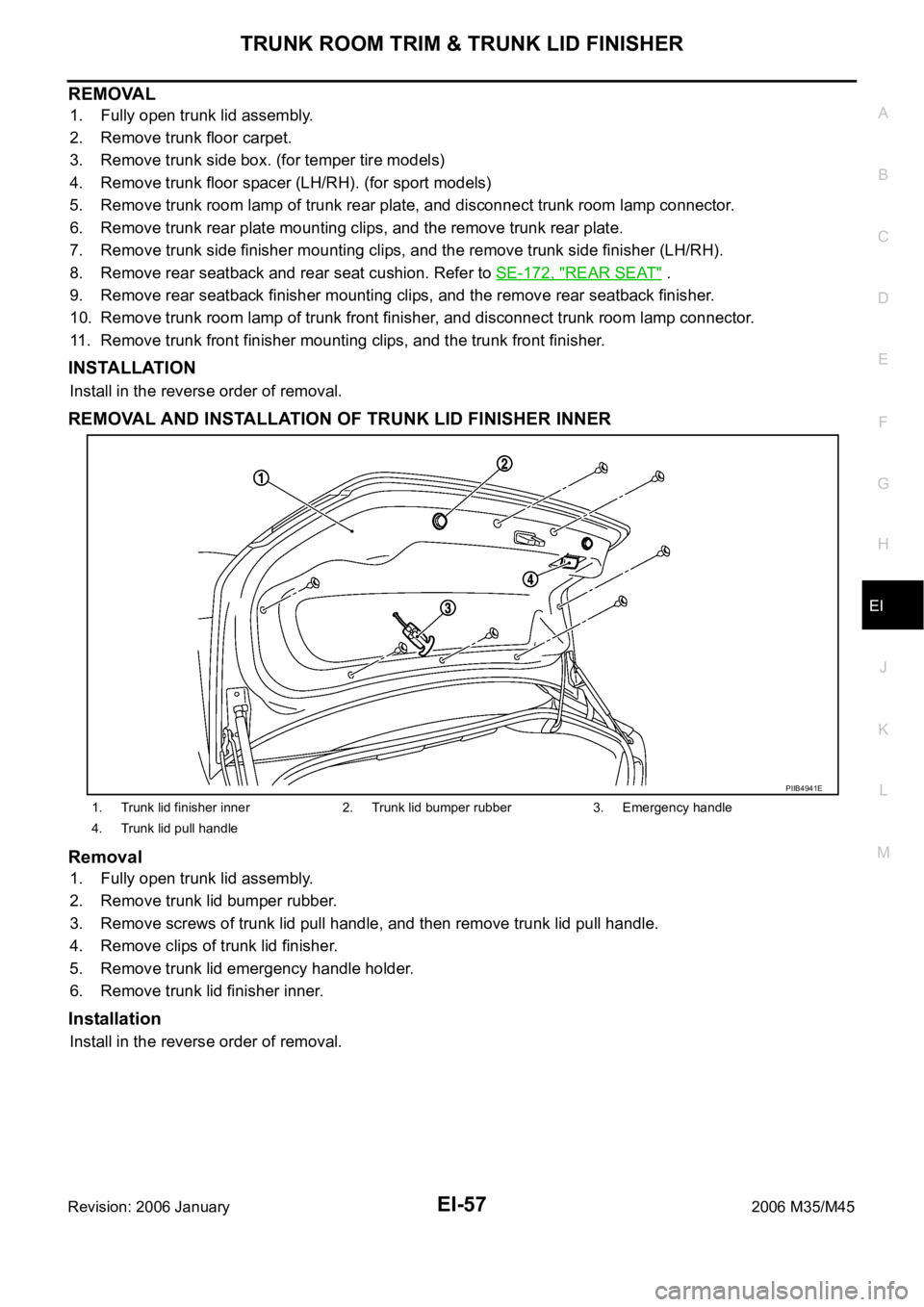

REMOVAL
1. Fully open trunk lid assembly.
2. Remove trunk floor carpet.
3. Remove trunk side box

Page 3063 of 5621

INFINITI M35 2006 Factory Service Manual EI-58
TRUNK ROOM TRIM & TRUNK LID FINISHER
Revision: 2006 January2006 M35/M45

Page 3064 of 5621

INFINITI M35 2006 Factory Service Manual EM-1
ENGINE MECHANICAL
B ENGINE
CONTENTS
C
D
E
F
G
H
I
J
K
L
M
SECTION EM
A
EM
Revision: 2006 January2006 M35/M45
ENGINE MECHANICAL
VQ35DE
PRECAUTIONS ...............................................

EM-1
ENGINE MECHANICAL
B ENGINE
CONTENTS
C
D
E
F
G
H
I
J
K
L
M
SECTION EM
A
EM
Revision: 2006 January2006 M35/M45
ENGINE MECHANICAL
VQ35DE
PRECAUTIONS .......................................................... 5
Precautions for Procedures without Cowl Top Cover ..... 5
Precautions Necessary for Steering Wheel Rotation
After Battery Disconnect .......................................... 5
OPERATION PROCEDURE ................................. 5
Precautions for Drain Engine Coolant and Engine
Oil ............................................................................. 5
Precautions for Disconnecting Fuel Piping .............. 5
Precautions for Removal and Disassembly ............. 5
Precautions for Inspection, Repair and Replace-
ment ......................................................................... 6
Precautions for Assembly and Installation ............... 6
Precautions for Angle Tightening ............................. 6
Precautions for Liquid Gasket .................................. 6
REMOVAL OF LIQUID GASKET SEALING .......... 6
LIQUID GASKET APPLICATION PROCEDURE ..... 7
PREPARATION ........................................................... 8
Special Service Tools ............................................... 8
Commercial Service Tools ...................................... 10
NOISE, VIBRATION AND HARSHNESS (NVH)
TROUBLESHOOTING .............................................. 12
NVH Troubleshooting — Engine Noise .................. 12
Use the Chart Below to Help You Find the Cause
of the Symptom. ..................................................... 13
ENGINE ROOM COVER .......................................... 14
Components ........................................................... 14
Removal and Installation ........................................ 14
REMOVAL ........................................................
... 14
INSTALLATION ................................................... 14
DRIVE BELTS ........................................................... 15
Checking Drive Belts .............................................. 15
Tension Adjustment ................................................ 15
ALTERNATOR AND POWER STEERING OIL
PUMP BELT ........................................................ 16
A/C COMPRESSOR BELT ................................. 16
Removal and Installation ........................................ 16
REMOVAL ........................................................
... 16
INSTALLATION ................................................... 16AIR CLEANER AND AIR DUCT ............................... 17
Components ........................................................... 17
Removal and Installation ........................................ 17
REMOVAL ........................................................
... 17
INSTALLATION ................................................... 17
Changing Air Cleaner Filter .................................... 18
REMOVAL ........................................................
... 18
INSTALLATION ................................................... 18
INTAKE MANIFOLD COLLECTOR .......................... 19
Components ........................................................... 19
Removal and Installation ........................................ 19
REMOVAL ........................................................
... 19
INSPECTION AFTER REMOVAL ....................... 21
INSTALLATION ................................................... 22
INTAKE MANIFOLD ................................................. 24
Components ........................................................... 24
Removal and Installation ........................................ 24
REMOVAL ........................................................
... 24
INSPECTION AFTER REMOVAL ....................... 25
INSTALLATION ................................................... 25
EXHAUST MANIFOLD ............................................. 26
Components ........................................................... 26
Removal and Installation ........................................ 26
REMOVAL ........................................................
... 26
INSPECTION AFTER REMOVAL ....................... 27
INSTALLATION ................................................... 27
OIL PAN AND OIL STRAINER ................................. 29
Components (2WD Models) ................................... 29
Removal and Installation (2WD Models) ................ 29
REMOVAL ........................................................
... 29
INSPECTION AFTER REMOVAL ....................... 31
INSTALLATION ................................................... 31
INSPECTION AFTER INSTALLATION ................ 34
Components (AWD Models) ................................... 35
Removal and Installation (AWD Models) ................ 36
REMOVAL ........................................................
... 36
INSPECTION AFTER REMOVAL ....................... 38
INSTALLATION ................................................... 38
INSPECTION AFTER INSTALLATION ................ 41
