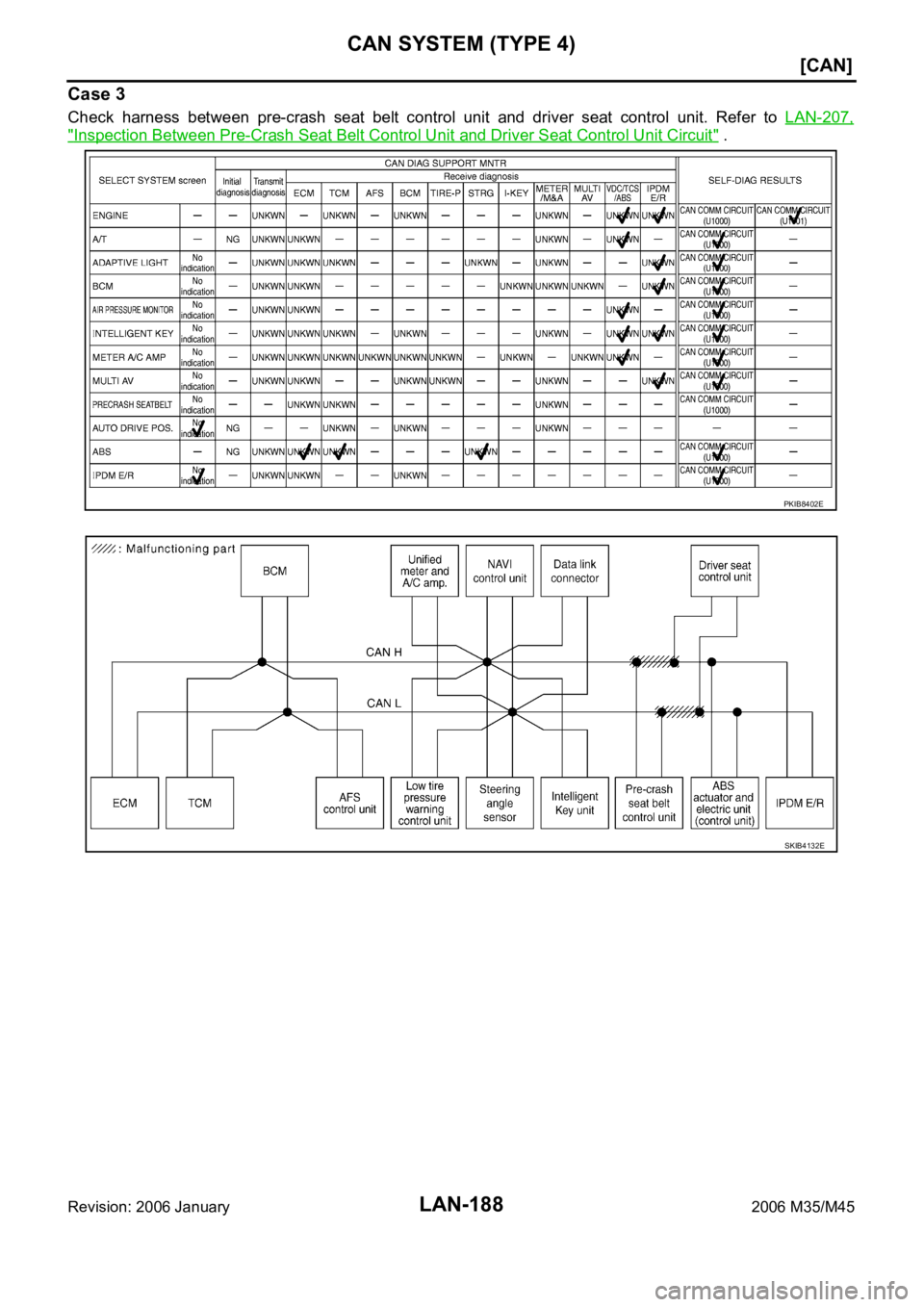

INFINITI M35 2006 Factory Service Manual LAN-188 [CAN] CAN SYSTEM (TYPE 4) Revision: 2006 January2006 M35/M45 Case 3 Check harness between pre-crash seat belt control unit and driver seat control unit. Refer to LAN-207, "In

Page 3858 of 5621

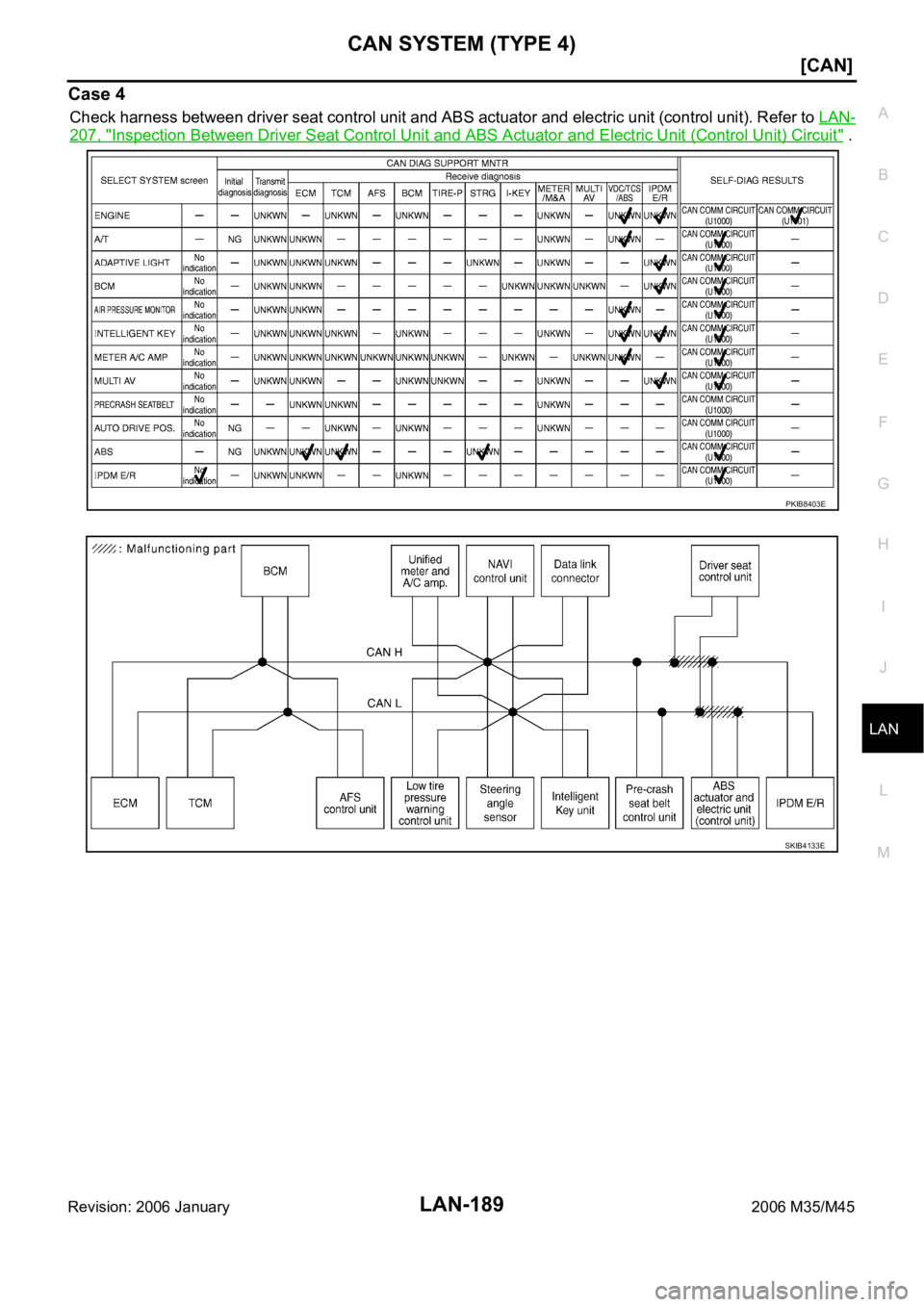

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 4) LAN-189 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 Case 4 Check harness between driver seat control unit and ABS actuator and electric unit (control unit).

Page 3859 of 5621

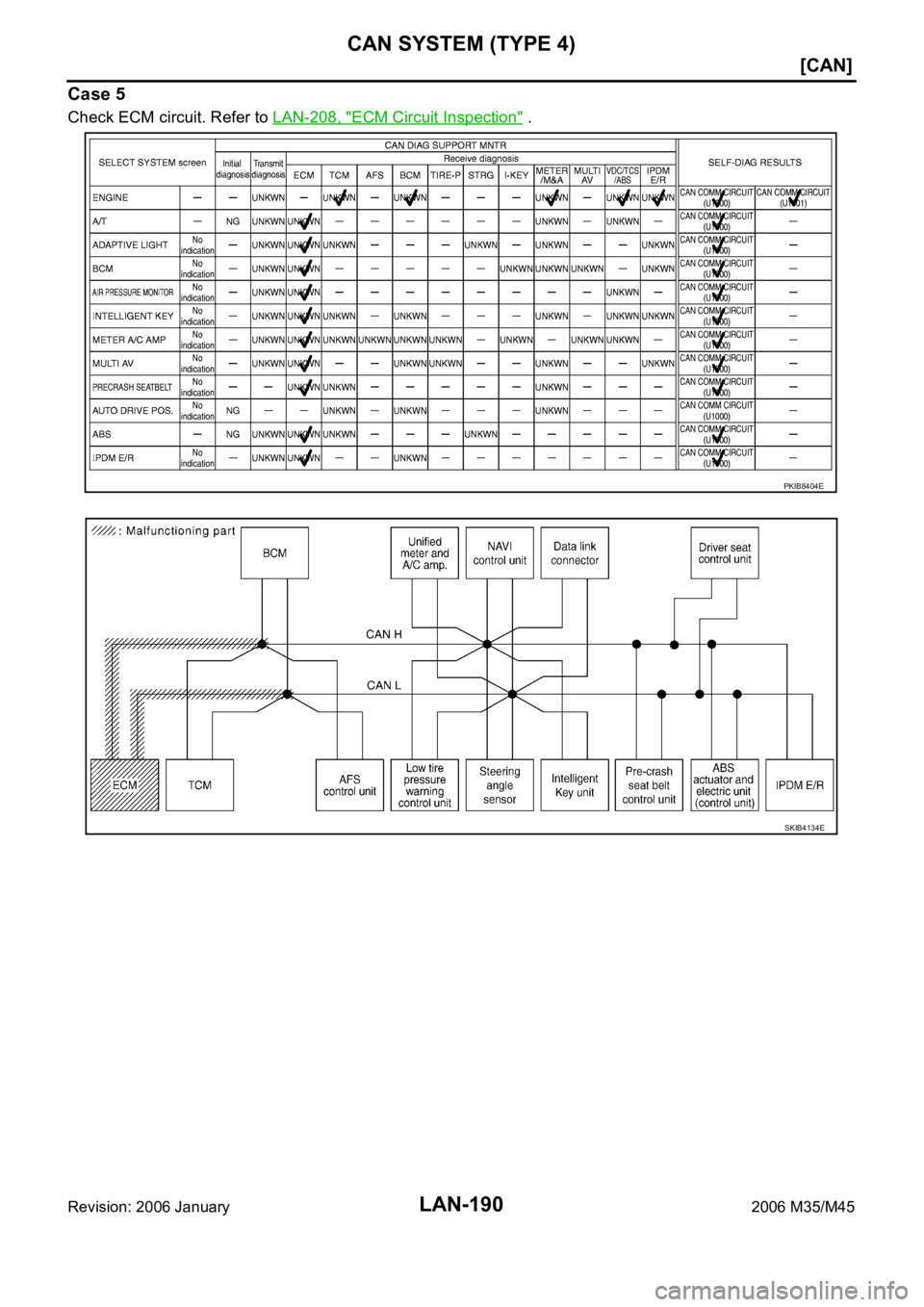

INFINITI M35 2006 Factory Service Manual LAN-190 [CAN] CAN SYSTEM (TYPE 4) Revision: 2006 January2006 M35/M45 Case 5 Check ECM circuit. Refer to LAN-208, "ECM Circuit Inspection" . PKIB8404E SKIB4134E

Page 3860 of 5621

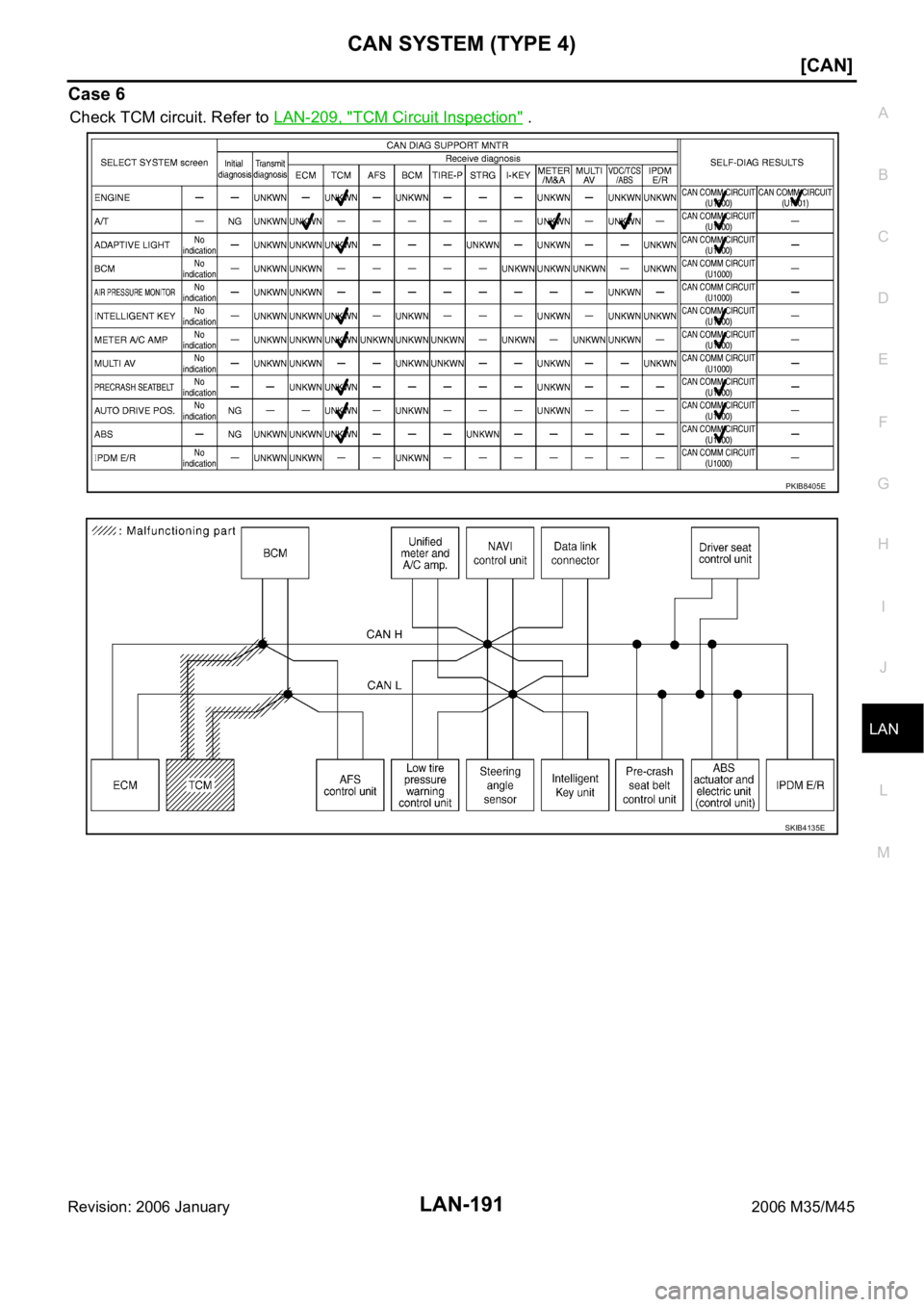

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 4) LAN-191 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 Case 6 Check TCM circuit. Refer to LAN-209, "TCM Circuit Inspection" . PKIB8405E SKIB4135E

Page 3861 of 5621

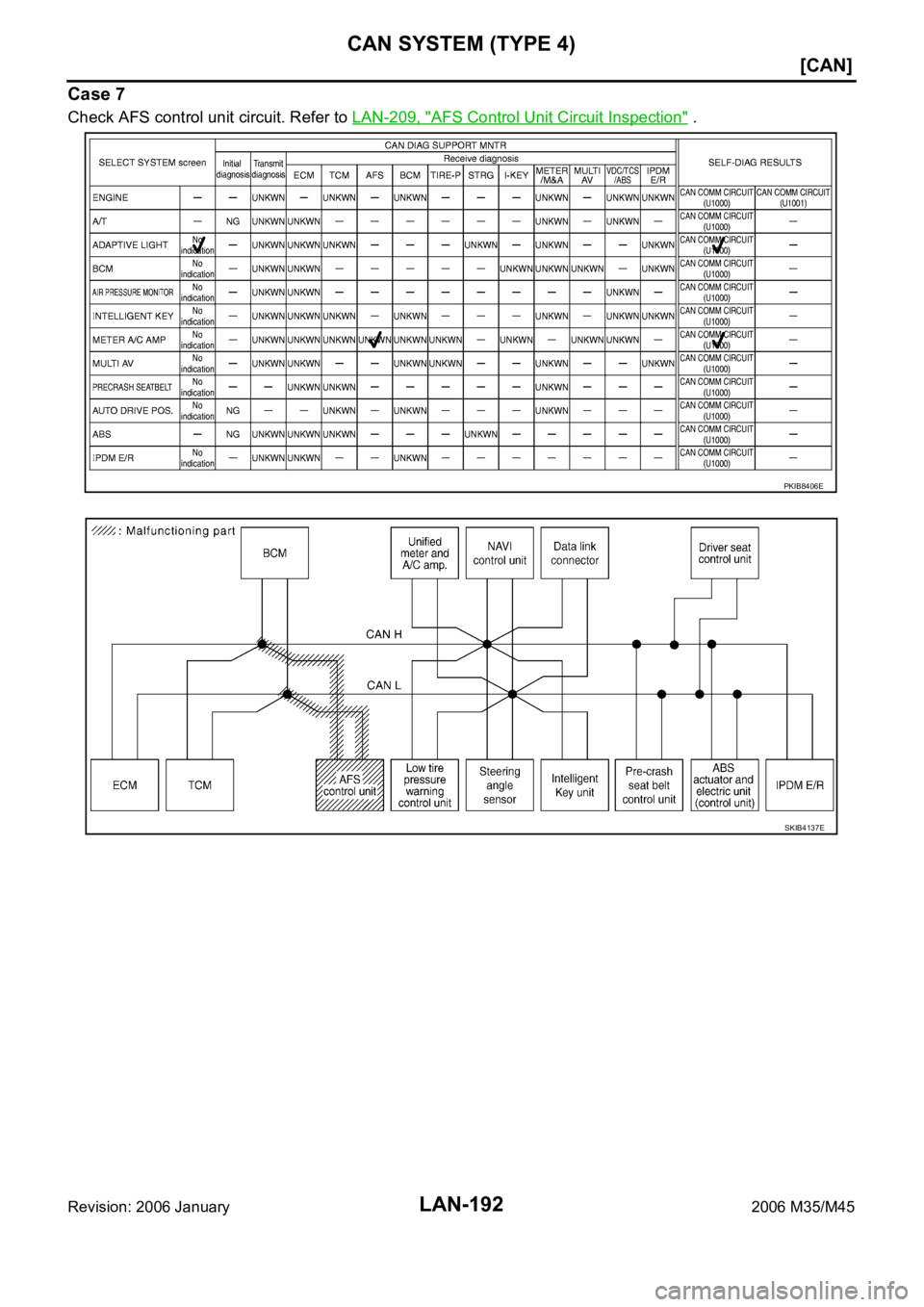

INFINITI M35 2006 Factory Service Manual LAN-192 [CAN] CAN SYSTEM (TYPE 4) Revision: 2006 January2006 M35/M45 Case 7 Check AFS control unit circuit. Refer to LAN-209, "AFS Control Unit Circuit Inspection" . PKIB8406E SKIB4137E

Page 3862 of 5621

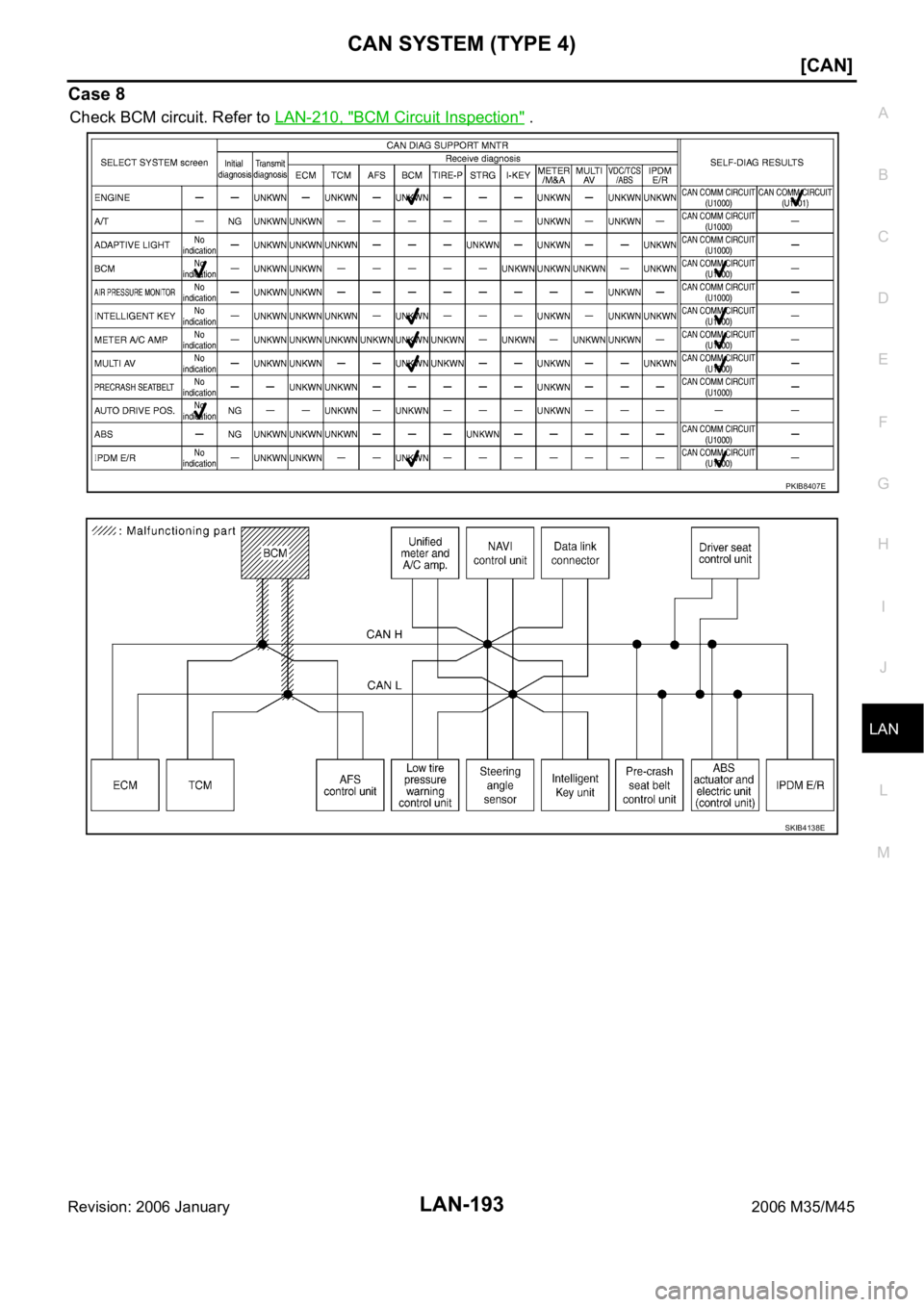

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 4) LAN-193 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 Case 8 Check BCM circuit. Refer to LAN-210, "BCM Circuit Inspection" . PKIB8407E SKIB4138E

Page 3863 of 5621

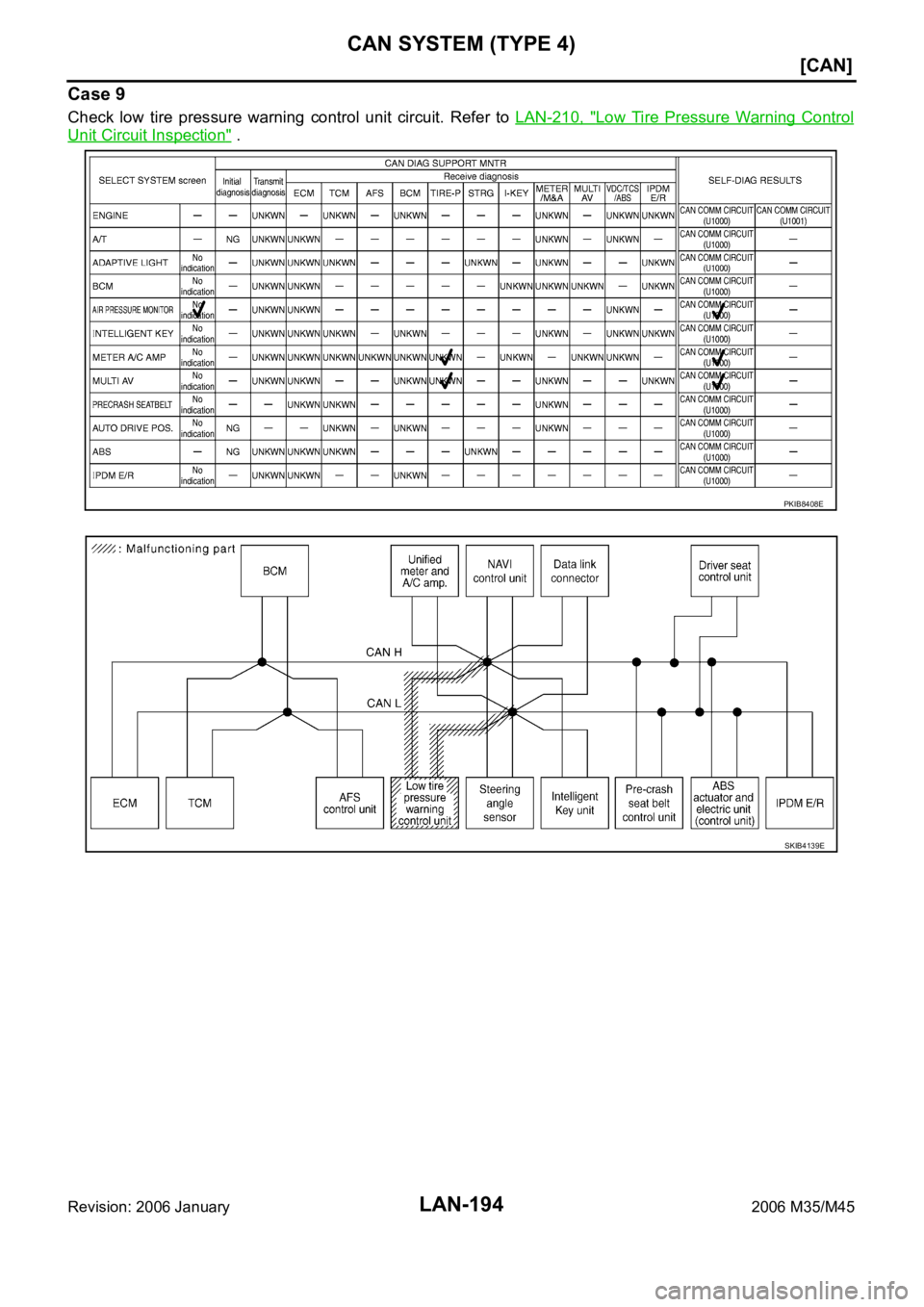

INFINITI M35 2006 Factory Service Manual LAN-194 [CAN] CAN SYSTEM (TYPE 4) Revision: 2006 January2006 M35/M45 Case 9 Check low tire pressure warning control unit circuit. Refer to LAN-210, "Low Tire Pressure Warning Control

Page 3864 of 5621

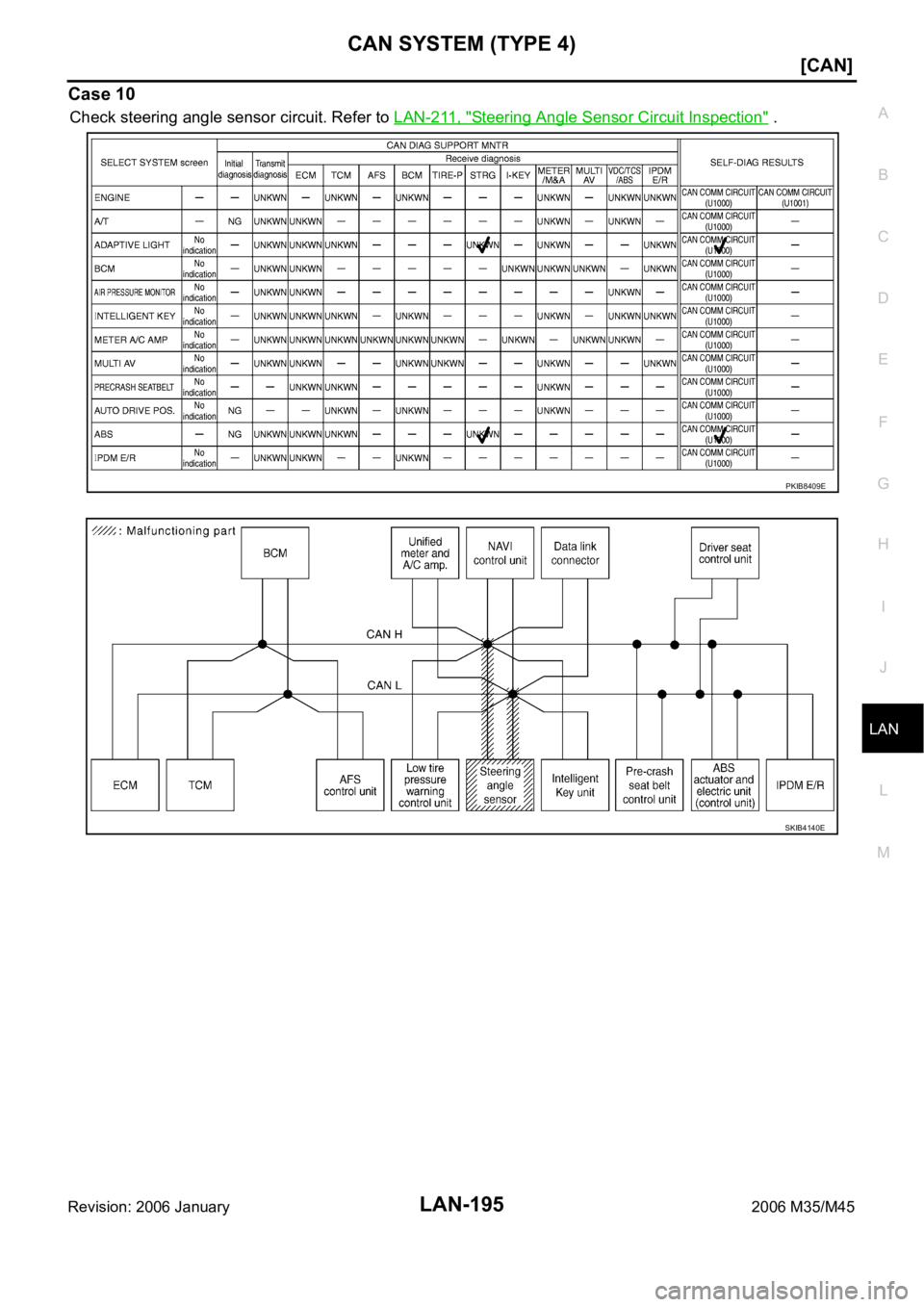

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 4) LAN-195 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 Case 10 Check steering angle sensor circuit. Refer to LAN-211, "Steering Angle Sensor Circuit Inspec
