![INFINITI M35 2006 Factory Service Manual EC-1298
[VK45DE]
DTC P1564 ASCD STEERING SWITCH
Revision: 2006 January2006 M35/M45
2. CHECK ASCD STEERING SWITCH CIRCUIT
With CONSULT-II
1. Turn ignition switch ON.
2. Select “MAIN SW”, “CANCEL INFINITI M35 2006 Factory Service Manual EC-1298
[VK45DE]
DTC P1564 ASCD STEERING SWITCH
Revision: 2006 January2006 M35/M45
2. CHECK ASCD STEERING SWITCH CIRCUIT
With CONSULT-II
1. Turn ignition switch ON.
2. Select “MAIN SW”, “CANCEL](/manual-img/42/57023/w960_57023-2840.png)
EC-1298
[VK45DE]
DTC P1564 ASCD STEERING SWITCH
Revision: 2006 January2006 M35/M45
2. CHECK ASCD STEERING SWITCH CIRCUIT
With CONSULT-II
1. Turn ignition switch ON.
2. Select “MAIN SW”, “CANCEL SW”, “RESUME/ACC SW” and “SET SW” in “DATA MONITOR” mode with
CONSULT-II.
3. Check each item indication under the following conditions.
Without CONSULT-II
1. Turn ignition switch ON.
2. Check voltage between ECM terminal 99 and ground with press-
ing each button.
OK or NG
OK >> GO TO 8.
NG >> GO TO 3.
3. CHECK ASCD STEERING SWITCH GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Disconnect combination switch harness connector M303.
4. Check harness continuity between combination switch terminal 18 and ECM terminal 67.
Refer to Wiring Diagram.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
Switch Monitor item Condition Indication
MAIN switch MAIN SWPressed ON
Released OFF
CANCEL switch CANCEL SWPressed ON
Released OFF
RESUME/ACCEL-
ERATE switchRESUME/ACC SWPressed ON
Released OFF
SET/COAST switch SET SWPressed ON
Released OFF
SEC006D
Switch Condition Voltage [V]
MAIN switchPressed Approx. 0
Released Approx. 4
CANCEL switchPressed Approx. 1
Released Approx. 4
RESUME/ACCELERATE
switchPressed Approx. 3
Released Approx. 4
SET/COAST switchPressed Approx. 2
Released Approx. 4
PBIB0311E
Continuity should exist.
Page 2842 of 5621
![INFINITI M35 2006 Factory Service Manual DTC P1564 ASCD STEERING SWITCH
EC-1299
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
4. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors M72, F102
Combination INFINITI M35 2006 Factory Service Manual DTC P1564 ASCD STEERING SWITCH
EC-1299
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
4. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors M72, F102
Combination](/manual-img/42/57023/w960_57023-2841.png)
DTC P1564 ASCD STEERING SWITCH
EC-1299
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
4. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors M72, F102
Combination switch (spiral cable)
Harness for open and short between ECM and combination switch
>> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK ASCD STEERING SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 99 and combination switch terminal 21.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
6. DETECT MALFUNCTIONING PART
Check the following.
Combination switch (spiral cable)
Harness for open and short between ECM and combination switch
>> Repair open circuit or short to ground or short to power in harness or connectors.
7. CHECK ASCD STEERING SWITCH
Refer to EC-1300, "
Component Inspection" .
OK or NG
OK >> GO TO 8.
NG >> Replace ASCD steering switch.
8. CHECK INTERMITTENT INCIDENT
Refer to EC-878, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END Continuity should exist.
Page 2843 of 5621
EC-1300
[VK45DE]
DTC P1564 ASCD STEERING SWITCH
Revision: 2006 January2006 M35/M45
Component InspectionNBS005MK
ASCD STEERING SWITCH
1. Disconnect combination switch (spiral cable).
2. Check continuity between combination switch terminals 18 and
21 with pushing each switch.
Switch Condition Resistance []
MAIN switchPressed Approx. 0
Released Approx. 4,000
CANCEL switchPressed Approx. 250
Released Approx. 4,000
RESUME/ACCELERATE
switchPressed Approx. 1,480
Released Approx. 4,000
SET/COAST switchPressed Approx. 660
Released Approx. 4,000
PBIB2739E
Page 2844 of 5621
![INFINITI M35 2006 Factory Service Manual DTC P1568 ICC FUNCTION
EC-1301
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
DTC P1568 ICC FUNCTIONPFP:18995
On Board Diagnosis LogicNBS005ML
This self-diagnosis has the one tr INFINITI M35 2006 Factory Service Manual DTC P1568 ICC FUNCTION
EC-1301
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
DTC P1568 ICC FUNCTIONPFP:18995
On Board Diagnosis LogicNBS005ML
This self-diagnosis has the one tr](/manual-img/42/57023/w960_57023-2843.png)
DTC P1568 ICC FUNCTION
EC-1301
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
DTC P1568 ICC FUNCTIONPFP:18995
On Board Diagnosis LogicNBS005ML
This self-diagnosis has the one trip detection logic.
The MIL will not light up for this diagnosis.
NOTE:
If DTC P1568 is displayed with DTC U1000 or U1001, first perform the trouble diagnosis for DTC
U1000, U1001. Refer to EC-886, "
DTC U1000, U1001 CAN COMMUNICATION LINE" .
If DTC P1568 is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010.
Refer to EC-889, "
DTC U1010 CAN COMMUNICATION" .
If DTC P1568 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605.
Refer to EC-1215, "
DTC P0605 ECM"
DTC Confirmation ProcedureNBS005MM
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Step 4 may be conducted with the drive wheels lifted in the shop or by driving the vehicle. If a road test
is expected to be easier, it is unnecessary to lift the vehicle.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Press MAIN switch on ICC steering switch.
4. Drive the vehicle at more than 40 km/h (25 MPH).
5. Press SET/COAST switch.
6. If DTC is detected, go to EC-1301, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
Diagnostic ProcedureNBS005MN
1. REPLACE ICC UNIT
1. Replace ICC unit.
2. Perform ACS-10, "
ACTION TEST" .
3. Check DTC of ICC unit. Refer to ACS-39, "
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS" .
>>INSPECTION END
DTC No.Trouble Diagnosis
NameDTC Detecting Condition Possible Cause
P1568
1568ICC functionECM detects a difference between signals
from ICC unit is out of specified range.
Harness or connectors
(The CAN communication line is open or
shorted.)
ICC unit
ECM
SEF058Y
Page 2845 of 5621
![INFINITI M35 2006 Factory Service Manual EC-1302
[VK45DE]
DTC P1572 ICC BRAKE SWITCH
Revision: 2006 January2006 M35/M45
DTC P1572 ICC BRAKE SWITCHPFP:25320
Component DescriptionNBS005MO
When the brake pedal is depressed, ICC brake switch (2) INFINITI M35 2006 Factory Service Manual EC-1302
[VK45DE]
DTC P1572 ICC BRAKE SWITCH
Revision: 2006 January2006 M35/M45
DTC P1572 ICC BRAKE SWITCHPFP:25320
Component DescriptionNBS005MO
When the brake pedal is depressed, ICC brake switch (2)](/manual-img/42/57023/w960_57023-2844.png)
EC-1302
[VK45DE]
DTC P1572 ICC BRAKE SWITCH
Revision: 2006 January2006 M35/M45
DTC P1572 ICC BRAKE SWITCHPFP:25320
Component DescriptionNBS005MO
When the brake pedal is depressed, ICC brake switch (2) is turned
OFF and stop lamp switch (1) is turned ON. ECM detects the state of
the brake pedal by this input of two kinds (ON/OFF signal).
Refer to ACS-6, "
DESCRIPTION" for the ICC function.
CONSULT-II Reference Value in Data Monitor ModeNBS005MP
Specification data are reference values.
On Board Diagnosis LogicNBS005MQ
This diagnosis has the one trip detection logic.
The MIL will not light up for this diagnosis.
NOTE:
If DTC P1572 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605.
Refer to EC-1215, "
DTC P0605 ECM" .
This self-diagnosis has the one trip detection logic. When malfunction A is detected, DTC is not
stored in ECM memory. And in that case, 1st trip DTC and 1st trip freeze frame data are displayed.
1st trip DTC is erased when ignition switch OFF. And even when malfunction A is detected in two
consecutive trips, DTC is not stored in ECM memory.
PBIB2705E
MONITOR ITEM CONDITION SPECIFICATION
BRAKE SW1
(ICC brake switch)
Ignition switch: ONBrake pedal: Fully released ON
Brake pedal: Slightly depressed OFF
BRAKE SW2
(Stop lamp switch)
Ignition switch: ONBrake pedal: Fully released OFF
Brake pedal: Slightly depressed ON
DTC No.Trouble diagnosis
nameDTC detecting condition Possible cause
P1572
1572ICC brake switchA)
When the vehicle speed is above 30 km/h
(19MPH), ON signals from the stop lamp
switch and the ICC brake switch are sent
to ECM at the same time.Harness or connectors
(The stop lamp switch circuit is shorted.)
Harness or connectors
(The ICC brake switch circuit is shorted.)
Stop lamp switch
ICC brake switch
ICC brake hold relay
Incorrect stop lamp switch installation
Incorrect ICC brake switch installation
ECM B)
ICC brake switch signal is not sent to ECM
for extremely long time while the vehicle is
driving
Page 2846 of 5621
![INFINITI M35 2006 Factory Service Manual DTC P1572 ICC BRAKE SWITCH
EC-1303
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
DTC Confirmation ProcedureNBS005MR
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If DTC INFINITI M35 2006 Factory Service Manual DTC P1572 ICC BRAKE SWITCH
EC-1303
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
DTC Confirmation ProcedureNBS005MR
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If DTC](/manual-img/42/57023/w960_57023-2845.png)
DTC P1572 ICC BRAKE SWITCH
EC-1303
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
DTC Confirmation ProcedureNBS005MR
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait
at least 10 seconds before conducting the next test.
Procedure for malfunction B is not described here. It takes extremely long time to complete procedure for
malfunction B. By performing procedure for malfunction A, the incident that causes malfunction B can be
detected.
TESTING CONDITION:
Steps 4 and 5 may be conducted with the drive wheels lifted in the shop or by driving the vehicle. If a
road test is expected to be easier, it is unnecessary to lift the vehicle.
WITH CONSULT-II
1. Start engine (VDC switch OFF).
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Press MAIN switch and make sure that CRUISE lamp lights up.
4. Drive the vehicle for at least 5 consecutive seconds under the
following conditions.
If 1st trip DTC is detected, go to EC-1305, "
Diagnostic Proce-
dure" .
If 1st trip DTC is not detected, go to the following step.
5. Drive the vehicle for at least 5 consecutive seconds under the following conditions.
6. If 1st trip DTC is detected, go to EC-1305, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
VHCL SPEED SE More than 30 km/h (19 MPH)
Selector lever Suitable position
PBIB2386E
VHCL SPEED SE More than 30 km/h (19 MPH)
Selector lever Suitable position
Driving locationDepress the brake pedal for more than
five seconds so as not to come off from
the above-mentioned vehicle speed.
Page 2847 of 5621
EC-1304
[VK45DE]
DTC P1572 ICC BRAKE SWITCH
Revision: 2006 January2006 M35/M45

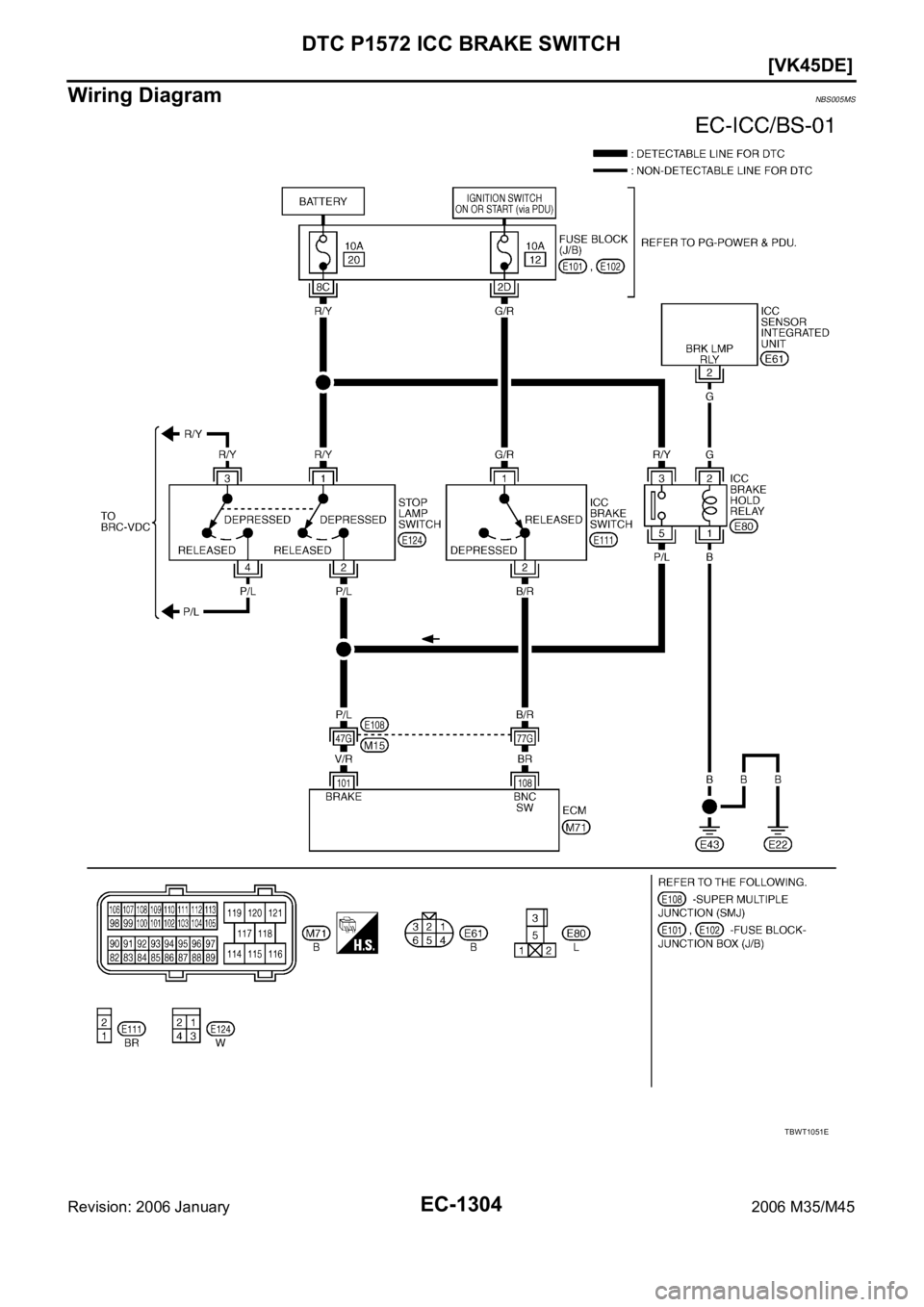

Wiring Diagram NBS005MS
TBWT1051E
Page 2848 of 5621
![INFINITI M35 2006 Factory Service Manual DTC P1572 ICC BRAKE SWITCH
EC-1305
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
Specification data are reference values and are measured between each terminal and ground.
CAUT INFINITI M35 2006 Factory Service Manual DTC P1572 ICC BRAKE SWITCH
EC-1305
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
Specification data are reference values and are measured between each terminal and ground.
CAUT](/manual-img/42/57023/w960_57023-2847.png)
DTC P1572 ICC BRAKE SWITCH
EC-1305
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureNBS005MT
1. CHECK OVERALL FUNCTION-I
With CONSULT-II
1. Turn ignition switch ON.
2. Select “BRAKE SW1” in “DATA MONITOR” mode with CON-
SULT-II.
3. Check “BRAKE SW1” indication under the following conditions.
Without CONSULT-II
1. Turn ignition switch ON.
2. Check voltage between ECM terminal 108 and ground under the
following conditions.
OK or NG
OK >> GO TO 2.
NG >> GO TO 3.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
101 V/R Stop lamp switch[Ignition switch: OFF]
Brake pedal: Fully releasedApproximately 0V
[Ignition switch: OFF]
Brake pedal: Slightly depressedBATTERY VOLTAGE
(11 - 14V)
108 BR ICC brake switch[Ignition switch: ON]
Brake pedal: Slightly depressedApproximately 0V
[Ignition switch: ON]
Brake pedal: Fully releasedBATTERY VOLTAGE
(11 - 14V)
CONDITION INDICATION
Brake pedal: Slightly depressed OFF
Brake pedal: Fully released ON
SEC011D
CONDITION VOLTAGE
Brake pedal: Slightly depressed Approximately 0V
Brake pedal: Fully released Battery voltage
MBIB0061E
