INFINITI M35 2006 Factory Service Manual EC-954
[VK45DE]
DTC P0122, P0123 TP SENSOR
Revision: 2006 January2006 M35/M45
DTC P0122, P0123 TP SENSORPFP:16119
Component DescriptionNBS005D0
Electric throttle control actuator consists of thr

EC-954
[VK45DE]
DTC P0122, P0123 TP SENSOR
Revision: 2006 January2006 M35/M45
DTC P0122, P0123 TP SENSORPFP:16119
Component DescriptionNBS005D0
Electric throttle control actuator consists of throttle control motor,
throttle position sensor, etc. The throttle position sensor responds to
the throttle valve movement.
The throttle position sensor has the two sensors. These sensors are
a kind of potentiometers which transform the throttle valve position
into output voltage, and emit the voltage signal to the ECM. In addi-
tion, these sensors detect the opening and closing speed of the
throttle valve and feed the voltage signals to the ECM. The ECM
judges the current opening angle of the throttle valve from these sig-
nals and the ECM controls the throttle control motor to make the
throttle valve opening angle properly in response to driving condi-
tion.
CONSULT-II Reference Value in Data Monitor ModeNBS005D1
Specification data are reference values.
*: Throttle position sensor 2 signal is converted by ECM internally. Thus, it differs from ECM terminal voltage signal.
On Board Diagnosis LogicNBS005D2
These self-diagnoses have the one trip detection logic.
FAIL-SAFE MODE
When the malfunction is detected, ECM enters fail-safe mode and the MIL lights up.
PBIB0145E
MONITOR ITEM CONDITION SPECIFICATION
THRTL SEN 1
THRTL SEN 2*
Ignition switch: ON
(Engine stopped)
Selector lever: DAccelerator pedal: Fully released More than 0.36V
Accelerator pedal: Fully depressed Less than 4.75V
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0122
0122Throttle position sensor
2 circuit low inputAn excessively low voltage from the TP sensor
2 is sent to ECM.
Harness or connectors
(TP sensor 2 circuit is open or shorted.)
(APP sensor 2 circuit is shorted.)
Electric throttle control actuator
(TP sensor 2)
Accelerator pedal position sensor
(APP sensor 2) P0123
0123Throttle position sensor
2 circuit high inputAn excessively high voltage from the TP sen-
sor 2 is sent to ECM.
Engine operation condition in fail-safe mode
The ECM controls the electric throttle control actuator in regulating the throttle opening in order for the idle position to be within +10
degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal condition.
So, the acceleration will be poor.

Page 2498 of 5621

INFINITI M35 2006 Factory Service Manual DTC P0122, P0123 TP SENSOR
EC-955
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
DTC Confirmation ProcedureNBS005D3
NOTE:
If DTC Confirmation Procedure has been previously

Page 2499 of 5621

INFINITI M35 2006 Factory Service Manual EC-956
[VK45DE]
DTC P0122, P0123 TP SENSOR
Revision: 2006 January2006 M35/M45

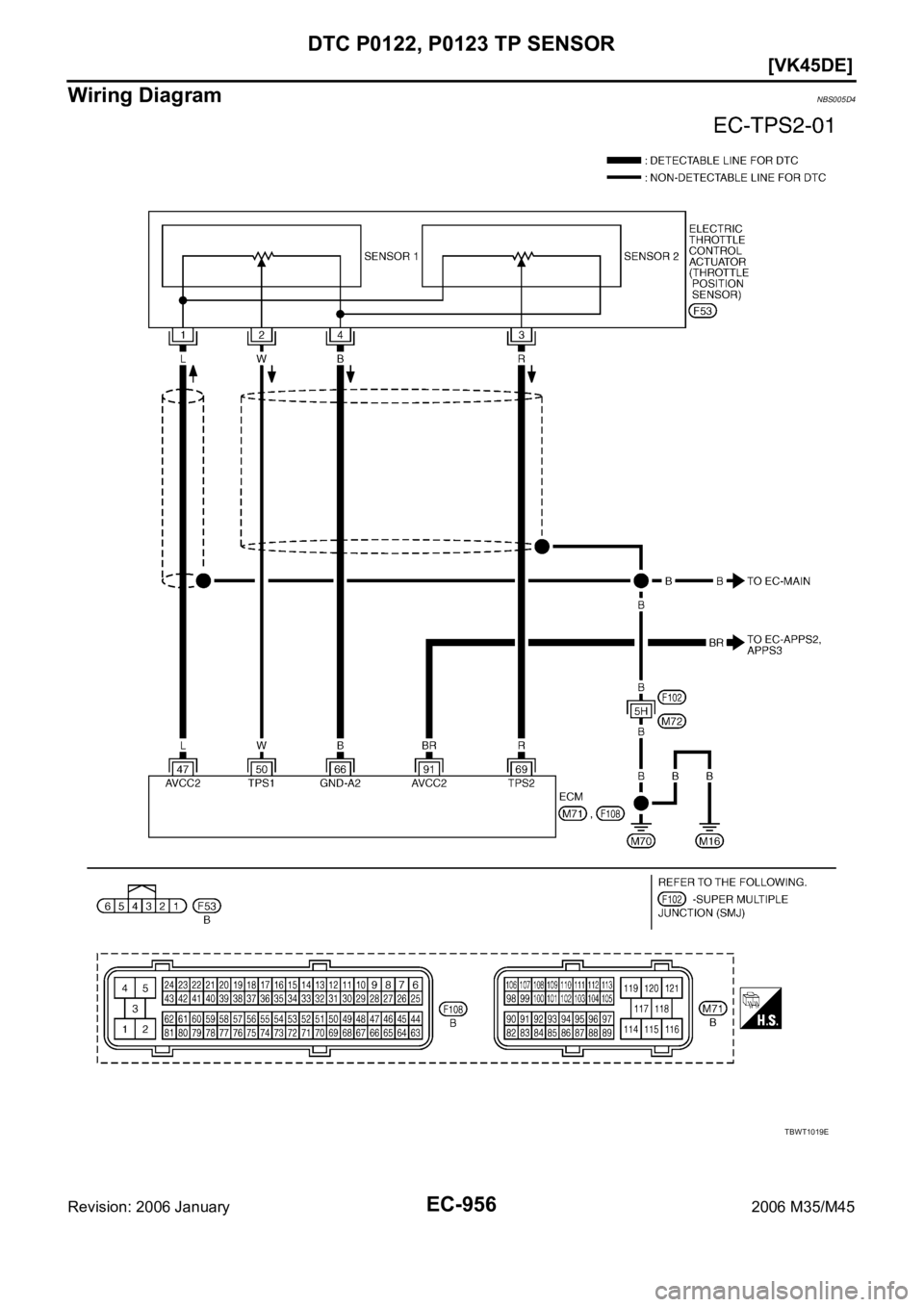

Wiring DiagramNBS005D4
TBWT1019E

Page 2500 of 5621

INFINITI M35 2006 Factory Service Manual DTC P0122, P0123 TP SENSOR
EC-957
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
Specification data are reference values and are measured between each terminal and ground.
CAUTI

Page 2501 of 5621

INFINITI M35 2006 Factory Service Manual EC-958
[VK45DE]
DTC P0122, P0123 TP SENSOR
Revision: 2006 January2006 M35/M45
2. CHECK THROTTLE POSITION SENSOR 2 POWER SUPPLY CIRCUIT-I
1. Disconnect electric throttle control actuator (1) harness co

Page 2502 of 5621

INFINITI M35 2006 Factory Service Manual DTC P0122, P0123 TP SENSOR
EC-959
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
6. REPLACE ACCELERATOR PEDAL ASSEMBLY
1. Replace accelerator pedal assembly.
2. Perform EC-806,

Page 2503 of 5621

INFINITI M35 2006 Factory Service Manual EC-960
[VK45DE]
DTC P0122, P0123 TP SENSOR
Revision: 2006 January2006 M35/M45
Component InspectionNBS005D6
THROTTLE POSITION SENSOR
1. Reconnect all harness connectors disconnected.
2. Perform EC-806,

Page 2504 of 5621

INFINITI M35 2006 Factory Service Manual DTC P0125 ECT SENSOR
EC-961
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
DTC P0125 ECT SENSORPFP:22630
Component DescriptionNBS005D8
NOTE:
If DTC P0125 is displayed with
