2. CHECK RAS CONTROL UNIT CIRCUIT
1. Perform RAS control unit self-diagnosis. Repair or replace items indicated, then perform INFINITI M35 2006 Factory Service Manual BRC-50
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
Revision: 2006 January2006 M35/M45
2. CHECK RAS CONTROL UNIT CIRCUIT
1. Perform RAS control unit self-diagnosis. Repair or replace items indicated, then perform](/manual-img/42/57023/w960_57023-1360.png)
BRC-50
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
Revision: 2006 January2006 M35/M45
2. CHECK RAS CONTROL UNIT CIRCUIT
1. Perform RAS control unit self-diagnosis. Repair or replace items indicated, then perform RAS control unit
self-diagnosis again. Refer to STC-31, "
SELF-DIAGNOSIS PROCEDURE" .
2. Perform ABS actuator and electric unit (control unit) self-diagnosis.
OK or NG
OK >> INSPECTION END
NG >>
Repair or replace malfunctioning components.
Perform the self-diagnosis, and make sure that the result shows NO DTC IS DETECTED.
Inspection 14: ICC Sensor Integrated Unit Circuit (With ICC)NFS000QY
INSPECTION PROCEDURE
1. CHECK SELF-DIAGNOSIS RESULTS
Check self-diagnosis results.
Is above displayed on the self-diagnosis display?
YES >> GO TO 2.
NO >> INSPECTION END
2. CHECK ICC SENSOR INTEGRATED UNIT CIRCUIT
1. Perform ICC sensor integrated unit self-diagnosis. Repair or replace items indicated, then perform ICC
sensor integrated unit self-diagnosis again. Refer to ACS-27, "
TROUBLE DIAGNOSIS - GENERAL
DESCRIPTION" .
2. Perform ABS actuator and electric unit (control unit) self-diagnosis.
OK or NG
OK >> INSPECTION END
NG >>
Repair or replace malfunctioning components.
Perform the self-diagnosis, and make sure that the result shows NO DTC IS DETECTED.
Inspection 15: AWD Control Unit Circuit (AWD Model)NFS000QZ
INSPECTION PROCEDURE
1. CHECK SELF-DIAGNOSIS RESULTS
Check self-diagnosis results.
Is above displayed on the self-diagnosis display?
YES >> GO TO 2.
NO >> INSPECTION END
2. CHECK AWD C/U CIRCUIT
1. Perform AWD control unit self-diagnosis. Repair or replace items indicated, then perform AWD control unit
self-diagnosis again. Refer to TF-14, "
TROUBLE DIAGNOSIS" .
2. Perform ABS actuator and electric unit (control unit) self-diagnosis.
OK or NG
OK >> INSPECTION END
NG >>
Repair or replace malfunctioning components.
Perform the self-diagnosis, and make sure that the result shows NO DTC IS DETECTED.
Self-diagnosis results
ACC CONT
Self-diagnosis results
4WD SYSTEM
Page 1362 of 5621
![INFINITI M35 2006 Factory Service Manual TROUBLE DIAGNOSIS
BRC-51
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: 2006 January2006 M35/M45
Inspection 16: CAN Communication CircuitNFS000R0
INSPECTION PROCEDURE
1. CHECK CONNECTOR
1. Turn i INFINITI M35 2006 Factory Service Manual TROUBLE DIAGNOSIS
BRC-51
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: 2006 January2006 M35/M45
Inspection 16: CAN Communication CircuitNFS000R0
INSPECTION PROCEDURE
1. CHECK CONNECTOR
1. Turn i](/manual-img/42/57023/w960_57023-1361.png)

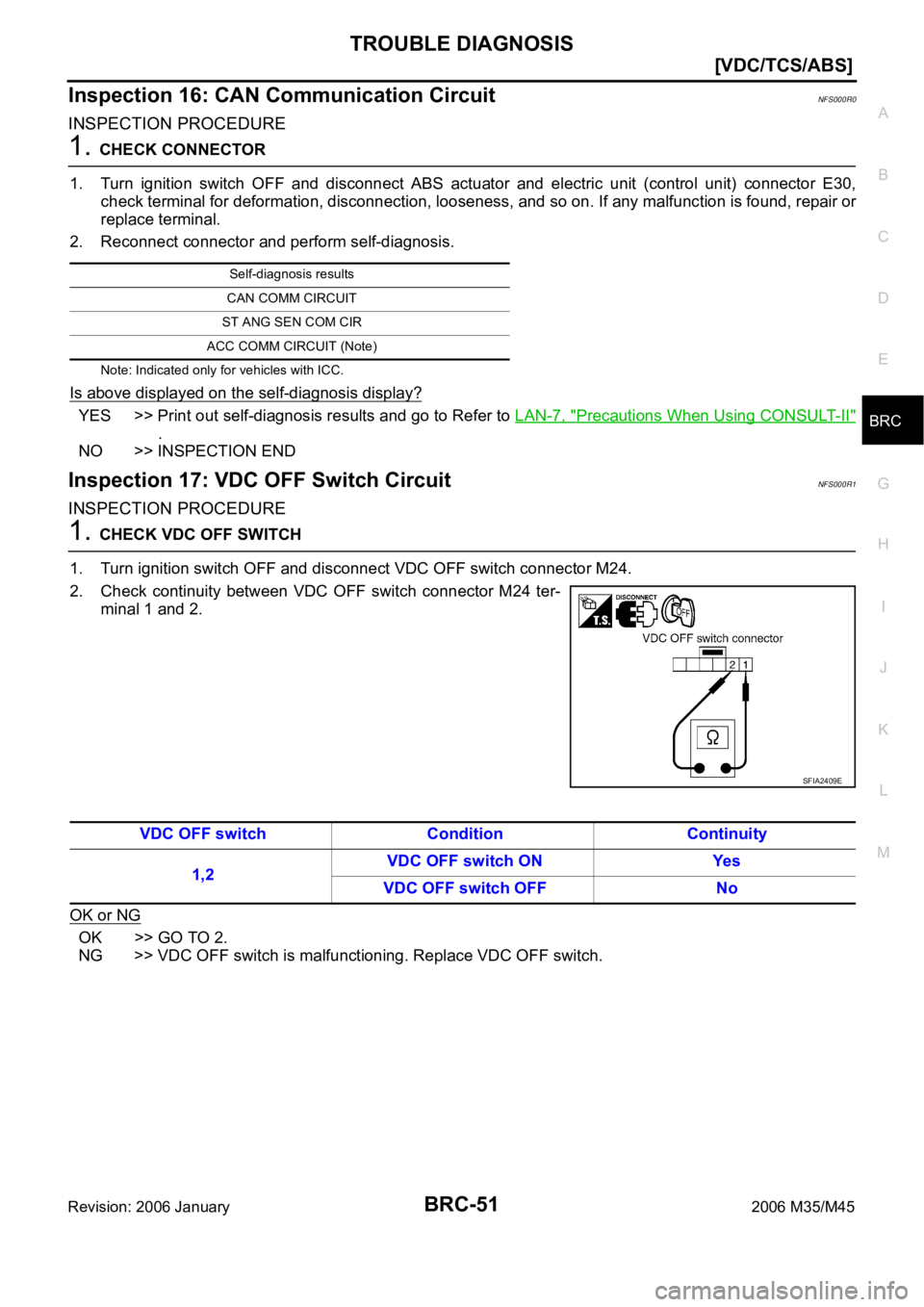

TROUBLE DIAGNOSIS
BRC-51
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: 2006 January2006 M35/M45
Inspection 16: CAN Communication CircuitNFS000R0
INSPECTION PROCEDURE
1. CHECK CONNECTOR
1. Turn ignition switch OFF and disconnect ABS actuator and electric unit (control unit) connector E30,
check terminal for deformation, disconnection, looseness, and so on. If any malfunction is found, repair or
replace terminal.
2. Reconnect connector and perform self-diagnosis.
Note: Indicated only for vehicles with ICC.
Is above displayed on the self-diagnosis display?
YES >> Print out self-diagnosis results and go to Refer to LAN-7, "Precautions When Using CONSULT-II"
.
NO >> INSPECTION END
Inspection 17: VDC OFF Switch CircuitNFS000R1
INSPECTION PROCEDURE
1. CHECK VDC OFF SWITCH
1. Turn ignition switch OFF and disconnect VDC OFF switch connector M24.
2. Check continuity between VDC OFF switch connector M24 ter-
minal 1 and 2.
OK or NG
OK >> GO TO 2.
NG >> VDC OFF switch is malfunctioning. Replace VDC OFF switch.
Self-diagnosis results
CAN COMM CIRCUIT
ST ANG SEN COM CIR
ACC COMM CIRCUIT (Note)
SFIA2409E
VDC OFF switch Condition Continuity
1,2VDC OFF switch ON Yes
VDC OFF switch OFF No
Page 1363 of 5621

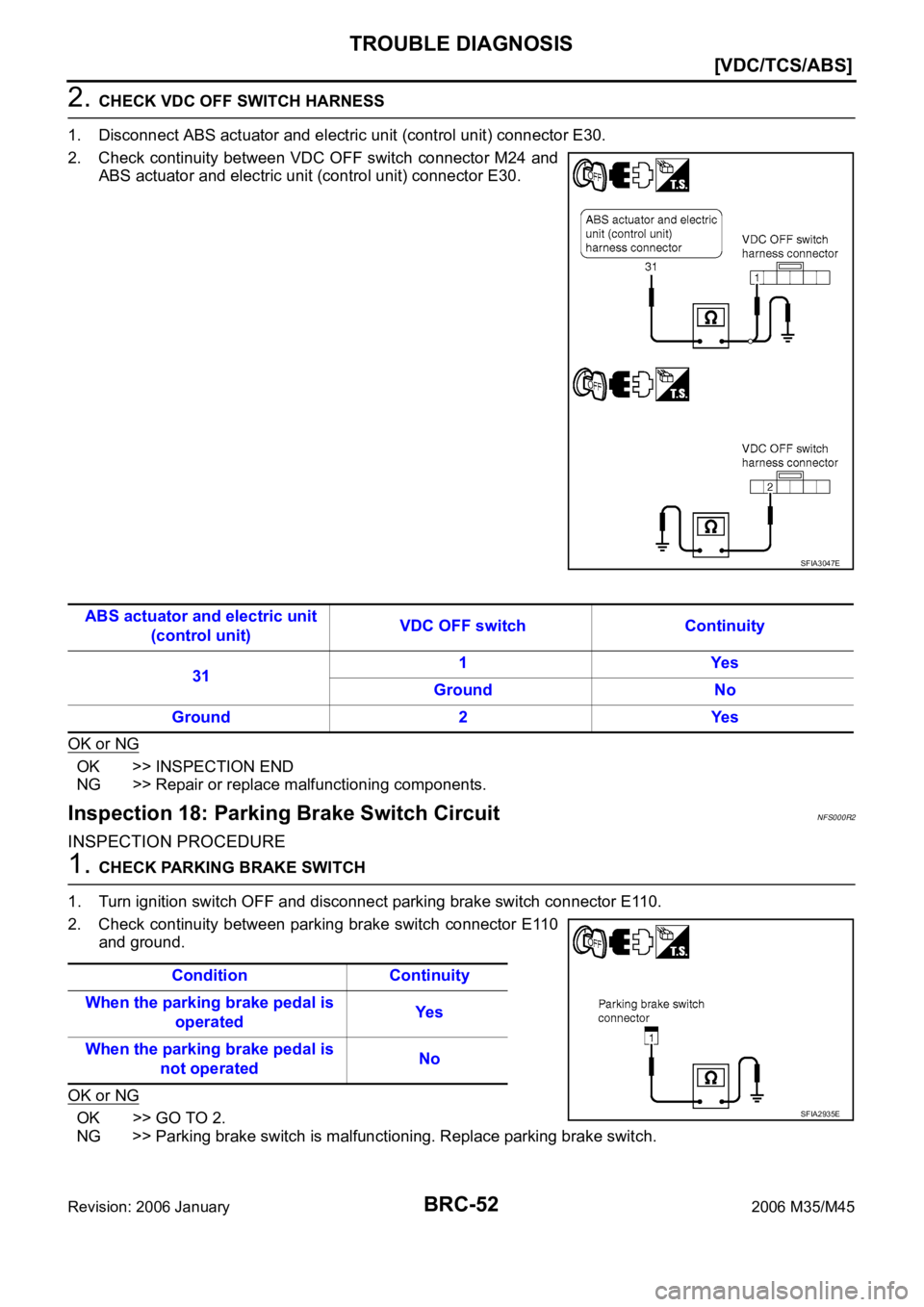

BRC-52
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
Revision: 2006 January2006 M35/M45
2. CHECK VDC OFF SWITCH HARNESS
1. Disconnect ABS actuator and electric unit (control unit) connector E30.
2. Check continuity between VDC OFF switch connector M24 and
ABS actuator and electric unit (control unit) connector E30.
OK or NG
OK >> INSPECTION END
NG >> Repair or replace malfunctioning components.
Inspection 18: Parking Brake Switch CircuitNFS000R2
INSPECTION PROCEDURE
1. CHECK PARKING BRAKE SWITCH
1. Turn ignition switch OFF and disconnect parking brake switch connector E110.
2. Check continuity between parking brake switch connector E110
and ground.
OK or NG
OK >> GO TO 2.
NG >> Parking brake switch is malfunctioning. Replace parking brake switch.
SFIA3047E
ABS actuator and electric unit
(control unit)VDC OFF switch Continuity
311Yes
Ground No
Ground 2 Yes
Condition Continuity
When the parking brake pedal is
operatedYes
When the parking brake pedal is
not operatedNo
SFIA2935E
Page 1364 of 5621
![INFINITI M35 2006 Factory Service Manual TROUBLE DIAGNOSIS
BRC-53
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: 2006 January2006 M35/M45
2. CHECK PARKING BRAKE SWITCH HARNESS
1. Disconnect ABS actuator and electric unit (control unit) c INFINITI M35 2006 Factory Service Manual TROUBLE DIAGNOSIS
BRC-53
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: 2006 January2006 M35/M45
2. CHECK PARKING BRAKE SWITCH HARNESS
1. Disconnect ABS actuator and electric unit (control unit) c](/manual-img/42/57023/w960_57023-1363.png)
TROUBLE DIAGNOSIS
BRC-53
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: 2006 January2006 M35/M45
2. CHECK PARKING BRAKE SWITCH HARNESS
1. Disconnect ABS actuator and electric unit (control unit) connector E30.
2. Check continuity between parking brake switch connector E110
and ABS actuator and electric unit (control unit) connector E30.
OK or NG
OK >> INSPECTION END
NG >> Repair or replace malfunctioning components.
Inspection 19: Warning Lamp and Indicator Lamp CircuitNFS000R3
INSPECTION PROCEDURE
1. CHECK SELF-DIAGNOSIS RESULTS
Perform ABS actuator and electric unit (control unit) self-diagnosis.
OK or NG
OK >> GO TO 2.
NG >> Check items displayed by self-diagnosis. Refer to BRC-24, "
DISPLAY ITEM LIST" .
2. CHECK COMBINATION METER
Check the indication and operation of combination meter are normal. Refer to DI-17, "
Self-Diagnosis Mode of
Combination Meter" .
OK or NG
OK >> INSPECTION END
NG >> Combination meter is malfunctioning. Repair or replace combination meter. Refer to DI-5, "
COM-
BINATION METERS" .
Symptom 1 Excessive ABS Function Operation FrequencyNFS000R4
1. CHECK START
Check front and rear brake force distribution using a brake tester. Refer to BR-35, "
SERVICE DATA AND
SPECIFICATIONS (SDS)" .
OK or NG
OK >> GO TO 2.
NG >> Check brake system.
SFIA3048E
ABS actuator and electric unit (control unit) Parking brake switch Continuity
361Yes
Ground No
Page 1365 of 5621
![INFINITI M35 2006 Factory Service Manual BRC-54
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
Revision: 2006 January2006 M35/M45
2. CHECK FRONT AND REAR AXLE
Make sure that there is no excessive play in the front and rear axles. Refer to front: FAX-5, INFINITI M35 2006 Factory Service Manual BRC-54
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
Revision: 2006 January2006 M35/M45
2. CHECK FRONT AND REAR AXLE
Make sure that there is no excessive play in the front and rear axles. Refer to front: FAX-5,](/manual-img/42/57023/w960_57023-1364.png)
BRC-54
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
Revision: 2006 January2006 M35/M45
2. CHECK FRONT AND REAR AXLE
Make sure that there is no excessive play in the front and rear axles. Refer to front: FAX-5, "
WHEEL BEAR-
ING INSPECTION" , Rear: RAX-5, "WHEEL BEARING INSPECTION" .
OK or NG
OK >> GO TO 3.
NG >> Repair or replace malfunctioning components.
3. CHECK WHEEL SENSOR AND SENSOR ROTOR
Check the following.
Wheel sensor installation for damage.
Sensor rotor installation for damage.
Wheel sensor connector connection.
Wheel sensor harness inspection.
OK or NG
OK >> GO TO 4.
NG >>
Replace wheel sensor or sensor rotor.
Repair harness.
4. CHECK ABS WARNING LAMP DISPLAY
Make sure that the ABS warning lamp is turned off after the ignition switch is turned ON or when driving.
OK or NG
OK >> Normal
NG >> Perform self-diagnosis. Refer to BRC-23, "
Self-Diagnosis" .
Symptom 2 Unexpected Pedal ReactionNFS000R5
1. CHECK BRAKE PEDAL STROKE
Check brake pedal stroke. Refer to BR-6, "
Inspection and Adjustment" .
Is the stroke too big?
YES >>Bleed air from brake tube and hose. Refer to BR-11, "Bleeding Brake System" .
Check brake pedal, brake booster, and master cylinder for mount play, looseness, brake sys-
tem fluid leakage, etc. Refer to brake pedal: BR-7, "
COMPONENTS" , brake booster and mas-
ter cylinder: BR-19, "
COMPONENTS" .
NO >> GO TO 2.
2. CHECK FUNCTION
Disconnect ABS actuator and electric unit (control unit) connector to deactivate ABS. Check if braking force is
normal in this condition.Connect connector after inspection.
OK or NG
OK >> GO TO procedure 3 “CHECK WHEEL SENSOR AND SENSOR ROTOR” of symptom 1. Refer to
BRC-53, "
Symptom 1 Excessive ABS Function Operation Frequency" .
NG >> Check brake system.
Page 1366 of 5621
![INFINITI M35 2006 Factory Service Manual TROUBLE DIAGNOSIS
BRC-55
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: 2006 January2006 M35/M45
Symptom 3 The Braking Distance Is LongNFS000R6
CAUTION:
The stopping distance on slippery road INFINITI M35 2006 Factory Service Manual TROUBLE DIAGNOSIS
BRC-55
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: 2006 January2006 M35/M45
Symptom 3 The Braking Distance Is LongNFS000R6
CAUTION:
The stopping distance on slippery road](/manual-img/42/57023/w960_57023-1365.png)
TROUBLE DIAGNOSIS
BRC-55
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: 2006 January2006 M35/M45
Symptom 3 The Braking Distance Is LongNFS000R6
CAUTION:
The stopping distance on slippery road surfaces might be longer with the ABS operating than when
the ABS is not operating.
1. CHECK FUNCTION
Turn ignition switch OFF and disconnect ABS actuator and electric unit (control unit) connector to deactivate
ABS. In this condition, check stopping distance. After inspection, connect connector.
OK or NG
OK >> GO TO procedure 3 “CHECK WHEEL SENSOR AND SENSOR ROTOR” of symptom 1. Refer to
BRC-53, "
Symptom 1 Excessive ABS Function Operation Frequency" .
NG >> Check brake system.
Symptom 4 ABS Function Does Not OperateNFS000R7
CAUTION:
ABS does not operate when speed is 10 km/h (6 MPH) or lower.
1. CHECK ABS WARNING LAMP DISPLAY
Make sure that the ABS warning lamp turns OFF after ignition switch is turned on or when driving.
OK or NG
OK >> GO TO procedure 3 “CHECK WHEEL SENSOR AND SENSOR ROTOR” of symptom 1. Refer to
BRC-53, "
Symptom 1 Excessive ABS Function Operation Frequency" .
NG >> Perform self-diagnosis. Refer to BRC-23, "
Self-Diagnosis" .
Symptom 5 Pedal Vibration or ABS Operation Sound OccursNFS000R8
CAUTION:
Under the following conditions, ABS is activated and vibration is felt when brake pedal is lightly
depressed (just place a foot on it).However, this is normal.
When shifting gears
When driving on slippery road
During cornering at high speed
When passing over bumps or grooves [at approximately 50 mm (1.97 in) or more]
When pulling away just after starting engine [at approximately 10 km/h (6 MPH) or higher]
1. SYMPTOM CHECK 1
Check if there is pedal vibration or operation sound when the engine is started.
Do symptoms occur?
YES >> GO TO 2.
NO >> Perform self -diagnosis. Refer to BRC-23, "
Self-Diagnosis" .
2. SYMPTOM CHECK 2
Check symptoms when electrical component (headlamps, etc.) switches are operated.
Do symptoms occur?
YES >> Check if there is a radio, antenna, antenna lead wire, or wiring close to the control unit. If there is,
move it farther away.
NO >> GO TO procedure 3 “CHECK WHEEL SENSOR AND SENSOR ROTOR” of symptom 1. Refer to
BRC-53, "
Symptom 1 Excessive ABS Function Operation Frequency" .
Page 1367 of 5621
![INFINITI M35 2006 Factory Service Manual BRC-56
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
Revision: 2006 January2006 M35/M45
Symptom 6 Vehicle Jerks During VDC/TCS/ABS ControlNFS000R9
1. SYMPTOM CHECK
Check if the vehicle jerks during VDC/TCS/ABS cont INFINITI M35 2006 Factory Service Manual BRC-56
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
Revision: 2006 January2006 M35/M45
Symptom 6 Vehicle Jerks During VDC/TCS/ABS ControlNFS000R9
1. SYMPTOM CHECK
Check if the vehicle jerks during VDC/TCS/ABS cont](/manual-img/42/57023/w960_57023-1366.png)
BRC-56
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
Revision: 2006 January2006 M35/M45
Symptom 6 Vehicle Jerks During VDC/TCS/ABS ControlNFS000R9
1. SYMPTOM CHECK
Check if the vehicle jerks during VDC/TCS/ABS control.
OK or NG
OK >> Normal.
NG >> GO TO 2.
2. CHECK SELF-DIAGNOSIS RESULTS
Perform self-diagnostic of ABS actuator and electric unit (control unit).
Are self-diagnosis results indicated?
YES >> Check corresponding items, make repairs, and perform ABS actuator and electric unit (control
unit) self-diagnosis.
NO >> GO TO 3.
3. CHECK CONNECTOR
Turn ignition switch OFF and disconnect ABS actuator and electric unit (control unit) connector and check
terminal for deformation, disconnection, looseness, etc.
Securely connect connectors and perform ABS actuator and electric unit (control unit) self-diagnosis.
Are self-diagnosis results indicated?
YES >> If poor contact, damage, open or short circuit of connector terminal is found, repair or replace.
NO >> GO TO 4.
4. CHECK ECM AND A/T SELF-DIAGNOSIS RESULTS
Perform ECM and A/T self-diagnosis.
Are self-diagnosis results indicated?
YES >> Check the corresponding items.
ECM: Refer to EC-100, "TROUBLE DIAGNOSIS" (VQ35DE), EC-811, "TROUBLE DIAGNO-
SIS" (VK45DE).
A/T: Refer to AT-44, "TROUBLE DIAGNOSIS" .
NO >> Replace ABS actuator and electric unit (control unit).
Page 1368 of 5621
![INFINITI M35 2006 Factory Service Manual WHEEL SENSOR
BRC-57
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: 2006 January2006 M35/M45
WHEEL SENSORPFP:47910
Removal and InstallationNFS000RA
COMPONENT
NOTE:
The above figure (front side) sho INFINITI M35 2006 Factory Service Manual WHEEL SENSOR
BRC-57
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: 2006 January2006 M35/M45
WHEEL SENSORPFP:47910
Removal and InstallationNFS000RA
COMPONENT
NOTE:
The above figure (front side) sho](/manual-img/42/57023/w960_57023-1367.png)
WHEEL SENSOR
BRC-57
[VDC/TCS/ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Revision: 2006 January2006 M35/M45
WHEEL SENSORPFP:47910
Removal and InstallationNFS000RA
COMPONENT
NOTE:
The above figure (front side) shows left side. Right side is the mirror image.
REMOVAL
Pay attention to the following when removing sensor.
CAUTION:
Do not twist sensor harness as much as possible, when removing it. Pull sensors out without pull-
ing on sensor harness.
Take care to avoid damaging sensor edges or rotor teeth. Remove wheel sensor first before
removing front or rear wheel hub. This is to avoid damage to sensor wiring and loss of sensor
function.
INSTALLATION
Pay attention to the following when installing wheel sensor. Tighten installation bolts to the specified torques.
Refer to BRC-57, "
COMPONENT" .
1. Front LH wheel sensor 2. Front LH wheel sensor connector 3. Clamp
4. Bracket 5. Rear RH wheel sensor connector 6. Rear LH wheel sensor connector
7. Rear LH wheel sensor 8. Rear RH wheel sensor
A. Front side B. Rear side : Front
Refer to GI section GI-11, "
Components" for symbol marks in the figure.
SFIA2723J
