Overall Function CheckNBS005M3
Use this procedure to check the overall function of the battery current sensor circu INFINITI M35 2006 Factory Service Manual EC-1282
[VK45DE]
DTC P1554 BATTERY CURRENT SENSOR
Revision: 2006 January2006 M35/M45
Overall Function CheckNBS005M3
Use this procedure to check the overall function of the battery current sensor circu](/manual-img/42/57023/w960_57023-2824.png)
EC-1282
[VK45DE]
DTC P1554 BATTERY CURRENT SENSOR
Revision: 2006 January2006 M35/M45
Overall Function CheckNBS005M3
Use this procedure to check the overall function of the battery current sensor circuit. During this check, a 1st
trip DTC might not be confirmed.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 12.8V at idle.
Before performing the following procedure, confirm that all load switches and A/C switch are
turned OFF.
WITH CONSULT-II
1. Start engine and let it idle.
2. Select “BAT CUR SEN” in “DATA MONITOR” mode with CON-
SULT-II.
3. Check “BAT CUR SEN” indication for 10 seconds.
“BAT CUR SEN” should be above 2,300mV at least once.
4. If NG, go to EC-1284, "
Diagnostic Procedure" .
WITH GST
1. Start engine and let it idle.
2. Check voltage between ECM terminal 71 (battery current sensor
signal) and ground for 10 seconds.
The voltage should be above 2.3V at least once.
3. If NG, go to EC-1284, "
Diagnostic Procedure" .
PBIB2615E
PBIB2616E
Page 2826 of 5621
DTC P1554 BATTERY CURRENT SENSOR
EC-1283
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45

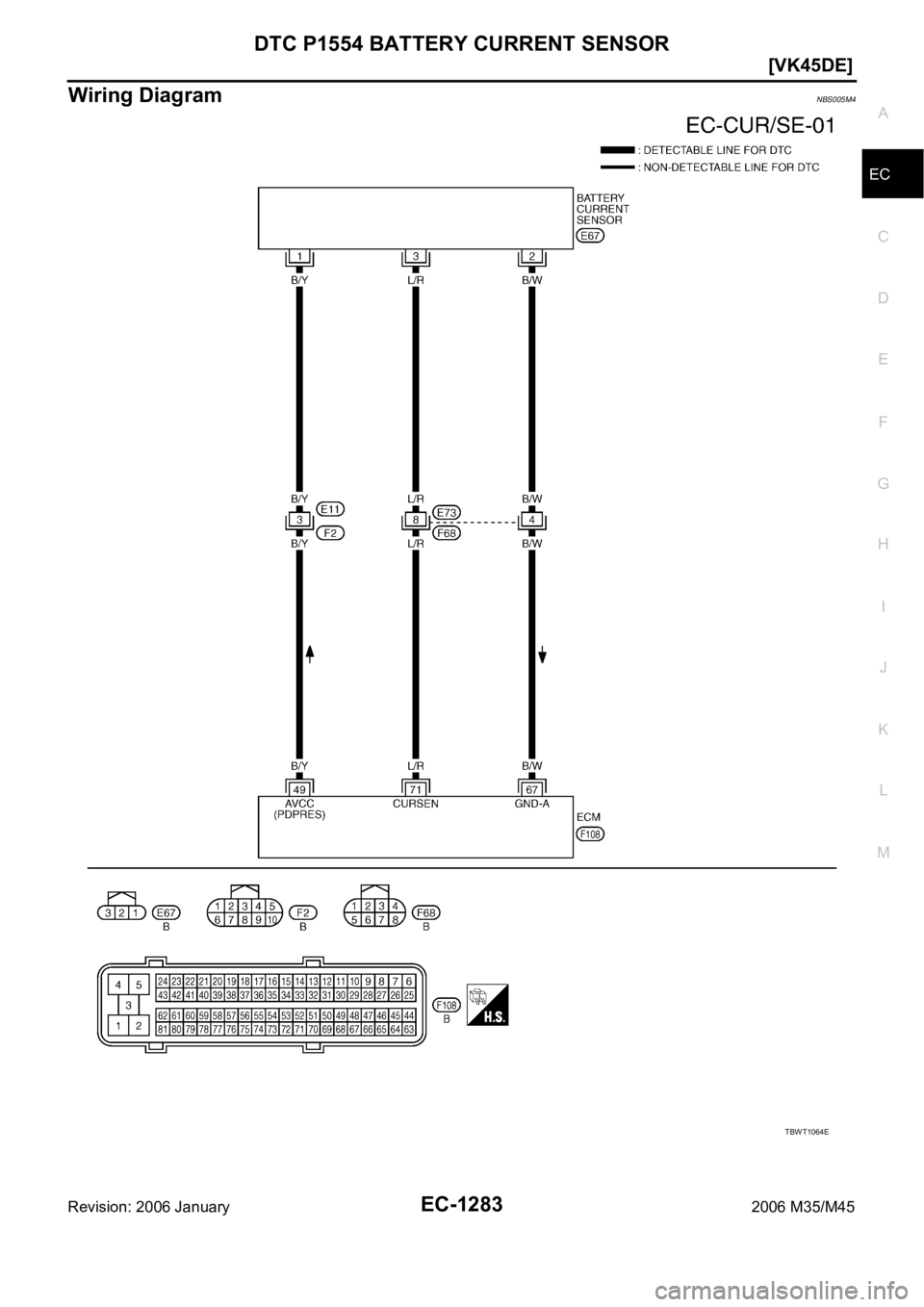

Wiring DiagramNBS005M4
TBWT1064E
Page 2827 of 5621
![INFINITI M35 2006 Factory Service Manual EC-1284
[VK45DE]
DTC P1554 BATTERY CURRENT SENSOR
Revision: 2006 January2006 M35/M45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM INFINITI M35 2006 Factory Service Manual EC-1284
[VK45DE]
DTC P1554 BATTERY CURRENT SENSOR
Revision: 2006 January2006 M35/M45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM](/manual-img/42/57023/w960_57023-2826.png)
EC-1284
[VK45DE]
DTC P1554 BATTERY CURRENT SENSOR
Revision: 2006 January2006 M35/M45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
*: Before measuring the terminal voltage, confirm that the battery is fully charged. Refer to SC-5, "SPECIFIC GRAVITY CHECK" .
Diagnostic ProcedureNBS005M5
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten two ground screws on the body.
Refer to EC-885, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
49 B/YSensor power supply
(Refrigerant pressure sen-
sor, Battery current sensor)[Ignition switch: ON]Approximately 5V
67 B/WSensor ground
(MAF sensor, IAT sensor,
ECT sensor, EVAP control
system pressure sensor,
PSP sensor, ASCD/ICC
steering switch, Battery cur-
rent sensor, Refrigerant
pressure sensor)[Engine is running]
Warm-up condition
Idle speedApproximately 0V
71 L/R Battery current sensor[Engine is running]
Battery: Fully charged*
Idle speedApproximately 2.6 - 3.5V
1. Body ground M70 2. Body ground M16
PBIB2782E
Page 2828 of 5621
![INFINITI M35 2006 Factory Service Manual DTC P1554 BATTERY CURRENT SENSOR
EC-1285
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
2. CHECK BATTERY CURRENT SENSOR POWER SUPPLY CIRCUIT
1. Disconnect battery current sensor INFINITI M35 2006 Factory Service Manual DTC P1554 BATTERY CURRENT SENSOR
EC-1285
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
2. CHECK BATTERY CURRENT SENSOR POWER SUPPLY CIRCUIT
1. Disconnect battery current sensor](/manual-img/42/57023/w960_57023-2827.png)
DTC P1554 BATTERY CURRENT SENSOR
EC-1285
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
2. CHECK BATTERY CURRENT SENSOR POWER SUPPLY CIRCUIT
1. Disconnect battery current sensor (1) harness connector.
2. Turn ignition switch ON.
3. Check voltage between battery current sensor terminal 1 and
ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E11, F2
Harness for open or short between battery current sensor and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK BATTERY CURRENT SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between battery current sensor terminal 2 and ECM terminal 67.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
5. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E73, F68
Harness for open or short between battery current sensor and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
PBIB2685E
Voltage: Approximately 5V
PBIA9891J
Continuity should exist.
Page 2829 of 5621
![INFINITI M35 2006 Factory Service Manual EC-1286
[VK45DE]
DTC P1554 BATTERY CURRENT SENSOR
Revision: 2006 January2006 M35/M45
6. CHECK BATTERY CURRENT SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between battery INFINITI M35 2006 Factory Service Manual EC-1286
[VK45DE]
DTC P1554 BATTERY CURRENT SENSOR
Revision: 2006 January2006 M35/M45
6. CHECK BATTERY CURRENT SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between battery](/manual-img/42/57023/w960_57023-2828.png)
EC-1286
[VK45DE]
DTC P1554 BATTERY CURRENT SENSOR
Revision: 2006 January2006 M35/M45
6. CHECK BATTERY CURRENT SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between battery current sensor terminal 3 and ECM terminal 71.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 8.
NG >> GO TO 7.
7. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E73, F68
Harness for open or short between battery current sensor and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
8. CHECK BATTERY CURRENT SENSOR
Refer to EC-1286, "
Component Inspection" .
OK or NG
OK >> GO TO 9.
NG >> Replace battery negative cable assembly.
9. CHECK INTERMITTENT INCIDENT
Refer to EC-878, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionNBS005M6
BATTERY CURRENT SENSOR
1. Reconnect harness connectors disconnected.
2. Disconnect battery negative cable (1).
: To body ground
3. Install jumper cable A between battery negative terminal and
body ground.
4. Turn ignition switch ON.
5. Check voltage between ECM terminal 71 (battery current sensor
signal) and ground.
6. If NG, replace battery negative cable assembly.Continuity should exist.
PBIB2724E
Voltage: Approximately 2.5V
PBIB2617E
Page 2830 of 5621
![INFINITI M35 2006 Factory Service Manual DTC P1564 ICC STEERING SWITCH
EC-1287
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
DTC P1564 ICC STEERING SWITCHPFP:25551
Component DescriptionNBS005M7
ICC steering switch has INFINITI M35 2006 Factory Service Manual DTC P1564 ICC STEERING SWITCH
EC-1287
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
DTC P1564 ICC STEERING SWITCHPFP:25551
Component DescriptionNBS005M7
ICC steering switch has](/manual-img/42/57023/w960_57023-2829.png)
DTC P1564 ICC STEERING SWITCH
EC-1287
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
DTC P1564 ICC STEERING SWITCHPFP:25551
Component DescriptionNBS005M7
ICC steering switch has variant values of electrical resistance for each button. ECM reads voltage variation of
switch, and determines which button is operated.
Refer to ACS-6, "
DESCRIPTION" for the ICC function.
CONSULT-II Reference Value in Data Monitor ModeNBS005M8
Specification data are reference values.
On Board Diagnosis LogicNBS005M9
This self-diagnosis has the one trip detection logic.
The MIL will not light up for this diagnosis.
NOTE:
If DTC P1564 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605. Refer to
EC-1215
.

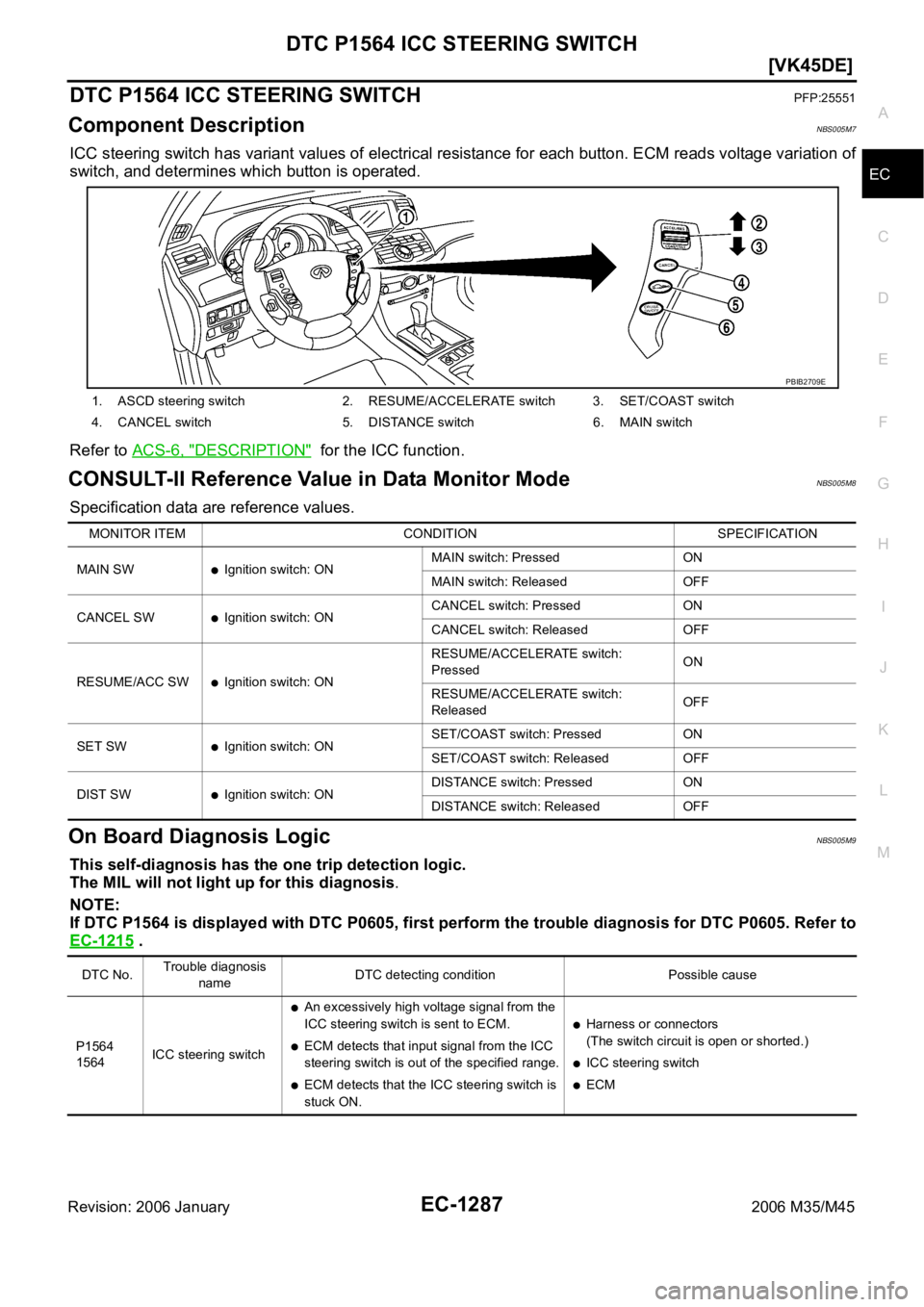

1. ASCD steering switch 2. RESUME/ACCELERATE switch 3. SET/COAST switch
4. CANCEL switch 5. DISTANCE switch 6. MAIN switch
PBIB2709E
MONITOR ITEM CONDITION SPECIFICATION
MAIN SW
Ignition switch: ONMAIN switch: Pressed ON
MAIN switch: Released OFF
CANCEL SW
Ignition switch: ONCANCEL switch: Pressed ON
CANCEL switch: Released OFF
RESUME/ACC SW
Ignition switch: ONRESUME/ACCELERATE switch:
PressedON
RESUME/ACCELERATE switch:
ReleasedOFF
SET SW
Ignition switch: ONSET/COAST switch: Pressed ON
SET/COAST switch: Released OFF
DIST SW
Ignition switch: ONDISTANCE switch: Pressed ON
DISTANCE switch: Released OFF
DTC No.Trouble diagnosis
nameDTC detecting condition Possible cause
P1564
1564ICC steering switch
An excessively high voltage signal from the
ICC steering switch is sent to ECM.
ECM detects that input signal from the ICC
steering switch is out of the specified range.
ECM detects that the ICC steering switch is
stuck ON.
Harness or connectors
(The switch circuit is open or shorted.)
ICC steering switch
ECM
Page 2831 of 5621
![INFINITI M35 2006 Factory Service Manual EC-1288
[VK45DE]
DTC P1564 ICC STEERING SWITCH
Revision: 2006 January2006 M35/M45
DTC Confirmation ProcedureNBS005MA
NOTE:
If DTC Confirmation Procedure has been previously conducted, always INFINITI M35 2006 Factory Service Manual EC-1288
[VK45DE]
DTC P1564 ICC STEERING SWITCH
Revision: 2006 January2006 M35/M45
DTC Confirmation ProcedureNBS005MA
NOTE:
If DTC Confirmation Procedure has been previously conducted, always](/manual-img/42/57023/w960_57023-2830.png)
EC-1288
[VK45DE]
DTC P1564 ICC STEERING SWITCH
Revision: 2006 January2006 M35/M45
DTC Confirmation ProcedureNBS005MA
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Wait at least 10 seconds.
4. Press MAIN switch for at least 10 seconds, then release it and
wait at least 10 seconds.
5. Press CANCEL switch for at least 10 seconds, then release it
and wait at least 10 seconds.
6. Press RESUME/ACCELERATE switch for at least 10 seconds,
then release it and wait at least 10 seconds.
7. Press SET/COAST switch for at least 10 seconds, then release
it and wait at least 10 seconds.
8. Press DISTANCE switch for at least 10 seconds, then release it
and wait at least 10 seconds.
9. If DTC is detected, go to EC-1290, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
SEF058Y
Page 2832 of 5621
DTC P1564 ICC STEERING SWITCH
EC-1289
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45

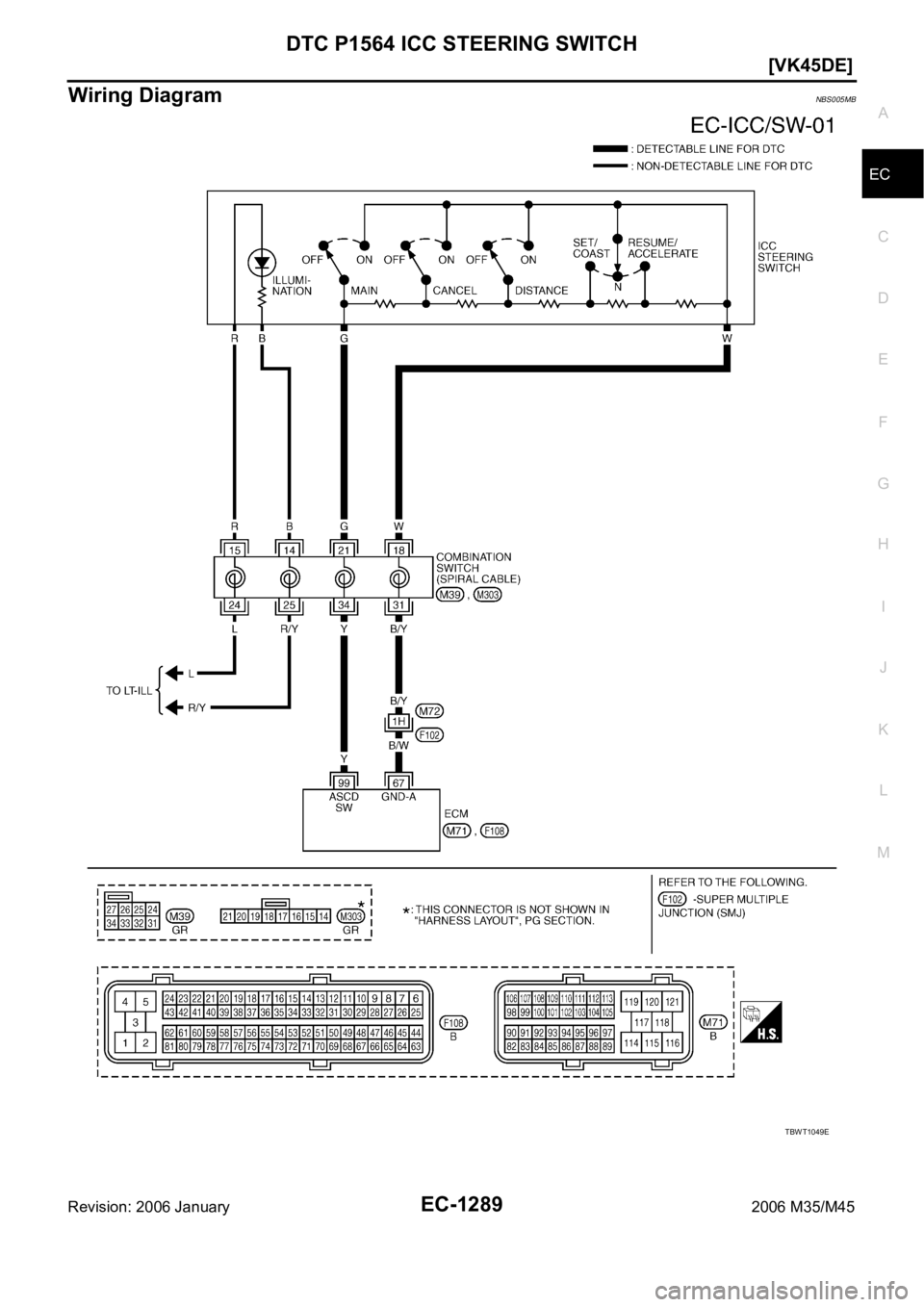

Wiring DiagramNBS005MB
