Terminals and Reference Value for Intelligent Key UnitNIS001XD
Te r m i -
nalWire
ColorItemCondition
Voltage (V)
Approx. Ignition
Switch
PositionOperation or Conditions
1 SB Power source (Fuse) — — Battery voltage
2GRDoor request switch
(driver side)—Press door request switch (driver side). 0
Other than above 5
4B/YRemote keyless entry
receiver RSSI signalLOCKWhen Intelligent Key is in vehicle, press
push-button ignition switch0
Other than above
5B/WRemote keyless entry
receiver signalLOCKWaiting state
Any operation using Intelligent Key
6BRemote keyless entry
receiver ground—— 0
7B/RRemote keyless entry
receiver power supplyLOCK —
13 LG/BKey slot illumination
signalLOCKInsert Intelligent Key into key slot and
driver side door is open.Illuminate: Battery voltage
Does not illuminate: 0
Remove Intelligent Key from key slot. 0
19 BR/Y Key switch signal LOCKInsert Intelligent Key into key slot. 0
Remove Intelligent Key from key slot. Battery voltage
20 B Ground ON — 0
22 ODoor request switch
(passenger side)—Press door request switch
(passenger side).0
Other than above 5
23 BTrunk lid opener can-
cel switch—Trunk lid opener cancel switch is ON 0
Trunk lid opener cancel switch is OFF
(cancel)5
PIIB5657J
OCC3879D
OCC3880D
OCC3881D
Page 1014 of 5621

INTELLIGENT KEY SYSTEM
BL-75
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 January2006 M35/M45
25 GR/RTrunk opener request
switch—Press trunk opener request switch. 0
Other than above 5
26 BR/WUnlock sensor
(driver side)—Door (driver side) is locked. Battery voltage
Door (driver side) is unlocked. 0
27 V P range switch —Selector lever is in “P” position. 0
Other than above Battery voltage
30 L/W Ignition switch (ACC) ACC — Battery voltage
31 GR Ignition switch (ON) ON — Battery voltage
35 LG Vehicle speed signal ONAt speedometer operation (vehicle
speed approx. 40 km/h)
37 P CAN-L — — —
38 L CAN-H — — —
39 BR/WPush-button ignition
switch signal—Press push-button ignition switch 0
Other than above Battery voltage
40 B Ground ON — 0
41 Y Power souce (Fuse) — — Battery voltage
47 LGInside key antenna
(+) signal
(Instrument centor)
LOCK Any door open
all door close
48 VInside key antenna (-)
signal
(Instrument centor)
49 BInside key antenna
(+) signal
(Console)
LOCK Any door open
all door close
50 WInside key antenna (-)
signal
(Console)
51 R/LInside key antenna
(+) signal
(Rear seat)
LOCK Any door open
all door closed
52 R/WInside key antenna (-)
signal
(Rear seat) Te r m i -
nalWire
ColorItemCondition
Voltage (V)
Approx. Ignition
Switch
PositionOperation or Conditions
PKIA1935E
SIIA1910J
SIIA1910J
SIIA1910J
Page 1015 of 5621

BL-76
INTELLIGENT KEY SYSTEM
Revision: 2006 January2006 M35/M45
53 G/WInside key antenna
(+) signal
(Trunk room)
LOCK Any door open
all door close
54 LGInside key antenna
(-) signal
(Trunk room)
55 PIntelligent Key warn-
ing buzzerLOCKOperate door request
switch.Buzzer OFF Battery voltage
Sound buzzer 0
56 B Ground ON — 0
57 L Power souce (Fuse) — — Battery voltage
58 OA/T device power
supply LOCKWake-up state (Open drive side door) Battery voltage
Sleep state (After 30 seconds or more
since all doors are closed under the
condition that the ignition switch is in
the LOCK position)0
61 O/LOutside key antenna
(+) signal (driver side)
LOCK Press door request switch (driver side).
62 YOutside key antenna
(-) signal (driver side)
63 LGOutside key antenna
(+) signal
(passenger side)
LOCKPress door request switch (passenger
side).
64 GOutside key antenna
(-) signal
(passenger side)
69 O/BOutside key antenna
(+) signal
(Trunk room)
LOCK Press trunk opener request switch.
70 LOutside key antenna
(-) signal
(Trunk room)
72 B Ground ON 0 Te r m i -
nalWire
ColorItemCondition
Voltage (V)
Approx. Ignition
Switch
PositionOperation or Conditions
SIIA1910J
SIIA1910J
SIIA1910J
SIIA1910J
Page 1016 of 5621

INTELLIGENT KEY SYSTEM
BL-77
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 January2006 M35/M45
Terminals and Reference Value for BCMNIS001XE
*1: In the state that hazard reminder operates.
*2: In the state that room lamp switch is in “DOOR” position.
Terminals and Reference Value for IPDM E/RNIS001XF
Te r m i -
nalWire
ColorItem ConditionVoltage (V)
Approx.
11 V Ignition switch (ACC) Ignition switch is in ACC or ON position Battery voltage

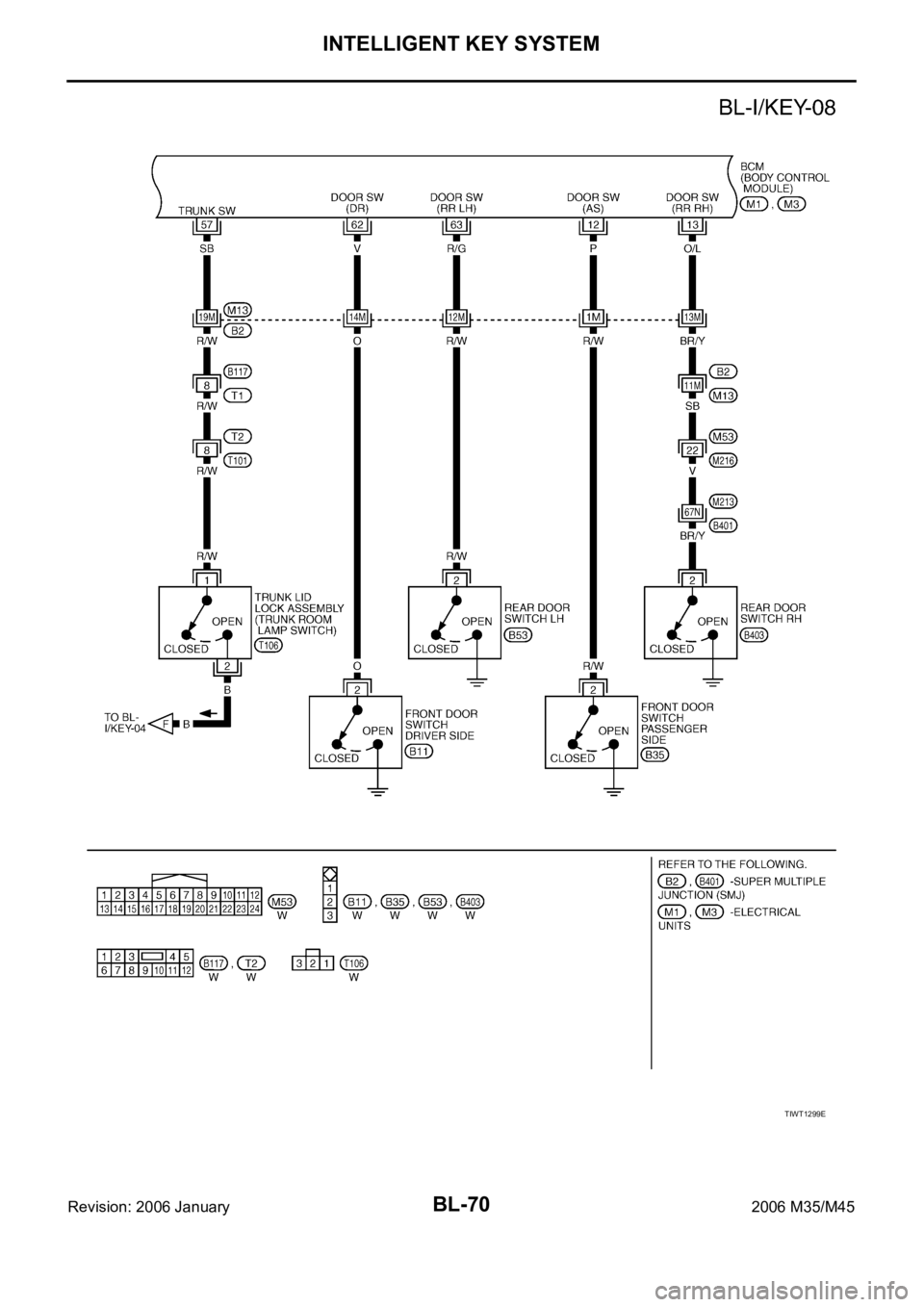

12 PFront door switch passenger
sideDoor open (ON)
Close (OFF) 0 8
13 O/L Rear door switch RH Door open (ON)
Close (OFF) 0 Battery voltage
37 LG Key switch signalInsert Intelligent Key into key slot. Battery voltage
Remove Intelligent Key from key slot. 0
38 W Ignition switch (ON)Ignition switch is in ON or START posi-
tion.Battery voltage
39 L CAN-H — —
40 P CAN-L — —
42 P Power supply (fuse) — Battery voltage
52 B Ground — 0
55 W Power supply (Fusible link) — Battery voltage
57 SB Trunk room lamp switch Trunk lid open (ON)
Close (OFF) 0 Battery voltage
62 V Front door switch driver side Door open (ON)
Close (OFF) 0 Battery voltage
63 R/G Rear door switch LH Door open (ON)
Close (OFF) 0 Battery voltage
Te r m i n a l Wire
ColorItem ConditionVoltage (V)
Approx.

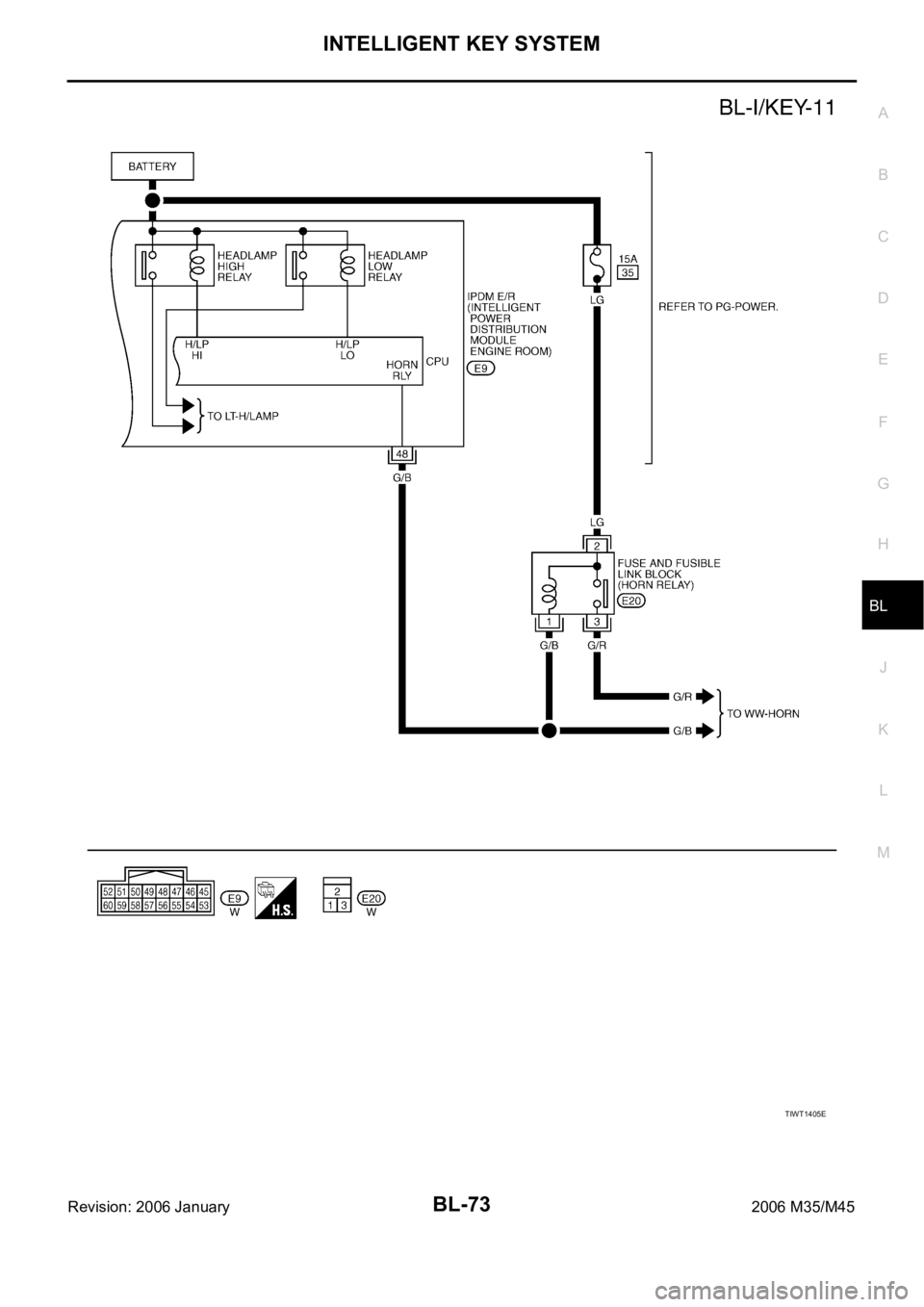

48 G/B Horn relay Press panic alarm bottom.Horn sounds. 0
Horn does not sound. Battery voltage

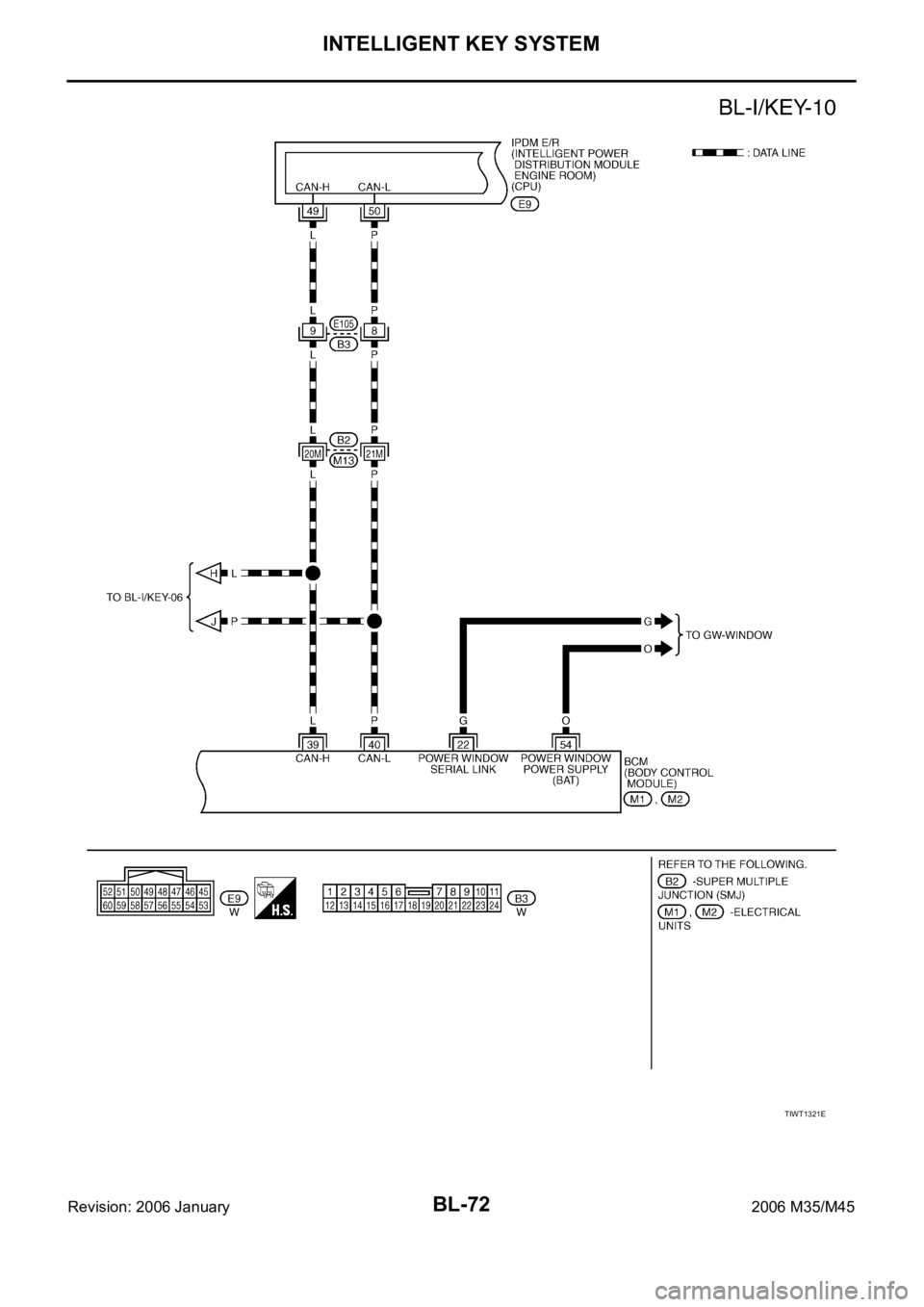

49 L CAN-H — —
50 P CAN-L — —
