Page 3985 of 5621

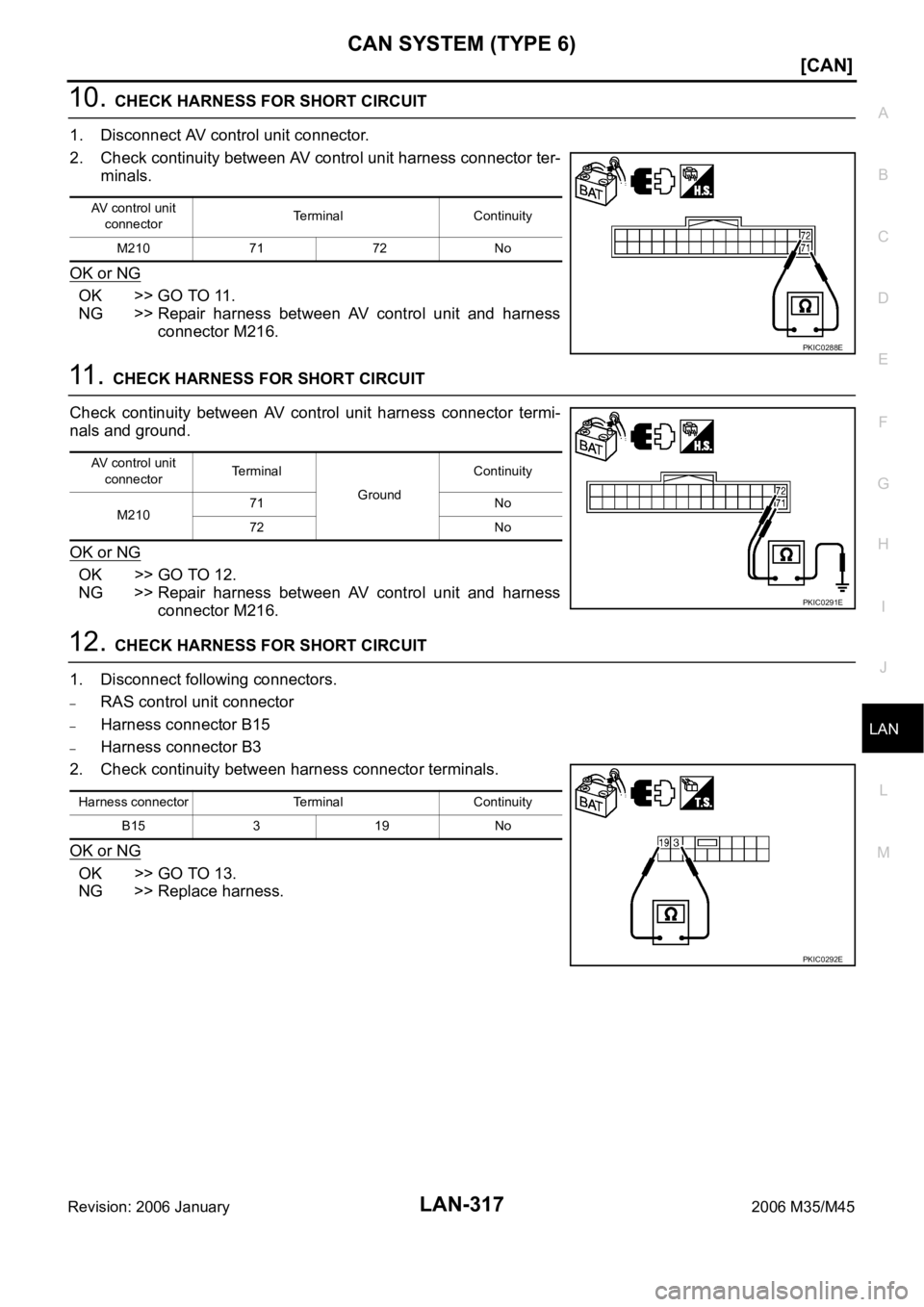

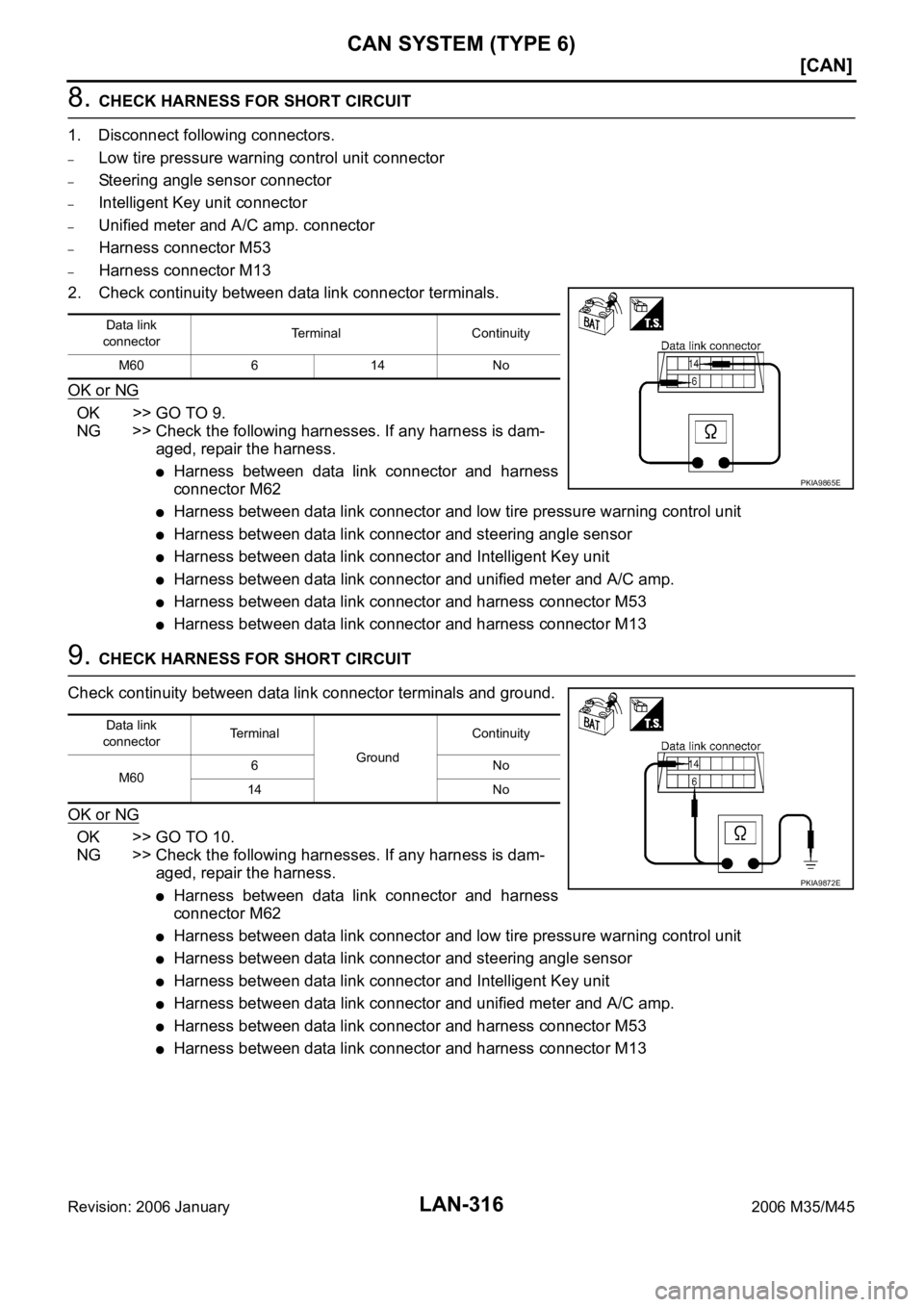

INFINITI M35 2006 Factory Service Manual LAN-316 [CAN] CAN SYSTEM (TYPE 6) Revision: 2006 January2006 M35/M45 8. CHECK HARNESS FOR SHORT CIRCUIT 1. Disconnect following connectors. –Low tire pressure warning control unit connector –Steer

Page 3986 of 5621

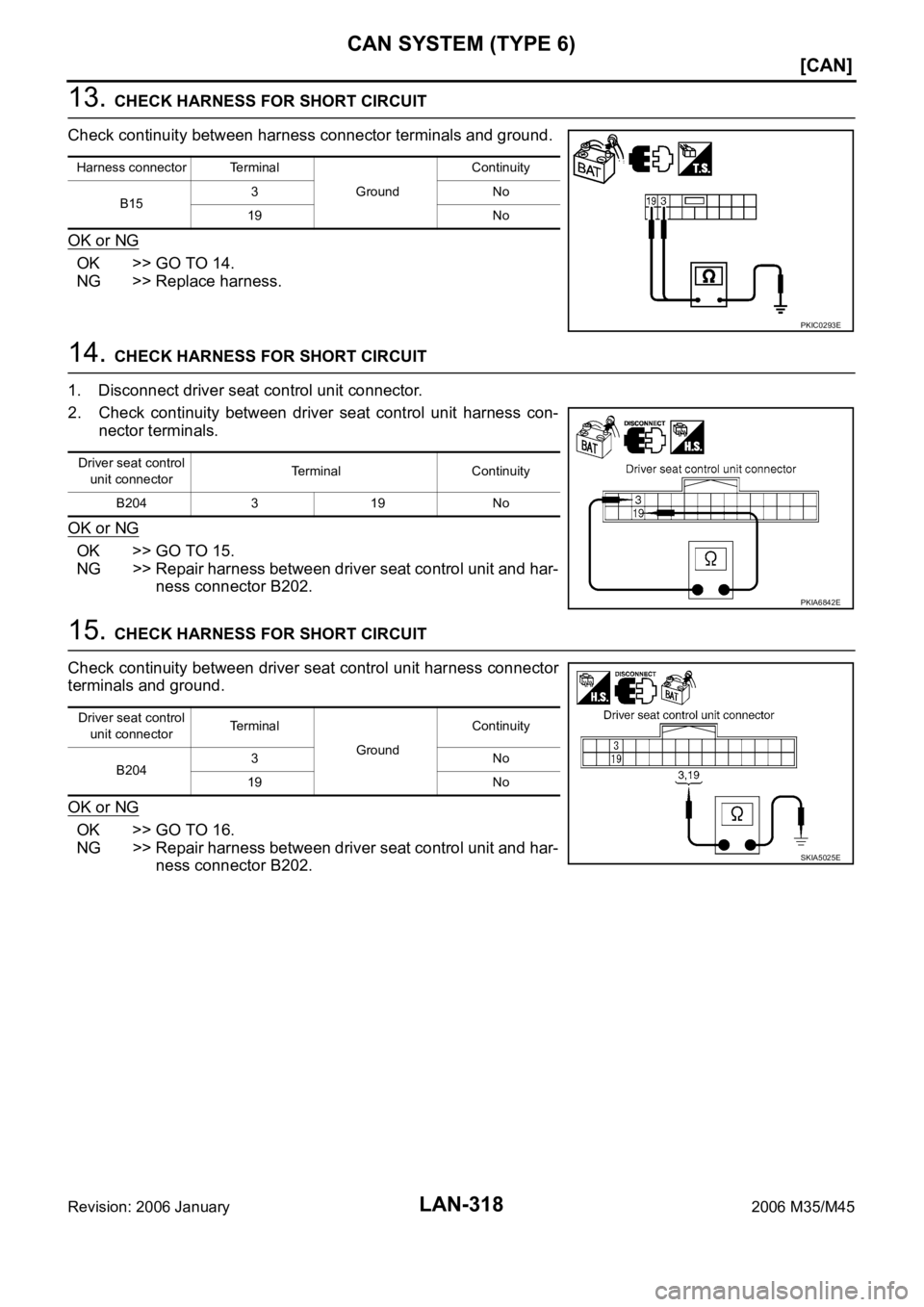

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 6) LAN-317 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 10. CHECK HARNESS FOR SHORT CIRCUIT 1. Disconnect AV control unit connector. 2. Check continuity between

Page 3987 of 5621

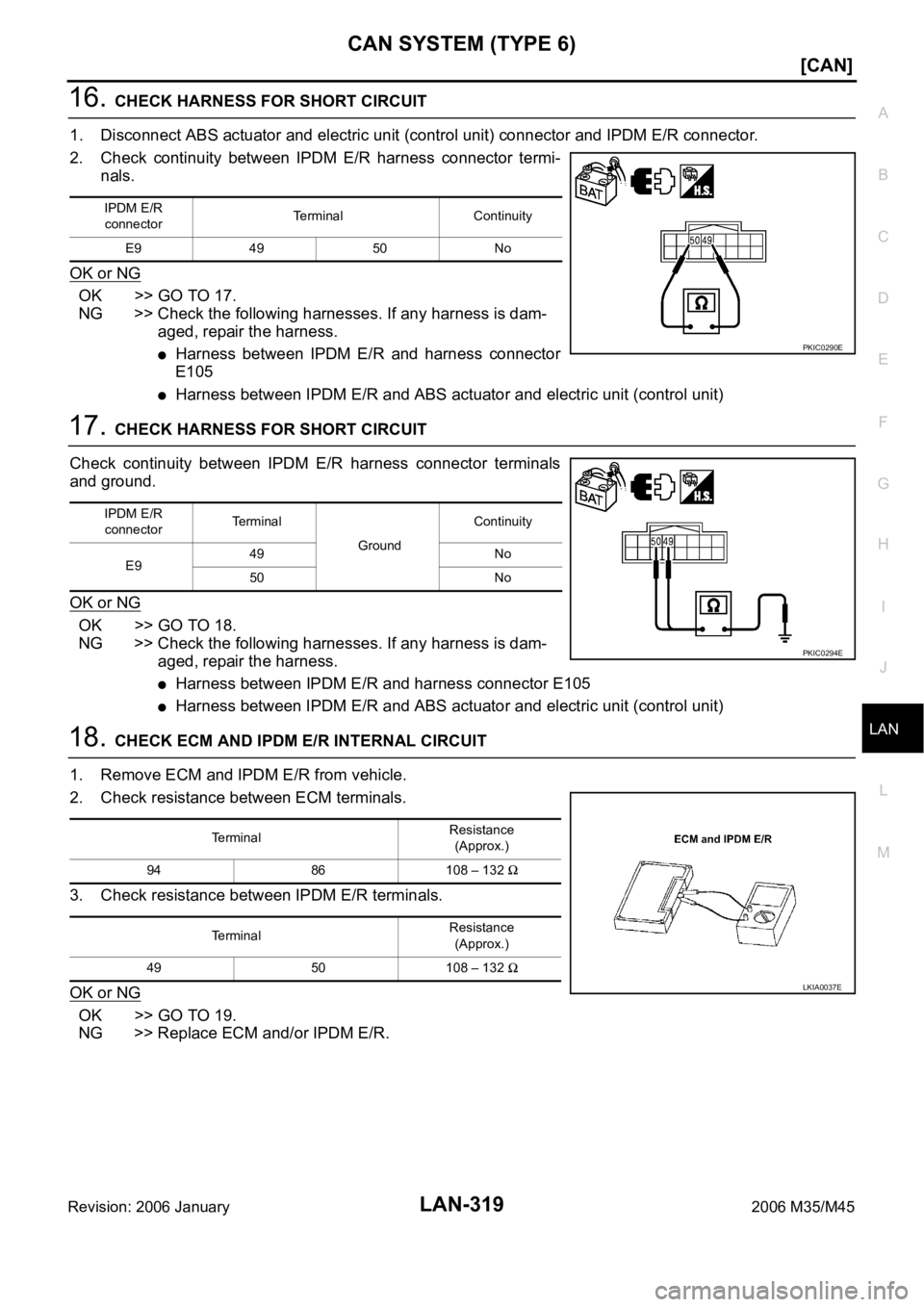

INFINITI M35 2006 Factory Service Manual LAN-318 [CAN] CAN SYSTEM (TYPE 6) Revision: 2006 January2006 M35/M45 13. CHECK HARNESS FOR SHORT CIRCUIT Check continuity between harness connector terminals and ground. OK or NG OK >> GO TO 14. NG >>

Page 3988 of 5621

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 6) LAN-319 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 16. CHECK HARNESS FOR SHORT CIRCUIT 1. Disconnect ABS actuator and electric unit (control unit) connecto

Page 3989 of 5621

INFINITI M35 2006 Factory Service Manual LAN-320 [CAN] CAN SYSTEM (TYPE 6) Revision: 2006 January2006 M35/M45 19. CHECK SYMPTOM 1. Fill in described symptoms on the column “Symptom” in the check sheet. 2. Connect all connectors, and then

Page 3990 of 5621

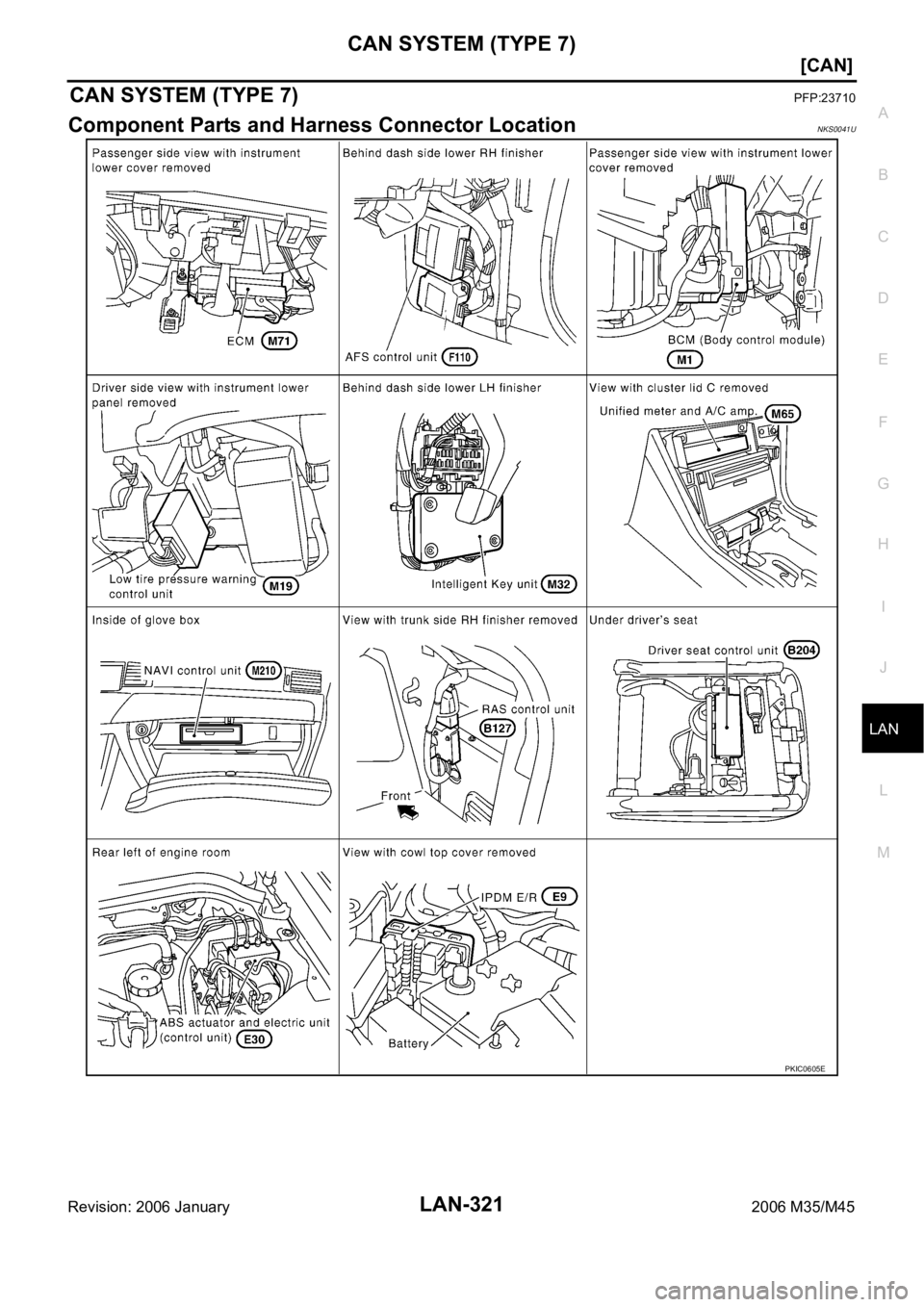

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 7) LAN-321 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 CAN SYSTEM (TYPE 7)PFP:23710 Component Parts and Harness Connector LocationNKS0041U PKIC0605E

Page 3991 of 5621

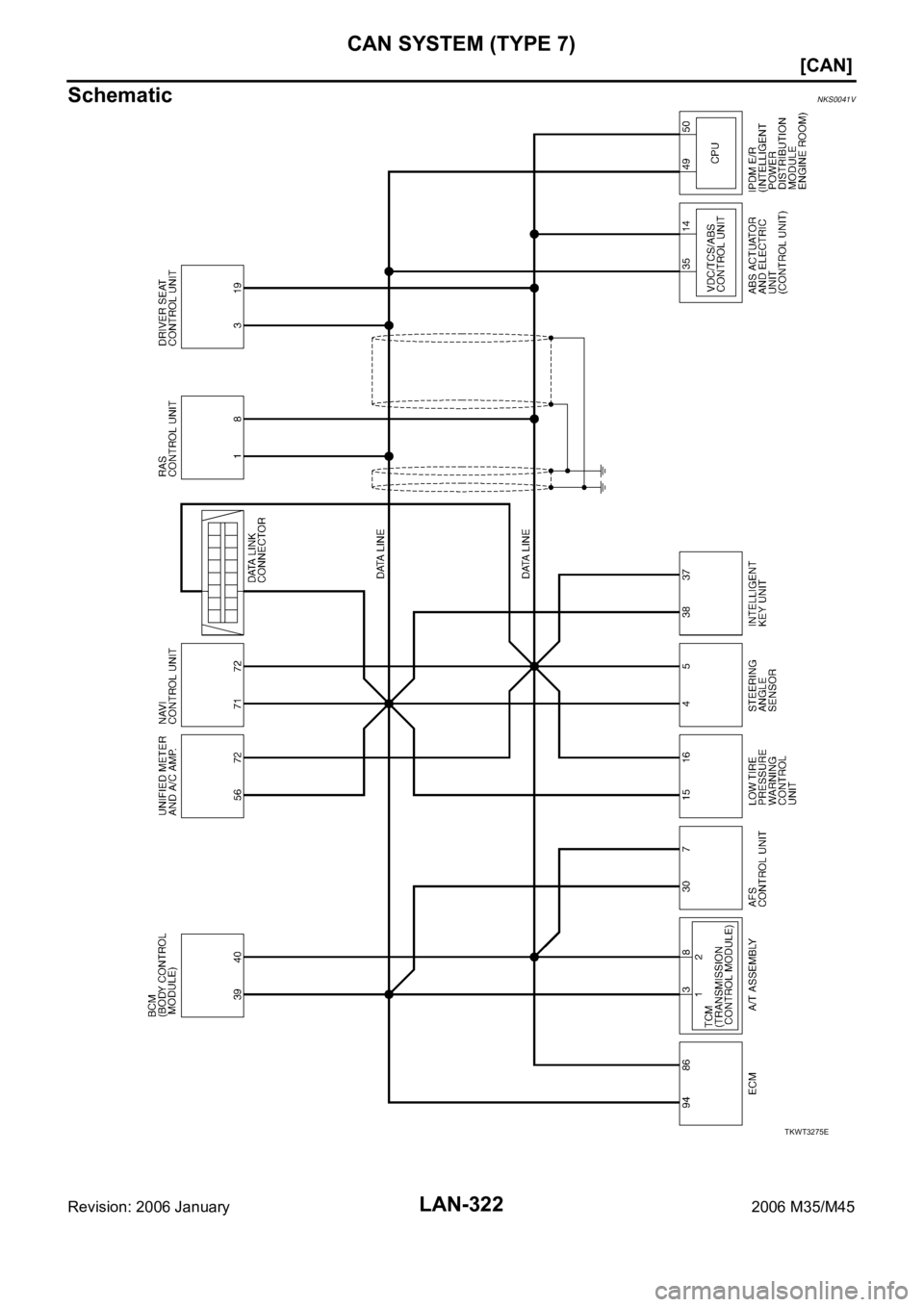

INFINITI M35 2006 Factory Service Manual LAN-322 [CAN] CAN SYSTEM (TYPE 7) Revision: 2006 January2006 M35/M45 SchematicNKS0041V TKWT3275E

Page 3992 of 5621

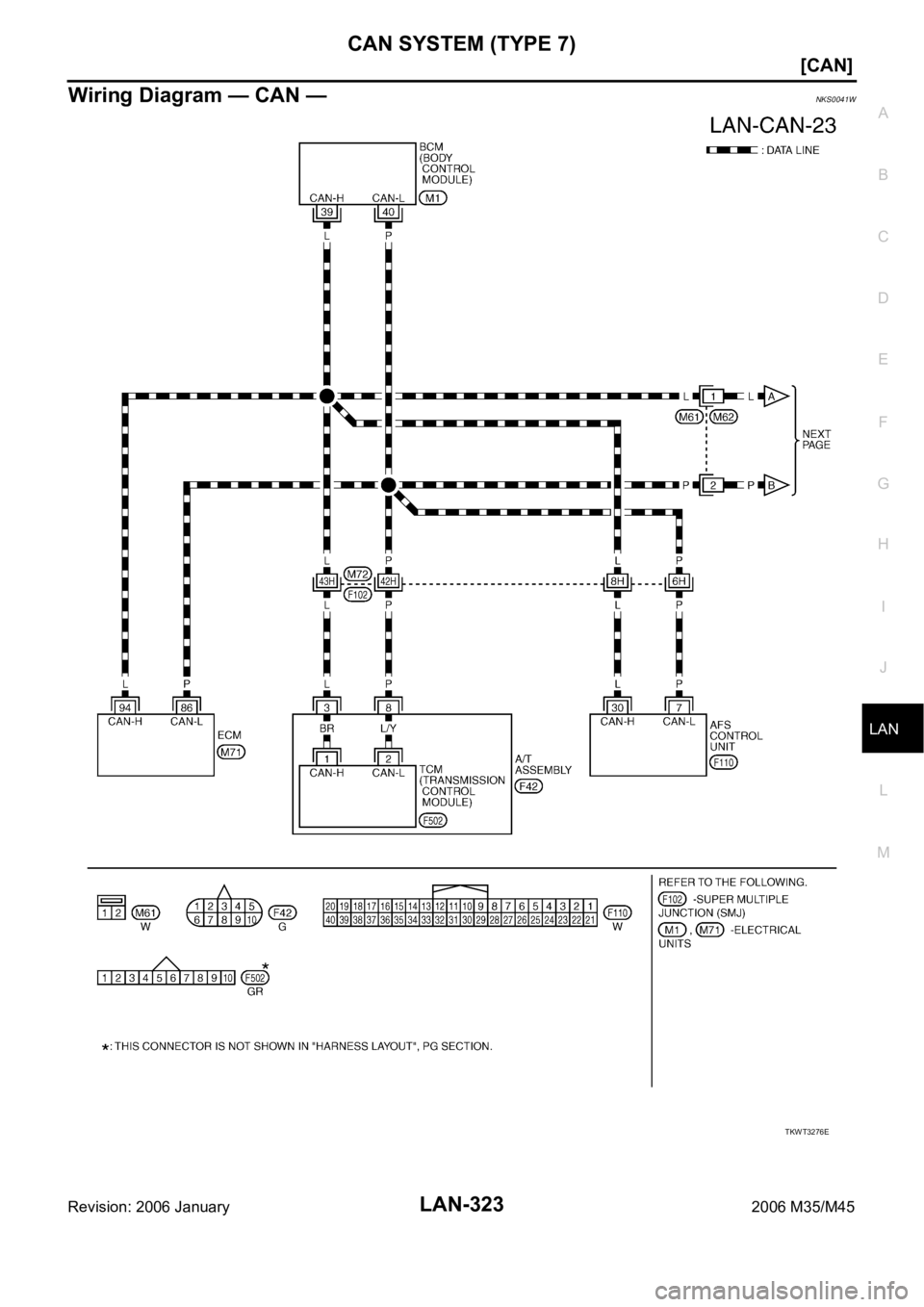

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 7) LAN-323 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 Wiring Diagram — CAN —NKS0041W TKWT3276E
