EC-1378
[VK45DE]
DTC P2135 TP SENSOR
Revision: 2006 January2006 M35/M45
Component InspectionNBS005P3
THROTTLE POSITION SENSOR
1. Reconnect all harness connectors disconnected.
2. Perform EC-806, "
Throttle Valve Closed Position Learning" .
3. Turn ignition switch ON.
4. Set selector lever to D position.
5. Check voltage between ECM terminals 50 (TP sensor 1 signal),
69 (TP sensor 2 signal) and ground under the following condi-
tions.
6. If NG, replace electric throttle control actuator and go to the next
step.
7. Perform EC-806, "
Throttle Valve Closed Position Learning" .
8. Perform EC-807, "
Idle Air Volume Learning" .
Removal and InstallationNBS005P4
ELECTRIC THROTTLE CONTROL ACTUATOR
Refer to EM-179, "INTAKE MANIFOLD" .
Terminal Accelerator pedal Voltage
50
(Throttle position sensor 1)Fully released More than 0.36V
Fully depressed Less than 4.75V
69
(Throttle position sensor 2)Fully released Less than 4.75V
Fully depressed More than 0.36V
PBIB1530E
Page 2922 of 5621
![INFINITI M35 2006 Factory Service Manual DTC P2138 APP SENSOR
EC-1379
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
DTC P2138 APP SENSORPFP:18002
Component DescriptionNBS005P5
The accelerator pedal position sensor INFINITI M35 2006 Factory Service Manual DTC P2138 APP SENSOR
EC-1379
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
DTC P2138 APP SENSORPFP:18002
Component DescriptionNBS005P5
The accelerator pedal position sensor](/manual-img/42/57023/w960_57023-2921.png)
DTC P2138 APP SENSOR
EC-1379
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
DTC P2138 APP SENSORPFP:18002
Component DescriptionNBS005P5
The accelerator pedal position sensor is installed on the upper end
of the accelerator pedal assembly. The sensor detects the accelera-
tor position and sends a signal to the ECM.
Accelerator pedal position sensor has two sensors. These sensors
are a kind of potentiometers which transform the accelerator pedal
position into output voltage, and emit the voltage signal to the ECM.
In addition, these sensors detect the opening and closing speed of
the accelerator pedal and feed the voltage signals to the ECM. The
ECM judges the current opening angle of the accelerator pedal from
these signals and controls the throttle control motor based on these
signals.
Idle position of the accelerator pedal is determined by the ECM
receiving the signal from the accelerator pedal position sensor. The ECM uses this signal for the engine oper-
ation such as fuel cut.
CONSULT-II Reference Value in Data Monitor ModeNBS005P6
Specification data are reference values.
*: Accelerator pedal position sensor 2 signal is converted by ECM internally. Thus, it differs from ECM terminal voltage.
On Board Diagnosis LogicNBS005P7
This self-diagnosis has the one trip detection logic.
NOTE:
If DTC P2138 is displayed with DTC P0643, first perform the trouble diagnosis for DTC P0643. Refer to
EC-1218, "
DTC P0643 SENSOR POWER SUPPLY" .
FAIL-SAFE MODE
When the malfunction is detected, ECM enters fail-safe mode and the MIL lights up.
PBIB1741E
MONITOR ITEM CONDITION SPECIFICATION
ACCEL SEN 1
ACCEL SEN 2*
Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released 0.4 - 1.1V
Accelerator pedal: Fully depressed 3.7 - 4.8V
CLSD THL POS
Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released ON
Accelerator pedal: Slightly depressed OFF
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P2138
2138Accelerator pedal posi-
tion sensor circuit
range/performanceRationally incorrect voltage is sent to ECM
compared with the signals from APP sensor 1
and APP sensor 2.
Harness or connector
(APP sensor 1 and 2 circuit is open or
shorted.)
(TP sensor circuit is shorted.)
Accelerator pedal position sensor
(APP sensor 1 and 2)
Electric throttle control actuator
(TP sensor 1 and 2)
Engine operating condition in fail-safe mode
The ECM controls the electric throttle control actuator in regulating the throttle opening in order for the idle position to be within +10
degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal condition.
So, the acceleration will be poor.
Page 2923 of 5621
EC-1380
[VK45DE]
DTC P2138 APP SENSOR
Revision: 2006 January2006 M35/M45
DTC Confirmation ProcedureNBS005P8
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10V at idle.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for 1 second.
4. If DTC is detected, go to EC-1382, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
SEF058Y
Page 2924 of 5621
DTC P2138 APP SENSOR
EC-1381
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45

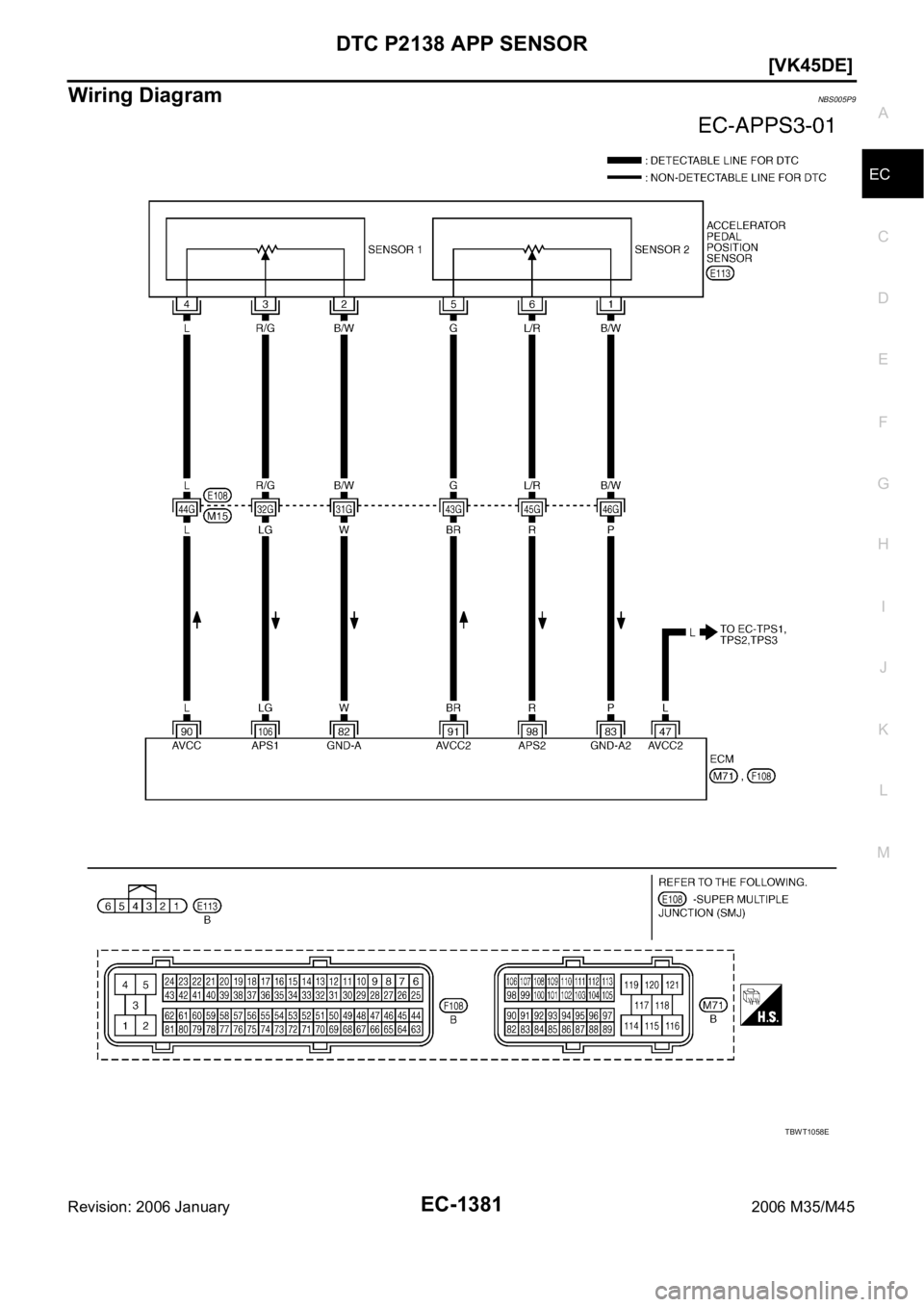

Wiring DiagramNBS005P9
