Page 1401 of 5621

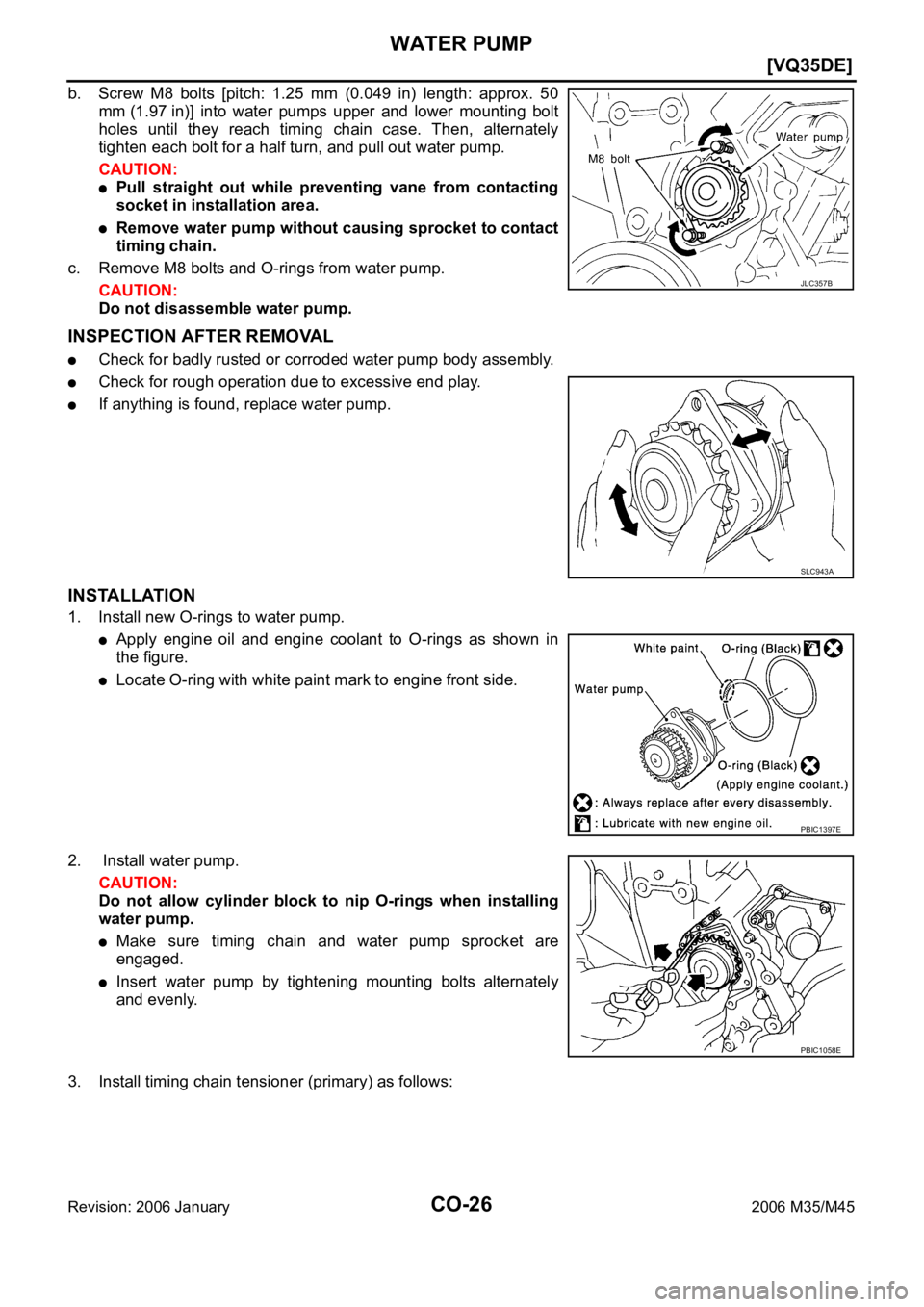

INFINITI M35 2006 Factory Service Manual CO-26 [VQ35DE] WATER PUMP Revision: 2006 January2006 M35/M45 b. Screw M8 bolts [pitch: 1.25 mm (0.049 in) length: approx. 50 mm (1.97 in)] into water pumps upper and lower mounting b

Page 1402 of 5621

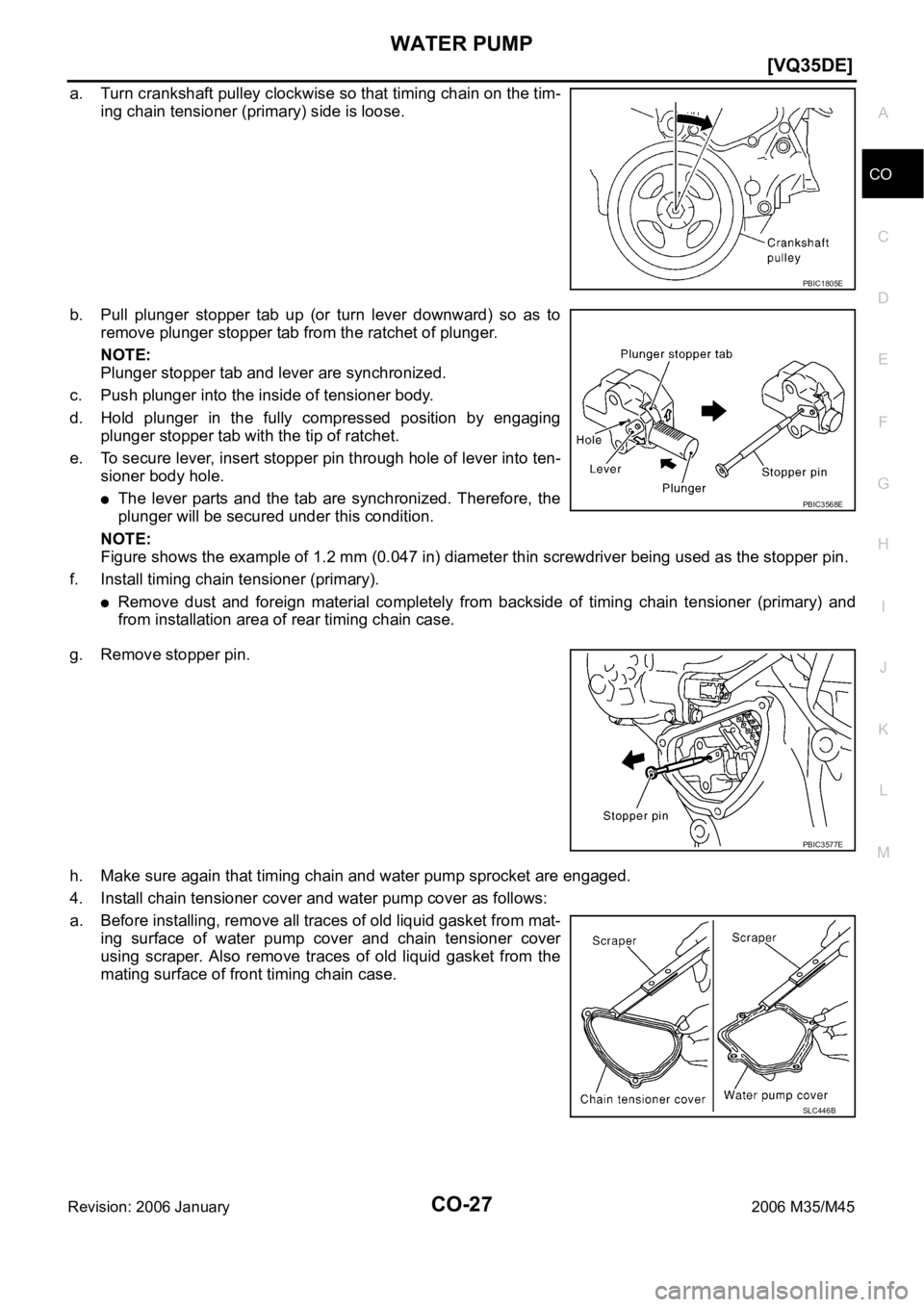

INFINITI M35 2006 Factory Service Manual WATER PUMP CO-27 [VQ35DE] C D E F G H I J K L MA CO Revision: 2006 January2006 M35/M45 a. Turn crankshaft pulley clockwise so that timing chain on the tim- ing chain tensioner (primary) side is loose.

Page 1403 of 5621

INFINITI M35 2006 Factory Service Manual CO-28 [VQ35DE] WATER PUMP Revision: 2006 January2006 M35/M45 b. Apply a continuous bead of liquid gasket with tube presser [SST: WS39930000 ( — )] to mating surface of chain tensioner cover a

Page 1404 of 5621

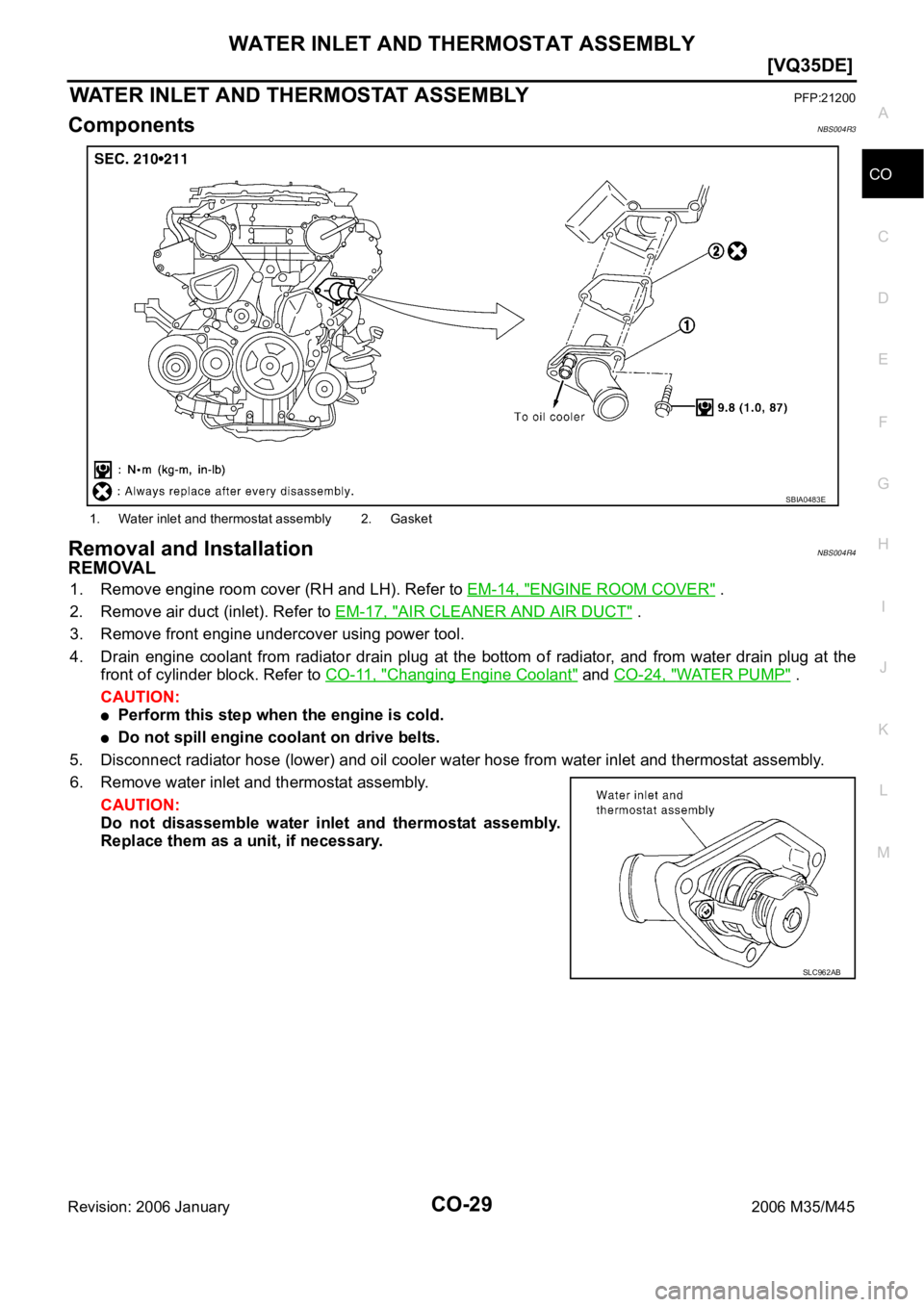

INFINITI M35 2006 Factory Service Manual WATER INLET AND THERMOSTAT ASSEMBLY CO-29 [VQ35DE] C D E F G H I J K L MA CO Revision: 2006 January2006 M35/M45 WATER INLET AND THERMOSTAT ASSEMBLYPFP:21200 ComponentsNBS004R3 Removal and Installation

Page 1405 of 5621

INFINITI M35 2006 Factory Service Manual CO-30 [VQ35DE] WATER INLET AND THERMOSTAT ASSEMBLY Revision: 2006 January2006 M35/M45 INSPECTION AFTER REMOVAL 1. Check valve seating condition at ordinary room temperatures. It should seat tightly. 2

Page 1406 of 5621

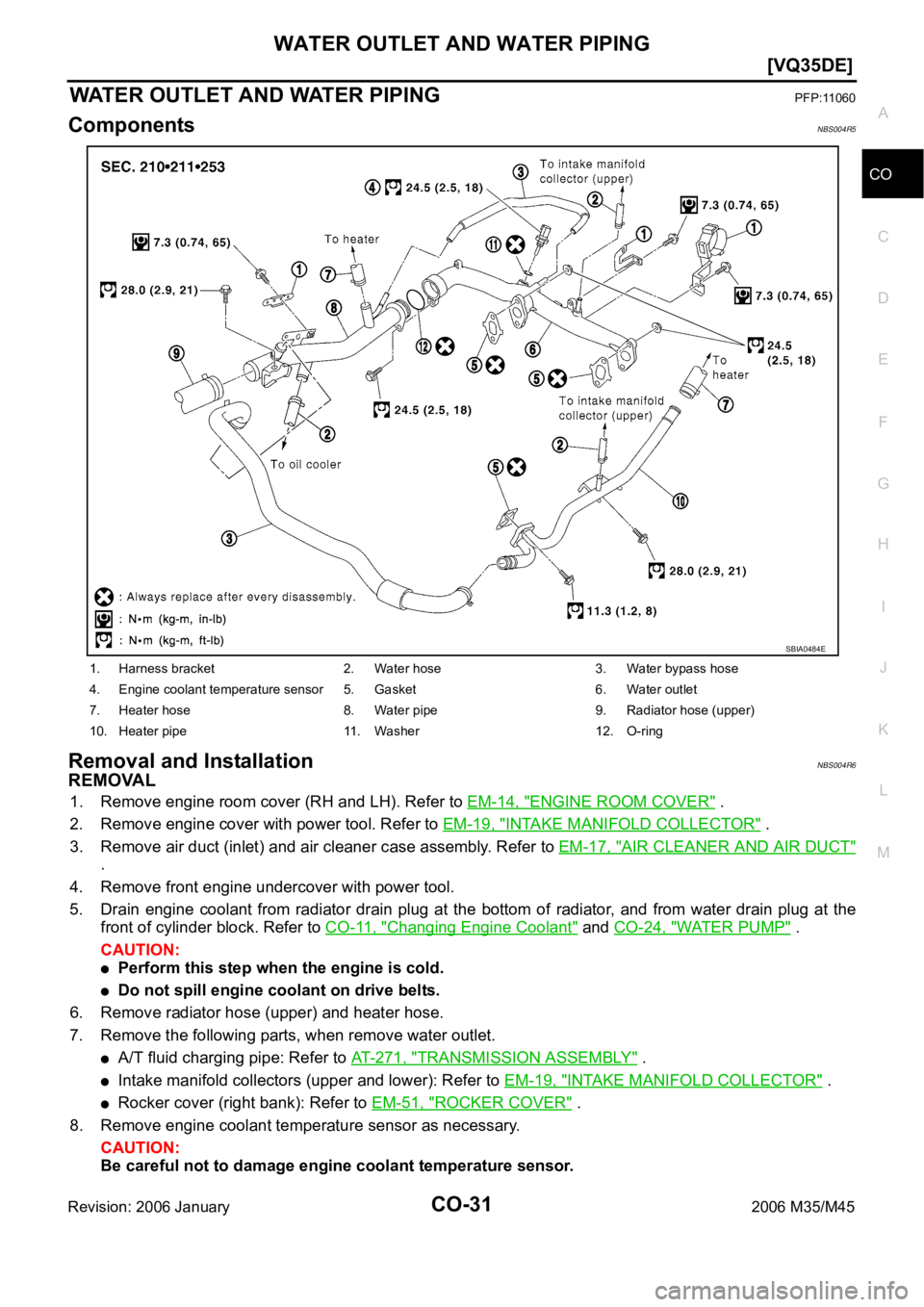

INFINITI M35 2006 Factory Service Manual WATER OUTLET AND WATER PIPING CO-31 [VQ35DE] C D E F G H I J K L MA CO Revision: 2006 January2006 M35/M45 WATER OUTLET AND WATER PIPINGPFP:11060 ComponentsNBS004R5 Removal and InstallationNBS004R6 REM

Page 1407 of 5621

INFINITI M35 2006 Factory Service Manual CO-32 [VQ35DE] WATER OUTLET AND WATER PIPING Revision: 2006 January2006 M35/M45 9. Remove heater pipe, water bypass hoses and water pipe. INSTALLATION Note the following, and install in the reverse or

Page 1408 of 5621

INFINITI M35 2006 Factory Service Manual SERVICE DATA AND SPECIFICATIONS (SDS) CO-33 [VQ35DE] C D E F G H I J K L MA CO Revision: 2006 January2006 M35/M45 SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00100 Standard and LimitNBS004R7 ENGINE COOLA
