Exhaust Manifold Gasket
Install exhaust manifold gasket with its directional protrusion set
upward.
Exhaust Manifold
Install exhaust manifold and tighten mounting nuts in numerical
order as shown in the figure.
NOTE:
Tighten mounting nuts No. 1 to 4 in two steps. The numerical
order No. 9 to 12 shown second steps.
Air Fuel Ratio Sensor
CAUTION:
Before installing a new air fuel ratio sensor 1, clean exhaust system threads using oxygen sensor
thread cleaner (commercial service tool: J-43897-18 or J-43897-12), and apply anti-seize lubricant
(commercial service tool).
Do not over torque air fuel ratio sensor. Doing so may cause damage to the air fuel ratio sensor 1,
resulting in “MIL” coming on.
A : Protrusion for confirming installation
: Above
PBIC3301E
A : Left bank
B : Right bank
: Engine front
PBIC3300E
Page 3250 of 5621
OIL PAN AND OIL STRAINER
EM-187
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
OIL PAN AND OIL STRAINERP F P : 1111 0
ComponentsNBS004OX
Refer to GI-11, "Components" for symbol marks in the figure.
Removal and InstallationNBS004OY
REMOVAL
WAR NING :
To avoid the danger of being scalded, do not drain engine oil when engine is hot.
1. Remove front and rear engine undercovers with power tool.
2. Drain engine oil. Refer to LU-28, "
Changing Engine Oil" .
CAUTION:
Perform this step when engine is cold.
Do not spill engine oil on drive belts.
3. Remove engine assembly from vehicle. Refer to EM-244, "
ENGINE ASSEMBLY" .

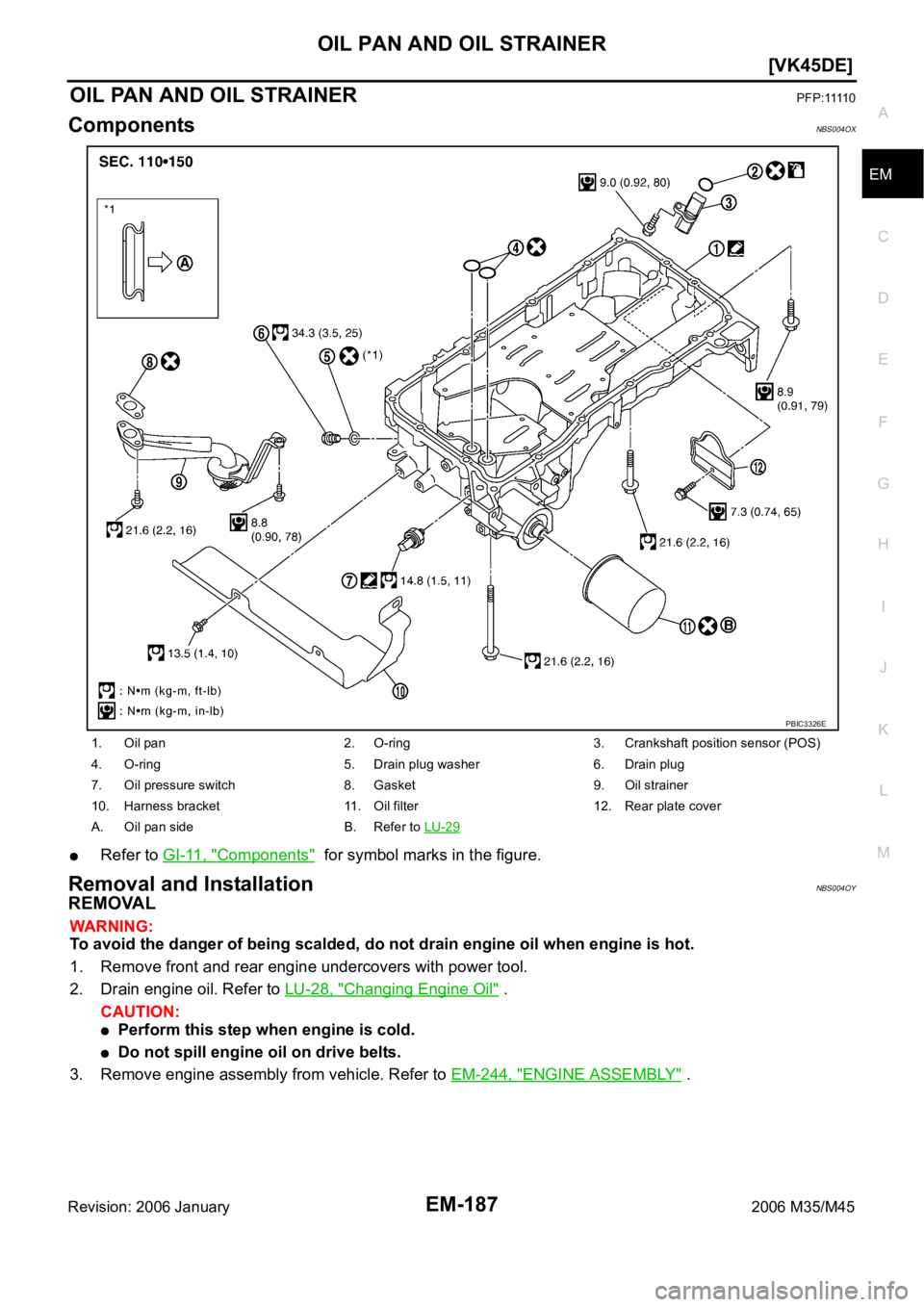

1. Oil pan 2. O-ring 3. Crankshaft position sensor (POS)
4. O-ring 5. Drain plug washer 6. Drain plug
7. Oil pressure switch 8. Gasket 9. Oil strainer
10. Harness bracket 11. Oil filter 12. Rear plate cover
A. Oil pan side B. Refer to LU-29
PBIC3326E
Page 3251 of 5621
![INFINITI M35 2006 Factory Service Manual EM-188
[VK45DE]
OIL PAN AND OIL STRAINER
Revision: 2006 January2006 M35/M45
4. Install engine slingers into front of cylinder head (left bank) and
rear of cylinder head (right bank).
5. Remove engine INFINITI M35 2006 Factory Service Manual EM-188
[VK45DE]
OIL PAN AND OIL STRAINER
Revision: 2006 January2006 M35/M45
4. Install engine slingers into front of cylinder head (left bank) and
rear of cylinder head (right bank).
5. Remove engine](/manual-img/42/57023/w960_57023-3250.png)
EM-188
[VK45DE]
OIL PAN AND OIL STRAINER
Revision: 2006 January2006 M35/M45
4. Install engine slingers into front of cylinder head (left bank) and
rear of cylinder head (right bank).
5. Remove engine mounting insulators (RH and LH) under side nut with power tool.
6. Lift with hoist and separate engine and transmission assembly from front suspension member.
CAUTION:
Avoid damage to and oil/grease smearing or spills onto engine mounting insulator.
7. Remove harness bracket from oil pan.
8. Remove oil filter. Refer to LU-29, "
OIL FILTER" .
9. Remove oil pan as the follows:
a. Remove rear plate cover.
b. Remove transmission joint bolts which pierce oil pan. Refer to AT-271, "
TRANSMISSION ASSEMBLY" .
c. Loosen mounting bolts with power tool in reverse order as
shown in the figure.
NOTE:
Disregard the numerical order No. 11 and 17 in removal.
d. Insert seal cutter (SST) between oil pan and cylinder block.
Slide seal cutter by tapping on the side of seal cutter with ham-
mer. Remove oil pan.
CAUTION:
Be careful not to damage the mating surfaces.
Do not insert screwdriver, this will damage the mating
surface.
e. Remove O-rings from bottom of oil pump and front cover.
10. Remove oil pressure switch, as necessary. Refer to LU-26, "
OIL PRESSURE CHECK" .
11. Remove oil strainer.
INSPECTION AFTER REMOVAL
Clean oil strainer if any object attached.
INSTALLATION
1. Install oil strainer.
2. Install oil pan as follows:
a. Use scraper to remove old liquid gasket from mating surfaces.
Also remove the old liquid gasket from mating surface of cylinder block.
Remove old liquid gasket from the bolt holes and threads.Slinger bolts:
:33.4 Nꞏm (3.4 kg-m, 25 ft-lb)
PBIC2447E
PBIC0194E
SEM365E
Page 3252 of 5621
![INFINITI M35 2006 Factory Service Manual OIL PAN AND OIL STRAINER
EM-189
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
CAUTION:
Do not scratch or damage the mating surfaces when cleaning off old liquid gasket.
b. Inst INFINITI M35 2006 Factory Service Manual OIL PAN AND OIL STRAINER
EM-189
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
CAUTION:
Do not scratch or damage the mating surfaces when cleaning off old liquid gasket.
b. Inst](/manual-img/42/57023/w960_57023-3251.png)
OIL PAN AND OIL STRAINER
EM-189
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
CAUTION:
Do not scratch or damage the mating surfaces when cleaning off old liquid gasket.
b. Install new O-rings to oil pump and front cover side.
c. Apply a continuous bead of liquid gasket with tube presser [SST:
WS39930000 ( — )] to the cylinder block mating surfaces of
oil pan to a limited portion as shown in the figure.
Use Genuine RTV Silicone Sealant or equivalent. Refer to
GI-48, "
RECOMMENDED CHEMICAL PRODUCTS AND SEAL-
ANTS".
CAUTION:
Attaching should be done within 5 minutes after coating.
d. Install oil pan.
CAUTION:
Install avoiding misalignment of O-rings.
Tighten mounting bolts in numerical order as shown in the fig-
ure.
NOTE:
Tighten mounting bolts No. 1 and 2 in two steps. The numeri-
cal order No. 11 and 17 shown second steps.
There are three types of mounting bolts. Refer to the following
for locating bolts.
e. Tighten transmission joint bolts. Refer to AT-271, "
TRANSMISSION ASSEMBLY" .
f. Install rear plate cover.
3. Install oil pan drain plug with new drain plug washer.
Refer to the figure of components of former page for installation direction of drain plug washer. Refer to
EM-187, "
Removal and Installation" .
4. Install in the reverse order of removal after this step.
NOTE:
At least 30 minutes after oil pan is installed, pour engine oil.
INSPECTION AFTER INSTALLATION
1. Check engine oil level and adjust engine oil. Refer to LU-26, "ENGINE OIL" .
2. Start engine, and check there is no leak of engine oil.
3. Stop engine and wait for 15 minutes.
4. Check engine oil level again. Refer to LU-26, "
ENGINE OIL" .
PBIC0195E
M6 30 mm. (1.18 in) : 18, 19
M8
100 mm (3.94 in) : 5, 9
M8
45 mm (1.77 in) : Except the abovePBIC0194E
Page 3253 of 5621
EM-190
[VK45DE]
IGNITION COIL
Revision: 2006 January2006 M35/M45
IGNITION COILPFP:22448
ComponentsNBS004OZ
Removal and InstallationNBS004P0
REMOVAL
1. Remove engine room cover (RH and LH). Refer to EM-173, "ENGINE ROOM COVER" .
2. Remove engine cover with power tool. Refer to EM-179, "
INTAKE MANIFOLD" .
3. Remove air duct (inlet), air cleaner case and air duct and resonator assembly. Refer to EM-177, "
AIR
CLEANER AND AIR DUCT" .
4. Disconnect harness connector from ignition coil.
5. Remove ignition coil.
CAUTION:
Do not shock it.
INSTALLATION
Installation is the reverse order of removal.

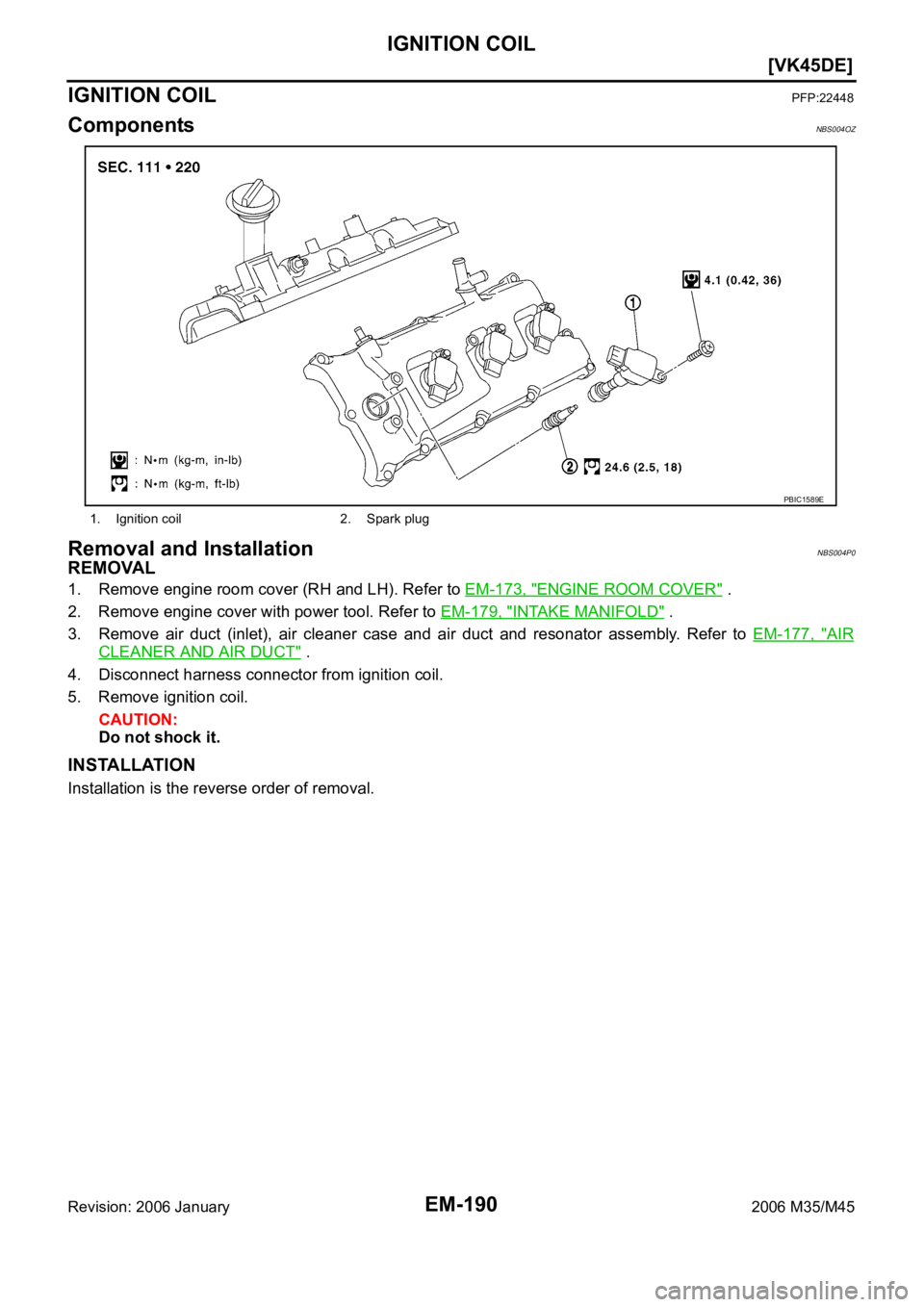

1. Ignition coil 2. Spark plug
PBIC1589E
Page 3254 of 5621
SPARK PLUG (PLATINUM-TIPPED TYPE)
EM-191
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
SPARK PLUG (PLATINUM-TIPPED TYPE)PFP:22401
ComponentsNBS004P1
Removal and InstallationNBS004P2
REMOVAL
1. Remove ignition coil. Refer to EM-190, "IGNITION COIL" .
2. Remove spark plug with spark plug wrench (commercial service
tool).
CAUTION:
Do not drop or shock it.
INSPECTION AFTER REMOVAL
Use standard type spark plug for normal condition.
Hot type spark plug is suitable when fouling occurs with standard type spark plug under conditions such as:
Frequent engine starts
Low ambient temperatures
Cold type spark plug is suitable when spark plug knock occurs with standard type spark plug under conditions
such as:
Extended highway driving
Frequent high engine revolution
1. Ignition coil 2. Spark plug
PBIC1589E
SEM294A
MakeNGK
Standard typePLFR5A-11
Hot typePLFR4A-11
Cold typePLFR6A-11
Gap (Nominal) : 1.1 mm (0.043 in)
Page 3255 of 5621
EM-192
[VK45DE]
SPARK PLUG (PLATINUM-TIPPED TYPE)
Revision: 2006 January2006 M35/M45
CAUTION:
Do not drop or shock spark plug.
Do not use wire brush for cleaning.
If plug tip is covered with carbon, spark plug cleaner may
be used.
Checking and adjusting plug gap is not required between
change intervals.
INSTALLATION
Installation is the reverse order of removal.Cleaner air pressure:
Less than 588 kPa (6 kg/cm
2 , 85 psi)
Cleaning time:
Less than 20 seconds
SMA773C
SMA806CA
Page 3256 of 5621
![INFINITI M35 2006 Factory Service Manual FUEL INJECTOR AND FUEL TUBE
EM-193
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
FUEL INJECTOR AND FUEL TUBEPFP:16600
ComponentsNBS004P3
CAUTION:
Do not remove or disassemble p INFINITI M35 2006 Factory Service Manual FUEL INJECTOR AND FUEL TUBE
EM-193
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
FUEL INJECTOR AND FUEL TUBEPFP:16600
ComponentsNBS004P3
CAUTION:
Do not remove or disassemble p](/manual-img/42/57023/w960_57023-3255.png)
FUEL INJECTOR AND FUEL TUBE
EM-193
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
FUEL INJECTOR AND FUEL TUBEPFP:16600
ComponentsNBS004P3
CAUTION:
Do not remove or disassemble parts unless instructed as shown in the figure.
Refer to GI-11, "Components" for symbol marks in the figure.
Removal and InstallationNBS004P4
REMOVAL
WAR NING :
Put a “CAUTION: FLAMMABLE” sign in the workshop.
Be sure to work in a well ventilated area and furnish workshop with a CO2 fire extinguisher.
Do not smoke while servicing fuel system. Keep open flames and sparks away from the work area.
To avoid the danger of being scalded, do not drain engine coolant when engine is hot.
1. Remove engine room cover (RH and LH). Refer to EM-173, "
ENGINE ROOM COVER" .
2. Remove engine cover with power tool. Refer to EM-179, "
INTAKE MANIFOLD" .
3. Release fuel pressure. Refer to EC-809, "
FUEL PRESSURE RELEASE" .

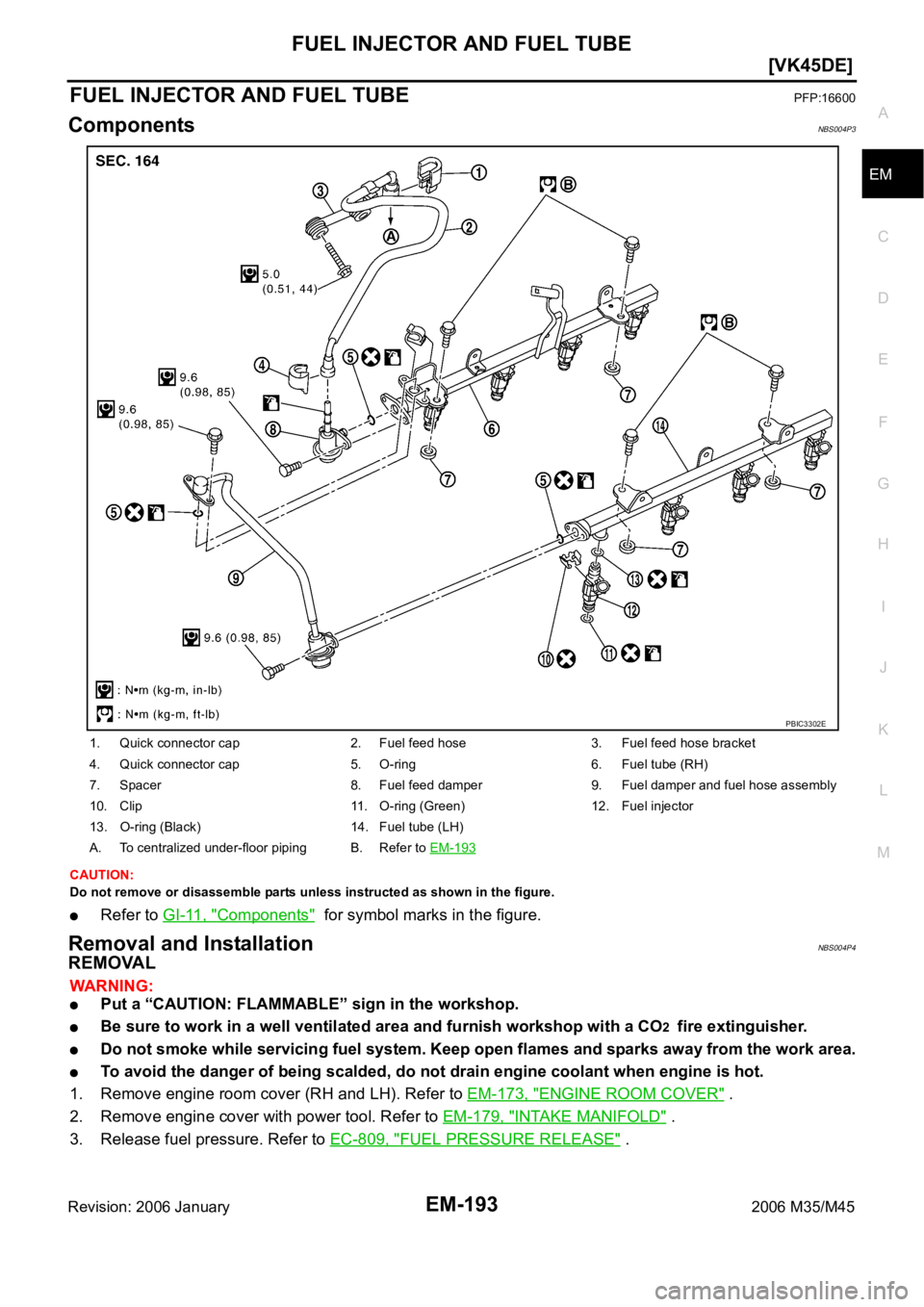

1. Quick connector cap 2. Fuel feed hose 3. Fuel feed hose bracket
