Page 5601 of 5621

INFINITI M35 2006 Factory Service Manual WW-34
FRONT WIPER AND WASHER SYSTEM
Revision: 2006 January2006 M35/M45
Front Wiper Does Not Return to Stop Position When Front Wiper Motor Oper-
ates at HIGH Speed (After Front Wiper Operate for 10 Se

Page 5602 of 5621

INFINITI M35 2006 Factory Service Manual FRONT WIPER AND WASHER SYSTEM
WW-35
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: 2006 January2006 M35/M45
3. CHECK IPDM E/R
1. Disconnect front wiper motor connector.
2. Turn ignition switch ON.
3. Check volt

Page 5603 of 5621

INFINITI M35 2006 Factory Service Manual WW-36
FRONT WIPER AND WASHER SYSTEM
Revision: 2006 January2006 M35/M45
Only Front Wiper LO Does Not OperateNKS003WR
1. ACTIVE TEST
With CONSULT-II
1. Select “IPDM E/R” on CONSULT-II. Select

Page 5604 of 5621

INFINITI M35 2006 Factory Service Manual FRONT WIPER AND WASHER SYSTEM
WW-37
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: 2006 January2006 M35/M45
4. CHECK FRONT WIPER REVERSE RELAY
1. Remove front wiper reverse relay.
2. Check continuity between ter

Page 5605 of 5621

INFINITI M35 2006 Factory Service Manual WW-38
FRONT WIPER AND WASHER SYSTEM
Revision: 2006 January2006 M35/M45
3. CHECK CIRCUIT BETWEEN IPDM E/R AND FRONT WIPER REVERSE RELAY
1. Disconnect IPDM E/R connector.
2. Check continuity between

Page 5606 of 5621

INFINITI M35 2006 Factory Service Manual FRONT WIPER AND WASHER SYSTEM
WW-39
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: 2006 January2006 M35/M45
6. CHECK IPDM E/R
With CONSULT-II
1. Connect IPDM E/R connector and front wiper motor connector.
2. Ins

FRONT WIPER AND WASHER SYSTEM
WW-39
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: 2006 January2006 M35/M45
6. CHECK IPDM E/R
With CONSULT-II
1. Connect IPDM E/R connector and front wiper motor connector.
2. Install front wiper reverse relay.
3. Select “IPDM E/R” on CONSULT-II. Select “ACTIVE TEST” on “SELECT DIAG MODE” screen.
4. Select “FRONT WIPER” on “SELECT TEST ITEM” screen.
5. Touch “HI” screen.
6. Check voltage between IPDM E/R harness connector E7 termi-
nal 31 and ground while front wiper HI is operating.
Without CONSULT-II
1. Connect IPDM E/R connector and front wiper motor connector.
2. Install front wiper reverse relay.
3. Start up auto active test. Refer to PG-24, "
Auto Active Test" .
4. Check voltage between IPDM E/R harness connector E7 termi-
nal 31 and ground while front wiper HI is operating.
OK or NG
OK >> Replace front wiper motor. Refer to WW-43, "Disassembly and Assembly of Front Wiper Drive
Assembly" .
NG >> Replace IPDM E/R. Refer to PG-31, "
Removal and Installation of IPDM E/R" .

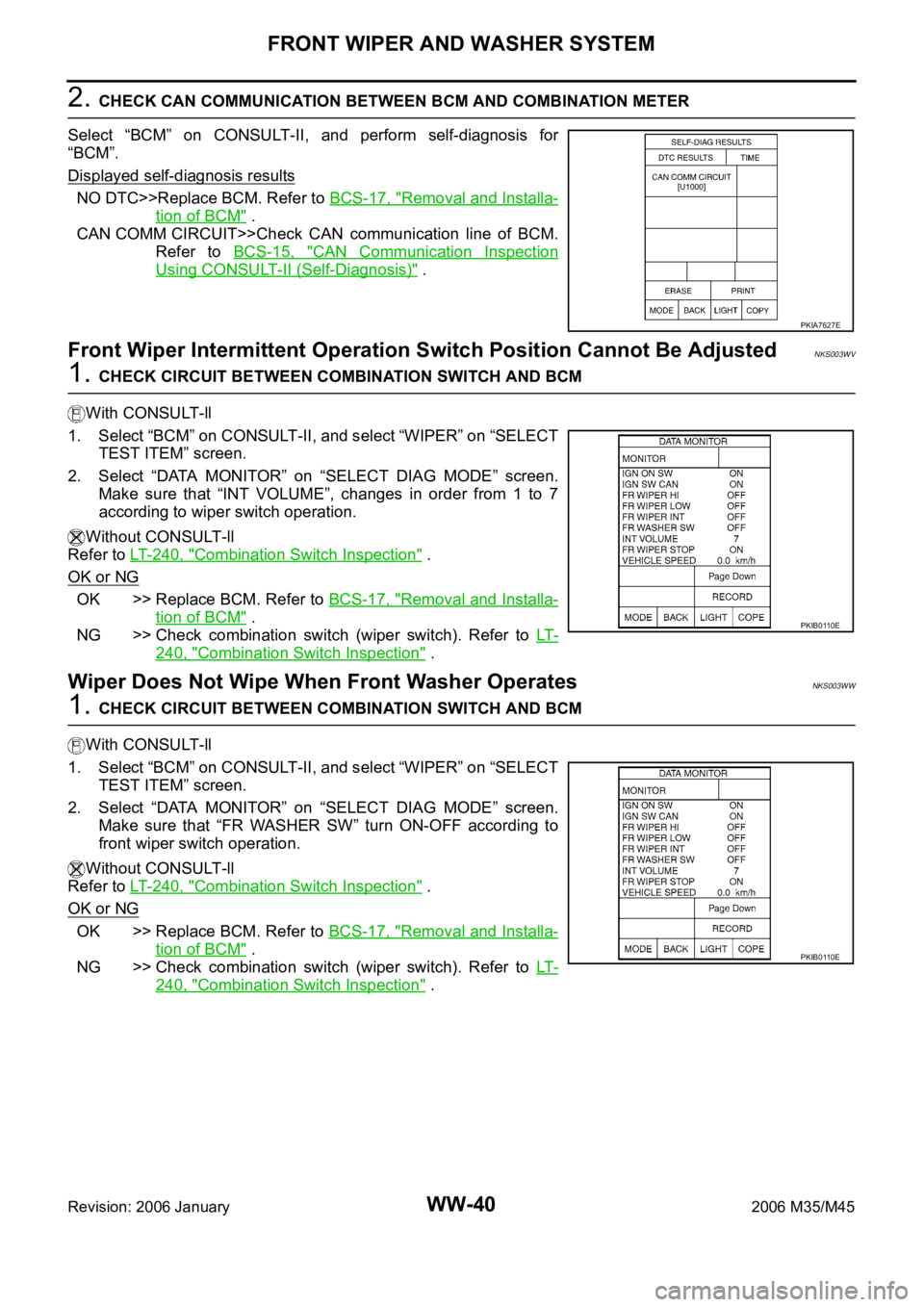

Only Front Wiper Intermittent Does Not OperateNKS003WT
1. CHECK COMBINATION SWITCH
With CONSULT-II
1. Select “BCM” on CONSULT-II, and select “WIPER” on “SELECT
TEST ITEM” screen.
2. Select “DATA MONITOR” on “SELECT DIAG MODE” screen.
Make sure that “FR WIPER INT”, turn ON-OFF according to
wiper switch operation.
Without CONSULT-II
Refer to LT-240, "
Combination Switch Inspection" .
OK or NG
OK >> Replace BCM. Refer to BCS-17, "Removal and Installa-
tion of BCM" .
NG >> Check combination switch (wiper switch) Refer to LT-
240, "Combination Switch Inspection" .
Front Wiper Interval Time Is Not Controlled by Vehicle SpeedNKS003WU
1. CHECK FUNCTION OF COMBINATION METER
Confirm that speedometer operates normally.
Does front wiper operate normally?
YES >> GO TO 2.
NO >> Combination meter vehicle speed system malfunction. Refer to DI-20, "
Vehicle Speed Signal
Inspection" . 31 – Ground : Approx. 0V.
31 – Ground : Approx. 0V.
SKIB4678E
PKIB0110E

Page 5607 of 5621

INFINITI M35 2006 Factory Service Manual WW-40
FRONT WIPER AND WASHER SYSTEM
Revision: 2006 January2006 M35/M45
2. CHECK CAN COMMUNICATION BETWEEN BCM AND COMBINATION METER
Select “BCM” on CONSULT-II, and perform self-diagnosis fo

Page 5608 of 5621

INFINITI M35 2006 Factory Service Manual FRONT WIPER AND WASHER SYSTEM
WW-41
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: 2006 January2006 M35/M45
Front Wiper Does Not StopNKS003WX
1. CHECK CIRCUIT BETWEEN COMBINATION SWITCH AND BCM
With CONSULT-ll
1
