Page 4401 of 5621

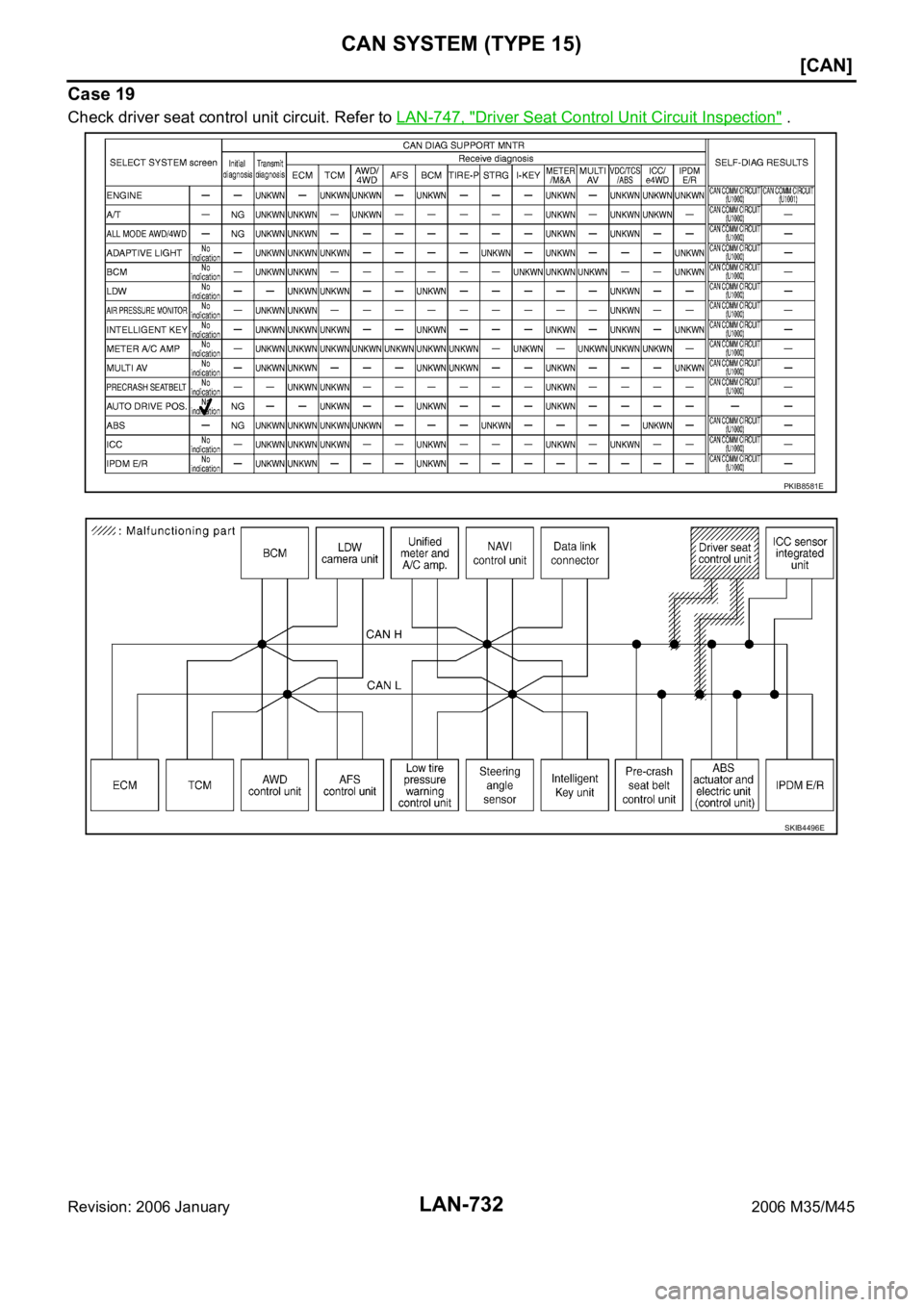

INFINITI M35 2006 Factory Service Manual LAN-732 [CAN] CAN SYSTEM (TYPE 15) Revision: 2006 January2006 M35/M45 Case 19 Check driver seat control unit circuit. Refer to LAN-747, "Driver Seat Control Unit Circuit Inspection" . PKIB8581

Page 4402 of 5621

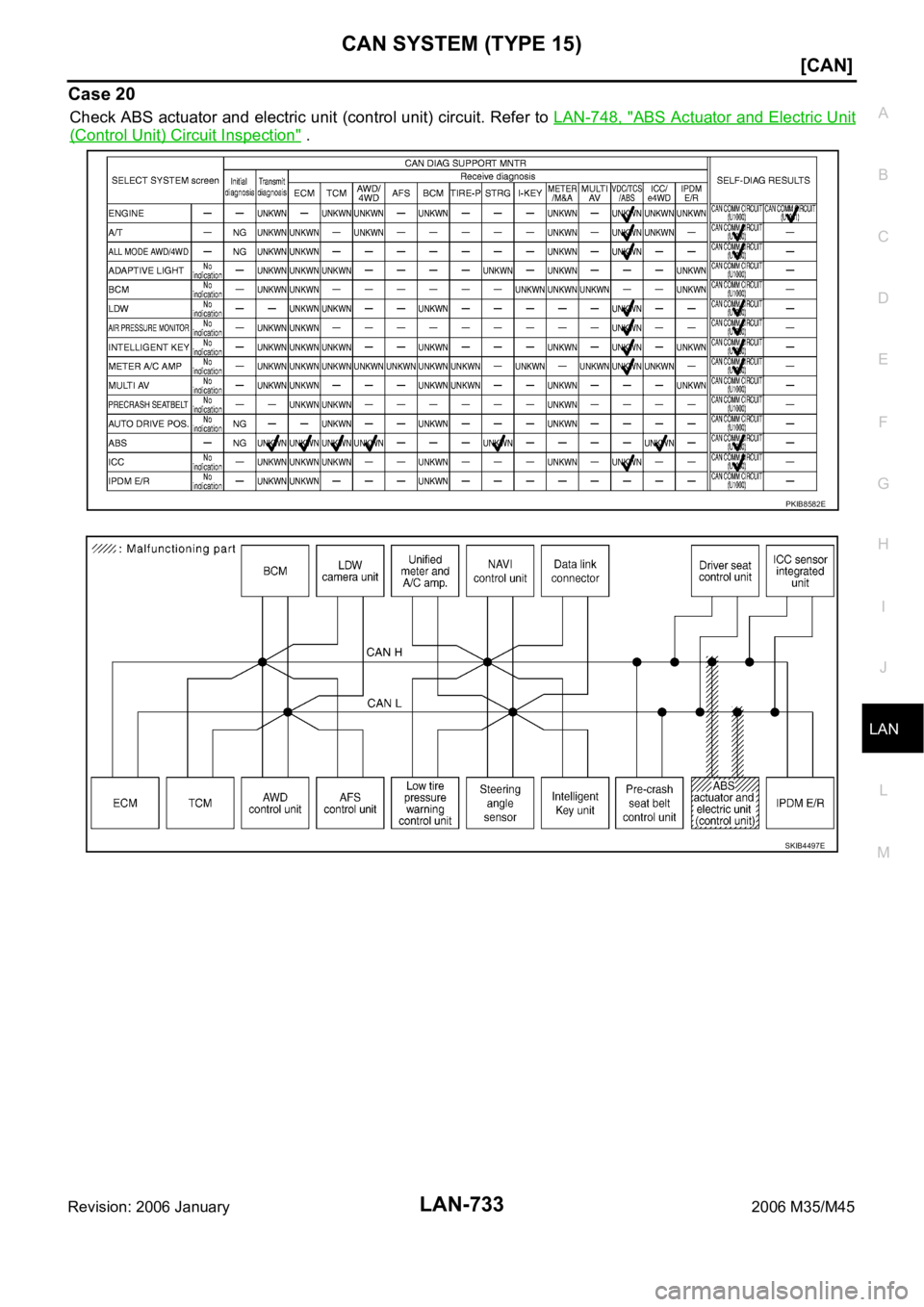

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 15) LAN-733 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 Case 20 Check ABS actuator and electric unit (control unit) circuit. Refer to LAN-748, "ABS Actuato

Page 4403 of 5621

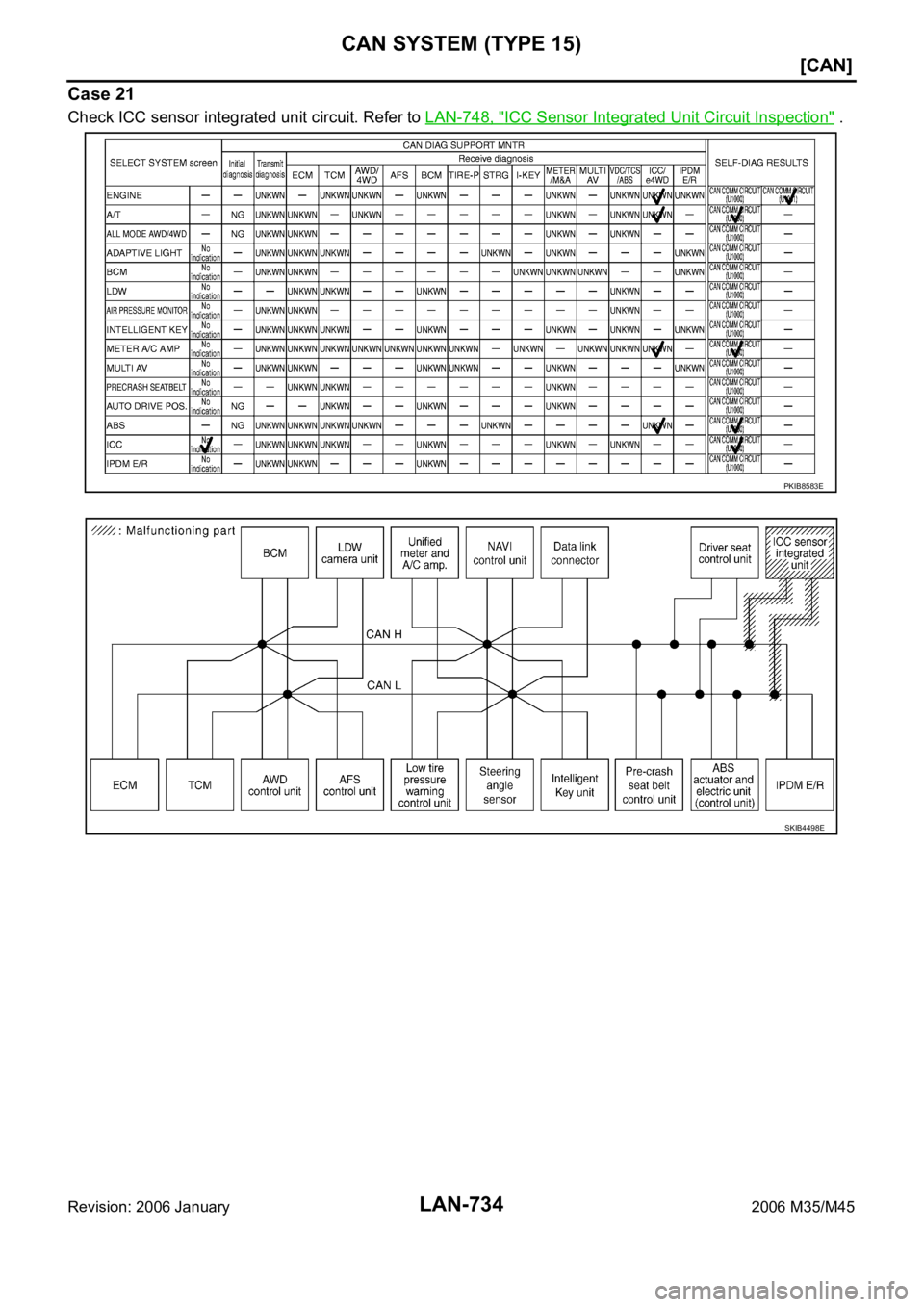

INFINITI M35 2006 Factory Service Manual LAN-734 [CAN] CAN SYSTEM (TYPE 15) Revision: 2006 January2006 M35/M45 Case 21 Check ICC sensor integrated unit circuit. Refer to LAN-748, "ICC Sensor Integrated Unit Circuit Inspection" . PKIB

Page 4404 of 5621

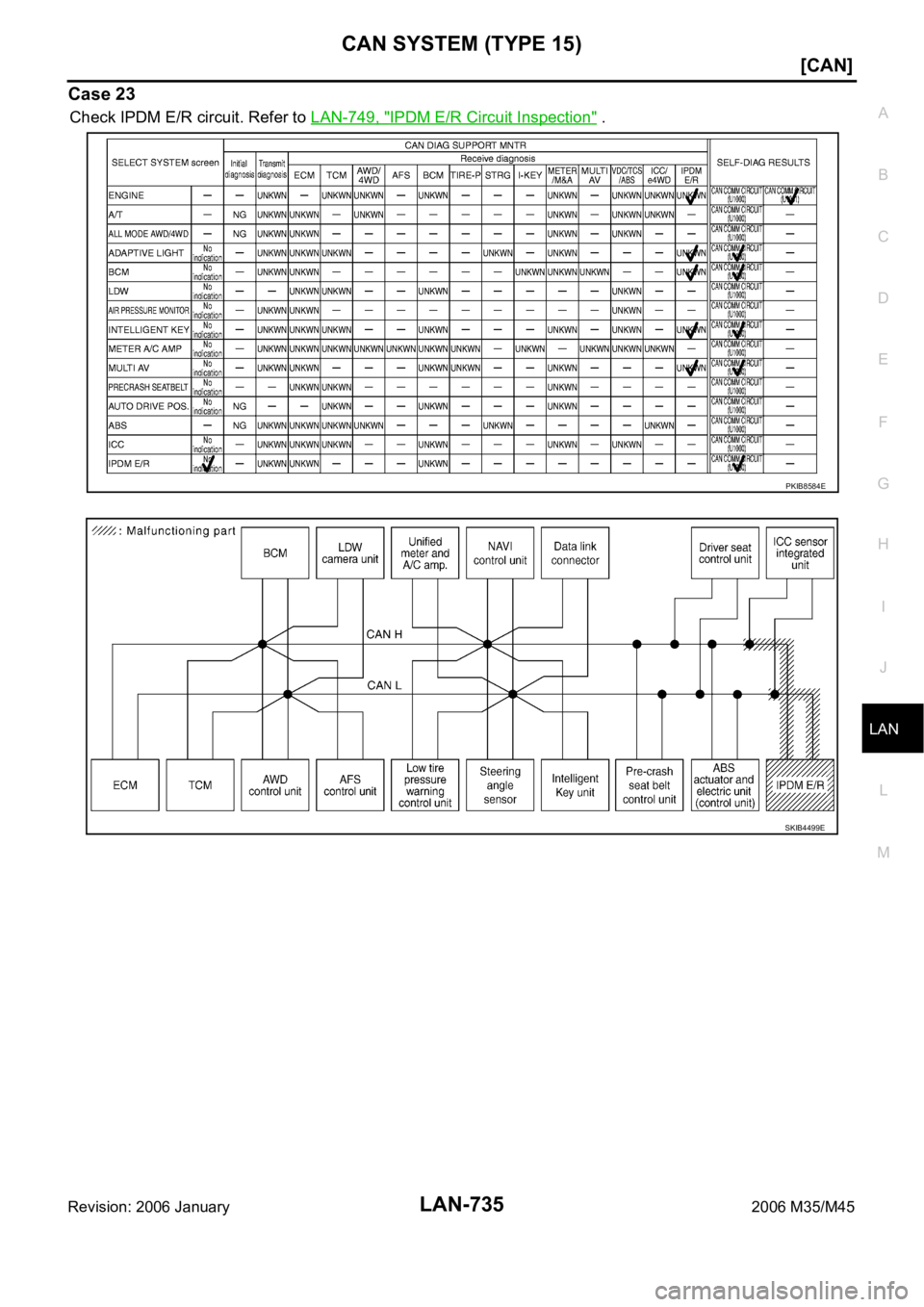

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 15) LAN-735 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 Case 23 Check IPDM E/R circuit. Refer to LAN-749, "IPDM E/R Circuit Inspection" . PKIB8584E SKI

Page 4405 of 5621

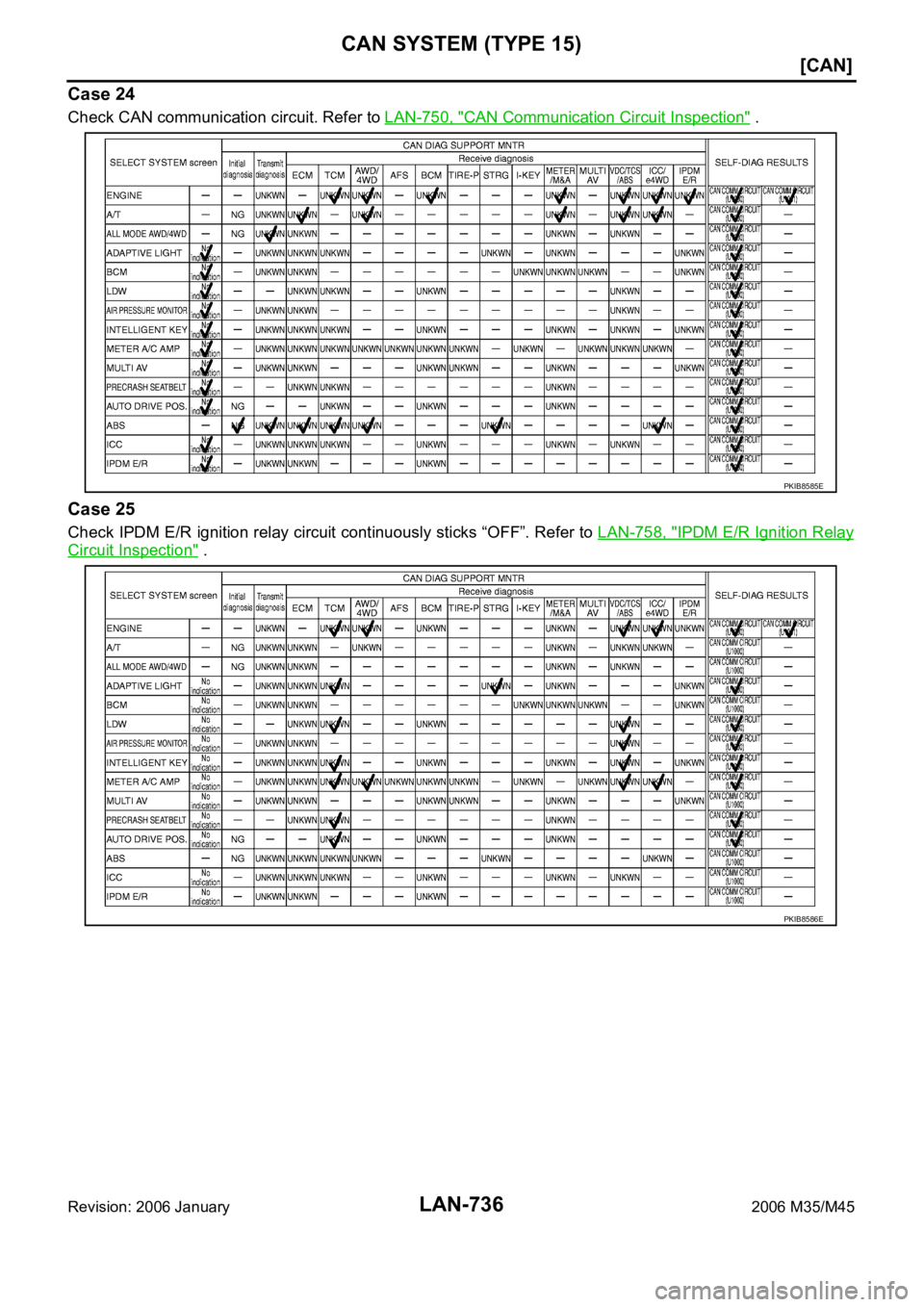

INFINITI M35 2006 Factory Service Manual LAN-736 [CAN] CAN SYSTEM (TYPE 15) Revision: 2006 January2006 M35/M45 Case 24 Check CAN communication circuit. Refer to LAN-750, "CAN Communication Circuit Inspection" . Case 25 Check IPDM E/R

Page 4406 of 5621

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 15) LAN-737 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 Case 26 Check IPDM E/R ignition relay circuit continuously sticks “ON”. Refer to LAN-758,

Page 4407 of 5621

INFINITI M35 2006 Factory Service Manual LAN-738 [CAN] CAN SYSTEM (TYPE 15) Revision: 2006 January2006 M35/M45 3. CHECK HARNESS FOR OPEN CIRCUIT Check continuity between harness connector (A) and data link con- nector (B). OK or NG

Page 4408 of 5621

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 15) LAN-739 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 3. CHECK HARNESS FOR OPEN CIRCUIT 1. Disconnect pre-crash seat belt control unit connector. 2. Check co
