Page 4185 of 5621

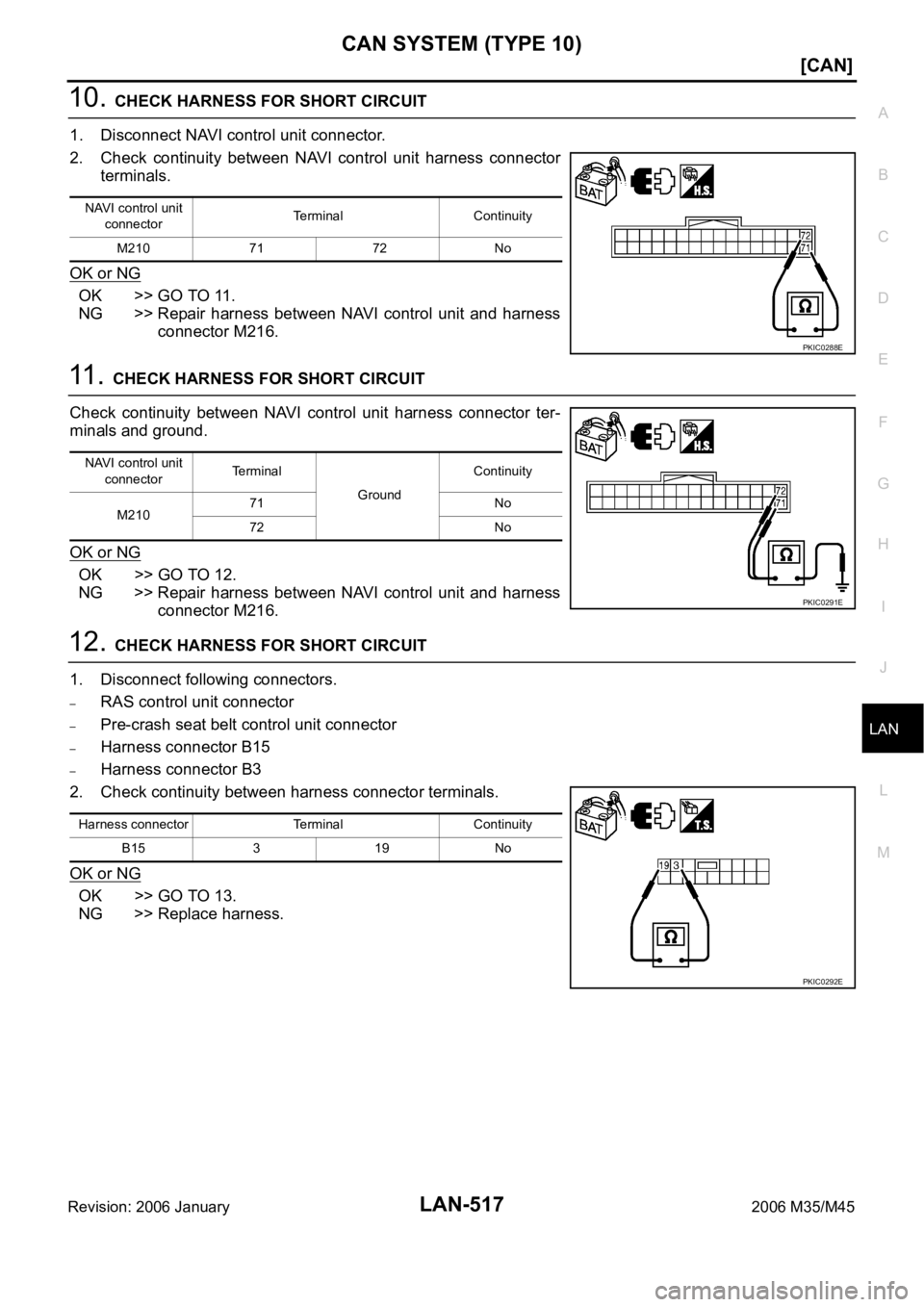

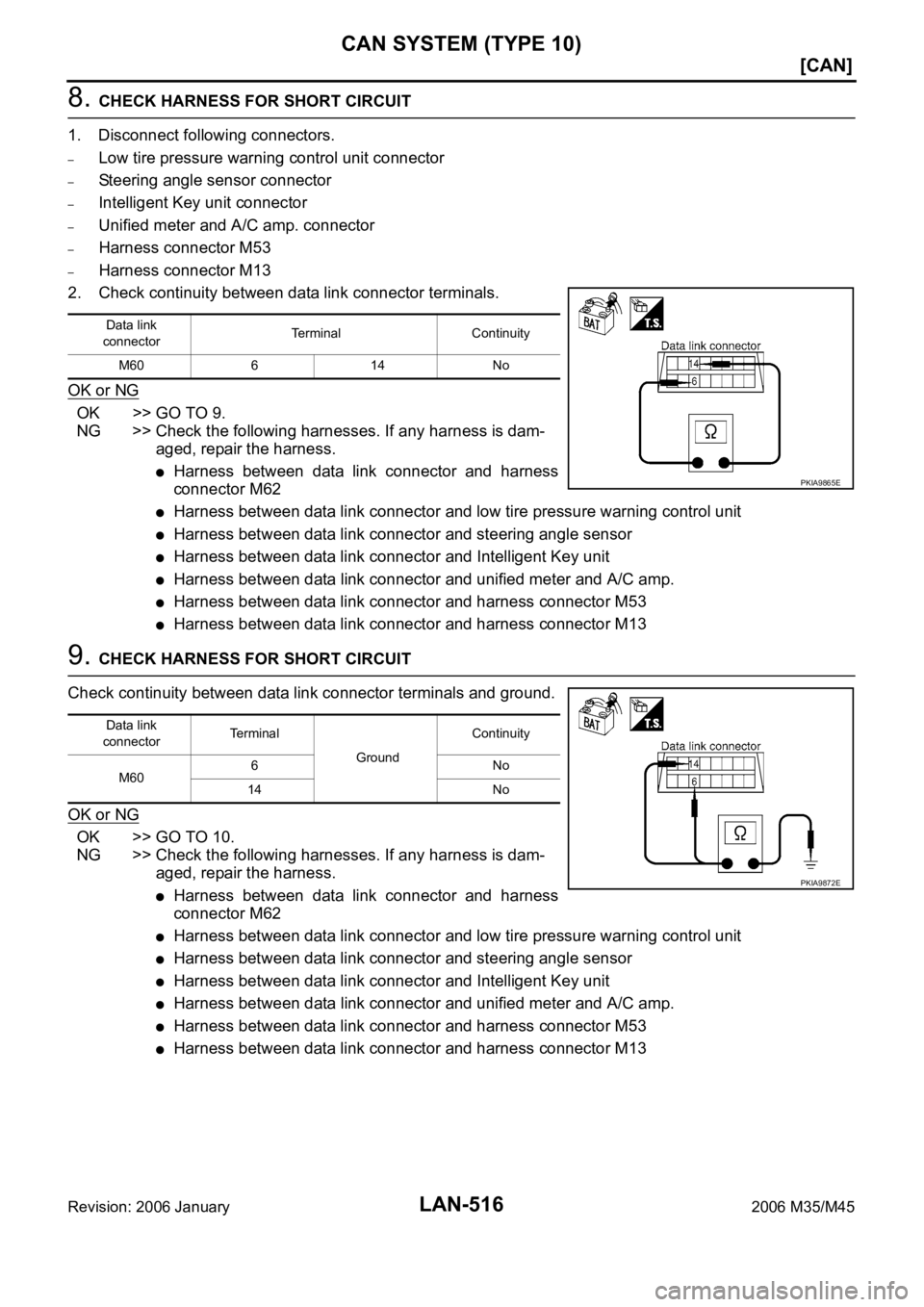

INFINITI M35 2006 Factory Service Manual LAN-516 [CAN] CAN SYSTEM (TYPE 10) Revision: 2006 January2006 M35/M45 8. CHECK HARNESS FOR SHORT CIRCUIT 1. Disconnect following connectors. –Low tire pressure warning control unit connector –Stee

Page 4186 of 5621

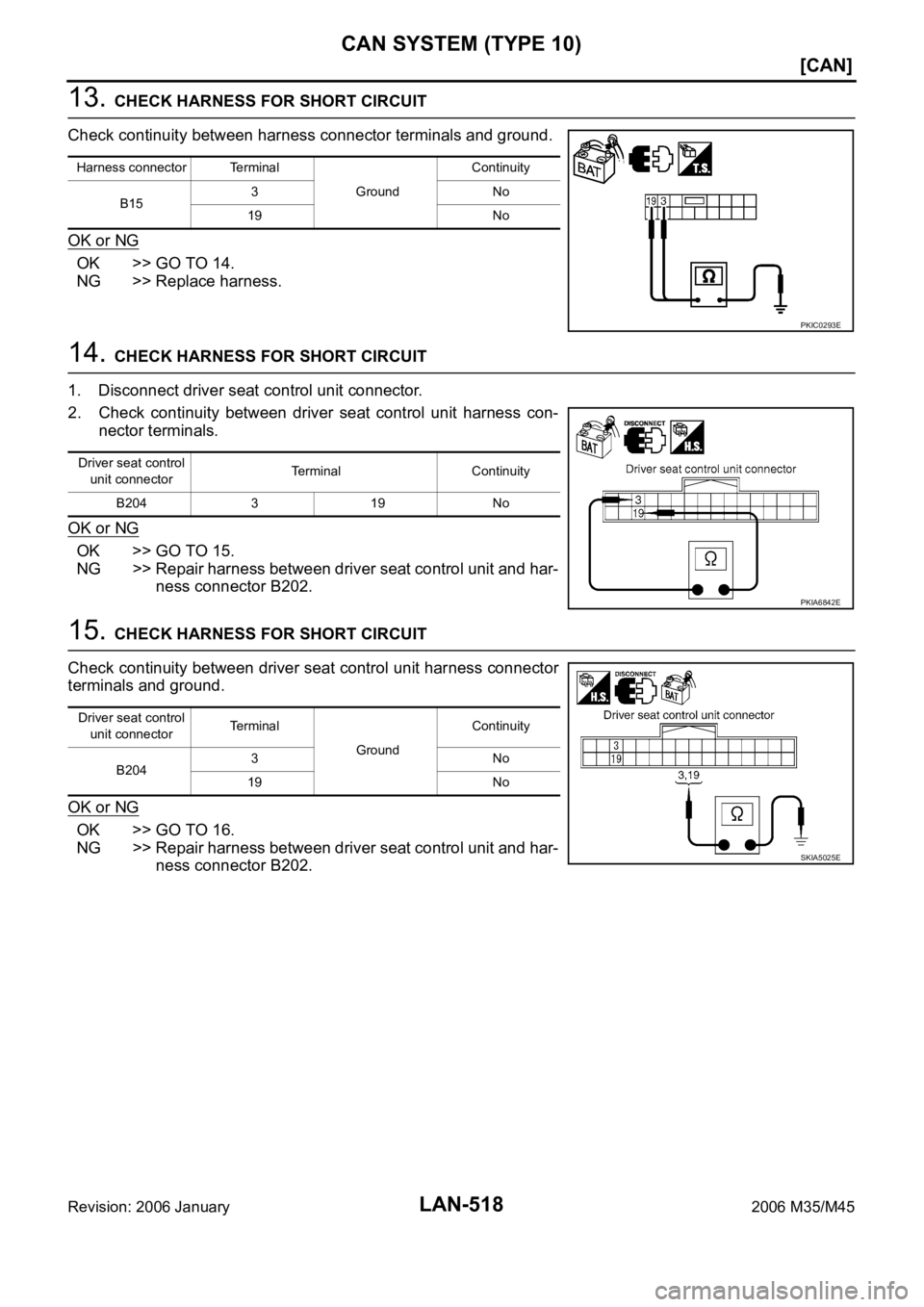

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 10) LAN-517 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 10. CHECK HARNESS FOR SHORT CIRCUIT 1. Disconnect NAVI control unit connector. 2. Check continuity be

Page 4187 of 5621

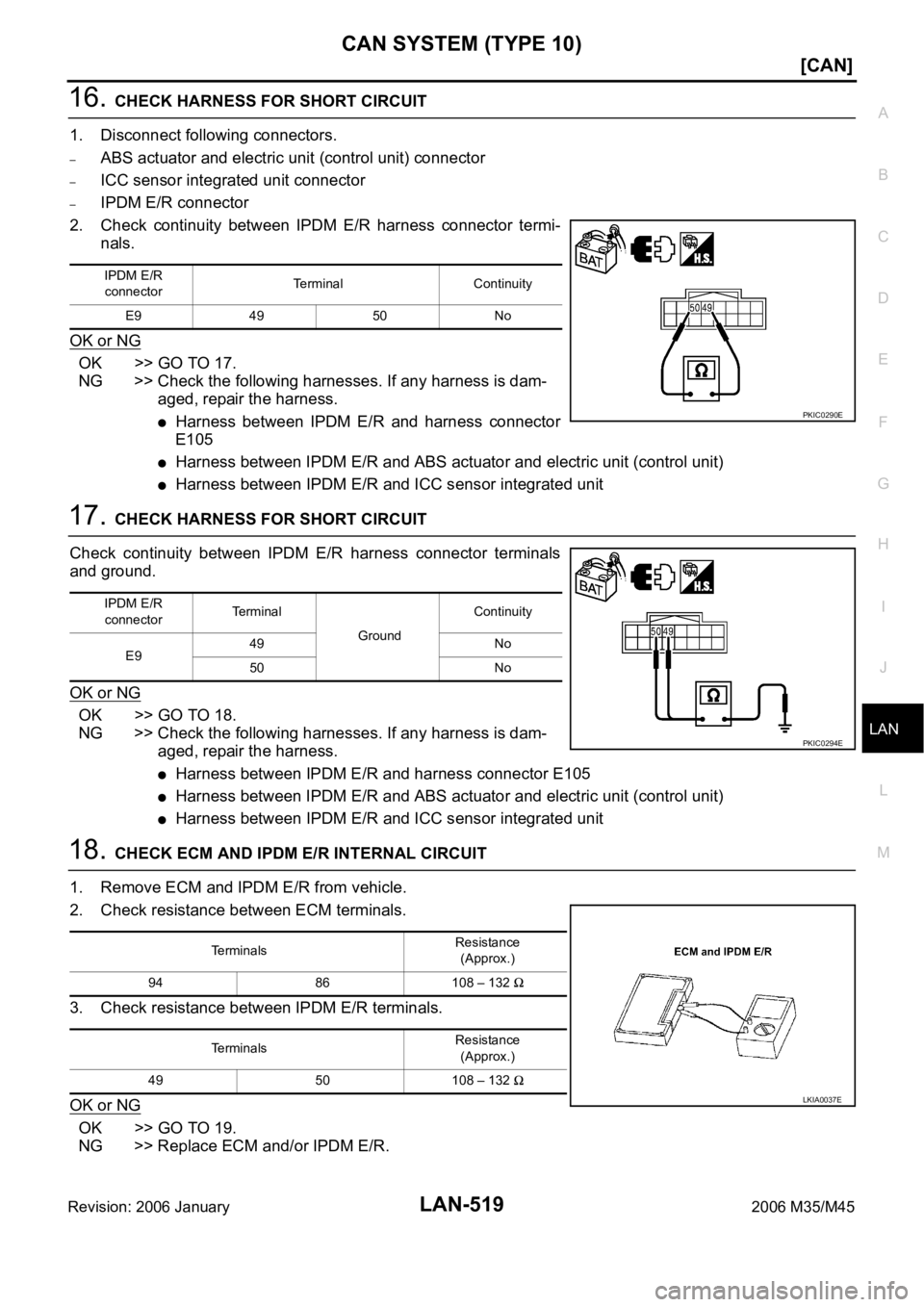

INFINITI M35 2006 Factory Service Manual LAN-518 [CAN] CAN SYSTEM (TYPE 10) Revision: 2006 January2006 M35/M45 13. CHECK HARNESS FOR SHORT CIRCUIT Check continuity between harness connector terminals and ground. OK or NG OK >> GO TO 14. NG >

Page 4188 of 5621

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 10) LAN-519 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 16. CHECK HARNESS FOR SHORT CIRCUIT 1. Disconnect following connectors. –ABS actuator and electric un

Page 4189 of 5621

INFINITI M35 2006 Factory Service Manual LAN-520 [CAN] CAN SYSTEM (TYPE 10) Revision: 2006 January2006 M35/M45 19. CHECK SYMPTOM 1. Fill in described symptoms on the column “Symptom” in the check sheet. 2. Connect all connectors, and the

Page 4190 of 5621

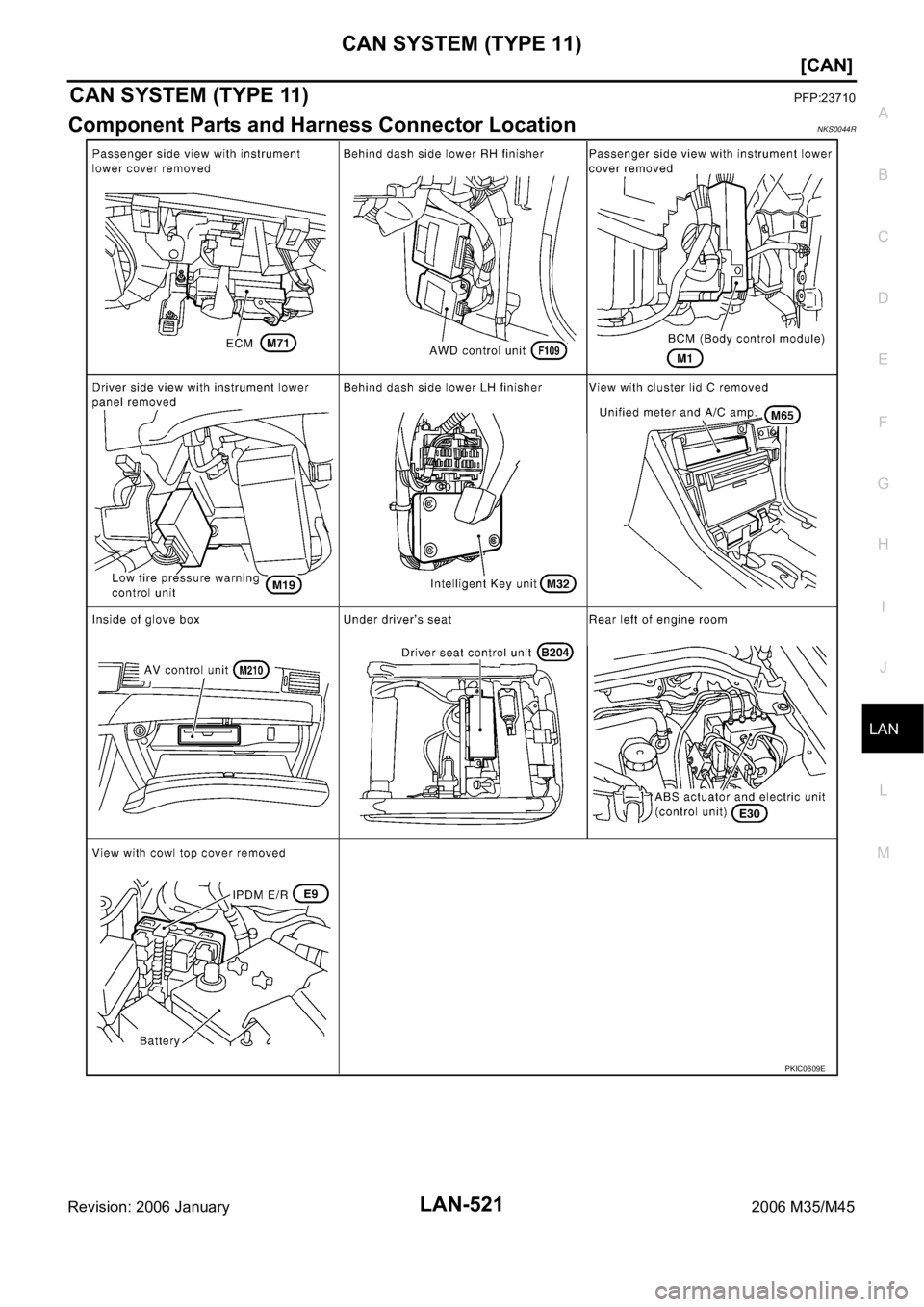

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 11) LAN-521 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 CAN SYSTEM (TYPE 11)PFP:23710 Component Parts and Harness Connector LocationNKS0044R PKIC0609E

Page 4191 of 5621

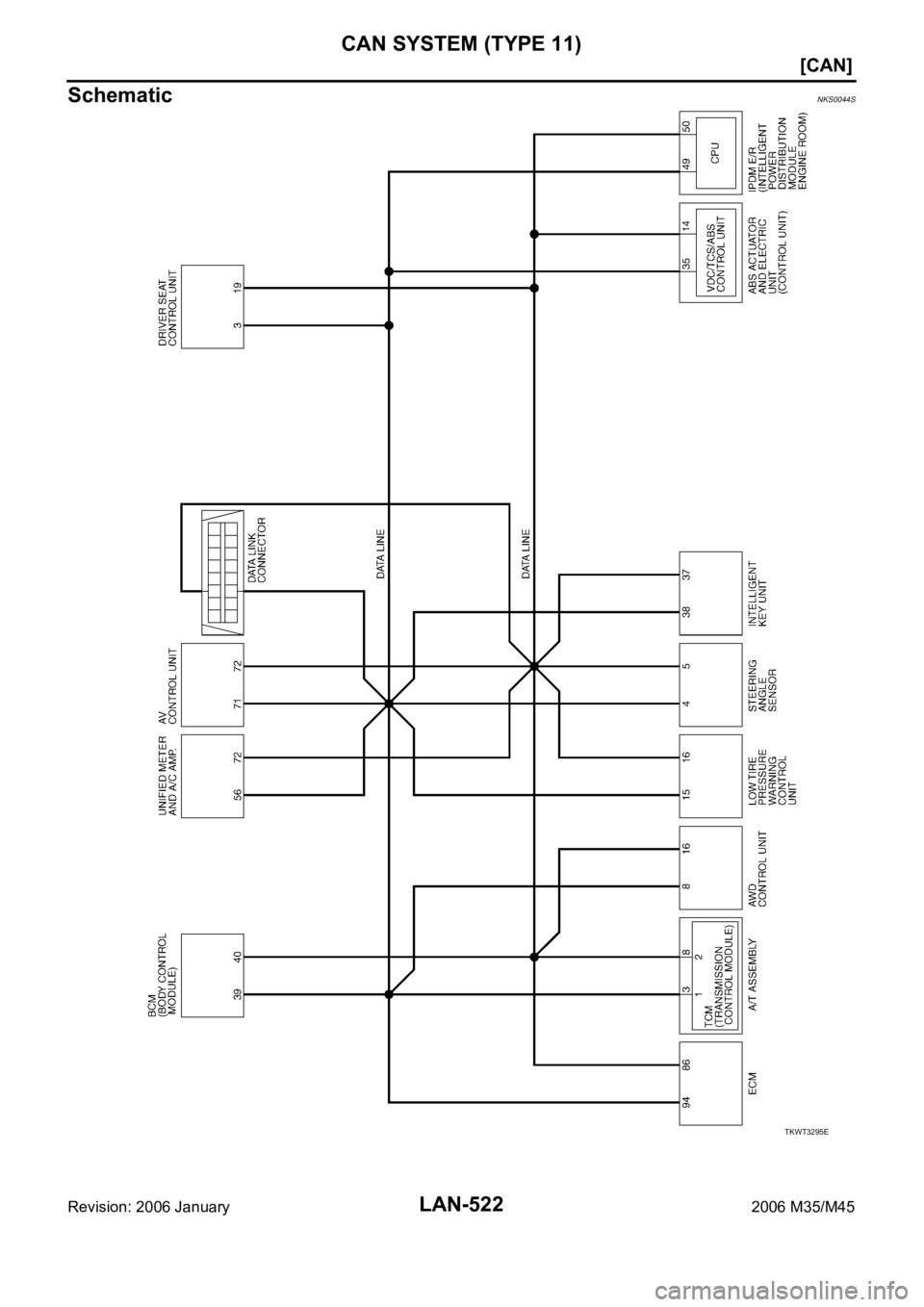

INFINITI M35 2006 Factory Service Manual LAN-522 [CAN] CAN SYSTEM (TYPE 11) Revision: 2006 January2006 M35/M45 SchematicNKS0044S TKWT3295E

Page 4192 of 5621

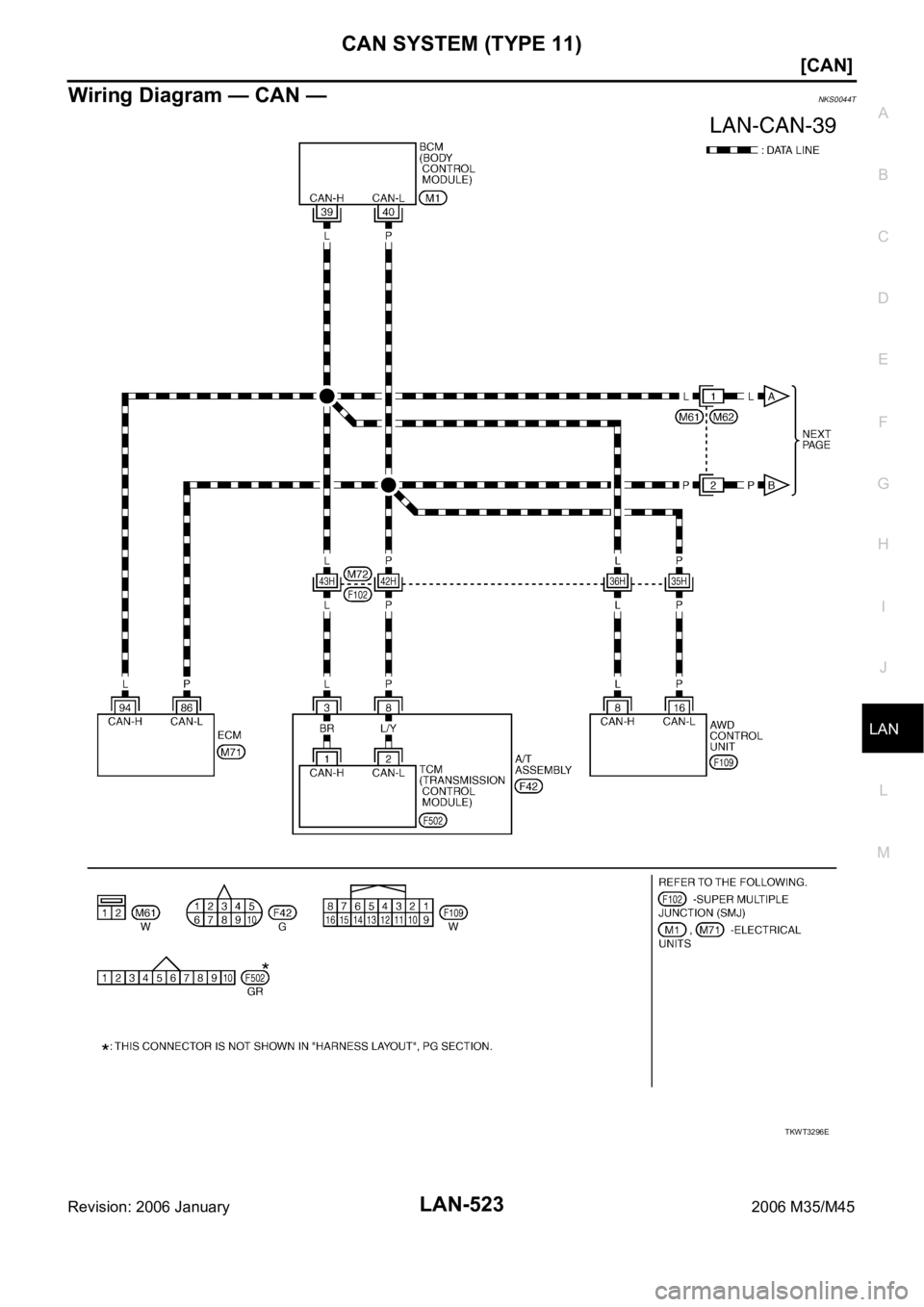

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 11) LAN-523 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 Wiring Diagram — CAN —NKS0044T TKWT3296E
