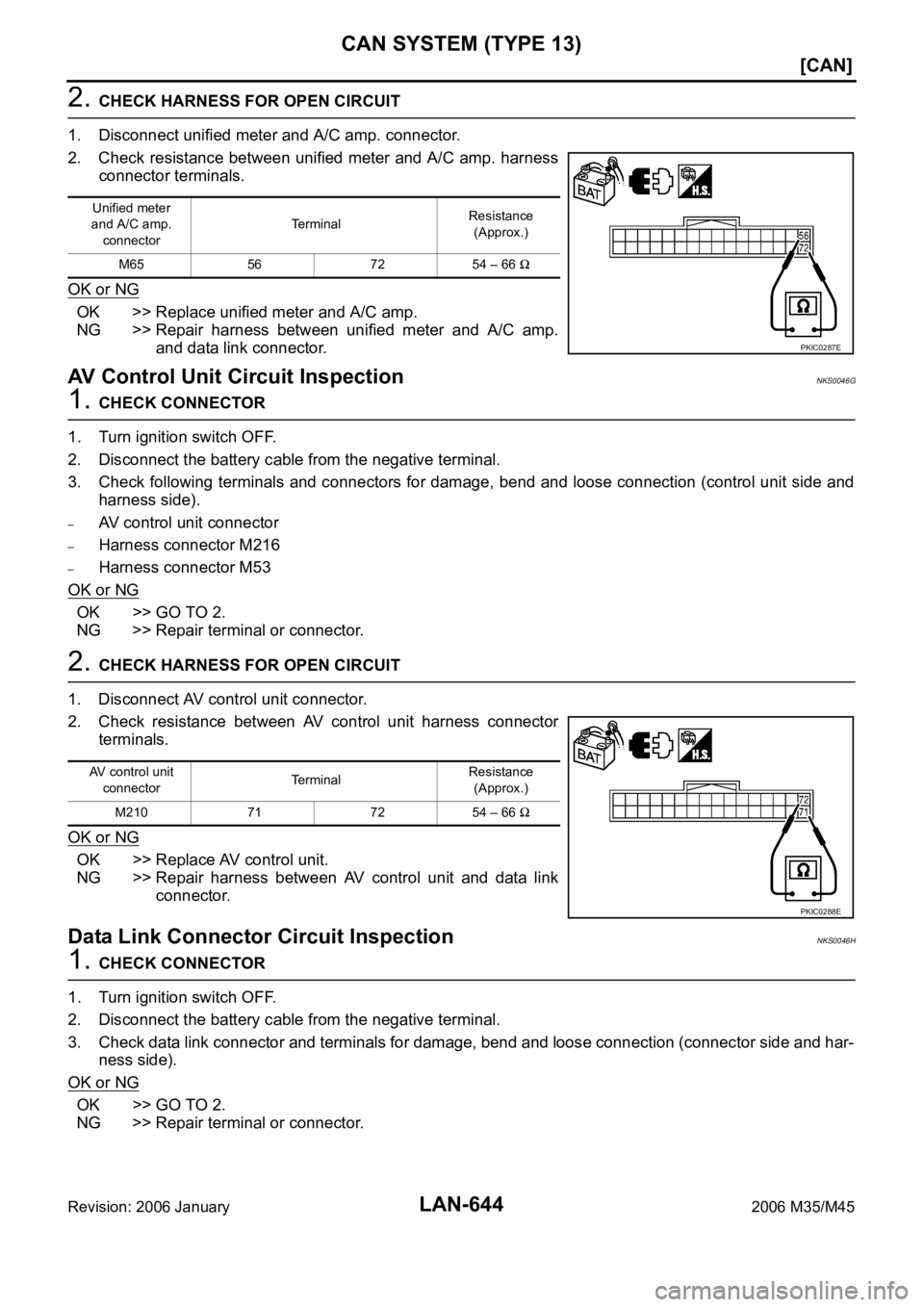

INFINITI M35 2006 Factory Service Manual LAN-644 [CAN] CAN SYSTEM (TYPE 13) Revision: 2006 January2006 M35/M45 2. CHECK HARNESS FOR OPEN CIRCUIT 1. Disconnect unified meter and A/C amp. connector. 2. Check resistance between unified meter an

Page 4314 of 5621

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 13) LAN-645 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 2. CHECK HARNESS FOR OPEN CIRCUIT Check resistance between data link connector terminals. OK or NG OK >

Page 4315 of 5621

INFINITI M35 2006 Factory Service Manual LAN-646 [CAN] CAN SYSTEM (TYPE 13) Revision: 2006 January2006 M35/M45 2. CHECK HARNESS FOR OPEN CIRCUIT 1. Disconnect driver seat control unit connector. 2. Check resistance between driver seat co

Page 4316 of 5621

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 13) LAN-647 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 2. CHECK HARNESS FOR OPEN CIRCUIT 1. Disconnect IPDM E/R connector. 2. Check resistance between IPDM

Page 4317 of 5621

INFINITI M35 2006 Factory Service Manual LAN-648 [CAN] CAN SYSTEM (TYPE 13) Revision: 2006 January2006 M35/M45 2. CHECK HARNESS FOR SHORT CIRCUIT 1. Disconnect following connectors. –ECM connector –Harness connector M72 –BCM connector

Page 4318 of 5621

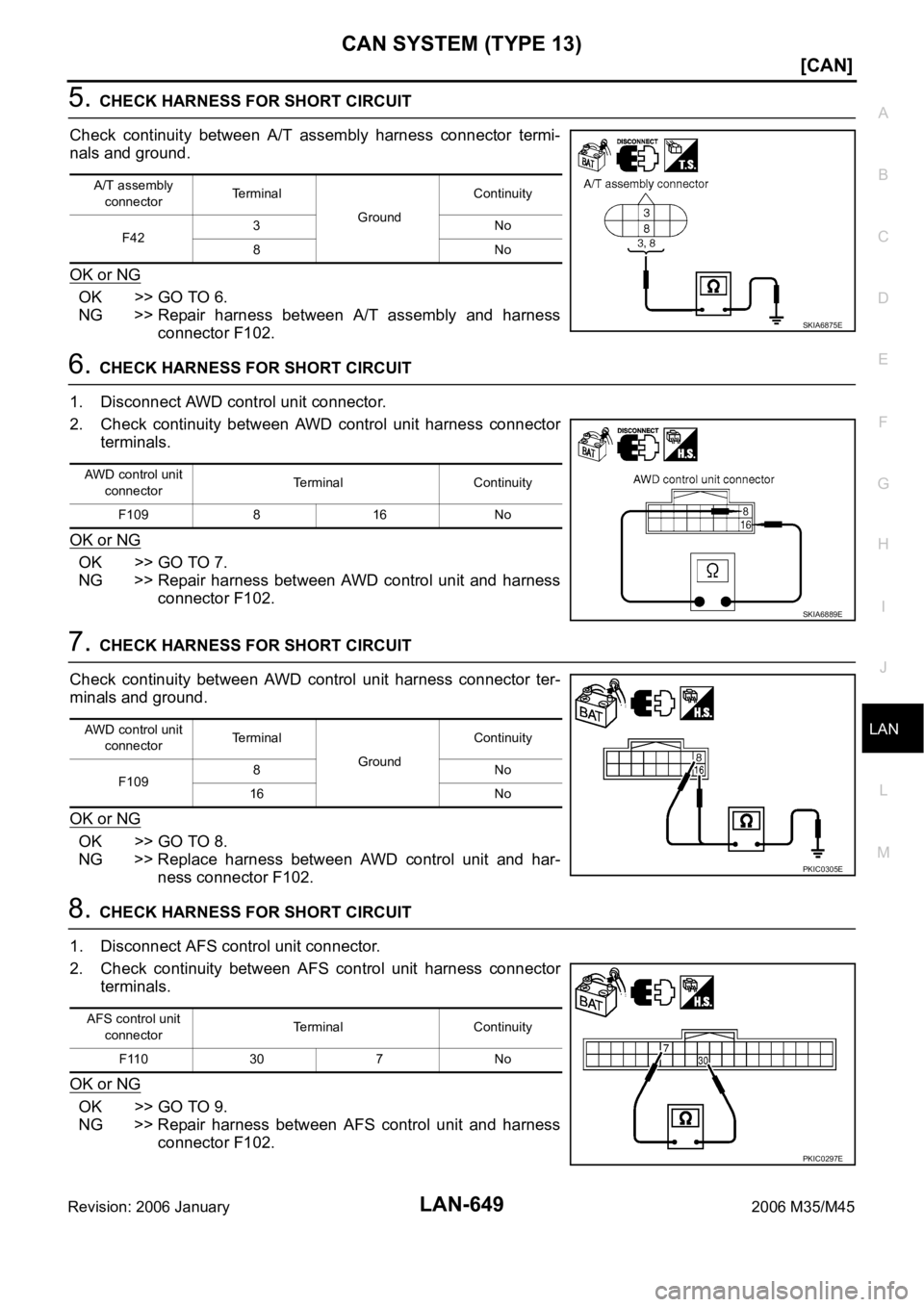

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 13) LAN-649 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 5. CHECK HARNESS FOR SHORT CIRCUIT Check continuity between A/T assembly harness connector termi

Page 4319 of 5621

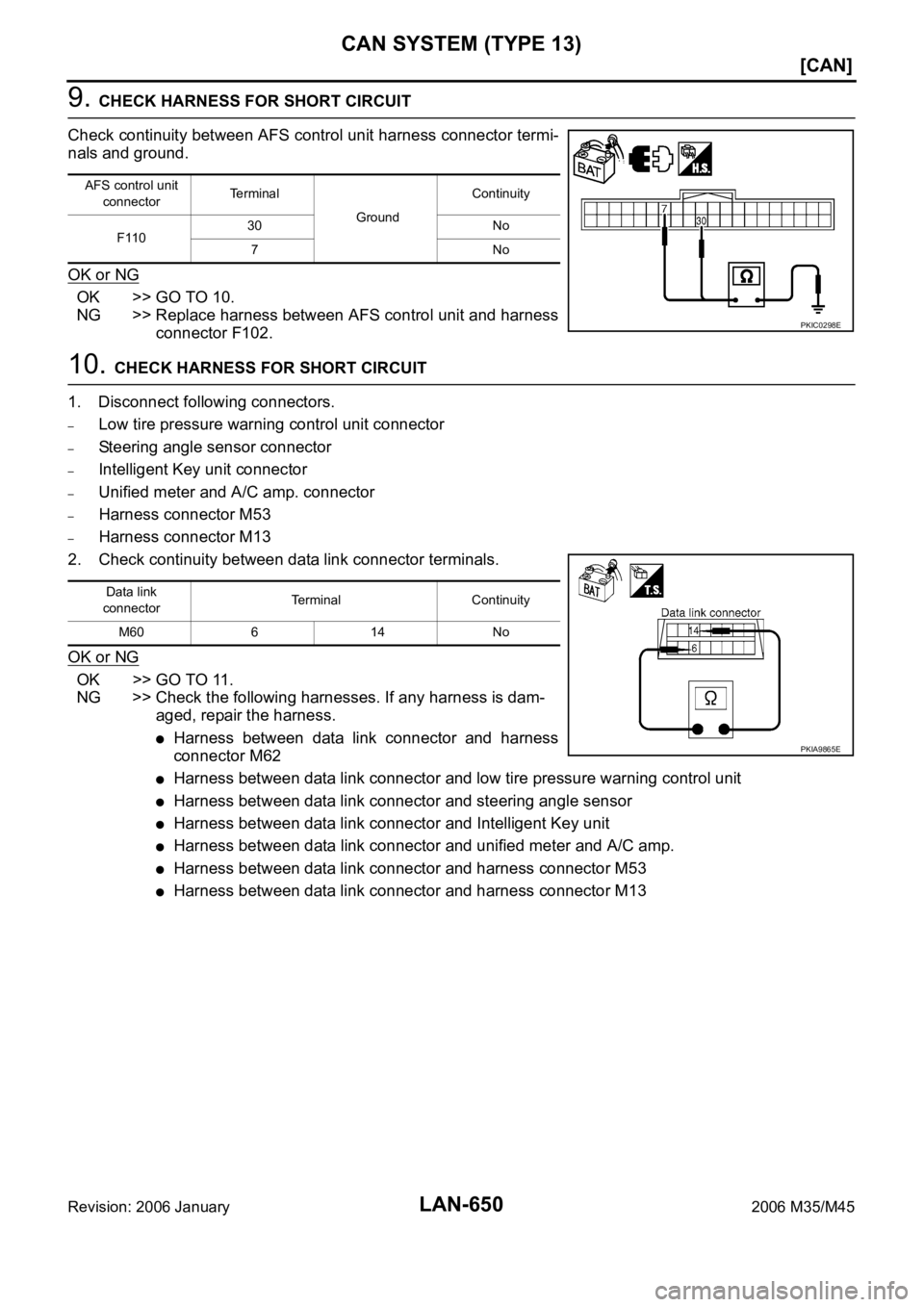

INFINITI M35 2006 Factory Service Manual LAN-650 [CAN] CAN SYSTEM (TYPE 13) Revision: 2006 January2006 M35/M45 9. CHECK HARNESS FOR SHORT CIRCUIT Check continuity between AFS control unit harness connector termi- nals and ground. OK or NG OK

Page 4320 of 5621

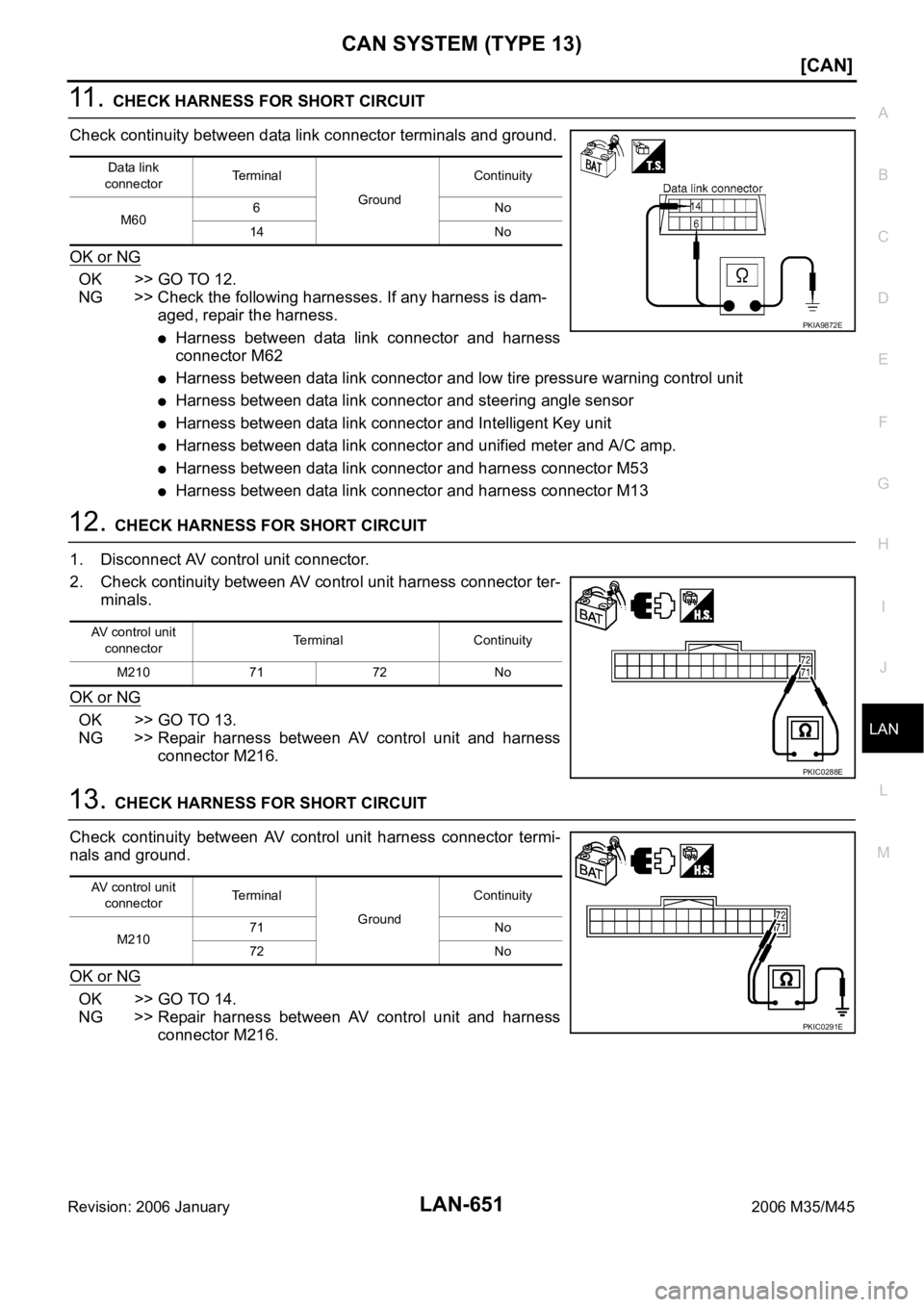

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 13) LAN-651 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 11 . CHECK HARNESS FOR SHORT CIRCUIT Check continuity between data link connector terminals and ground
