Page 4145 of 5621

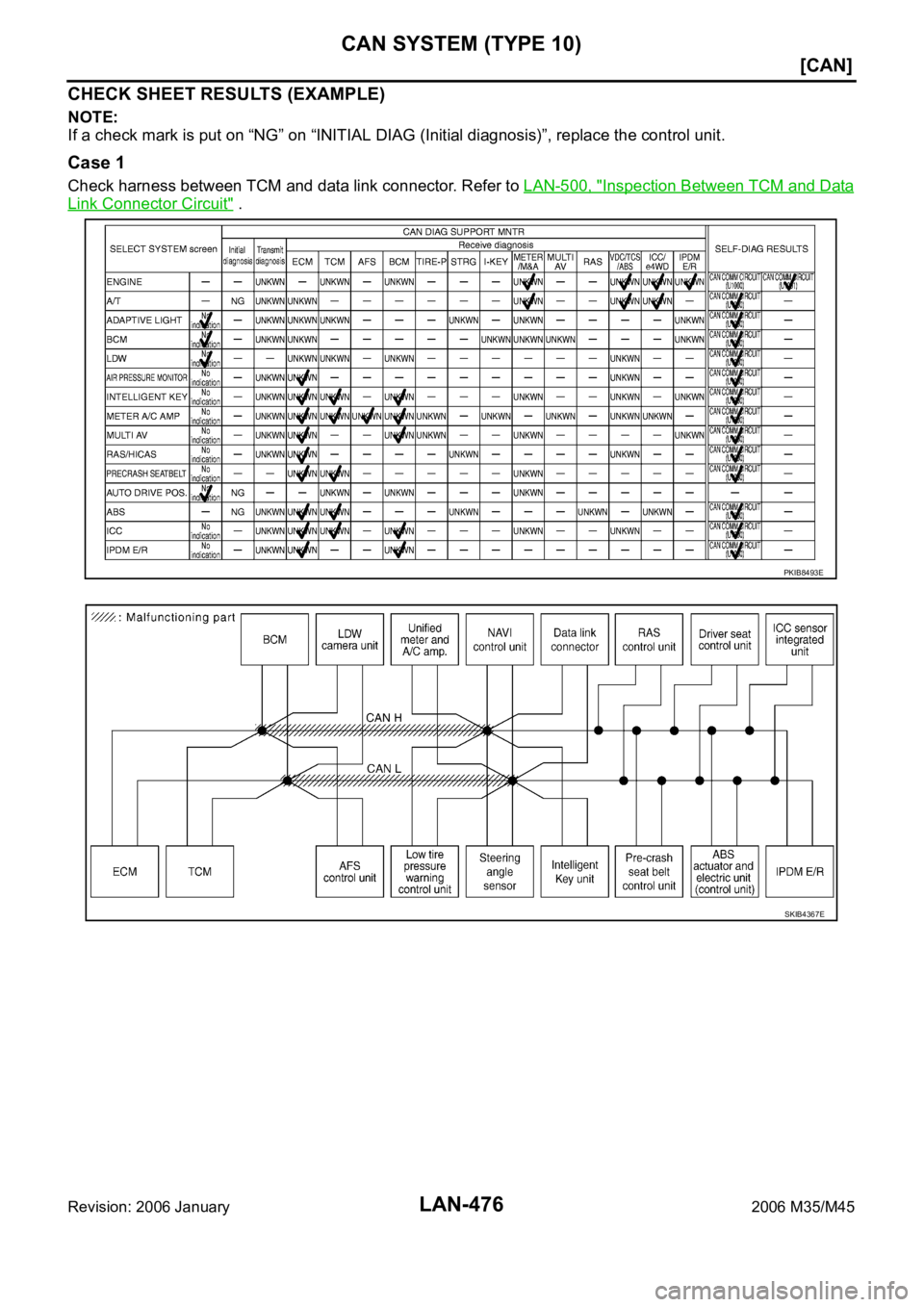

INFINITI M35 2006 Factory Service Manual LAN-476 [CAN] CAN SYSTEM (TYPE 10) Revision: 2006 January2006 M35/M45 CHECK SHEET RESULTS (EXAMPLE) NOTE: If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the cont

Page 4146 of 5621

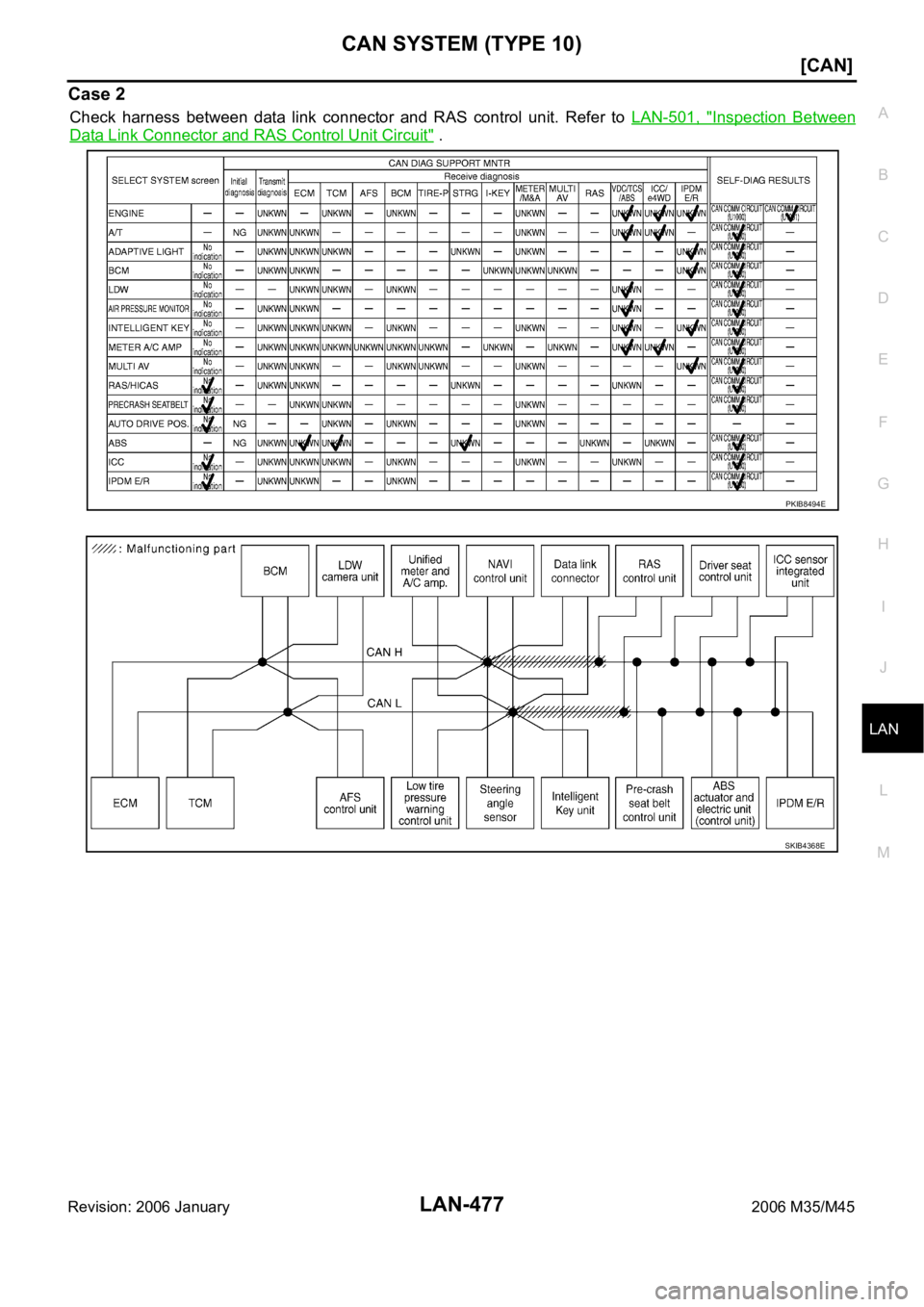

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 10) LAN-477 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 Case 2 Check harness between data link connector and RAS control unit. Refer to LAN-501, "

Page 4147 of 5621

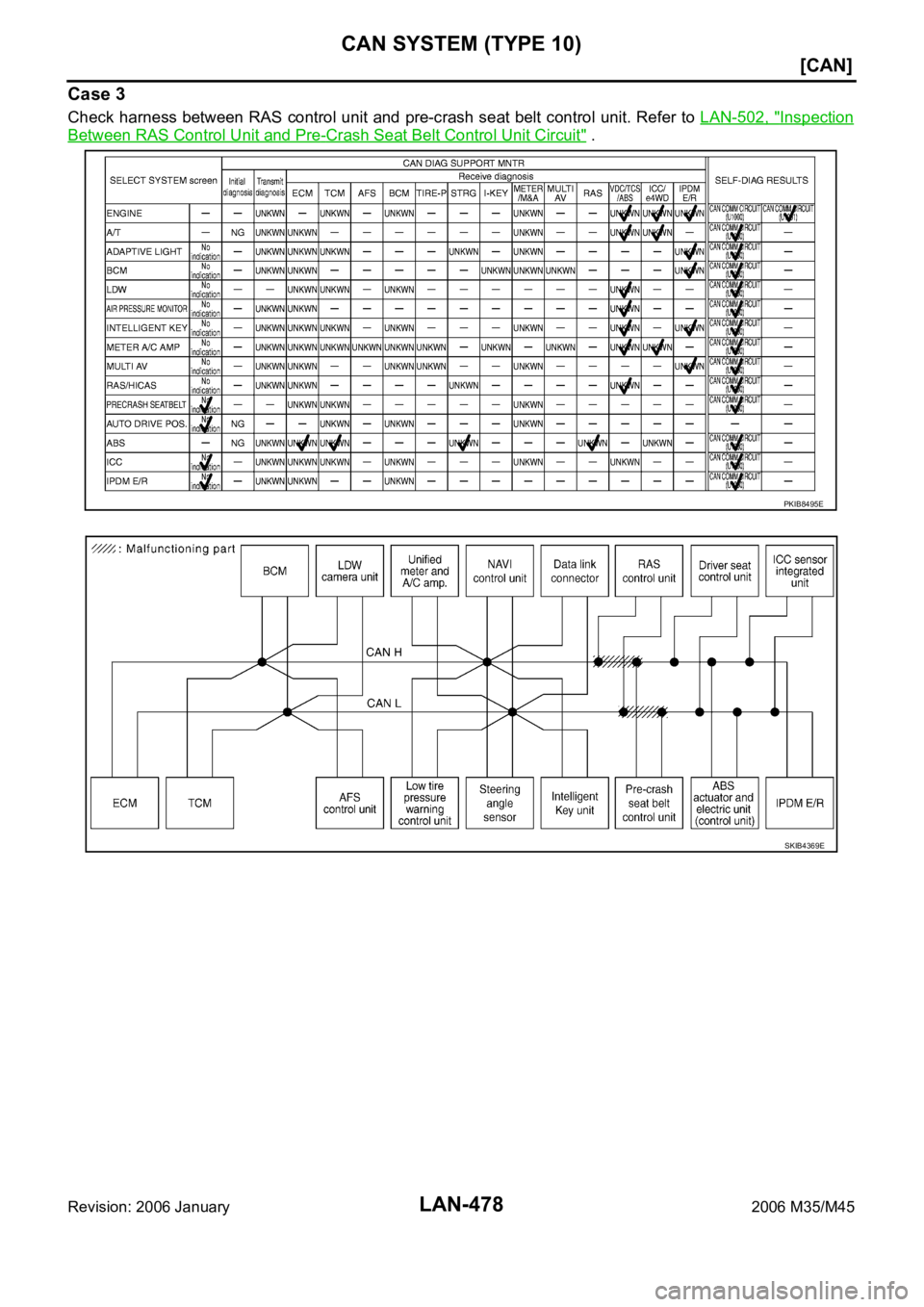

INFINITI M35 2006 Factory Service Manual LAN-478 [CAN] CAN SYSTEM (TYPE 10) Revision: 2006 January2006 M35/M45 Case 3 Check harness between RAS control unit and pre-crash seat belt control unit. Refer to LAN-502, "Inspection Between RAS

Page 4148 of 5621

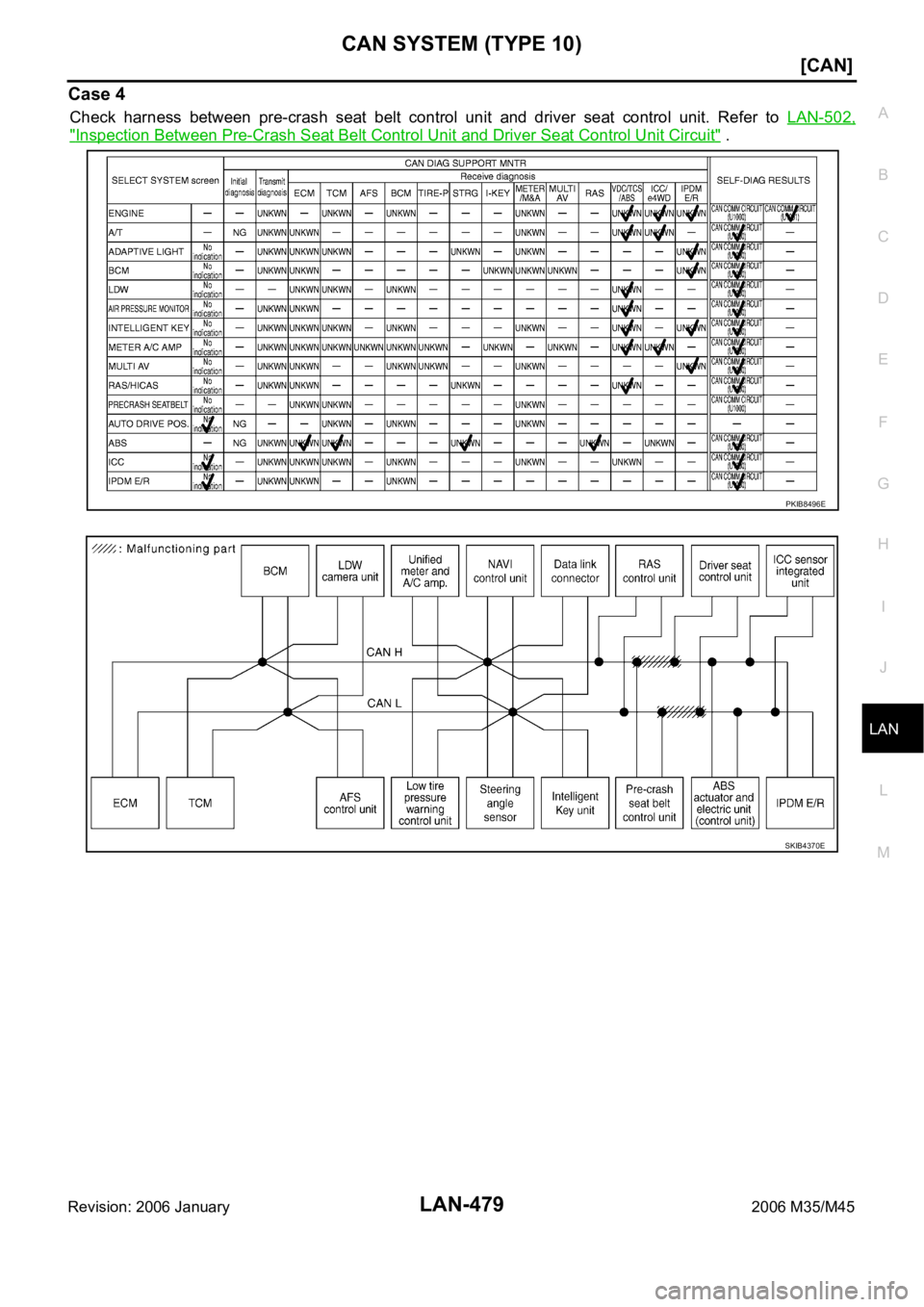

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 10) LAN-479 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 Case 4 Check harness between pre-crash seat belt control unit and driver seat control unit.

Page 4149 of 5621

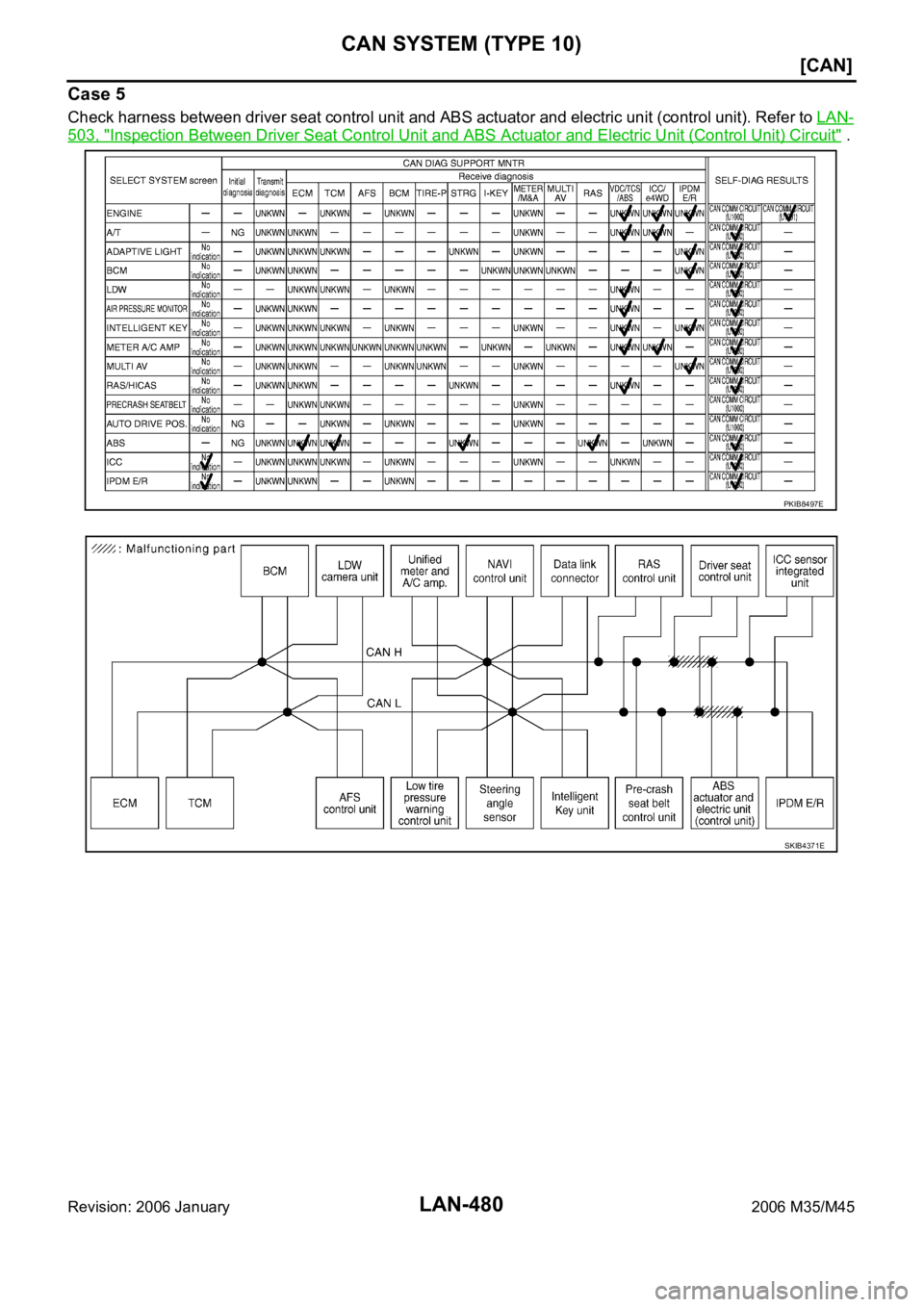

INFINITI M35 2006 Factory Service Manual LAN-480 [CAN] CAN SYSTEM (TYPE 10) Revision: 2006 January2006 M35/M45 Case 5 Check harness between driver seat control unit and ABS actuator and electric unit (control unit). Refer to LAN- 503, "I

Page 4150 of 5621

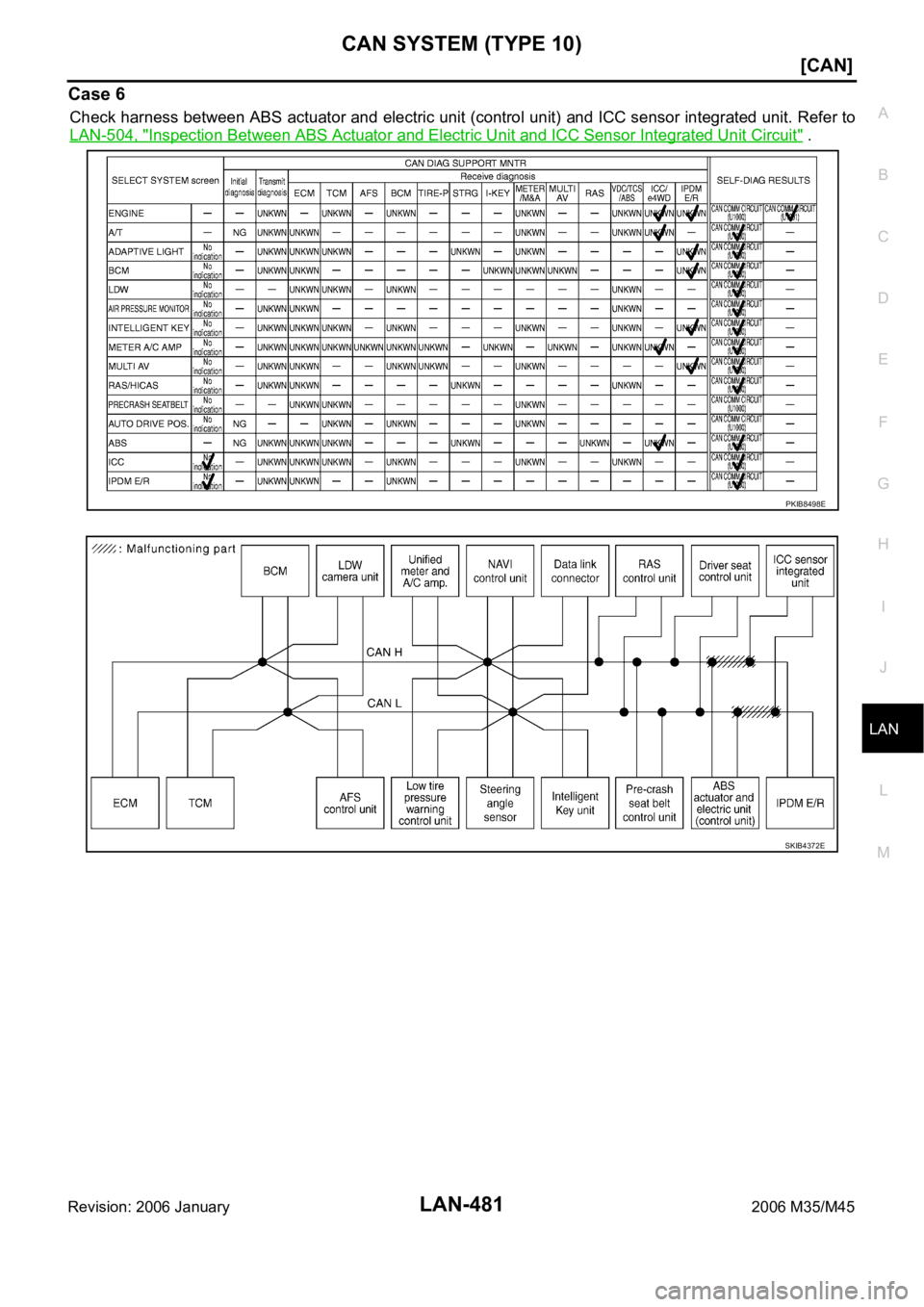

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 10) LAN-481 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 Case 6 Check harness between ABS actuator and electric unit (control unit) and ICC sensor integrated un

Page 4151 of 5621

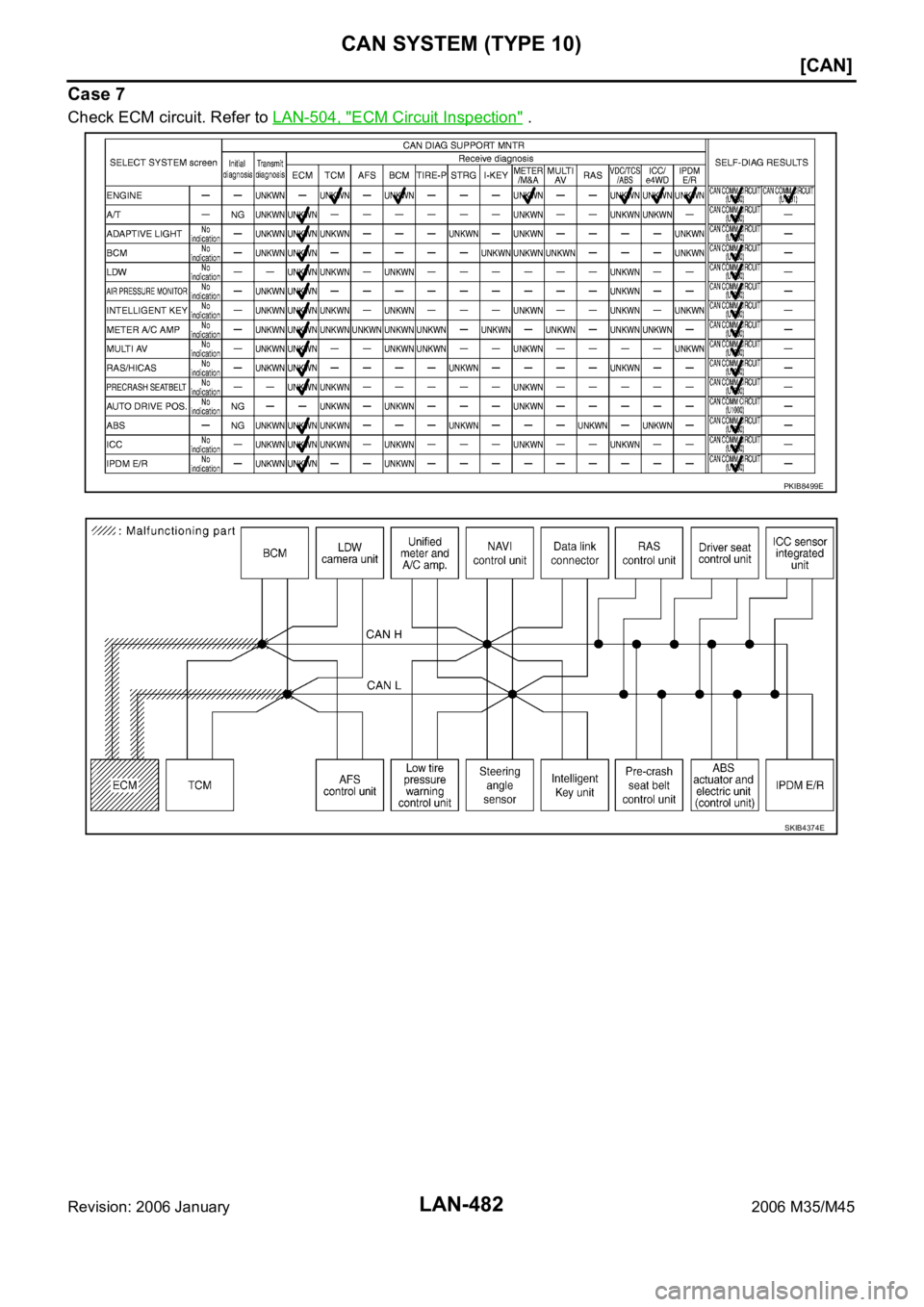

INFINITI M35 2006 Factory Service Manual LAN-482 [CAN] CAN SYSTEM (TYPE 10) Revision: 2006 January2006 M35/M45 Case 7 Check ECM circuit. Refer to LAN-504, "ECM Circuit Inspection" . PKIB8499E SKIB4374E

Page 4152 of 5621

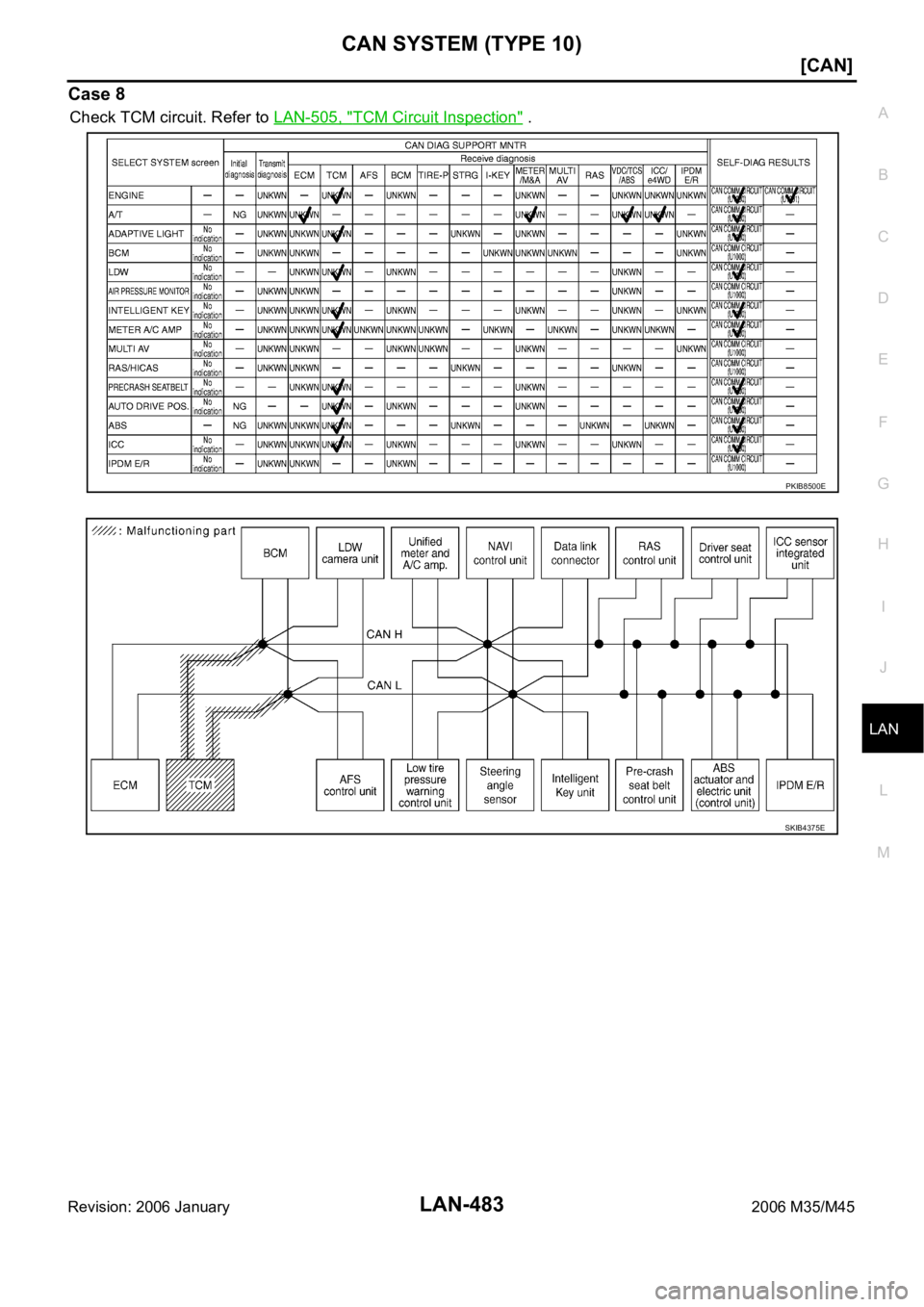

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 10) LAN-483 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 Case 8 Check TCM circuit. Refer to LAN-505, "TCM Circuit Inspection" . PKIB8500E SKIB4375E
