2006 INFINITI M35 Factory Service Manual

key battery deactivate passenger airbag seats ground clearance octane roof

Load previous 8 pages

Page 2505 of 5621

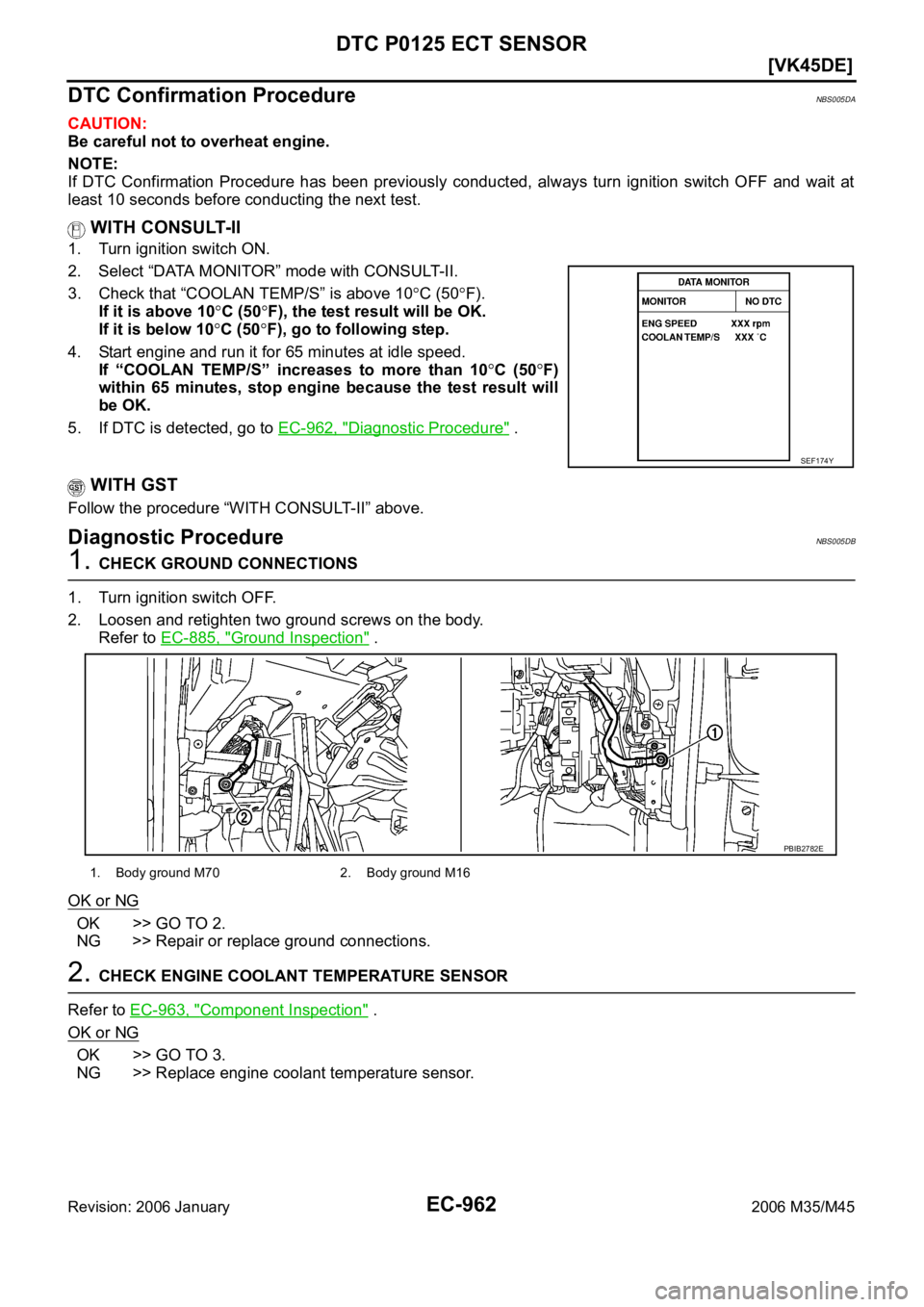

INFINITI M35 2006 Factory Service Manual EC-962
[VK45DE]
DTC P0125 ECT SENSOR
Revision: 2006 January2006 M35/M45
DTC Confirmation ProcedureNBS005DA
CAUTION:
Be careful not to overheat engine.
NOTE:
If DTC Confirmation Procedure has been

Page 2506 of 5621

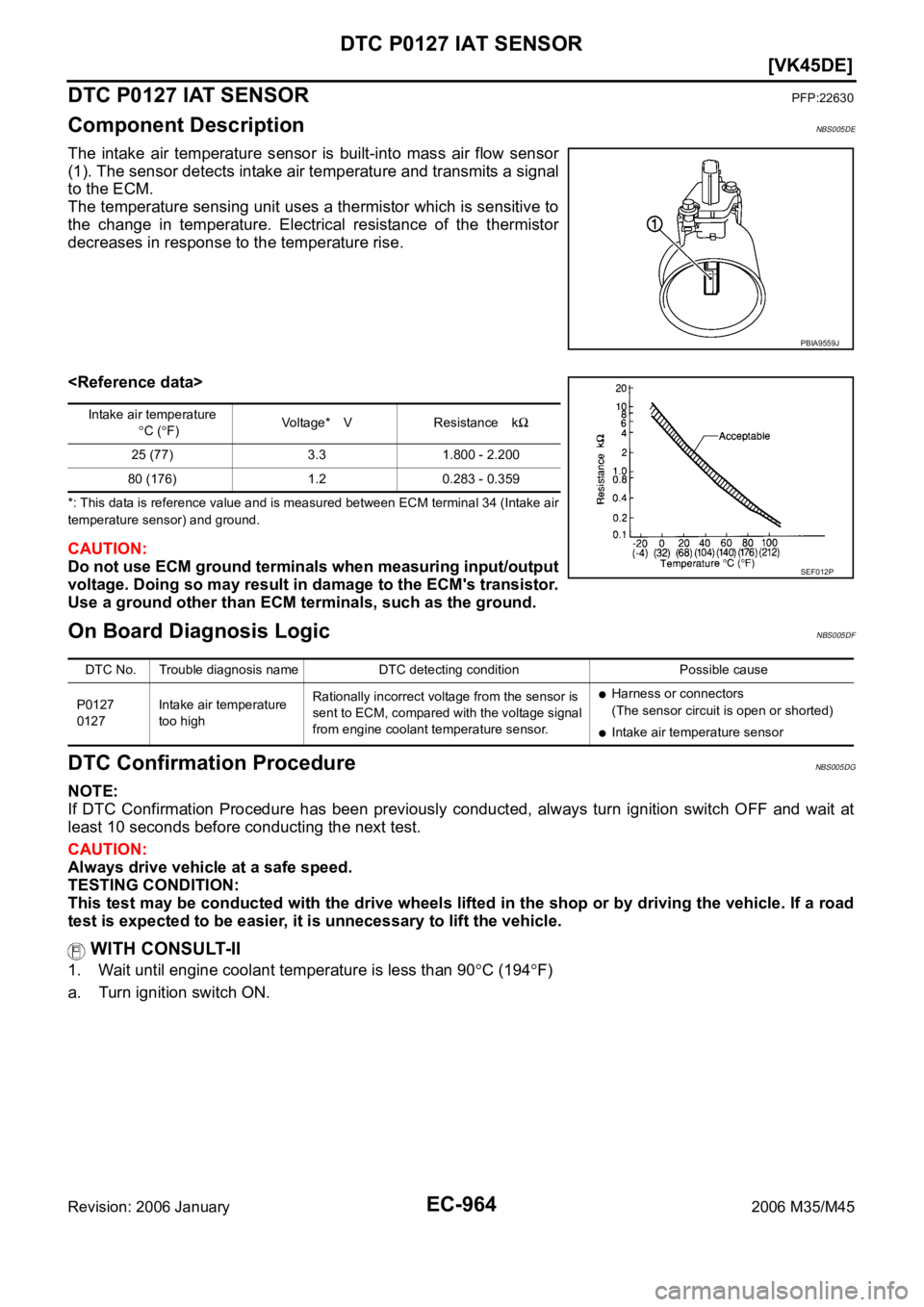

INFINITI M35 2006 Factory Service Manual DTC P0125 ECT SENSOR
EC-963
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
3. CHECK THERMOSTAT OPERATION
When the engine is cold [lower than 70
C (158F)] condition, grasp lower

Page 2507 of 5621

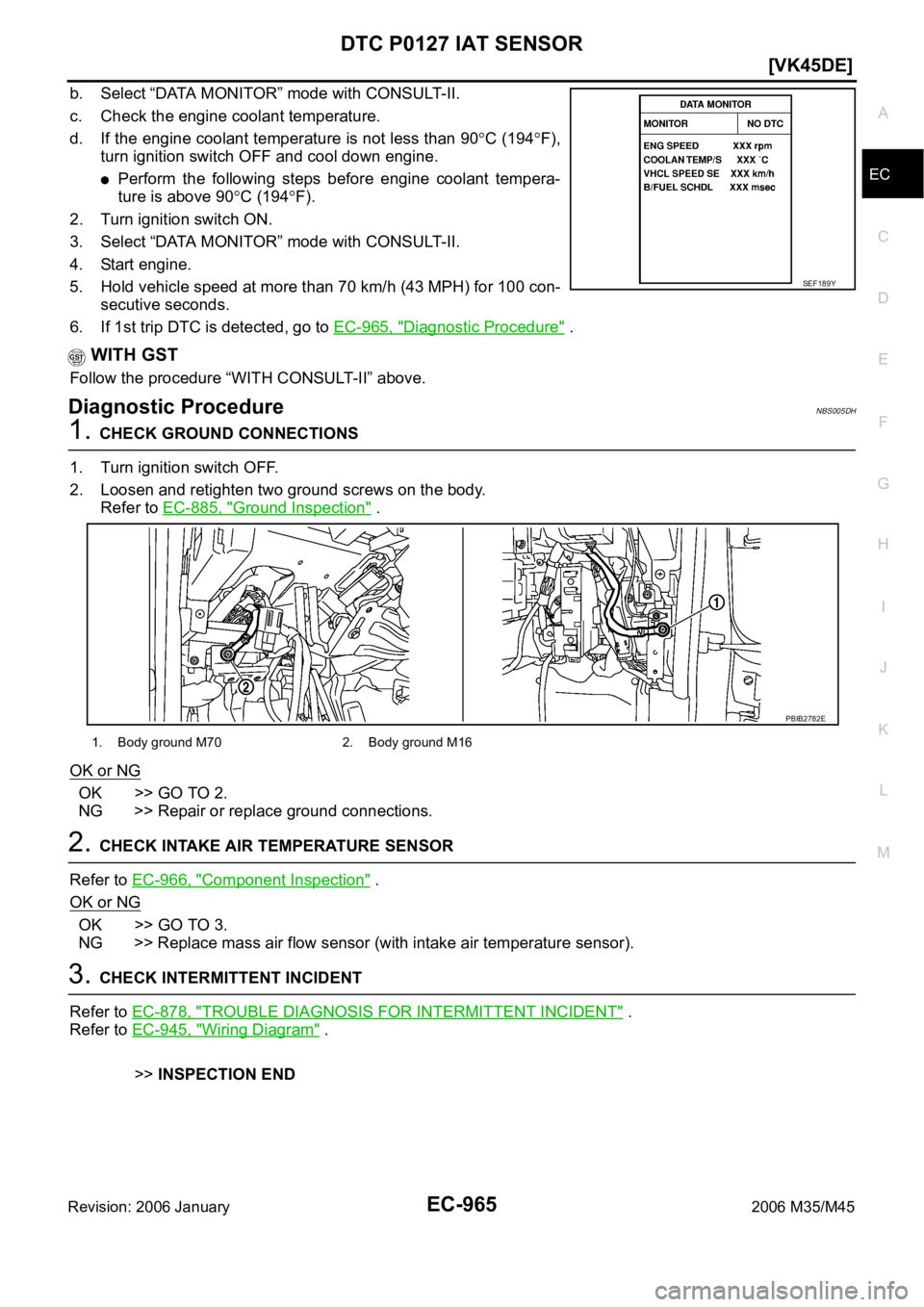

INFINITI M35 2006 Factory Service Manual EC-964
[VK45DE]
DTC P0127 IAT SENSOR
Revision: 2006 January2006 M35/M45
DTC P0127 IAT SENSORPFP:22630
Component DescriptionNBS005DE
The intake air temperature sensor is built-into mass air fl

Page 2508 of 5621

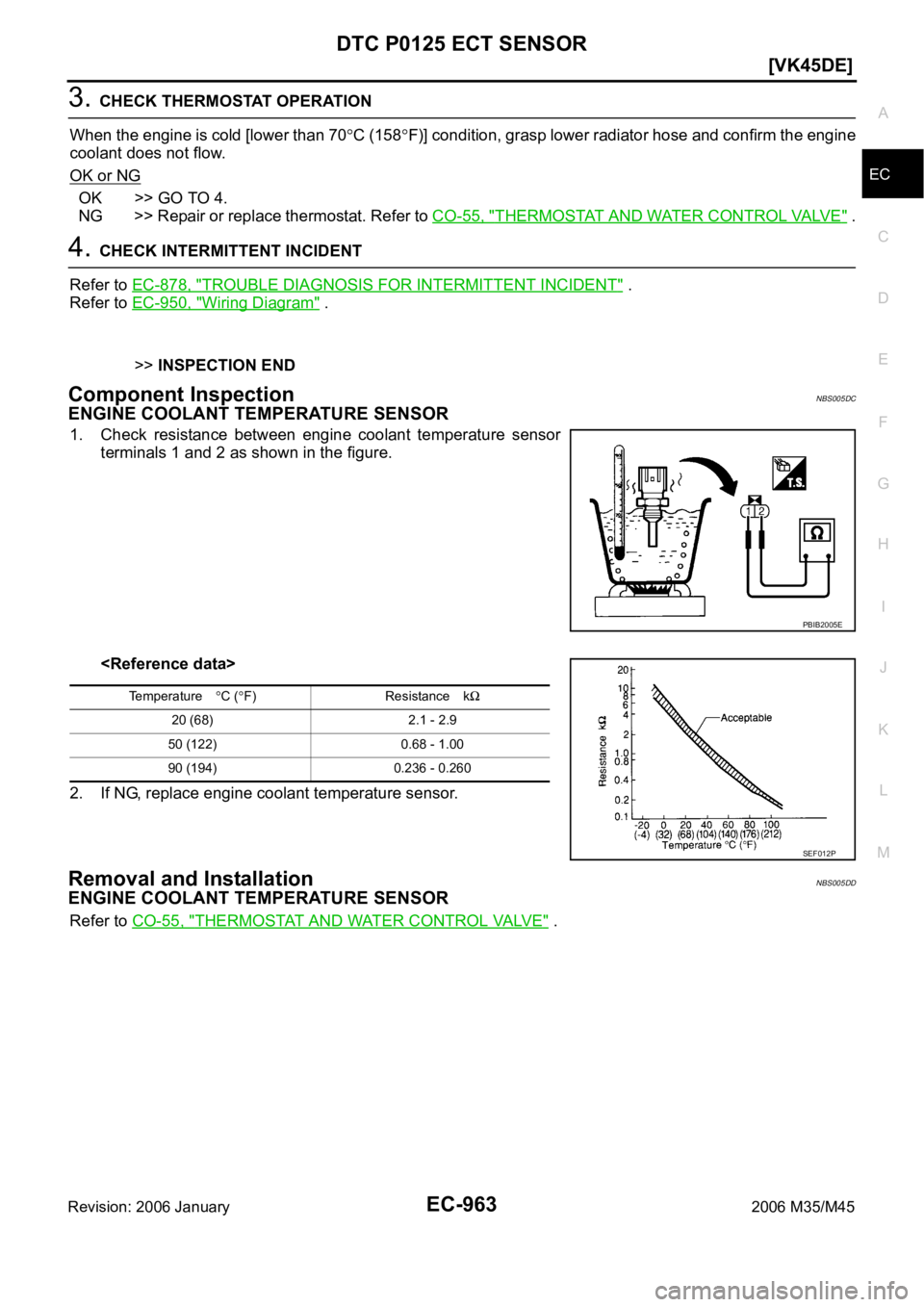

INFINITI M35 2006 Factory Service Manual DTC P0127 IAT SENSOR
EC-965
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
b. Select “DATA MONITOR” mode with CONSULT-II.
c. Check the engine coolant temperature.
d. If the

Page 2509 of 5621

INFINITI M35 2006 Factory Service Manual EC-966
[VK45DE]
DTC P0127 IAT SENSOR
Revision: 2006 January2006 M35/M45

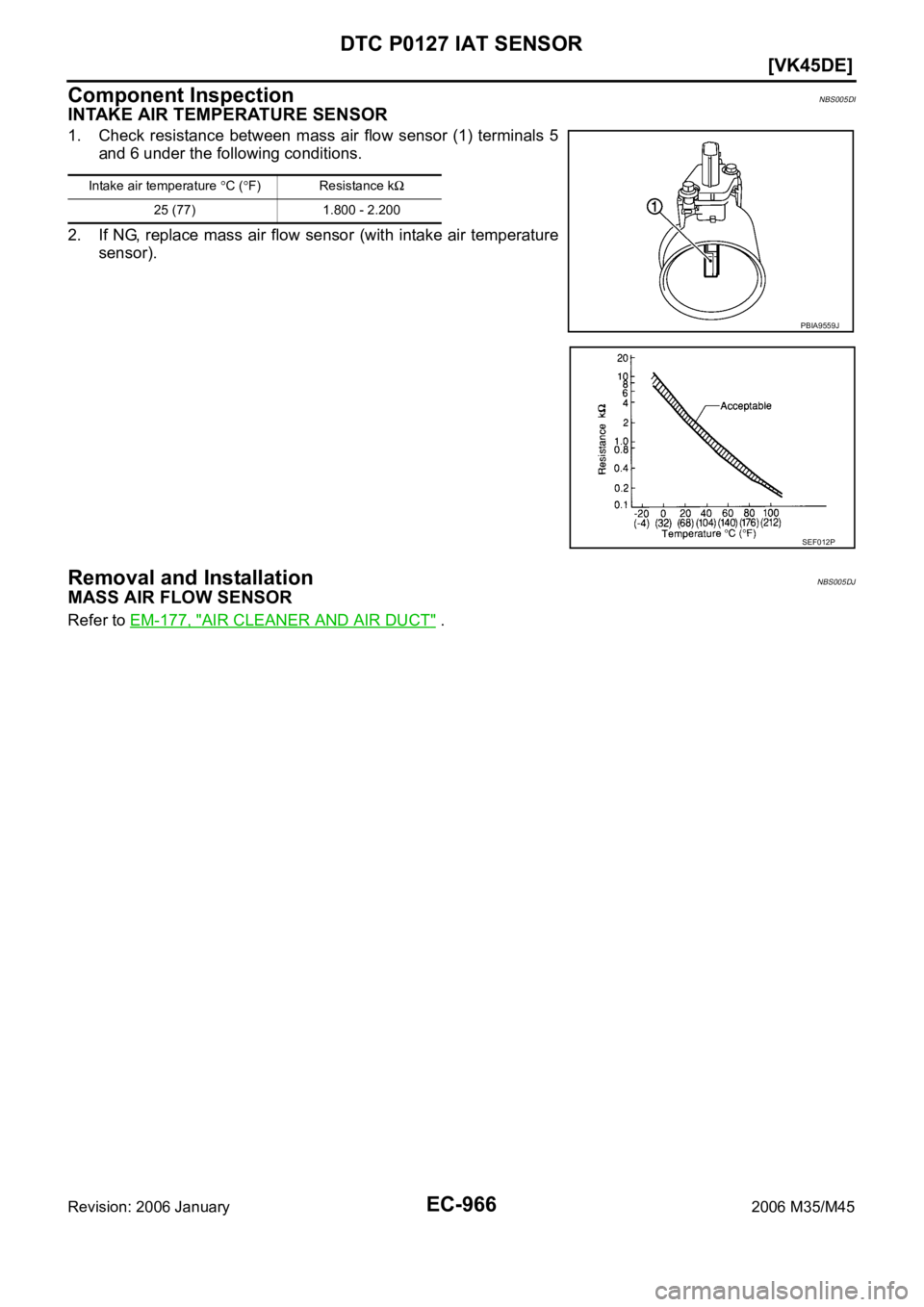

Component InspectionNBS005DI
INTAKE AIR TEMPERATURE SENSOR
1. Check resistance between mass air flow sensor (1) terminal

Page 2510 of 5621

INFINITI M35 2006 Factory Service Manual DTC P0128 THERMOSTAT FUNCTION
EC-967
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45

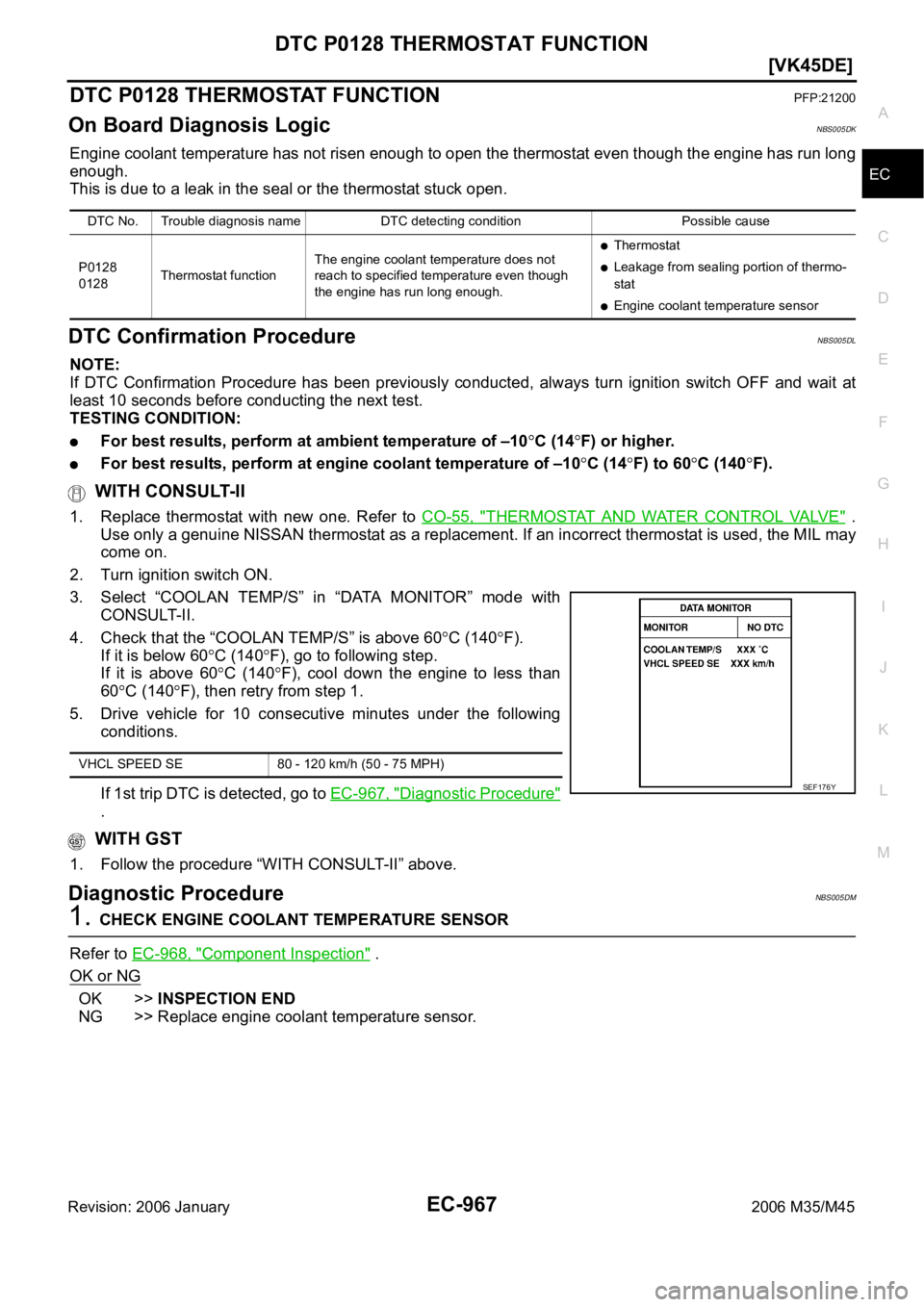

DTC P0128 THERMOSTAT FUNCTIONPFP:21200
On Board Diagnosis LogicNBS005DK
Engine coolant temper

DTC P0128 THERMOSTAT FUNCTION
EC-967
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
DTC P0128 THERMOSTAT FUNCTIONPFP:21200
On Board Diagnosis LogicNBS005DK
Engine coolant temperature has not risen enough to open the thermostat even though the engine has run long
enough.
This is due to a leak in the seal or the thermostat stuck open.
DTC Confirmation ProcedureNBS005DL
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
For best results, perform at ambient temperature of –10C (14F) or higher.
For best results, perform at engine coolant temperature of –10C (14F) to 60C (140F).
WITH CONSULT-II
1. Replace thermostat with new one. Refer to CO-55, "THERMOSTAT AND WATER CONTROL VALVE" .
Use only a genuine NISSAN thermostat as a replacement. If an incorrect thermostat is used, the MIL may
come on.
2. Turn ignition switch ON.
3. Select “COOLAN TEMP/S” in “DATA MONITOR” mode with
CONSULT-II.
4. Check that the “COOLAN TEMP/S” is above 60
C (140F).
If it is below 60
C (140F), go to following step.
If it is above 60
C (140F), cool down the engine to less than
60
C (140F), then retry from step 1.
5. Drive vehicle for 10 consecutive minutes under the following
conditions.
If 1st trip DTC is detected, go to EC-967, "
Diagnostic Procedure"
.
WITH GST
1. Follow the procedure “WITH CONSULT-II” above.
Diagnostic ProcedureNBS005DM
1. CHECK ENGINE COOLANT TEMPERATURE SENSOR
Refer to EC-968, "
Component Inspection" .
OK or NG
OK >>INSPECTION END
NG >> Replace engine coolant temperature sensor.
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0128
0128Thermostat functionThe engine coolant temperature does not
reach to specified temperature even though
the engine has run long enough.
Thermostat
Leakage from sealing portion of thermo-
stat
Engine coolant temperature sensor
VHCL SPEED SE 80 - 120 km/h (50 - 75 MPH)
SEF176Y

Page 2511 of 5621

INFINITI M35 2006 Factory Service Manual EC-968
[VK45DE]
DTC P0128 THERMOSTAT FUNCTION
Revision: 2006 January2006 M35/M45

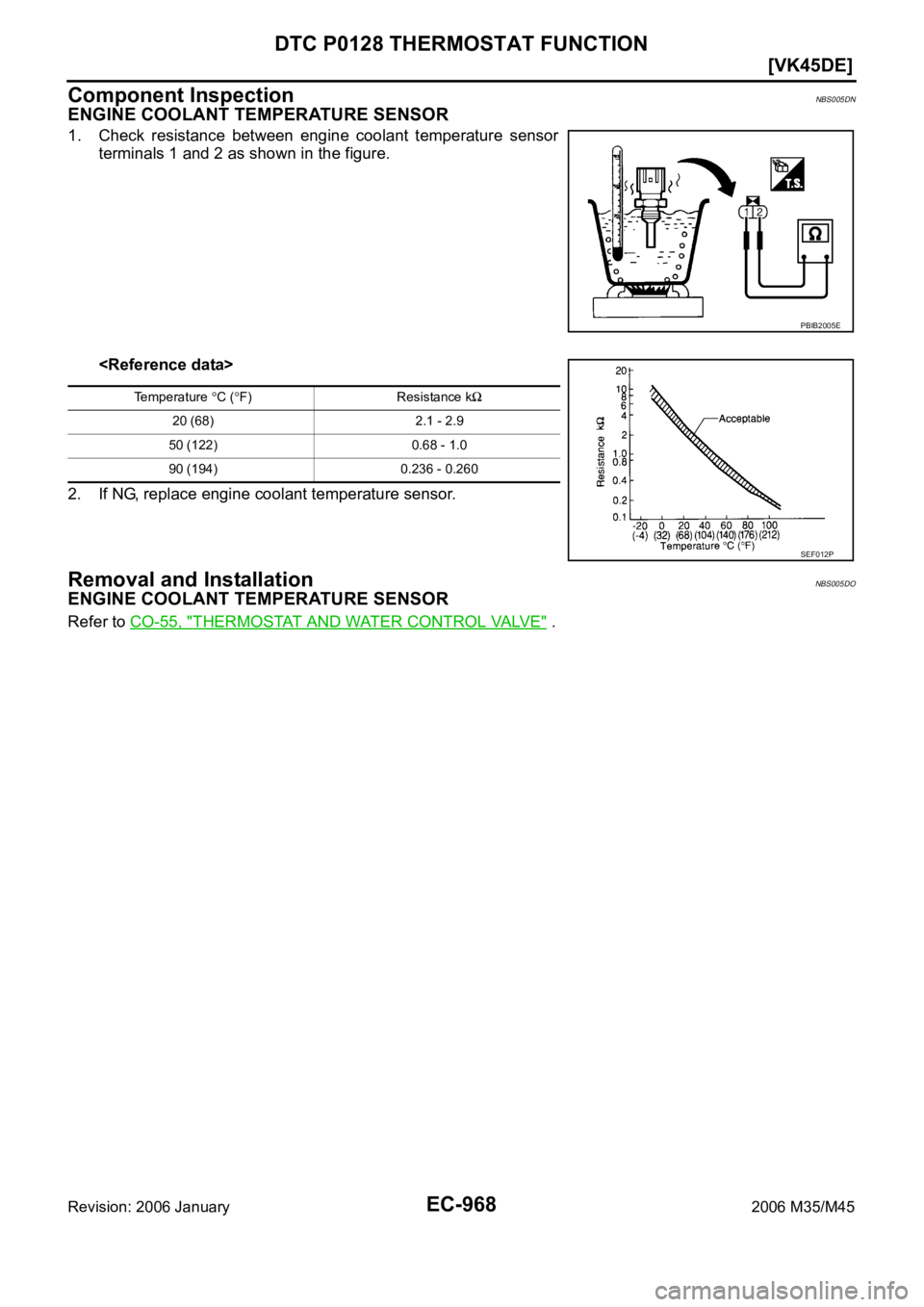

Component InspectionNBS005DN
ENGINE COOLANT TEMPERATURE SENSOR
1. Check resistance between engine coolant temperat

Page 2512 of 5621

INFINITI M35 2006 Factory Service Manual DTC P0130, P0150 A/F SENSOR 1
EC-969
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45

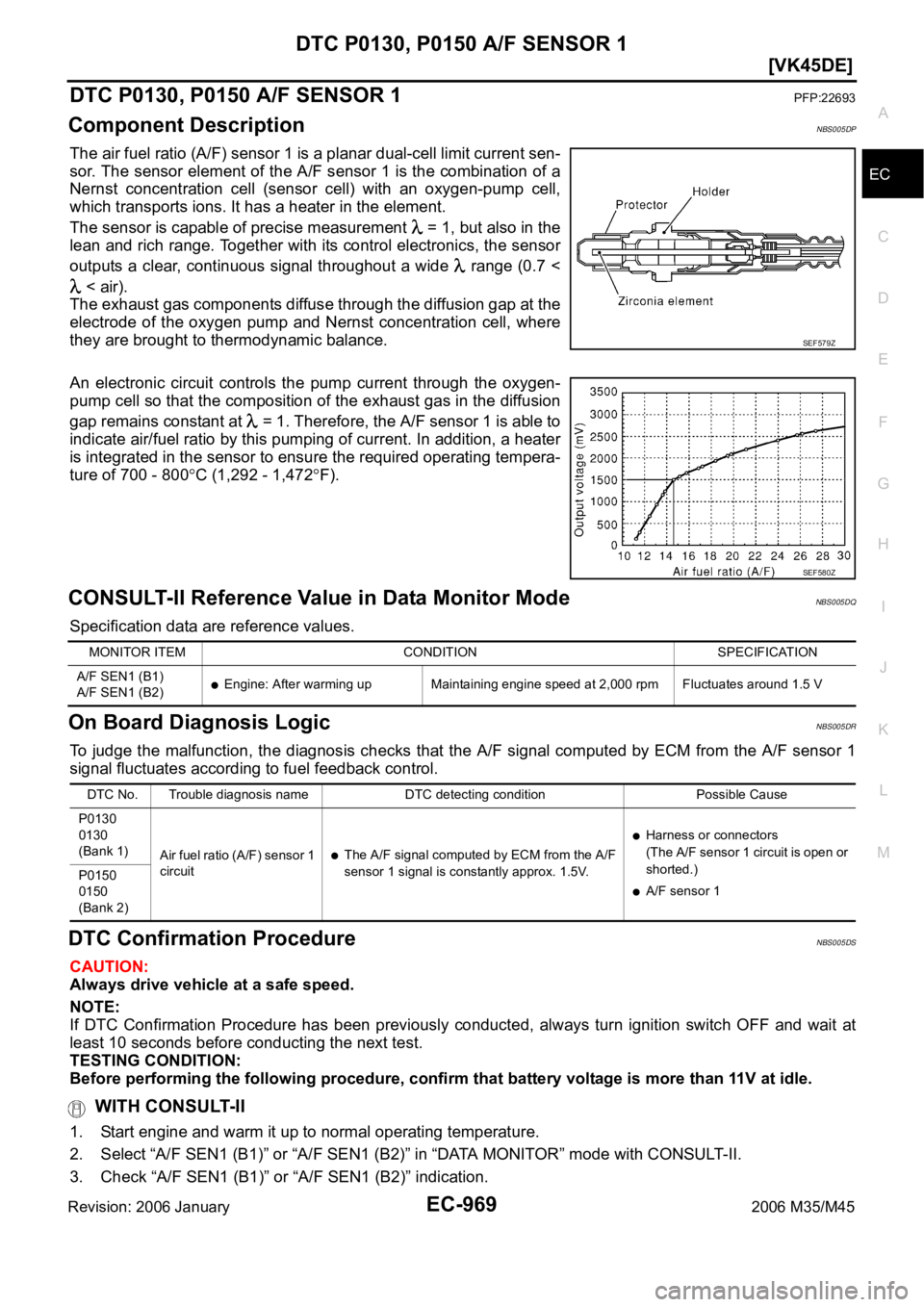

DTC P0130, P0150 A/F SENSOR 1PFP:22693
Component DescriptionNBS005DP
The air fuel ratio (A/F)

DTC P0130, P0150 A/F SENSOR 1
EC-969
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
DTC P0130, P0150 A/F SENSOR 1PFP:22693
Component DescriptionNBS005DP
The air fuel ratio (A/F) sensor 1 is a planar dual-cell limit current sen-
sor. The sensor element of the A/F sensor 1 is the combination of a
Nernst concentration cell (sensor cell) with an oxygen-pump cell,
which transports ions. It has a heater in the element.
The sensor is capable of precise measurement = 1, but also in the
lean and rich range. Together with its control electronics, the sensor
outputs a clear, continuous signal throughout a wide range (0.7 <
< air).
The exhaust gas components diffuse through the diffusion gap at the
electrode of the oxygen pump and Nernst concentration cell, where
they are brought to thermodynamic balance.
An electronic circuit controls the pump current through the oxygen-
pump cell so that the composition of the exhaust gas in the diffusion
gap remains constant at = 1. Therefore, the A/F sensor 1 is able to
indicate air/fuel ratio by this pumping of current. In addition, a heater
is integrated in the sensor to ensure the required operating tempera-
ture of 700 - 800
C (1,292 - 1,472F).
CONSULT-II Reference Value in Data Monitor ModeNBS005DQ
Specification data are reference values.
On Board Diagnosis LogicNBS005DR
To judge the malfunction, the diagnosis checks that the A/F signal computed by ECM from the A/F sensor 1
signal fluctuates according to fuel feedback control.
DTC Confirmation ProcedureNBS005DS
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 11V at idle.
WITH CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Select “A/F SEN1 (B1)” or “A/F SEN1 (B2)” in “DATA MONITOR” mode with CONSULT-II.
3. Check “A/F SEN1 (B1)” or “A/F SEN1 (B2)” indication.
SEF579Z
SEF580Z
MONITOR ITEM CONDITION SPECIFICATION
A/F SEN1 (B1)
A/F SEN1 (B2)
Engine: After warming up Maintaining engine speed at 2,000 rpm Fluctuates around 1.5 V
DTC No. Trouble diagnosis name DTC detecting condition Possible Cause
P0130
0130
(Bank 1)
Air fuel ra tio (A/F ) senso r 1
circuit
The A/F signal computed by ECM from the A/F
sensor 1 signal is constantly approx. 1.5V.
Harness or connectors
(The A/F sensor 1 circuit is open or
shorted.)
A/F sensor 1 P0150
0150
(Bank 2)
