2006 INFINITI M35 Factory Service Manual

wheelbase power steering oil change spark plugs replace fuel tank capacity tow bar

Load previous 8 pages

Page 2785 of 5621

INFINITI M35 2006 Factory Service Manual EC-1242
[VK45DE]
DTC P1217 ENGINE OVER TEMPERATURE
Revision: 2006 January2006 M35/M45

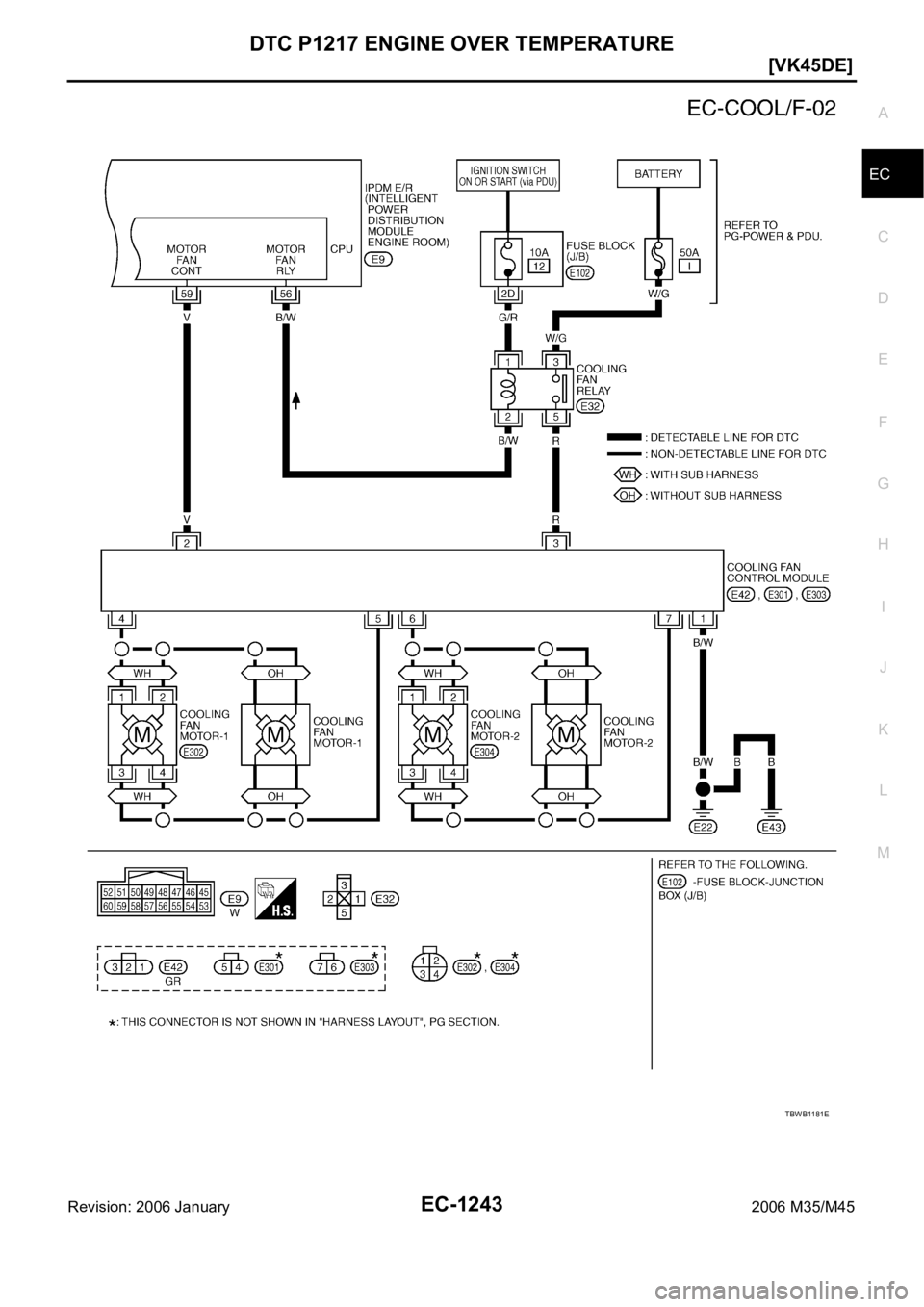

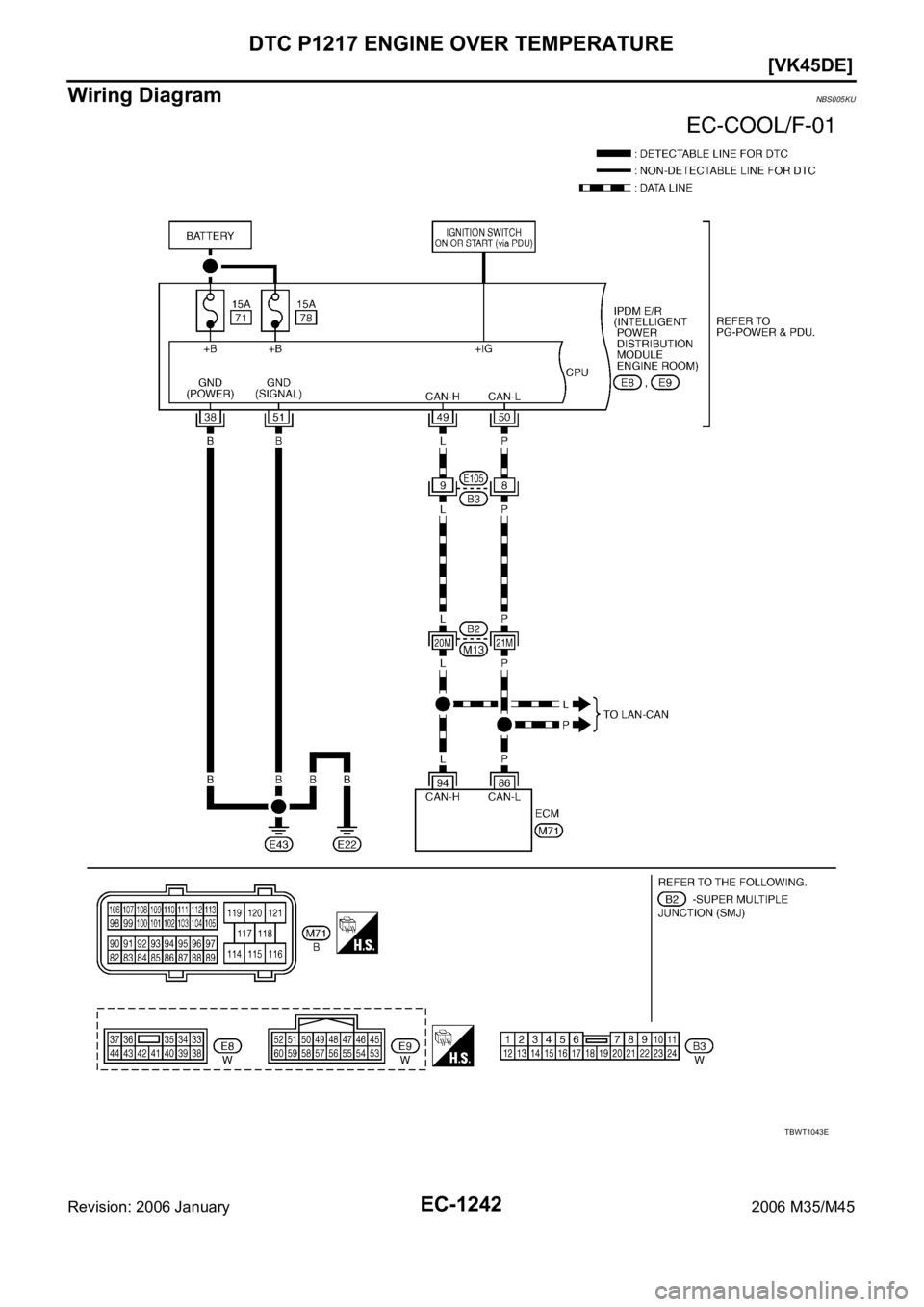

Wiring DiagramNBS005KU
TBWT1043E

Page 2786 of 5621

INFINITI M35 2006 Factory Service Manual DTC P1217 ENGINE OVER TEMPERATURE
EC-1243
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
TBWB1181E

Page 2787 of 5621

INFINITI M35 2006 Factory Service Manual EC-1244
[VK45DE]
DTC P1217 ENGINE OVER TEMPERATURE
Revision: 2006 January2006 M35/M45
Diagnostic ProcedureNBS005KV
1. CHECK COOLING FAN OPERATION
With CONSULT-II
1. Turn ignition switch ON.
2. Perfor

Page 2788 of 5621

INFINITI M35 2006 Factory Service Manual DTC P1217 ENGINE OVER TEMPERATURE
EC-1245
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
4. CHECK THERMOSTAT
Check the following.
Thermostat. (Refer to CO-55, "THERMOSTAT AN

Page 2789 of 5621

INFINITI M35 2006 Factory Service Manual EC-1246
[VK45DE]
DTC P1217 ENGINE OVER TEMPERATURE
Revision: 2006 January2006 M35/M45
8. CHECK IPDM E/R GROUND CIRCUIT
1. Disconnect IPDM E/R harness connector E8, E9.
2. Check harness continuity betw

Page 2790 of 5621

INFINITI M35 2006 Factory Service Manual DTC P1217 ENGINE OVER TEMPERATURE
EC-1247
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
11 . CHECK COOLING FAN MOTOR CIRCUIT-I
1. Turn ignition switch OFF.
2. Disconnect cooli

DTC P1217 ENGINE OVER TEMPERATURE
EC-1247
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
11 . CHECK COOLING FAN MOTOR CIRCUIT-I
1. Turn ignition switch OFF.
2. Disconnect cooling fan control module harness connectors E301, E303.
3. Check harness continuity between the following;
Cooling fan motor-1 terminal 1, 2 and cooling fan control module terminal 4,
Cooling fan motor-1 terminal 3, 4 and cooling fan control module terminal 5,
Cooling fan motor-2 terminal 1, 2 and cooling fan control module terminal 6,
Cooling fan motor-2 terminal 3, 4 and cooling fan control module terminal 7.
Refer to wiring diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> Replace cooling fan control module.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
12. CHECK COOLING FAN MOTOR CIRCUIT-II
1. Turn ignition switch OFF.
2. Disconnect cooling fan control module harness connectors E301, E303.
3. Check harness continuity between the following;
Cooling fan motor-1 terminal 1, 2 and cooling fan control module terminal 4,
Cooling fan motor-1 terminal 3, 4 and cooling fan control module terminal 5,
Cooling fan motor-2 terminal 1, 2 and cooling fan control module terminal 6,
Cooling fan motor-2 terminal 3, 4 and cooling fan control module terminal 7.
Refer to wiring diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 14.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
13. CHECK COOLING FAN CONTROL MODULE OUTPUT SIGNAL CIRCUIT
1. Reconnect all harness connectors disconnected.
2. Disconnect cooling fan control module harness connectors E301, E303.
3. Turn ignition switch ON.
4. Check voltage between cooling fan control module terminals 4,
6 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 14.
NG >> Replace cooling fan control module.
14. CHECK COOLING FAN MOTORS -1 AND -2
Refer to EC-1249, "
Component Inspection" .
OK or NG
OK >> GO TO 19.
NG >> Replace cooling fan motor.Continuity should exist.
Continuity should exist.
Voltage: Battery voltage
PBID0261J

Page 2791 of 5621

INFINITI M35 2006 Factory Service Manual EC-1248
[VK45DE]
DTC P1217 ENGINE OVER TEMPERATURE
Revision: 2006 January2006 M35/M45
15. CHECK COOLING FAN CONTROL MODULE POWER SUPPLY CIRCUIT-II
1. Turn ignition switch OFF.
2. Disconnect cooling fa

Page 2792 of 5621

INFINITI M35 2006 Factory Service Manual DTC P1217 ENGINE OVER TEMPERATURE
EC-1249
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
19. CHECK INTERMITTENT INCIDENT
Perform EC-878, "
TROUBLE DIAGNOSIS FOR INTERMITTENT

DTC P1217 ENGINE OVER TEMPERATURE
EC-1249
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
19. CHECK INTERMITTENT INCIDENT
Perform EC-878, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
OK or NG
OK >> Replace IPDM E/R. Refer to PG-18, "IPDM E/R (INTELLIGENT POWER DISTRIBUTION MOD-
ULE ENGINE ROOM)" .
NG >> Repair or replace harness connectors.
Main 13 Causes of OverheatingNBS005KW
*1: Turn the ignition switch ON.
*2: Engine running at 3,000 rpm for 10 minutes.
*3: Drive at 90 km/h (55 MPH) for 30 minutes and then let idle for 10 minutes.
*4: After 60 minutes of cool down time.
For more information, refer to CO-36, "
OVERHEATING CAUSE ANALYSIS" .
Component InspectionNBS005KX
COOLING FAN MOTORS -1 AND -2
Models With Sub Harneess
1. Disconnect cooling fan motor harness connector.
Engine Step Inspection item Equipment Standard Reference page
OFF 1
Blocked radiator
Blocked condenser
Blocked radiator grille
Blocked bumper
Visual No blocking —
2
Coolant mixtureCoolant tester 50 - 50% coolant mixtureMA-13
3Coolant levelVisual Coolant up to MAX level
in reservoir tank and radi-
ator filler neckCO-40
4Radiator capPressure tester 59 - 98 kPa
(0.6 - 1.0 kg/cm2 , 9 - 14
psi) (Limit)CO-45
ON*25Coolant leaksVisual No leaksCO-40
ON*26ThermostatTouch the upper and
lower radiator hosesBoth hoses should be hotCO-55
ON*17Cooling fanCONSULT-II Operating See trouble diagnosis for
DTC P1217 (EC-1239
).
OFF 8
Combustion gas leakColor checker chemical
tester 4 Gas analyzerNegative —
ON*
39Coolant temperature
gaugeVisual Gauge less than 3/4
when driving—
Coolant overflow to
reservoir tankVisual No overflow during driving
and idlingCO-40
OFF*410Coolant return from
reservoir tank to radia-
torVisual Should be initial level in
reservoir tankCO-40
OFF 11Water control valveRemove and inspect
the valveWithin the specified valueCO-55
OFF 12Cylinder headStraight gauge feeler
gauge0.1 mm (0.004 in) Maxi-
mum distortion (warping)EM-233
13Cylinder block and pis-
tonsVisual No scuffing on cylinder
walls or pistonEM-249
