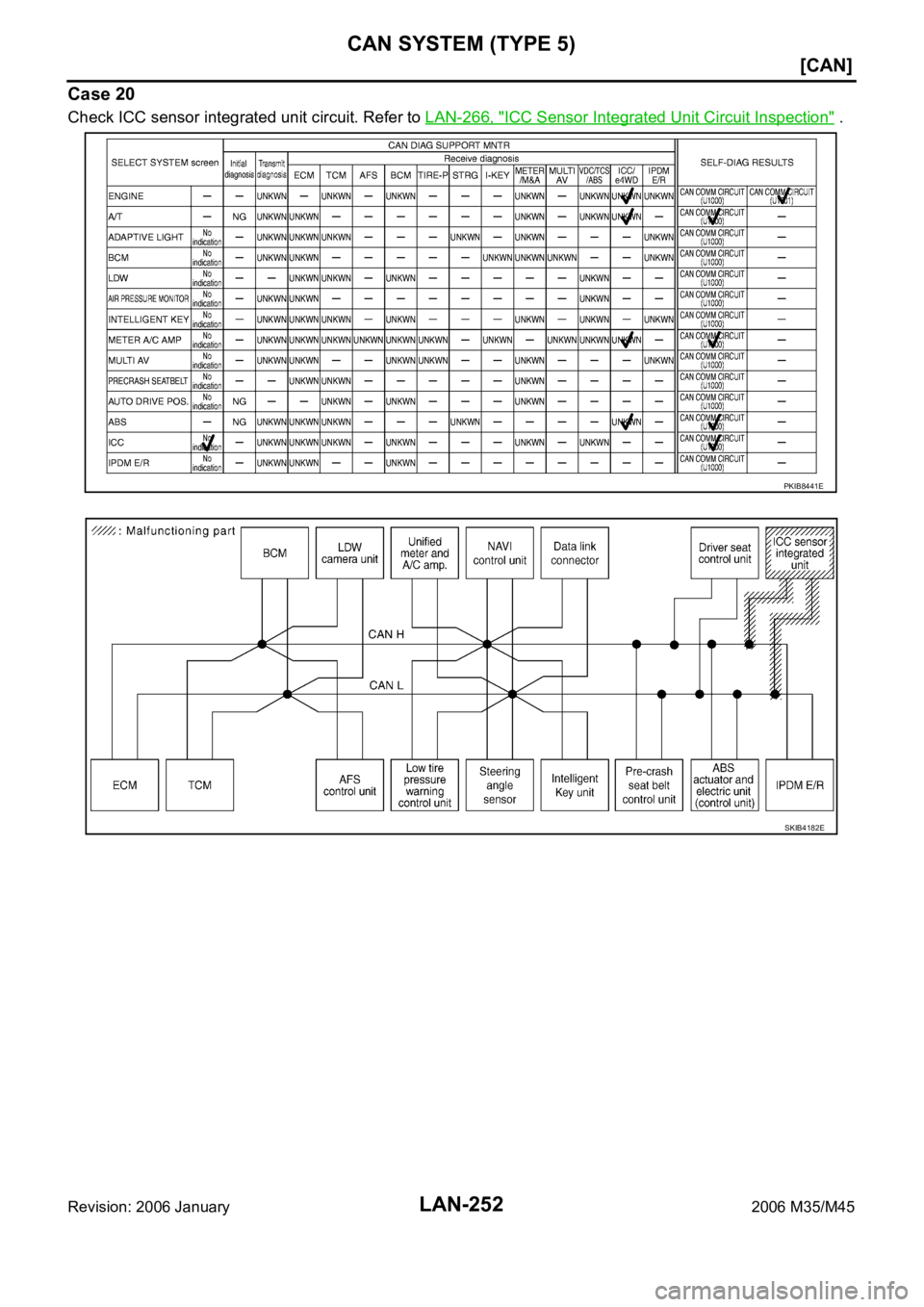

Page 3921 of 5621

INFINITI M35 2006 Factory Service Manual LAN-252 [CAN] CAN SYSTEM (TYPE 5) Revision: 2006 January2006 M35/M45 Case 20 Check ICC sensor integrated unit circuit. Refer to LAN-266, "ICC Sensor Integrated Unit Circuit Inspection" . PKIB8

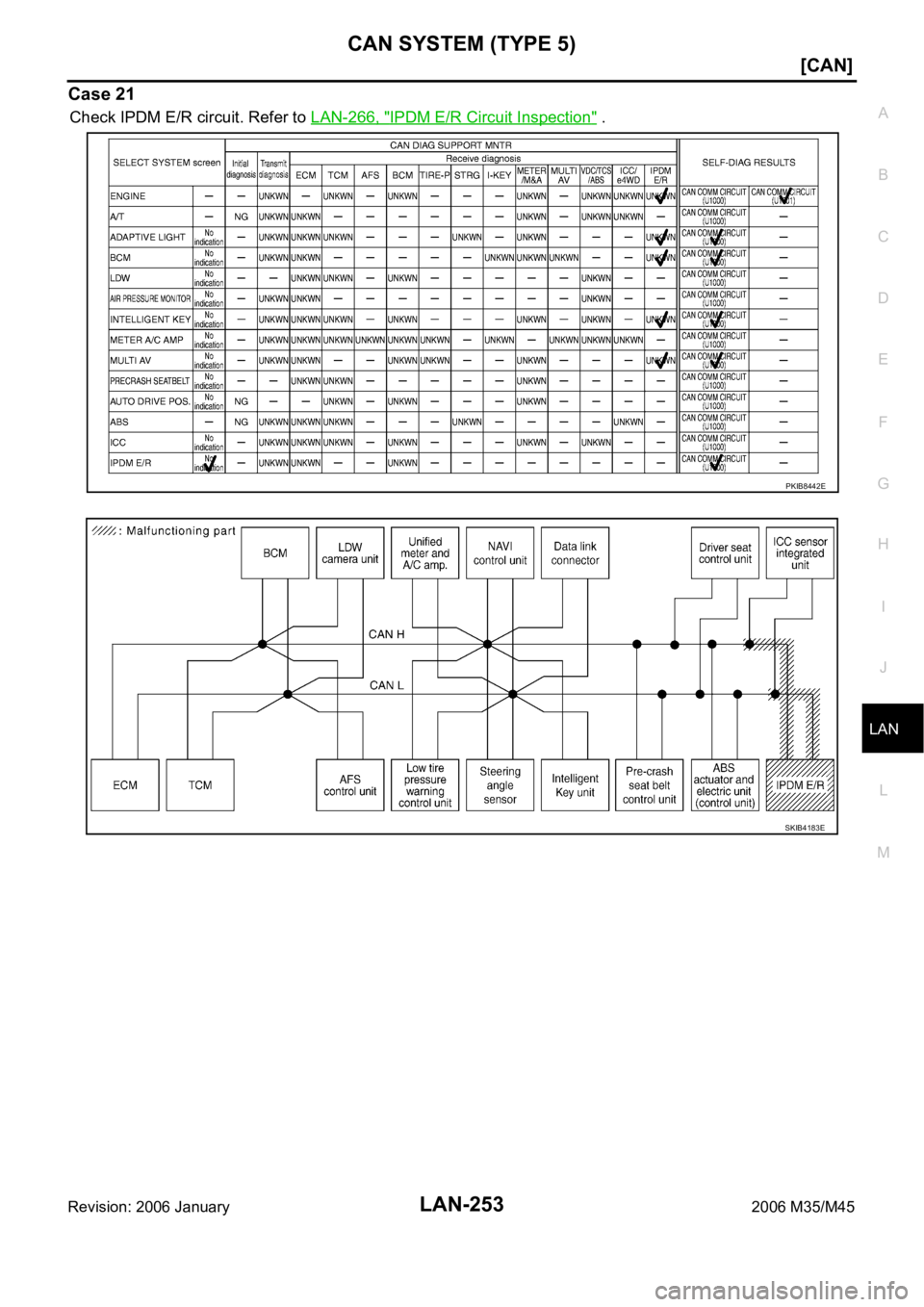

Page 3922 of 5621

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 5) LAN-253 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 Case 21 Check IPDM E/R circuit. Refer to LAN-266, "IPDM E/R Circuit Inspection" . PKIB8442E SKIB

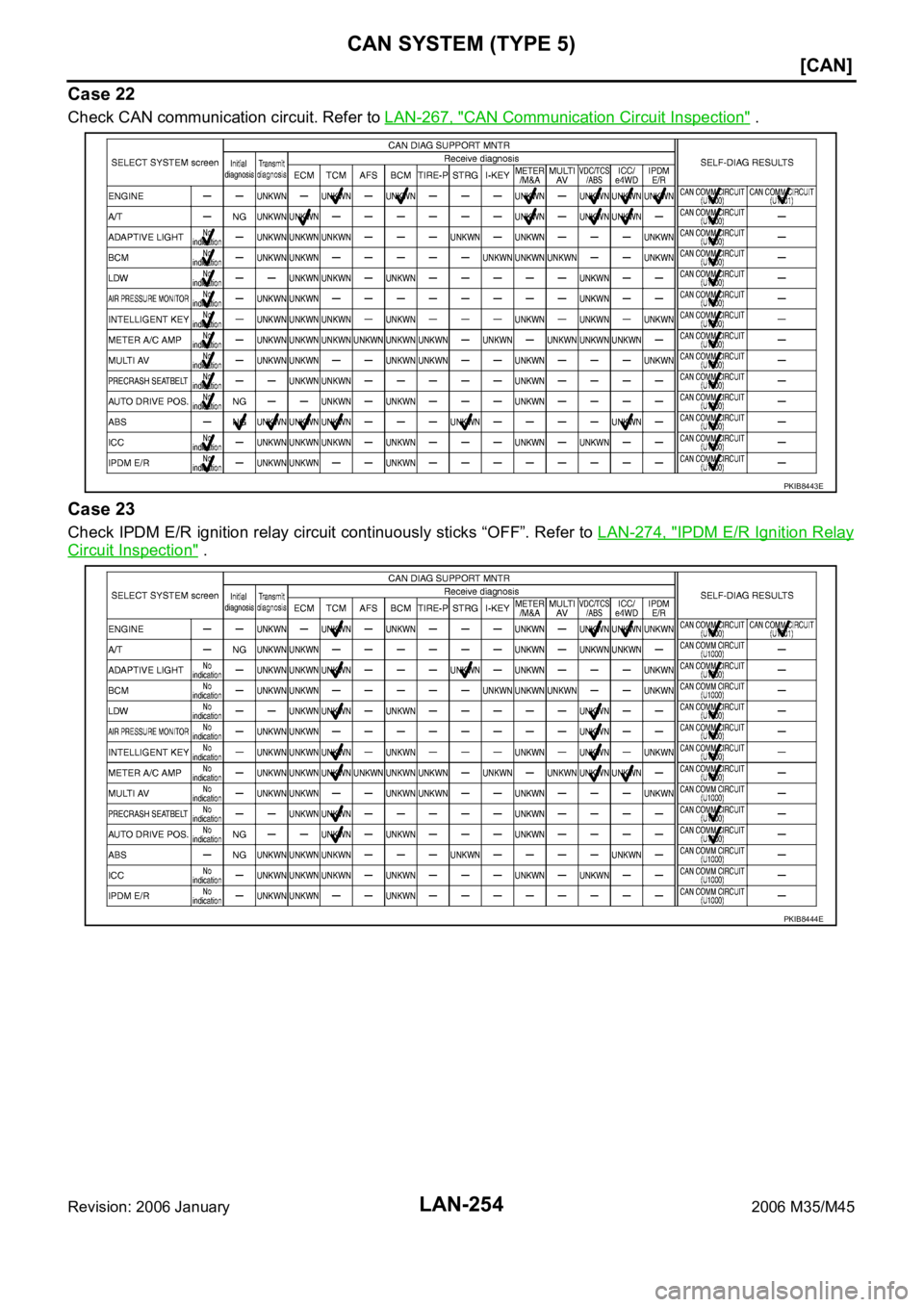

Page 3923 of 5621

INFINITI M35 2006 Factory Service Manual LAN-254 [CAN] CAN SYSTEM (TYPE 5) Revision: 2006 January2006 M35/M45 Case 22 Check CAN communication circuit. Refer to LAN-267, "CAN Communication Circuit Inspection" . Case 23 Check IPDM E/R

Page 3924 of 5621

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 5) LAN-255 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 Case 24 Check IPDM E/R ignition relay circuit continuously sticks “ON”. Refer to LAN-274,

Page 3925 of 5621

INFINITI M35 2006 Factory Service Manual LAN-256 [CAN] CAN SYSTEM (TYPE 5) Revision: 2006 January2006 M35/M45 3. CHECK HARNESS FOR OPEN CIRCUIT Check continuity between harness connector (A) and data link con- nector (B). OK or NG O

Page 3926 of 5621

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 5) LAN-257 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 3. CHECK HARNESS FOR OPEN CIRCUIT 1. Disconnect pre-crash seat belt control unit connector. 2. Check con

Page 3927 of 5621

INFINITI M35 2006 Factory Service Manual LAN-258 [CAN] CAN SYSTEM (TYPE 5) Revision: 2006 January2006 M35/M45 2. CHECK HARNESS FOR OPEN CIRCUIT 1. Disconnect harness connector B15 and harness connector B3. 2. Check continuity between harn

Page 3928 of 5621

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 5) LAN-259 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 ECM Circuit InspectionNKS0040O 1. CHECK CONNECTOR 1. Turn ignition switch OFF. 2. Disconnect the battery
