Page 3329 of 5621

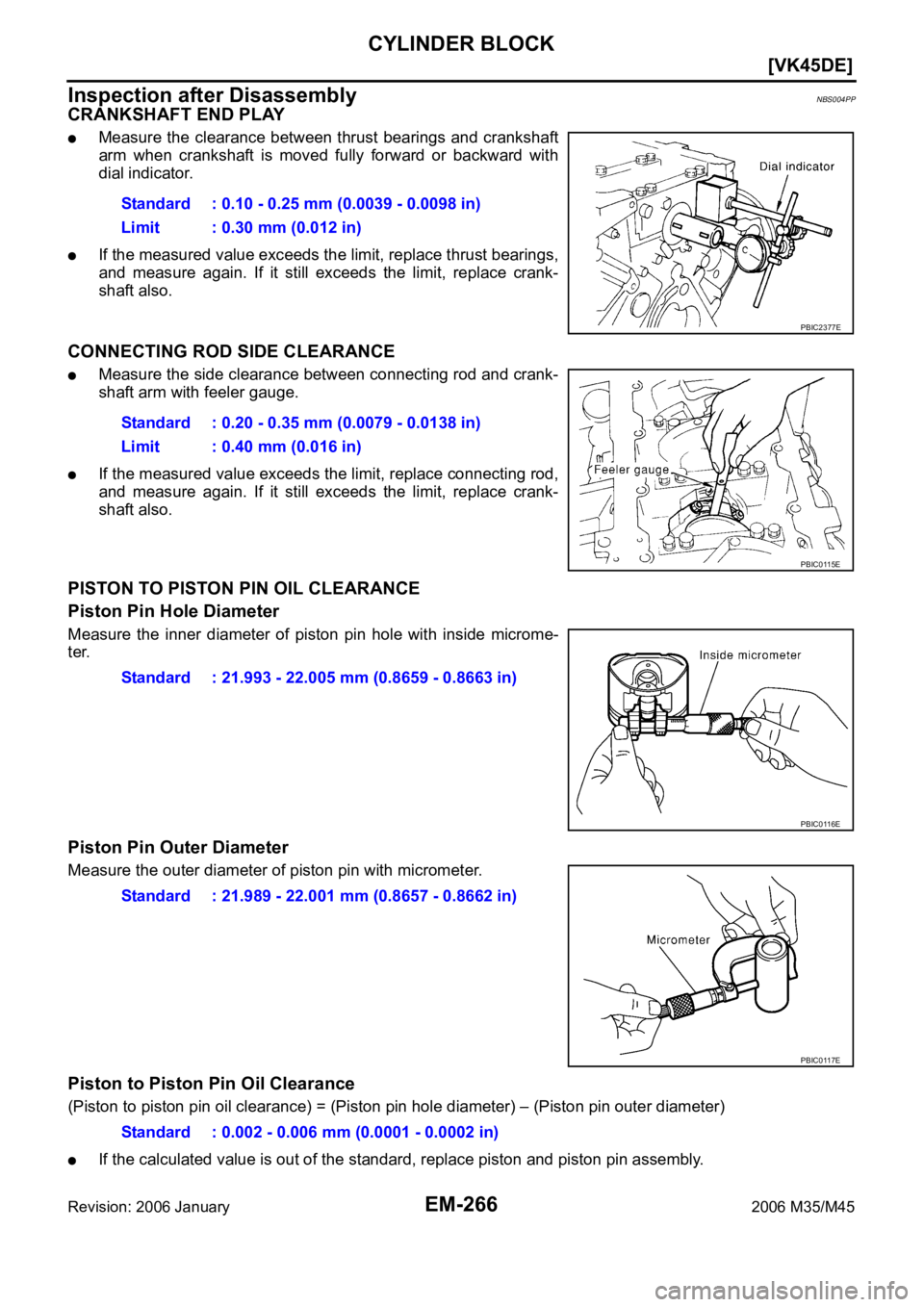

INFINITI M35 2006 Factory Service Manual EM-266 [VK45DE] CYLINDER BLOCK Revision: 2006 January2006 M35/M45 Inspection after DisassemblyNBS004PP CRANKSHAFT END PLAY Measure the clearance between thrust bearings and crankshaft arm when cranksh

Page 3330 of 5621

INFINITI M35 2006 Factory Service Manual CYLINDER BLOCK EM-267 [VK45DE] C D E F G H I J K L MA EM Revision: 2006 January2006 M35/M45 When replacing piston and piston pin assembly, refer to EM-260, "HOW TO SELECT PISTON" . NOTE: Pisto

Page 3331 of 5621

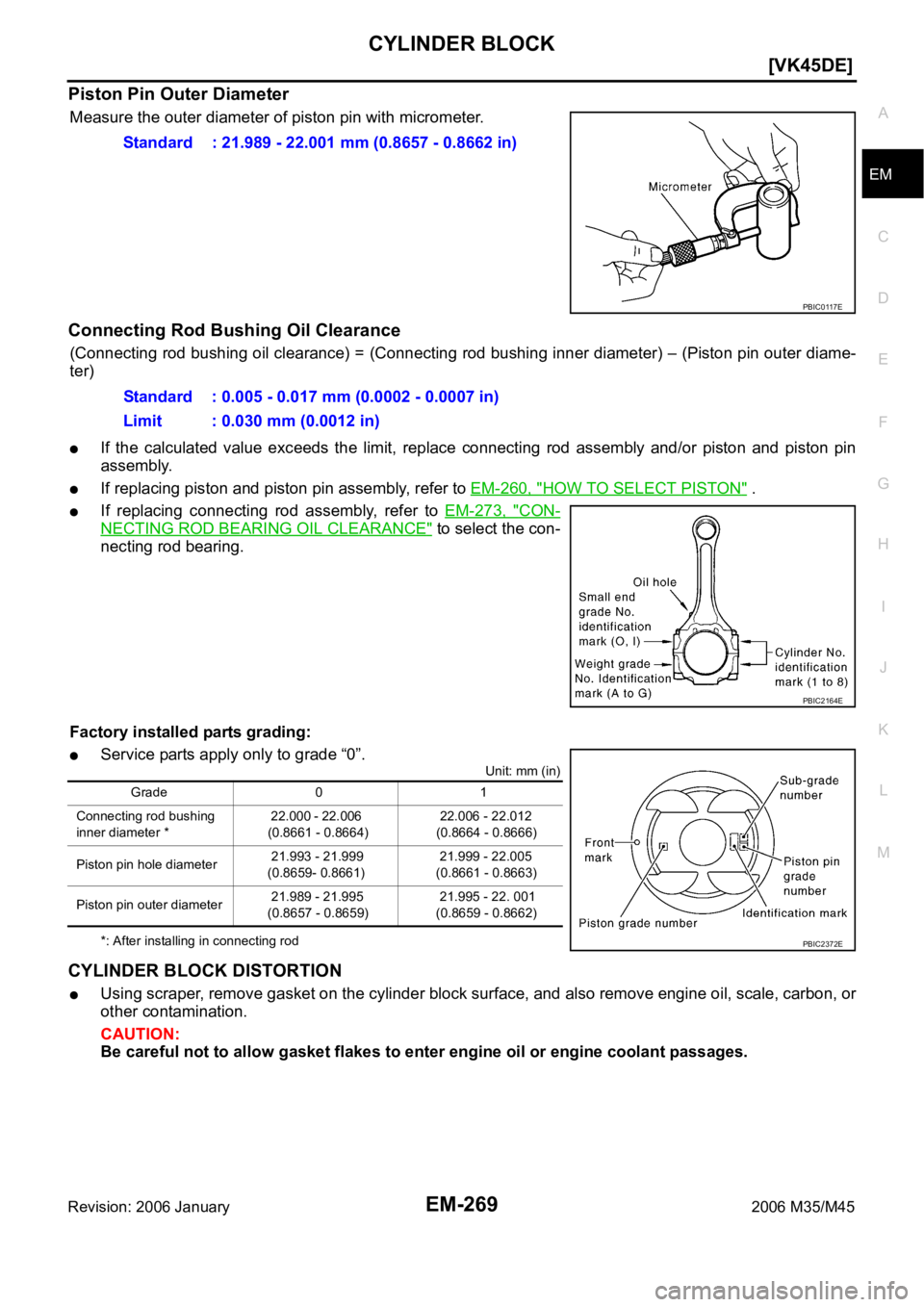

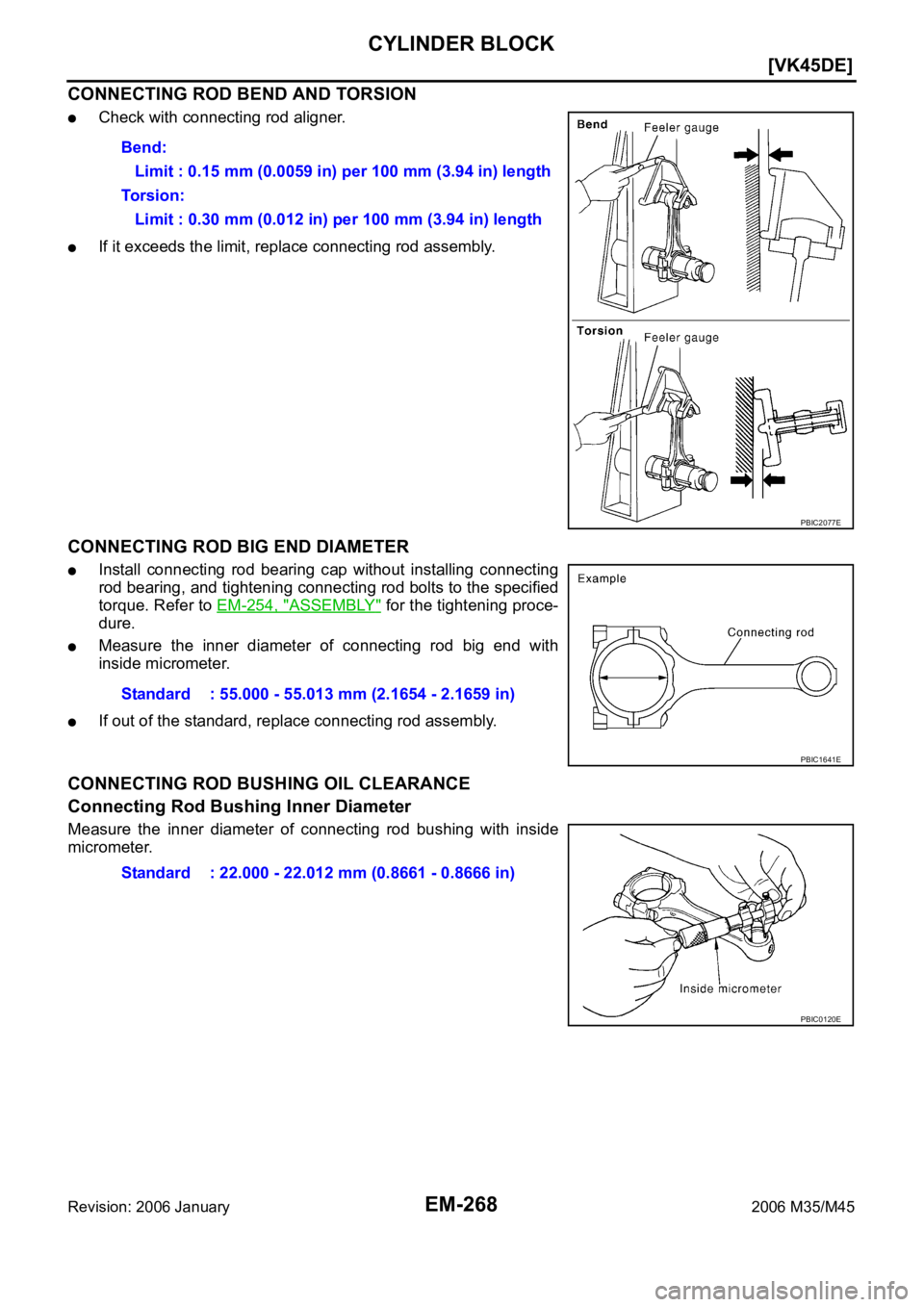

INFINITI M35 2006 Factory Service Manual EM-268 [VK45DE] CYLINDER BLOCK Revision: 2006 January2006 M35/M45 CONNECTING ROD BEND AND TORSION Check with connecting rod aligner. If it exceeds the limit, replace connecting rod assembly. CONNECTIN

Page 3332 of 5621

INFINITI M35 2006 Factory Service Manual CYLINDER BLOCK EM-269 [VK45DE] C D E F G H I J K L MA EM Revision: 2006 January2006 M35/M45 Piston Pin Outer Diameter Measure the outer diameter of piston pin with micrometer. Connecting Rod Bushing O

Page 3333 of 5621

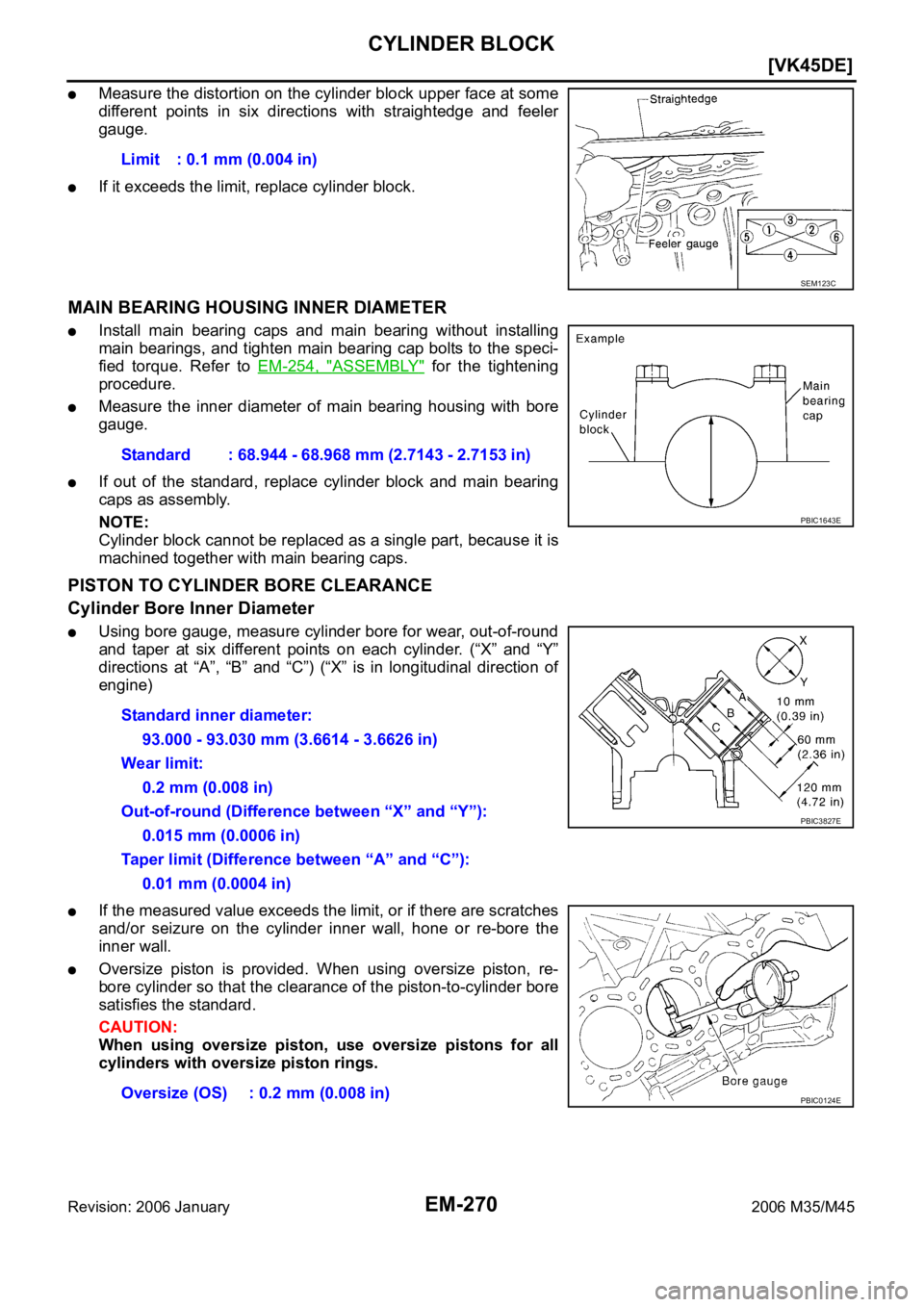

INFINITI M35 2006 Factory Service Manual EM-270 [VK45DE] CYLINDER BLOCK Revision: 2006 January2006 M35/M45 Measure the distortion on the cylinder block upper face at some different points in six directions with straightedge and feele

Page 3334 of 5621

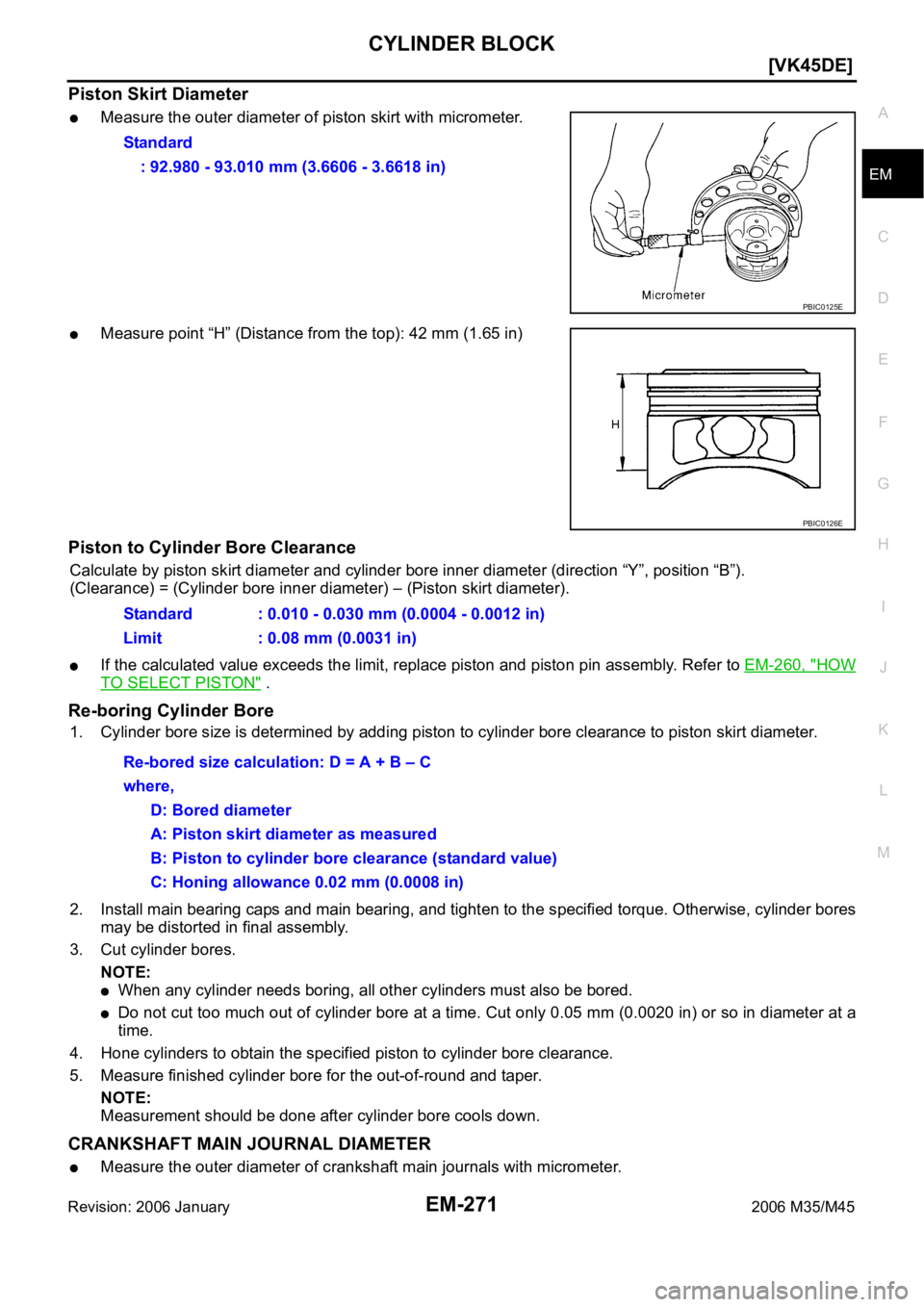

INFINITI M35 2006 Factory Service Manual CYLINDER BLOCK EM-271 [VK45DE] C D E F G H I J K L MA EM Revision: 2006 January2006 M35/M45 Piston Skirt Diameter Measure the outer diameter of piston skirt with micrometer. Measure point “H” (Dis

Page 3335 of 5621

INFINITI M35 2006 Factory Service Manual EM-272 [VK45DE] CYLINDER BLOCK Revision: 2006 January2006 M35/M45 If out of the standard, measure the main bearing oil clearance. Then use undersize bearing. Refer to EM- 274, "MAIN BEARING OIL CL

Page 3336 of 5621

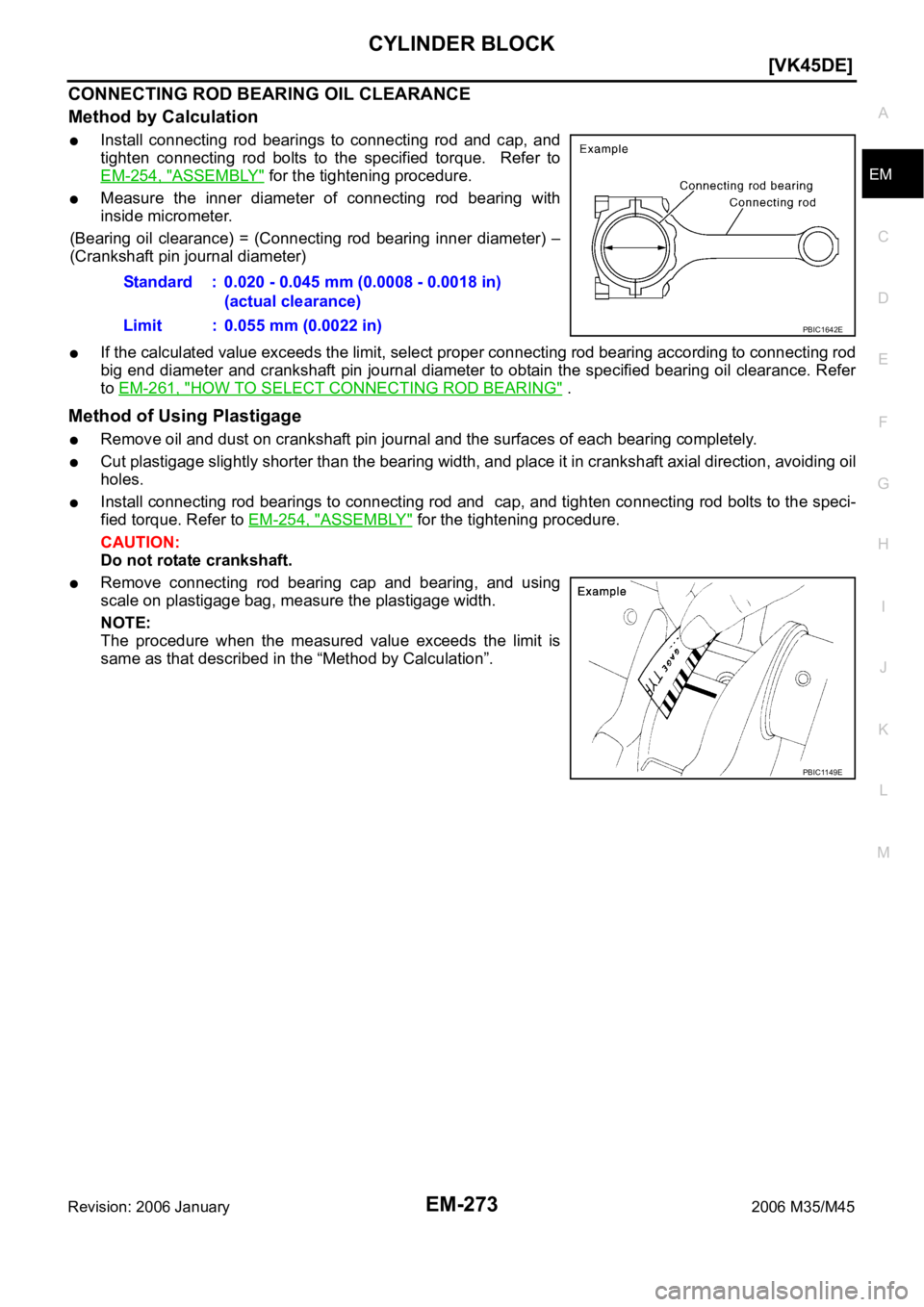

INFINITI M35 2006 Factory Service Manual CYLINDER BLOCK EM-273 [VK45DE] C D E F G H I J K L MA EM Revision: 2006 January2006 M35/M45 CONNECTING ROD BEARING OIL CLEARANCE Method by Calculation Install connecting rod bearings to connectin
