Page 3265 of 5621
EM-202
[VK45DE]
ROCKER COVER
Revision: 2006 January2006 M35/M45
4. Tighten mounting bolts in two steps separately in numerical
order as shown in the figure.
CAUTION:
Do not hold oil filler neck (right bank) so as not to dam-
age it.
Do not bend or damage brake piping by tools. (ICC mod-
els)
NOTE:
Tighten No. 10 bolt of the right bank and No. 10 and 12 bolts of
the left bank from cowl top panel hole with using tool.
5. Install oil filler cap and oil catcher to rocker cover (right bank), if removed.
6. Install new O-rings and PCV valves to rocker covers (right and left bank), if removed.
7. Install in the reverse order of removal. 1st step : 2.0 Nꞏm (0.2 kg-m, 18 in-lb)
2nd step : 8.3 Nꞏm (0.85 kg-m, 73 in-lb)
PBIC0027E
Page 3266 of 5621
TIMING CHAIN
EM-203
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45

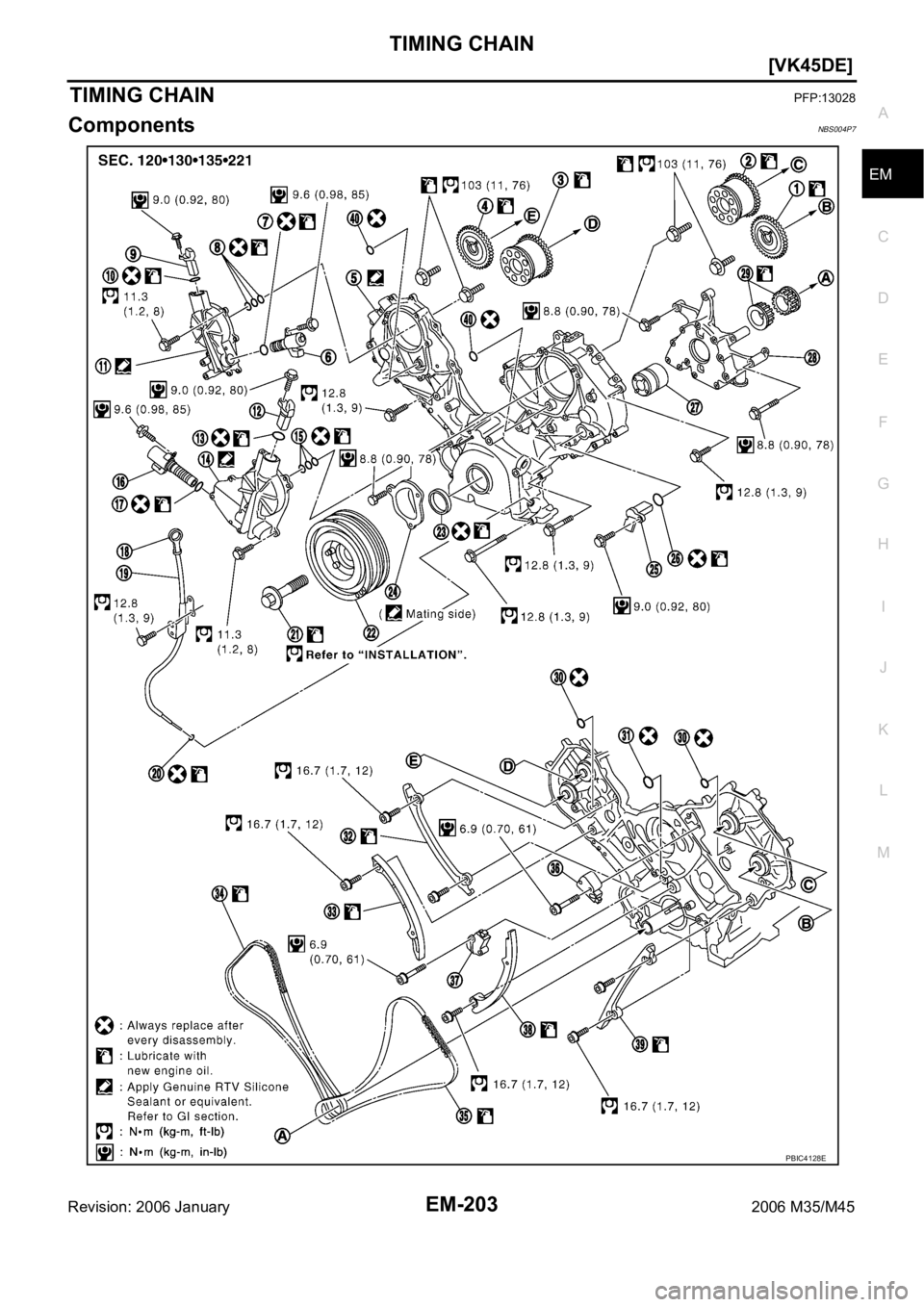

TIMING CHAINPFP:13028
ComponentsNBS004P7
PBIC4128E
Page 3267 of 5621
![INFINITI M35 2006 Factory Service Manual EM-204
[VK45DE]
TIMING CHAIN
Revision: 2006 January2006 M35/M45
Removal and InstallationNBS004P8
REMOVAL
1. Remove engine assembly from vehicle. Refer to EM-244, "ENGINE ASSEMBLY" .
2. Remove INFINITI M35 2006 Factory Service Manual EM-204
[VK45DE]
TIMING CHAIN
Revision: 2006 January2006 M35/M45
Removal and InstallationNBS004P8
REMOVAL
1. Remove engine assembly from vehicle. Refer to EM-244, "ENGINE ASSEMBLY" .
2. Remove](/manual-img/42/57023/w960_57023-3266.png)
EM-204
[VK45DE]
TIMING CHAIN
Revision: 2006 January2006 M35/M45
Removal and InstallationNBS004P8
REMOVAL
1. Remove engine assembly from vehicle. Refer to EM-244, "ENGINE ASSEMBLY" .
2. Remove the following components and related parts:
Drive belt auto tensioner and idler pulley; Refer to EM-176, "Drive Belt Auto Tensioner and Idler Pulley"
.
Thermostat housing and hoses; Refer to CO-55, "THERMOSTAT AND WATER CONTROL VALVE" .
Ignition coil; Refer to EM-190, "IGNITION COIL" .
Rocker cover; Refer to EM-199, "ROCKER COVER" .
3. If necessary, remove intake valve timing control position sensor
(right and left bank) and camshaft position sensor (PHASE) from
intake valve timing control cover and front cover.
CAUTION:
Handle carefully to avoid dropping and shocks.
Do not disassemble.
4. If necessary, remove intake valve timing control solenoid valve from intake valve timing control cover.
CAUTION:
Handle components and parts carefully to avoid dropping and shocks.
Do not disassemble.
Do not allow metal powder to adhere to magnetic part at sensor tip.
Do not place sensors in a location where they are exposed to magnetism.
1. Camshaft sprocket (EXH) 2. Camshaft sprocket (INT) 3. Camshaft sprocket (INT)
4. Camshaft sprocket (EXH) 5. Front cover 6.Intake valve timing control solenoid
valve (right bank)
7. O-ring 8. Seal ring 9.Intake valve timing control position
sensor (right bank)
10. O-ring 11.Intake valve timing control cover
(right bank)12.Intake valve timing control position
sensor (left bank)
13. O-ring 14.Intake valve timing control cover (left
bank)15. Seal ring
16.Intake valve timing control solenoid
valve (left bank)17. O-ring 18. Oil level gauge
19. Oil level gauge guide 20. O-ring 21. Crankshaft pulley bolt
22. Crankshaft pulley 23. Front oil seal 24. Chain tensioner cover
25. Camshaft position sensor (PHASE) 26. O-ring 27. Oil pump drive spacer
28. Oil pump assembly 29. Crankshaft sprocket 30. O-ring
31. O-ring 32.Timing chain tension guide
(right bank)33.Timing chain slack guide
(right bank)
34. Timing chain (right bank) 35. Timing chain (left bank) 36. Chain tensioner (left bank)
37. Chain tensioner (right bank) 38.Timing chain slack guide
(left bank)39.Timing chain tension guide
(left bank)
40. O-ring
PBIC0050E
Page 3268 of 5621
![INFINITI M35 2006 Factory Service Manual TIMING CHAIN
EM-205
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
5. Remove intake valve timing control cover as follows:
a. Loosen and remove mounting bolts in the rev INFINITI M35 2006 Factory Service Manual TIMING CHAIN
EM-205
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
5. Remove intake valve timing control cover as follows:
a. Loosen and remove mounting bolts in the rev](/manual-img/42/57023/w960_57023-3267.png)
TIMING CHAIN
EM-205
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
5. Remove intake valve timing control cover as follows:
a. Loosen and remove mounting bolts in the reverse order as
shown in the figure.
b . U s e s e a l c u t t e r [ S S T: K V 1 0 1111 0 0 ( J 3 7 2 2 8 ) ] t o c u t l i q u i d g a s ket
for removal.
CAUTION:
Exercise care not to damage mating surfaces.
Pull out cover keeping levelness without an angle, as
inner part of cover is engaged with the center of camshaft
sprocket (INT).
6. Remove O-rings from front cover.
7. Obtain No. 1 cylinder at TDC of its compression stroke as follows:
a. Rotate crankshaft pulley clockwise to align the TDC identifica-
tion notch (without paint mark) with timing indicator on front
cover.
b. Make sure that both intake and exhaust cam noses of No. 1 cyl-
inder (engine front side of left bank) are located as shown in the
figure.
If not, turn crankshaft one revolution (360 degrees) and align
as shown in the figure.
8. Remove crankshaft pulley as follows:
PBIC0051E
SBIA0374E
PBIC2341E
KBIA0400J
Page 3269 of 5621
![INFINITI M35 2006 Factory Service Manual EM-206
[VK45DE]
TIMING CHAIN
Revision: 2006 January2006 M35/M45
a. Remove rear plate cover, and set ring gear stopper (SST).
b. Loosen crankshaft pulley bolt, and then pull crankshaft pulley
w INFINITI M35 2006 Factory Service Manual EM-206
[VK45DE]
TIMING CHAIN
Revision: 2006 January2006 M35/M45
a. Remove rear plate cover, and set ring gear stopper (SST).
b. Loosen crankshaft pulley bolt, and then pull crankshaft pulley
w](/manual-img/42/57023/w960_57023-3268.png)
EM-206
[VK45DE]
TIMING CHAIN
Revision: 2006 January2006 M35/M45
a. Remove rear plate cover, and set ring gear stopper (SST).
b. Loosen crankshaft pulley bolt, and then pull crankshaft pulley
with both hands to remove it.
CAUTION:
Do not remove crankshaft pulley bolt. Keep loosened
crankshaft pulley bolt in place to protect removed crank-
shaft pulley from dropping.
Do not remove balance weight (inner hexagon bolt) at the
front of crankshaft pulley.
9. Remove oil pan and oil strainer. Refer to EM-187, "
OIL PAN AND OIL STRAINER" .
10. Remove front cover as follows:
a. Loosen mounting bolts in reverse order as shown in the figure.
b . U s e s e a l c u t t e r [ S S T: K V 1 0 1111 0 0 ( J 3 7 2 2 8 ) ] t o c u t l i q u i d g a s ket
for removal.
CAUTION:
Exercise care not to damage mating surfaces.
After removal, handle front cover carefully so it does not
tilt, cant, or warp under a load.
11. Remove front oil seal from front cover using suitable tool.
Use screwdriver for removal.
CAUTION:
Be careful not to damage front cover.
12. Remove O-rings from cylinder heads (right and left bank) and
cylinder block.
13. Remove chain tensioner cover from front cover.
Use seal cutter [SST: KV10111100 (J37228)] to cut liquid gasket for remove.
14. Remove oil pump drive spacer.
Set bolts in the two bolt holes [M6 pitch 1.0 mm (0.04 in)] on
front surface. Using suitable puller, pull oil pump drive spacer
off from crankshaft.
NOTE:
The dimension between the centers of the two bolt holes is 33
mm (1.30 in).
In the figure, a commercial steering puller is used.
15. Remove oil pump. Refer to LU-30, "
OIL PUMP" .
16. Remove chain tensioner (left bank) as follows:
PBIC1656E
KBIA0354J
SBIA0373E
PBIC2342E
Page 3270 of 5621
![INFINITI M35 2006 Factory Service Manual TIMING CHAIN
EM-207
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
NOTE:
To remove timing chain and related parts, start with those on left bank. The procedure for removing part INFINITI M35 2006 Factory Service Manual TIMING CHAIN
EM-207
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
NOTE:
To remove timing chain and related parts, start with those on left bank. The procedure for removing part](/manual-img/42/57023/w960_57023-3269.png)
TIMING CHAIN
EM-207
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
NOTE:
To remove timing chain and related parts, start with those on left bank. The procedure for removing parts
on right bank is omitted because it is the same as that for left bank.
a. Press tab in the direction of arrow (or turn lever in the direction
of arrow) to unlock the locking with the groove that stops ten-
sioner plunger from returning.
Lightly press tensioner plunger to release the tension of
spring for this operation.
b. Push in tensioner plunger to align the hole on lever and that on
pump main body.
Pushing in tensioner too far does not allow the holes to align.
Therefore, push in plunger to the degree at which the start of
stopper groove and tab engages.
c. Insert stopper pin [hard wire with approx. 0.5 mm (0.020 in)
diameter or similar tool] to fix plunger. With plunger fixed, remove chain tensioner.
17. Remove chain tension guide and timing chain slack guide.
18. Remove timing chain and crankshaft sprocket.
CAUTION:
After removing timing chain, do not turn crankshaft and camshaft separately, or valves will strike
the piston head.
19. With hexagonal part of camshaft locked with wrench, loosen
mounting bolts securing camshaft sprocket to remove camshaft
sprocket.
CAUTION:
Do not loosen mounting bolts with securing anything other
than the camshaft hexagonal portion or with tensioning the
timing chain.
20. Perform same procedure as for left bank, remove timing chain and related parts on right side.
21. Use scraper to remove all traces of old liquid gasket from front cover and opposite mating surfaces.
Remove oil liquid gasket from bolt hole and thread.
22. Use scraper to remove all trace of liquid gasket from chain tensioner cover and intake valve timing control
covers.
PBIC2343E
PBIC0030E
PBIC2084E
Page 3271 of 5621
EM-208
[VK45DE]
TIMING CHAIN
Revision: 2006 January2006 M35/M45
INSPECTION AFTER REMOVAL
Timing Chain
Check tor cracks and any excessive wear at link plates and roller
links of timing chain. Replace timing chain as necessary.
INSTALLATION
NOTE:
The above figure shows the relationship between the mating mark on each timing chain and that on the
corresponding sprocket, with the components installed.
Parts with an identification mark (R or L) should be installed on the corresponding bank according to the
mark.
Parts with an identification mark:
–Camshaft sprocket (INT)
–Dowel pin groove of camshaft sprocket (EXH) (camshaft sprocket is same part both banks)
–Chain tension guide
–Chain slack guide
To install timing chain and related parts, start with those on right bank. The procedure for installing parts
on left bank is omitted because it is the same as that for installation on right bank.
PBIC0282E
PBIC2344E
Page 3272 of 5621
![INFINITI M35 2006 Factory Service Manual TIMING CHAIN
EM-209
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
1. Make sure that crankshaft key and dowel pin of each camshaft
are located as shown in the fi INFINITI M35 2006 Factory Service Manual TIMING CHAIN
EM-209
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
1. Make sure that crankshaft key and dowel pin of each camshaft
are located as shown in the fi](/manual-img/42/57023/w960_57023-3271.png)
TIMING CHAIN
EM-209
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
1. Make sure that crankshaft key and dowel pin of each camshaft
are located as shown in the figure. (No. 1 cylinder at compres-
sion TDC)
NOTE:
Though camshaft does not stop at the position as shown in the
figure, for the placement of cam nose, it is generally accepted
camshaft is placed for the same direction of the figure.
2. Install camshaft sprockets.
Install onto correct side by checking with identification mark
on surface.
Install camshaft sprocket (EXH) by selectively using the
groove of dowel pin according to the bank. (Common part
used for both banks.)
Lock the hexagonal part of camshaft in the same procedure
as for removal, and tighten mounting bolts.
3. Install crankshaft sprockets for both banks.
Install each crankshaft sprocket so that its flange side (the
larger diameter side without teeth) faces in the direction
shown in the figure.
NOTE:
The same parts are used but facing directions are different.Camshaft dowel pin
: At cylinder head upper face side in each bank
Crankshaft key
: At cylinder head side of left bank
SBIA0356E
PBIC2345E
PBIC0057E
