INFINITI M35 2006 Factory Service Manual EC-890
[VK45DE]
DTC U1010 CAN COMMUNICATION
Revision: 2006 January2006 M35/M45
Diagnostic ProcedureNBS005B8
1. INSPECTION START
With CONSULT-II
1. Turn ignition switch ON.
2. Select “SELF-DIAG RESU

Page 2434 of 5621

INFINITI M35 2006 Factory Service Manual DTC P0011, P0021 IVT CONTROL
EC-891
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
DTC P0011, P0021 IVT CONTROLPFP:23796
DescriptionNBS005B9
SYSTEM DESCRIPTION
*: This signal is

Page 2435 of 5621

INFINITI M35 2006 Factory Service Manual EC-892
[VK45DE]
DTC P0011, P0021 IVT CONTROL
Revision: 2006 January2006 M35/M45
Intake Valve Timing Control Position Sensor
Intake valve timing control position sensors are located in the front of
cyl

EC-892
[VK45DE]
DTC P0011, P0021 IVT CONTROL
Revision: 2006 January2006 M35/M45
Intake Valve Timing Control Position Sensor
Intake valve timing control position sensors are located in the front of
cylinder heads in both bank 1 and bank 2.
This sensor uses a Hall IC.
The cam position is determined by the intake primary cam sprocket
concave (in three places). The ECM provides feedback to the intake
valve timing control for appropriate target valve open-close timing
according to drive conditions based on detected cam position.
CONSULT-II Reference Value in Data Monitor ModeNBS005BA
Specification data are reference values.
On Board Diagnosis LogicNBS005BB
FAIL-SAFE MODE
When the malfunction is detected, the ECM enters fail-safe mode.
SEF359Z
MONITOR ITEM CONDITION SPECIFICATION
INT/V TIM (B1)
INT/V TIM (B2)
Engine: After warming up
Selector lever: P or N
Air conditioner switch: OFF
No loadIdle
5 - 5CA
2,000 rpm Approx. 0
- 20CA
INT/V SOL (B1)
INT/V SOL (B2)
Engine: After warming up
Selector lever: P or N
Air conditioner switch: OFF
No loadIdle 0% - 2%
2,000 rpm Approx. 25% - 50%
DTC No. Trouble diagnosis name Detecting condition Possible cause
P0011
0011
(Bank 1)
Intake valve timing control
performanceAThe alignment of the intake valve timing
control has been misresistered.
Harness or connectors
(Intake valve timing control solenoid
valve circuit is open or shorted.)
Harness or connectors
(Intake valve timing control position
sensor circuit is open or shorted.)
Intake valve timing control solenoid
valve
Intake valve timing control position
sensor
Crankshaft position sensor (POS)
Camshaft position sensor (PHASE)
Accumulation of debris to the signal
pick-up portion of the camshaft
sprocket
Timing chain installation
Foreign matter caught in the oil
groove for intake valve timing control P0021
0021
(Bank 2)BThere is a gap between angle of target
and phase-control angle degree.
Detected items Engine operating condition in fail-safe mode
Intake valve timing control The signal is not energized to the solenoid valve and the valve control does not function

Page 2436 of 5621

INFINITI M35 2006 Factory Service Manual DTC P0011, P0021 IVT CONTROL
EC-893
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
DTC Confirmation ProcedureNBS005BC
CAUTION:
Always drive at a safe speed.
NOTE:
If DTC P0011 o

DTC P0011, P0021 IVT CONTROL
EC-893
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
DTC Confirmation ProcedureNBS005BC
CAUTION:
Always drive at a safe speed.
NOTE:
If DTC P0011 or P0021 is displayed with DTC P0075, P0081, P1140 or P1145, first perform the trou-
ble diagnosis for EC-920
or EC-1228 .
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait
at least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is between 10V and 16V at
idle.
PROCEDURE FOR MALFUNCTION A
With CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Maintain the following conditions for at least 10 consecutive sec-
onds.
4. Maintain the following conditions for at least 20 consecutive sec-
onds.
5. If the 1st trip DTC is detected, go to EC-898, "
Diagnostic Procedure" .
With GST
Follow the procedure “With CONSULT-II” above.
PROCEDURE FOR MALFUNCTION B
With CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Maintain the following conditions for at least 10 consecutive sec-
onds.
4. If the 1st trip DTC is detected, go to EC-898, "
Diagnostic Proce-
dure" .
With GST
Follow the procedure “With CONSULT-II” above.
ENG SPEED More than 2,000 rpm (A constant rotation is maintained.)
COOLAN TEMP/S More than 70
C (158F)
Selector lever 1st or 2nd position
Driving location uphillDriving vehicle uphill
(Increased engine load will help maintain the driving con-
ditions required for this test.)
ENG SPEED Idle
COOLAN TEMP/S More than 70
C (158F)
Selector lever P or N position
SEF353Z
ENG SPEED 1,700 - 3,175 rpm (A constant rotation is maintained.)
COOLAN TEMP/S 70 - 105
C (158 - 221F)
Selector lever 1st or 2nd position
Driving location uphillDriving vehicle uphill
(Increased engine load will help maintain the driving con-
ditions required for this test.)
SEF353Z

Page 2437 of 5621

INFINITI M35 2006 Factory Service Manual EC-894
[VK45DE]
DTC P0011, P0021 IVT CONTROL
Revision: 2006 January2006 M35/M45
Wiring DiagramNBS005BD
BANK 1
TBWT1012E

Page 2438 of 5621

INFINITI M35 2006 Factory Service Manual DTC P0011, P0021 IVT CONTROL
EC-895
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
Specification data are reference values and are measured between each terminal and ground.
Pul

Page 2439 of 5621

INFINITI M35 2006 Factory Service Manual EC-896
[VK45DE]
DTC P0011, P0021 IVT CONTROL
Revision: 2006 January2006 M35/M45

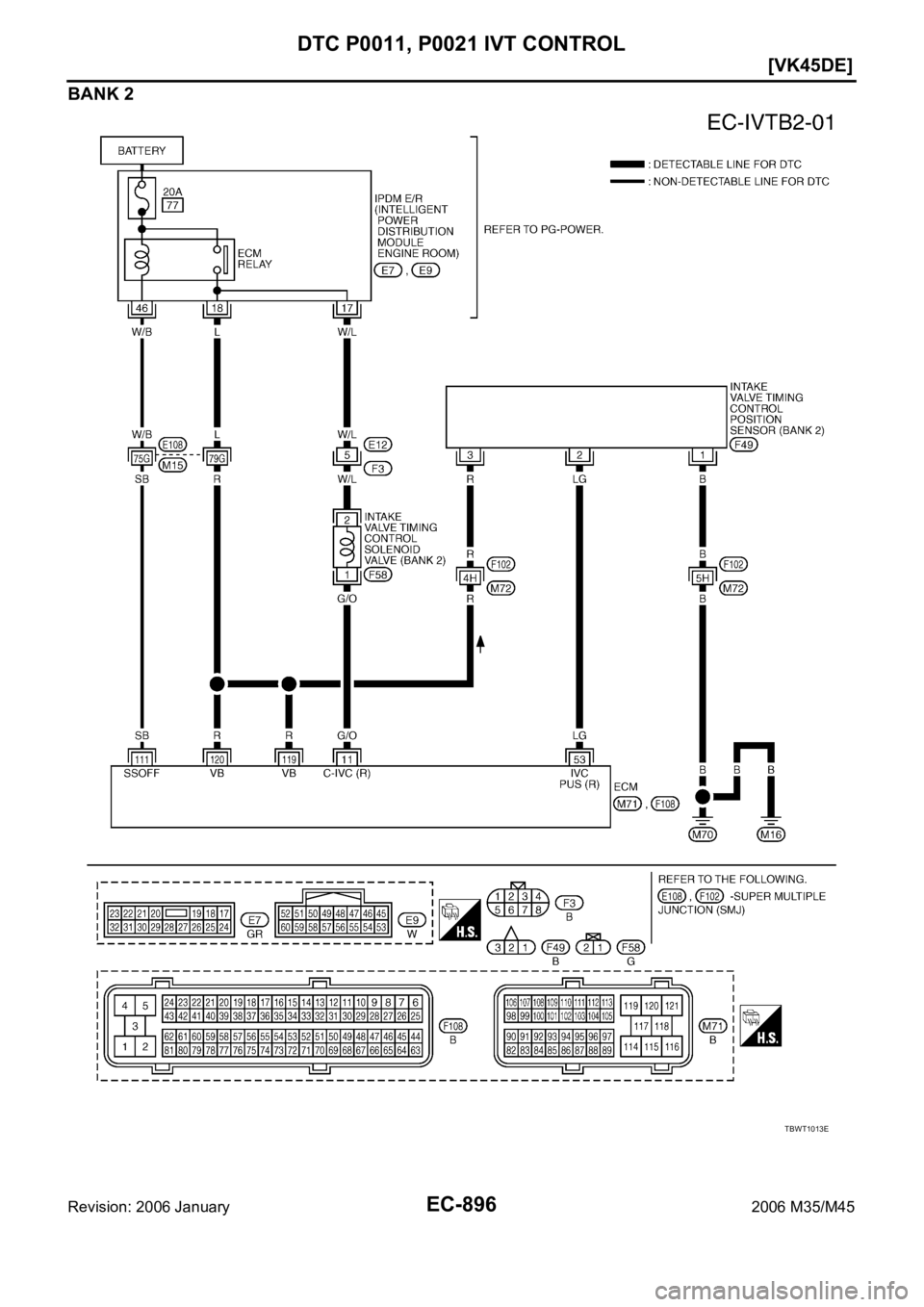

BANK 2
TBWT1013E

Page 2440 of 5621

INFINITI M35 2006 Factory Service Manual DTC P0011, P0021 IVT CONTROL
EC-897
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
Specification data are reference values and are measured between each terminal and ground.
Pul
