EC-746
[VK45DE]
AUTOMATIC SPEED CONTROL DEVICE (ASCD)
Revision: 2006 January2006 M35/M45
AUTOMATIC SPEED CONTROL DEVICE (ASCD)PFP:18930
System DescriptionNBS0059O
INPUT/OUTPUT SIGNAL CHART
*: This signal is sent to the ECM through CAN communication line
BASIC ASCD SYSTEM
Refer to Owner's Manual for ASCD operating instructions.
Automatic Speed Control Device (ASCD) allows a driver to keep vehicle at predetermined constant speed
without depressing accelerator pedal. Driver can set vehicle speed in advance between approximately 40 km/
h (25 MPH) and 144 km/h (89 MPH).
ECM controls throttle angle of electric throttle control actuator to regulate engine speed.
Operation status of ASCD is indicated by CRUISE lamp and SET lamp in combination meter. If any malfunc-
tion occurs in ASCD system, it automatically deactivates control.
NOTE:
Always drive vehicle in safe manner according to traffic conditions and obey all traffic laws.
SET OPERATION
Press MAIN switch. (The CRUISE lamp in combination meter illuminates.)
When vehicle speed reaches a desired speed between approximately 40 km/h (25 MPH) and 144 km/h (89
MPH), press SET/COAST switch. (Then SET lamp in combination meter illuminates.)
ACCEL OPERATION
If the RESUME/ACCELERATE switch is pressed during cruise control driving, increase the vehicle speed until
the switch is released or vehicle speed reaches maximum speed controlled by the system.
And then ASCD will keep the new set speed.
CANCEL OPERATION
When any of following conditions exist, cruise operation will be canceled.
CANCEL switch is pressed
More than 2 switches at ASCD steering switch are pressed at the same time (Set speed will be cleared)
Brake pedal is depressed
Selector lever is changed to N, P, R position
Vehicle speed decreased to 13 km/h (8 MPH) lower than the set speed
TCS system is operated
When the ECM detects any of the following conditions, the ECM will cancel the cruise operation and inform
the driver by blinking indicator lamp.
Engine coolant temperature is slightly higher than the normal operating temperature, CRUISE lamp may
blink slowly.
When the engine coolant temperature decreases to the normal operating temperature, CRUISE lamp will
stop blinking and the cruise operation will be able to work by pressing SET/COAST switch or RESUME/
ACCELERATE switch.
Malfunction for some self-diagnoses regarding ASCD control: SET lamp will blink quickly.
If MAIN switch is turned to OFF during ASCD is activated, all of ASCD operations will be canceled and vehicle
speed memory will be erased.
Sensor Input signal to ECM ECM function Actuator
ASCD brake switch Brake pedal operation
ASCD vehicle speed controlElectric throttle control
actuator Stop lamp switch Brake pedal operation
ASCD steering switch ASCD steering switch operation
Park/Neutral position (PNP)
switchGear position
Wheel sensor* Vehicle speed
TCM* Powertrain revolution
Page 2290 of 5621
![INFINITI M35 2006 Factory Service Manual AUTOMATIC SPEED CONTROL DEVICE (ASCD)
EC-747
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
COAST OPERATION
When the SET/COAST switch is pressed during cruise control driving, INFINITI M35 2006 Factory Service Manual AUTOMATIC SPEED CONTROL DEVICE (ASCD)
EC-747
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
COAST OPERATION
When the SET/COAST switch is pressed during cruise control driving,](/manual-img/42/57023/w960_57023-2289.png)
AUTOMATIC SPEED CONTROL DEVICE (ASCD)
EC-747
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
COAST OPERATION
When the SET/COAST switch is pressed during cruise control driving, decrease vehicle set speed until the
switch is released. And then ASCD will keep the new set speed.
RESUME OPERATION
When the RESUME/ACCELERATE switch is pressed after cancel operation other than pressing MAIN switch
is performed, vehicle speed will return to last set speed. To resume vehicle set speed, vehicle condition must
meet following conditions.
Brake pedal is released
A/T selector lever is in other than P and N positions
Vehicle speed is greater than 40 km/h (25 MPH) and less than 144 km/h (89 MPH)
Component DescriptionNBS0059P
ASCD STEERING SWITCH
Refer to EC-1294 .
ASCD BRAKE SWITCH
Refer to EC-1311 , and EC-1449 .
STOP LAMP SWITCH
Refer to EC-1311 , EC-1329 and EC-1449 .
ELECTRIC THROTTLE CONTROL ACTUATOR
Refer to EC-1338 , EC-1344 , EC-1351 and EC-1356 .
ASCD INDICATOR
Refer to EC-1456 .
Page 2291 of 5621
EC-748
[VK45DE]
CAN COMMUNICATION
Revision: 2006 January2006 M35/M45
CAN COMMUNICATIONPFP:23710
System DescriptionNBS0059Q
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
Refer to LAN-34, "
CAN COMMUNICATION" , about CAN communication for detail.
Page 2292 of 5621
![INFINITI M35 2006 Factory Service Manual EVAPORATIVE EMISSION SYSTEM
EC-749
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
EVAPORATIVE EMISSION SYSTEMPFP:14950
DescriptionNBS0059R
SYSTEM DESCRIPTION
The evaporative emi INFINITI M35 2006 Factory Service Manual EVAPORATIVE EMISSION SYSTEM
EC-749
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
EVAPORATIVE EMISSION SYSTEMPFP:14950
DescriptionNBS0059R
SYSTEM DESCRIPTION
The evaporative emi](/manual-img/42/57023/w960_57023-2291.png)
EVAPORATIVE EMISSION SYSTEM
EC-749
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
EVAPORATIVE EMISSION SYSTEMPFP:14950
DescriptionNBS0059R
SYSTEM DESCRIPTION

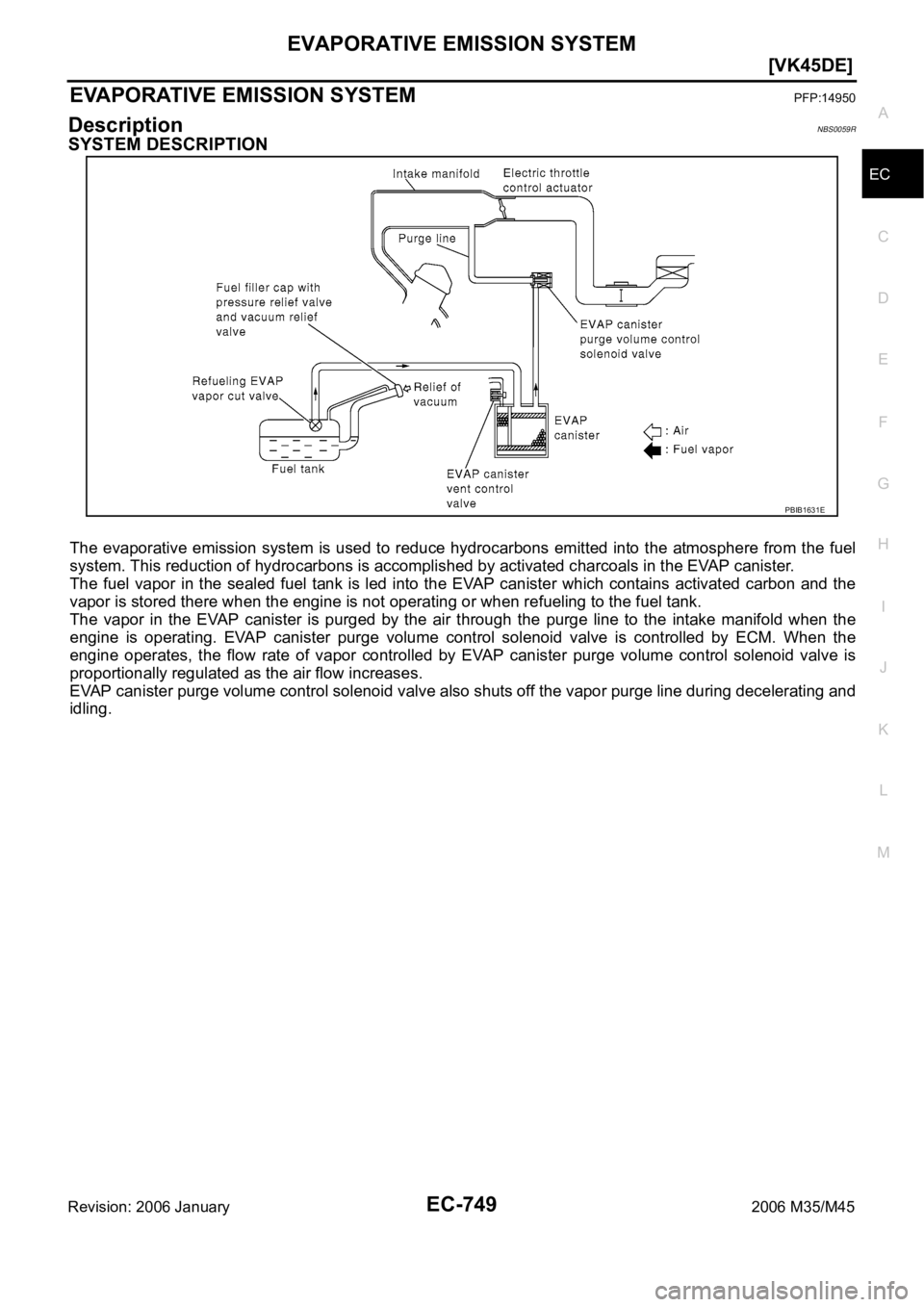

The evaporative emission system is used to reduce hydrocarbons emitted into the atmosphere from the fuel
system. This reduction of hydrocarbons is accomplished by activated charcoals in the EVAP canister.
The fuel vapor in the sealed fuel tank is led into the EVAP canister which contains activated carbon and the
vapor is stored there when the engine is not operating or when refueling to the fuel tank.
The vapor in the EVAP canister is purged by the air through the purge line to the intake manifold when the
engine is operating. EVAP canister purge volume control solenoid valve is controlled by ECM. When the
engine operates, the flow rate of vapor controlled by EVAP canister purge volume control solenoid valve is
proportionally regulated as the air flow increases.
EVAP canister purge volume control solenoid valve also shuts off the vapor purge line during decelerating and
idling.
PBIB1631E
Page 2293 of 5621
EC-750
[VK45DE]
EVAPORATIVE EMISSION SYSTEM
Revision: 2006 January2006 M35/M45
EVAPORATIVE EMISSION LINE DRAWING
: Vehicle front : From next page

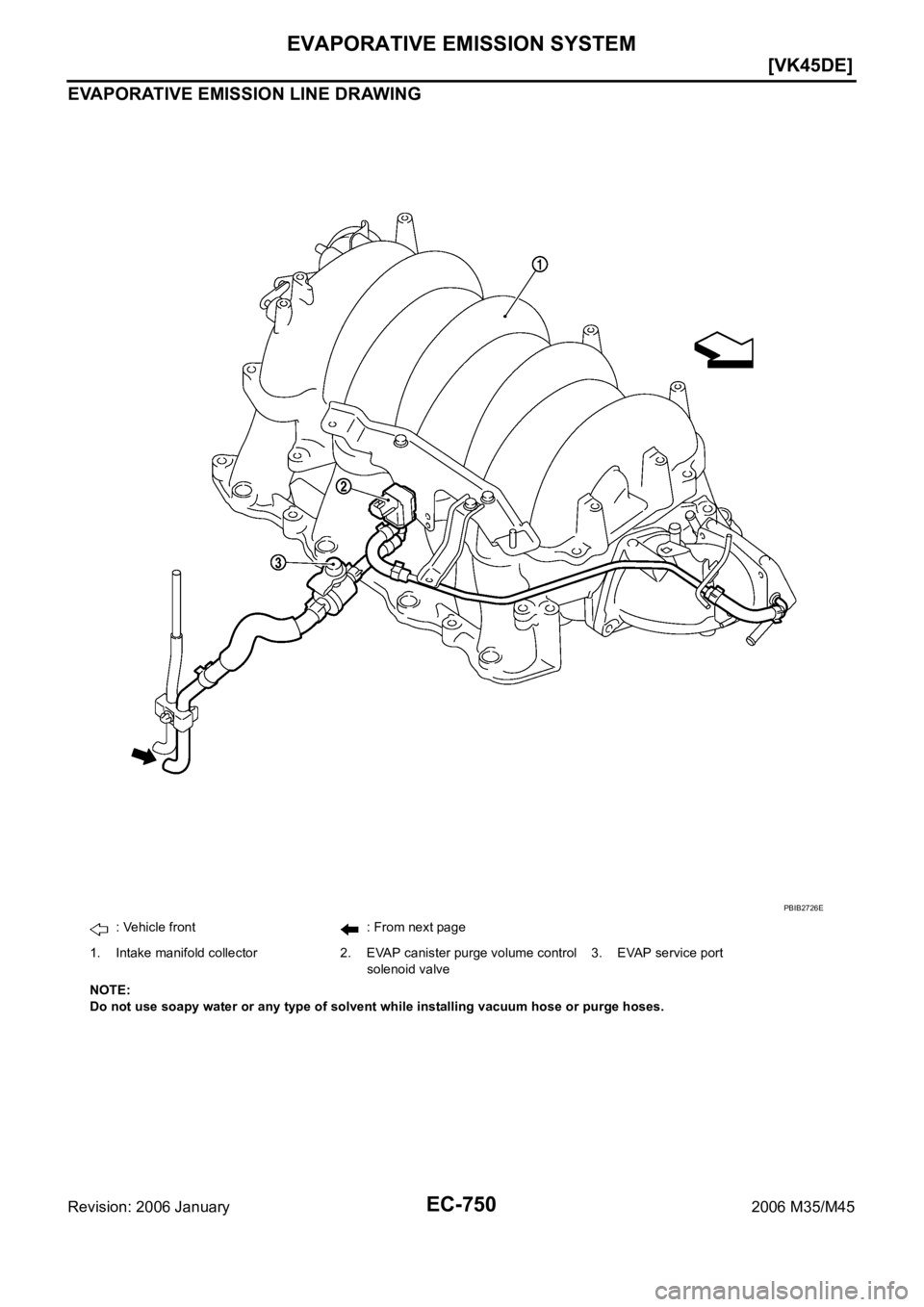

1. Intake manifold collector 2. EVAP canister purge volume control
solenoid valve3. EVAP service port
NOTE:
Do not use soapy water or any type of solvent while installing vacuum hose or purge hoses.
PBIB2726E
Page 2294 of 5621
EVAPORATIVE EMISSION SYSTEM
EC-751
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
: Vehicle front : To previous page

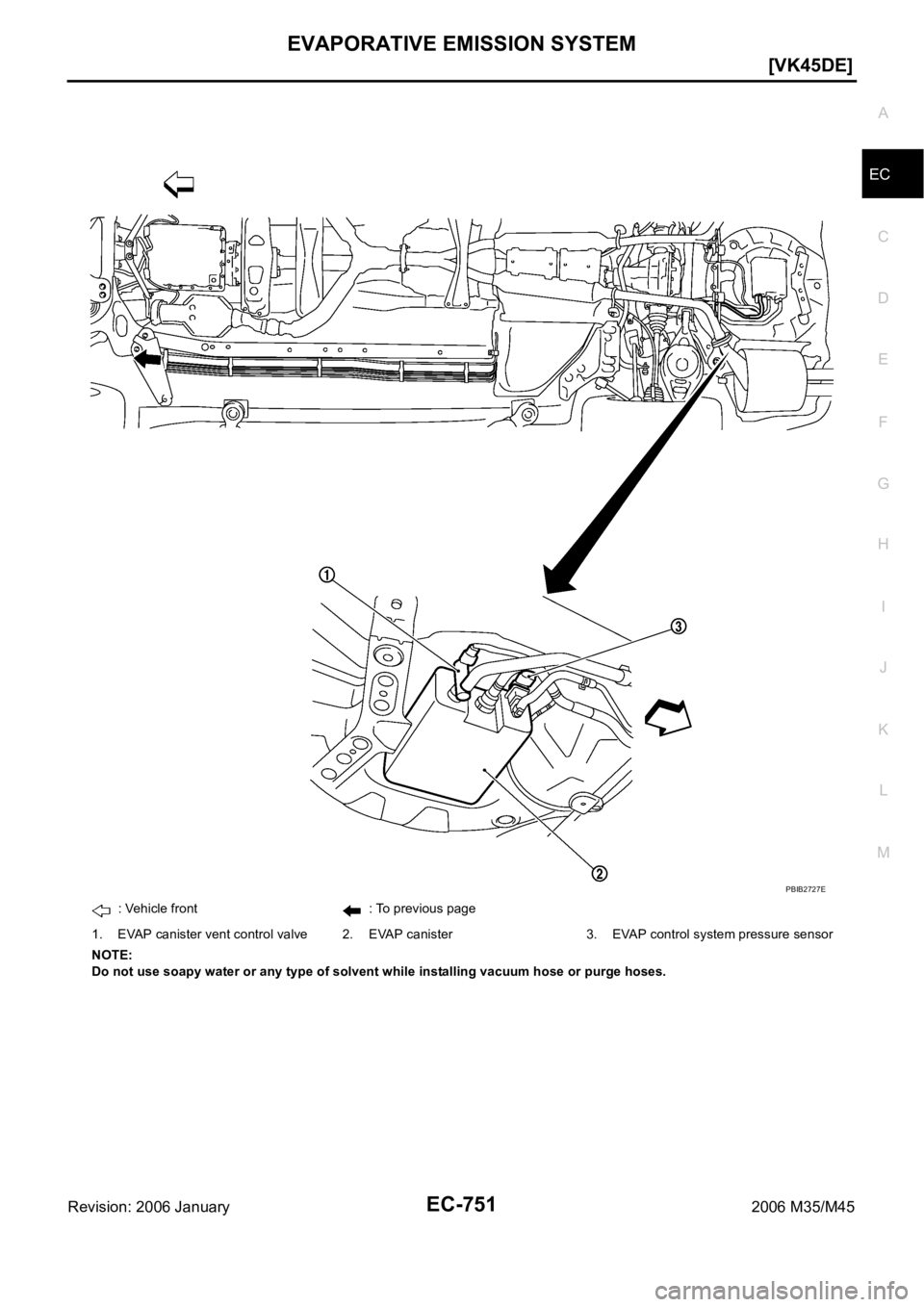

1. EVAP canister vent control valve 2. EVAP canister 3. EVAP control system pressure sensor
NOTE:
Do not use soapy water or any type of solvent while installing vacuum hose or purge hoses.
PBIB2727E
Page 2295 of 5621
![INFINITI M35 2006 Factory Service Manual EC-752
[VK45DE]
EVAPORATIVE EMISSION SYSTEM
Revision: 2006 January2006 M35/M45
Component InspectionNBS0059S
EVAP CANISTER

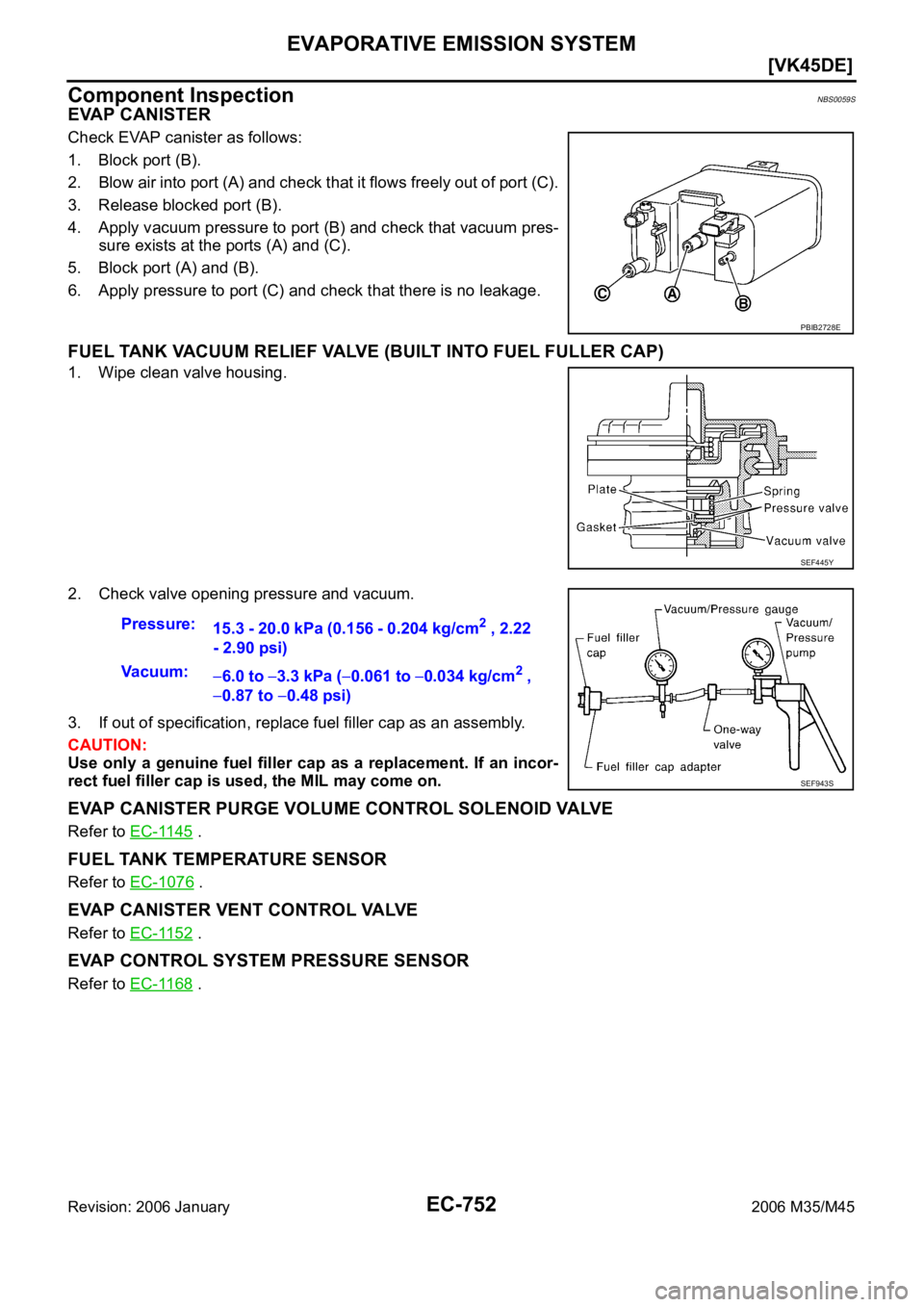

Check EVAP canister as follows:
1. Block port (B).
2. Blow air into port (A) a INFINITI M35 2006 Factory Service Manual EC-752
[VK45DE]
EVAPORATIVE EMISSION SYSTEM
Revision: 2006 January2006 M35/M45
Component InspectionNBS0059S
EVAP CANISTER
Check EVAP canister as follows:
1. Block port (B).
2. Blow air into port (A) a](/manual-img/42/57023/w960_57023-2294.png)
EC-752
[VK45DE]
EVAPORATIVE EMISSION SYSTEM
Revision: 2006 January2006 M35/M45
Component InspectionNBS0059S
EVAP CANISTER
Check EVAP canister as follows:
1. Block port (B).
2. Blow air into port (A) and check that it flows freely out of port (C).
3. Release blocked port (B).
4. Apply vacuum pressure to port (B) and check that vacuum pres-
sure exists at the ports (A) and (C).
5. Block port (A) and (B).
6. Apply pressure to port (C) and check that there is no leakage.
FUEL TANK VACUUM RELIEF VALVE (BUILT INTO FUEL FULLER CAP)
1. Wipe clean valve housing.
2. Check valve opening pressure and vacuum.
3. If out of specification, replace fuel filler cap as an assembly.
CAUTION:
Use only a genuine fuel filler cap as a replacement. If an incor-
rect fuel filler cap is used, the MIL may come on.
EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE
Refer to EC-1145 .
FUEL TANK TEMPERATURE SENSOR
Refer to EC-1076 .
EVAP CANISTER VENT CONTROL VALVE
Refer to EC-1152 .
EVAP CONTROL SYSTEM PRESSURE SENSOR
Refer to EC-1168 .
PBIB2728E
SEF445Y
Pressure:
15.3 - 20.0 kPa (0.156 - 0.204 kg/cm2 , 2.22
- 2.90 psi)
Va c u u m :
6.0 to 3.3 kPa (0.061 to 0.034 kg/cm2 ,
0.87 to 0.48 psi)
SEF943S
Page 2296 of 5621
EVAPORATIVE EMISSION SYSTEM
EC-753
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
EVAP SERVICE PORT
Positive pressure is delivered to the EVAP system through the EVA P
service port. If fuel vapor leakage in the EVAP system occurs, use a
leak detector to locate the leak.
Removal and InstallationNBS0059T
EVAP CANISTER
Tighten EVAP canister as shown in the figure.
EVAP CANISTER VENT CONTROL VALVE
1. Turn EVAP canister vent control valve counterclockwise.
Lock (A)
Unlock (B)
2. Remove the EVAP canister vent control valve.
Always replace O-ring with a new one.
How to Detect Fuel Vapor LeakageNBS0059U
CAUTION:
Do not use compressed air or a high pressure pump.
Do not exceed 4.12 kPa (0.042 kg/cm2 , 0.6 psi) of pressure in EVAP system.
NOTE:
Do not start engine.
SEF462UA

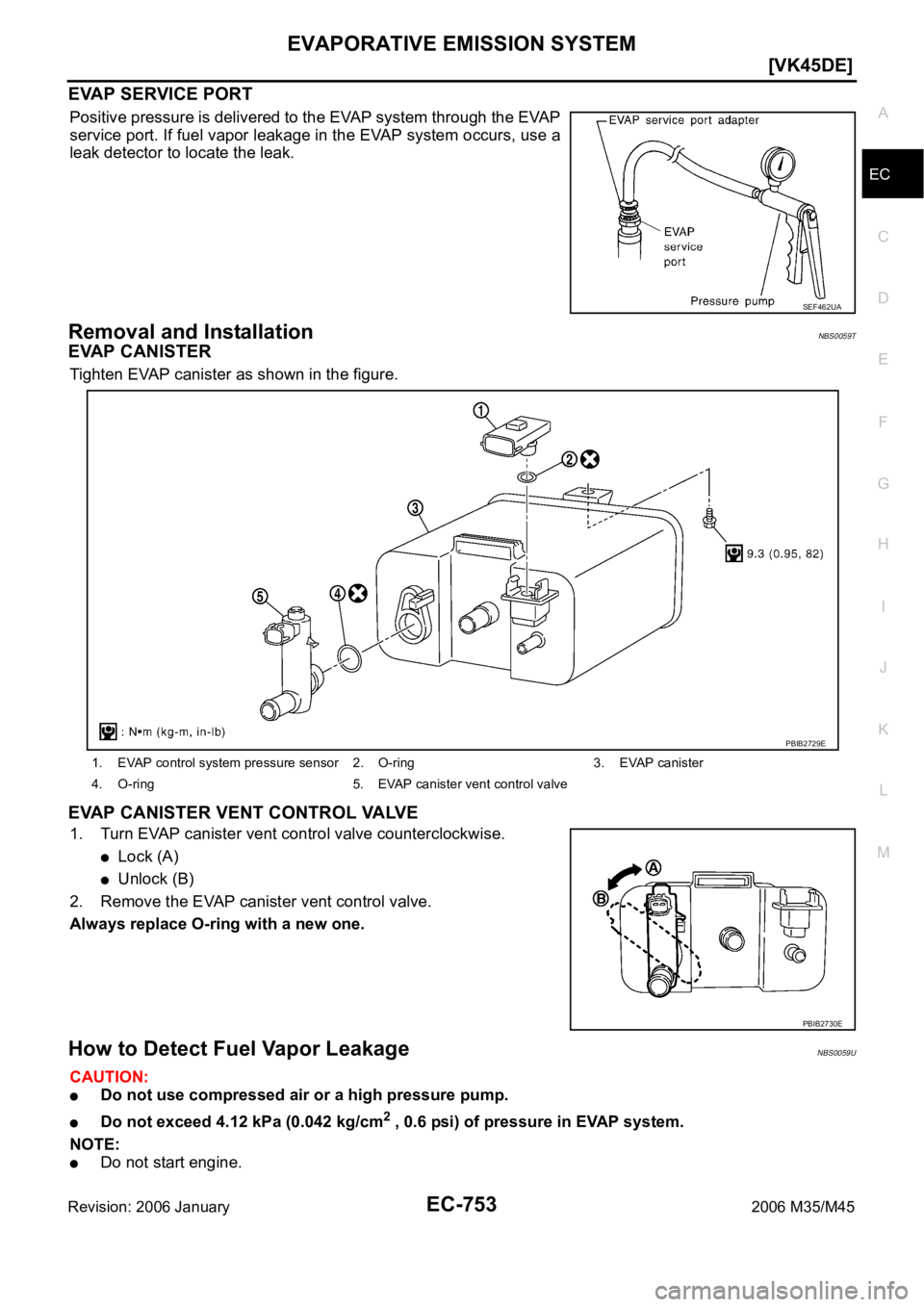

1. EVAP control system pressure sensor 2. O-ring 3. EVAP canister
4. O-ring 5. EVAP canister vent control valve
PBIB2729E
PBIB2730E
