Page 4385 of 5621

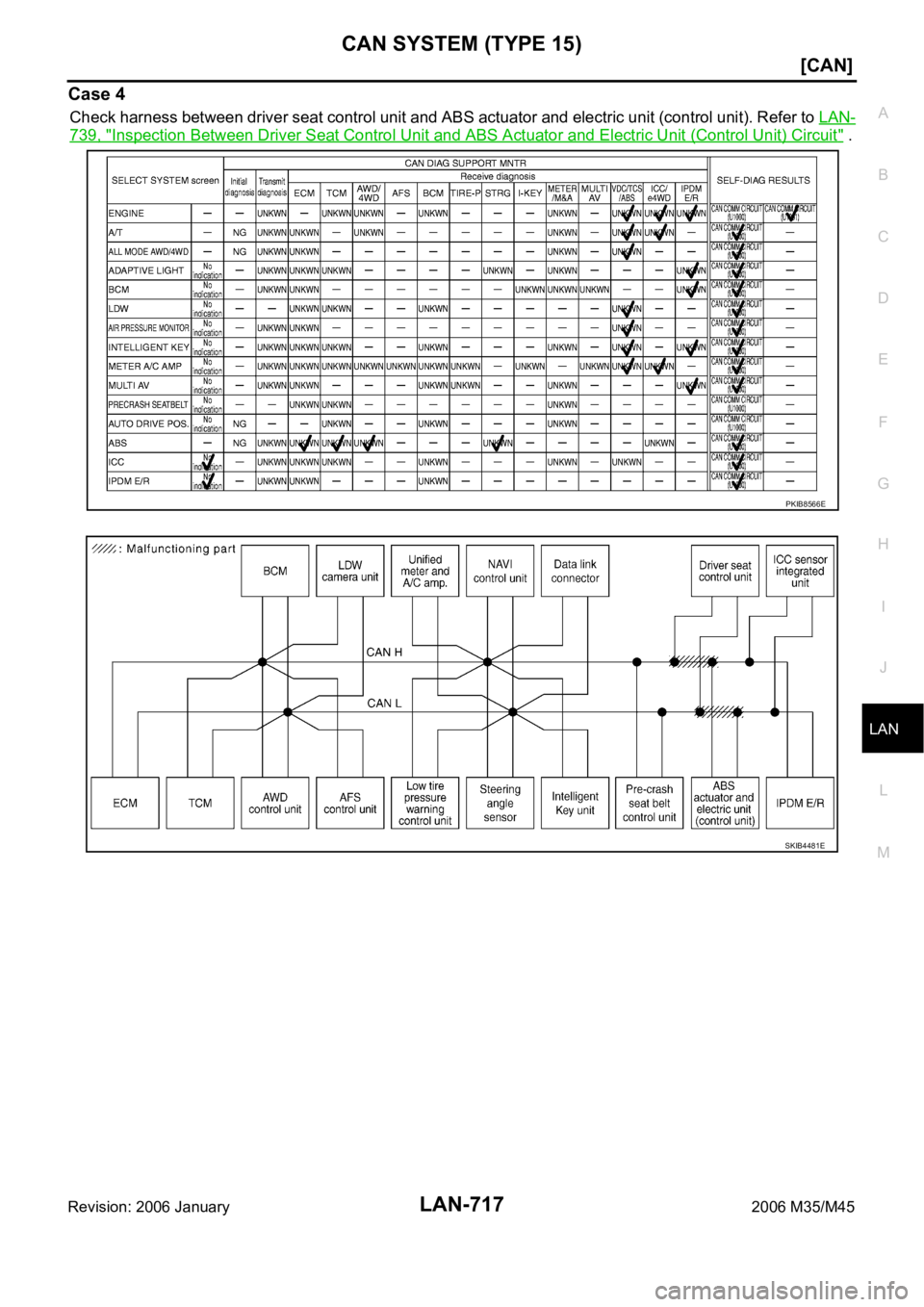

INFINITI M35 2006 Factory Service Manual LAN-716 [CAN] CAN SYSTEM (TYPE 15) Revision: 2006 January2006 M35/M45 Case 3 Check harness between pre-crash seat belt control unit and driver seat control unit. Refer to LAN-739, "I

Page 4386 of 5621

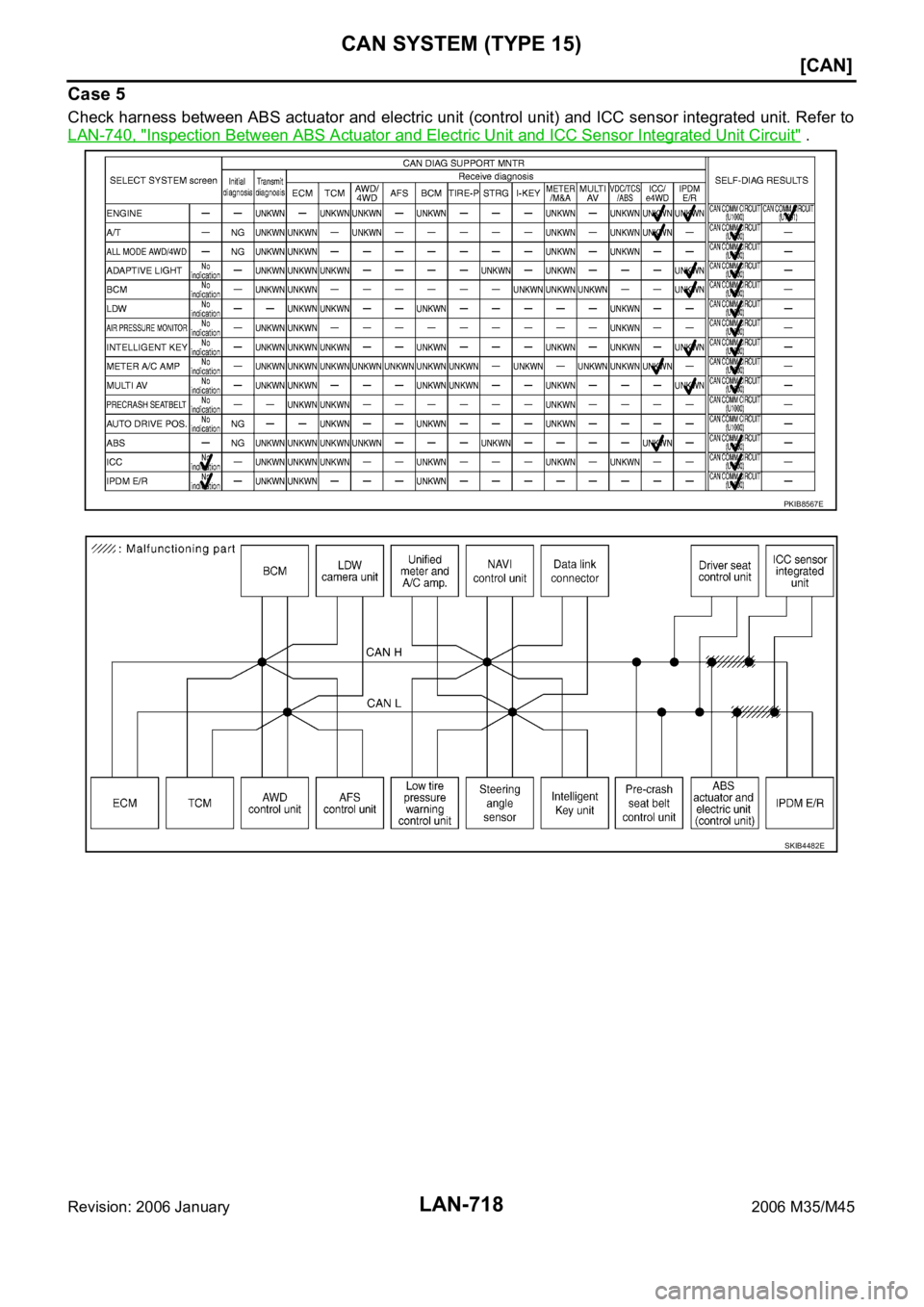

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 15) LAN-717 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 Case 4 Check harness between driver seat control unit and ABS actuator and electric unit (control unit)

Page 4387 of 5621

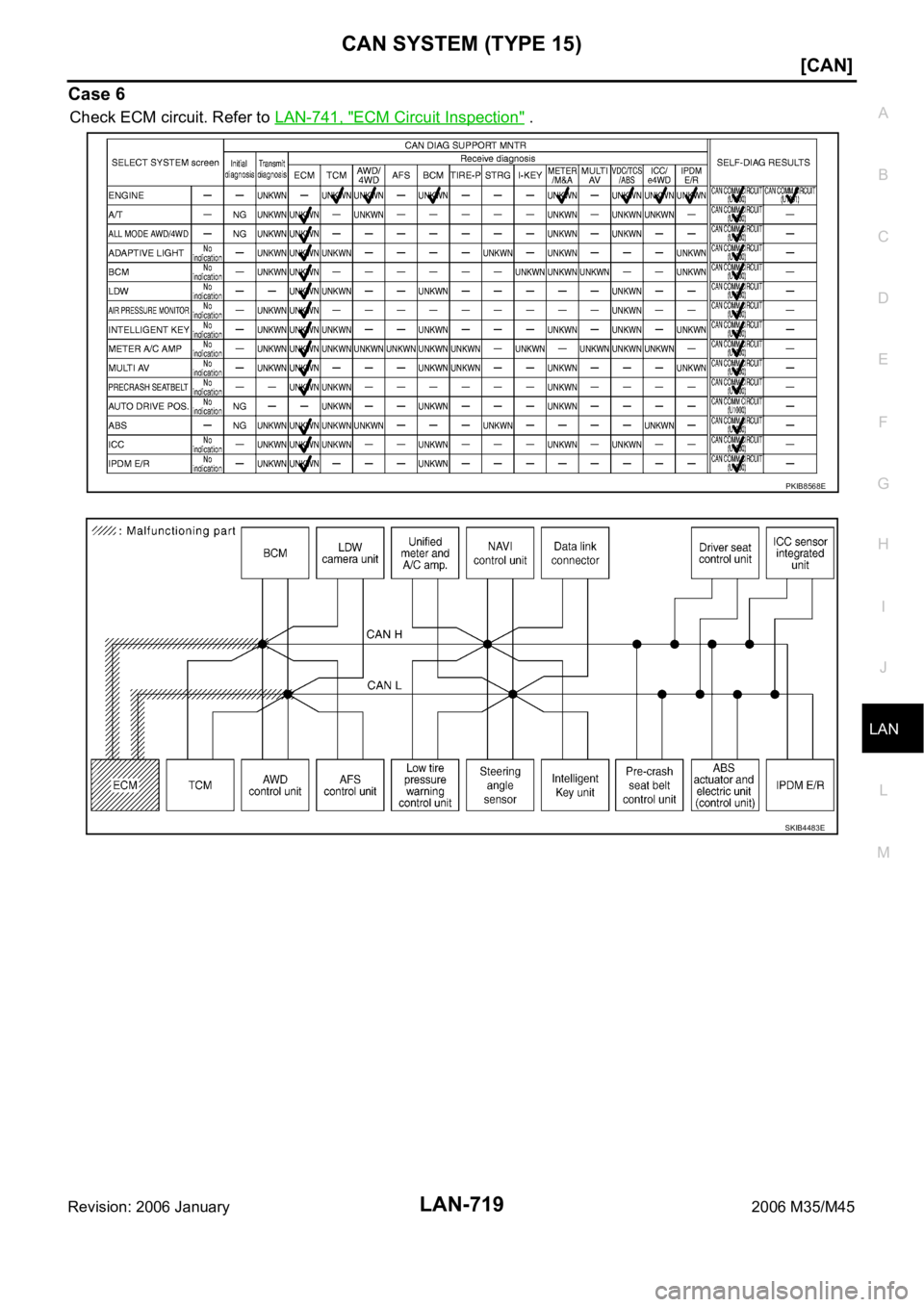

INFINITI M35 2006 Factory Service Manual LAN-718 [CAN] CAN SYSTEM (TYPE 15) Revision: 2006 January2006 M35/M45 Case 5 Check harness between ABS actuator and electric unit (control unit) and ICC sensor integrated unit. Refer to LAN-740, "

Page 4388 of 5621

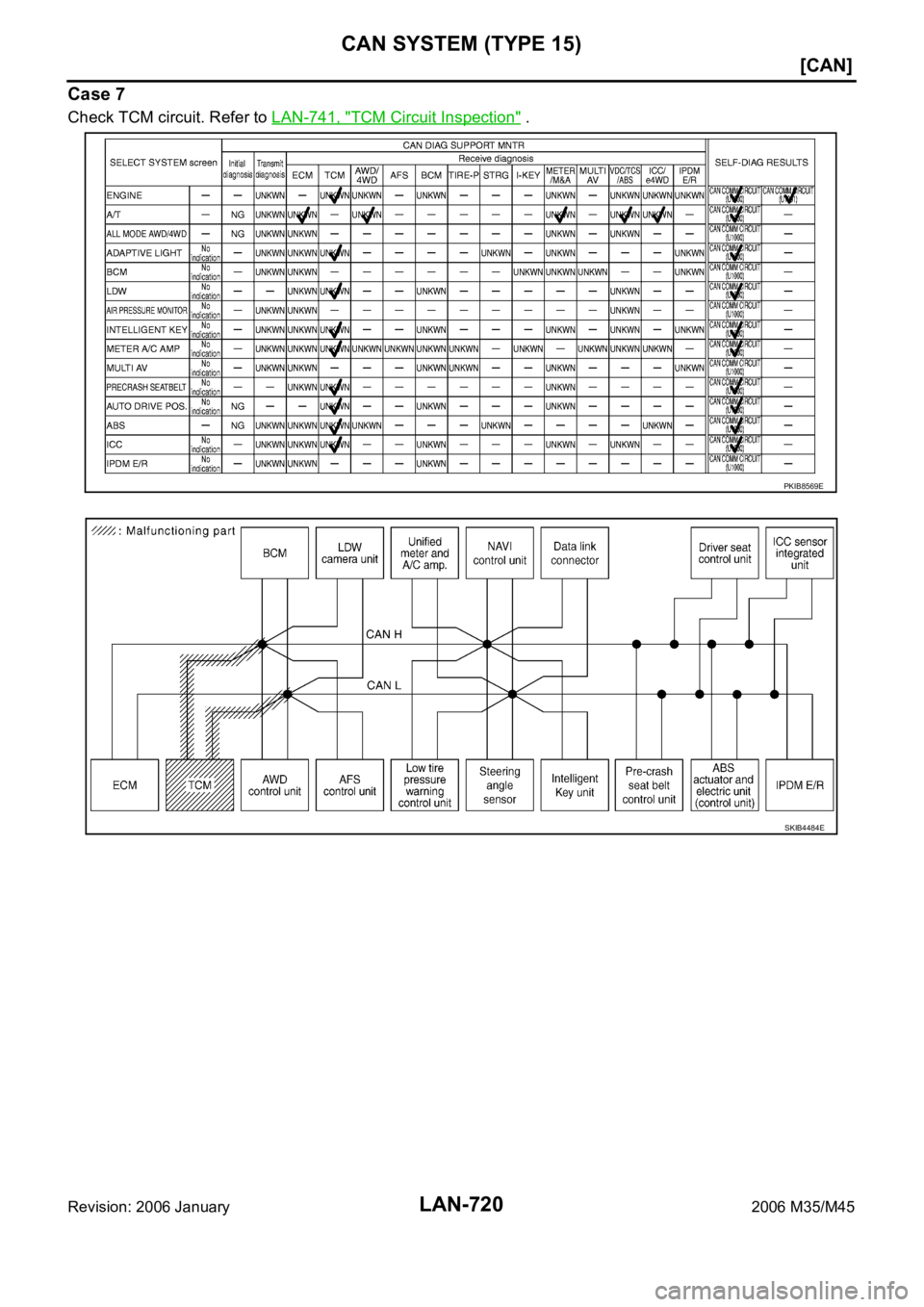

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 15) LAN-719 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 Case 6 Check ECM circuit. Refer to LAN-741, "ECM Circuit Inspection" . PKIB8568E SKIB4483E

Page 4389 of 5621

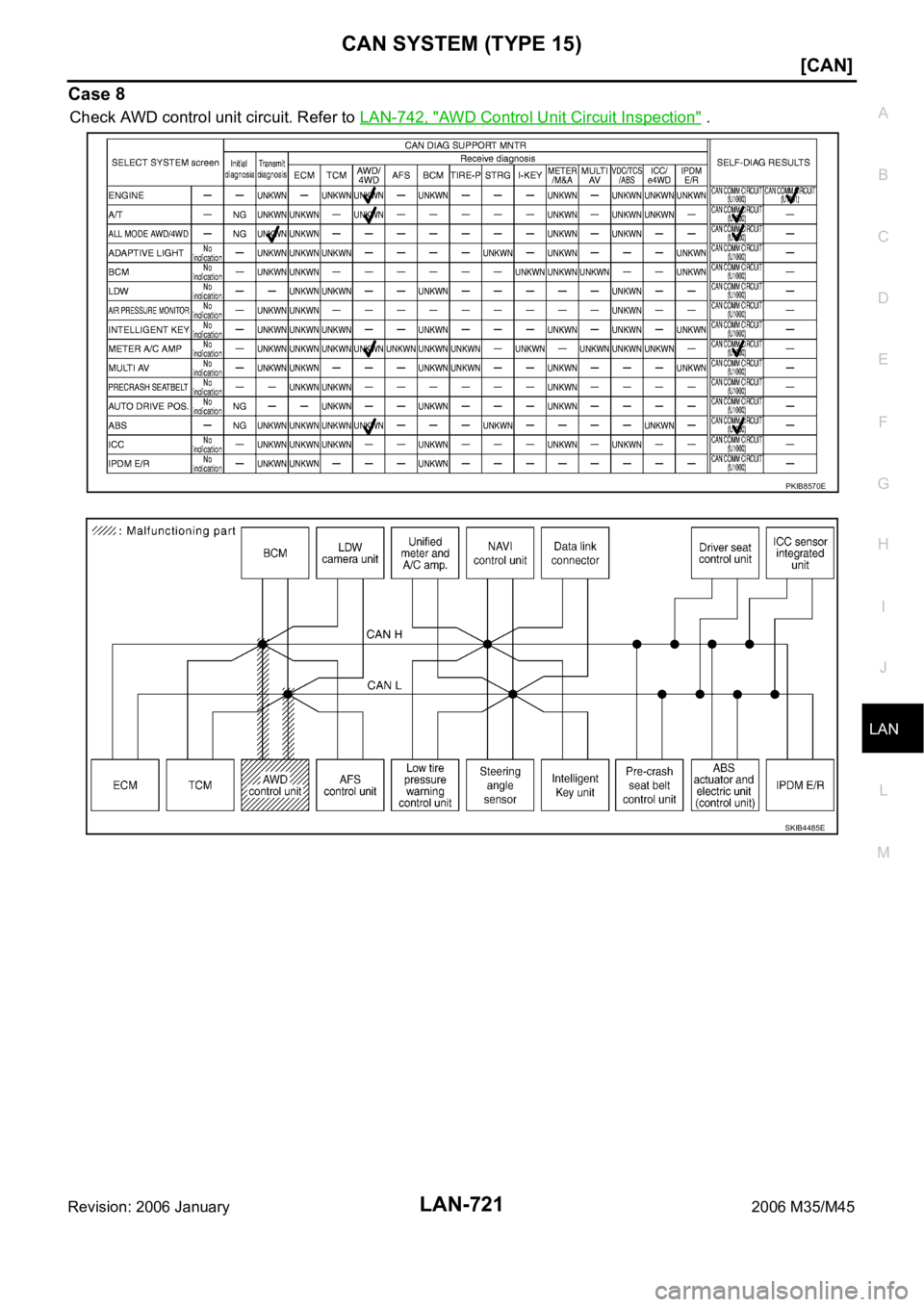

INFINITI M35 2006 Factory Service Manual LAN-720 [CAN] CAN SYSTEM (TYPE 15) Revision: 2006 January2006 M35/M45 Case 7 Check TCM circuit. Refer to LAN-741, "TCM Circuit Inspection" . PKIB8569E SKIB4484E

Page 4390 of 5621

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 15) LAN-721 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 Case 8 Check AWD control unit circuit. Refer to LAN-742, "AWD Control Unit Circuit Inspection"

Page 4391 of 5621

INFINITI M35 2006 Factory Service Manual LAN-722 [CAN] CAN SYSTEM (TYPE 15) Revision: 2006 January2006 M35/M45 Case 9 Check AFS control unit circuit. Refer to LAN-742, "AFS Control Unit Circuit Inspection" . PKIB8571E SKIB4486E

Page 4392 of 5621

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 15) LAN-723 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 Case 10 Check BCM circuit. Refer to LAN-743, "BCM Circuit Inspection" . PKIB8572E SKIB4487E
