Page 3793 of 5621

INFINITI M35 2006 Factory Service Manual LAN-124 [CAN] CAN SYSTEM (TYPE 2) Revision: 2006 January2006 M35/M45 5. CHECK HARNESS FOR SHORT CIRCUIT Check continuity between A/T assembly harness connector termi- nals and ground. OK or NG

Page 3794 of 5621

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 2) LAN-125 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 7. CHECK HARNESS FOR SHORT CIRCUIT Check continuity between data link connector terminals and ground. OK

Page 3795 of 5621

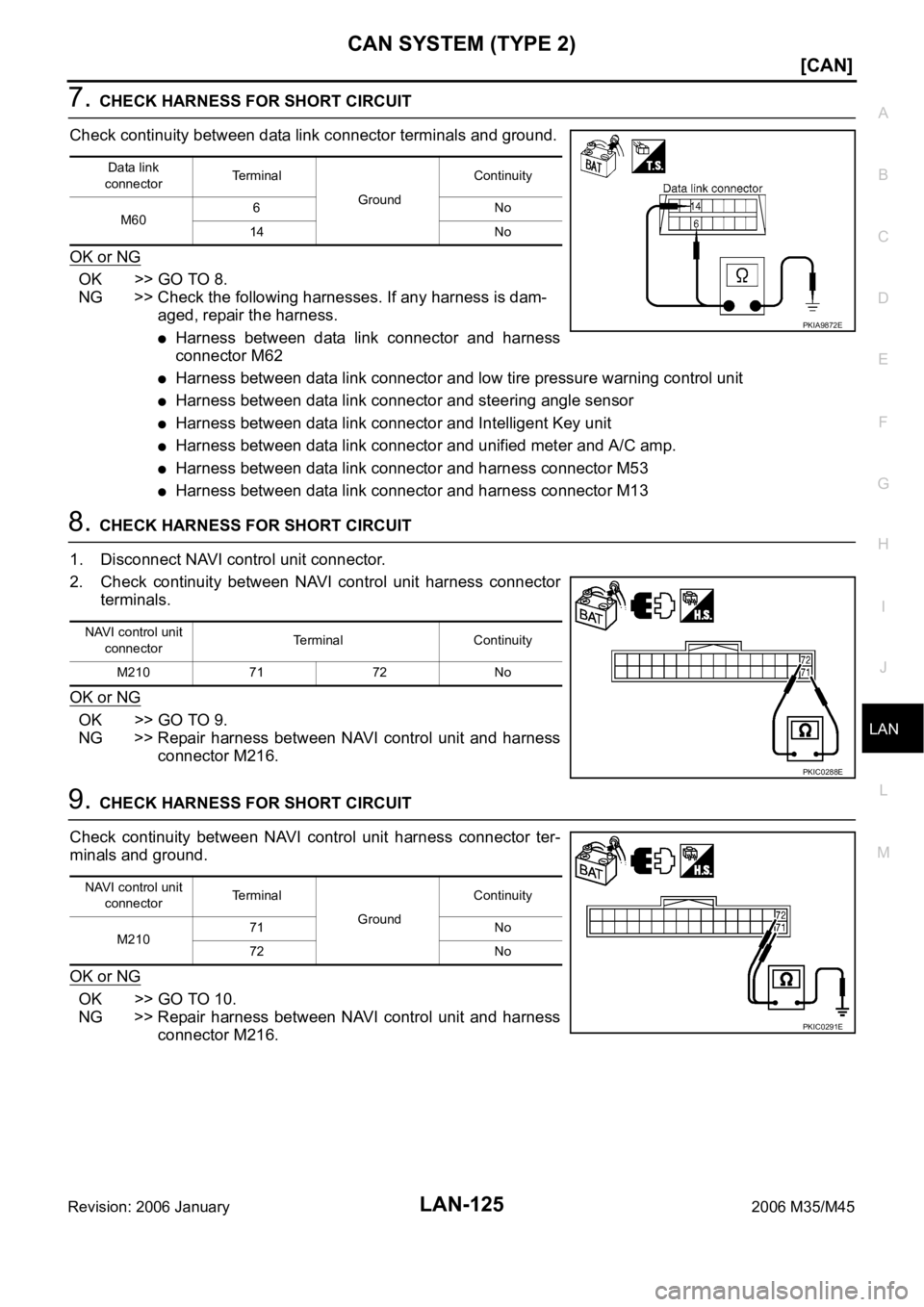

INFINITI M35 2006 Factory Service Manual LAN-126 [CAN] CAN SYSTEM (TYPE 2) Revision: 2006 January2006 M35/M45 10. CHECK HARNESS FOR SHORT CIRCUIT 1. Disconnect harness connector B15 and harness connector B3. 2. Check continuity between harne

Page 3796 of 5621

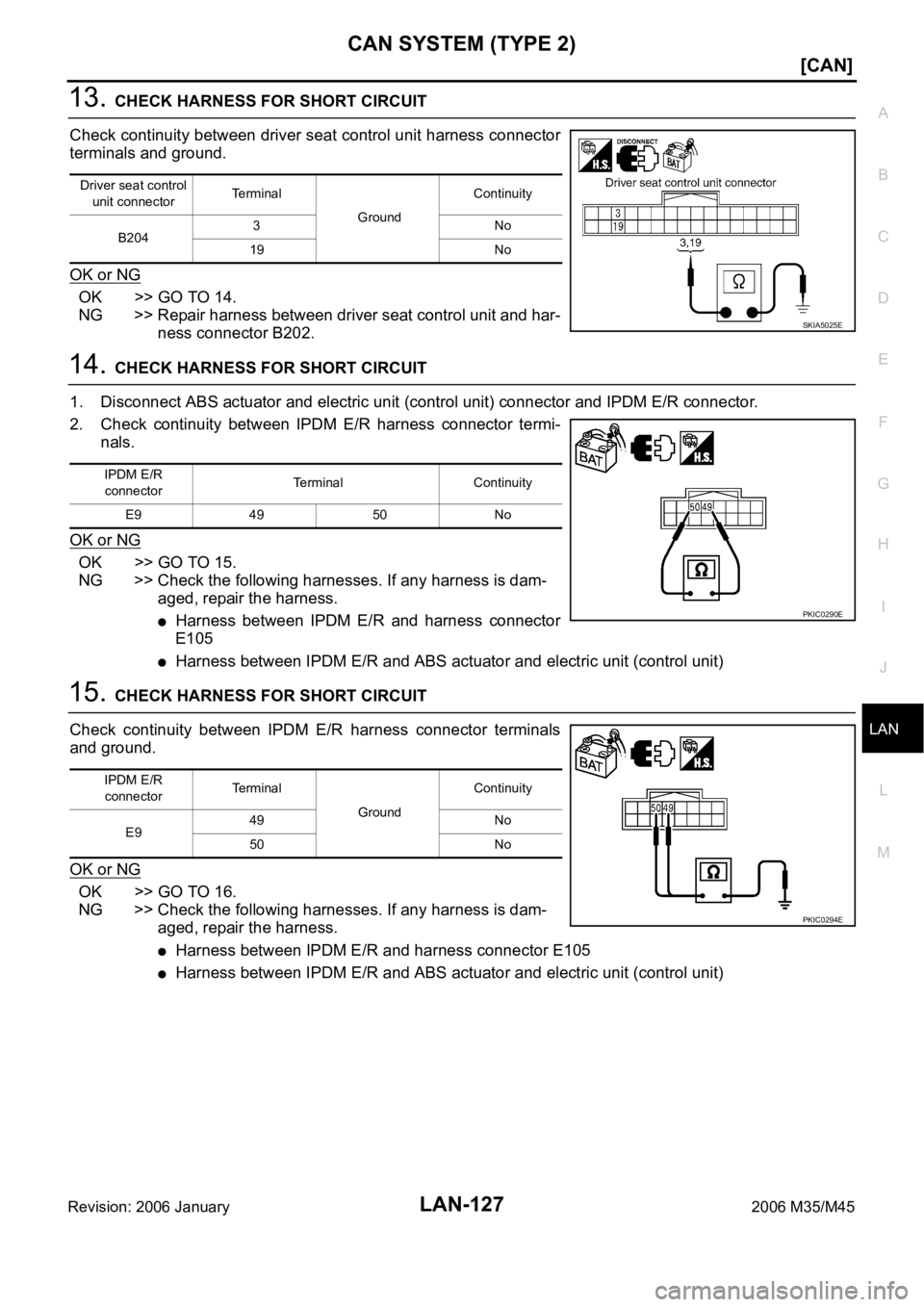

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 2) LAN-127 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 13. CHECK HARNESS FOR SHORT CIRCUIT Check continuity between driver seat control unit harness connector

Page 3797 of 5621

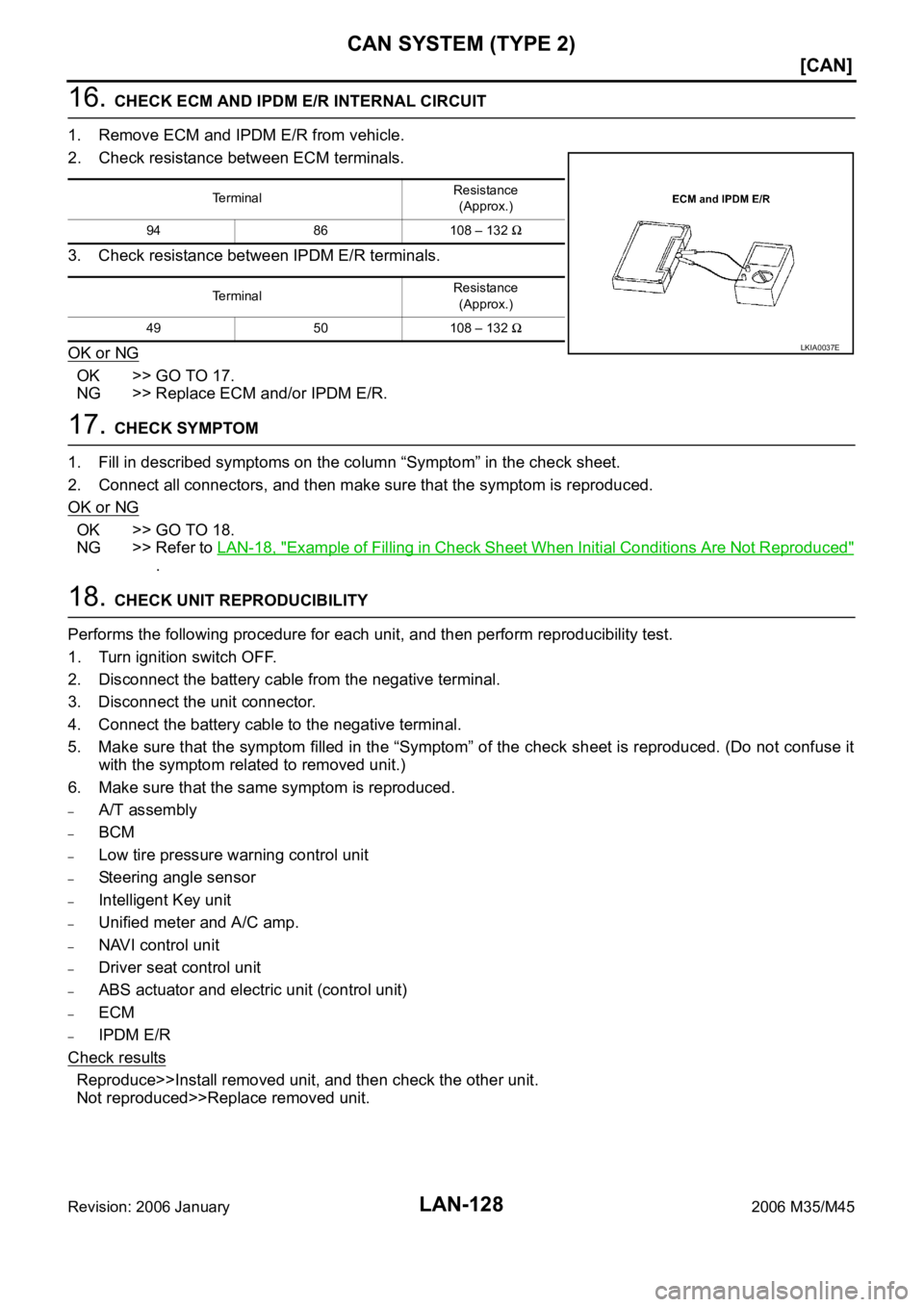

INFINITI M35 2006 Factory Service Manual LAN-128 [CAN] CAN SYSTEM (TYPE 2) Revision: 2006 January2006 M35/M45 16. CHECK ECM AND IPDM E/R INTERNAL CIRCUIT 1. Remove ECM and IPDM E/R from vehicle. 2. Check resistance between ECM terminals. 3.

Page 3798 of 5621

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 2) LAN-129 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 IPDM E/R Ignition Relay Circuit InspectionNKS003Z2 Check the following. If no malfunction is found, repl

Page 3799 of 5621

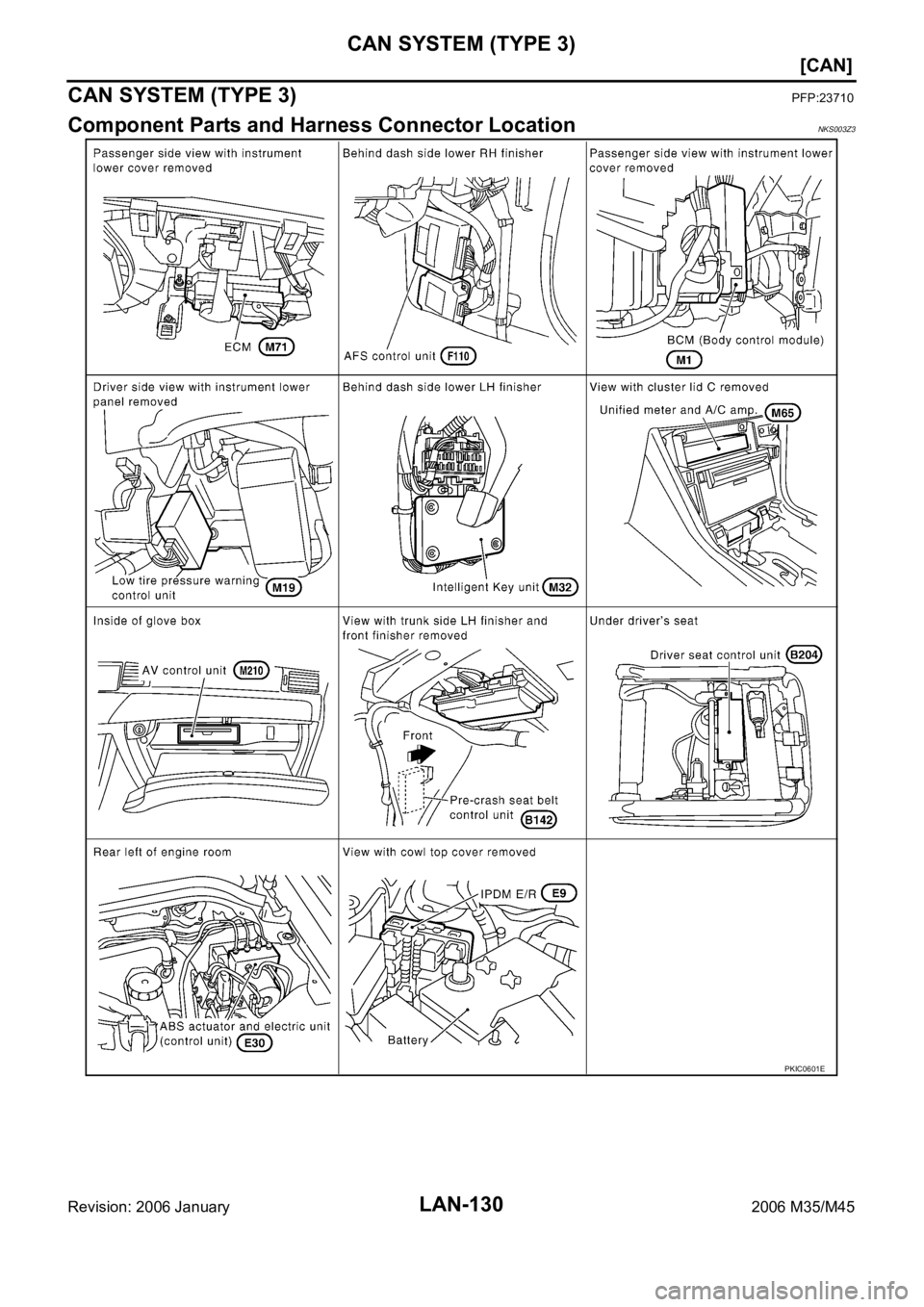

INFINITI M35 2006 Factory Service Manual LAN-130 [CAN] CAN SYSTEM (TYPE 3) Revision: 2006 January2006 M35/M45 CAN SYSTEM (TYPE 3)PFP:23710 Component Parts and Harness Connector LocationNKS003Z3 PKIC0601E

Page 3800 of 5621

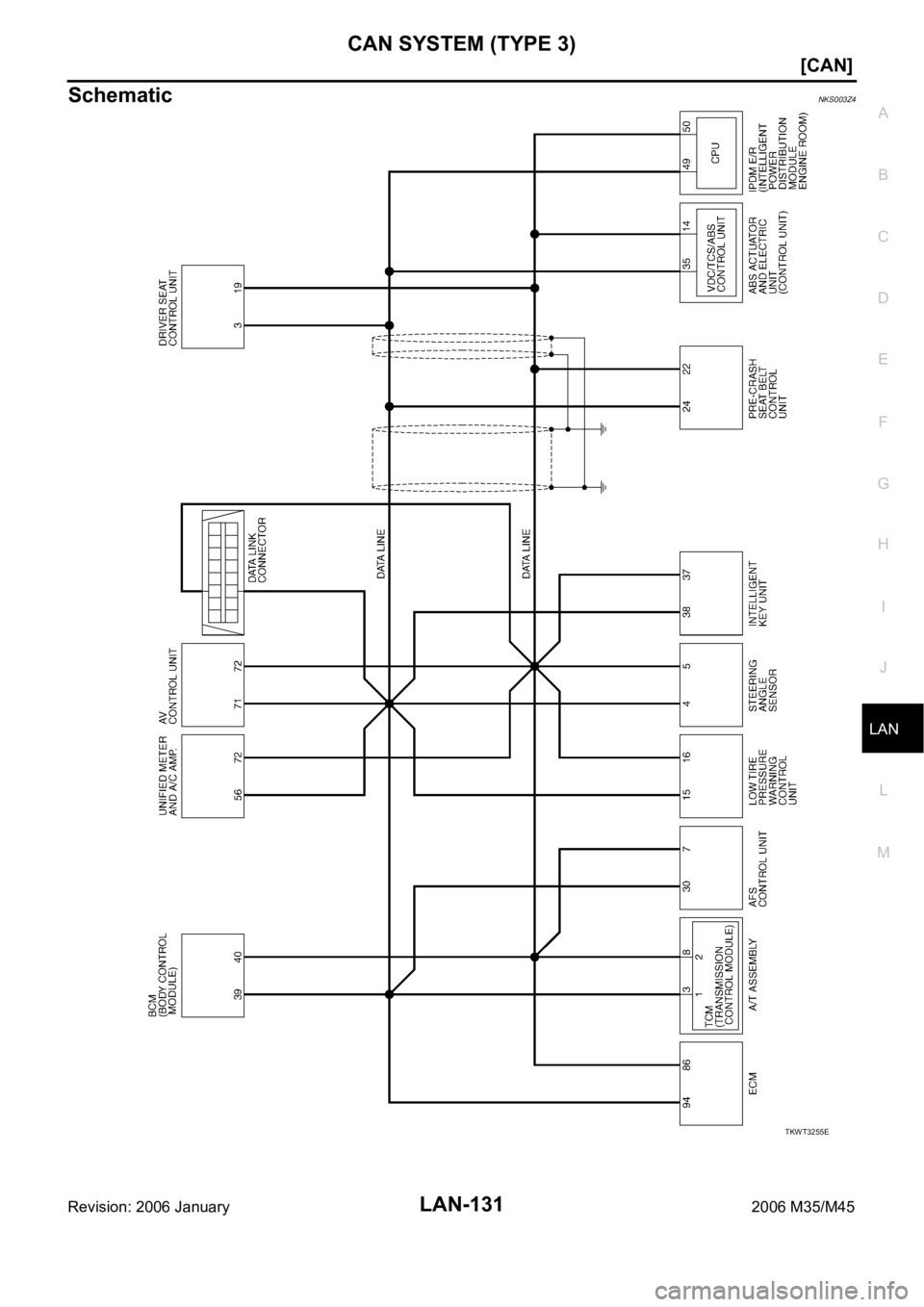

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 3) LAN-131 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 SchematicNKS003Z4 TKWT3255E
