Page 2441 of 5621
EC-898
[VK45DE]
DTC P0011, P0021 IVT CONTROL
Revision: 2006 January2006 M35/M45
Diagnostic ProcedureNBS005BE
1. CHECK OIL PRESSURE WARNING LAMP
1. Start engine.
2. Check oil pressure warning lamp and confirm it is not illumi-
nated.
OK or NG
OK >> GO TO 2.
KG >> Go to LU-26, "
OIL PRESSURE CHECK" .
2. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten two ground screws on the body.
Refer to EC-885, "
Ground Inspection" .
OK or NG
OK >> GO TO 3.
NG >> Repair or replace ground connections.
PBIA8559J
1. Body ground M70 2. Body ground M16
PBIB2782E
Page 2442 of 5621
![INFINITI M35 2006 Factory Service Manual DTC P0011, P0021 IVT CONTROL
EC-899
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
3. CHECK INTAKE VALVE TIMING CONTROL POSITION SENSOR POWER SUPPLY CIRCUIT
1. Disconnect intake INFINITI M35 2006 Factory Service Manual DTC P0011, P0021 IVT CONTROL
EC-899
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
3. CHECK INTAKE VALVE TIMING CONTROL POSITION SENSOR POWER SUPPLY CIRCUIT
1. Disconnect intake](/manual-img/42/57023/w960_57023-2441.png)
DTC P0011, P0021 IVT CONTROL
EC-899
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
3. CHECK INTAKE VALVE TIMING CONTROL POSITION SENSOR POWER SUPPLY CIRCUIT
1. Disconnect intake valve timing control position sensor harness connector.
2. Turn ignition switch ON.
3. Check voltage between intake valve timing control position sen-
sor terminal 3 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E108, M15
Harness connectors F102, M72
Harness for open or short between intake valve timing control position sensor and ECM
Harness for open or short between intake valve timing control position sensor and IPDM E/R
>> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK INTAKE VALVE TIMING CONTROL POSITION SENSOR GROUND CIRCUIT FOR OPEN AND
SHORT
1. Turn ignition switch OFF.
2. Check harness continuity between intake valve timing control position sensor terminal 1 and ground.
Refer to Wiring Diagram.
3. Also check harness for short to power.
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
1. Intake valve timing control position
sensor (bank 2)2. Intake valve timing control position
sensor (bank 1)
Voltage: Battery voltage
PBIB2686E
SEF509Y
Continuity should exist.
Page 2443 of 5621
![INFINITI M35 2006 Factory Service Manual EC-900
[VK45DE]
DTC P0011, P0021 IVT CONTROL
Revision: 2006 January2006 M35/M45
6. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors F102, M72
Harness for open or short between intake INFINITI M35 2006 Factory Service Manual EC-900
[VK45DE]
DTC P0011, P0021 IVT CONTROL
Revision: 2006 January2006 M35/M45
6. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors F102, M72
Harness for open or short between intake](/manual-img/42/57023/w960_57023-2442.png)
EC-900
[VK45DE]
DTC P0011, P0021 IVT CONTROL
Revision: 2006 January2006 M35/M45
6. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors F102, M72
Harness for open or short between intake valve timing control position sensor and ground
>> Repair open circuit or short to power in harness or connectors.
7. CHECK INTAKE VALVE TIMING CONTROL POSITION SENSOR INPUT SIGNAL CIRCUIT FOR OPEN
AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between the following;
ECM terminal 72 and intake valve timing control position sensor (bank 1) terminal 2 or
ECM terminal 53 and intake valve timing control position sensor (bank 2) terminal 2.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 8.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
8. CHECK INTAKE VALVE TIMING CONTROL POSITION SENSOR
Refer to EC-902, "
Component Inspection" .
OK or NG
OK >> GO TO 9.
NG >> Replace intake valve timing control position sensor.Continuity should exist.
Page 2444 of 5621
![INFINITI M35 2006 Factory Service Manual DTC P0011, P0021 IVT CONTROL
EC-901
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
9. CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE POWER SUPPLY CIRCUIT
1. Reconnect ECM harn INFINITI M35 2006 Factory Service Manual DTC P0011, P0021 IVT CONTROL
EC-901
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
9. CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE POWER SUPPLY CIRCUIT
1. Reconnect ECM harn](/manual-img/42/57023/w960_57023-2443.png)
DTC P0011, P0021 IVT CONTROL
EC-901
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
9. CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE POWER SUPPLY CIRCUIT
1. Reconnect ECM harness connector.
2. Disconnect intake valve timing control solenoid valve harness connector.
3. Turn ignition switch ON.
4. Check voltage between intake valve timing control solenoid
valve terminal 2 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 11.
NG >> GO TO 10.
10. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E12, F3
Harness for open or short between intake valve timing control solenoid valve and IPDM E/R.
>> Repair open circuit or short to ground or short to power in harness or connectors.
11 . CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE OUTPUT SIGNAL CIRCUIT FOR
OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between the following;
ECM terminal 10 and intake valve timing control solenoid valve (bank 1) terminal 1 or
ECM terminal 11 and intake valve timing control solenoid valve (bank 2) terminal 1.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 12.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
1. Intake valve timing control solenoid
valve (bank 2)2. Intake valve timing control solenoid
valve (bank 1)
Voltage: Battery voltage
PBIB2687E
PBIB0192E
Continuity should exist.
Page 2445 of 5621
![INFINITI M35 2006 Factory Service Manual EC-902
[VK45DE]
DTC P0011, P0021 IVT CONTROL
Revision: 2006 January2006 M35/M45
12. CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE
Refer to EC-902, "
Component Inspection" .
OK or NG
OK >> G INFINITI M35 2006 Factory Service Manual EC-902
[VK45DE]
DTC P0011, P0021 IVT CONTROL
Revision: 2006 January2006 M35/M45
12. CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE
Refer to EC-902, "
Component Inspection" .
OK or NG
OK >> G](/manual-img/42/57023/w960_57023-2444.png)
EC-902
[VK45DE]
DTC P0011, P0021 IVT CONTROL
Revision: 2006 January2006 M35/M45
12. CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE
Refer to EC-902, "
Component Inspection" .
OK or NG
OK >> GO TO 13.
NG >> Replace intake valve timing control solenoid valve.
13. CHECK CRANKSHAFT POSITION SENSOR (POS)
Refer to EC-1105, "
Component Inspection" .
OK or NG
OK >> GO TO 14.
NG >> Replace crankshaft position sensor (POS).
14. CHECK CAMSHAFT POSITION SENSOR (PHASE)
Refer to EC-1112, "
Component Inspection" .
OK or NG
OK >> GO TO 15.
NG >> Replace camshaft position sensor (PHASE).
15. CHECK CAMSHAFT SPROCKET
Check accumulation of debris to the signal pick-up portion of the camshaft sprocket. Refer to EM-215, "
CAM-
SHAFT" .
OK or NG
OK >> GO TO 16.
NG >> Remove debris and clean the signal pick-up cutout of camshaft sprocket.
16. CHECK TIMING CHAIN INSTALLATION
Check service records for any recent repairs that may cause timing chain misaligned.
Are there any service records that may cause timing chain misaligned?
Ye s o r N o
Yes >> Check timing chain installation. Refer to EM-203, "TIMING CHAIN" .
No >> GO TO 17.
17. CHECK LUBRICATION CIRCUIT
Refer to EM-221, "
Inspection of Camshaft Sprocket (INT) Oil Groove" .
OK or NG
OK >> GO TO 18.
NG >> Clean lubrication line.
18. CHECK INTERMITTENT INCIDENT
Refer to EC-878, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionNBS005BF
INTAKE VALVE TIMING CONTROL POSITION SENSOR
1. Disconnect intake valve timing control position sensor harness connector.
2. Loosen the fixing bolt of the sensor.
3. Remove the sensor.
Page 2446 of 5621
![INFINITI M35 2006 Factory Service Manual DTC P0011, P0021 IVT CONTROL
EC-903
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
4. Visually check the sensor for chipping.
5. Check resistance as shown below.
6. If NG, repla INFINITI M35 2006 Factory Service Manual DTC P0011, P0021 IVT CONTROL
EC-903
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
4. Visually check the sensor for chipping.
5. Check resistance as shown below.
6. If NG, repla](/manual-img/42/57023/w960_57023-2445.png)
DTC P0011, P0021 IVT CONTROL
EC-903
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
4. Visually check the sensor for chipping.
5. Check resistance as shown below.
6. If NG, replace intake valve timing control position sensor.
INTAKE VALVE TIMING CONTROL SOLENOID VALVE
1. Disconnect intake valve timing control solenoid valve harness connector.
2. Check resistance between intake valve timing control solenoid
valve terminals as follows.
If NG, replace intake valve timing control solenoid valve.
If OK, go to next step.
3. Remove intake valve timing control solenoid valve.
4. Provide 12V DC between intake valve timing control solenoid
valve terminals and then interrupt it. Make sure that the plunger
moves as shown in the figure.
CAUTION:
Do not apply 12V DC continuously for 5 seconds or more.
Doing so may result in damage to the coil in intake valve
timing control solenoid valve.
If NG, replace intake valve timing control solenoid valve.
NOTE:
Always replace O-ring when intake valve timing control
solenoid valve is removed.
Removal and InstallationNBS005BG
INTAKE VALVE TIMING CONTROL POSITION SENSOR
Refer to EM-203, "TIMING CHAIN" .
INTAKE VALVE TIMING CONTROL SOLENOID VALVE
Refer to EM-203, "TIMING CHAIN" .
SEF362Z
Terminal No. (Polarity) Resistance [at 25C (77F)]
3 (+) - 1 (-)
Except 0 or
2 (+) - 1 (-)
3 (+) - 2 (-)
PBIB0194E
Terminals Resistance
1 and 2 7.0 - 7.5
[at 20C (68F)]
1 or 2 and ground
(Continuity should not exist)
PBIB0193E
PBIB2275E
Page 2447 of 5621
![INFINITI M35 2006 Factory Service Manual EC-904
[VK45DE]
DTC P0031, P0032, P0051, P0052 A/F SENSOR 1 HEATER
Revision: 2006 January2006 M35/M45
DTC P0031, P0032, P0051, P0052 A/F SENSOR 1 HEATERPFP:22693
DescriptionNBS005BH
SYSTEM DESCRIPTION INFINITI M35 2006 Factory Service Manual EC-904
[VK45DE]
DTC P0031, P0032, P0051, P0052 A/F SENSOR 1 HEATER
Revision: 2006 January2006 M35/M45
DTC P0031, P0032, P0051, P0052 A/F SENSOR 1 HEATERPFP:22693
DescriptionNBS005BH
SYSTEM DESCRIPTION](/manual-img/42/57023/w960_57023-2446.png)
EC-904
[VK45DE]
DTC P0031, P0032, P0051, P0052 A/F SENSOR 1 HEATER
Revision: 2006 January2006 M35/M45
DTC P0031, P0032, P0051, P0052 A/F SENSOR 1 HEATERPFP:22693
DescriptionNBS005BH
SYSTEM DESCRIPTION
The ECM performs ON/OFF duty control of the A/F sensor 1 heater corresponding to the engine operating
condition to keep the temperature of A/F sensor 1 element at the specified range.
CONSULT-II Reference Value in Data Monitor ModeNBS005BI
Specification data are reference values.
On Board Diagnosis LogicNBS005BJ
DTC Confirmation ProcedureNBS005BK
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is between 10.5V and 16V at
idle.
WITH CONSULT-II
1. Turn ignition switch ON and select “DATA MONITOR” mode with
CONSULT-II.
2. Start engine and let it idle for at least 10 seconds.
3. If 1st trip DTC is detected, go to EC-908, "
Diagnostic Procedure"
.
WITH GST
Follow the procedure “WITH CONSULT-II” above.
Sensor Input Signal to ECM ECM function Actuator
Camshaft position sensor (PHASE)
Crankshaft position sensor (POS)Engine speed
Air fuel ratio (A/F) sensor 1
heater controlAir fuel ratio (A/F) sensor 1
heater
Mass air flow sensor Amount of intake air
MONITOR ITEM CONDITION SPECIFICATION
A/F S1 HTR (B1)
A/F S1 HTR (B2)
Engine: After warming up, idle the engine 0 - 100%
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0031
0031
(Bank 1)Air fuel ratio (A/F) sensor
1 heater control circuit
lowThe current amperage in the A/F sensor 1 heater
circuit is out of the normal range.
(An excessively low voltage signal is sent to ECM
through the A/F sensor 1 heater.)
Harness or connectors
(The A/F sensor 1 heater circuit is
open or shorted.)
A/F sensor 1 heater P0051
0051
(Bank 2)
P0032
0032
(Bank 1)Air fuel ratio (A/F) sensor
1 heater control circuit
highThe current amperage in the A/F sensor 1 heater
circuit is out of the normal range.
(An excessively high voltage signal is sent to ECM
through the A/F sensor 1 heater.)
Harness or connectors
(The A/F sensor 1 heater circuit is
shorted.)
A/F sensor 1 heater P0052
0052
(Bank 2)
SEF058Y
Page 2448 of 5621
DTC P0031, P0032, P0051, P0052 A/F SENSOR 1 HEATER
EC-905
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45

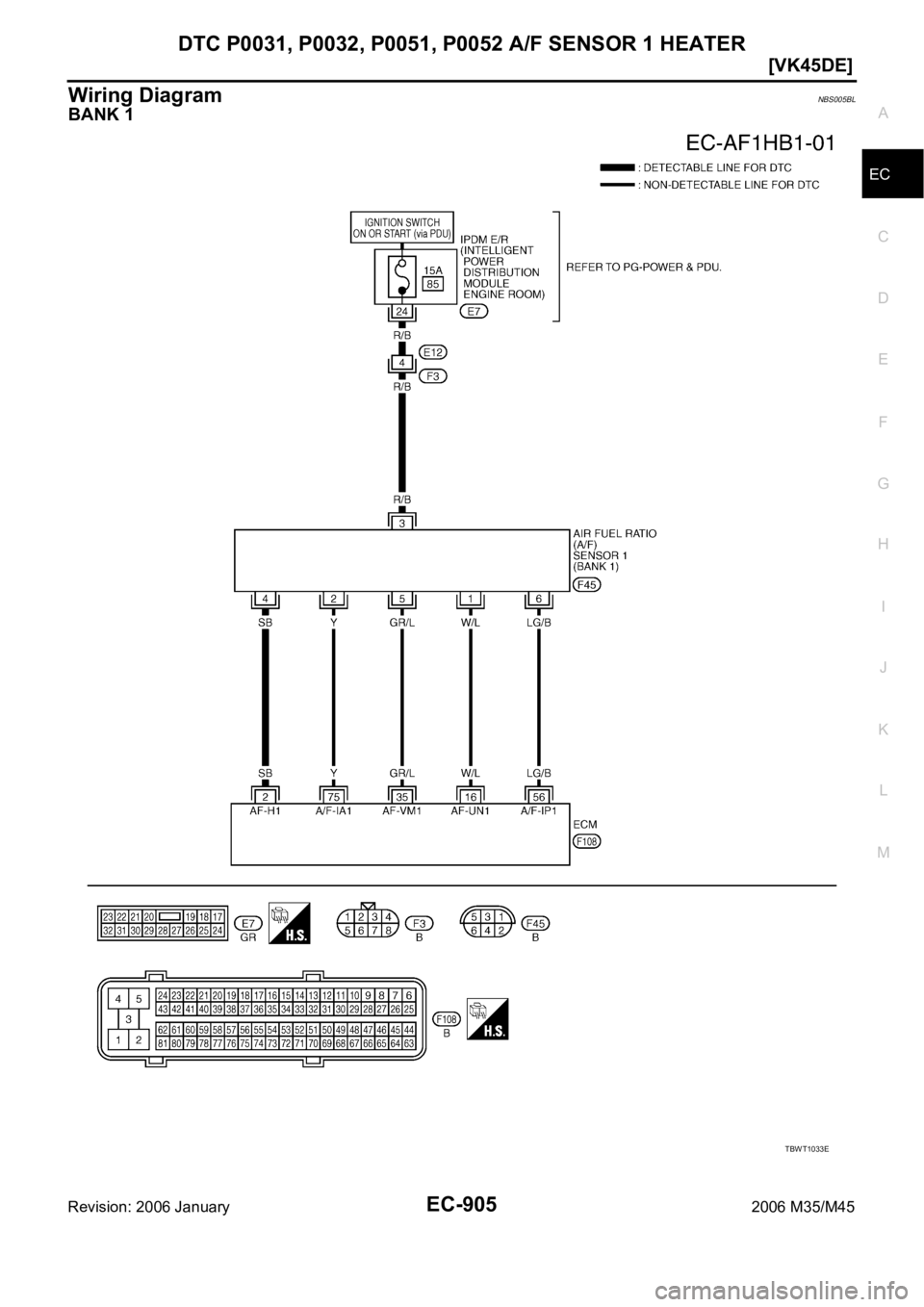

Wiring DiagramNBS005BL
BANK 1
TBWT1033E
