Page 3633 of 5621

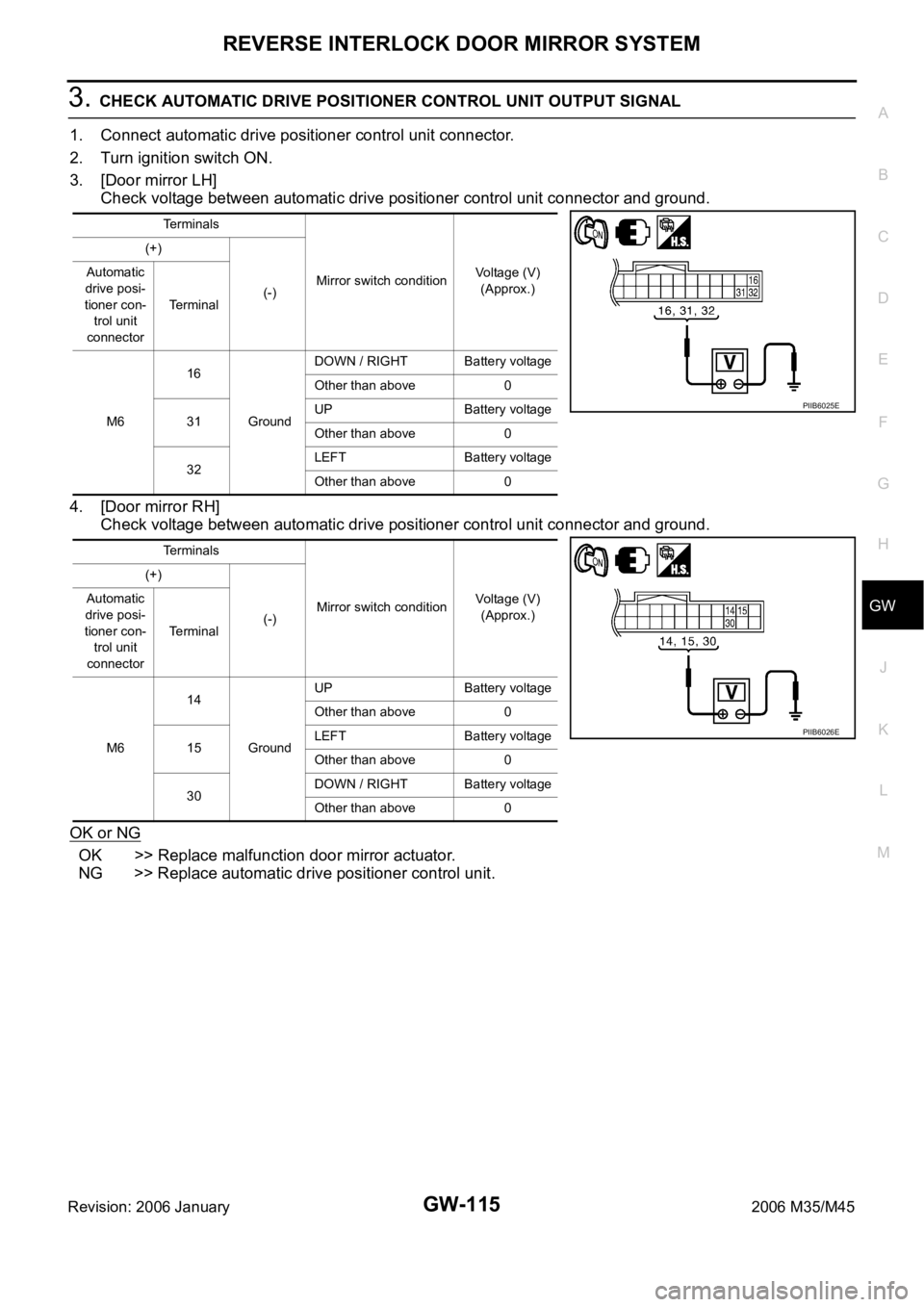

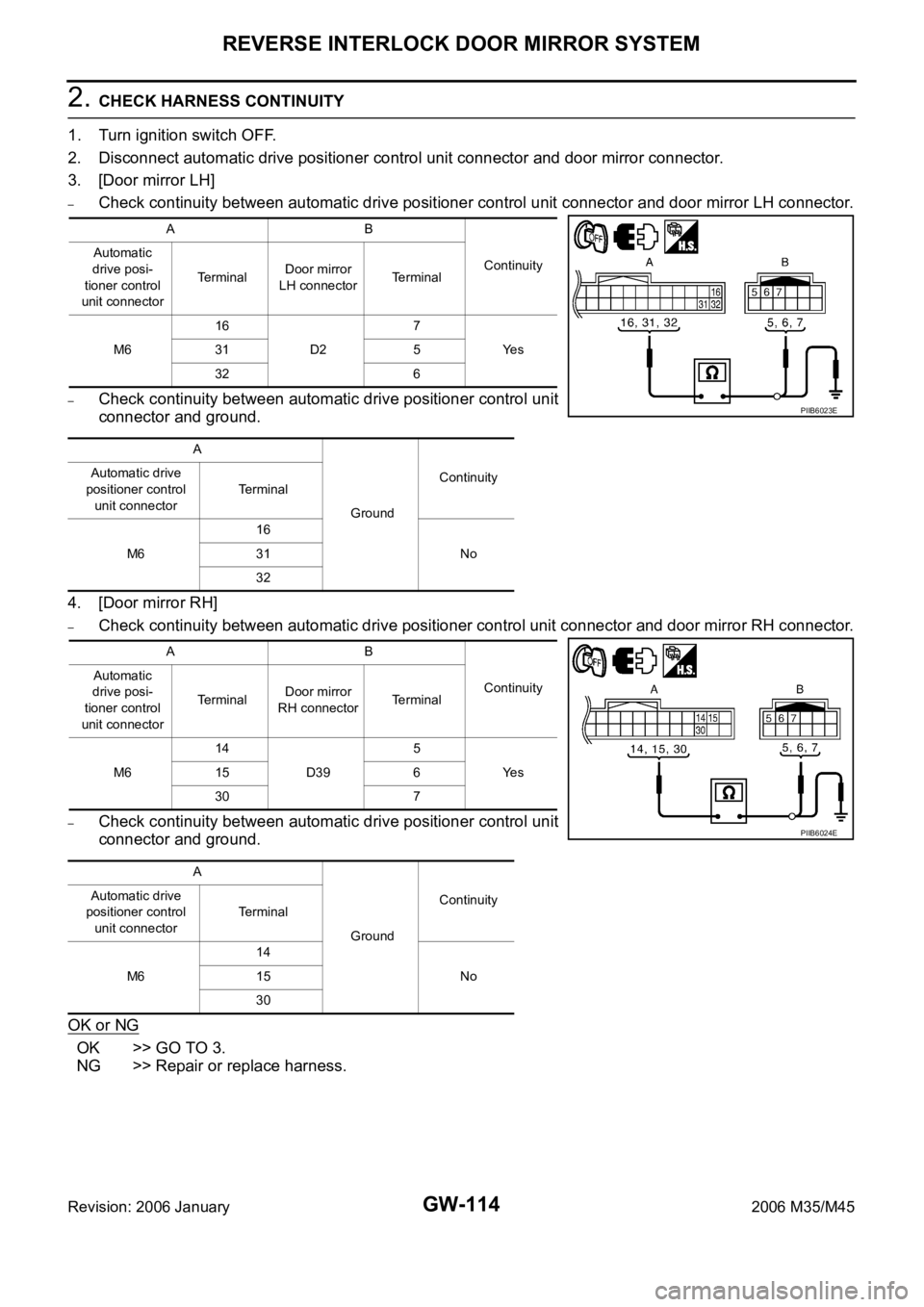

INFINITI M35 2006 Factory Service Manual GW-114 REVERSE INTERLOCK DOOR MIRROR SYSTEM Revision: 2006 January2006 M35/M45 2. CHECK HARNESS CONTINUITY 1. Turn ignition switch OFF. 2. Disconnect automatic drive positioner control unit connector

Page 3634 of 5621

INFINITI M35 2006 Factory Service Manual REVERSE INTERLOCK DOOR MIRROR SYSTEM GW-115 C D E F G H J K L MA B GW Revision: 2006 January2006 M35/M45 3. CHECK AUTOMATIC DRIVE POSITIONER CONTROL UNIT OUTPUT SIGNAL 1. Connect automatic drive posit

Page 3635 of 5621

INFINITI M35 2006 Factory Service Manual GW-116 REVERSE INTERLOCK DOOR MIRROR SYSTEM Revision: 2006 January2006 M35/M45 Check Mirror Sensor Circuit Check NIS0023E 1. CHECK MIRROR SENSOR INSPECTION With CONSULT-II Check the voltage on (MIR/

Page 3636 of 5621

INFINITI M35 2006 Factory Service Manual REVERSE INTERLOCK DOOR MIRROR SYSTEM GW-117 C D E F G H J K L MA B GW Revision: 2006 January2006 M35/M45 3. CHECK MIRROR SENSOR POWER SUPPLY 2 1. Turn ignition switch OFF. 2. Disconnect door mirror co

Page 3637 of 5621

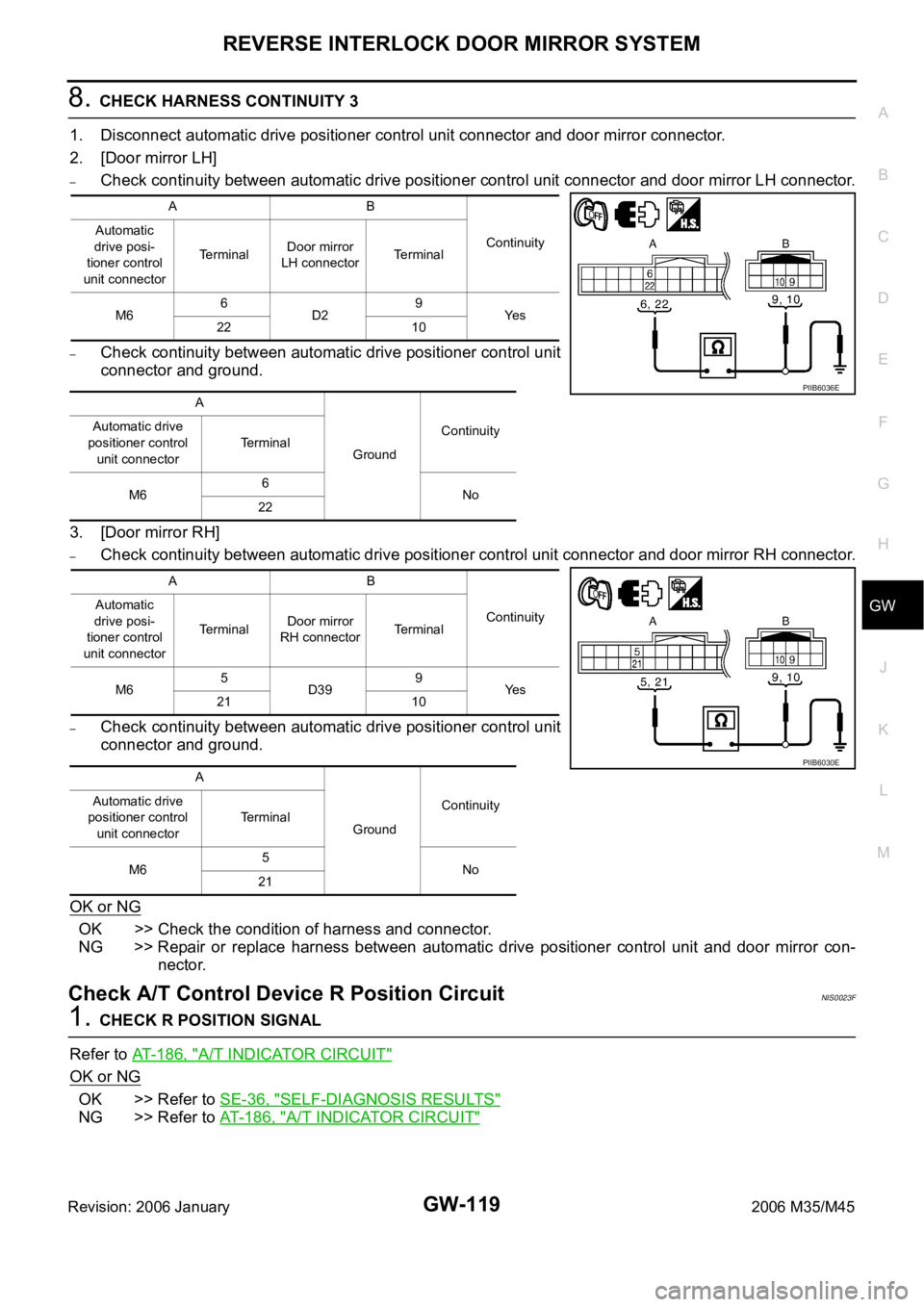

INFINITI M35 2006 Factory Service Manual GW-118 REVERSE INTERLOCK DOOR MIRROR SYSTEM Revision: 2006 January2006 M35/M45 5. CHECK MIRROR SENSOR GROUND 1 1. Turn ignition switch OFF. 2. Disconnect door mirror connector. 3. Check continuity bet

Page 3638 of 5621

INFINITI M35 2006 Factory Service Manual REVERSE INTERLOCK DOOR MIRROR SYSTEM GW-119 C D E F G H J K L MA B GW Revision: 2006 January2006 M35/M45 8. CHECK HARNESS CONTINUITY 3 1. Disconnect automatic drive positioner control unit connector a

Page 3639 of 5621

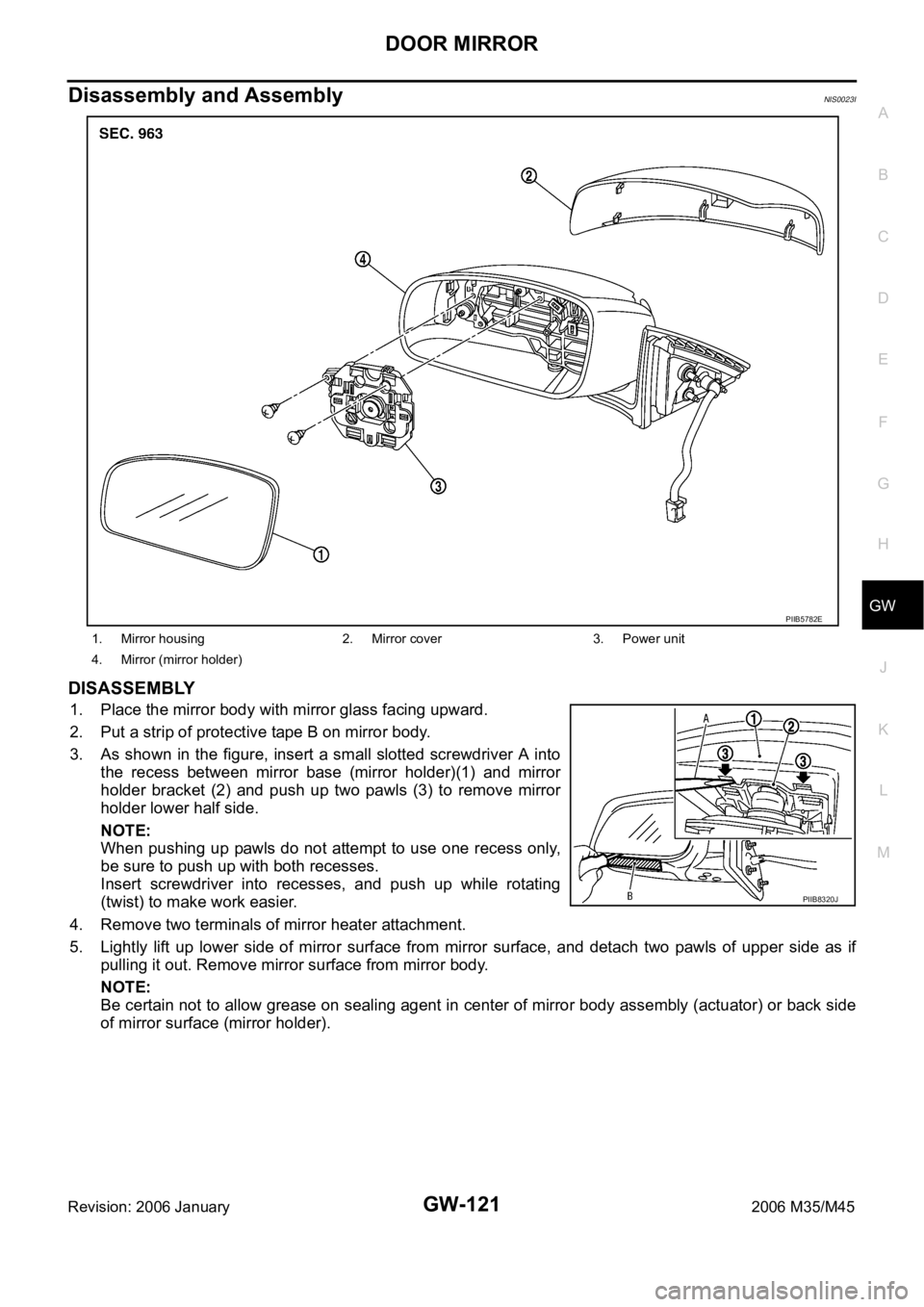

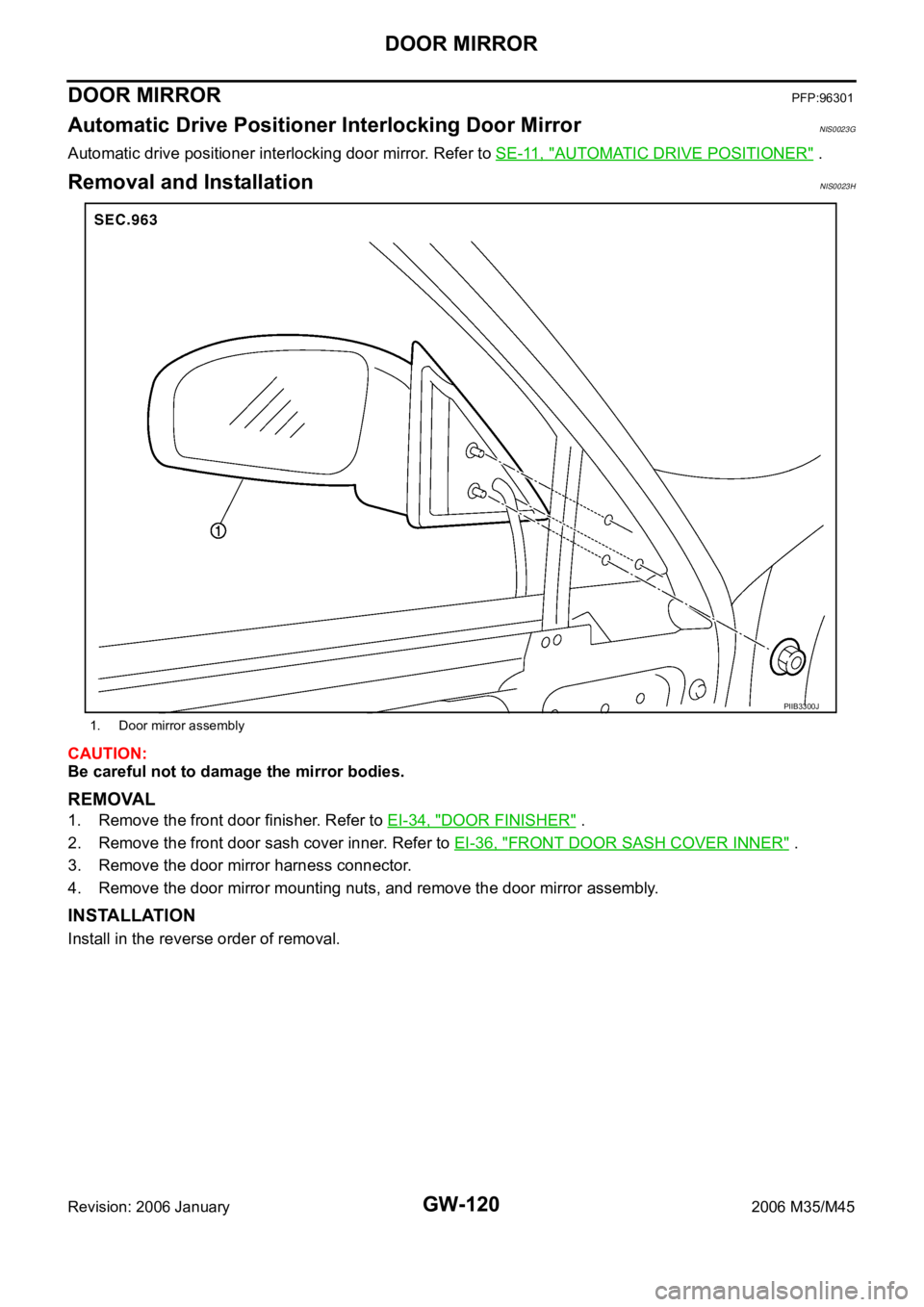

INFINITI M35 2006 Factory Service Manual GW-120 DOOR MIRROR Revision: 2006 January2006 M35/M45 DOOR MIRRORPFP:96301 Automatic Drive Positioner Interlocking Door Mirror NIS0023G Automatic drive positioner interlocking door mirror. Refer to SE

Page 3640 of 5621

INFINITI M35 2006 Factory Service Manual DOOR MIRROR GW-121 C D E F G H J K L MA B GW Revision: 2006 January2006 M35/M45 Disassembly and AssemblyNIS0023I DISASSEMBLY 1. Place the mirror body with mirror glass facing upward. 2. Put a strip of
