INFINITI M35 2006 Factory Service Manual EC-1458
[VK45DE]
ASCD INDICATOR
Revision: 2006 January2006 M35/M45
Diagnostic ProcedureNBS005QR
1. CHECK OVERALL FUNCTION
Check ASCD indicator under the following conditions.
OK or NG
OK >>INSPECTION

Page 3002 of 5621

INFINITI M35 2006 Factory Service Manual MIL AND DATA LINK CONNECTOR
EC-1459
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
MIL AND DATA LINK CONNECTORPFP:24814

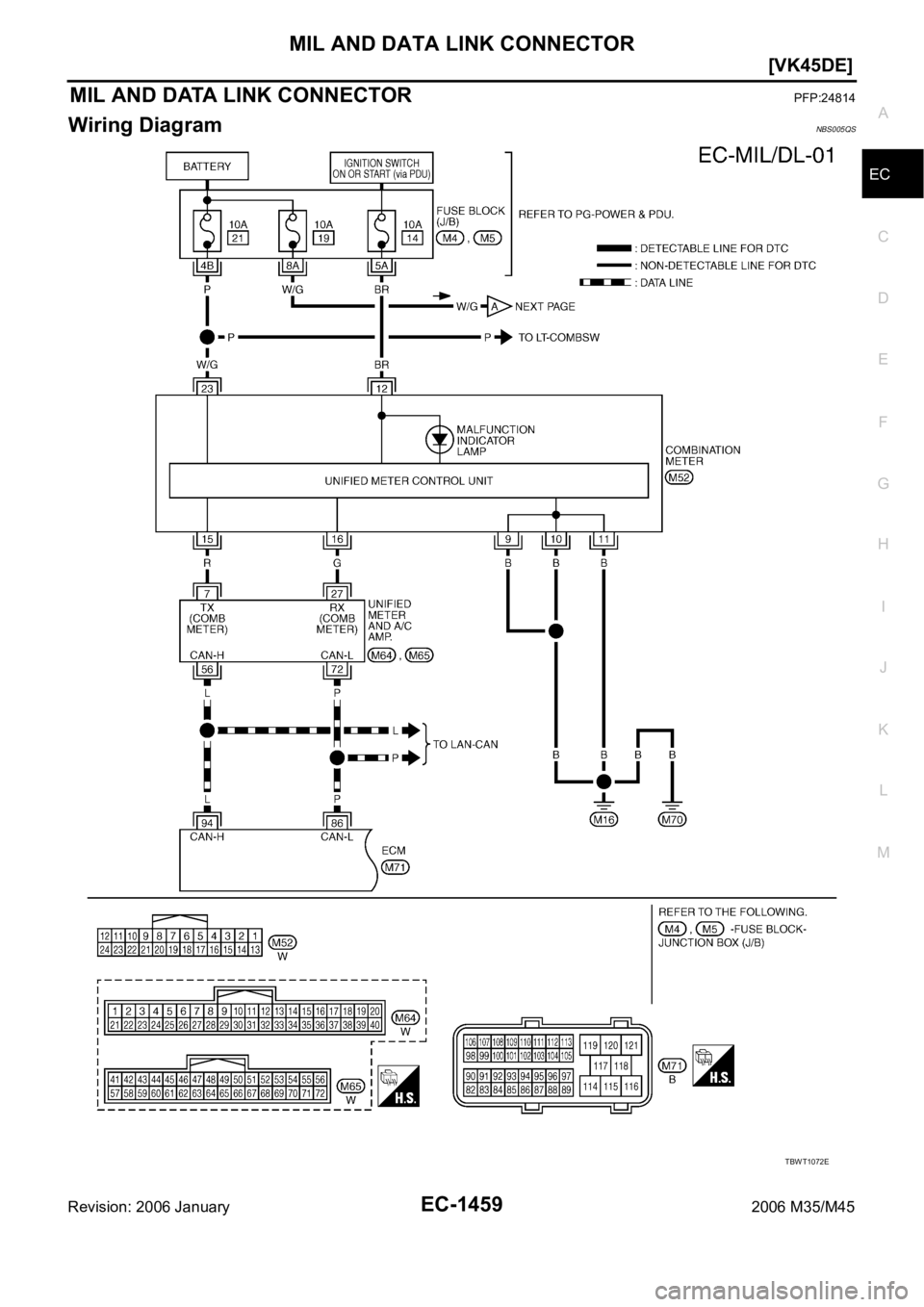

Wiring DiagramNBS005QS
TBWT1072E

Page 3003 of 5621

INFINITI M35 2006 Factory Service Manual EC-1460
[VK45DE]
MIL AND DATA LINK CONNECTOR
Revision: 2006 January2006 M35/M45

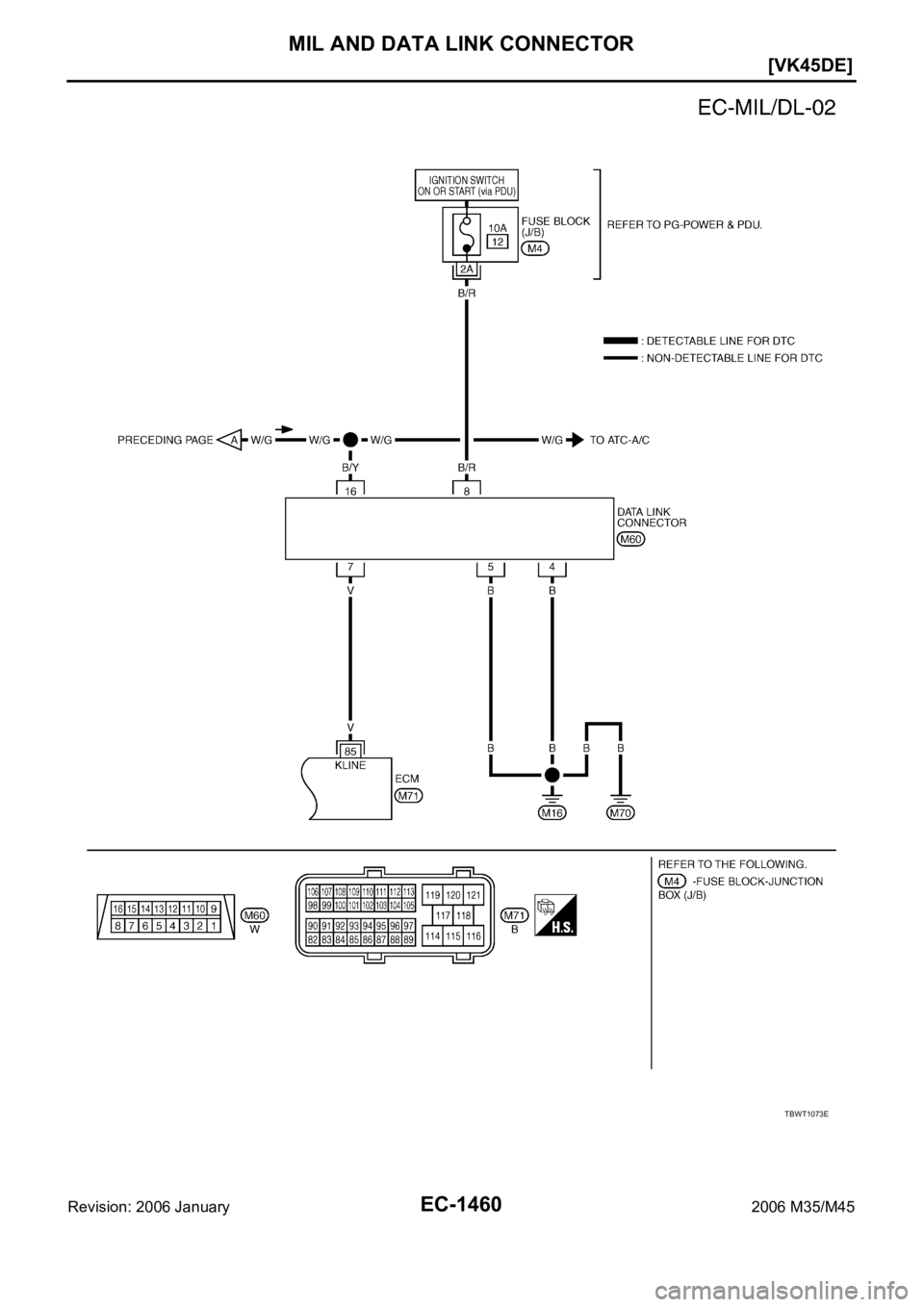

TBWT1073E

Page 3004 of 5621

INFINITI M35 2006 Factory Service Manual SERVICE DATA AND SPECIFICATIONS (SDS)
EC-1461
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Fuel PressureNBS005QT
Idle Speed and

Page 3005 of 5621

INFINITI M35 2006 Factory Service Manual EC-1462
[VK45DE]
SERVICE DATA AND SPECIFICATIONS (SDS)
Revision: 2006 January2006 M35/M45
Heated Oxygen Sensor 2 HeaterNBS005R3
Throttle Control MotorNBS005R4
Fuel InjectorNBS005R5
Fuel PumpNBS005R6
R
