EC-562
[VQ35DE]
DTC P1564 ICC STEERING SWITCH
Revision: 2006 January2006 M35/M45
DTC Confirmation ProcedureNBS0054M
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Wait at least 10 seconds.
4. Press MAIN switch for at least 10 seconds, then release it and wait at least 10 seconds.
5. Press CANCEL switch for at least 10 seconds, then release it and wait at least 10 seconds.
6. Press RESUME/ACCELERATE switch for at least 10 seconds, then release it and wait at least 10 sec-
onds.
7. Press SET/COAST switch for at least 10 seconds, then release it and wait at least 10 seconds.
8. Press DISTANCE switch for at least 10 seconds, then release it and wait at least 10 seconds.
9. If DTC is detected, go to EC-564, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
Page 2106 of 5621
DTC P1564 ICC STEERING SWITCH
EC-563
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45

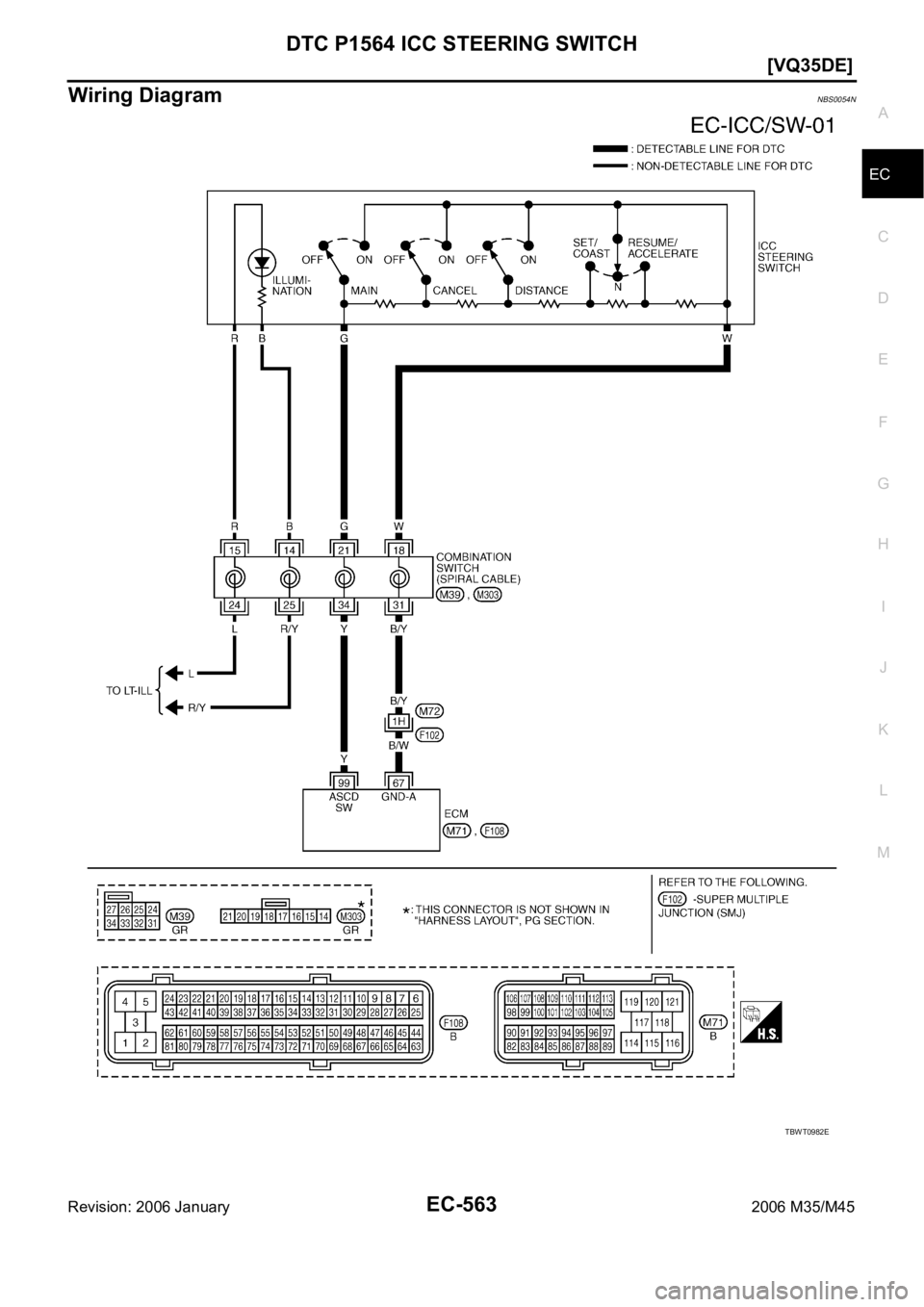

Wiring DiagramNBS0054N
TBWT0982E
Page 2107 of 5621
![INFINITI M35 2006 Factory Service Manual EC-564
[VQ35DE]
DTC P1564 ICC STEERING SWITCH
Revision: 2006 January2006 M35/M45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM grou INFINITI M35 2006 Factory Service Manual EC-564
[VQ35DE]
DTC P1564 ICC STEERING SWITCH
Revision: 2006 January2006 M35/M45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM grou](/manual-img/42/57023/w960_57023-2106.png)
EC-564
[VQ35DE]
DTC P1564 ICC STEERING SWITCH
Revision: 2006 January2006 M35/M45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureNBS0054O
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten two ground screws on the body.
Refer to EC-172, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
67 B/WSensor ground
(MAF sensor, IAT sensor,
ECT sensor, EVAP control
system pressure sensor,
PSP sensor, ASCD/ICC
steering switch, Battery cur-
rent sensor, Refrigerant
pressure sensor)[Engine is running]
Warm-up condition
Idle speedApproximately 0V
99 YICC steering switch
(models with ICC system)[Ignition switch: ON]
ICC steering switch: OFFApproximately 4.3V
[Ignition switch: ON]
MAIN switch: PressedApproximately 0V
[Ignition switch: ON]
CANCEL switch: PressedApproximately 1.3V
[Ignition switch: ON]
RESUME/ACCELERATE switch: PressedApproximately 3.7V
[Ignition switch: ON]
SET/COAST switch: PressedApproximately 3V
[Ignition switch: ON]
DISTANCE switch: PressedApproximately 2.2V
1. Body ground M70 2. Body ground M16
PBIB2782E
Page 2108 of 5621
![INFINITI M35 2006 Factory Service Manual DTC P1564 ICC STEERING SWITCH
EC-565
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
2. CHECK ICC STEERING SWITCH CIRCUIT
With CONSULT-II
1. Turn ignition switch ON.
2. Select INFINITI M35 2006 Factory Service Manual DTC P1564 ICC STEERING SWITCH
EC-565
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
2. CHECK ICC STEERING SWITCH CIRCUIT
With CONSULT-II
1. Turn ignition switch ON.
2. Select](/manual-img/42/57023/w960_57023-2107.png)
DTC P1564 ICC STEERING SWITCH
EC-565
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
2. CHECK ICC STEERING SWITCH CIRCUIT
With CONSULT-II
1. Turn ignition switch ON.
2. Select “MAIN SW”, “CANCEL SW”, “RESUME/ACC SW”, “SET
SW” and “DIST SW” in “DATA MONITOR” mode with CON-
SULT-II.
3. Check each item indication under the following conditions.
Without CONSULT-II
1. Turn ignition switch ON.
2. Check voltage between ECM terminal 99 and ground with press-
ing each button.
OK or NG
OK >> GO TO 8.
NG >> GO TO 3.
Switch Monitor item Condition Indication
MAIN switch MAIN SWPressed ON
Released OFF
CANCEL switch CANCEL SWPressed ON
Released OFF
RESUME/ACCEL-
ERATE switchRESUME/ACC SWPressed ON
Released OFF
SET/COAST switch SET SWPressed ON
Released OFF
DISTANCE switch DIST SWPressed ON
Released OFF
MBIB0064E
Switch Condition Voltage [V]
MAIN switchPressed Approx. 0
Released Approx. 4.3
CANCEL switchPressed Approx. 1.3
Released Approx. 4.3
RESUME/ACCELER-
ATE switchPressed Approx. 3.7
Released Approx. 4.3
SET/COAST switchPressed Approx. 3.0
Released Approx. 4.3
DISTANCE switchPressed Approx. 2.2
Released Approx. 4.3
PBIB0311E
Page 2109 of 5621
![INFINITI M35 2006 Factory Service Manual EC-566
[VQ35DE]
DTC P1564 ICC STEERING SWITCH
Revision: 2006 January2006 M35/M45
3. CHECK ICC STEERING SWITCH GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness c INFINITI M35 2006 Factory Service Manual EC-566
[VQ35DE]
DTC P1564 ICC STEERING SWITCH
Revision: 2006 January2006 M35/M45
3. CHECK ICC STEERING SWITCH GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness c](/manual-img/42/57023/w960_57023-2108.png)
EC-566
[VQ35DE]
DTC P1564 ICC STEERING SWITCH
Revision: 2006 January2006 M35/M45
3. CHECK ICC STEERING SWITCH GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Disconnect combination switch harness connector M303.
4. Check harness continuity between combination switch terminal 18 and ECM terminal 67.
Refer to Wiring Diagram.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors M72, F102
Combination switch (spiral cable)
Harness for open and short between ECM and combination switch
>> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK ICC STEERING SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 99 and combination switch terminal 21.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
6. DETECT MALFUNCTIONING PART
Check the following.
Combination switch (spiral cable)
Harness for open and short between ECM and combination switch
>> Repair open circuit or short to ground or short to power in harness or connectors.
7. CHECK ICC STEERING SWITCH
Refer to EC-567, "
Component Inspection" .
OK or NG
OK >> GO TO 8.
NG >> Replace ICC steering switch.
8. CHECK INTERMITTENT INCIDENT
Refer to EC-165, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END Continuity should exist.
Continuity should exist.
Page 2110 of 5621
DTC P1564 ICC STEERING SWITCH
EC-567
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
Component InspectionNBS0054P
ICC STEERING SWITCH
1. Disconnect combination switch (spiral cable) harness connector M303.
2. Check continuity between combination switch terminals 18 and
21 with pushing each switch.
If NG, replace ICC steering switch.
Switch Condition Resistance []
MAIN switchPressed Approx. 0
Released Approx. 5,500
CANCEL switchPressed Approx. 310
Released Approx. 5,500
RESUME/ACCELERATE
switchPressed Approx. 2,600
Released Approx. 5,500
SET/COAST switchPressed Approx. 1,400
Released Approx. 5,500
DISTANCE switchPressed Approx. 740
Released Approx. 5,500
PBIB2739E
Page 2111 of 5621
![INFINITI M35 2006 Factory Service Manual EC-568
[VQ35DE]
DTC P1564 ASCD STEERING SWITCH
Revision: 2006 January2006 M35/M45
DTC P1564 ASCD STEERING SWITCHPFP:25551
Component DescriptionNBS0054Q
ASCD steering switch has variant values of elect INFINITI M35 2006 Factory Service Manual EC-568
[VQ35DE]
DTC P1564 ASCD STEERING SWITCH
Revision: 2006 January2006 M35/M45
DTC P1564 ASCD STEERING SWITCHPFP:25551
Component DescriptionNBS0054Q
ASCD steering switch has variant values of elect](/manual-img/42/57023/w960_57023-2110.png)
EC-568
[VQ35DE]
DTC P1564 ASCD STEERING SWITCH
Revision: 2006 January2006 M35/M45
DTC P1564 ASCD STEERING SWITCHPFP:25551
Component DescriptionNBS0054Q
ASCD steering switch has variant values of electrical resistance for each button. ECM reads voltage variation
of switch, and determines which button is operated.
Refer to EC-36, "
AUTOMATIC SPEED CONTROL DEVICE (ASCD)" for the ASCD function.
CONSULT-II Reference Value in Data Monitor ModeNBS0054R
Specification data are reference values.
On Board Diagnosis LogicNBS0054S
This self-diagnosis has the one trip detection logic.
The MIL will not light up for this diagnosis.
NOTE:
If DTC P1564 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605. Refer to
EC-496, "
DTC P0605 ECM" .
1. ASCD steering switch 2. RESUME/ACCELERATE switch 3. SET/COAST switch
4. CANCEL switch 5. DISTANCE switch (Models with ICC) 6. MAIN switch
PBIB2709E
MONITOR ITEM CONDITION SPECIFICATION
MAIN SW
Ignition switch: ONMAIN switch: Pressed ON
MAIN switch: Released OFF
CANCEL SW
Ignition switch: ONCANCEL switch: Pressed ON
CANCEL switch: Released OFF
RESUME/ACC SW
Ignition switch: ONRESUME/ACCELERATE switch:
PressedON
RESUME/ACCELERATE switch:
ReleasedOFF
SET SW
Ignition switch: ONSET/COAST switch: Pressed ON
SET/COAST switch: Released OFF
DTC No.Trouble diagnosis
nameDTC detecting condition Possible cause
P1564
1564ASCD steering
switch
An excessively high voltage signal from the ASCD
steering switch is sent to ECM.
ECM detects that input signal from the ASCD
steering switch is out of the specified range.
ECM detects that the ASCD steering switch is
stuck ON.
Harness or connectors
(The switch circuit is open or shorted.)
ASCD steering switch
ECM
Page 2112 of 5621
DTC P1564 ASCD STEERING SWITCH
EC-569
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
DTC Confirmation ProcedureNBS0054T
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Wait at least 10 seconds.
4. Press MAIN switch for at least 10 seconds, then release it and wait at least 10 seconds.
5. Press CANCEL switch for at least 10 seconds, then release it and wait at least 10 seconds.
6. Press RESUME/ACCELERATE switch for at least 10 seconds, then release it and wait at least 10 sec-
onds.
7. Press SET/COAST switch for at least 10 seconds, then release it and wait at least 10 seconds.
8. If DTC is detected, go to EC-571, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
