SE-60
AUTOMATIC DRIVE POSITIONER
Revision: 2006 January2006 M35/M45
Telescopic Sensor Circuit CheckNIS0026H
1. CHECK FUNCTION
With CONSULT-II
Operate the telescopic switch with “TELESCO SEN” on the DATA MONITOR to make sure the voltage
changes.
Without CONSULT-II
1. Turn ignition switch OFF.
2. Check voltage between automatic drive positioner control unit connector and ground.
OK or NG
OK >> Telescopic sensor circuit is OK.
NG >> GO TO 2.
Monitor item
[OPERATION or UNIT]Contents
TELESCO
SEN“V”The telescoping position (voltage) judged from the tele-
scoping sensor signal is displayed.
PIIA0295E
Automatic
drive posi-
tioner con-
nectorTe r m i n a l s
ConditionVoltage (V)
(Approx.)
(+) (–)
M6 23 GroundTelescopic
top position4.6
Telescopic
bottom position0.4
PIIB6159E
Page 5242 of 5621

AUTOMATIC DRIVE POSITIONER
SE-61
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2006 January2006 M35/M45

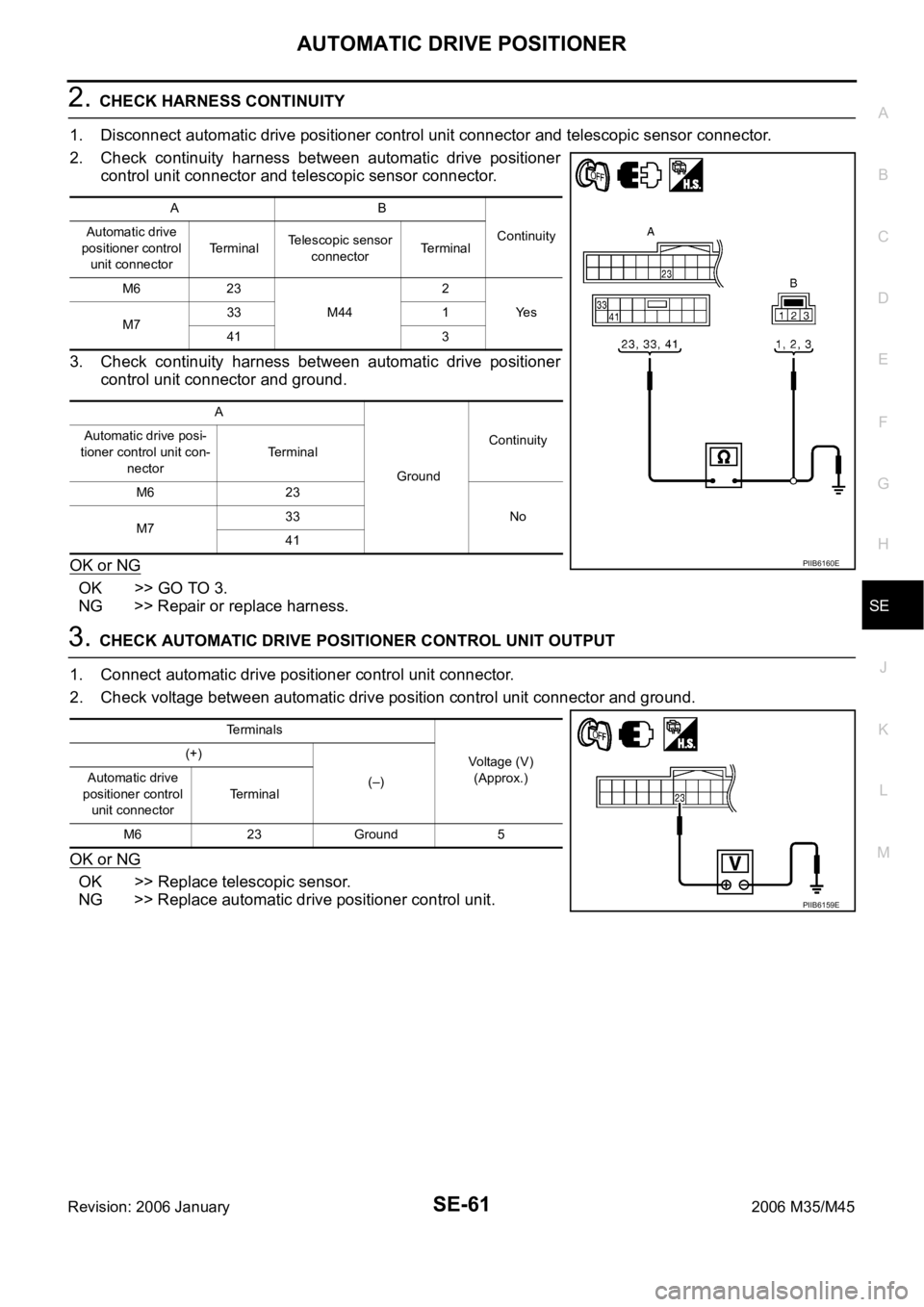

2. CHECK HARNESS CONTINUITY
1. Disconnect automatic drive positioner control unit connector and telescopic sensor connector.
2. Check continuity harness between automatic drive positioner
control unit connector and telescopic sensor connector.
3. Check continuity harness between automatic drive positioner
control unit connector and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness.
3. CHECK AUTOMATIC DRIVE POSITIONER CONTROL UNIT OUTPUT
1. Connect automatic drive positioner control unit connector.
2. Check voltage between automatic drive position control unit connector and ground.
OK or NG
OK >> Replace telescopic sensor.
NG >> Replace automatic drive positioner control unit.

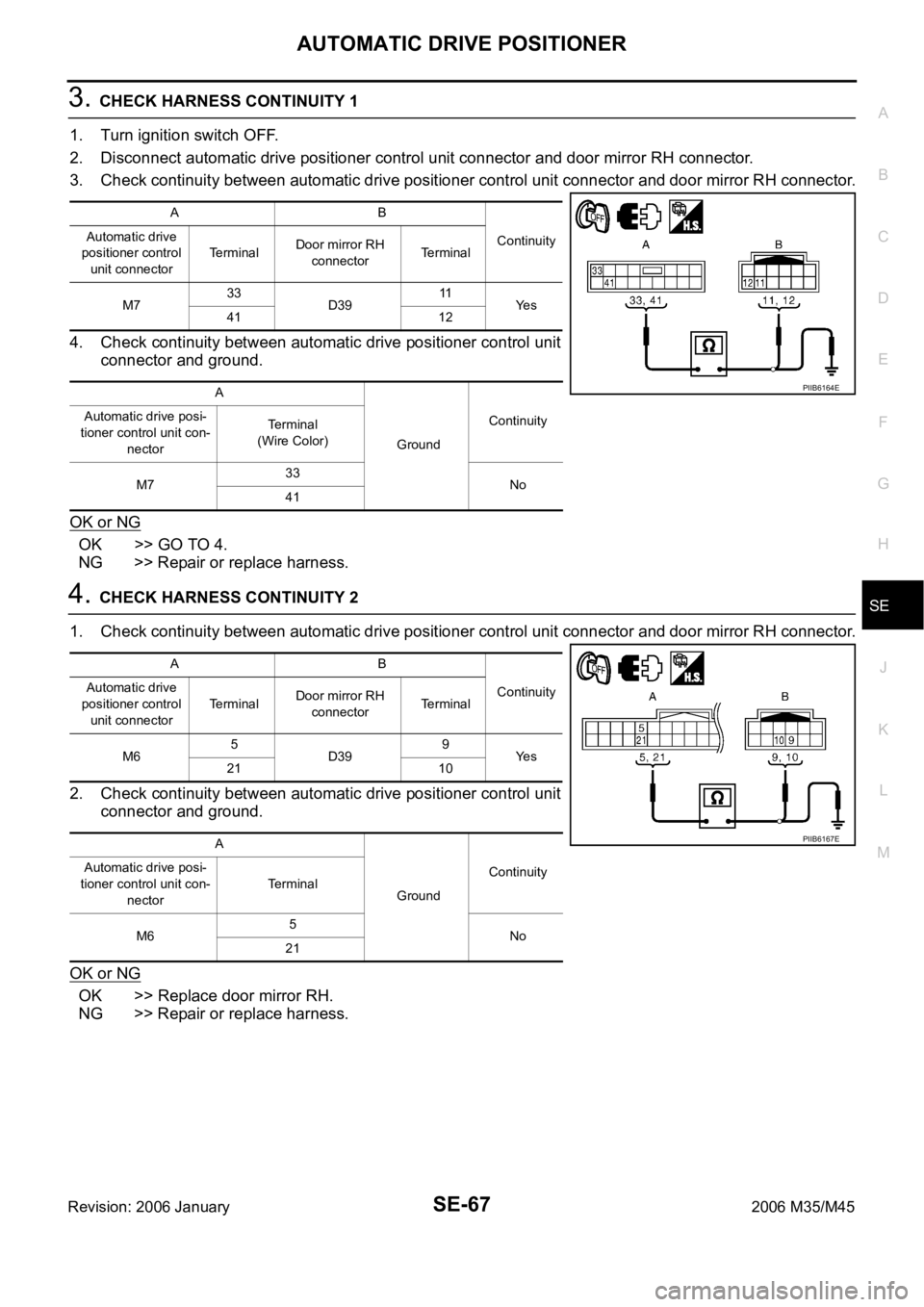

AB
Continuity Automatic drive
positioner control
unit connectorTerminalTelescopic sensor
connectorTerminal
M6 23
M442
Ye s
M733 1
41 3
A
GroundContinuity Automatic drive posi-
tioner control unit con-
nectorTerminal
M6 23
No
M733
41
PIIB6160E
Terminals
Voltage (V)
(Approx.) (+)
(–) Automatic drive
positioner control
unit connectorTerminal
M6 23 Ground 5
PIIB6159E
Page 5243 of 5621
SE-62
AUTOMATIC DRIVE POSITIONER
Revision: 2006 January2006 M35/M45
Tilt Sensor Circuit CheckNIS0026I
1. CHECK TILT SENSOR
With CONSULT-II
With “TILT SEN” on the DATA MONITOR, operate the tilt switch to make sure voltage changes.
Without CONSULT-II
1. Turn ignition switch OFF.
2. Check voltage between automatic drive positioner control unit connector and ground.
OK or NG
OK >> Tilt sensor circuit is OK.
NG >> GO TO 2.
Monitor item
[OPERATION or UNIT]Contents
TILT SEN “V”The tilt position (voltage) judged from the tilt sensor sig-
nal is displayed.
PIIA0295E
Automatic
drive posi-
tioner con-
trol unit
connectorTerminals
ConditionVoltage (V)
(Approx.)
(+) (–)
M6 7 GroundTilt top position 1
Tilt bottom position 3.8
PIIB6161E
Page 5244 of 5621

AUTOMATIC DRIVE POSITIONER
SE-63
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2006 January2006 M35/M45

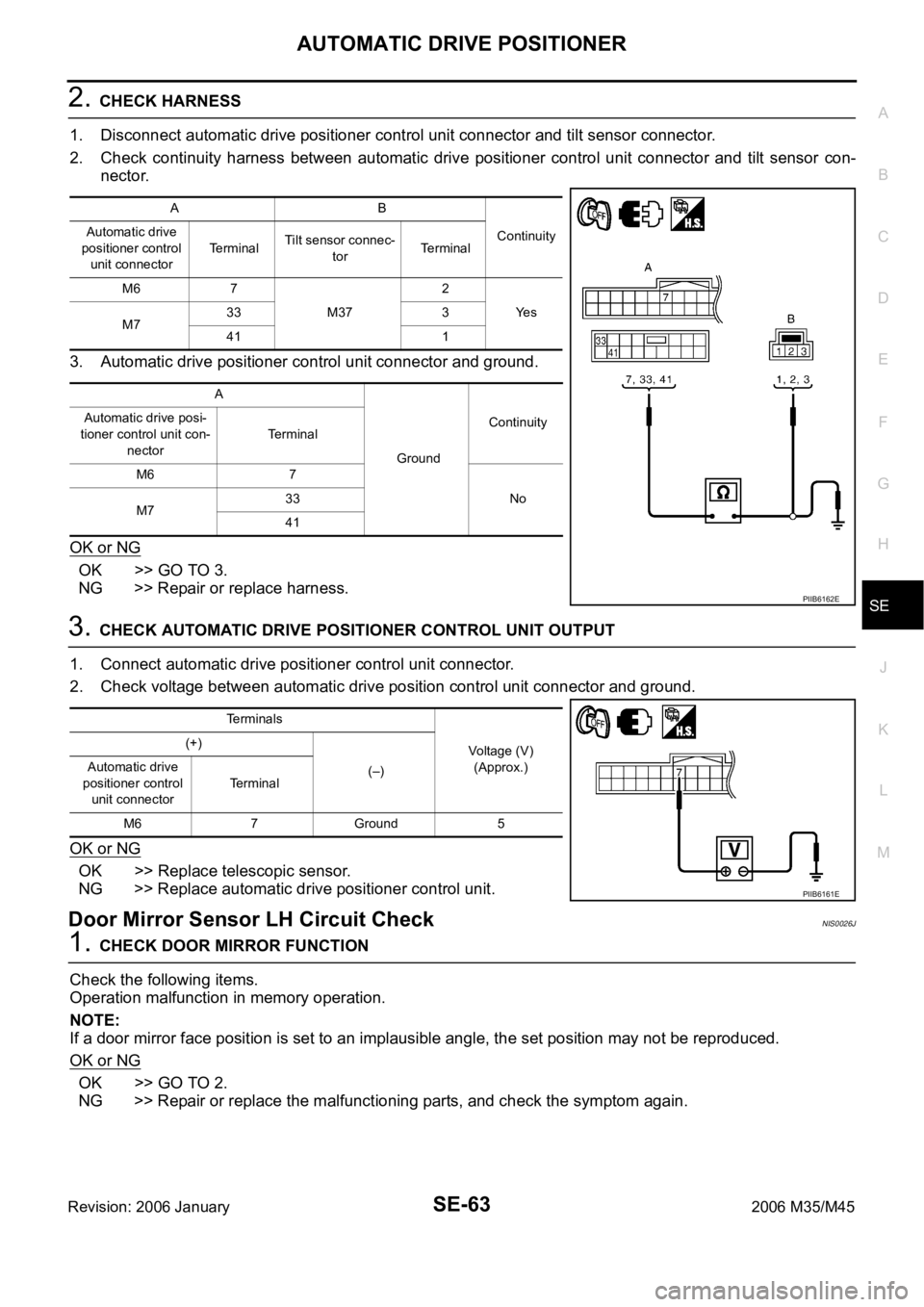

2. CHECK HARNESS
1. Disconnect automatic drive positioner control unit connector and tilt sensor connector.
2. Check continuity harness between automatic drive positioner control unit connector and tilt sensor con-
nector.
3. Automatic drive positioner control unit connector and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness.
3. CHECK AUTOMATIC DRIVE POSITIONER CONTROL UNIT OUTPUT
1. Connect automatic drive positioner control unit connector.
2. Check voltage between automatic drive position control unit connector and ground.
OK or NG
OK >> Replace telescopic sensor.
NG >> Replace automatic drive positioner control unit.
Door Mirror Sensor LH Circuit Check NIS0026J
1. CHECK DOOR MIRROR FUNCTION
Check the following items.
Operation malfunction in memory operation.
NOTE:
If a door mirror face position is set to an implausible angle, the set position may not be reproduced.
OK or NG
OK >> GO TO 2.
NG >> Repair or replace the malfunctioning parts, and check the symptom again.
AB
Continuity Automatic drive
positioner control
unit connectorTerminalTilt sensor connec-
torTerminal
M6 7
M372
Ye s
M733 3
41 1
A
GroundContinuity Automatic drive posi-
tioner control unit con-
nectorTerminal
M6 7
No
M733
41
PIIB6162E
Terminals
Voltage (V)
(Approx.) (+)
(–) Automatic drive
positioner control
unit connectorTerminal
M6 7 Ground 5
PIIB6161E
Page 5245 of 5621
SE-64
AUTOMATIC DRIVE POSITIONER
Revision: 2006 January2006 M35/M45
2. CHECK DOOR MIRROR LH SENSOR
With CONSULT–II
Check that “VOLTAGE” is displayed on “MIR/SE LH R–L, MIR/SE LH U–D" in the DATA MONITOR.
Without CONSULT–II
1. Turn ignition switch to ACC.
2. Check voltage between automatic drive positioner control unit connector and ground.
OK or NG
OK >> Mirror sensor LH circuit is OK.
NG >> GO TO 3.
Monitor item [OPERATION or
UNIT]Contents
MIR/
SEN LH R–L“V”Voltage output from door mirror LH sensor (LH/
RH) is displayed.
MIR/
SEN LH U–D“V”Voltage output from door mirror LH sensor (UP/
DOWN) is displayed.
PIIB6495E
Automatic
drive posi-
tioner con-
trol unit
connectorTerminals
ConditionVoltage (V)
(Approx.)
(+) (–)
M622
GroundMirror motor is
operated LEFT or
RIGHTChanges between
3.5 (close to right edge) –
0.5 (close to left edge)
6Mirror motor is
operated UP or
DOWN Changes between
4.2 (close to peak) –
0.5 (close to valley)
PIIB6163E
Page 5246 of 5621

AUTOMATIC DRIVE POSITIONER
SE-65
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2006 January2006 M35/M45

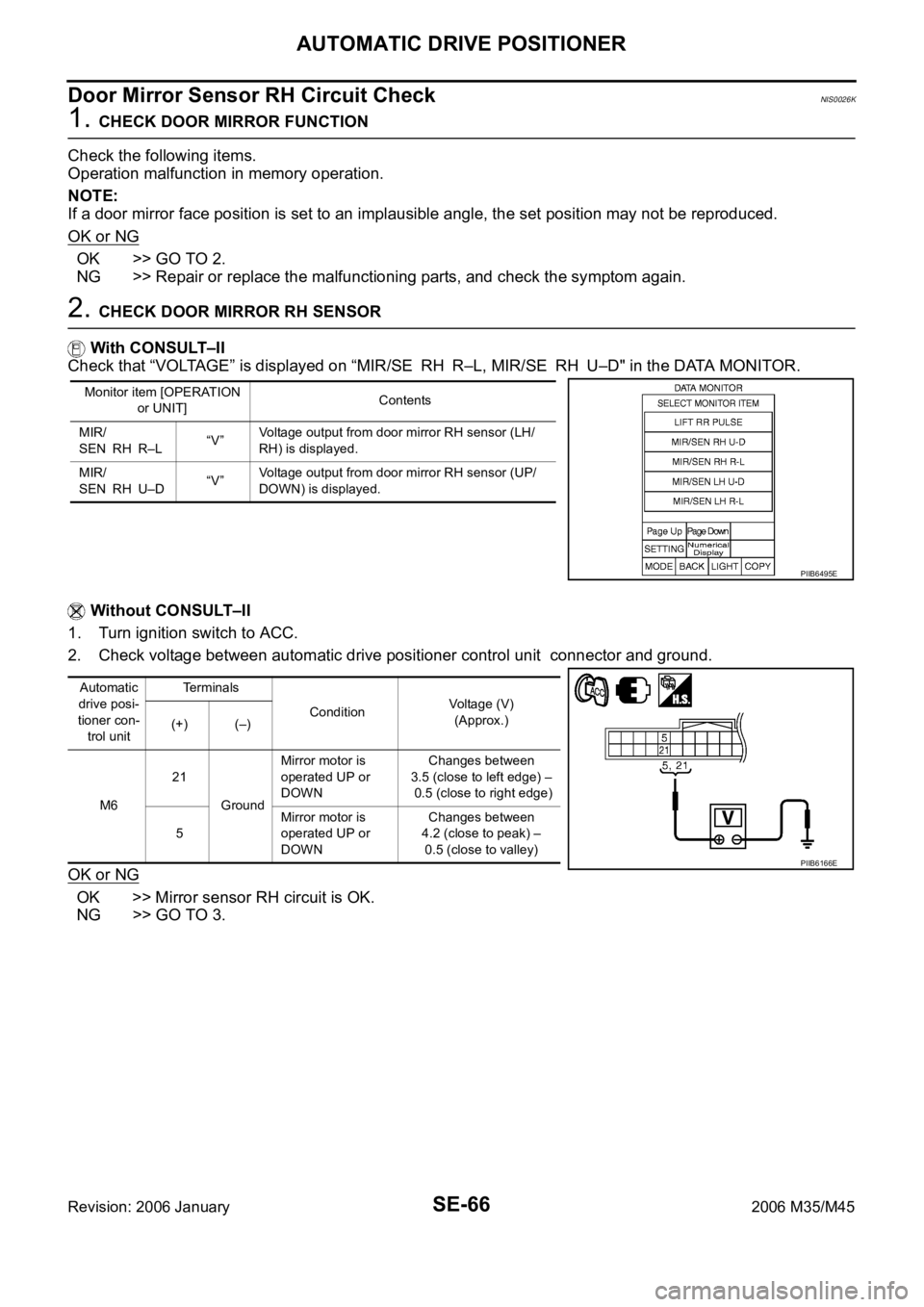

3. CHECK HARNESS CONTINUITY 1
1. Turn ignition switch OFF.
2. Disconnect automatic drive positioner control unit connector and door mirror LH connector.
3. Check continuity between automatic drive positioner control unit
connector and door mirror LH connector.
4. Check continuity between automatic drive positioner control unit
connector and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness.
4. CHECK HARNESS CONTINUITY 2
1. Check continuity between automatic drive positioner control unit
connector and door mirror LH connector.
2. Check continuity between automatic drive positioner control unit
connector and ground.
OK or NG
OK >> Replace door mirror LH.
NG >> Repair or replace harness.
AB
Continuity Automatic drive
positioner control
unit connectorTerminalDoor mirror LH
connectorTerminal
M733
D211
Ye s
41 12
A
GroundContinuity Automatic drive posi-
tioner control unit con-
nectorTerminal
M733
No
41
PIIB6164E
AB
Continuity Automatic drive
positioner control
unit connectorTerminalDoor mirror LH
connectorTerminal
M66
D29
Ye s
22 10
A
GroundContinuity Automatic drive posi-
tioner control unit con-
nectorTerminal
M66
No
22
PIIB6165E
Page 5247 of 5621

SE-66
AUTOMATIC DRIVE POSITIONER
Revision: 2006 January2006 M35/M45
Door Mirror Sensor RH Circuit Check NIS0026K
1. CHECK DOOR MIRROR FUNCTION
Check the following items.
Operation malfunction in memory operation.
NOTE:
If a door mirror face position is set to an implausible angle, the set position may not be reproduced.
OK or NG
OK >> GO TO 2.
NG >> Repair or replace the malfunctioning parts, and check the symptom again.
2. CHECK DOOR MIRROR RH SENSOR
With CONSULT–II
Check that “VOLTAGE” is displayed on “MIR/SE RH R–L, MIR/SE RH U–D" in the DATA MONITOR.
Without CONSULT–II
1. Turn ignition switch to ACC.
2. Check voltage between automatic drive positioner control unit connector and ground.
OK or NG
OK >> Mirror sensor RH circuit is OK.
NG >> GO TO 3.
Monitor item [OPERATION
or UNIT]Contents
MIR/
SEN RH R–L“V”Voltage output from door mirror RH sensor (LH/
RH) is displayed.
MIR/
SEN RH U–D“V”Voltage output from door mirror RH sensor (UP/
DOWN) is displayed.
PIIB6495E
Automatic
drive posi-
tioner con-
trol unitTerminals
ConditionVoltage (V)
(Approx.)
(+) (–)
M621
GroundMirror motor is
operated UP or
DOWNChanges between
3.5 (close to left edge) –
0.5 (close to right edge)
5Mirror motor is
operated UP or
DOWN Changes between
4.2 (close to peak) –
0.5 (close to valley)
PIIB6166E
Page 5248 of 5621

AUTOMATIC DRIVE POSITIONER
SE-67
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2006 January2006 M35/M45
3. CHECK HARNESS CONTINUITY 1
1. Turn ignition switch OFF.
2. Disconnect automatic drive positioner control unit connector and door mirror RH connector.
3. Check continuity between automatic drive positioner control unit connector and door mirror RH connector.
4. Check continuity between automatic drive positioner control unit
connector and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness.
4. CHECK HARNESS CONTINUITY 2
1. Check continuity between automatic drive positioner control unit connector and door mirror RH connector.
2. Check continuity between automatic drive positioner control unit
connector and ground.
OK or NG
OK >> Replace door mirror RH.
NG >> Repair or replace harness.
AB
Continuity Automatic drive
positioner control
unit connectorTerminalDoor mirror RH
connectorTerminal
M733
D3911
Ye s
41 12
A
GroundContinuity Automatic drive posi-
tioner control unit con-
nectorTerminal
(Wire Color)
M733
No
41
PIIB6164E
AB
Continuity Automatic drive
positioner control
unit connectorTerminalDoor mirror RH
connectorTerminal
M65
D399
Ye s
21 10
A
GroundContinuity Automatic drive posi-
tioner control unit con-
nectorTerminal
M65
No
21
PIIB6167E
