Page 3953 of 5621

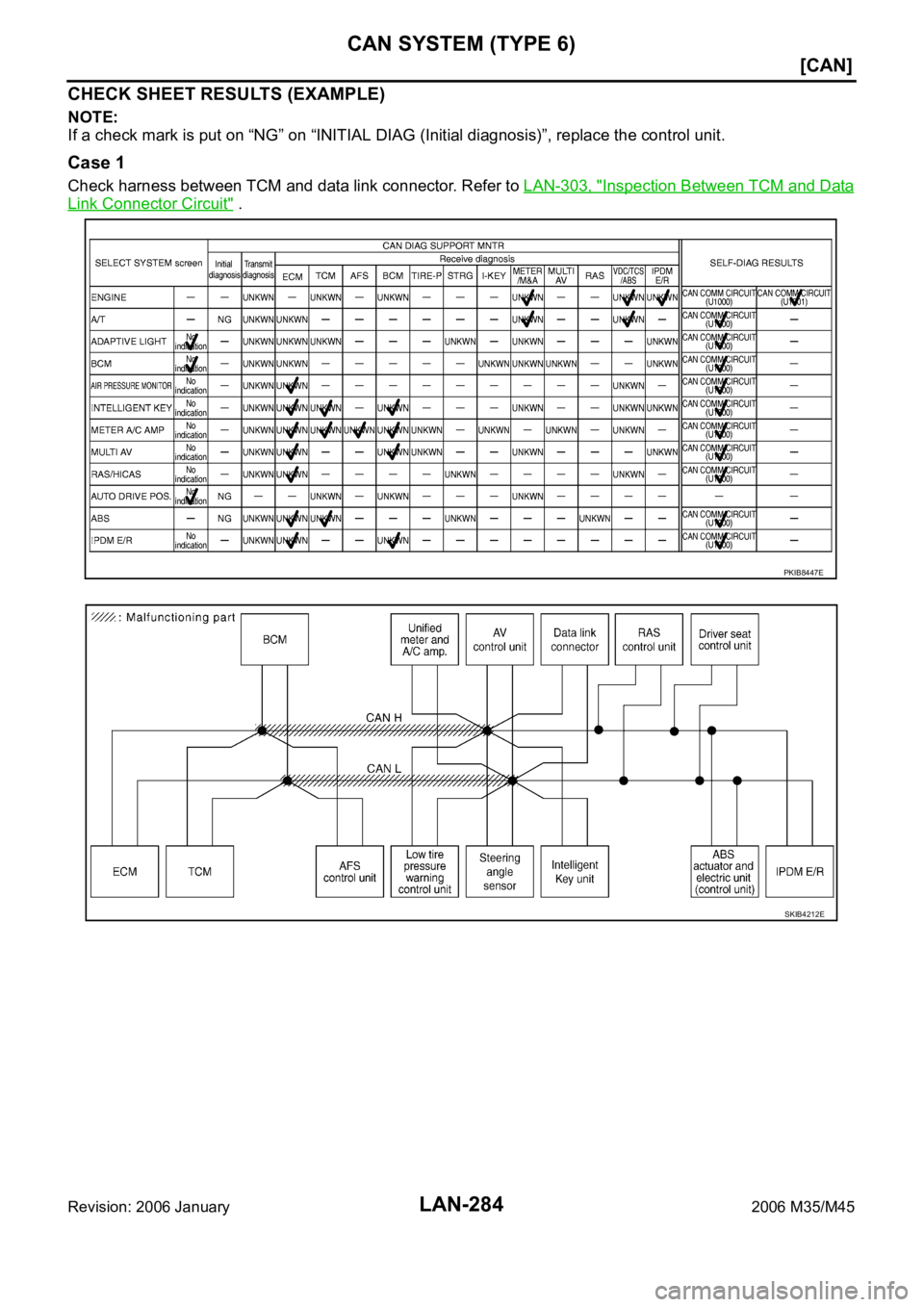

INFINITI M35 2006 Factory Service Manual LAN-284 [CAN] CAN SYSTEM (TYPE 6) Revision: 2006 January2006 M35/M45 CHECK SHEET RESULTS (EXAMPLE) NOTE: If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the contr

Page 3954 of 5621

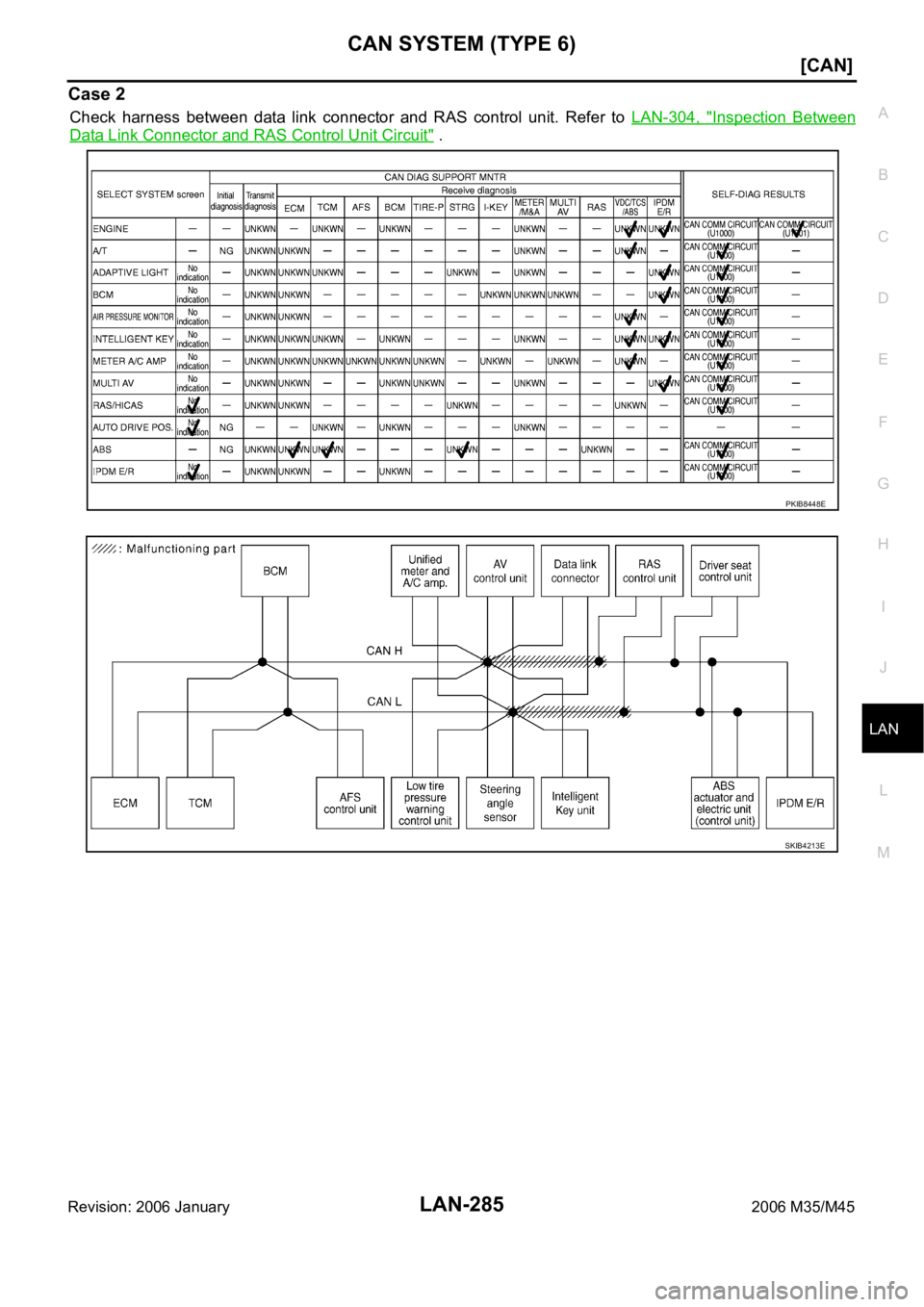

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 6) LAN-285 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 Case 2 Check harness between data link connector and RAS control unit. Refer to LAN-304, "

Page 3955 of 5621

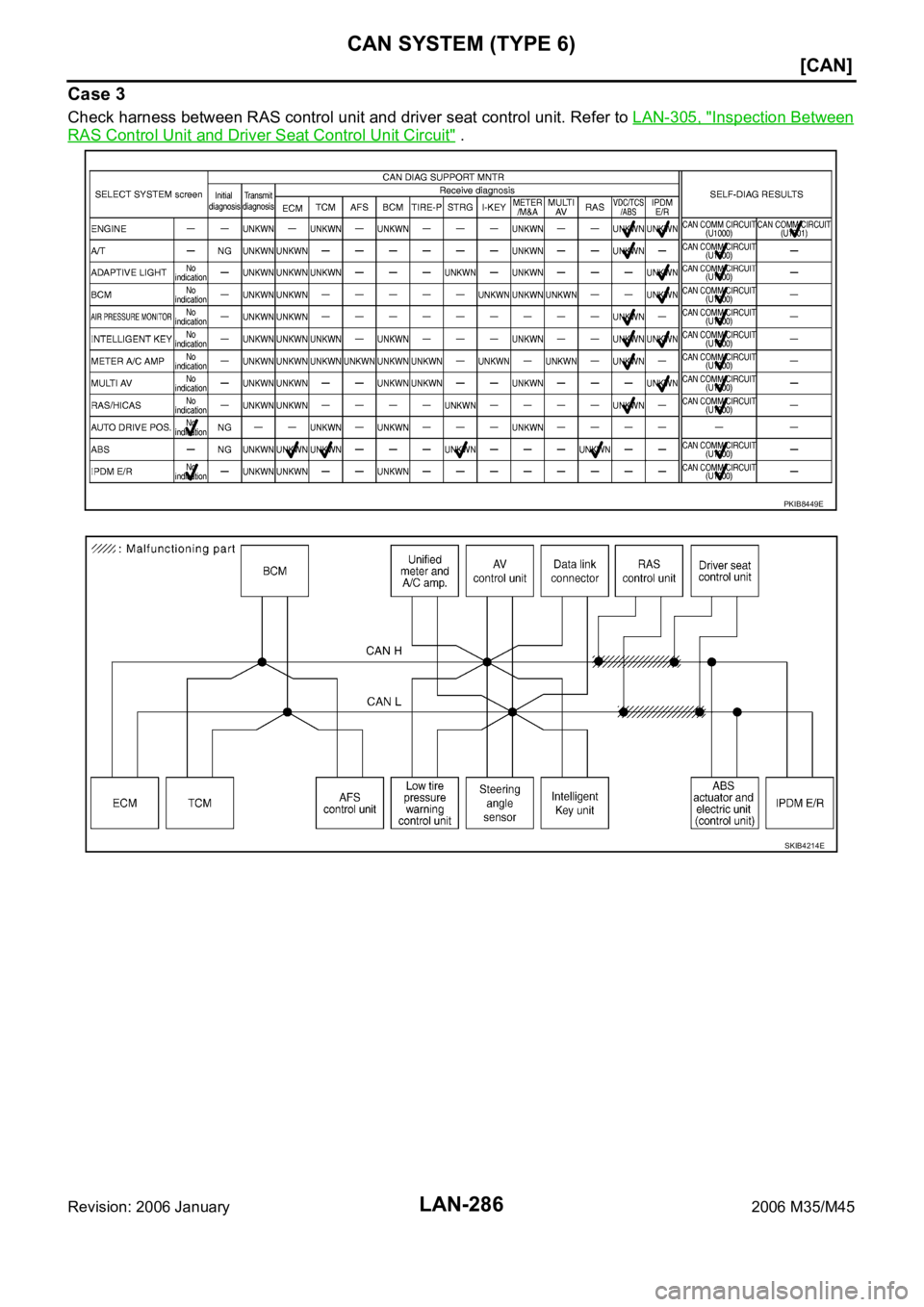

INFINITI M35 2006 Factory Service Manual LAN-286 [CAN] CAN SYSTEM (TYPE 6) Revision: 2006 January2006 M35/M45 Case 3 Check harness between RAS control unit and driver seat control unit. Refer to LAN-305, "Inspection Between RAS Control U

Page 3956 of 5621

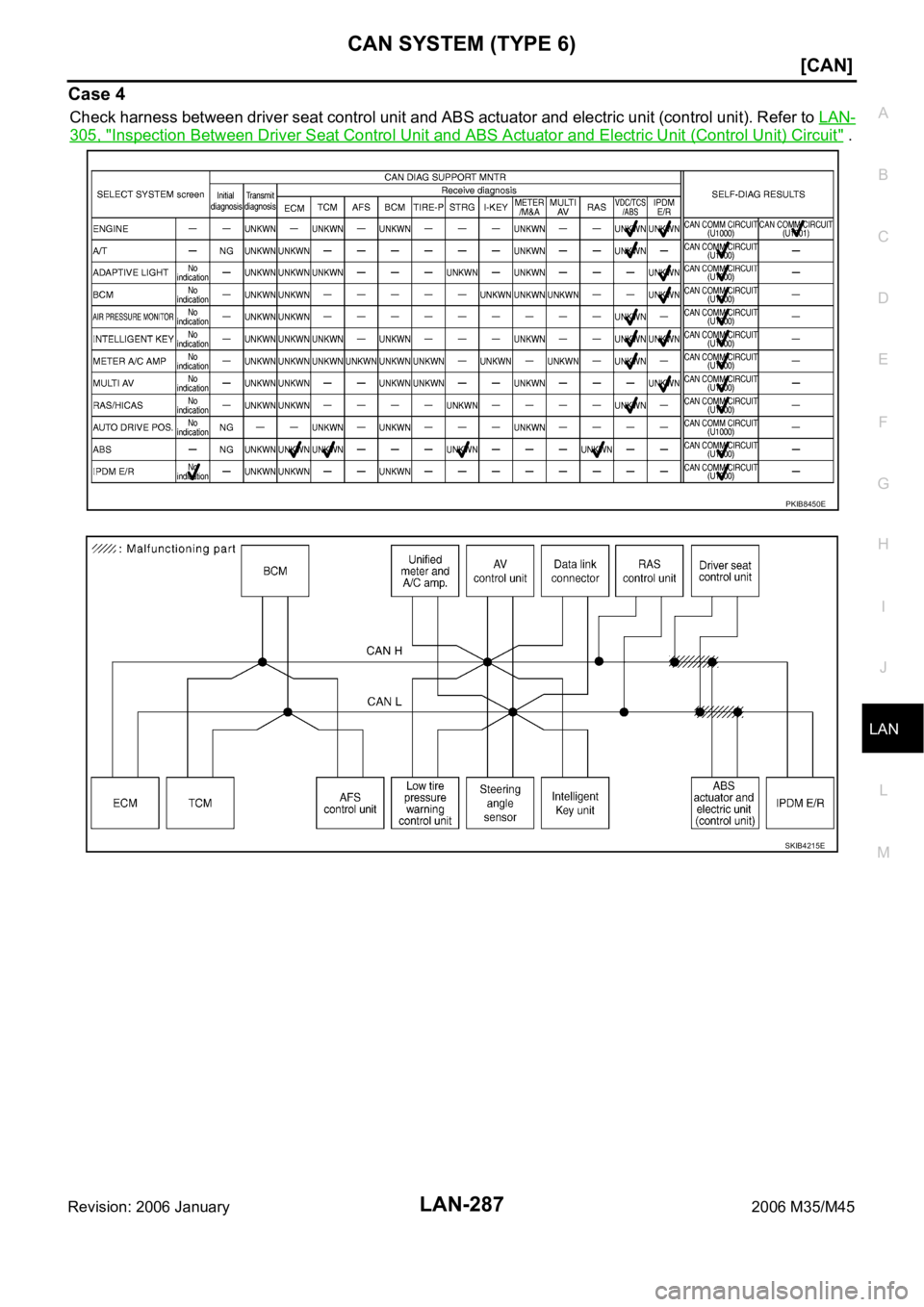

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 6) LAN-287 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 Case 4 Check harness between driver seat control unit and ABS actuator and electric unit (control unit).

Page 3957 of 5621

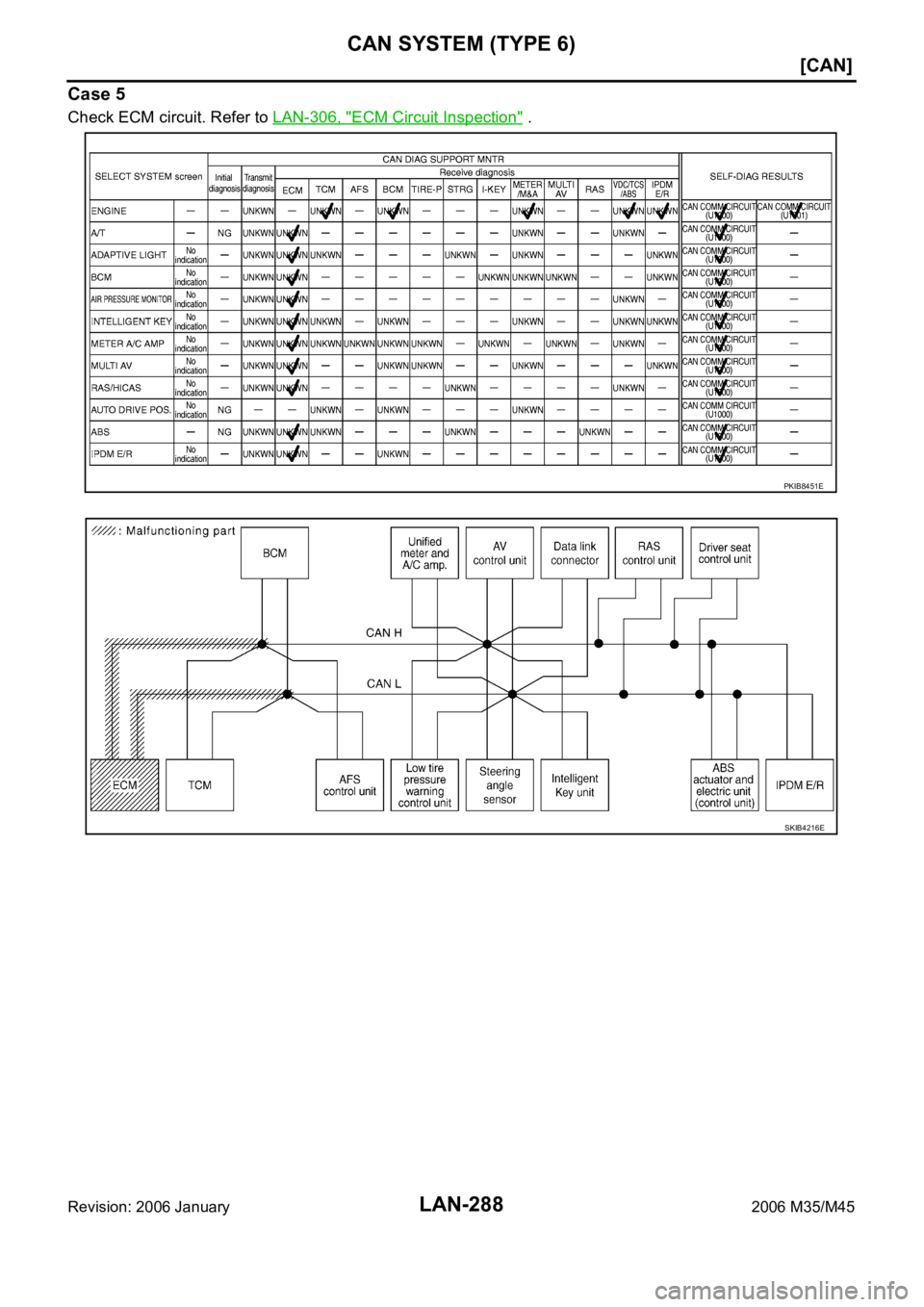

INFINITI M35 2006 Factory Service Manual LAN-288 [CAN] CAN SYSTEM (TYPE 6) Revision: 2006 January2006 M35/M45 Case 5 Check ECM circuit. Refer to LAN-306, "ECM Circuit Inspection" . PKIB8451E SKIB4216E

Page 3958 of 5621

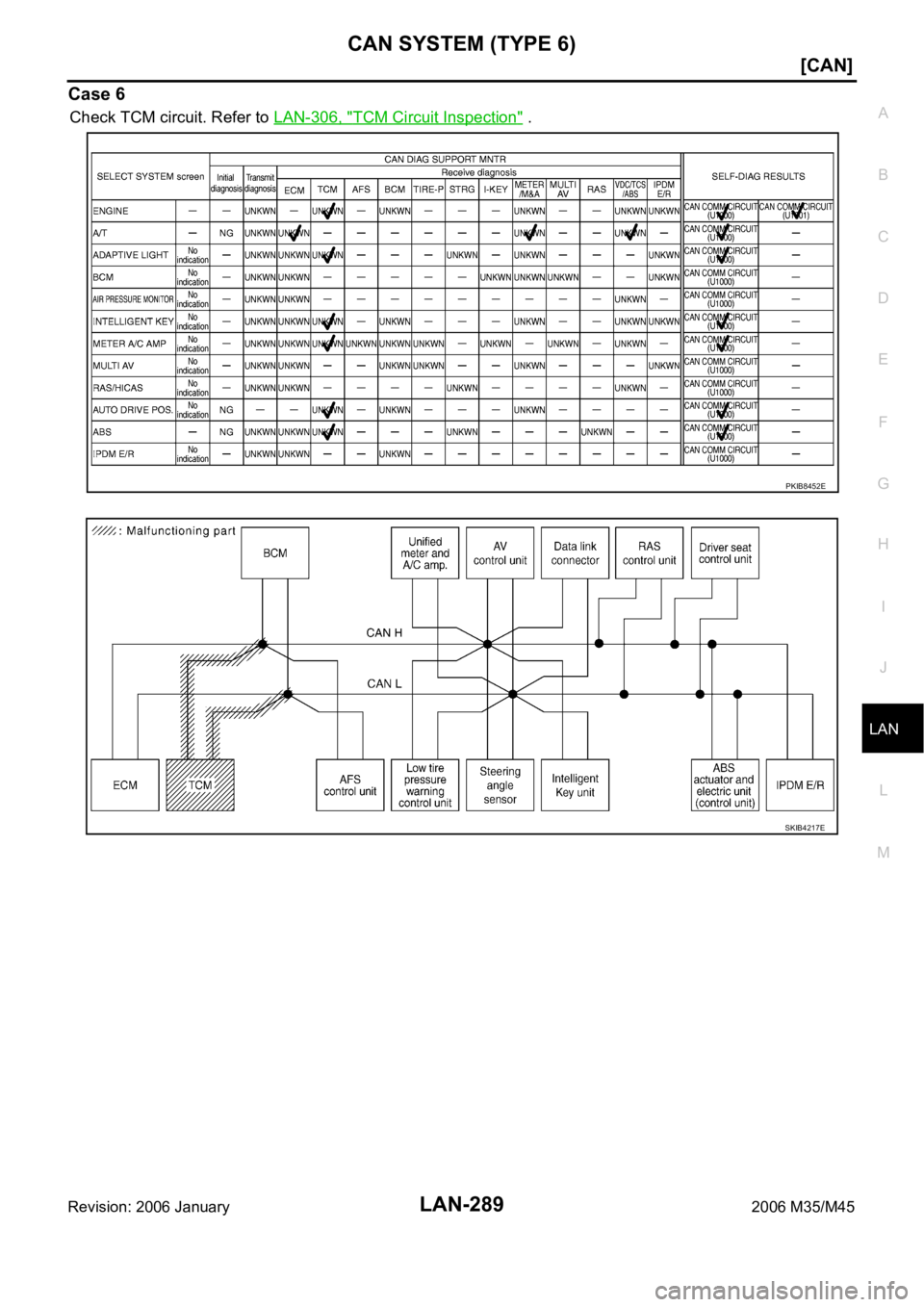

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 6) LAN-289 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 Case 6 Check TCM circuit. Refer to LAN-306, "TCM Circuit Inspection" . PKIB8452E SKIB4217E

Page 3959 of 5621

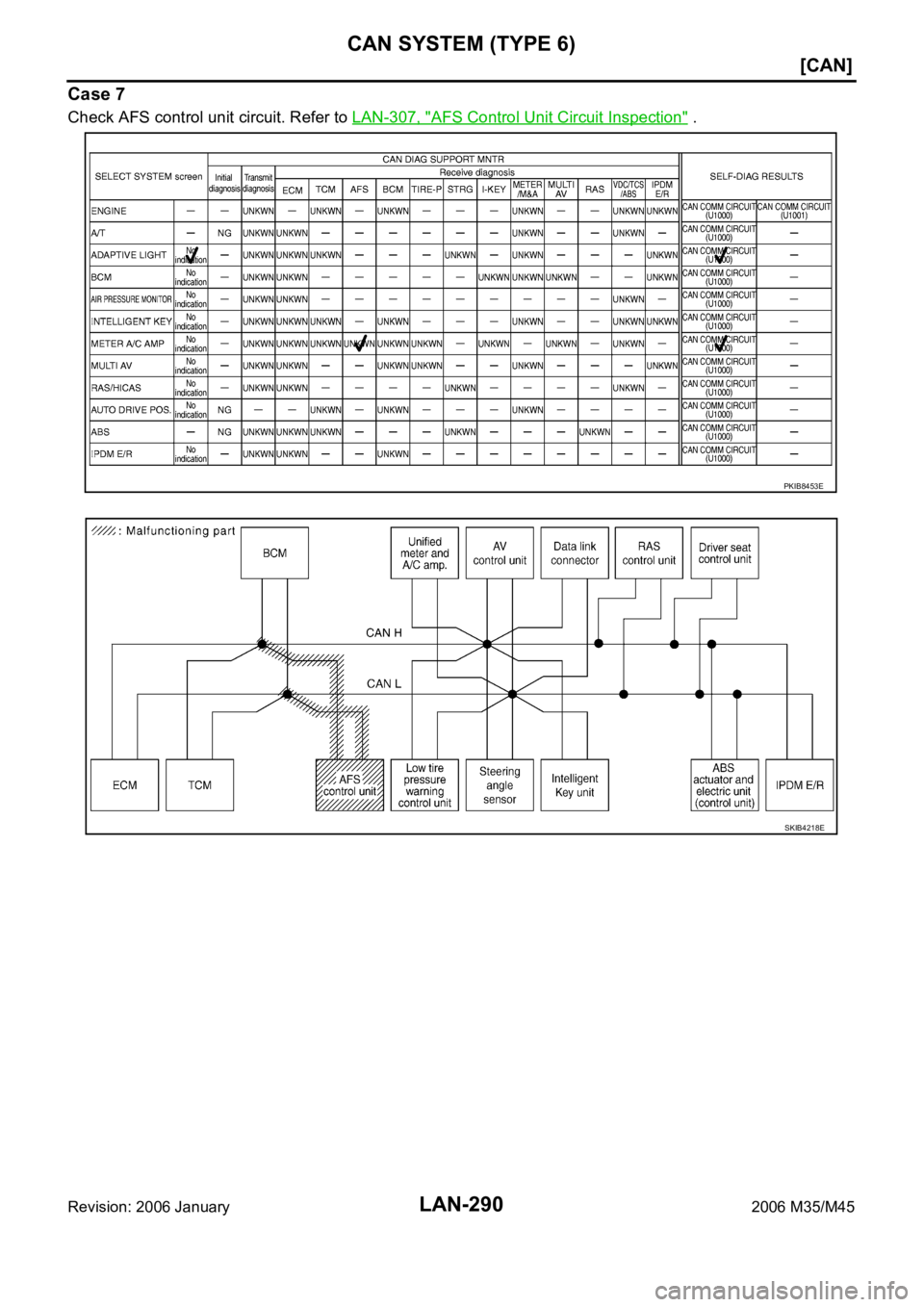

INFINITI M35 2006 Factory Service Manual LAN-290 [CAN] CAN SYSTEM (TYPE 6) Revision: 2006 January2006 M35/M45 Case 7 Check AFS control unit circuit. Refer to LAN-307, "AFS Control Unit Circuit Inspection" . PKIB8453E SKIB4218E

Page 3960 of 5621

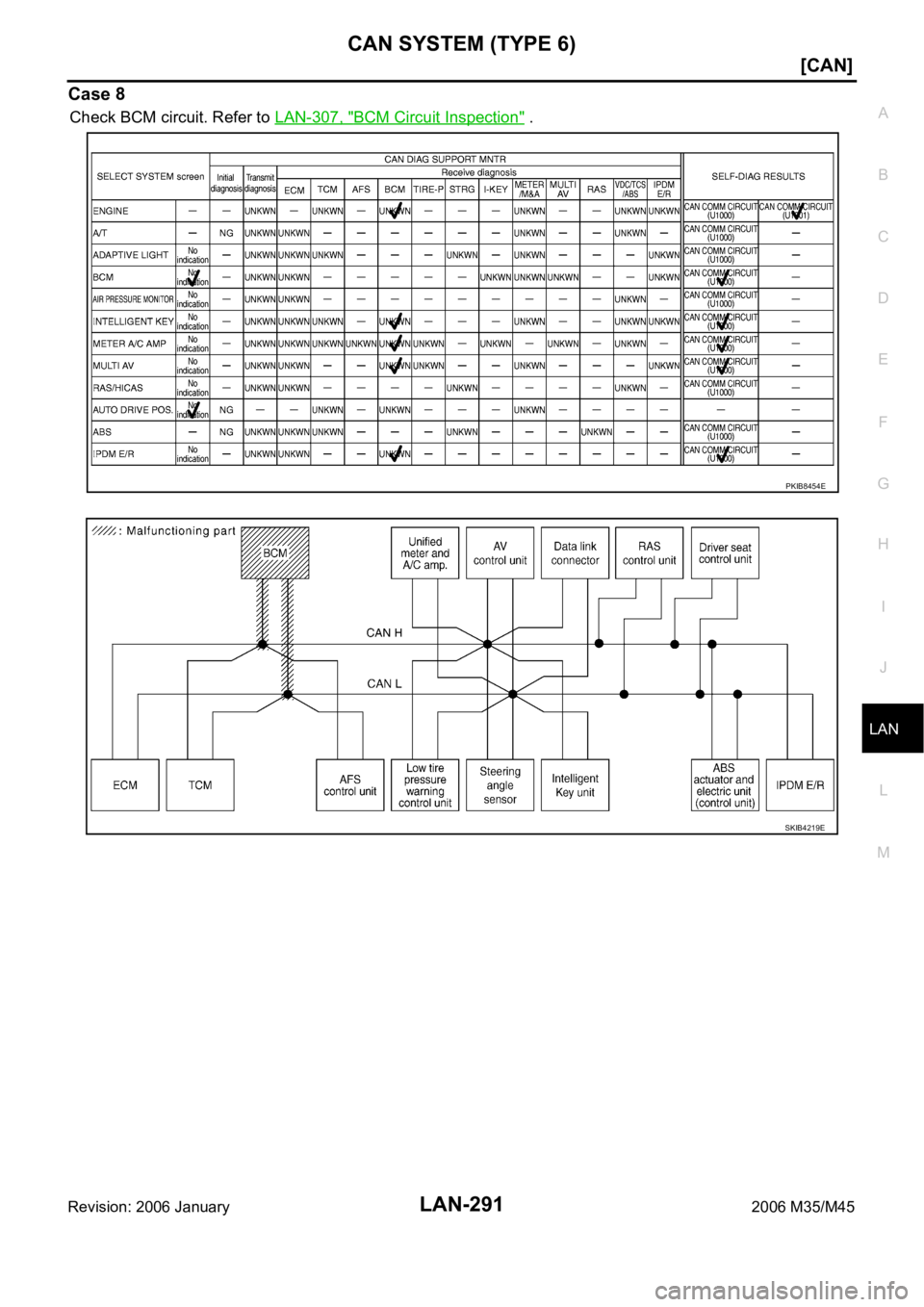

INFINITI M35 2006 Factory Service Manual CAN SYSTEM (TYPE 6) LAN-291 [CAN] C D E F G H I J L MA B LAN Revision: 2006 January2006 M35/M45 Case 8 Check BCM circuit. Refer to LAN-307, "BCM Circuit Inspection" . PKIB8454E SKIB4219E
