Page 2177 of 5621
EC-634
[VQ35DE]
DTC P2127, P2128 APP SENSOR
Revision: 2006 January2006 M35/M45
DTC Confirmation ProcedureNBS0056W
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10V at idle.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for 1 second.
4. If DTC is detected, go to EC-636, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
SEF058Y
Page 2178 of 5621
DTC P2127, P2128 APP SENSOR
EC-635
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45

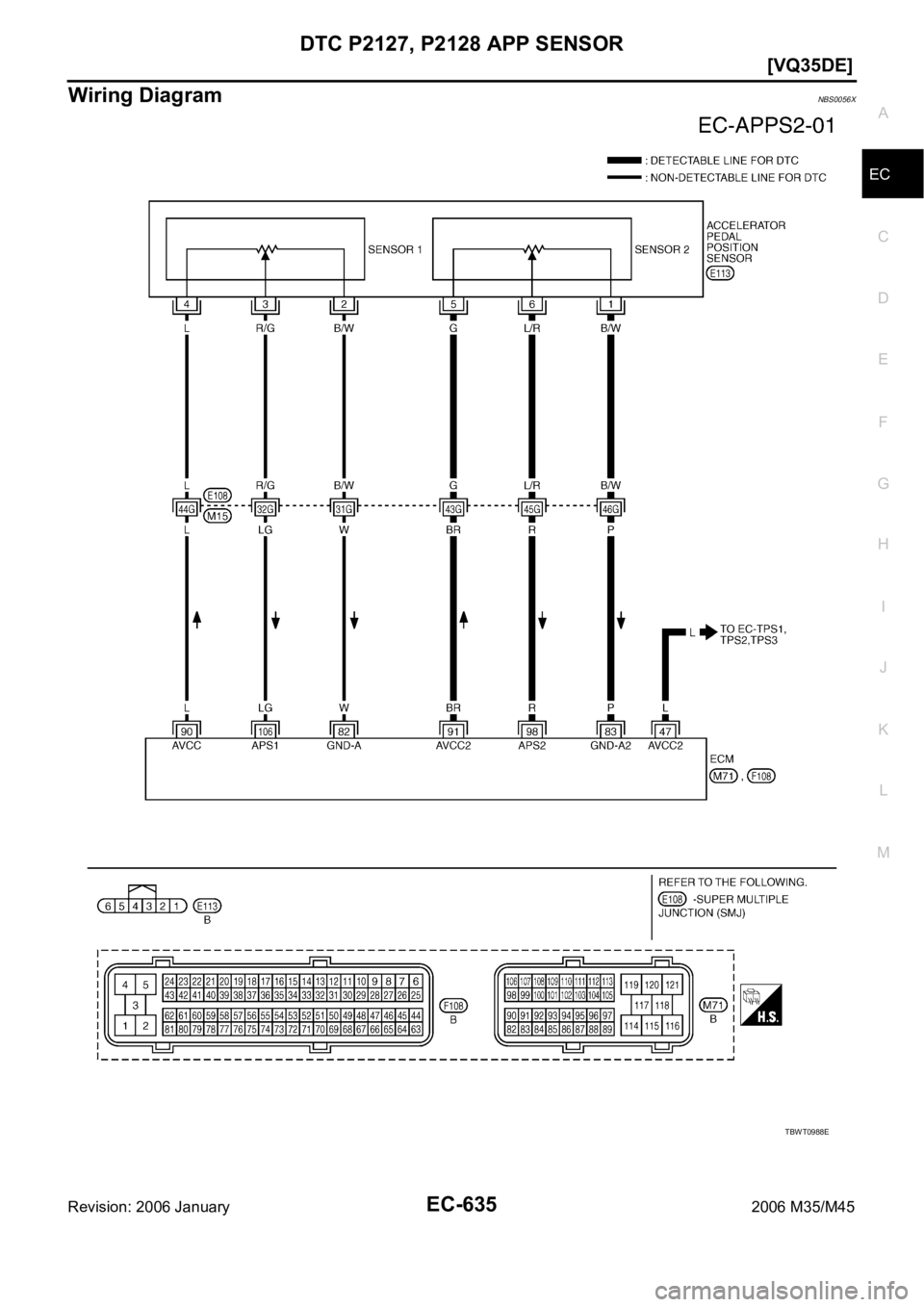

Wiring DiagramNBS0056X
TBWT0988E
Page 2179 of 5621
![INFINITI M35 2006 Factory Service Manual EC-636
[VQ35DE]
DTC P2127, P2128 APP SENSOR
Revision: 2006 January2006 M35/M45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground INFINITI M35 2006 Factory Service Manual EC-636
[VQ35DE]
DTC P2127, P2128 APP SENSOR
Revision: 2006 January2006 M35/M45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground](/manual-img/42/57023/w960_57023-2178.png)
EC-636
[VQ35DE]
DTC P2127, P2128 APP SENSOR
Revision: 2006 January2006 M35/M45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureNBS0056Y
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten two ground screws on the body.
Refer to EC-172, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
82 WSensor ground
(APP sensor 1)[Engine is running]
Warm-up condition
Idle speedApproximately 0V
83 PSensor ground
(APP sensor 2)[Engine is running]
Warm-up condition
Idle speedApproximately 0V
90 LSensor power supply
(APP sensor 1)[Ignition switch: ON]Approximately 5V
91 BRSensor power supply
(APP sensor 2)[Ignition switch: ON]Approximately 5V
98 RAccelerator pedal position
sensor 2[Ignition switch: ON]
Engine stopped
Accelerator pedal: Fully released0.20 - 0.55V
[Ignition switch: ON]
Engine stopped
Accelerator pedal: Fully depressed1.85 - 2.40V
106 LGAccelerator pedal position
sensor 1[Ignition switch: ON]
Engine stopped
Accelerator pedal: Fully released0.4 - 1.1V
[Ignition switch: ON]
Engine stopped
Accelerator pedal: Fully depressed3.7 - 4.8V
1. Body ground M70 2. Body ground M16
PBIB2782E
Page 2180 of 5621
![INFINITI M35 2006 Factory Service Manual DTC P2127, P2128 APP SENSOR
EC-637
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
2. CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-I
1. Disconnect accelerator pedal position (APP) sen INFINITI M35 2006 Factory Service Manual DTC P2127, P2128 APP SENSOR
EC-637
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
2. CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-I
1. Disconnect accelerator pedal position (APP) sen](/manual-img/42/57023/w960_57023-2179.png)
DTC P2127, P2128 APP SENSOR
EC-637
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
2. CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-I
1. Disconnect accelerator pedal position (APP) sensor (1) harness
connector.
2. Turn ignition switch ON.
3. Check voltage between APP sensor terminal 5 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 8.
NG >> GO TO 3.
3. CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-II
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between APP sensor terminal 5 and ECM terminal 91.
Refer to Wiring Diagram.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E108, M15
Harness for open or short between ECM and accelerator pedal position sensor
>> Repair open circuit.
5. CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-III
Check harness for short to power and short to ground, between the following terminals.
OK or NG
OK >> GO TO 6.
NG >> Repair short to ground or short to power in harness or connectors.
PBIB2704E
Voltage: Approximately 5V
PBIA9607J
Continuity should exist.
ECM terminal Sensor terminal Reference Wiring Diagram
91 APP sensor terminal 5EC-635
47 Electric throttle control actuator terminal 1EC-642
Page 2181 of 5621
![INFINITI M35 2006 Factory Service Manual EC-638
[VQ35DE]
DTC P2127, P2128 APP SENSOR
Revision: 2006 January2006 M35/M45
6. CHECK THROTTLE POSITION SENSOR
Refer to EC-646, "
Component Inspection" .
OK or NG
OK >> GO TO 14.
NG >> GO TO INFINITI M35 2006 Factory Service Manual EC-638
[VQ35DE]
DTC P2127, P2128 APP SENSOR
Revision: 2006 January2006 M35/M45
6. CHECK THROTTLE POSITION SENSOR
Refer to EC-646, "
Component Inspection" .
OK or NG
OK >> GO TO 14.
NG >> GO TO](/manual-img/42/57023/w960_57023-2180.png)
EC-638
[VQ35DE]
DTC P2127, P2128 APP SENSOR
Revision: 2006 January2006 M35/M45
6. CHECK THROTTLE POSITION SENSOR
Refer to EC-646, "
Component Inspection" .
OK or NG
OK >> GO TO 14.
NG >> GO TO 7.
7. REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
1. Replace the electric throttle control actuator.
2. Perform EC-95, "
Throttle Valve Closed Position Learning" .
3. Perform EC-96, "
Idle Air Volume Learning" .
>>INSPECTION END
8. CHECK APP SENSOR 2 GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between APP sensor terminal 1 and ECM terminal 83.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 10.
NG >> GO TO 9.
9. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E108, M15
Harness for open or short between ECM and accelerator pedal position sensor
>> Repair open circuit or short to ground or short to power in harness or connectors.
10. CHECK APP SENSOR 2 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 98 and APP sensor terminal 6.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 12.
NG >> GO TO 11.
11 . DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E108, M15
Harness for open or short between ECM and accelerator pedal position sensor
>> Repair open circuit or short to ground or short to power in harness or connectors. Continuity should exist.
Continuity should exist.
Page 2182 of 5621
![INFINITI M35 2006 Factory Service Manual DTC P2127, P2128 APP SENSOR
EC-639
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
12. CHECK APP SENSOR
Refer to EC-639, "
Component Inspection" .
OK or NG
OK >> GO TO 14 INFINITI M35 2006 Factory Service Manual DTC P2127, P2128 APP SENSOR
EC-639
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
12. CHECK APP SENSOR
Refer to EC-639, "
Component Inspection" .
OK or NG
OK >> GO TO 14](/manual-img/42/57023/w960_57023-2181.png)
DTC P2127, P2128 APP SENSOR
EC-639
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45

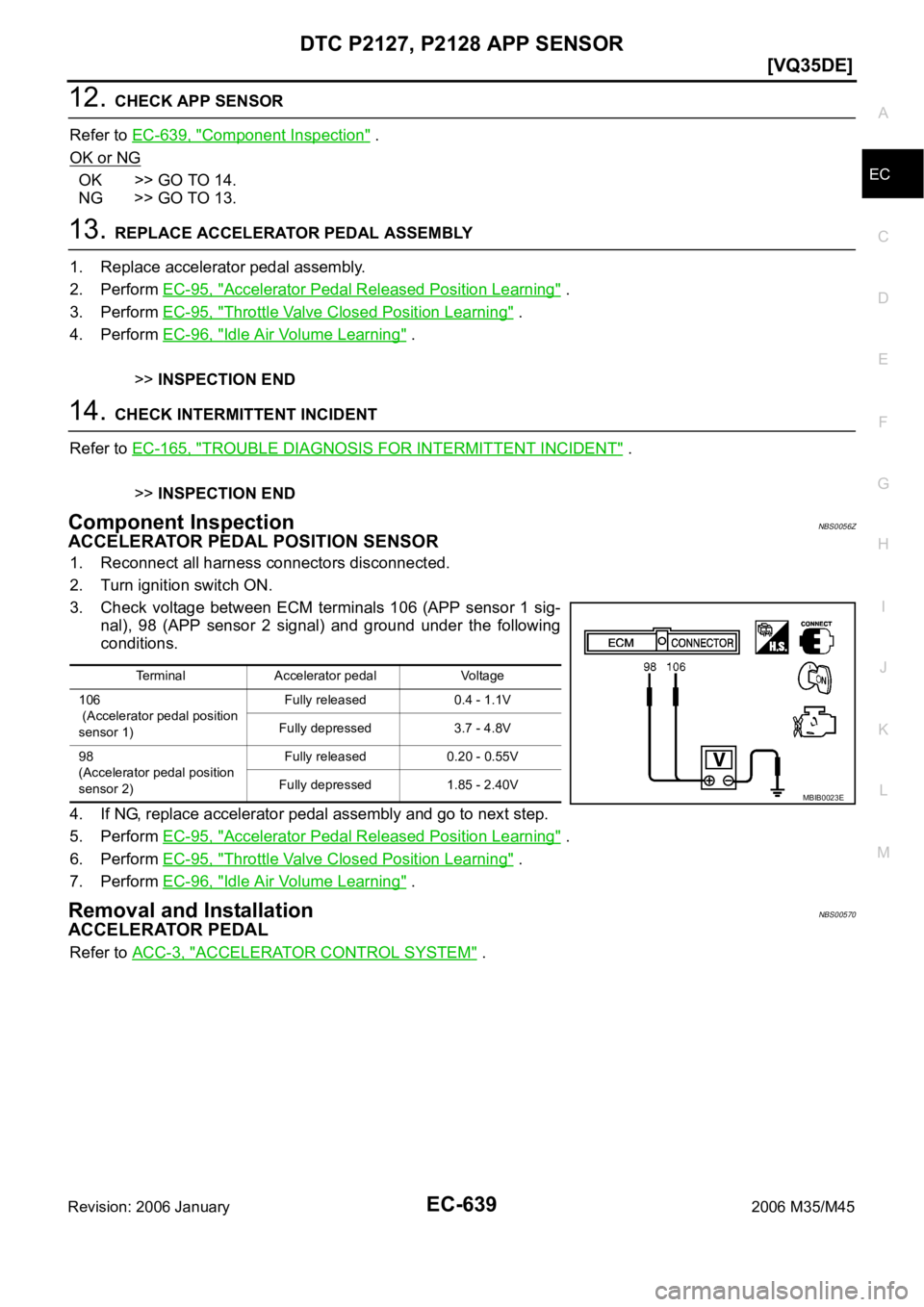

12. CHECK APP SENSOR
Refer to EC-639, "
Component Inspection" .
OK or NG
OK >> GO TO 14.
NG >> GO TO 13.
13. REPLACE ACCELERATOR PEDAL ASSEMBLY
1. Replace accelerator pedal assembly.
2. Perform EC-95, "
Accelerator Pedal Released Position Learning" .
3. Perform EC-95, "
Throttle Valve Closed Position Learning" .
4. Perform EC-96, "
Idle Air Volume Learning" .
>>INSPECTION END
14. CHECK INTERMITTENT INCIDENT
Refer to EC-165, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionNBS0056Z
ACCELERATOR PEDAL POSITION SENSOR
1. Reconnect all harness connectors disconnected.
2. Turn ignition switch ON.
3. Check voltage between ECM terminals 106 (APP sensor 1 sig-
nal), 98 (APP sensor 2 signal) and ground under the following
conditions.
4. If NG, replace accelerator pedal assembly and go to next step.
5. Perform EC-95, "
Accelerator Pedal Released Position Learning" .
6. Perform EC-95, "
Throttle Valve Closed Position Learning" .
7. Perform EC-96, "
Idle Air Volume Learning" .
Removal and InstallationNBS00570
ACCELERATOR PEDAL
Refer to ACC-3, "ACCELERATOR CONTROL SYSTEM" .
Terminal Accelerator pedal Voltage
106
(Accelerator pedal position
sensor 1)Fully released 0.4 - 1.1V
Fully depressed 3.7 - 4.8V
98
(Accelerator pedal position
sensor 2)Fully released 0.20 - 0.55V
Fully depressed 1.85 - 2.40V
MBIB0023E
Page 2183 of 5621
![INFINITI M35 2006 Factory Service Manual EC-640
[VQ35DE]
DTC P2135 TP SENSOR
Revision: 2006 January2006 M35/M45
DTC P2135 TP SENSORPFP:16119
Component DescriptionNBS00571
Electric throttle control actuator consists of throttle control INFINITI M35 2006 Factory Service Manual EC-640
[VQ35DE]
DTC P2135 TP SENSOR
Revision: 2006 January2006 M35/M45
DTC P2135 TP SENSORPFP:16119
Component DescriptionNBS00571
Electric throttle control actuator consists of throttle control](/manual-img/42/57023/w960_57023-2182.png)
EC-640
[VQ35DE]
DTC P2135 TP SENSOR
Revision: 2006 January2006 M35/M45
DTC P2135 TP SENSORPFP:16119
Component DescriptionNBS00571
Electric throttle control actuator consists of throttle control motor,
throttle position sensor, etc. The throttle position sensor responds to
the throttle valve movement.
The throttle position sensor has the two sensors. These sensors are
a kind of potentiometers which transform the throttle valve position
into output voltage, and emit the voltage signal to the ECM. In addi-
tion, these sensors detect the opening and closing speed of the
throttle valve and feed the voltage signals to the ECM. The ECM
judges the current opening angle of the throttle valve from these sig-
nals and the ECM controls the throttle control motor to make the
throttle valve opening angle properly in response to driving condi-
tion.
CONSULT-II Reference Value in Data Monitor ModeNBS00572
Specification data are reference values.
*: Throttle position sensor 2 signal is converted by ECM internally. Thus, it differs from ECM terminal voltage signal.
On Board Diagnosis LogicNBS00573
This self-diagnosis has the one trip detection logic.
FAIL-SAFE MODE
When the malfunction is detected, ECM enters fail-safe mode and the MIL lights up.
PBIB0145E
MONITOR ITEM CONDITION SPECIFICATION
THRTL SEN 1
THRTL SEN 2*
Ignition switch: ON
(Engine stopped)
Selector lever: DAccelerator pedal: Fully released More than 0.36V
Accelerator pedal: Fully depressed Less than 4.75V
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P2135
2135Throttle position sensor
circuit range/perfor-
manceRationally incorrect voltage is sent to ECM
compared with the signals from TP sensor 1
and TP sensor 2.
Harness or connector
(TP sensor 1 and 2 circuit is open or
shorted.)
(APP sensor 2 circuit is shorted.)
Electric throttle control actuator
(TP sensor 1 and 2)
Accelerator pedal position sensor
(APP sensor 2)
Engine operation condition in fail-safe mode
The ECM controls the electric throttle control actuator in regulating the throttle opening in order for the idle position to be within +10
degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal condition.
So, the acceleration will be poor.
Page 2184 of 5621
DTC P2135 TP SENSOR
EC-641
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
DTC Confirmation ProcedureNBS00574
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10V at idle.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for 1 second.
4. If DTC is detected, go to EC-643, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
SEF058Y
