2006 INFINITI M35 Factory Service Manual

ESP inoperative engine overheat horn wiper size oil dipstick four wheel drive

Page 129 of 5621

INFINITI M35 2006 Factory Service Manual AT-50
TROUBLE DIAGNOSIS
Revision: 2006 January2006 M35/M45
44-3Part 2AT- 6 1
AT-199, "Vehicle Cannot Be Started from D1"
AT-201, "A/T Does Not Shift: D1 D2"
AT-203, "A/T Does N

AT-50
TROUBLE DIAGNOSIS
Revision: 2006 January2006 M35/M45
44-3Part 2AT- 6 1
AT-199, "Vehicle Cannot Be Started from D1"
AT-201, "A/T Does Not Shift: D1 D2"
AT-203, "A/T Does Not Shift: D2 D3"
AT-205, "A/T Does Not Shift: D3 D4"
Part 3AT- 6 2
AT-213, "Cannot Be Changed to Manual Mode"
AT-214, "A/T Does Not Shift: 5th Gear 4th Gear"
AT-215, "A/T Does Not Shift: 4th Gear 3rd Gear"
AT-217, "A/T Does Not Shift: 3rd Gear 2nd Gear"
AT-218, "A/T Does Not Shift: 2nd Gear 1st Gear"
AT-220, "Vehicle Does Not Decelerate by Engine Brake"
Perform self-diagnostics. Enter checks for detected items. AT- 9 2 , AT-103
AT-105, "DTC U1000 CAN COMMUNICATION LINE"
AT-108, "DTC P0615 START SIGNAL CIRCUIT"
AT- 11 2 , "DTC P0700 TCM"
AT- 11 3 , "DTC P0705 PARK/NEUTRAL POSITION SWITCH"
AT- 11 7 , "DTC P0717 TURBINE REVOLUTION SENSOR"
AT- 11 9 , "DTC P0720 VEHICLE SPEED SENSOR A/T (REVOLUTION SENSOR)"
AT-124, "DTC P0725 ENGINE SPEED SIGNAL"
AT-126, "DTC P0740 TORQUE CONVERTER CLUTCH SOLENOID VALVE"
AT-128, "DTC P0744 A/T TCC S/V FUNCTION (LOCK-UP)"
AT-130, "DTC P0745 LINE PRESSURE SOLENOID VALVE"
AT-132, "DTC P1705 THROTTLE POSITION SENSOR"
AT-135, "DTC P1710 A/T FLUID TEMPERATURE SENSOR CIRCUIT"
AT-140, "DTC P1721 VEHICLE SPEED SENSOR MTR"
AT-142, "DTC P1730 A/T INTERLOCK"
AT-145, "DTC P1731 A/T 1ST ENGINE BRAKING"
AT-147, "DTC P1752 INPUT CLUTCH SOLENOID VALVE"
AT-149, "DTC P1754 INPUT CLUTCH SOLENOID VALVE FUNCTION"
AT-151, "DTC P1757 FRONT BRAKE SOLENOID VALVE"
AT-153, "DTC P1759 FRONT BRAKE SOLENOID VALVE FUNCTION"
AT-155, "DTC P1762 DIRECT CLUTCH SOLENOID VALVE"
AT-157, "DTC P1764 DIRECT CLUTCH SOLENOID VALVE FUNCTION"
AT-159, "DTC P1767 HIGH AND LOW REVERSE CLUTCH SOLENOID VALVE"
AT-161, "DTC P1769 HIGH AND LOW REVERSE CLUTCH SOLENOID VALVE
FUNCTION"
AT-163, "DTC P1772 LOW COAST BRAKE SOLENOID VALVE"
AT-165, "DTC P1774 LOW COAST BRAKE SOLENOID VALVE FUNCTION"
AT-167, "DTC P1815 MANUAL MODE SWITCH"
AT-172, "DTC P1841 ATF PRESSURE SWITCH 1"
AT-174, "DTC P1843 ATF PRESSURE SWITCH 3"
AT-176, "DTC P1845 ATF PRESSURE SWITCH 5"
AT-178, "DTC P1846 ATF PRESSURE SWITCH 6"
5 Inspect each system for items found to be NG in the self-diagnostics and repair or replace the malfunctioning parts.
6
Perform all road tests and enter the checks again for the required items.AT- 5 7
7
For any remaining NG items, perform the “Diagnostics Procedure” and repair or replace the malfunctioning
parts. See the chart for diagnostics by symptoms. (This chart also contains other symptoms and inspection pro-
cedures.)AT- 6 4
8 Erase the results of the self-diagnostics from the TCM.AT- 9 6, AT-
104

Page 130 of 5621

INFINITI M35 2006 Factory Service Manual TROUBLE DIAGNOSIS
AT-51
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 January2006 M35/M45

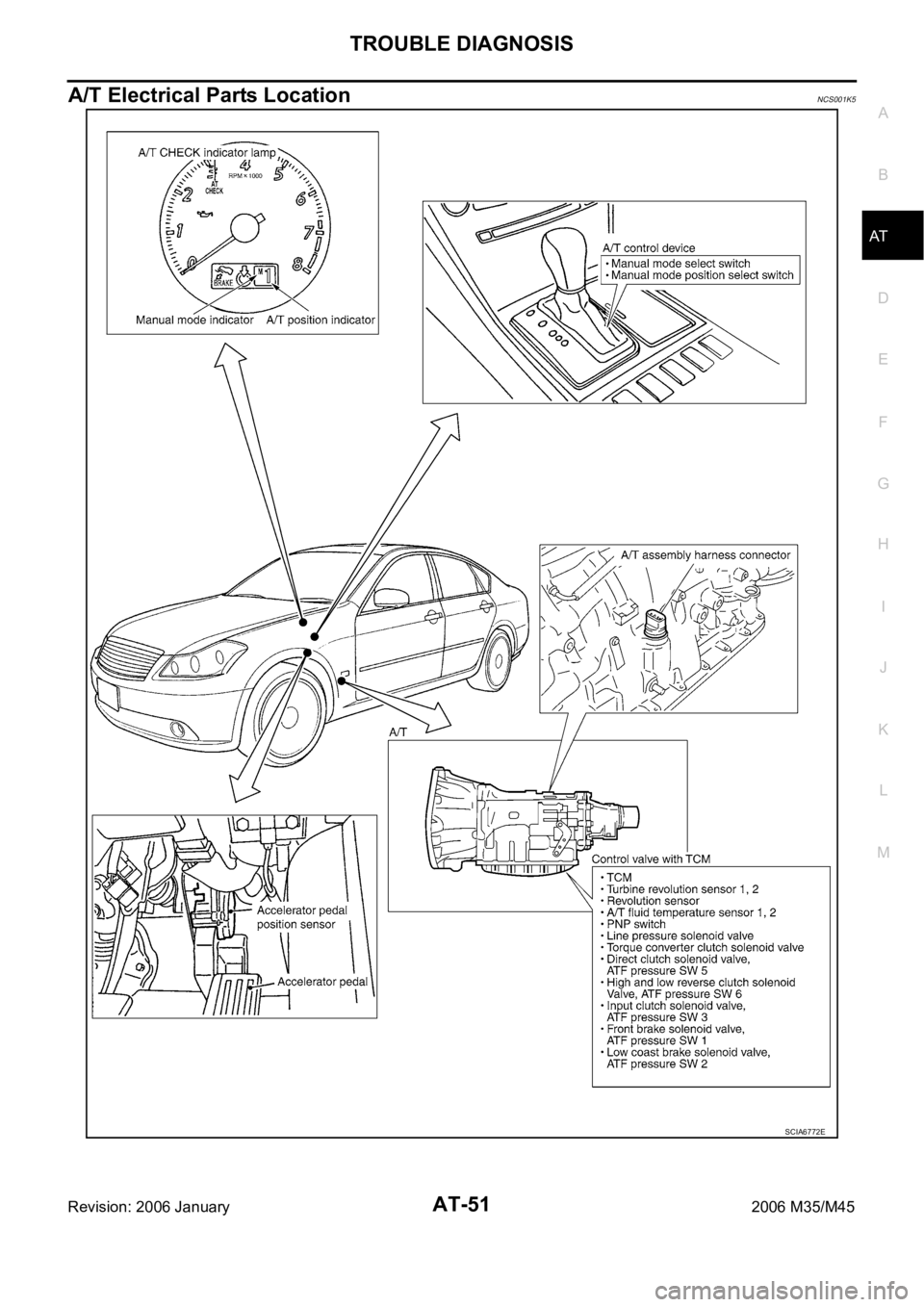

A/T Electrical Parts LocationNCS001K5
SCIA6772E

Page 131 of 5621

INFINITI M35 2006 Factory Service Manual AT-52
TROUBLE DIAGNOSIS
Revision: 2006 January2006 M35/M45
Circuit DiagramNCS001K6
TCWT0341E

Page 132 of 5621

INFINITI M35 2006 Factory Service Manual TROUBLE DIAGNOSIS
AT-53
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 January2006 M35/M45
Inspections before Trouble DiagnosisNCS001K7
A/T FLUID CHECK
A/T Fluid Leakage and A/T Fluid Level Check
Inspect f

Page 133 of 5621

INFINITI M35 2006 Factory Service Manual AT-54
TROUBLE DIAGNOSIS
Revision: 2006 January2006 M35/M45
5. While holding down the foot brake, gradually press down the
accelerator pedal.
6. Quickly read off the stall speed, then q

Page 134 of 5621

INFINITI M35 2006 Factory Service Manual TROUBLE DIAGNOSIS
AT-55
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 January2006 M35/M45
LINE PRESSURE TEST
Line Pressure Test Port
Line Pressure Test Procedure
1. Inspect the amount of engine oil and re

Page 135 of 5621

INFINITI M35 2006 Factory Service Manual AT-56
TROUBLE DIAGNOSIS
Revision: 2006 January2006 M35/M45
CAUTION:
Do not reuse O-ring.
Apply ATF to O-ring.
Line Pressure
Judgement of Line Pressure Test
Engine speedLine pressure [kPa (kg/cm
2 , ps

AT-56
TROUBLE DIAGNOSIS
Revision: 2006 January2006 M35/M45
CAUTION:
Do not reuse O-ring.
Apply ATF to O-ring.
Line Pressure
Judgement of Line Pressure Test
Engine speedLine pressure [kPa (kg/cm
2 , psi)]
“R” position “D”, “M” positions
At idle speed 425 - 465 (4.3 - 4.7, 62 - 67) 379 - 428 (3.9 - 4.4, 55 - 62)
At stall speed 1,605 - 1,950 (16.4 - 19.9, 233 - 283) 1,310 - 1,500 (13.4 - 15.3, 190 - 218)
Judgement Possible cause
Idle speedLow for all positions
(“P”, “R”, “N”, “D”, “M”)Possible causes include malfunctions in the pressure supply system and low oil pump out-
put.
For example
Oil pump wear
Pressure regulator valve or plug sticking or spring fatigue
Oil strainer oil pump pressure regulator valve passage oil leak
Engine idle speed too low
Only low for a specific
positionPossible causes include an oil pressure leak in a passage or device related to the position
after the pressure is distributed by the manual valve.
HighPossible causes include a sensor malfunction or malfunction in the line pressure adjustment
function.
For example
Accelerator pedal position signal malfunction
A/T fluid temperature sensor malfunction
Line pressure solenoid malfunction (sticking in OFF state, filter clog, cut line)
Pressure regulator valve or plug sticking
Stall speedOil pressure does not
rise higher than the oil
pressure for idle.Possible causes include a sensor malfunction or malfunction in the pressure adjustment
function.
For example
Accelerator pedal position signal malfunction
TCM breakdown
Line pressure solenoid malfunction (shorting, sticking in ON state)
Pressure regulator valve or plug sticking
Pilot valve sticking or pilot filter clogged
The pressure rises, but
does not enter the stan-
dard position.Possible causes include malfunctions in the pressure supply system and malfunction in the
pressure adjustment function.
For example
Accelerator pedal position signal malfunction
Line pressure solenoid malfunction (sticking, filter clog)
Pressure regulator valve or plug sticking
Pilot valve sticking or pilot filter clogged
Only low for a specific
positionPossible causes include an oil pressure leak in a passage or device related to the position
after the pressure is distributed by the manual valve.

Page 136 of 5621

INFINITI M35 2006 Factory Service Manual TROUBLE DIAGNOSIS
AT-57
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 January2006 M35/M45
ROAD TEST
Description
The road test inspects overall performance of the A/T and analyzes possible malfunction caus
