Page 3121 of 5621
EM-58
[VQ35DE]
FRONT TIMING CHAIN CASE
Revision: 2006 January2006 M35/M45

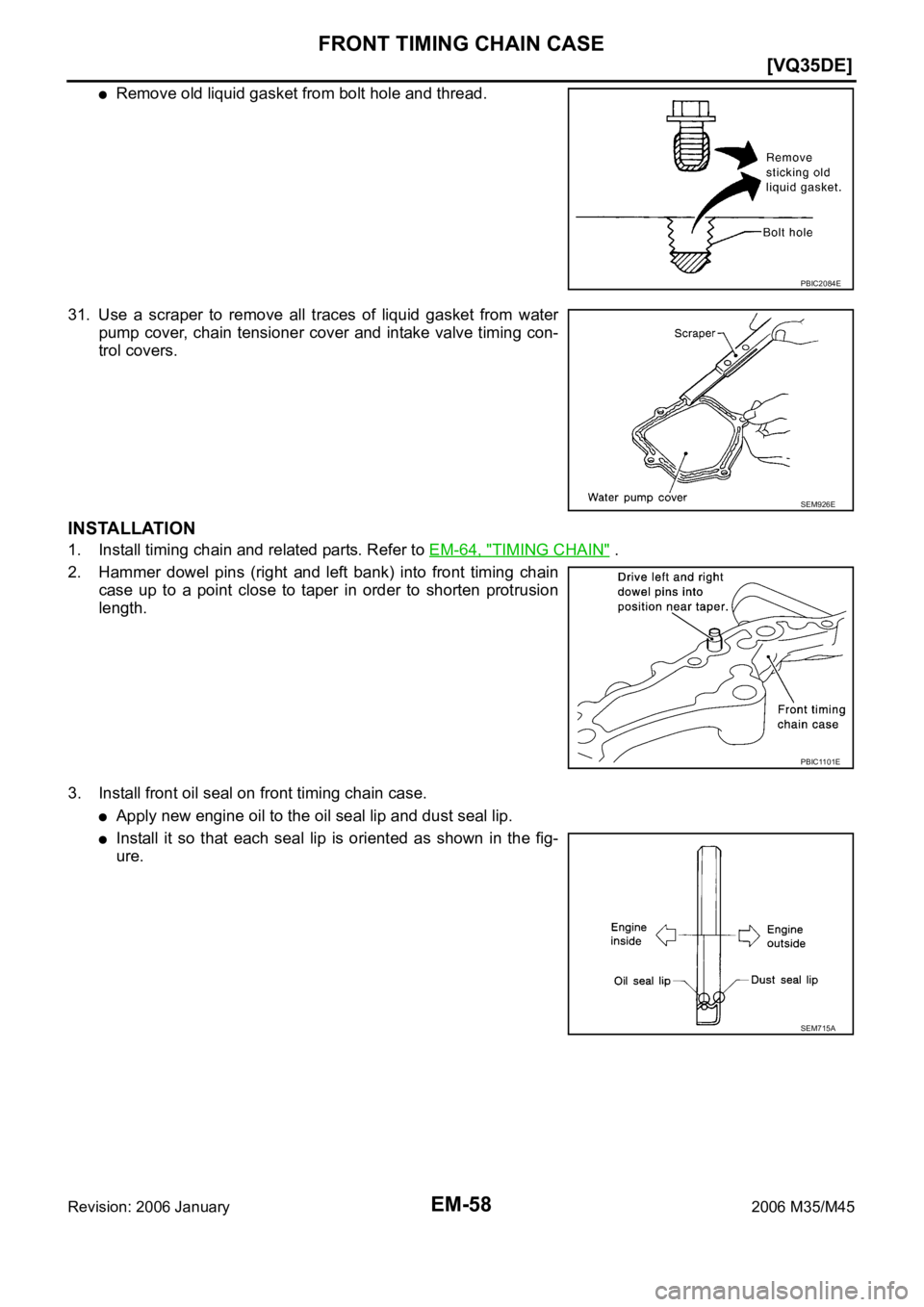

Remove old liquid gasket from bolt hole and thread.
31. Use a scraper to remove all traces of liquid gasket from water
pump cover, chain tensioner cover and intake valve timing con-
trol covers.
INSTALLATION
1. Install timing chain and related parts. Refer to EM-64, "TIMING CHAIN" .
2. Hammer dowel pins (right and left bank) into front timing chain
case up to a point close to taper in order to shorten protrusion
length.
3. Install front oil seal on front timing chain case.
Apply new engine oil to the oil seal lip and dust seal lip.
Install it so that each seal lip is oriented as shown in the fig-
ure.
PBIC2084E
SEM926E
PBIC1101E
SEM715A
Page 3122 of 5621
FRONT TIMING CHAIN CASE
EM-59
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45

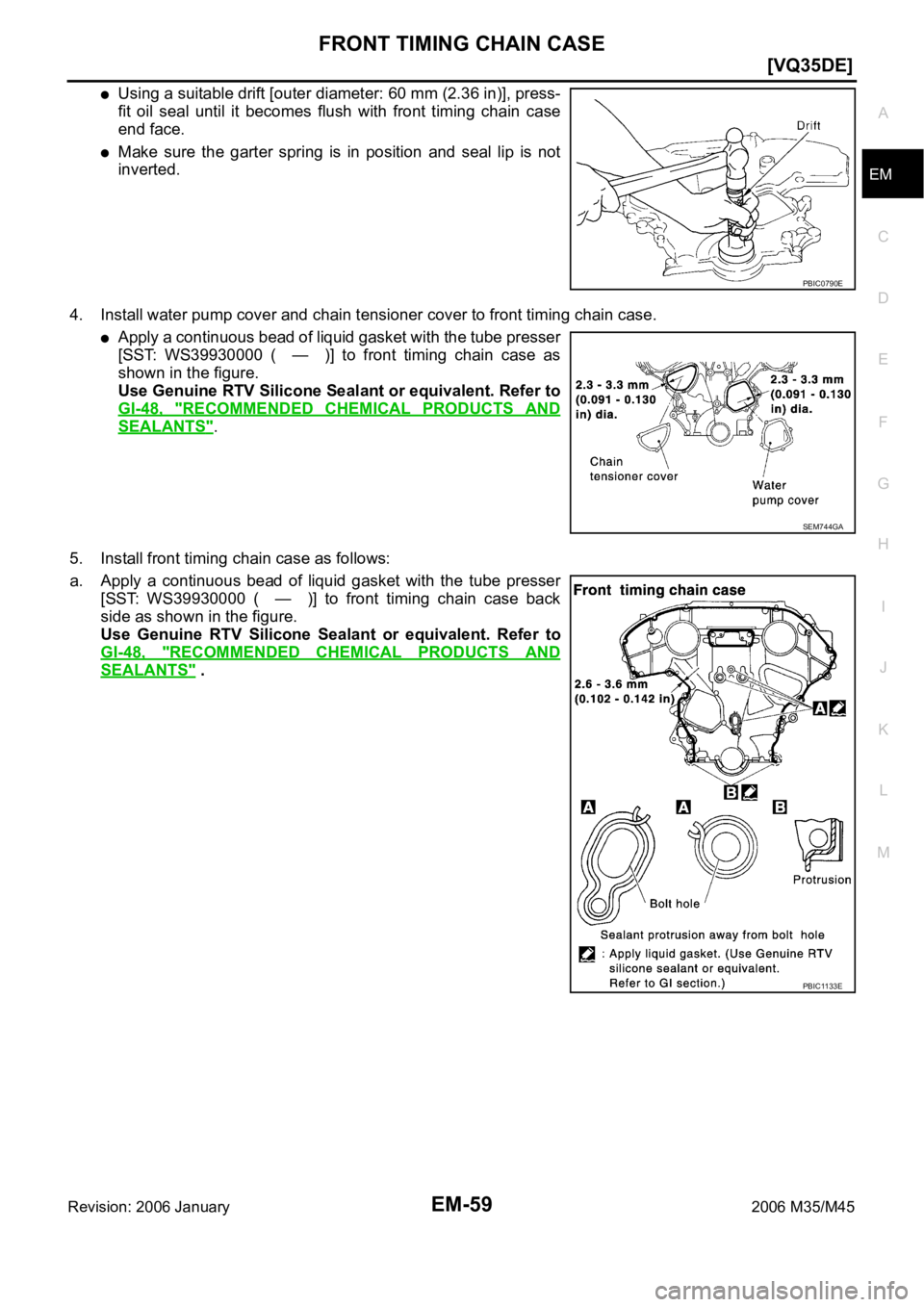

Using a suitable drift [outer diameter: 60 mm (2.36 in)], press-
fit oil seal until it becomes flush with front timing chain case
end face.
Make sure the garter spring is in position and seal lip is not
inverted.
4. Install water pump cover and chain tensioner cover to front timing chain case.
Apply a continuous bead of liquid gasket with the tube presser
[SST: WS39930000 ( — )] to front timing chain case as
shown in the figure.
Use Genuine RTV Silicone Sealant or equivalent. Refer to
GI-48, "
RECOMMENDED CHEMICAL PRODUCTS AND
SEALANTS".
5. Install front timing chain case as follows:
a. Apply a continuous bead of liquid gasket with the tube presser
[SST: WS39930000 ( — )] to front timing chain case back
side as shown in the figure.
Use Genuine RTV Silicone Sealant or equivalent. Refer to
GI-48, "
RECOMMENDED CHEMICAL PRODUCTS AND
SEALANTS" .
PBIC0790E
SEM744GA
PBIC1133E
Page 3123 of 5621
![INFINITI M35 2006 Factory Service Manual EM-60
[VQ35DE]
FRONT TIMING CHAIN CASE
Revision: 2006 January2006 M35/M45

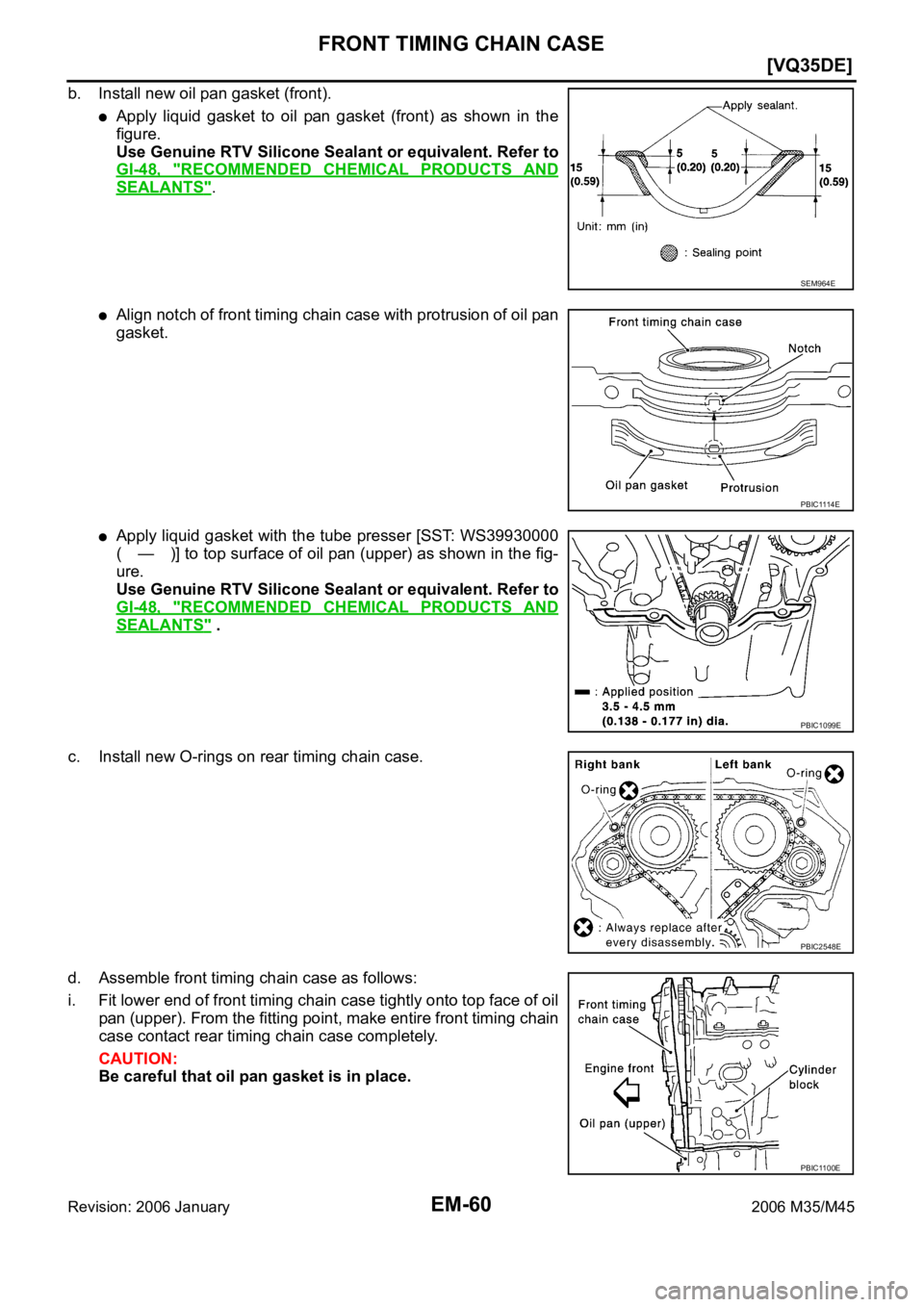

b. Install new oil pan gasket (front).
Apply liquid gasket to oil pan gasket (front) as shown in the
figure.
Use Ge INFINITI M35 2006 Factory Service Manual EM-60
[VQ35DE]
FRONT TIMING CHAIN CASE
Revision: 2006 January2006 M35/M45
b. Install new oil pan gasket (front).
Apply liquid gasket to oil pan gasket (front) as shown in the
figure.
Use Ge](/manual-img/42/57023/w960_57023-3122.png)
EM-60
[VQ35DE]
FRONT TIMING CHAIN CASE
Revision: 2006 January2006 M35/M45
b. Install new oil pan gasket (front).
Apply liquid gasket to oil pan gasket (front) as shown in the
figure.
Use Genuine RTV Silicone Sealant or equivalent. Refer to
GI-48, "
RECOMMENDED CHEMICAL PRODUCTS AND
SEALANTS".
Align notch of front timing chain case with protrusion of oil pan
gasket.
Apply liquid gasket with the tube presser [SST: WS39930000
( — )] to top surface of oil pan (upper) as shown in the fig-
ure.
Use Genuine RTV Silicone Sealant or equivalent. Refer to
GI-48, "
RECOMMENDED CHEMICAL PRODUCTS AND
SEALANTS" .
c. Install new O-rings on rear timing chain case.
d. Assemble front timing chain case as follows:
i. Fit lower end of front timing chain case tightly onto top face of oil
pan (upper). From the fitting point, make entire front timing chain
case contact rear timing chain case completely.
CAUTION:
Be careful that oil pan gasket is in place.
SEM964E
PBIC1114E
PBIC1099E
PBIC2548E
PBIC1100E
Page 3124 of 5621
![INFINITI M35 2006 Factory Service Manual FRONT TIMING CHAIN CASE
EM-61
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
ii. Since front timing chain case is offset for difference of bolt holes,
tighten bolts temporaril INFINITI M35 2006 Factory Service Manual FRONT TIMING CHAIN CASE
EM-61
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
ii. Since front timing chain case is offset for difference of bolt holes,
tighten bolts temporaril](/manual-img/42/57023/w960_57023-3123.png)
FRONT TIMING CHAIN CASE
EM-61
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45

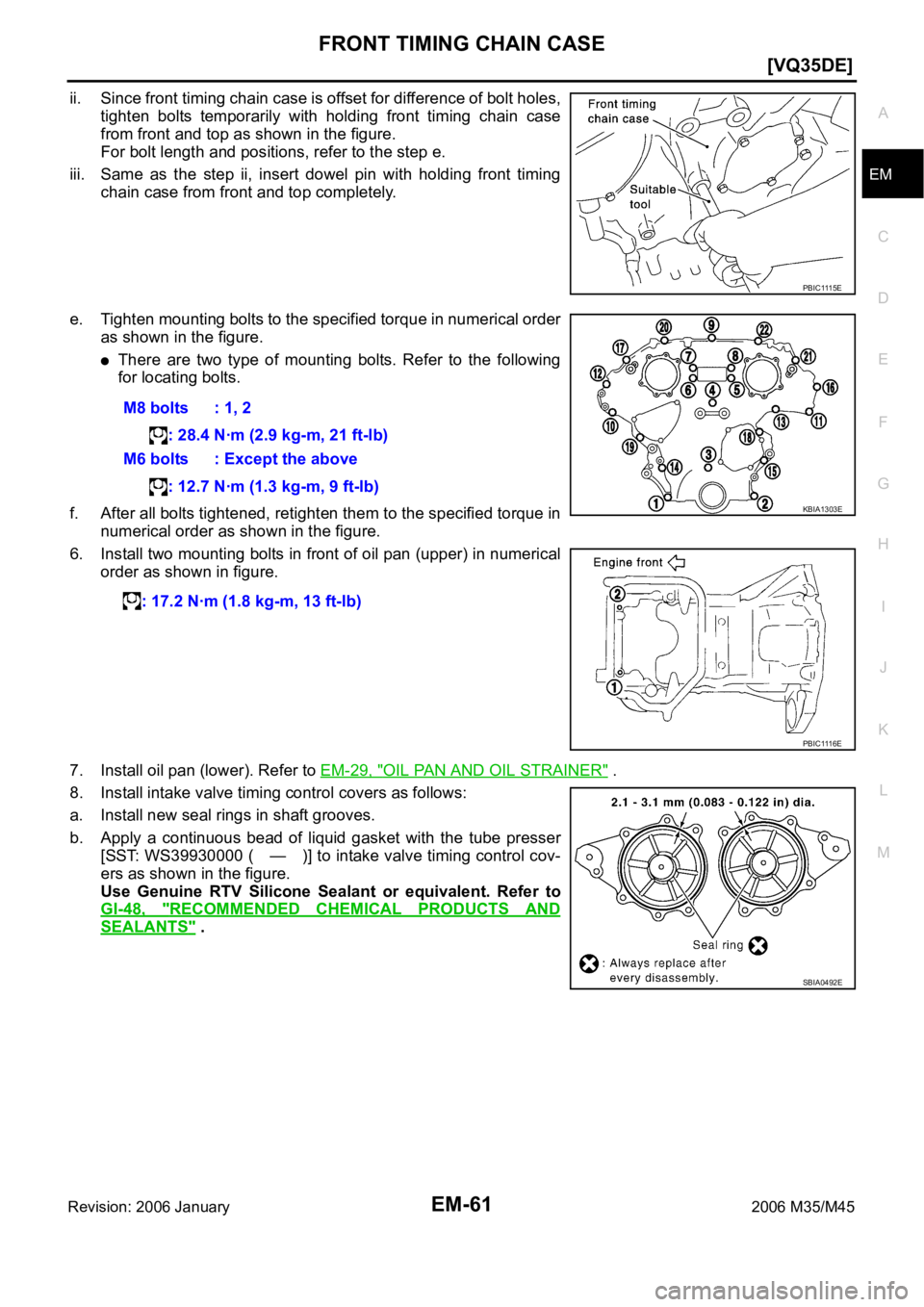

ii. Since front timing chain case is offset for difference of bolt holes,
tighten bolts temporarily with holding front timing chain case
from front and top as shown in the figure.
For bolt length and positions, refer to the step e.
iii. Same as the step ii, insert dowel pin with holding front timing
chain case from front and top completely.
e. Tighten mounting bolts to the specified torque in numerical order
as shown in the figure.
There are two type of mounting bolts. Refer to the following
for locating bolts.
f. After all bolts tightened, retighten them to the specified torque in
numerical order as shown in the figure.
6. Install two mounting bolts in front of oil pan (upper) in numerical
order as shown in figure.
7. Install oil pan (lower). Refer to EM-29, "
OIL PAN AND OIL STRAINER" .
8. Install intake valve timing control covers as follows:
a. Install new seal rings in shaft grooves.
b. Apply a continuous bead of liquid gasket with the tube presser
[SST: WS39930000 ( — )] to intake valve timing control cov-
ers as shown in the figure.
Use Genuine RTV Silicone Sealant or equivalent. Refer to
GI-48, "
RECOMMENDED CHEMICAL PRODUCTS AND
SEALANTS" .
PBIC1115E
M8 bolts : 1, 2
: 28.4 Nꞏm (2.9 kg-m, 21 ft-lb)
M6 bolts : Except the above
: 12.7 Nꞏm (1.3 kg-m, 9 ft-lb)
: 17.2 Nꞏm (1.8 kg-m, 13 ft-lb)
KBIA1303E
PBIC1116E
SBIA0492E
Page 3125 of 5621
![INFINITI M35 2006 Factory Service Manual EM-62
[VQ35DE]
FRONT TIMING CHAIN CASE
Revision: 2006 January2006 M35/M45

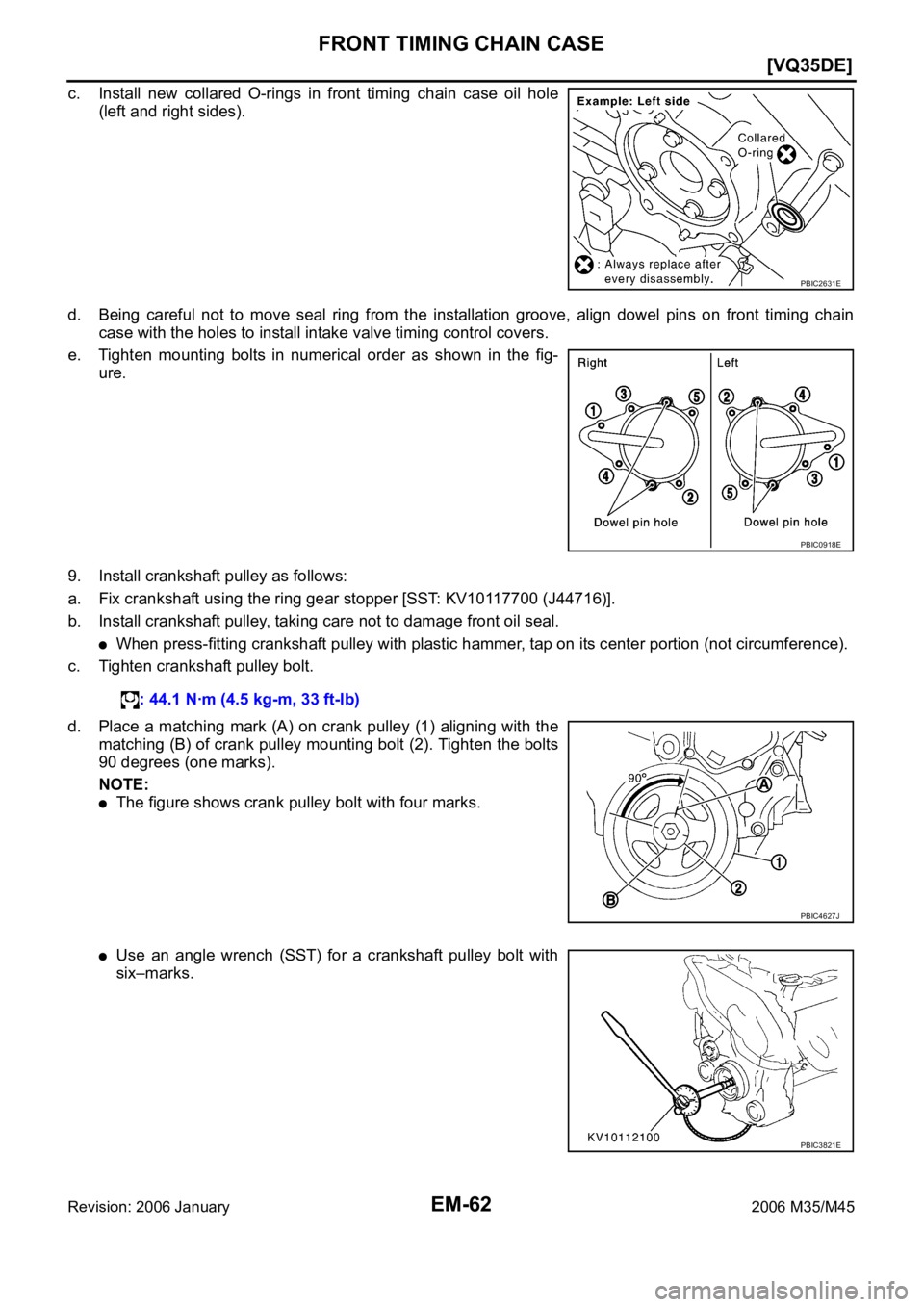

c. Install new collared O-rings in front timing chain case oil hole
(left and right sides).
d. Being careful not INFINITI M35 2006 Factory Service Manual EM-62
[VQ35DE]
FRONT TIMING CHAIN CASE
Revision: 2006 January2006 M35/M45
c. Install new collared O-rings in front timing chain case oil hole
(left and right sides).
d. Being careful not](/manual-img/42/57023/w960_57023-3124.png)
EM-62
[VQ35DE]
FRONT TIMING CHAIN CASE
Revision: 2006 January2006 M35/M45
c. Install new collared O-rings in front timing chain case oil hole
(left and right sides).
d. Being careful not to move seal ring from the installation groove, align dowel pins on front timing chain
case with the holes to install intake valve timing control covers.
e. Tighten mounting bolts in numerical order as shown in the fig-
ure.
9. Install crankshaft pulley as follows:
a. Fix crankshaft using the ring gear stopper [SST: KV10117700 (J44716)].
b. Install crankshaft pulley, taking care not to damage front oil seal.
When press-fitting crankshaft pulley with plastic hammer, tap on its center portion (not circumference).
c. Tighten crankshaft pulley bolt.
d. Place a matching mark (A) on crank pulley (1) aligning with the
matching (B) of crank pulley mounting bolt (2). Tighten the bolts
90 degrees (one marks).
NOTE:
The figure shows crank pulley bolt with four marks.
Use an angle wrench (SST) for a crankshaft pulley bolt with
six–marks.
PBIC2631E
PBIC0918E
: 44.1 Nꞏm (4.5 kg-m, 33 ft-lb)
PBIC4627J
PBIC3821E
Page 3126 of 5621
![INFINITI M35 2006 Factory Service Manual FRONT TIMING CHAIN CASE
EM-63
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
10. Rotate crankshaft pulley in normal direction (clockwise when viewed from front) to c INFINITI M35 2006 Factory Service Manual FRONT TIMING CHAIN CASE
EM-63
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
10. Rotate crankshaft pulley in normal direction (clockwise when viewed from front) to c](/manual-img/42/57023/w960_57023-3125.png)
FRONT TIMING CHAIN CASE
EM-63
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
10. Rotate crankshaft pulley in normal direction (clockwise when viewed from front) to confirm it turns
smoothly.
11. For the following operations, perform steps in the reverse order of removal.
INSPECTION AFTER INSTALLATION
Inspection for Leaks
The following are procedures for checking fluids leak, lubricates leak.
Before starting engine, check oil/fluid levels including engine coolant and engine oil. If less than required
quantity, fill to the specified level. Refer to MA-12, "
RECOMMENDED FLUIDS AND LUBRICANTS" .
Use procedure below to check for fuel leakage.
–Turn ignition switch “ON” (with engine stopped). With fuel pressure applied to fuel piping, check for fuel
leakage at connection points.
–Start engine. With engine speed increased, check again for fuel leakage at connection points.
Run engine to check for unusual noise and vibration.
NOTE:
If hydraulic pressure inside chain tensioner drops after removal/installation, slack in guide may generate a
pounding noise during and just after the engine start. However, this does not indicate an unusualness.
Noise will stop after hydraulic pressure rises.
Warm up engine thoroughly to make sure there is no leakage of fuel, or any oil/fluids including engine oil
and engine coolant.
Bleed air from lines and hoses of applicable lines, such as in cooling system.
After cooling down engine, again check oil/fluid levels including engine oil and engine coolant. Refill to the
specified level, if necessary.
Summary of the inspection items:
* Transmission/transaxle/CVT fluid, power steering fluid, brake fluid, etc. Item Before starting engine Engine running After engine stopped
Engine coolant Level Leakage Level
Engine oil Level Leakage Level
Other oils and fluid* Level Leakage Level
Fuel Leakage Leakage Leakage
Page 3127 of 5621
EM-64
[VQ35DE]
TIMING CHAIN
Revision: 2006 January2006 M35/M45

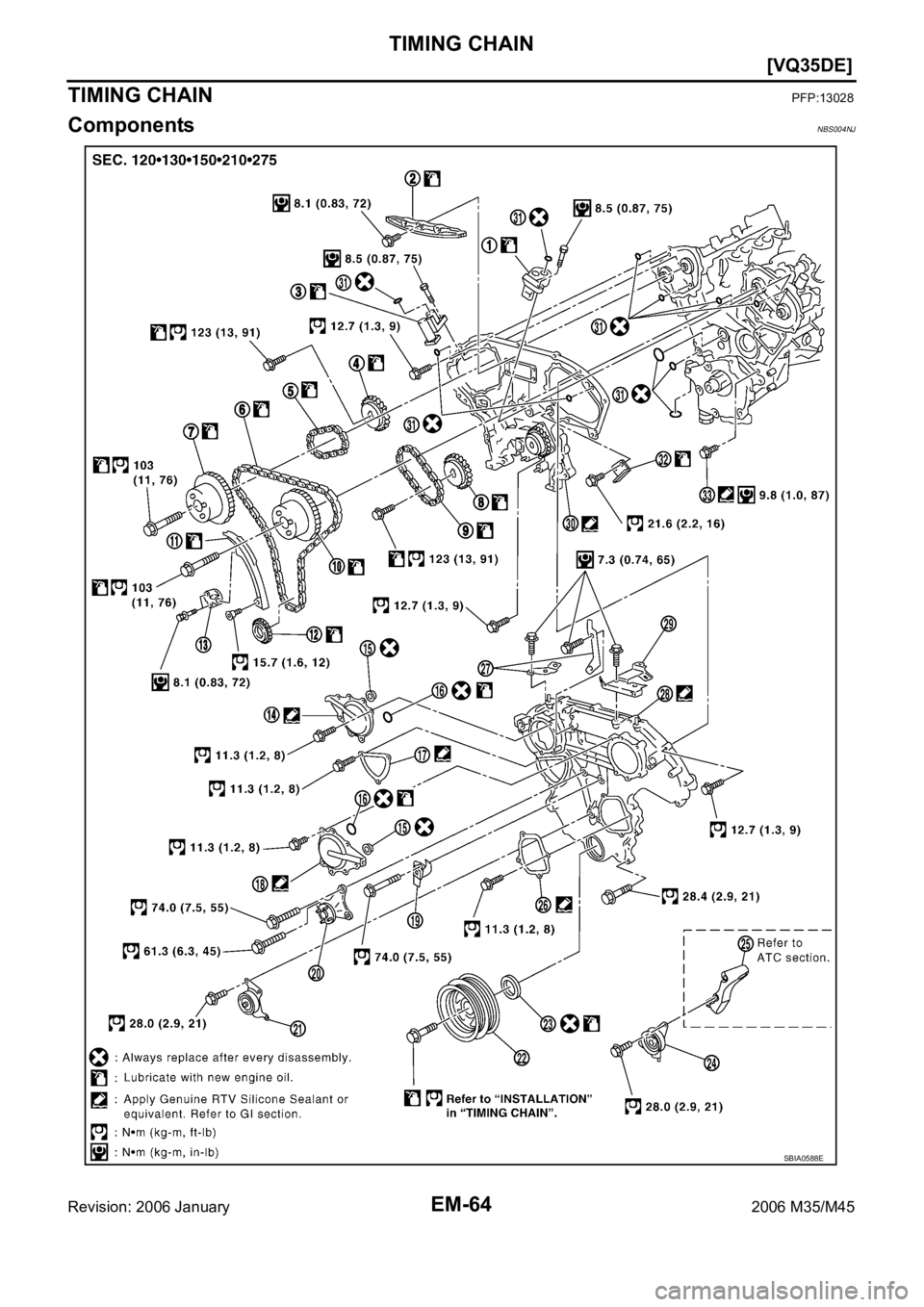

TIMING CHAINPFP:13028
ComponentsNBS004NJ
SBIA0588E
Page 3128 of 5621
![INFINITI M35 2006 Factory Service Manual TIMING CHAIN
EM-65
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
Removal and InstallationNBS004NK
NOTE:
This section describes procedures for removing/installing front timing c INFINITI M35 2006 Factory Service Manual TIMING CHAIN
EM-65
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
Removal and InstallationNBS004NK
NOTE:
This section describes procedures for removing/installing front timing c](/manual-img/42/57023/w960_57023-3127.png)
TIMING CHAIN
EM-65
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EM
Revision: 2006 January2006 M35/M45
Removal and InstallationNBS004NK
NOTE:
This section describes procedures for removing/installing front timing chain case and timing chain related
parts, and rear timing chain case, when oil pan (upper) needs to be removed/installed for engine overhaul,
etc.
To remove/install front timing chain case, timing chain, and its related parts without removing oil pan
(upper), refer to EM-54, "
FRONT TIMING CHAIN CASE" .
REMOVAL
1. Remove engine room cover (RH and LH) Refer to EM-14, "ENGINE ROOM COVER" .
2. Remove front tire.
3. Disconnect the battery cable from the negative terminal.
4. Remove engine cover with power tool. Refer to EM-19, "
INTAKE MANIFOLD COLLECTOR" .
5. Remove air duct (inlet) and air cleaner case assembly. Refer to EM-17, "
AIR CLEANER AND AIR DUCT"
.
6. Remove front and rear engine undercover with power tool.
7. Release the fuel pressure. Refer to EC-98, "
FUEL PRESSURE RELEASE" .
8. Drain engine coolant from radiator. Refer to CO-11, "
Changing Engine Coolant" .
CAUTION:
Perform this step when the engine is cold.
Do not spill engine coolant on drive belts.
9. Remove radiator hose (upper and lower) and A/T fluid cooler hose. Refer to CO-14, "
RADIATOR" .
10. Drain engine oil. Refer to LU-9, "
Changing Engine Oil" .
CAUTION:
Perform this step when the engine is cold.
Do not spill engine oil on drive belts.
11. Separate engine harnesses removing their brackets from front timing chain case.
12. Remove intake manifold collectors (upper and lower). Refer to EM-19, "
INTAKE MANIFOLD COLLEC-
TOR" .
13. Remove radiator cooling fan assembly. Refer to CO-22, "
COOLING FAN" .
14. Remove drive belts. Refer to EM-15, "
DRIVE BELTS" .
15. Remove A/C compressor from bracket with piping connected, and temporarily secure it aside. Refer to
ATC-155, "
Removal and Installation of Compressor" .
16. Remove power steering oil pump from bracket with piping connected, and temporarily secure it aside.
Refer to PS-29, "
POWER STEERING OIL PUMP" .
17. Remove power steering oil pump bracket. Refer to PS-29, "
POWER STEERING OIL PUMP" .
18. Remove alternator. Refer to SC-23, "
CHARGING SYSTEM" .
19. Remove water bypass hose, water hose clamp and idler pulley bracket from front timing chain case.
20. Remove intake valve timing control covers.
1. Timing chain tensioner (secondary) 2. Internal chain guide 3. Timing chain tensioner (secondary)
4. Camshaft sprocket (EXH) 5. Timing chain (secondary) 6. Timing chain (primary)
7. Camshaft sprocket (INT) 8. Camshaft sprocket (EXH) 9. Timing chain (secondary)
10. Camshaft sprocket (INT) 11. Slack guide 12. Crankshaft sprocket
13. Timing chain tensioner (primary) 14. Intake valve timing control cover 15. Collared O-ring
16. O-ring 17. Chain tensioner cover 18. Intake valve timing control cover
19. Water hose clamp 20. Idler pulley bracket 21. Idler pulley
22. Crankshaft pulley 23. Front oil seal 24. Idler pulley
25. A/C compressor bracket 26. Water pump cover 27. Bracket
28. Front timing chain case 29. Bracket 30. Rear timing chain case
31. O-ring 32. Tension guide 33. Water drain plug (front side)
