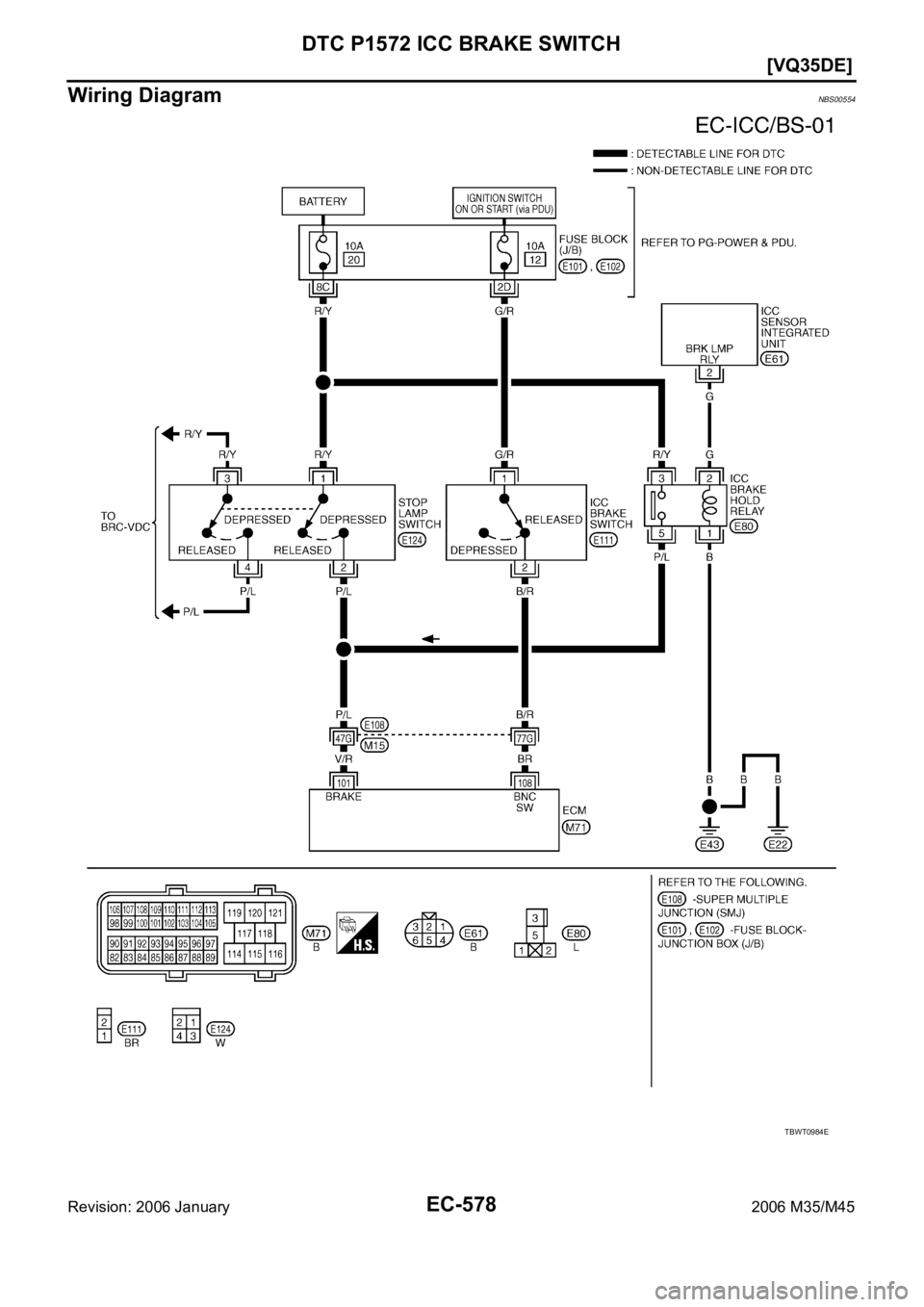

Wiring Diagram NBS00554
TBWT0984E
Page 2122 of 5621
![INFINITI M35 2006 Factory Service Manual DTC P1572 ICC BRAKE SWITCH
EC-579
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
Specification data are reference values and are measured between each terminal and ground.
CAUTI INFINITI M35 2006 Factory Service Manual DTC P1572 ICC BRAKE SWITCH
EC-579
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
Specification data are reference values and are measured between each terminal and ground.
CAUTI](/manual-img/42/57023/w960_57023-2121.png)
DTC P1572 ICC BRAKE SWITCH
EC-579
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureNBS00555
1. CHECK OVERALL FUNCTION-I
With CONSULT-II
1. Turn ignition switch ON.
2. Select “BRAKE SW1” in “DATA MONITOR” mode with CON-
SULT-II.
3. Check “BRAKE SW1” indication under the following conditions.
Without CONSULT-II
1. Turn ignition switch ON.
2. Check voltage between ECM terminal 108 and ground under the
following conditions.
OK or NG
OK >> GO TO 2.
NG >> GO TO 3.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
101 V/R Stop lamp switch[Ignition switch: OFF]
Brake pedal: Fully releasedApproximately 0V
[Ignition switch: OFF]
Brake pedal: Slightly depressedBATTERY VOLTAGE
(11 - 14V)
108 BR ICC brake switch[Ignition switch: ON]
Brake pedal: Slightly depressedApproximately 0V
[Ignition switch: ON]
Brake pedal: Fully releasedBATTERY VOLTAGE
(11 - 14V)
CONDITION INDICATION
Brake pedal: Slightly depressed OFF
Brake pedal: Fully released ON
SEC011D
CONDITION VOLTAGE
Brake pedal: Slightly depressed Approximately 0V
Brake pedal: Fully released Battery voltage
MBIB0061E
Page 2123 of 5621
EC-580
[VQ35DE]
DTC P1572 ICC BRAKE SWITCH
Revision: 2006 January2006 M35/M45
2. CHECK OVERALL FUNCTION-II
With CONSULT-II
Check “BRAKE SW2” indication in “DATA MONITOR” mode.
Without CONSULT-II
Check voltage between ECM terminal 101 and ground under the fol-
lowing conditions.
OK or NG
OK >> GO TO 15.
NG >> GO TO 8.
3. CHECK ICC BRAKE SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect ICC brake switch (2) harness connector.
–Stop lamp switch (1)
3. Turn ignition switch ON.
4. Check voltage between ICC brake switch terminal 1 and ground
with CONSULT-II or tester.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
CONDITION INDICATION
Brake pedal: Fully released OFF
Brake pedal: Slightly depressed ON
SEC013D
CONDITION VOLTAGE
Brake pedal: Fully released Approximately 0V
Brake pedal: Slightly depressed Battery voltage
PBIB1537E
PBIB2705E
Voltage: Battery voltage
PBIB0857E
Page 2124 of 5621
![INFINITI M35 2006 Factory Service Manual DTC P1572 ICC BRAKE SWITCH
EC-581
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
4. DETECT MALFUNCTIONING PART
Check the following.
Fuse block (J/B) connector E102
10A fuse
Harn INFINITI M35 2006 Factory Service Manual DTC P1572 ICC BRAKE SWITCH
EC-581
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
4. DETECT MALFUNCTIONING PART
Check the following.
Fuse block (J/B) connector E102
10A fuse
Harn](/manual-img/42/57023/w960_57023-2123.png)
DTC P1572 ICC BRAKE SWITCH
EC-581
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
4. DETECT MALFUNCTIONING PART
Check the following.
Fuse block (J/B) connector E102
10A fuse
Harness for open or short between ICC brake switch and fuse
>> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK ICC BRAKE SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT-II
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ICC brake switch terminal 2 and ECM terminal 108.
Refer Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
6. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E108, M15
Harness for open or short between ICC brake switch and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
7. CHECK ICC BRAKE SWITCH
Refer to EC-584, "
Component Inspection" .
OK or NG
OK >> GO TO 15.
NG >> Replace ICC brake switch.
8. CHECK DTC WITH ICC UNIT
Refer to ACS-39, "
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS" .
OK or NG
OK >> GO TO 9.
NG >> Repair or replace.Continuity should exist.
