Page 1473 of 5621

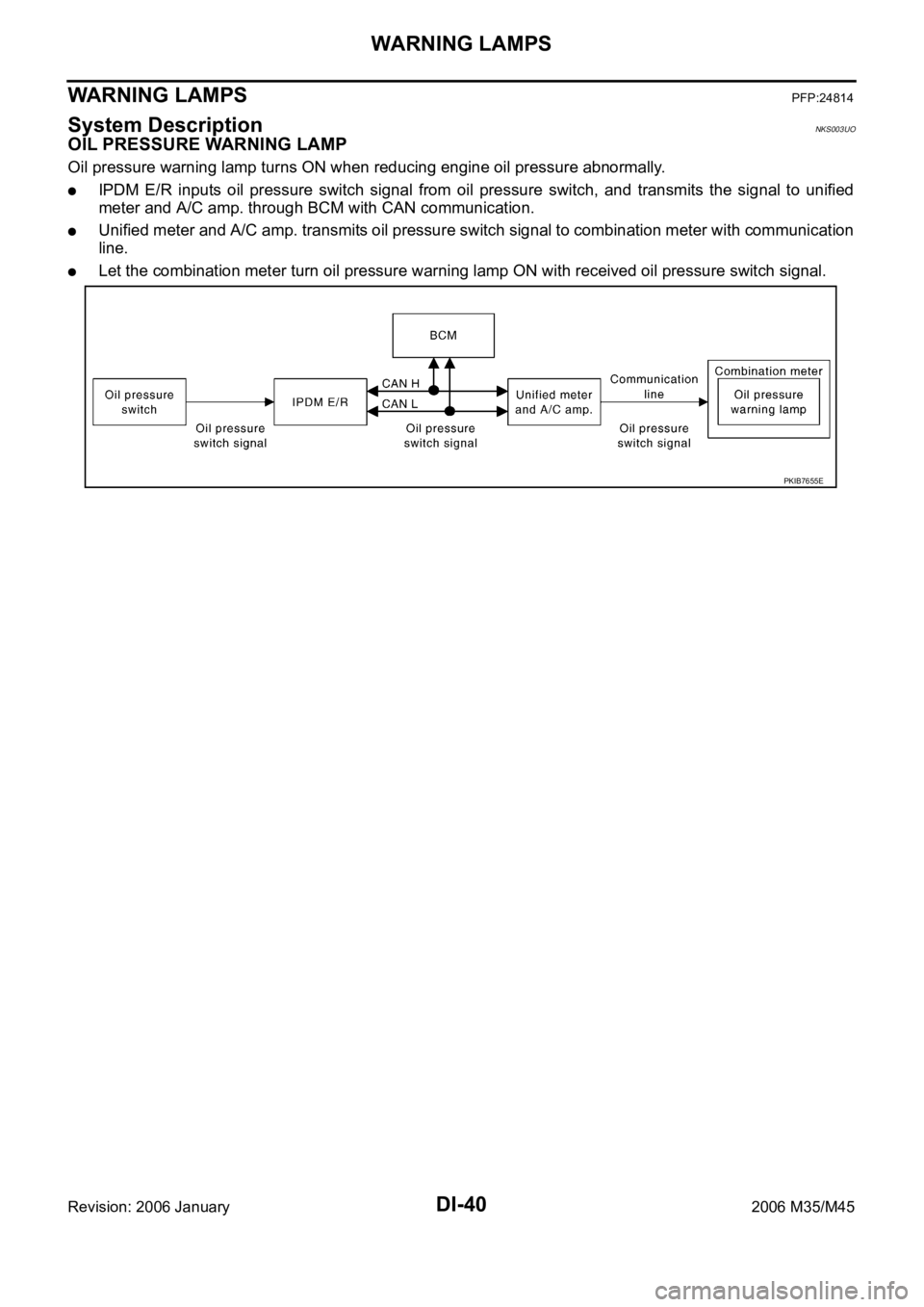

INFINITI M35 2006 Factory Service Manual DI-40 WARNING LAMPS Revision: 2006 January2006 M35/M45 WARNING LAMPSPFP:24814 System DescriptionNKS003UO OIL PRESSURE WARNING LAMP Oil pressure warning lamp turns ON when reducing engine oil pressure

Page 1474 of 5621

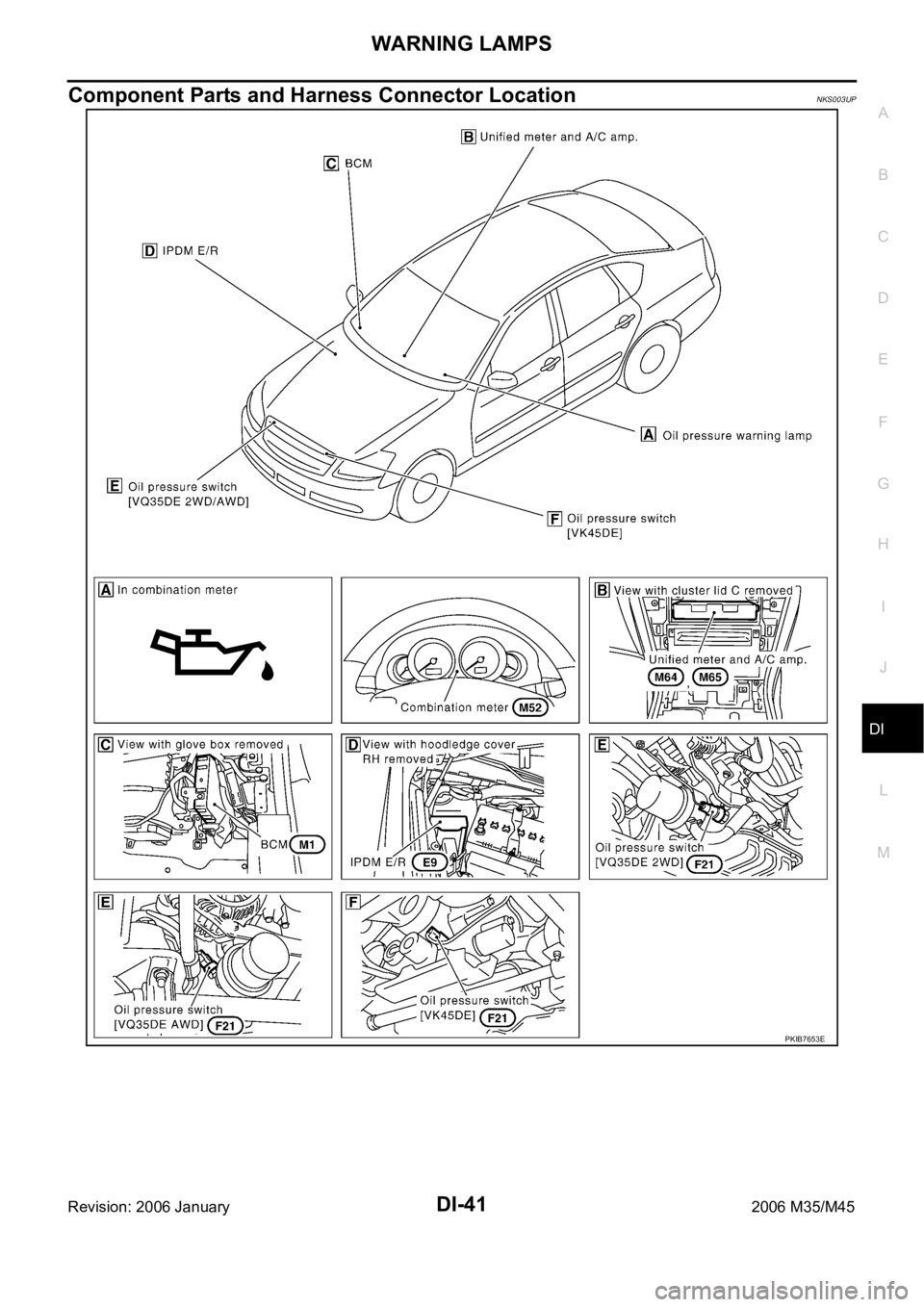

INFINITI M35 2006 Factory Service Manual WARNING LAMPS DI-41 C D E F G H I J L MA B DI Revision: 2006 January2006 M35/M45 Component Parts and Harness Connector LocationNKS003UP PKIB7653E

Page 1475 of 5621

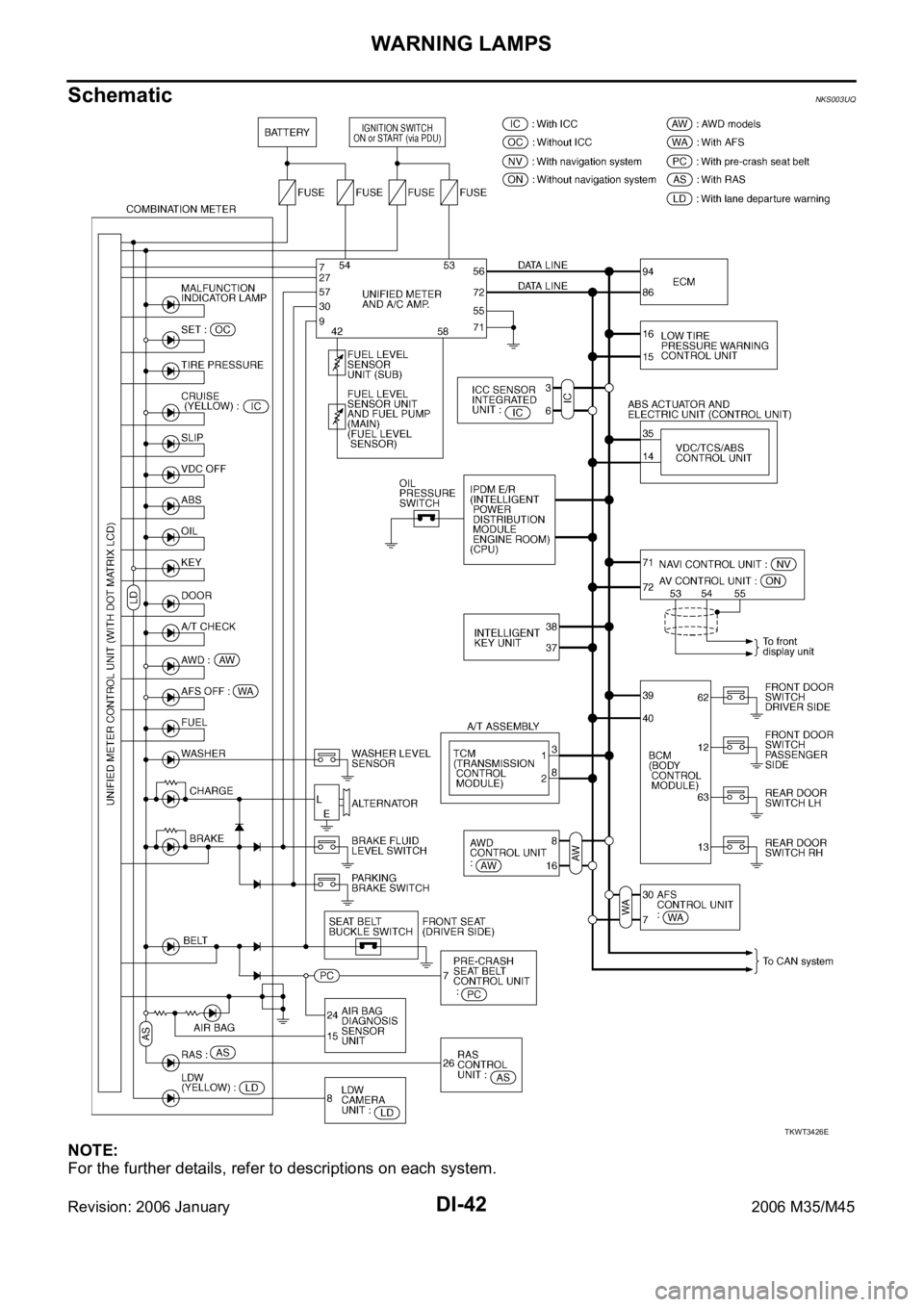

INFINITI M35 2006 Factory Service Manual DI-42 WARNING LAMPS Revision: 2006 January2006 M35/M45 SchematicNKS003UQ NOTE: For the further details, refer to descriptions on each system. TKWT3426E

Page 1476 of 5621

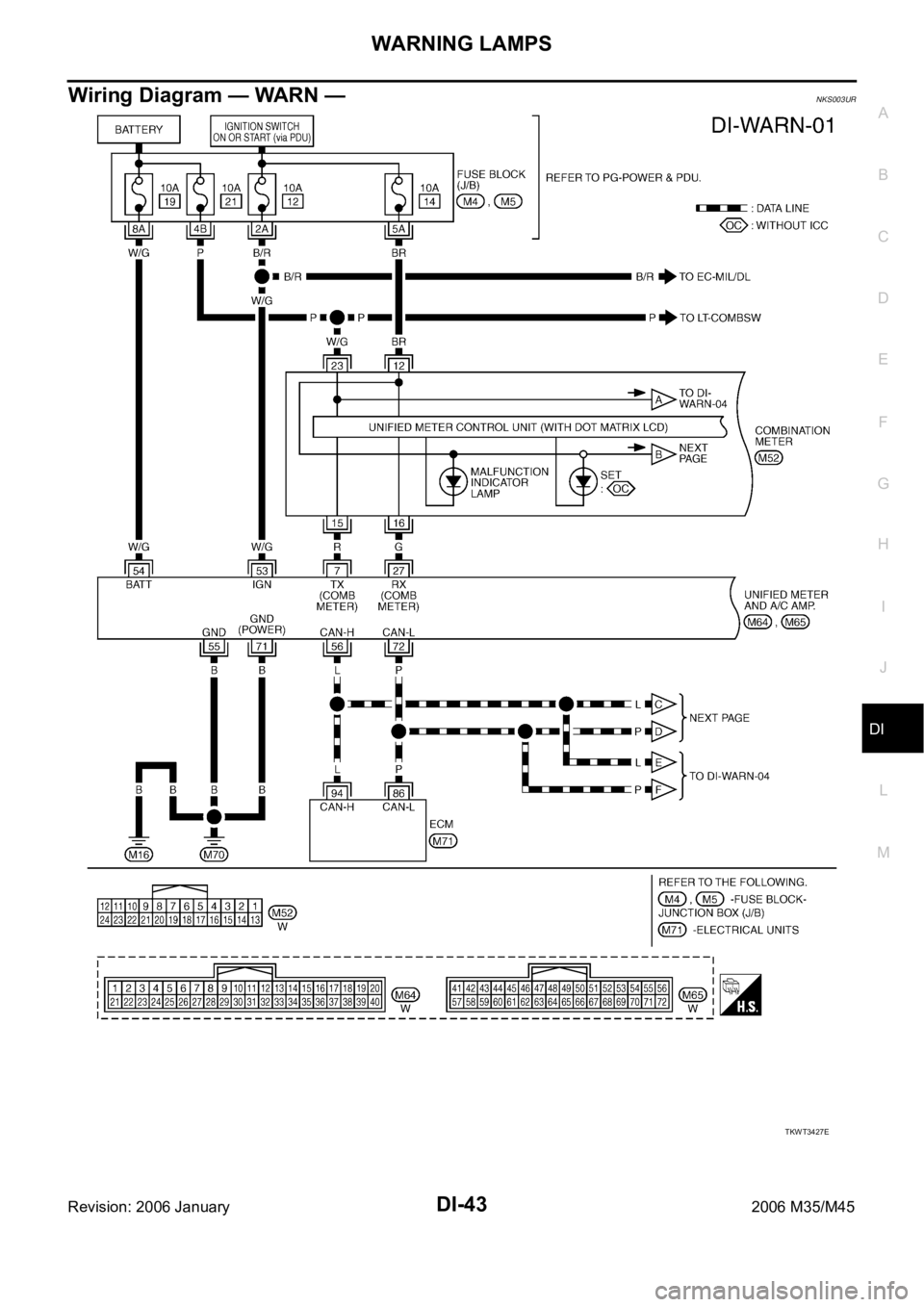

INFINITI M35 2006 Factory Service Manual WARNING LAMPS DI-43 C D E F G H I J L MA B DI Revision: 2006 January2006 M35/M45 Wiring Diagram — WARN —NKS003UR TKWT3427E

Page 1477 of 5621

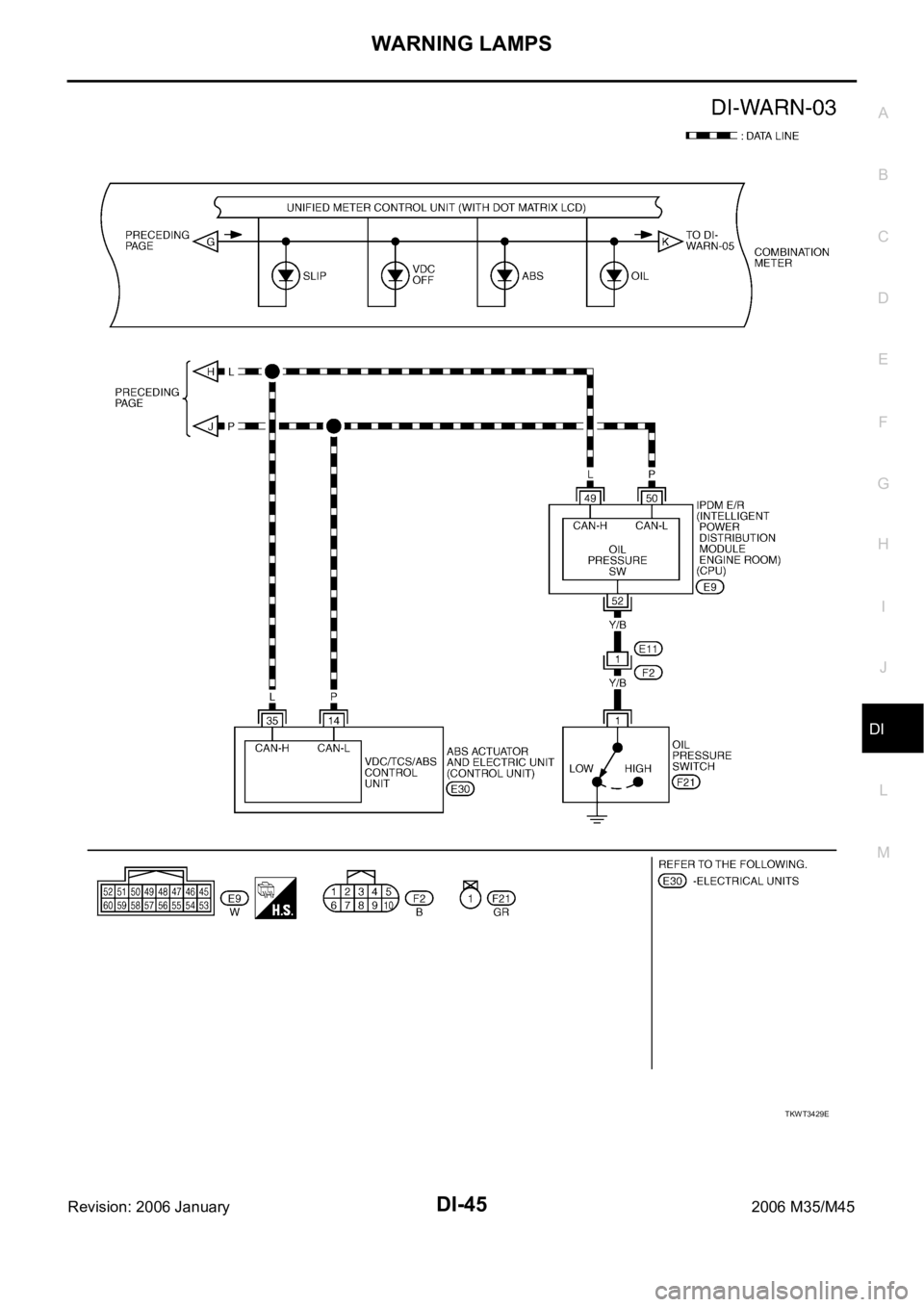

INFINITI M35 2006 Factory Service Manual DI-44 WARNING LAMPS Revision: 2006 January2006 M35/M45 TKWT3428E

Page 1478 of 5621

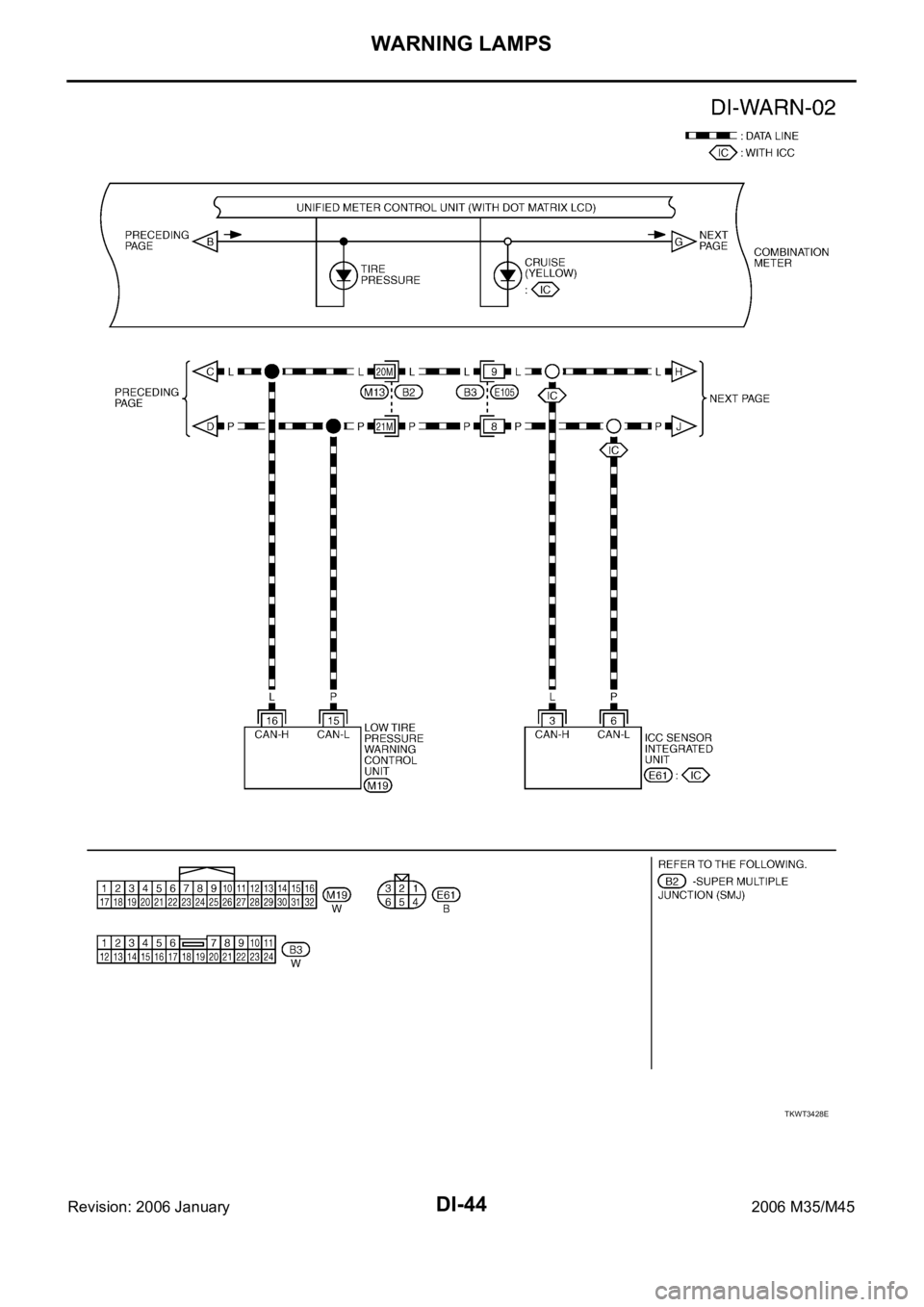

INFINITI M35 2006 Factory Service Manual WARNING LAMPS DI-45 C D E F G H I J L MA B DI Revision: 2006 January2006 M35/M45 TKWT3429E

Page 1479 of 5621

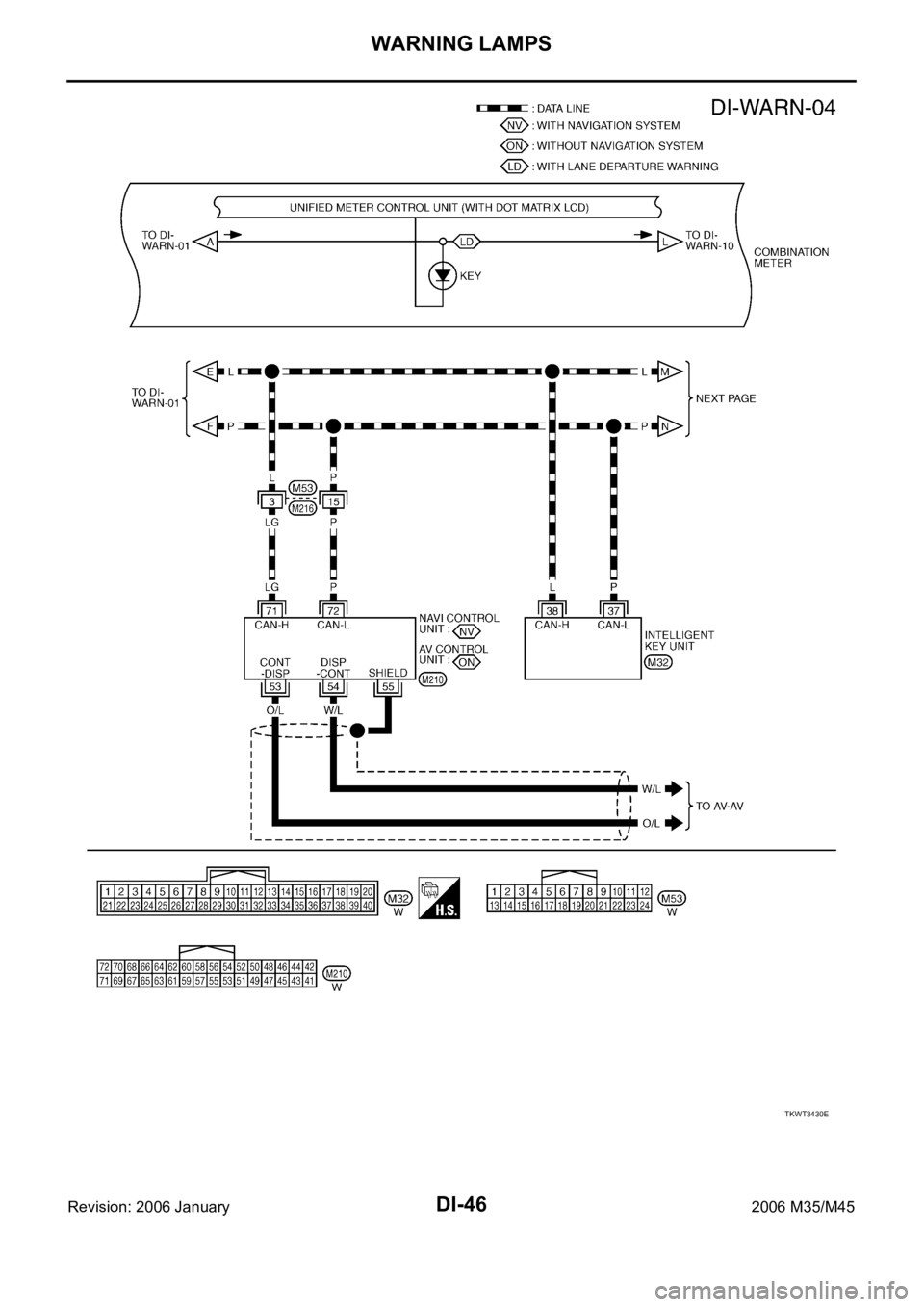

INFINITI M35 2006 Factory Service Manual DI-46 WARNING LAMPS Revision: 2006 January2006 M35/M45 TKWT3430E

Page 1480 of 5621

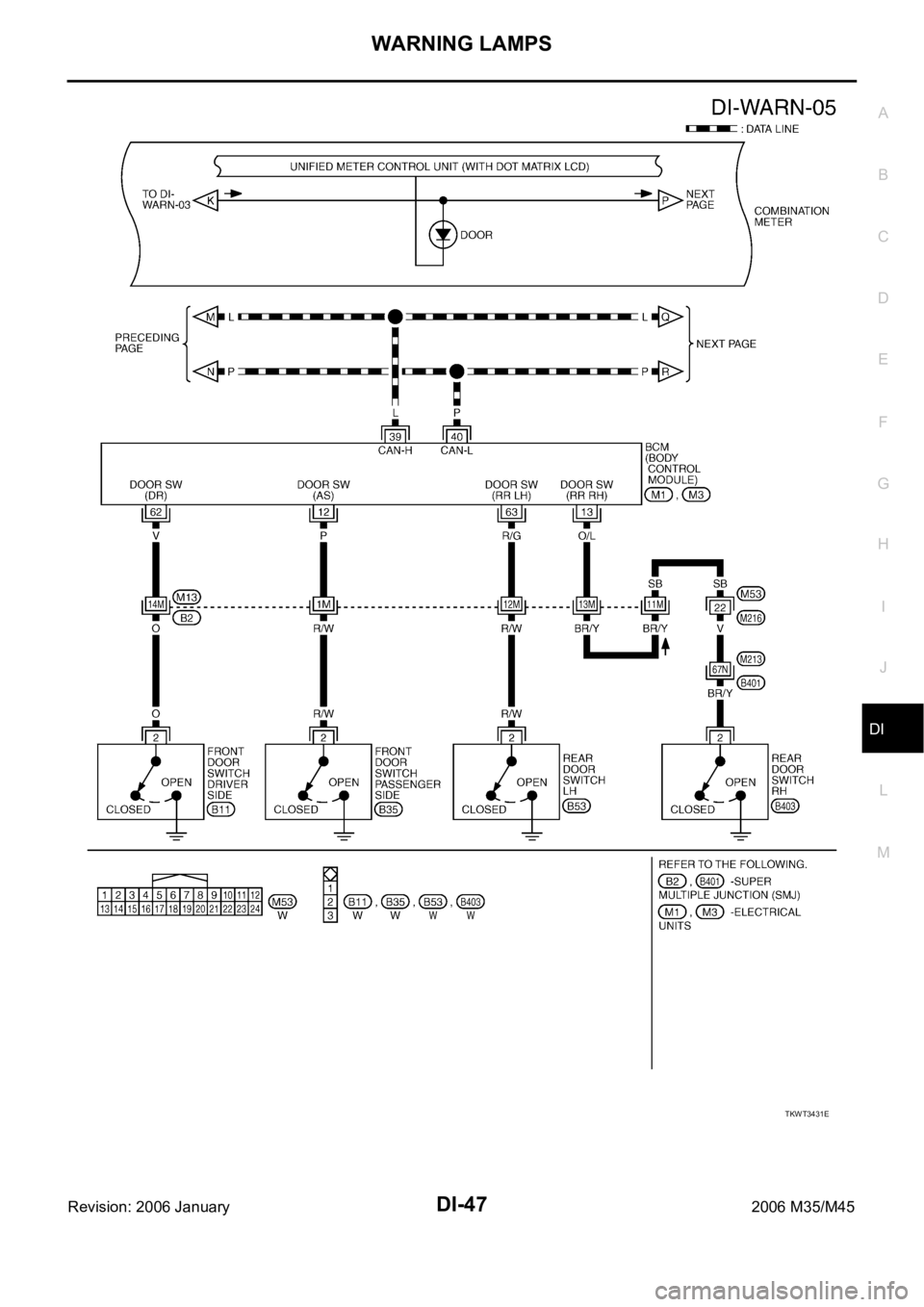

INFINITI M35 2006 Factory Service Manual WARNING LAMPS DI-47 C D E F G H I J L MA B DI Revision: 2006 January2006 M35/M45 TKWT3431E
