Page 1169 of 5621

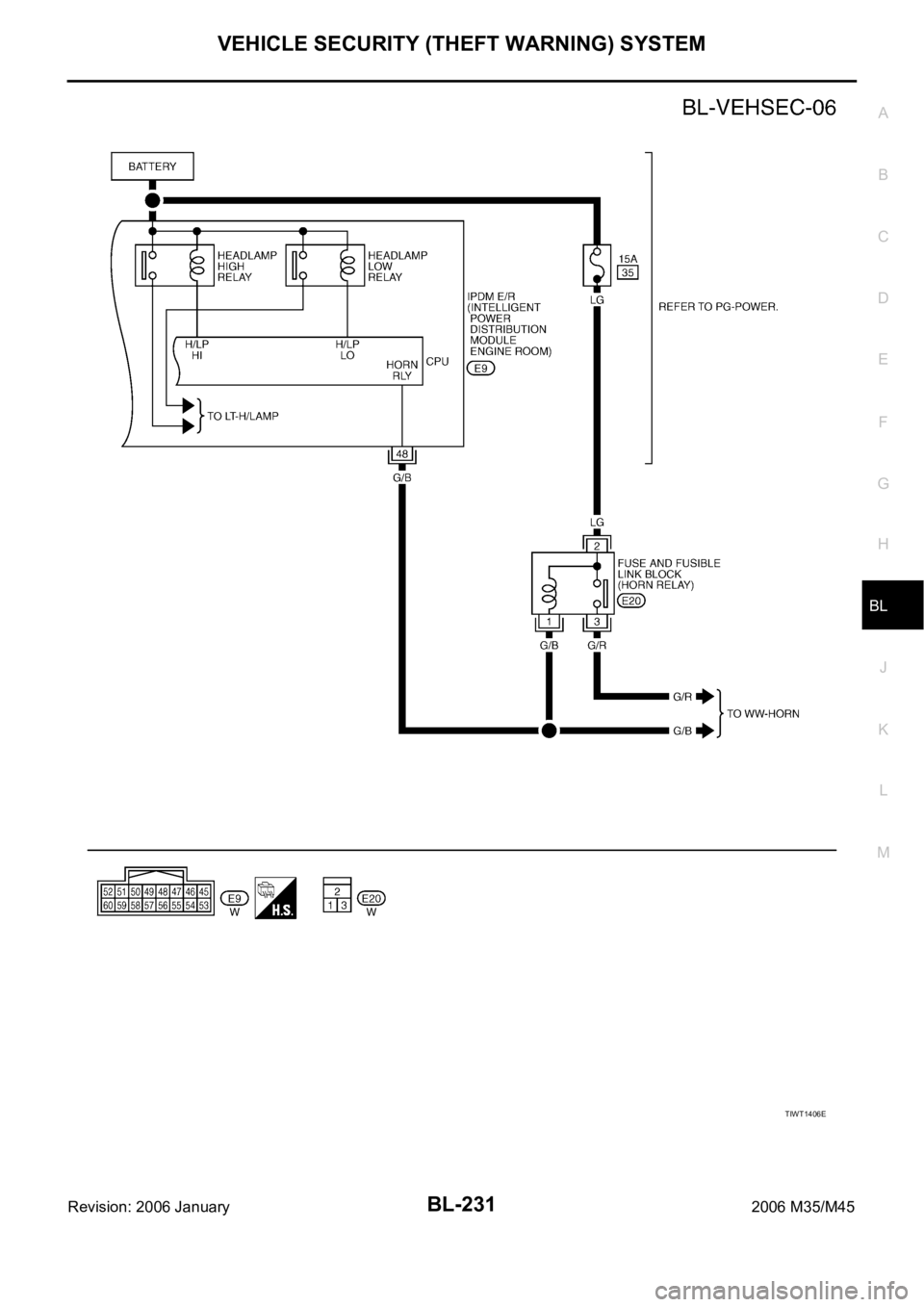

INFINITI M35 2006 Factory Service Manual BL-230
VEHICLE SECURITY (THEFT WARNING) SYSTEM
Revision: 2006 January2006 M35/M45
TIWT1309E

Page 1170 of 5621

INFINITI M35 2006 Factory Service Manual VEHICLE SECURITY (THEFT WARNING) SYSTEM
BL-231
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 January2006 M35/M45
TIWT1406E

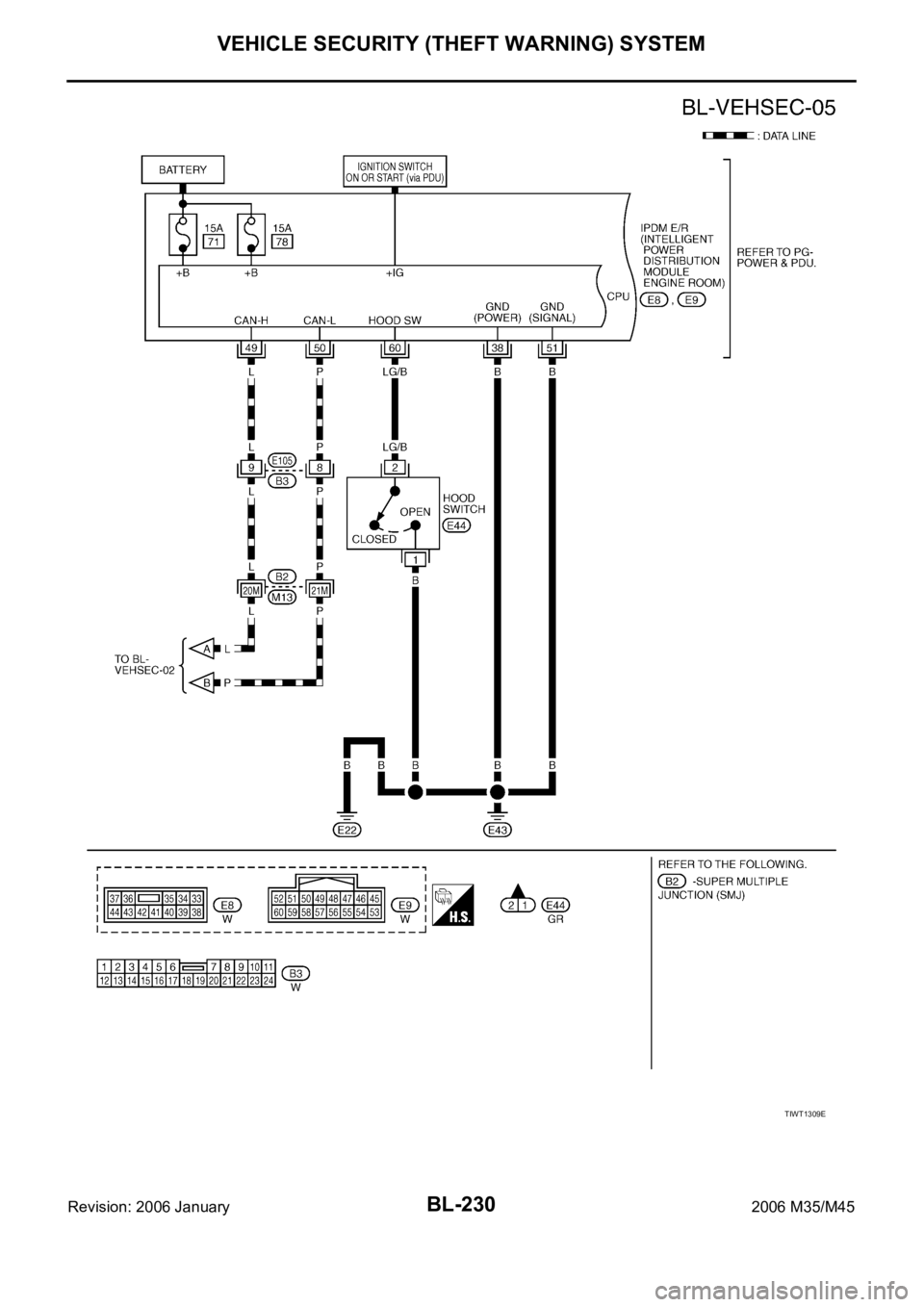

Page 1171 of 5621

INFINITI M35 2006 Factory Service Manual BL-232
VEHICLE SECURITY (THEFT WARNING) SYSTEM
Revision: 2006 January2006 M35/M45
Terminals and Reference Value of BCMNIS001ZZ
Terminals and Reference Value of IPDM E/RNIS00200
Terminal Wire color It

Page 1172 of 5621

INFINITI M35 2006 Factory Service Manual VEHICLE SECURITY (THEFT WARNING) SYSTEM
BL-233
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 January2006 M35/M45

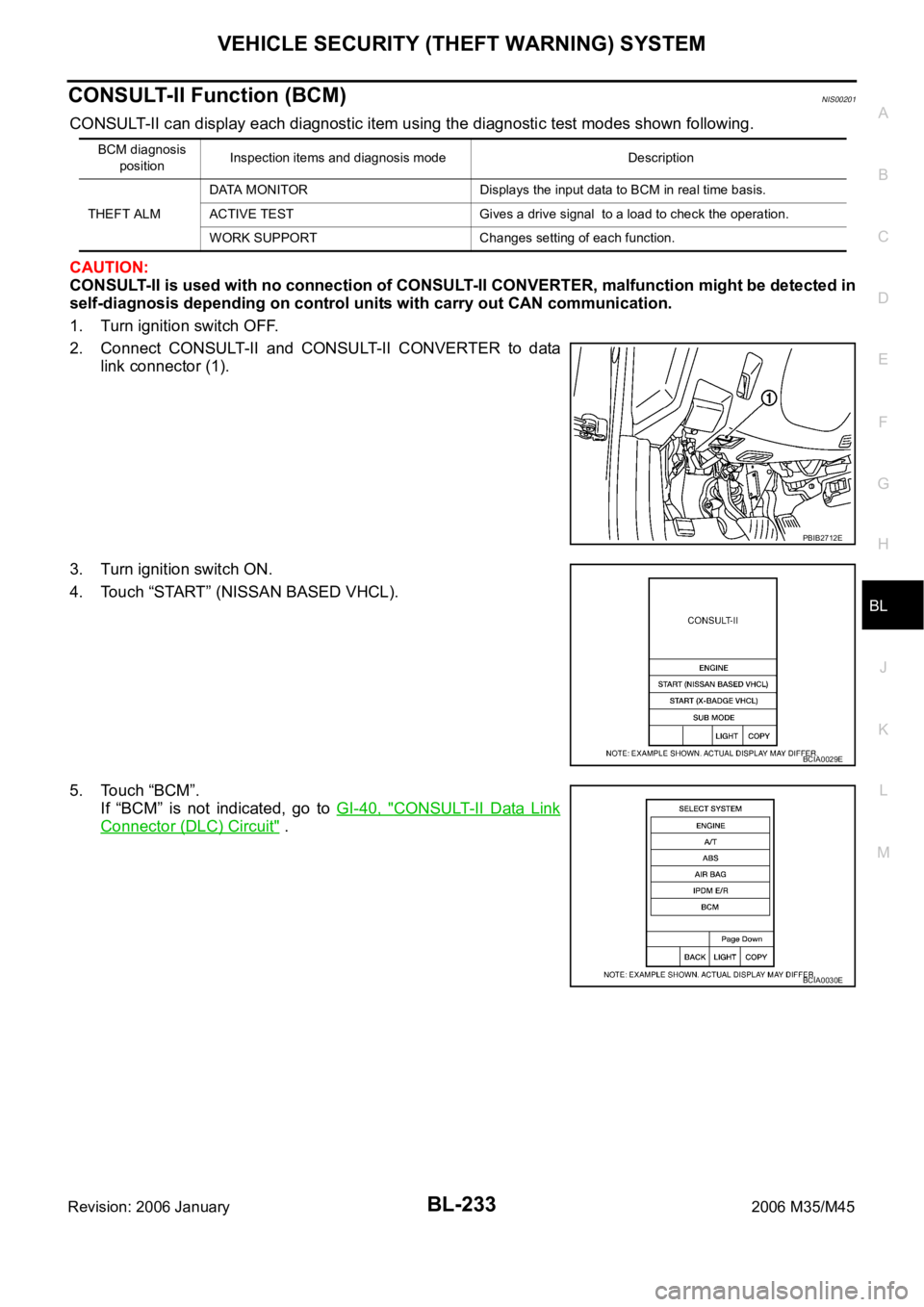

CONSULT-II Function (BCM)NIS00201
CONSULT-II can display each diagnostic item using the diag

Page 1173 of 5621

INFINITI M35 2006 Factory Service Manual BL-234
VEHICLE SECURITY (THEFT WARNING) SYSTEM
Revision: 2006 January2006 M35/M45
6. Touch “THEFT ALM”.
7. Select diagnosis mode.
“WORK SUPPORT”, “DATA MONITOR” and “ACTIVE TEST”
CONS

BL-234
VEHICLE SECURITY (THEFT WARNING) SYSTEM
Revision: 2006 January2006 M35/M45
6. Touch “THEFT ALM”.
7. Select diagnosis mode.
“WORK SUPPORT”, “DATA MONITOR” and “ACTIVE TEST”
CONSULT-II APPLICATION ITEM
Work Support
Data Monitor
PIIA9936E
BCIA0031E
Test Item Description
SECURITY ALARM SET This mode is able to confirm and change security alarm ON-OFF setting.
THEFT ALM TRGThe switch which triggered vehicle security alarm is recorded. This mode is able to confirm and
erase the record of vehicle security alarm. The trigger data can be erased by touching “CLEAR”
on CONSULT-II screen.
Monitored Item Description
IGN ON SW Indicates [ON/OFF] condition of ignition switch.
ACC ON SW Indicates [ON/OFF] condition of ignition switch in ACC position.
KEY ON SW Indicates [ON/OFF] condition of key switch.
I-KEY DR UNLK Indicates [ON/OFF] condition of unlock signal from driver side door request switch.
I-KEY AS UNLK Indicates [ON/OFF] condition of unlock signal from passenger side door request switch.
I-KEY LOCK Indicates [ON/OFF] condition of lock signal from Intelligent Key.
I-KEY UNLOCK Indicates [ON/OFF] condition of unlock signal from Intelligent Key.
I-KEY TRNK/HAT Indicates [ON/OFF] condition of trunk opener signal from Intelligent Key.
TRUNK OPNR SW This is displayed even when it is not equipped.
TRUNK CYL SW This is displayed even when it is not equipped.
TRUNK OPN MNTR Indicates [ON/OFF] condition of trunk room lamp switch.
HOOD SW Indicates [ON/OFF] condition of hood switch.
DOOR SW-DR Indicates [ON/OFF] condition of front door switch LH.
DOOR SW-AS Indicates [ON/OFF] condition of front door switch RH.
DOOR SW-RR Indicates [ON/OFF] condition of rear door switch RH.
DOOR SW-RL Indicates [ON/OFF] condition of rear door switch LH.
BACK DOOR SW This is displayed even when it is not equipped.
KEY CYL LK-SW Indicates [ON/OFF] condition of lock signal from front door key cylinder switch.
KEY CYL UN-SW Indicates [ON/OFF] condition of unlock signal from front door key cylinder switch.

Page 1174 of 5621

INFINITI M35 2006 Factory Service Manual VEHICLE SECURITY (THEFT WARNING) SYSTEM
BL-235
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 January2006 M35/M45
Active Test
Trouble Diagnosis Work FlowNIS00202
1. CHECK IN
Listen to customer complaint.
>>

Page 1175 of 5621

INFINITI M35 2006 Factory Service Manual BL-236
VEHICLE SECURITY (THEFT WARNING) SYSTEM
Revision: 2006 January2006 M35/M45
2. CHECK SECURITY INDICATOR LAMP
1. Lock doors using Intelligent Key or mechanical key.
2. Make sure security indicato

Page 1176 of 5621

INFINITI M35 2006 Factory Service Manual VEHICLE SECURITY (THEFT WARNING) SYSTEM
BL-237
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2006 January2006 M35/M45
Trouble Diagnosis Symptom ChartNIS00204
*: Make sure the system is in the armed phase.Proced
